PRACTICAL INFORMATION

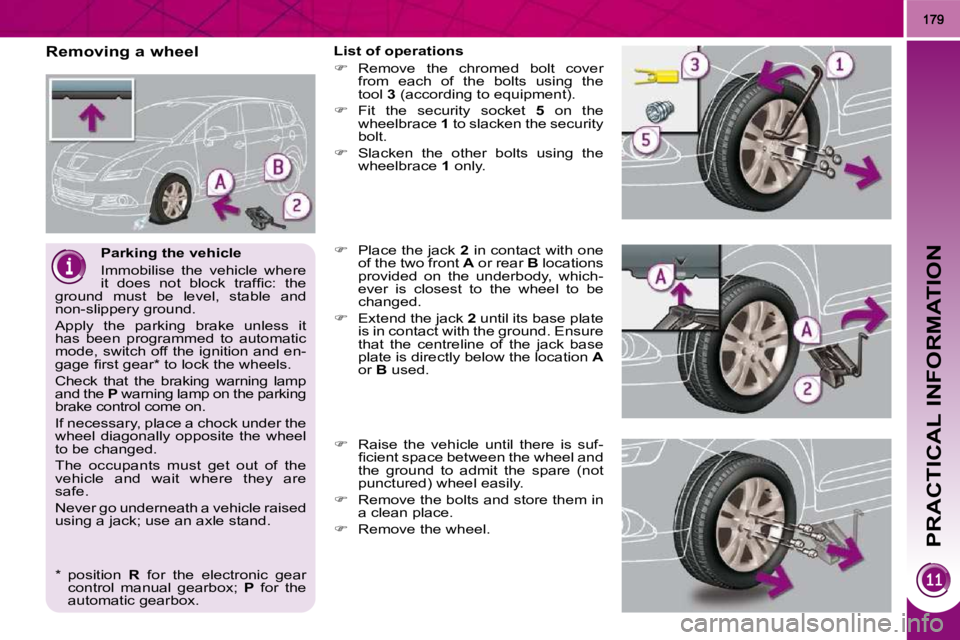

Parking the vehicle
Immobilise the vehicle where
it does not block traffi c: the
ground must be level, stable and
non-slippery ground.
Apply the parking brake unless it
has been programmed to automatic
mode, switch off the ignition and en-
gage fi rst gear * to lock the wheels.
Check that the braking warning lamp
and the P warning lamp on the parking
brake control come on.
If necessary, place a chock under the
wheel diagonally opposite the wheel
to be changed.
The occupants must get out of the
vehicle and wait where they are
safe.
Never go underneath a vehicle raised
using a jack; use an axle stand.
Removing a wheel
List of operations

 Remove the chromed bolt cover
from each of the bolts using the
tool 3 (according to equipment).

 Fit the security socket 5 on the
wheelbrace 1 to slacken the security
bolt.

 Slacken the other bolts using the
wheelbrace 1 only.

 Place the jack 2 in contact with one
of the two front A or rear B locations
provided on the underbody, which-
ever is closest to the wheel to be
changed.

 Extend the jack 2 until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B used.

 Raise the vehicle until there is suf-
fi cient space between the wheel and
the ground to admit the spare (not
punctured) wheel easily.

 Remove the bolts and store them in
a clean place.

 Remove the wheel.
* position R for the electronic gear
control manual gearbox; P for the
automatic gearbox.

PRACTICAL INFORMATION
180
After changing a wheel
To store the punctured wheel in the boot
correctly, fi rst remove the central cover.
When using the "space-saver" type
spare wheel, do not exceed 50 mph
(80 km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a PEUGEOT dealer without delay.
Have the punctured wheel repaired
and replace it on the vehicle as soon as
possible.
Fitting a wheel
List of operations

 Put the wheel in place on the hub
using the centring guide 4 .

 Screw in the bolts by hand to the
stop.

 Pre-tighten the security bolt us-
ing the wheelbrace 1 fi tted with the
security socket 5 .

 Pre-tighten the other bolts using the
wheelbrace 1 only.

 Lower the vehicle fully.

 Fold the jack 2 and detach it.

 Tighten the security bolt using the
wheelbrace 1 fi tted with the security
socket 5 .

 Tighten the other bolts using the
wheelbrace 1 only.

 Refi t the chromed bolt covers on
each of the bolts (according to
equipment).

 Store the tools in the box.

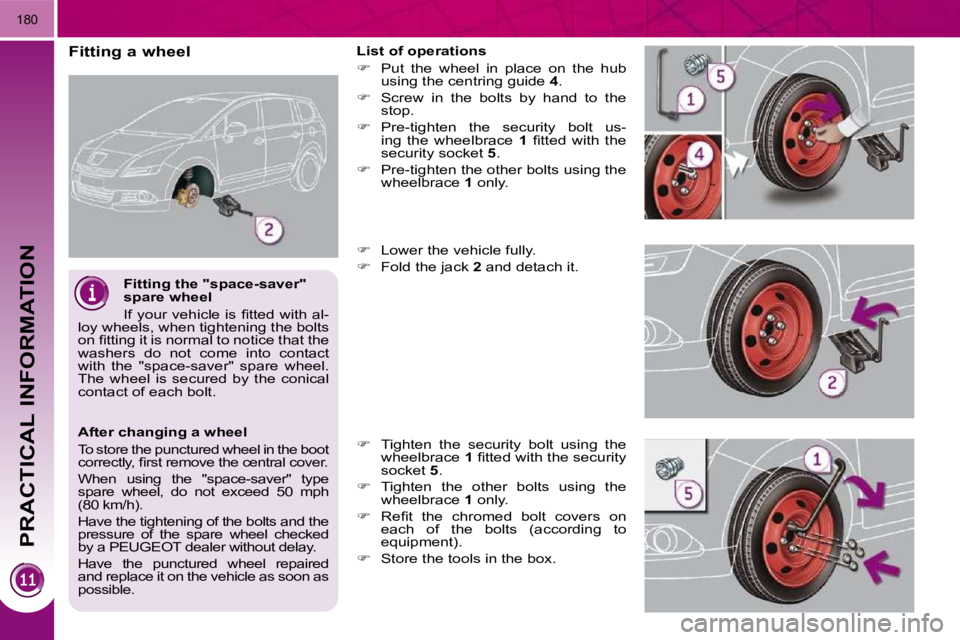

Fitting the "space-saver"
spare wheel
If your vehicle is fi tted with al-
loy wheels, when tightening the bolts
on fi tting it is normal to notice that the
washers do not come into contact
with the "space-saver" spare wheel.
The wheel is secured by the conical
contact of each bolt.

PRACTICAL INFORMATION
181
Risk of electrocution
Xenon bulbs (D1S-35W) must
be replaced by a PEUGEOT
dealer.
CHANGING A BULB
Procedure for replacing a faulty bulb with
a new bulb without the use of tools.

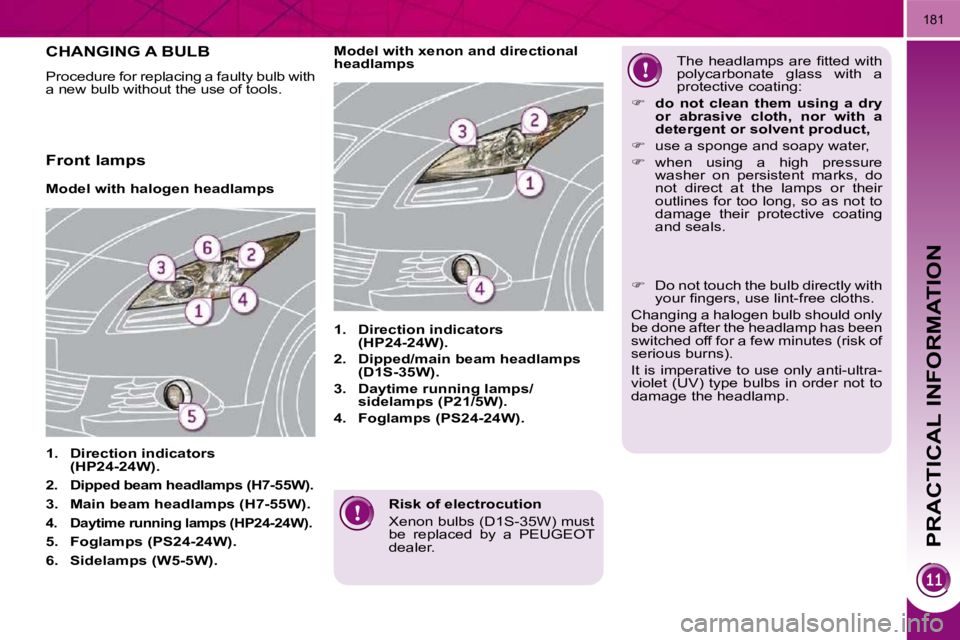

Model with halogen headlamps

1. Direction indicators
(HP24-24W).

2. Dipped
beam
headlamps (H7-55W).

3. Main beam headlamps (H7-55W).

4. Daytime
running lamps
(HP24-24W).

5. Foglamps
(PS24-24W).

6. Sidelamps
(W5-5W).
1. Direction indicators
(HP24-24W).

2. Dipped/main beam headlamps
(D1S-35W).

3. Daytime running lamps/
sidelamps (P21/5W).

4. Foglamps (PS24-24W).
Model with xenon and dir
ectional
headlamps The headlamps are fi tted with
polycarbonate glass with a
protective coating:

 do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,

 use a sponge and soapy water,

 when using a high pressure
washer on persistent marks, do
not direct at the lamps or their
outlines for too long, so as not to
damage their protective coating
and seals.
Front lamps

 Do not touch the bulb directly with
your fi ngers, use lint-free cloths.
Changing a halogen bulb should only
be done after the headlamp has been
switched off for a few minutes (risk of
serious burns).
It is imperative to use only anti-ultra-
violet (UV) type bulbs in order not to
damage the headlamp.

PRACTICAL INFORMATION
182

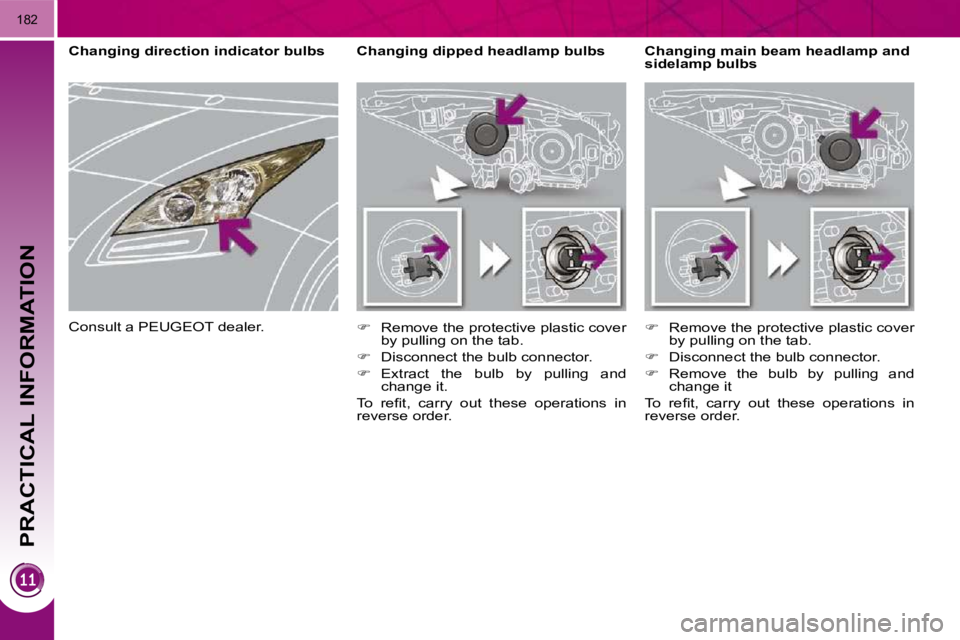

Changing main beam headlamp and
sidelamp bulbs
Changing dipped headlamp bulbs

 Remove the protective plastic cover
by pulling on the tab.

 Disconnect the bulb connector.

 Extract the bulb by pulling and
change it.
To refi t, carry out these operations in
reverse order.
 Remove the protective plastic cover
by pulling on the tab.

 Disconnect the bulb connector.

 Remove the bulb by pulling and
change it
To refi t, carry out these operations in
reverse order.
Changing direction indicator bulbs
Consult a PEUGEOT dealer.

PRACTICAL INFORMATION
183
Changing sidelamp bulbs
(xenon model)

 Remove the protective plastic cover
by pulling on the tab.

 Disconnect the bulb connector.

 Remove the bulb by pulling and
change it.
To refi t, carry out these operations in
reverse order. Changing foglamp bulbs
You can also contact a
PEUGEOT dealer to have
these bulbs changed. Consult a PEUGEOT dealer.

 Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.

 Tilt the screwdriver to extract the
repeater and remove it.

 Disconnect the repeater connector.
To refi t, carry out these operations in
reverse order.
Contact a PEUGEOT dealer to obtain
replacement repeaters.
Changing integrated direction
indicator side repeaters
Changing daytime running
lamp bulbs

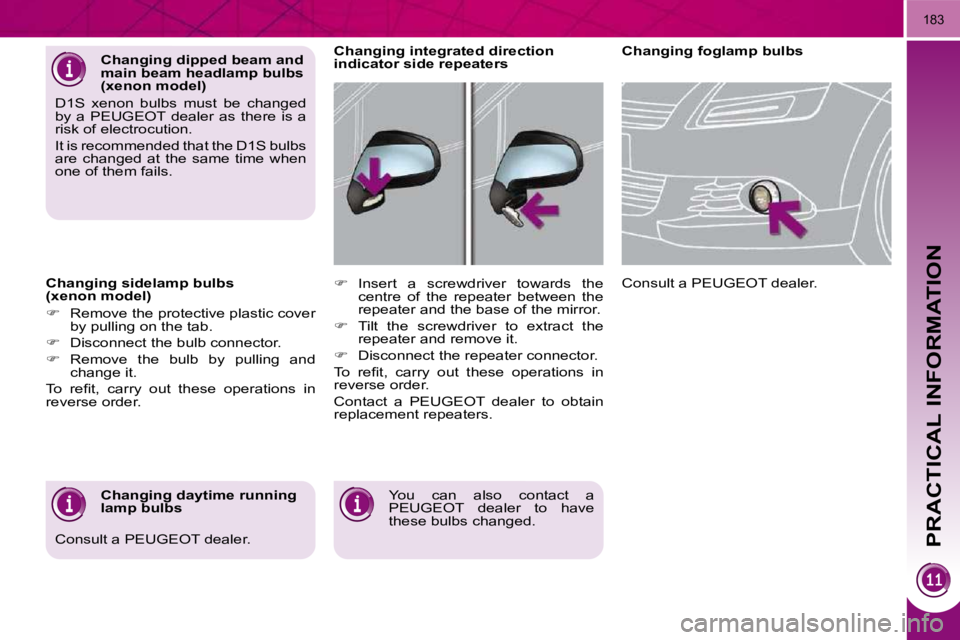

Consult a PEUGEOT dealer. Changing dipped beam and
main beam headlamp bulbs
(xenon model)
D1S xenon bulbs must be changed
by a PEUGEOT dealer as there is a
risk of electrocution.
It is recommended that the D1S bulbs
are changed at the same time when
one of them fails.

PRACTICAL INFORMATION
184

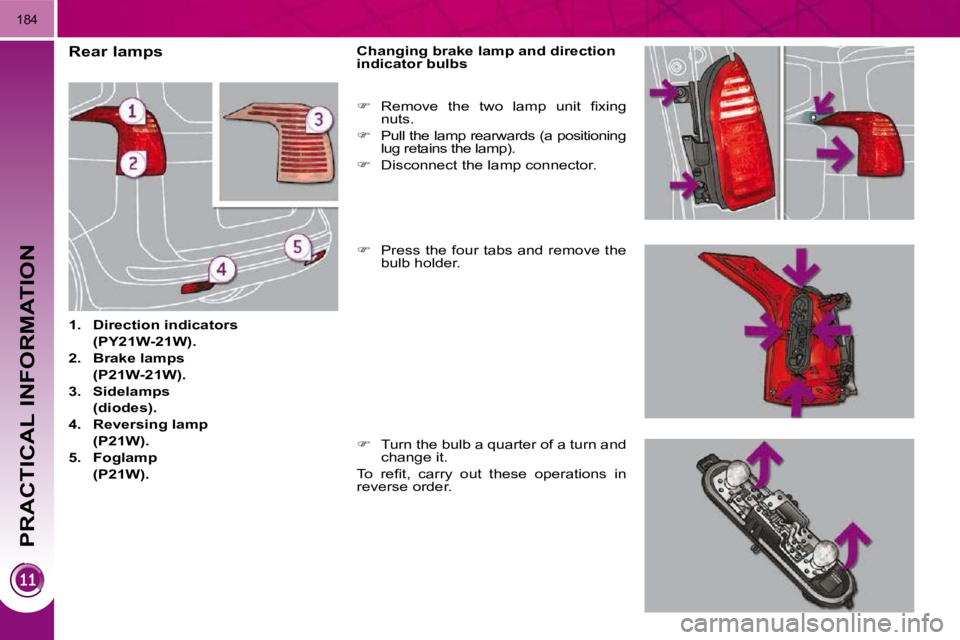

Rear lamps

1. Direction indicators
(PY21W-21W).

2. Brake lamps

(P21W-21W).

3. Sidelamps
(diodes).

4. Reversing lamp

(P21W).

5. Foglamp

(P21W). Changing brake lamp and direction
indicator bulbs

 Press the four tabs and remove the
bulb holder.

 Remove the two lamp unit fi xing
nuts.

 Pull the lamp rearwards (a positioning
lug retains the lamp).

 Disconnect the lamp connector.

 Turn the bulb a quarter of a turn and
change it.
To refi t, carry out these operations in
reverse order.

PRACTICAL INFORMATION
185

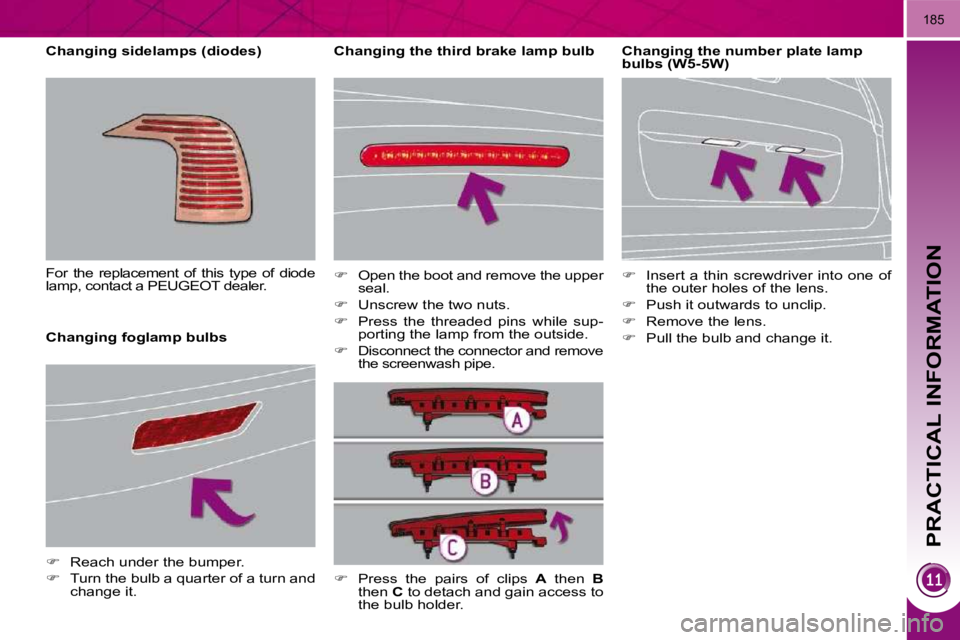

Changing the third brake lamp bulb Changing the number plate lamp
bulbs (W5-5W)

 Insert a thin screwdriver into one of
the outer holes of the lens.

 Push it outwards to unclip.

 Remove the lens.

 Pull the bulb and change it.
Changing foglamp bulbs

 Reach under the bumper.

 Turn the bulb a quarter of a turn and
change it.
 Open the boot and remove the upper
seal.

 Unscrew the two nuts.

 Press the threaded pins while sup-
porting the lamp from the outside.

 Disconnect the connector and remove
the screenwash pipe.

 Press the pairs of clips A then B
then C to detach and gain access to
the bulb holder.
Changing sidelamps (diodes)
For the replacement of this type of diode
lamp, contact a PEUGEOT dealer.

PRACTICAL INFORMATION
186
PEUGEOT will not accept
responsibility for the cost
incurred in repairing your
vehicle or for rectifying malfunc-
tions resulting from the installation
of accessories not supplied and not
recommended by PEUGEOT and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected

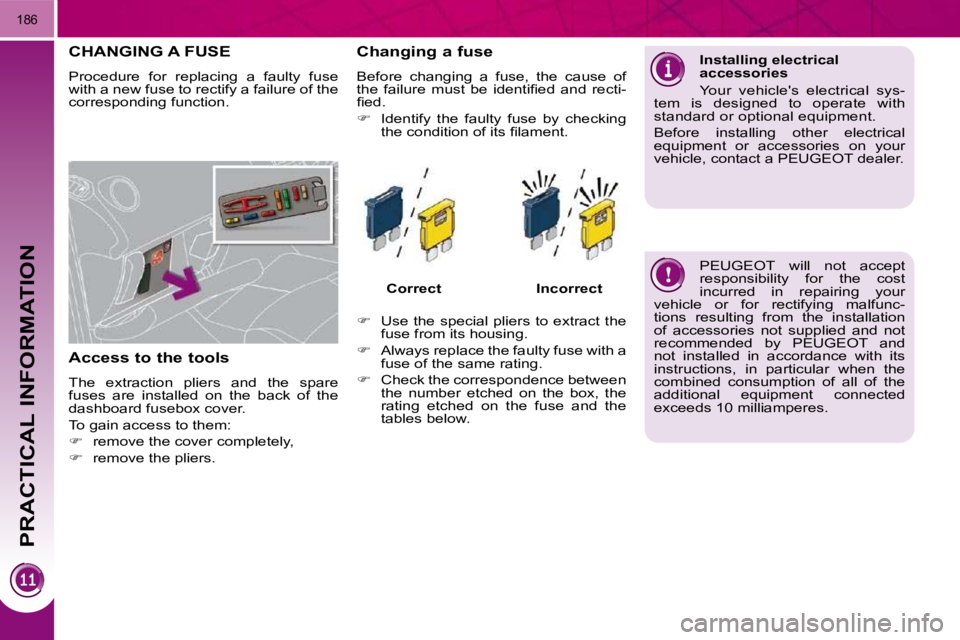

exceeds 10 milliamperes. Installing electrical
accessories
Your vehicle's electrical sys-
tem is designed to operate with
standard or optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer.
CHANGING A FUSE
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
corresponding function.
Access to the tools
The extraction pliers and the spare
fuses are installed on the back of the
dashboard fusebox cover.
To gain access to them:

 remove the cover completely,

 remove the pliers. Changing a fuse
Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.

 Identify the faulty fuse by checking
the condition of its fi lament.

 Use the special pliers to extract the
fuse from its housing.

 Always replace the faulty fuse with a
fuse of the same rating.

 Check the correspondence between
the number etched on the box, the
rating etched on the fuse and the
tables below.
Correct Incorrect

PRACTICAL INFORMATION
187

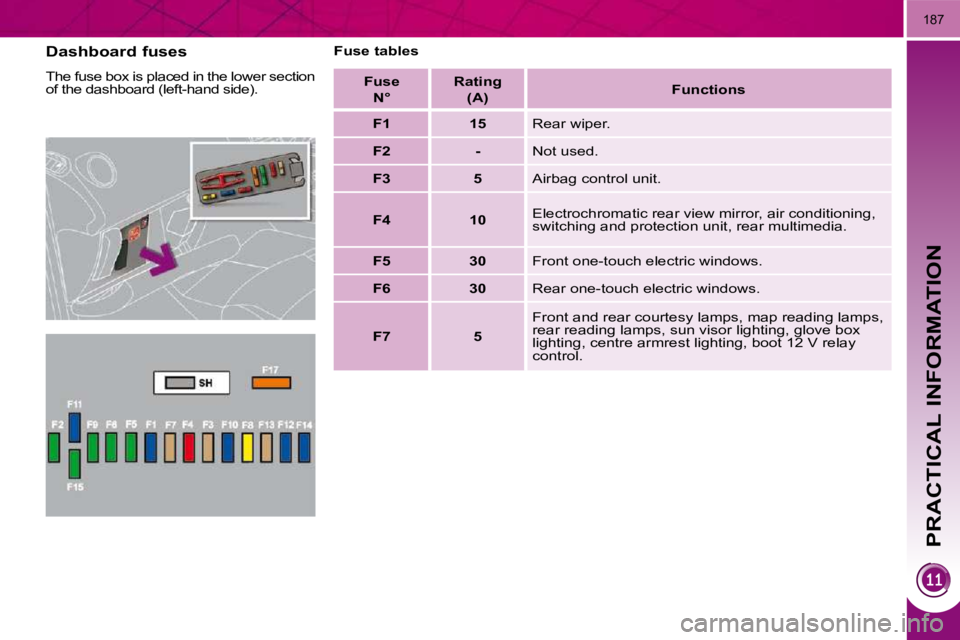

Dashboard fuses
The fuse box is placed in the lower section
of the dashboard (left-hand side). Fuse tables
F us e N° Ratin g
(A) Functions
F1 15 Rear wiper.
F2 - Not used.
F3 5 Airbag control unit.
F4 10 Electrochromatic rear view mirror, air conditioning,
switching and protection unit, rear multimedia.
F5 30 Front one-touch electric windows.
F6 30 Rear one-touch electric windows.
F7 5 Front and rear courtesy lamps, map reading lamps,
rear reading lamps, sun visor lighting, glove box
lighting, centre armrest lighting, boot 12 V relay
control.

PRACTICAL INFORMATION
188

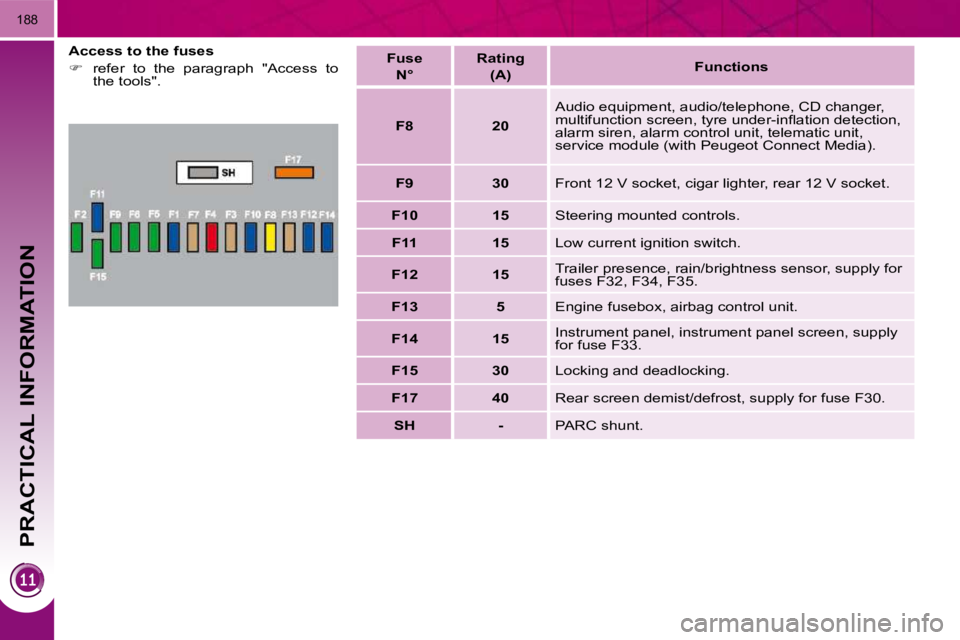

Access to the fuses

 refer to the paragraph "Access to
the tools". Fuse
N° Rating
(A) Functions
F8 20 Audio equipment, audio/telephone, CD changer,
multifunction screen, tyre under-infl ation detection,
alarm siren, alarm control unit, telematic unit,
service module (with Peugeot Connect Media).
F9 30 Front 12 V socket, cigar lighter, rear 12 V socket.
F10 15 Steering mounted controls.
F11 15 Low current ignition switch.
F12 15 Trailer presence, rain/brightness sensor, supply for
fuses F32, F34, F35.
F13 5 Engine fusebox, airbag control unit.
F14 15 Instrument panel, instrument panel screen, supply
for fuse F33.
F15 30 Locking and deadlocking.
F17 40 Rear screen demist/defrost, supply for fuse F30.
SH - PARC shunt.
