PEUGEOT 5008 2012 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2012, Model line: 5008, Model: PEUGEOT 5008 2012Pages: 340, PDF Size: 16.42 MB
Page 151 of 340

D
R
149

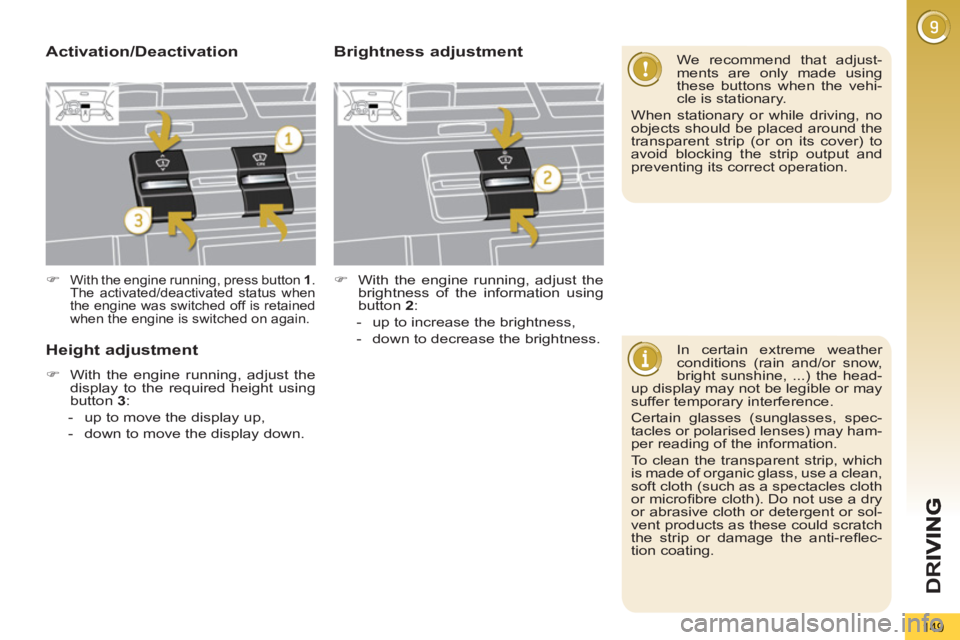

In certain extreme weather
conditions (rain and/or snow,
bright sunshine, ...) the head-
up display may not be legible or may
suffer temporary interference.
Certain glasses (sunglasses, spec-
tacles or polarised lenses) may ham-
per reading of the information.
To clean the transparent strip, which
is made of organic glass, use a clean,
soft cloth (such as a spectacles cloth
or microfi bre cloth). Do not use a dry
or abrasive cloth or detergent or sol-
vent products as these could scratch
the strip or damage the anti-refl ec-
tion coating.
We recommend that adjust-
ments are only made using
these buttons when the vehi-
cle is stationary.
When stationary or while driving, no
objects should be placed around the
transparent strip (or on its cover) to
avoid blocking the strip output and
preventing its correct operation.
)
With the engine running, press button 1
.
The activated/deactivated status when
the engine was switched off is retained
when the engine is switched on again.
Height adjustment
)
With the engine running, adjust the
display to the required height using
button 3
:
- up to move the display up,
- down to move the display down.
Activation/Deactivation Brightness adjustment
)
With the engine running, adjust the
brightness of the information using
button 2
:
- up to increase the brightness,
- down to decrease the brightness.
Page 152 of 340

D
R
I
150

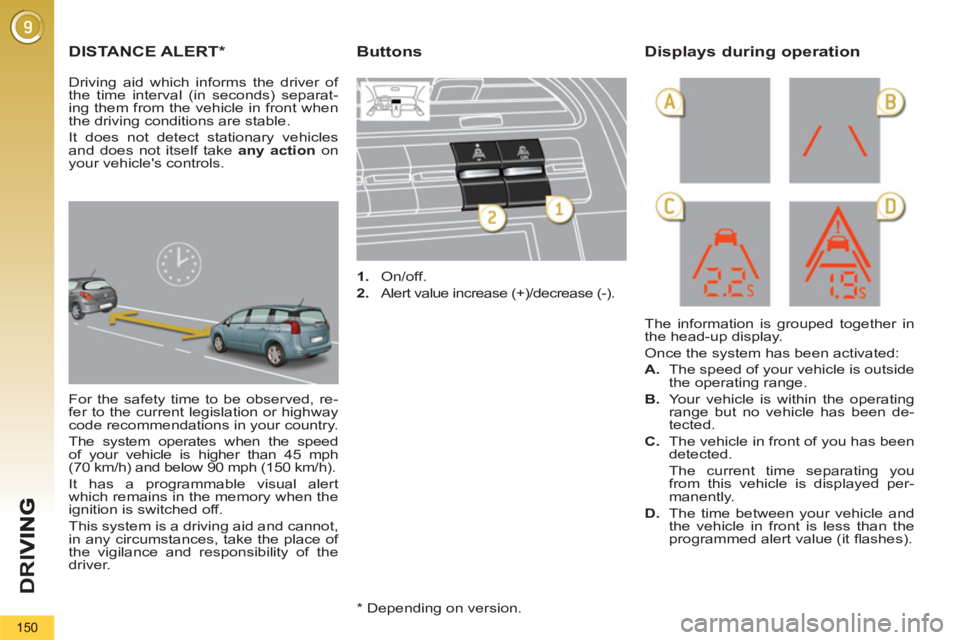

DISTANCE ALERT *
For the safety time to be observed, re-
fer to the current legislation or highway
code recommendations in your country.
The system operates when the speed
of your vehicle is higher than 45 mph
(70 km/h) and below 90 mph (150 km/h).
It has a programmable visual alert
which remains in the memory when the
ignition is switched off.
This system is a driving aid and cannot,
in any circumstances, take the place of
the vigilance and responsibility of the
driver.
1.
On/off.
2.
Alert value increase (+)/decrease (-).
The information is grouped together in
the head-up display.
Once the system has been activated:
A.
The speed of your vehicle is outside
the operating range.
B.
Your vehicle is within the operating
range but no vehicle has been de-
tected.
C.
The vehicle in front of you has been
detected.
The current time separating you
from this vehicle is displayed per-
manently.
D.
The time between your vehicle and
the vehicle in front is less than the
programmed alert value (it fl ashes).
Buttons Displays during operation
Driving aid which informs the driver of
the time interval (in seconds) separat-
ing them from the vehicle in front when
the driving conditions are stable.
It does not detect stationary vehicles
and does not itself take any action
on
your vehicle's controls.
*
Depending on version.
