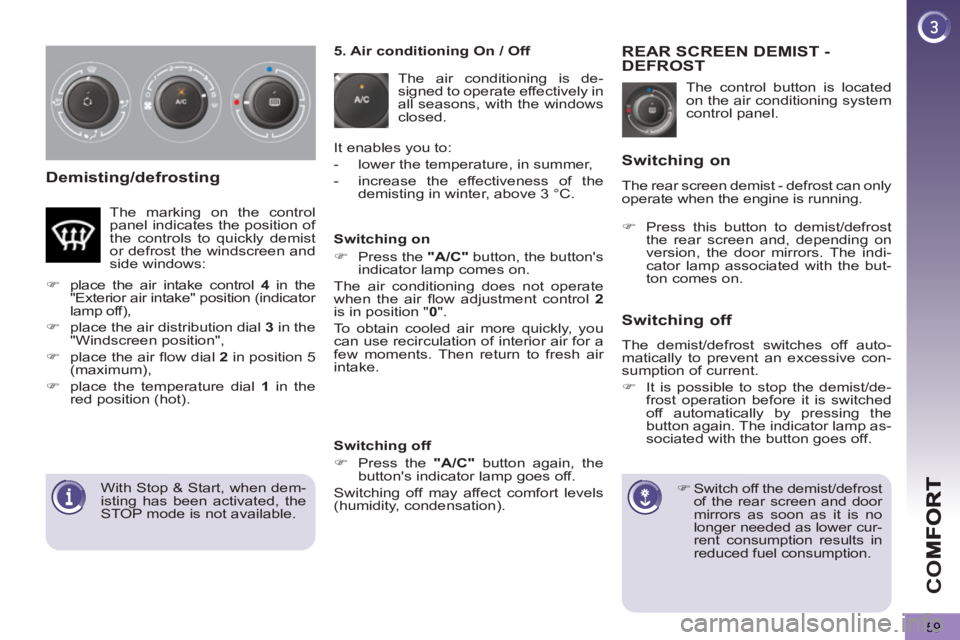

Demisting/defrosting
The control button is located
on the air conditioning system
control panel.
REAR SCREEN DEMIST -DEFROST
)
Switch off the demist/defrost
of the rear screen and door
mirrors as soon as it is no
longer needed as lower cur-
rent consumption results in
reduced fuel consumption.
Switching on
Switchin
g off
The demist/defrost switches off auto-
matically to prevent an excessive con-
sumption of current.
)
It is possible to stop the demist/de-
frost operation before it is switched
off automatically by pressing the
button again. The indicator lamp as-
sociated with the button goes off.
5. Air conditioning On / Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the
demisting in winter, above 3 °C.
Switching on
)
Press the "A/C"
button, the button's
indicator lamp comes on.
The air conditioning does not operate
when the air fl ow adjustment control 2
is in position " 0
".
To obtain cooled air more quickly, you
can use recirculation of interior air for a
few moments. Then return to fresh air
intake. The marking on the control
panel indicates the position of
the controls to quickly demist
or defrost the windscreen and
side windows:
)
place the air intake control 4
in the
"Exterior air intake" position (indicator
lamp off),
)
place the air distribution dial 3
in the
"Windscreen position",
)
place the air fl ow dial 2
in position 5
(maximum),
)
place the temperature dial 1
in the
red position (hot).
Switching off
)
Press the "A/C"
button again, the
button's indicator lamp goes off.
Switching off may affect comfort levels
(humidity, condensation).
With Stop & Start, when dem-
isting has been activated, the
STOP mode is not available.
)
Press this button to demist/defrost
the rear screen and, depending on
version, the door mirrors. The indi-
cator lamp associated with the but-
ton comes on.
The rear screen demist - defrost can only
operate when the engine is running.
Page 62 of 364
CO
60
On entering the vehicle, if the
interior temperature is much
colder or warmer than the
comfort value, there is no need to
change the value displayed in order
to obtain the comfort required more
quickly. The system corrects the dif-
ference in temperature automatically
and as quickly as possible.
The air conditioning only operates when
the engine is running. The driver and front passenger
can each adjust the tempera-
ture to their requirements.
)
Turn control 2
or 3
to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depend-
ing on your requirements, a setting be-
tween 18 and 24 is normal.
You are advised to avoid a left / right
setting difference of more than 3.
4. Automatic visibility programme
The automatic comfort pro-
gramme may not be suffi cient
to quickly demist or defrost the
windscreen and side windows
(humidity, several passengers,
ice, etc.).
)
In this case, select the automatic
visibility programme.
The system automatically controls the
air conditioning, the air fl ow and the air
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.
Automatic operation
)
Press the "AUTO"
button.
The indicator lamp on the
button comes on.

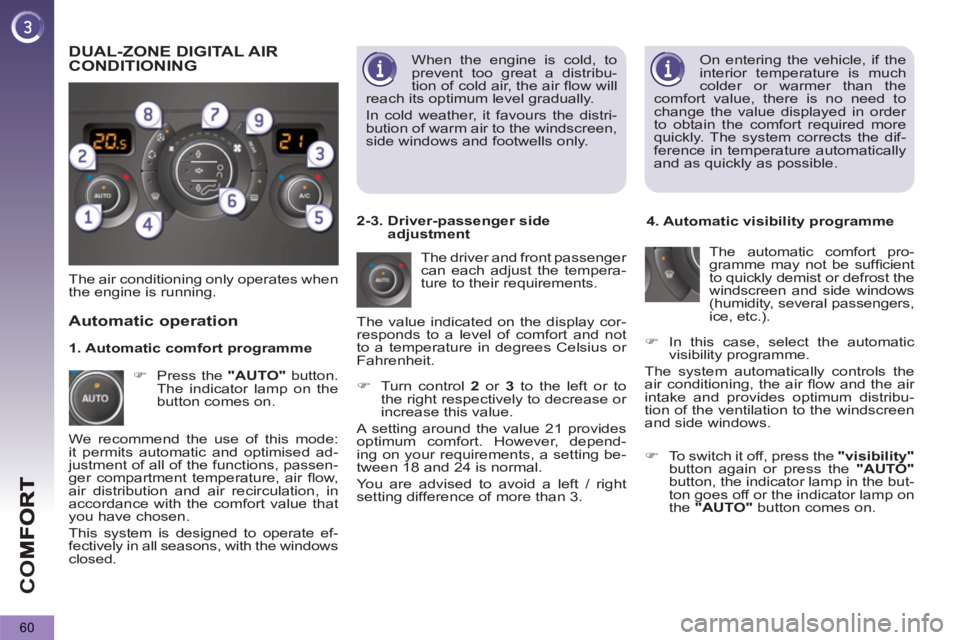

DUAL-ZONE DIGITAL AIR
CONDITIONING
We recommend the use of this mode:
it permits automatic and optimised ad-
justment of all of the functions, passen-
ger compartment temperature, air fl ow,
air distribution and air recirculation, in
accordance with the comfort value that
you have chosen.
This system is designed to operate ef-
fectively in all seasons, with the windows
closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
)
To switch it off, press the "visibility"
button again or press the "AUTO"
button, the indicator lamp in the but-
ton goes off or the indicator lamp on
the "AUTO"
button comes on.
1. Automatic comfort programme
2-3. Driver-passenger side
adjustment
When the engine is cold, to
prevent too great a distribu-
tion of cold air, the air fl ow will
reach its optimum level gradually.
In cold weather, it favours the distri-
bution of warm air to the windscreen,
side windows and footwells only.
Page 63 of 364
CO
61

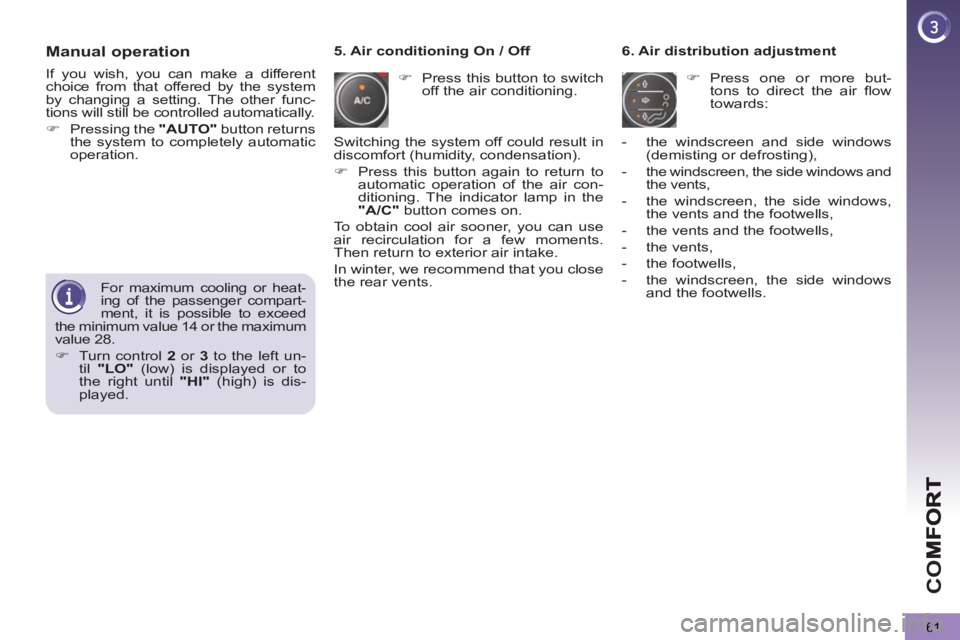

Manual operation
)
Press this button to switch
off the air conditioning.
6. Air distribution adjustment
)
Press one or more but-
tons to direct the air fl ow
towards:
5. Air conditioning On / Off
- the windscreen and side windows
(demisting or defrosting),
- the windscreen, the side windows and
the vents,
- the windscreen, the side windows,
the vents and the footwells,
- the vents and the footwells,
- the vents,
- the footwells,
- the windscreen, the side windows
and the footwells.
For maximum cooling or heat-
ing of the passenger compart-
ment, it is possible to exceed
the minimum value 14 or the maximum
value 28.
)
Turn control 2
or 3
to the left un-
til "LO"
(low) is displayed or to
the right until "HI"
(high) is dis-
played.
Switching the system off could result in
discomfort (humidity, condensation).
)
Press this button again to return to
automatic operation of the air con-
ditioning. The indicator lamp in the
"A/C"
button comes on.
To obtain cool air sooner, you can use
air recirculation for a few moments.
Then return to exterior air intake.
In winter, we recommend that you close
the rear vents.
If you wish, you can make a different
choice from that offered by the system
by changing a setting. The other func-
tions will still be controlled automatically.
)
Pressing the "AUTO"
button returns
the system to completely automatic
operation.
Page 64 of 364
CO
62
Switching the system off/on
)
Turn the air fl ow control to the left un-
til all of the indicator lamps go off.
This action switches off all of the func-
tions of the system.
Temperature related comfort is no lon-
ger guaranteed but a slight fl ow of air,
due to the movement of the vehicle, can
still be felt.
)
Turn the air fl ow dial to the right or
press the "AUTO"
button to reacti-
vate the system with the values set
before it was switched off.
Avoid driving for prolonged
periods with the system off.

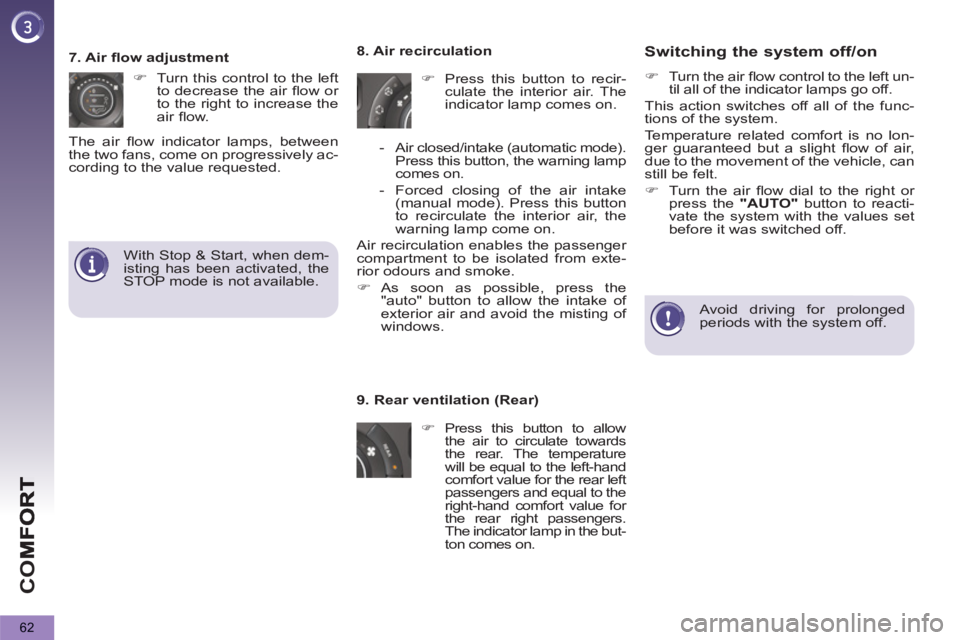

9. Rear ventilation (Rear)
)
Press this button to allow
the air to circulate towards
the rear. The temperature
will be equal to the left-hand
comfort value for the rear left
passengers and equal to the
right-hand comfort value for
the rear right passengers.
The indicator lamp in the but-
ton comes on.
8. Air recirculation
)
Press this button to recir-
culate the interior air. The
indicator lamp comes on.
- Air closed/intake (automatic mode).
Press this button, the warning lamp
comes on.
- Forced closing of the air intake
(manual mode). Press this button
to recirculate the interior air, the
warning lamp come on.
Air recirculation enables the passenger
compartment to be isolated from exte-
rior odours and smoke.
)
As soon as possible, press the
"auto" button to allow the intake of
exterior air and avoid the misting of
windows.
7. Air fl ow adjustment
)
Turn this control to the left
to decrease the air fl ow or
to the right to increase the
air fl ow.
The air fl ow indicator lamps, between
the two fans, come on progressively ac-
cording to the value requested.
With Stop & Start, when dem-
isting has been activated, the
STOP mode is not available.
Page 65 of 364
CO
63

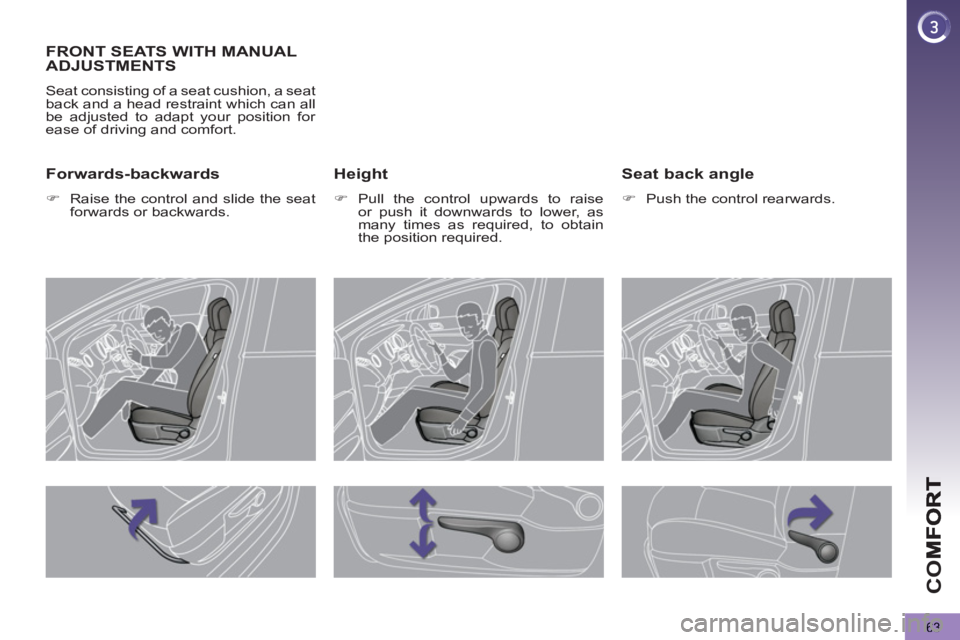

FRONT SEATS WITH MANUALADJUSTMENTS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
Height
)
Pull the control upwards to raise
or push it downwards to lower, as
many times as required, to obtain
the position required.
Seat back angle
)
Push the control rearwards.
Forwards-backwards
)
Raise the control and slide the seat
forwards or backwards.
Page 66 of 364
CO
64

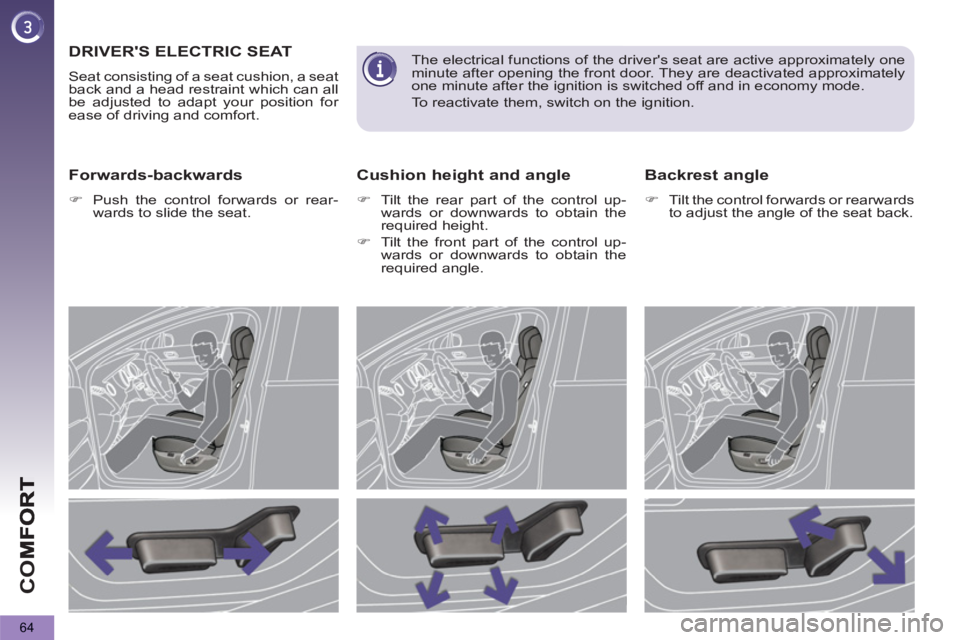

DRIVER'S ELECTRIC SEAT
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
Forwards-backwards
)
Push the control forwards or rear-
wards to slide the seat.
Cushion height and angle
)
Tilt the rear part of the control up-
wards or downwards to obtain the
required height.
)
Tilt the front part of the control up-
wards or downwards to obtain the
required angle.
Backrest angle
)
Tilt the control forwards or rearwards
to adjust the angle of the seat back.
The electrical functions of the driver's seat are active approximately one
minute after opening the front door. They are deactivated approximately
one minute after the ignition is switched off and in economy mode.
To reactivate them, switch on the ignition.
Page 67 of 364
CO
65

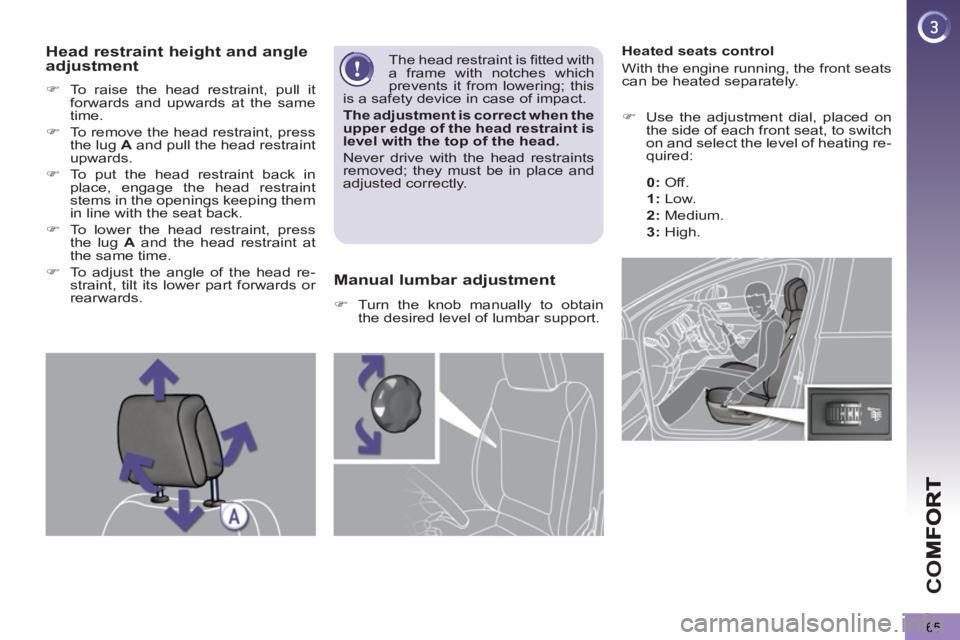

Heated seats control
With the engine running, the front seats
can be heated separately.
)
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:
0:
Off.
1
:
Low.
2
:
Medium.
3
:
High.
)
To raise the head restraint, pull it
forwards and upwards at the same
time.
)
To remove the head restraint, press
the lug A
and pull the head restraint
upwards.
)
To put the head restraint back in
place, engage the head restraint
stems in the openings keeping them
in line with the seat back.
)
To lower the head restraint, press
the lug A
and the head restraint at
the same time.
)
To adjust the angle of the head re-
straint, tilt its lower part forwards or
rearwards.
The head restraint is fi tted with
a frame with notches which
prevents it from lowering; this
is a safety device in case of impact.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Manual lumbar adjustment
)
Turn the knob manually to obtain
the desired level of lumbar support.
Head restraint height and angle adjustment
Page 68 of 364
CO
66

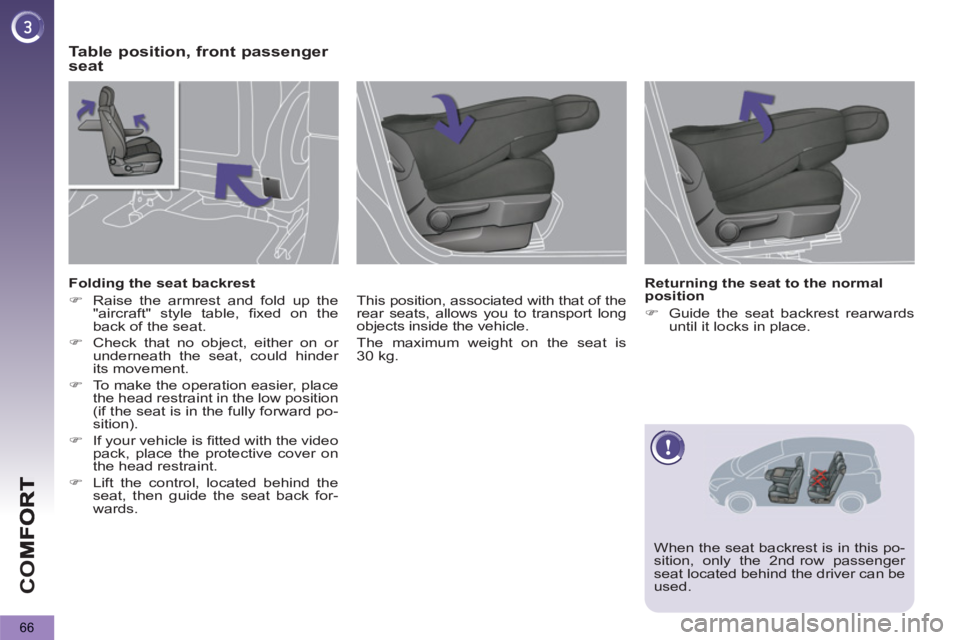

Table position, front passenger
seat
This position, associated with that of the
rear seats, allows you to transport long
objects inside the vehicle.
The maximum weight on the seat is
30 kg.
Folding the seat backrest
)
Raise the armrest and fold up the
"aircraft" style table, fi xed on the
back of the seat.
)
Check that no object, either on or
underneath the seat, could hinder
its movement.
)
To make the operation easier, place
the head restraint in the low position
(if the seat is in the fully forward po-
sition).
)
If your vehicle is fi tted with the video
pack, place the protective cover on
the head restraint.
)
Lift the control, located behind the
seat, then guide the seat back for-
wards.
Returning the seat to the normal
position
)
Guide the seat backrest rearwards
until it locks in place.
When the seat backrest is in this po-
sition, only the 2 nd
row passenger
seat located behind the driver can be
used.
Page 69 of 364
CO
67

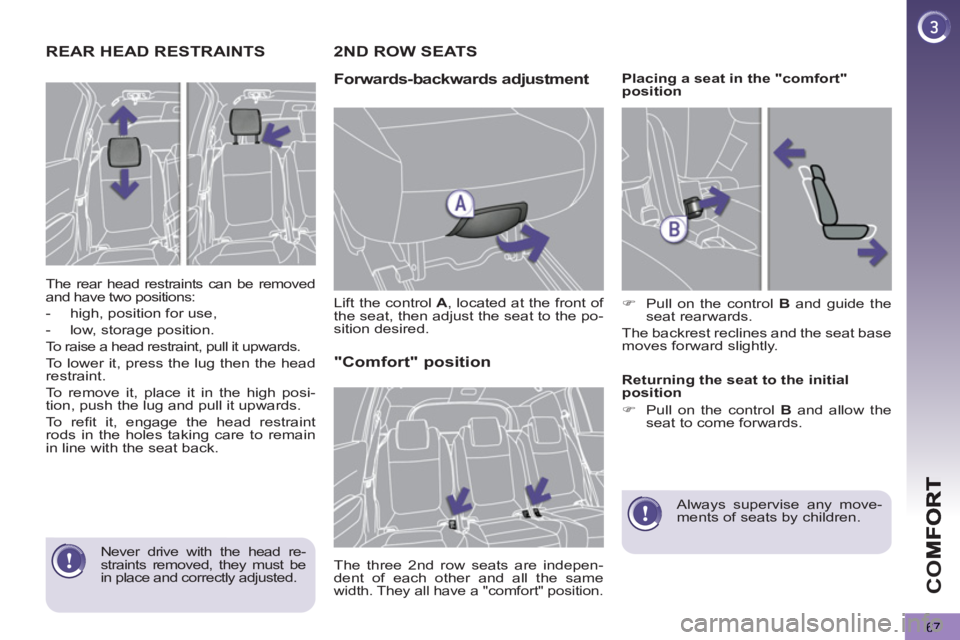

REAR HEAD RESTRAINTS
The rear head restraints can be removed
and have two positions:
- high, position for use,
- low, storage position.
To raise a head restraint, pull it upwards.
To lower it, press the lug then the head
restraint.
To remove it, place it in the high posi-
tion, push the lug and pull it upwards.
To r efi t it, engage the head restraint
rods in the holes taking care to remain
in line with the seat back.
2 NDROW SEATS
Forwards-backwards ad
justment
Lift the control A
, located at the front of
the seat, then adjust the seat to the po-
sition desired.
"Comfort" position
The three 2 nd row seats are indepen-
dent of each other and all the same
width. They all have a "comfort" position.
Placing a seat in the "comfort"
position
)
Pull on the control B
and guide the
seat rearwards.
The backrest reclines and the seat base
moves forward slightly.
Returning the seat to the initial
position
)
Pull on the control B
and allow the
seat to come forwards.
Always supervise any move-
ments of seats by children.
Never drive with the head re-
straints removed, they must be
in place and correctly adjusted.
Page 70 of 364
CO
68

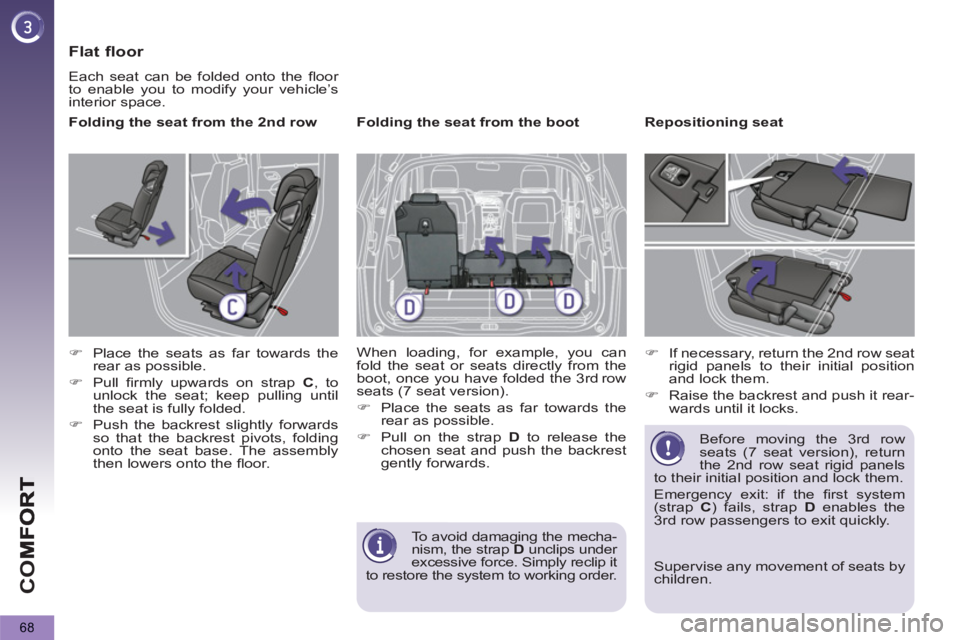

Flat floor
Each seat can be folded onto the fl oor
to enable you to modify your vehicle’s
interior space.
Folding the seat from the 2 nd row
)
Place the seats as far towards the
rear as possible.
)
Pull fi rmly upwards on strap C
, to
unlock the seat; keep pulling until
the seat is fully folded.
)
Push the backrest slightly forwards
so that the backrest pivots, folding
onto the seat base. The assembly
then lowers onto the fl oor.
Folding the seat from the boot
When loading, for example, you can
fold the seat or seats directly from the
boot, once you have folded the 3 rd
row
seats (7 seat version).
)
Place the seats as far towards the
rear as possible.
)
Pull on the strap D
to release the
chosen seat and push the backrest
gently forwards.
Repositioning seat
)
If necessary, return the 2 nd row seat
rigid panels to their initial position
and lock them.
)
Raise the backrest and push it rear-
wards until it locks.
Before moving the 3 rd row
seats (7 seat version), return
the 2
nd row seat rigid panels
to their initial position and lock them.
Emergency exit: if the fi rst system
(strap C
) fails, strap D
enables the
3 rd row passengers to exit quickly.
To avoid damaging the mecha-
nism, the strap D
unclips under
excessive force. Simply reclip it
to restore the system to working order.
Supervise any movement of seats by
children.
