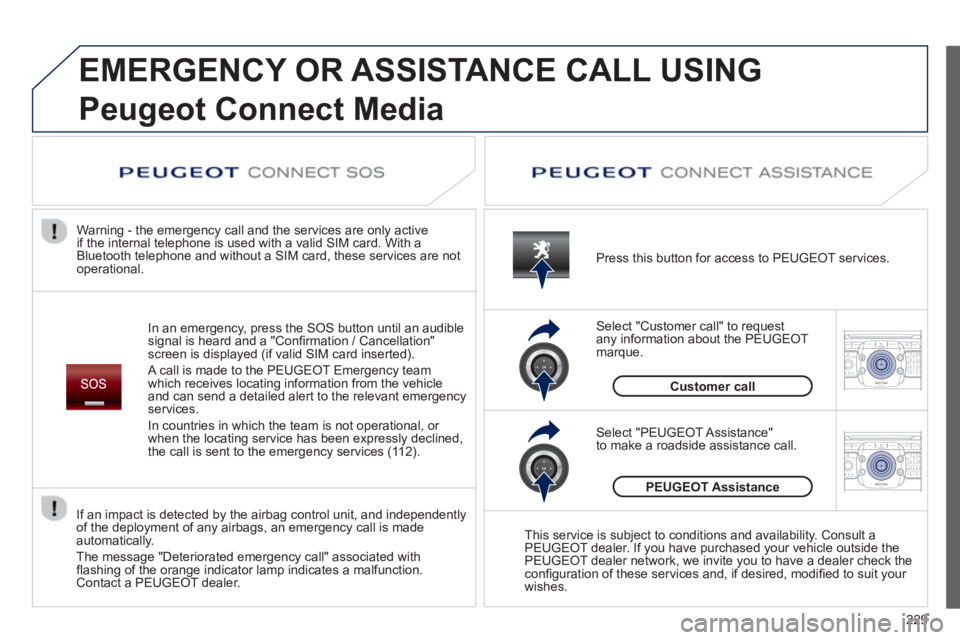

EMERGENCY OR ASSISTANCE CALL USING
Peugeot Connect Media
In an emergency, press the SOS button until an audible
signal is heard and a "Confi rmation / Cancellation"
screen is displayed (if valid SIM card inserted).
A call is made to the PEU
GEOT Emergency team
which receives locating information from the vehicleand can send a detailed alert to the relevant emergency services.
In countries in which the team is not operational, or
when the locatin
g service has been expressly declined,
the call is sent to the emergency services (11 2). Warning - the emergency call and the services are only active
i
f the internal telephone is used with a valid SIM card. With a
Bluetooth telephone and without a SIM card, these services are not
operational. Press this button for access to PEUGEOT services.
Customer call Select "Customer call" to request
an
y information about the PEUGEOT marque.

Select "PEUGEOT Assistance"
to make a roadside assistance call.
PEUGEOT Assistance
This service is subject to conditions and availability. Consult a
PEUGEOT dealer. If you have purchased your vehicle outside the
PEUGEOT dealer network, we invite you to have a dealer check theconfi guration of these services and, if desired, modifi ed to suit your
wishes.

If an impact is detected b
y the airbag control unit, and independentlyof the deployment of any airbags, an emergency call is made
automatically.

The message "Deteriorated emergency call" associated withfl ashing of the orange indicator lamp indicates a malfunction.Contact a PEUGEOT dealer.

230

231

The system is protected in such a way that it will onlyoperate in your vehicle.

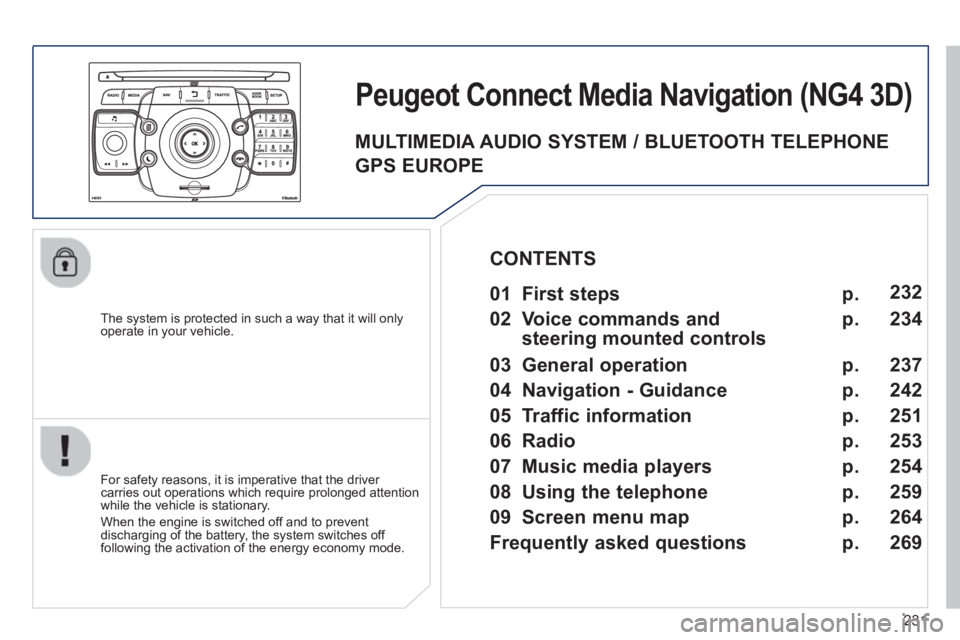

Peugeot Connect Media Navigation (NG4 3D)


For safety reasons, it is imperative that the driver carries out operations which require prolonged attention
while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.



01 First steps

02 Voice commands and
steerin
g mounted controls

03 General operation

04 Navi
gation - Guidance

05 Traffic information

06 Radio

07 Music media pla
yers

08 Usin
g the telephone

09 Screen menu map

Frequentl
y asked questions
p.
p.
p.
p.
p.
p.
p.
p.
p.
p. 2
32
234
237
242
251
253
254
259
264
269

CONTENTS
MULTIMEDIA AUDIO SYSTEM / BLUETOOTH TELEPHONE
GPS EUROPE

232
01FIRST STEPS

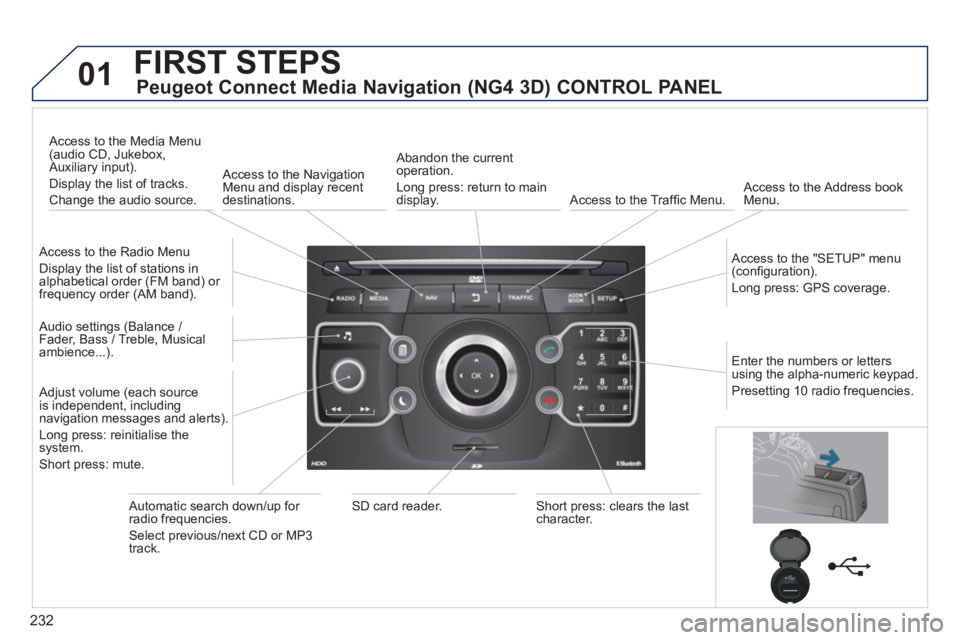

Peugeot Connect Media Navigation (NG4 3D) CONTROL PANEL
Access to the Radio Menu

Display the list of stations in
alphabetical order (FM band) or frequency order (AM band).

Access to the Media Menu(audio CD, Jukebox,
Auxiliary input).
Display the list o
f tracks.
Change the audio source.
Access to the NavigationMenu and display recentdestinations.
Abandon the current
operation.
Long press: return to main
displa
y. Access to the Traffi c Menu.
Access to the Address book Menu.

A
ccess to the "SETUP" menu (confi guration).
Lon
g press: GPS coverage.

Audio settings (Balance /
Fader, Bass / Treble, Musical
ambience...
).

Adjust volume (each source
is independent, including
navigation messages and alerts).
Lon
g press: reinitialise thesystem.
Short press: mute.

Automatic search down/up for radio frequencies.
Select
previous/next CD or MP3
track.
SD card reader.Short press: clears the last character.
Enter the numbers or lettersusing the alpha-numeric keypad.
Presettin
g 10 radio frequencies.

233
01FIRST STEPS

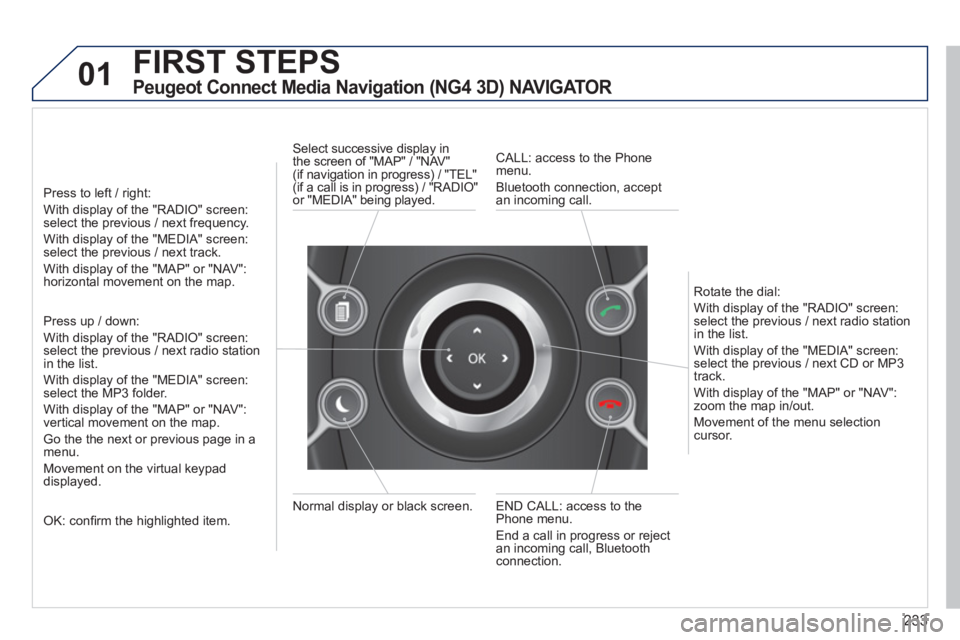

Peugeot Connect Media Navigation (NG4 3D) NAVIGATOR

Press to left / right:
With display of the "RADIO" screen: select the previous / next frequency.
With display of the "MEDIA" screen: select the previous / next track.
With display of the "MAP" or "NAV":horizontal movement on the map.



Press up / down:
With display of the "RADIO" screen: select the previous / next radio stationin the list.
With display of the "MEDIA" screen: select the MP3 folder.
With display of the "MAP" or "NAV":
vertical movement on the map.
Go the the next or previous pa
ge in a menu.
Movement on the virtual keypad
displayed.

OK: confi rm the highlighted item.
END CALL: access to the Phone menu.
End a call in pro
gress or reject
an incoming call, Bluetooth connection. Normal displa
y or black screen. Select successive displa
y in
the screen of "MAP" / "NAV"(if navigation in progress) / "TEL" (if a call is in progress) / "RADIO"
or "MEDIA" being played.
CALL: access to the Phonemenu.
Bluetooth connection, accept
an incomin
g call.

Rotate the dial:
With displa
y of the "RADIO" screen: select the previous / next radio station
in the list.
With displa
y of the "MEDIA" screen: select the previous / next CD or MP3
track.
With displa
y of the "MAP" or "NAV":zoom the map in/out.
M
ovement of the menu selection cursor.

234
02
SETUP2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1NAV TRAFFICADDR
BOOKSETUP

Before using the system for the fi rst time, you are advised to listen
to, say and practice the tutorial.
Press the
SETUP button and select
the "Language & Speech" function.Turn the ring and select "Voice control". Activate voice recognition.
Select "Tutorial".

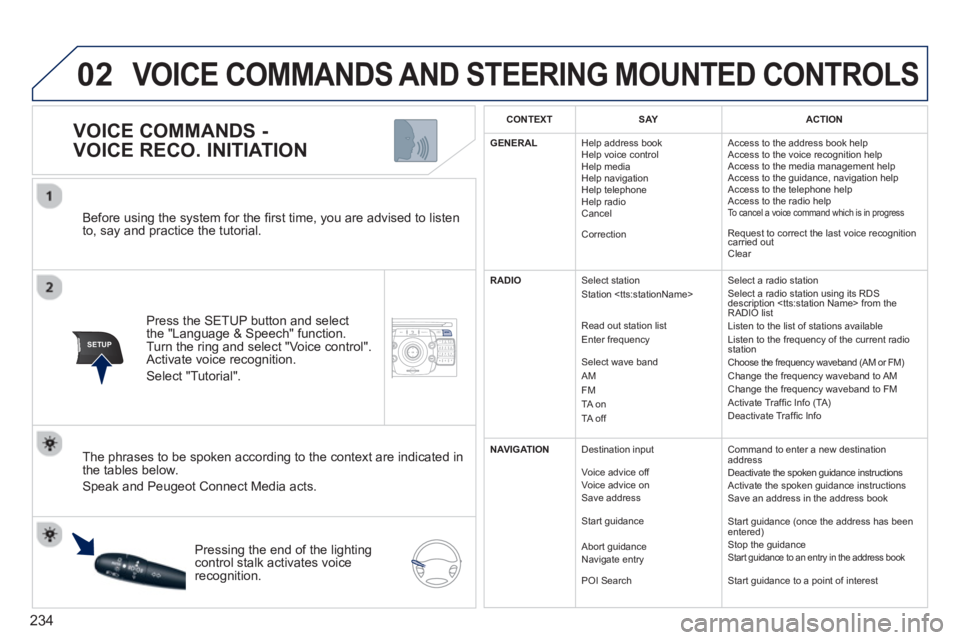

VOICE COMMANDS -
VOICE RECO. INITIATION
The phrases to be spoken according to the context are indicated in
the tables below.

Speak and Peugeot Connect Media acts.

Pressing the end o
f the lightingcontrol stalk activates voice
recognition.
CONTEXTSAYACTION
GENERAL
Help address book
Hel
p voice control
Help media
Help navi
gation
Help telephone

Help radio
Cancel
Correction Access to the address book help
Access to the voice reco
gnition help
Access to the media management help
Access to the guidance, navigation help
Access to the tele
phone help
Access to the radio help
To cancel a voice command which is in progress

Request to correct the last voice recognition carried out Clear
RADIO
Select station
Station
R
ead out station list
Enter frequency

Select wave bandAMFM TA on
TA off
Select a radio station
Select a radio station using its RDS
description
from theRADIO list
Listen to the list of stations available
Listen to the frequency of the current radiostationChoose the frequency waveband (AM or FM) Change the frequency waveband to AM
Change the frequency waveband to FM
Activate Traffi c Info (TA)
D
eactivate Traffi c Info


NAVIGATION
Destination input
V
oice advice off
Voice advice on
Save address
Start
guidance

Abort guidance
Navigate entry
P
OI Search Command to enter a new destination
address
Deactivate the spoken guidance instructions
Activate the spoken
guidance instructions
Save an address in the address book

Start guidance (once the address has been entered) Stop the guidance Start guidance to an entry in the address book

Start guidance to a point of interest
VOICE COMMANDS AND STEERING MOUNTED CONTROLS

235
02

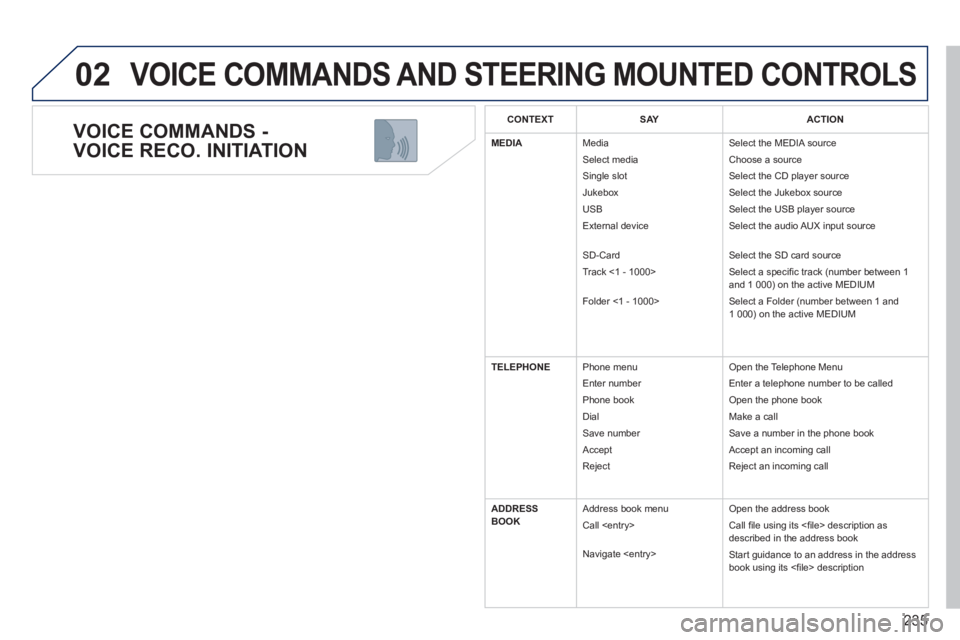

VOICE COMMANDS -
VOICE RECO. INITIATION
VOICE COMMANDS AND STEERING MOUNTED CONTROLS
CONTEXTSAYACTION
MEDIA
Media

Select media
Sin
gle slot

Jukebox

USB

External device
SD-Card
Track <1 - 1000>
F
older <1 - 1000> Select the MEDIA source
Choose a source
Select the CD pla
yer source

Select the Jukebox source

Select the USB player source

Select the audio AUX input source
Select the SD card source
Select a specifi c track (number between 1
and 1 000
) on the active MEDIUM

Select a Folder (number between 1 and
1 000) on the active MEDIUM
TELEPHONE Phone menu

Enter number
Ph
one book
Di
al

Save number

Accept

RejectO
pen the Telephone Menu
Enter a tele
phone number to be called

Open the phone book
M
ake a call

Save a number in the phone book

Accept an incoming call

Reject an incoming call
ADDRESS
BOOK Address book menu
Call y>
Navigate
Open the address book
Call fi le usin
g its <fi le> description as described in the address book

Start guidance to an address in the addressbook using its <fi le> description

236
02 VOICE COMMANDS AND STEERING MOUNTED CONTROLS

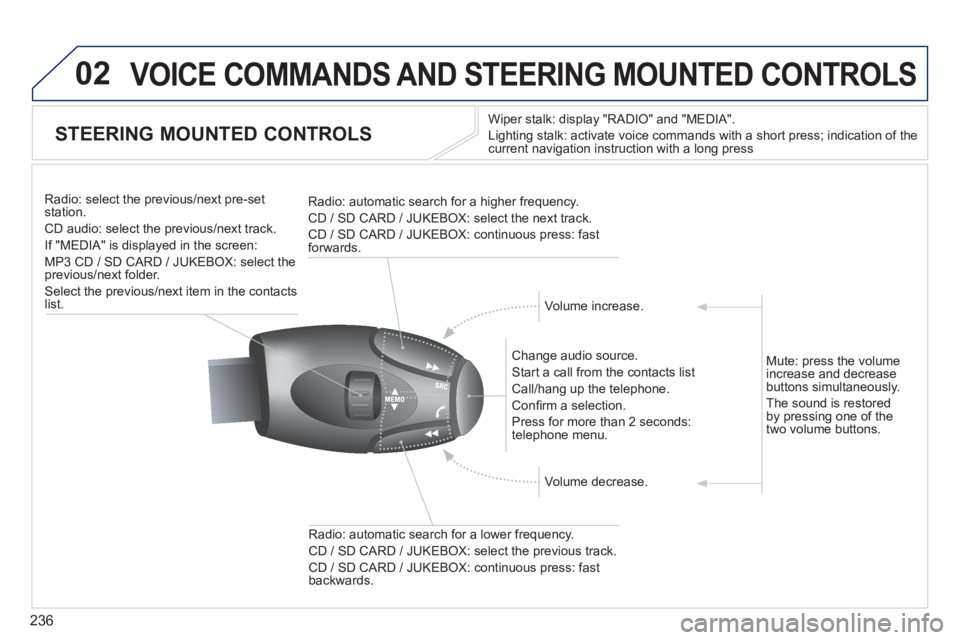

STEERING MOUNTED CONTROLS
Wiper stalk: display "RADIO" and "MEDIA".
Li
ghting stalk: activate voice commands with a short press; indication of the current navigation instruction with a long press

Change audio source.

Start a call from the contacts list
Call/han
g up the telephone.

Confi rm a selection.
Pr
ess for more than 2 seconds:
telephone menu.
Radio: automatic search for a lower frequenc
y.
CD / SD CARD / JUKEBOX: select the previous track.
CD / SD CARD / JUKEBOX: continuous press: fast backwards. Radio: select the previous
/next pre-setstation.
CD audio: select the previous/next track .
If "MEDIA" is displa
yed in the screen:
MP
3 CD / SD CARD / JUKEBOX: select the
previous/next folder.
Select the previous/next item in the contacts list.
Radio: automatic search
for a higher frequency.

CD / SD CARD / JUKEBOX: select the next track.

CD / SD CARD / JUKEBOX: continuous press: fast
forwards.

Volume increase.

Volume decrease. Mute: press the volume
increase and decreasebuttons simultaneously.
Th
e sound is restoredby pressing one of the
two volume buttons.

237
03
SETUP
TRAFFIC
MEDIA

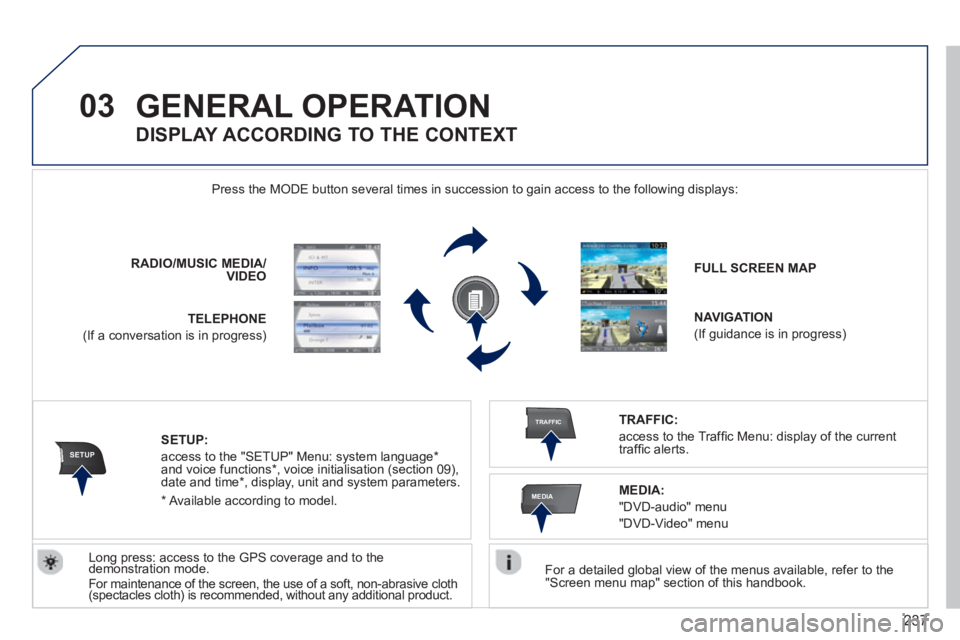

GENERAL OPERATION

For a detailed global view of the menus available, refer to the "Screen menu map" section of this handbook.
Press the M
ODE button several times in succession to gain access to the following displays:


Long press: access to the GPS coverage and to the demonstration mode. gpgp

For maintenance of the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, without any additional product. RADIO
/MUSICMEDIA/VIDEO
TELEPHONE
(If a conversation is in progress)
FULL SCREEN MAP
NAVIGATION
(If guidance is in progress)
SETUP:
access to the "SETUP" Menu: system language *

and voice functions * , voice initialisation (section 09),
date and time * , display, unit and system parameters.
TRAFFIC:
access to the Traffi c Menu: display of the current
traffi c alerts.
DISPLAY ACCORDING TO THE CONTEXT
MEDIA:
"DVD-audio" menu
"DVD-Video" menu

*
Available accordin
g to model.

238

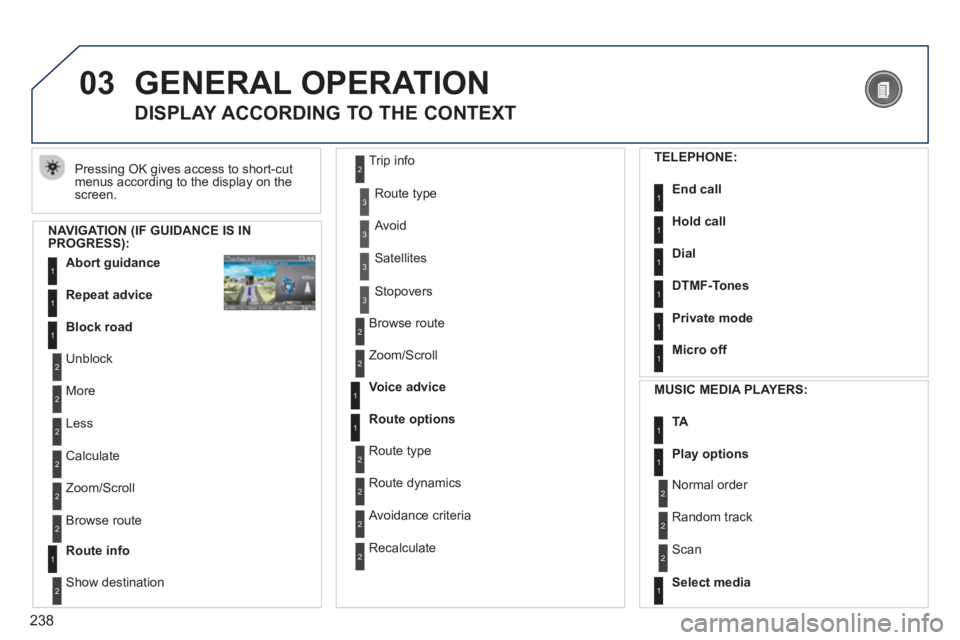

03 GENERAL OPERATION

Pressing OK gives access to short-cut
menus according to the display on the screen.
DISPLAY ACCORDING TO THE CONTEXT

NAVIGATION (IF GUIDANCE IS IN PROGRESS):
Abort guidanc
e1
1
1
Repeat advice
Block road
2
2
Unblock
M
ore
2
Less
3
3
Route type

Avoid
3 Satellites
2
2
Calculate
Z
oom/Scroll
2
Browse route
1Route info
2
2
Show destination Trip in
fo
3
Stopovers
2
2

Browse route

Zoom/Scroll
1
1
Voice advice
Route options
2
2

Route type

Route dynamics
2 Avoidance criteria
2
Recalculate


TELEPHONE:
End call1
1
1
1
Hold call
Dial
DTMF-Tones
1Private mode
1Micro off

MU
SIC MEDIA PLAYERS:
TA1
1Play options
1Select media
2
2

Normal order
R
andom track
2 Scan
