PEUGEOT 5008 2013 Owners Manual

TECHNICAL DATA
219

Engines


1.6 litre Turbo e-HDi

115 hp



2 litre Turbo HDi
150 hp



2 litre Turbo HDi
163 hp



Gearbox

Manual
(6-speed)


Electronic gear control
(6-speed)
Manual
(6-speed)
Automatic
(6-speed)
Cubic capacity (cc)
1 560
1 997
Bore x stroke (mm)
75 x 88.3
85 x 88
Max power: EU standard (kW) *
82
110/120
Max power engine speed (rpm)
4 000
3 750
Max torque: EU standard (Nm)
270
320/340
Max torque engine speed (rpm)
1 750
2 000
Fuel
Diesel
Diesel
Catalytic converter
yes
yes
Particle emission fi lter
yes
yes

Oil capacities (in litres)






Engine (with fi lter replacement)
3.75
-

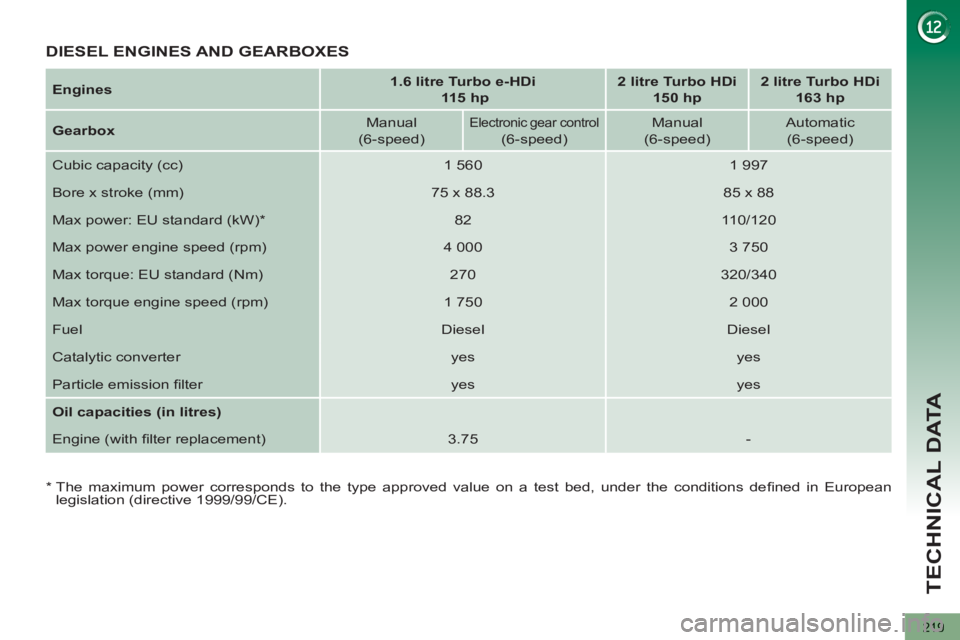

DIESEL ENGINES AND GEARBOXES


*
The maximum power corresponds to the type approved value on a test bed, under the conditions defi ned in European
legislation (directive 1999/99/CE).

TECHNICAL DATA
220

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

*
The kerb weight is equal to the unladen weight + driver (75 kg).

**
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

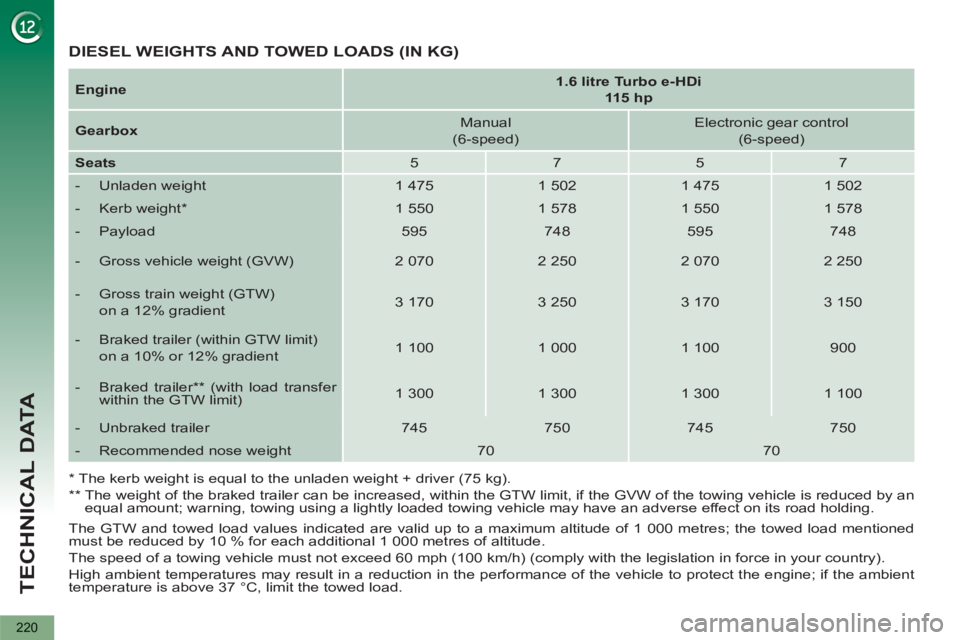

DIESEL WEIGHTS AND TOWED LOADS (IN KG)



Engine


1.6 litre Turbo e-HDi
115 hp



Gearbox

Manual
(6-speed)
Electronic gear control
(6-speed)

Seats

5
7
5
7


- Unladen weight
1 475
1 502
1 475
1 502


- Kerb weight *

1 550
1 578
1 550
1 578


- Payload
595
748
595
748


- Gross vehicle weight (GVW)
2 070
2 250
2 070
2 250


- Gross train weight (GTW)
on a 12% gradient
3 170
3 250
3 170
3 150


- Braked trailer (within GTW limit)
on a 10% or 12% gradient


1 100
1 000
1 100
900


- Braked trailer ** (with load transfer
within the GTW limit)
1 300
1 300
1 300
1 100


- Unbraked trailer
745
750
745
750


- Recommended nose weight
70
70

TECHNICAL DATA
221

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
*
The kerb weight is equal to the unladen weight + driver (75 kg).
*

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

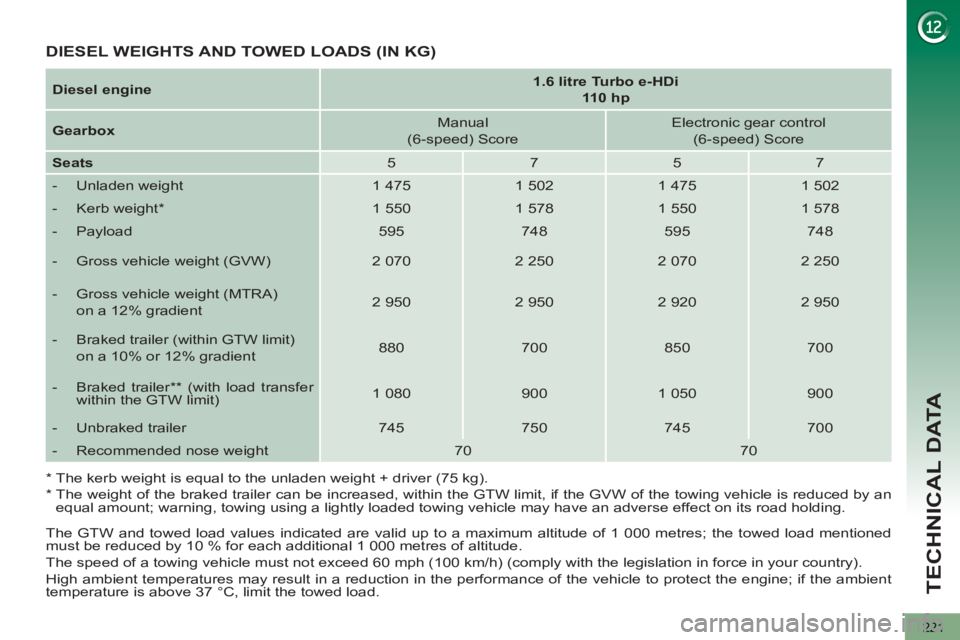

DIESEL WEIGHTS AND TOWED LOADS (IN KG)


Diesel engine


1.6 litre Turbo e-HDi
110 hp



Gearbox

Manual
(6-speed) Score
Electronic gear control
(6-speed) Score

Seats

5
7
5
7


- Unladen weight
1 475
1 502
1 475
1 502


- Kerb weight *

1 550
1 578
1 550
1 578


- Payload
595
748
595
748


- Gross vehicle weight (GVW)
2 070
2 250
2 070
2 250


- Gross vehicle weight (MTRA)
on a 12% gradient
2 950
2 950
2 920
2 950


- Braked trailer (within GTW limit)
on a 10% or 12% gradient


880
700
850
700


- Braked trailer ** (with load transfer
within the GTW limit)
1 080
900
1 050
900


- Unbraked trailer
745
750
745
700


- Recommended nose weight
70
70

TECHNICAL DATA
222

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

* The kerb weight is equal to the unladen weight + driver (75 kg).
**

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

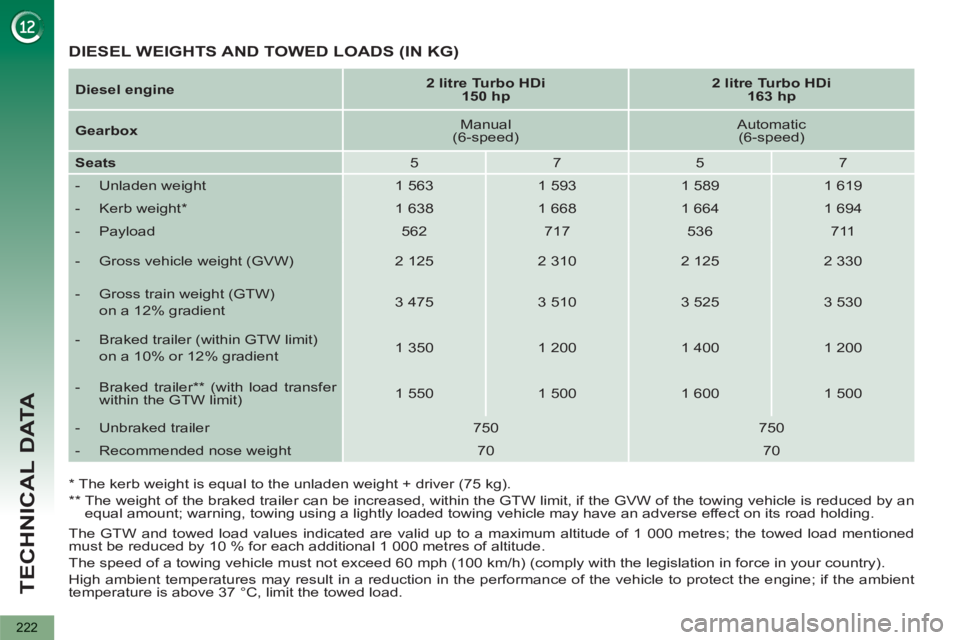

DIESEL WEIGHTS AND TOWED LOADS (IN KG)



Diesel engine


2 litre Turbo HDi
150 hp



2 litre Turbo HDi
163 hp



Gearbox

Manual
(6-speed)
Automatic
(6-speed)

Seats

5
7
5
7


- Unladen weight
1 563
1 593
1 589
1 619


- Kerb weight *

1 638
1 668
1 664
1 694


- Payload
562
717
536
711


- Gross vehicle weight (GVW)
2 125
2 310
2 125
2 330


- Gross train weight (GTW)
on a 12% gradient
3 475
3 510
3 525
3 530


- Braked trailer (within GTW limit)
on a 10% or 12% gradient
1 350
1 200
1 400
1 200


- Braked trailer ** (with load transfer
within the GTW limit)
1 550
1 500
1 600
1 500


- Unbraked trailer
750
750


- Recommended nose weight
70
70

TECHNICAL DATA
223

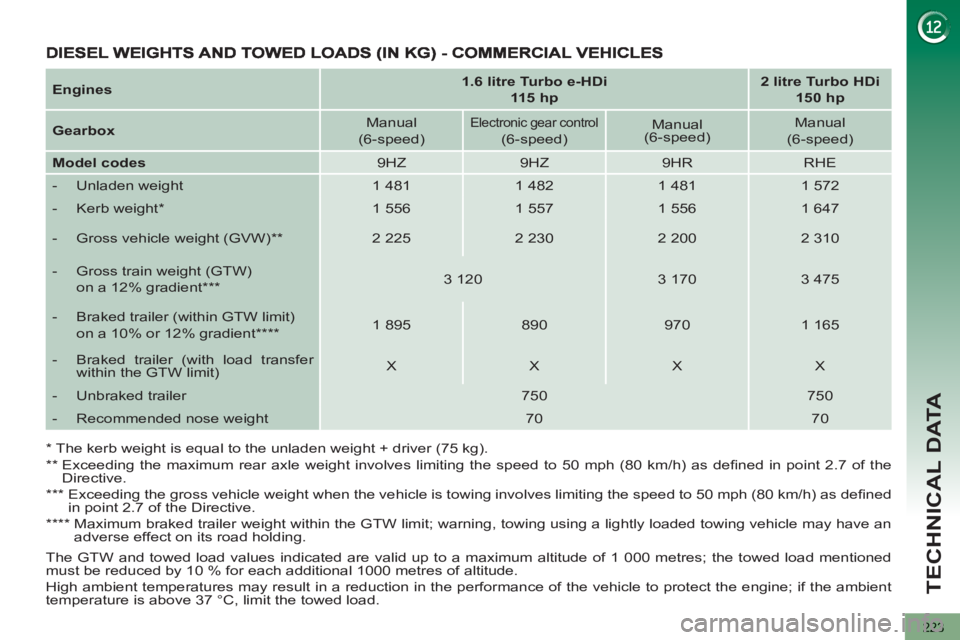

Engines


1.6 litre Turbo e-HDi
115 hp



2 litre Turbo HDi
150 hp



Gearbox

Manual
(6-speed)


Electronic gear control
(6-speed)
Manual
(6-speed)


Manual
(6-speed)

Model codes

9HZ
9HZ
9HR
RHE


- Unladen weight
1 481
1 482
1 481
1 572


- Kerb weight *

1 556
1 557
1 556
1 647


- Gross vehicle weight (GVW) **

2 225
2 230
2 200
2 310


- Gross train weight (GTW)
on a 12% gradient ***

3 120
3 170
3 475


- Braked trailer (within GTW limit)
on a 10% or 12% gradient ****

1 895
890
970
1 165


- Braked trailer (with load transfer
within the GTW limit)
X
X
X
X


- Unbraked trailer

750
750


- Recommended nose weight
70
70

*
The kerb weight is equal to the unladen weight + driver (75 kg).

**

Exceeding the maximum rear axle weight involves limiting the speed to 50 mph (80 km/h) as defi ned in point 2.7 of the
Directive.

***
Exceeding the gross vehicle weight when the vehicle is towing involves limiting the speed to 50 mph (80 km/h) as defi ned
in point 2.7 of the Directive.

****
Maximum braked trailer weight within the GTW limit; warning, towing using a lightly loaded towing vehicle may have an
adverse effect on its road holding.

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1000 metres of altitude.
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

TECHNICAL DATA
224

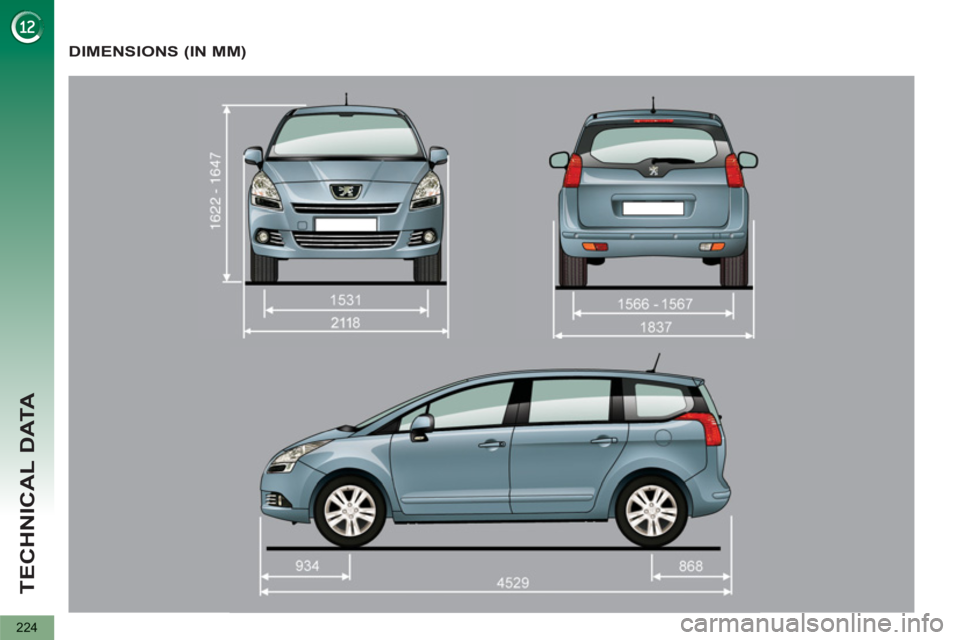

DIMENSIONS (IN MM)

TECHNICAL DATA
225
IDENTIFICATION MARKINGS
Various visible markings for the identifi -
cation and tracing of your vehicle.

Low tyre pressures increase
fuel consumption.

The tyre pressures must be
checked when the tyres are
cold, at least once a month.


A.
Vehicle Identifi cation Number
(VIN) under the bonnet.

This number is engraved on the
bodywork near the damper support.
B.
Vehicle identifi cation Number
(VIN) on the windscreen lower
crossmember.

This number is indicated on a self-
adhesive label which is visible
through the windscreen.

C.
Manufacturer's label.

The VIN is indicated on a self-
destroying label affi xed to the door
aperture, on the driver's side.
D.
Tyre/paint label.

This label is fi tted to the middle pillar,
on the driver's side.
It bears the following information:


- the tyre infl ation pressures with and
without load,

- the tyre sizes,

- the brands of tyre recommended by
the manufacturer,

- the infl ation pressure of the spare
wheel,

- the paint colour code.

TECHNICAL DATA
226

227

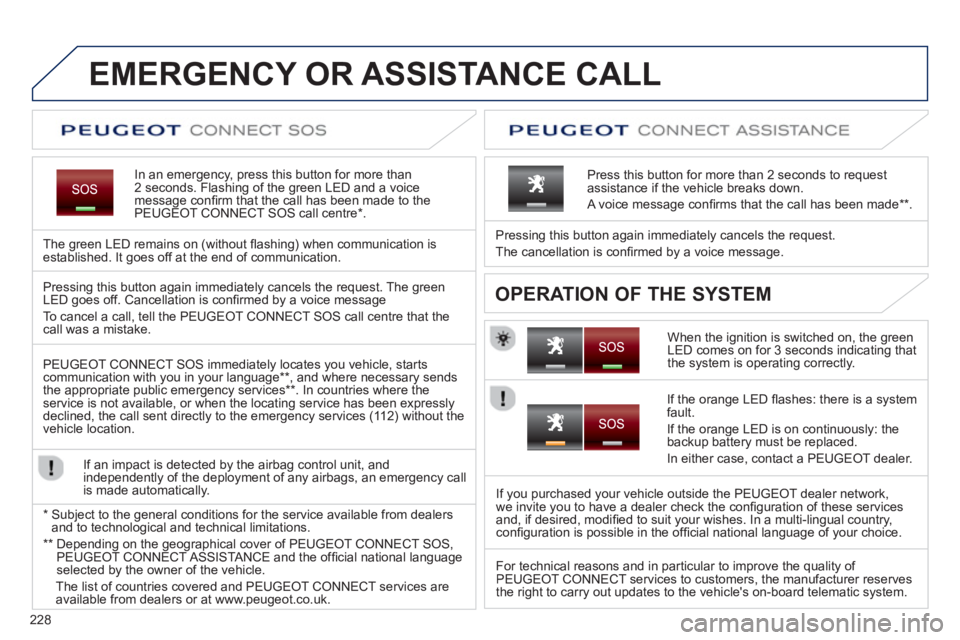

EMERGENCY OR ASSISTANCE CALL

228
EMERGENCY OR ASSISTANCE CALL
In an emergency, press this button for more than2 seconds. Flashing of the green LED and a voice
message confi rm that the call has been made to the
PEUGEOT CONNECT SOS call centre * .
The
green LED remains on (without fl ashing) when communication is established. It goes off at the end of communication.

When the ignition is switched on, the green
LED comes on for 3 seconds indicating that
the system is operating correctly. Pressin
g this button again immediately cancels the request.
The cancellation is confi rmed b
y a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made **
.


OPERATION OF THE SYSTEM Pressing this button again immediately cancels the request. The green LED goes off. Cancellation is confi rmed by a voice message
To cancel a call, tell the PEUGE
OT CONNECT SOS call centre that thecall was a mistake.
PEUGE
OT CONNECT SOS immediately locates you vehicle, starts communication with you in your language ** , and where necessary sends
the appropriate public emergency services ** . In countries where theservice is not available, or when the locating service has been expresslydeclined, the call sent directly to the emergency services (11 2) without the
vehicle location.

If an impact is detected b
y the airbag control unit, and
independently of the deployment of any airbags, an emergency call
is made automatically.
*
Sub
ject to the general conditions for the service available from dealersand to technological and technical limitations.
**

Depending on the geographical cover of PEUGEOT CONNECT SOS,
PEUGEOT CONNECT ASSISTA NCE and the offi cial national languageselected by the owner of the vehicle.
Th
e list of countries covered and PEUGEOT CONNECT services are available from dealers or at www.peugeot.co.uk.
If the oran
ge LED fl ashes: there is a system
fault.
If the oran
ge LED is on continuously: the backup battery must be replaced.
In either case, contact a PEU
GEOT dealer.

I
f you purchased your vehicle outside the PEUGEOT dealer network,
we invite you to have a dealer check the confi guration of these services
and, if desired, modifi ed to suit your wishes. In a multi-lingual country,confi guration is possible in the offi cial national language of your choice.

For technical reasons and in particular to improve the qualit
y of PEUGEOT CONNECT services to customers, the manufacturer reserves
the right to carry out updates to the vehicle's on-board telematic system.
