PRACTICAL INFORMATION

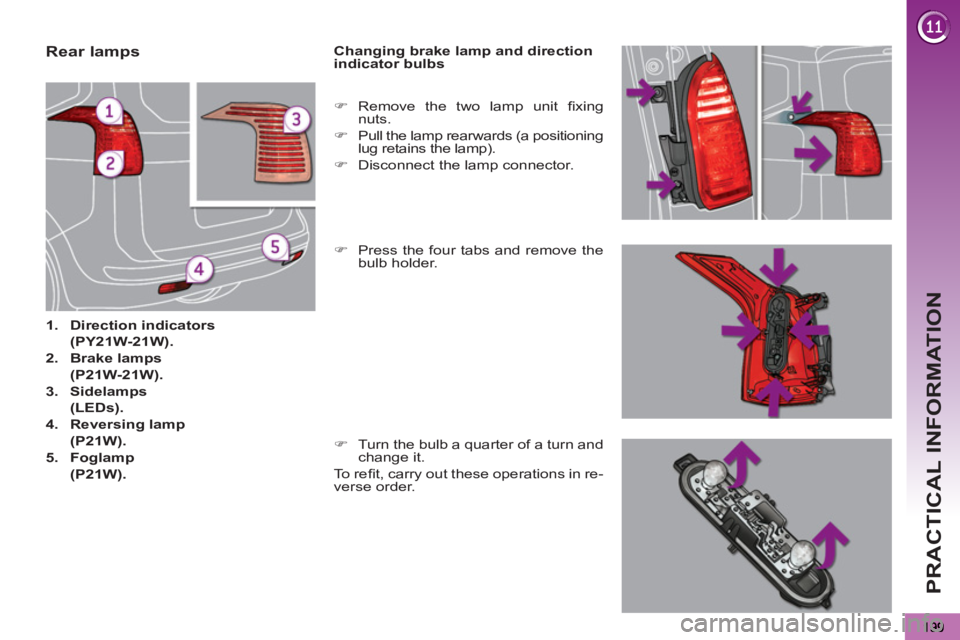

Rear lamps



1.
Direction indicators

(PY21W-21W).


2.
Brake lamps

(P21W-21W).


3.
Sidelamps

(LEDs).


4.
Reversing lamp

(P21W).




5.
Foglamp

(P21W).


Changing brake lamp and direction
indicator bulbs

)
Press the four tabs and remove the
bulb holder.

)
Remove the two lamp unit fi xing
nuts.

)
Pull the lamp rearwards (a positioning
lug retains the lamp).

)
Disconnect the lamp connector.

)
Turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in re-
verse order.

PRACTICAL INFORMATION
200



















Changing the third brake lamp bulb

















Changing foglamp or reversing
lamp bulbs


)
Reach under the bumper.

)
Turn the bulb a quarter of a turn and
change it.



)
Open the boot and remove the up-
per seal.

)
Unscrew the two nuts.

)
Press the threaded pins while sup-
porting the lamp from the outside.

)
Disconnect the connector and re-
move the screenwash pipe.

)
Press the pairs of clips A
then B

then C
to detach and gain access to
the bulb holder.

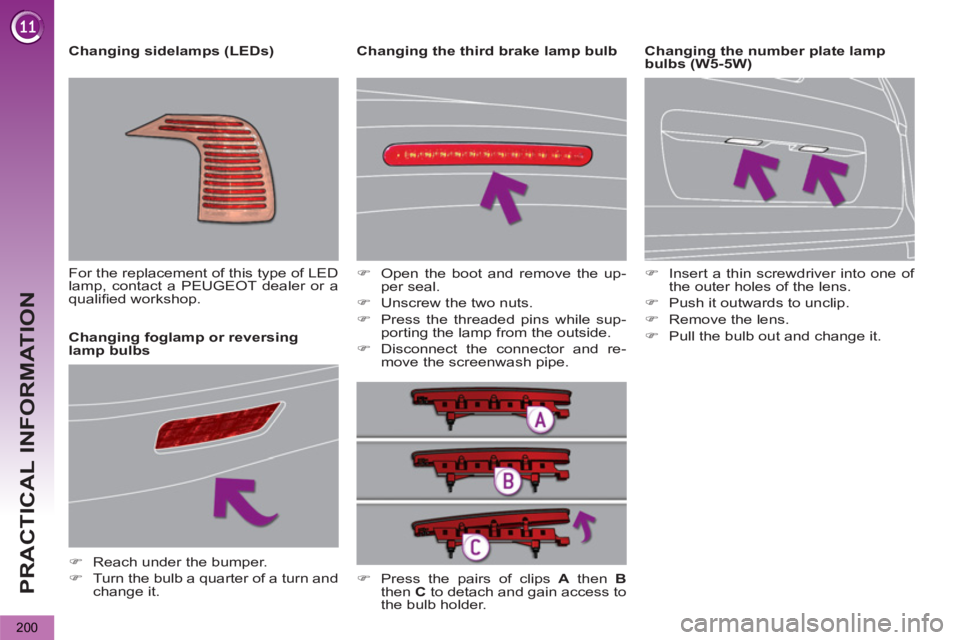

Changing sidelamps (LEDs)
For the replacement of this type of LED
lamp, contact a PEUGEOT dealer or a
qualifi ed workshop.


)
Insert a thin screwdriver into one of
the outer holes of the lens.

)
Push it outwards to unclip.

)
Remove the lens.

)
Pull the bulb out and change it.


Changing the number plate lamp
bulbs (W5-5W)

PRACTICAL INFORMATION
201
PEUGEOT will not accept re-
sponsibility for the cost incurred
in repairing your vehicle or for
rectifying malfunctions resulting from
the installation of accessories not
supplied and not recommended by
PEUGEOT and not installed in accor-
dance with its instructions, in particular
when the combined consumption of all
of the additional equipment connected
exceeds 10 milliamperes.

Installing electrical
accessories
Your vehicle's electrical sys-
tem is designed to operate with stan-
dard or optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer
or a qualifi ed workshop.

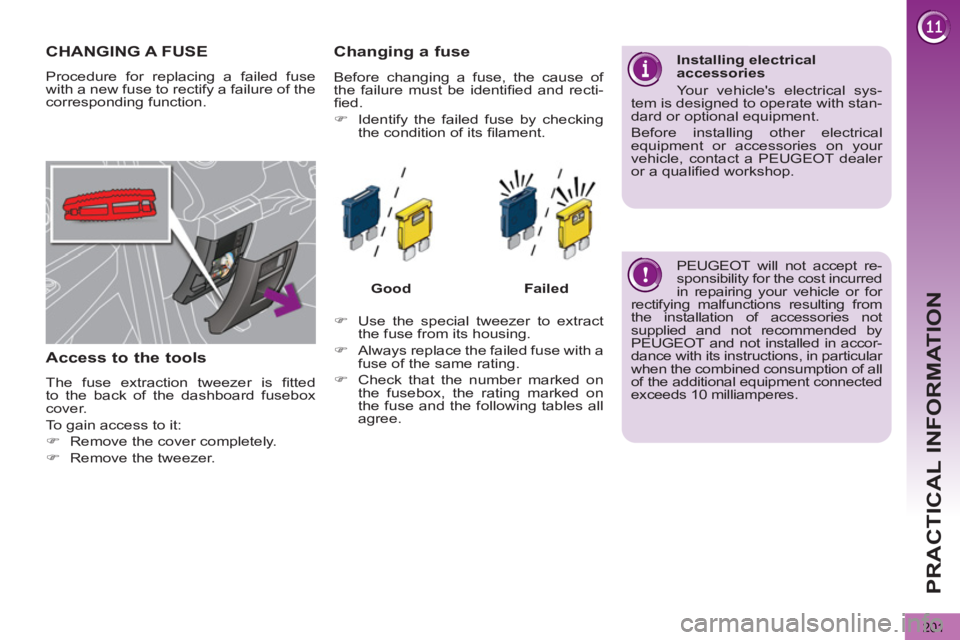

CHANGING A FUSE

Procedure for replacing a failed fuse
with a new fuse to rectify a failure of the
corresponding function.

Access to the tools

The fuse extraction tweezer is fi tted
to the back of the dashboard fusebox
cover.
To gain access to it:


)
Remove the cover completely.

)
Remove the tweezer.



Changing a fuse




)
Use the special tweezer to extract
the fuse from its housing.

)
Always replace the failed fuse with a
fuse of the same rating.

)
Check that the number marked on
the fusebox, the rating marked on
the fuse and the following tables all
agree.


Good



Failed


Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.


)
Identify the failed fuse by checking
the condition of its fi lament.

PRACTICAL INFORMATION
202

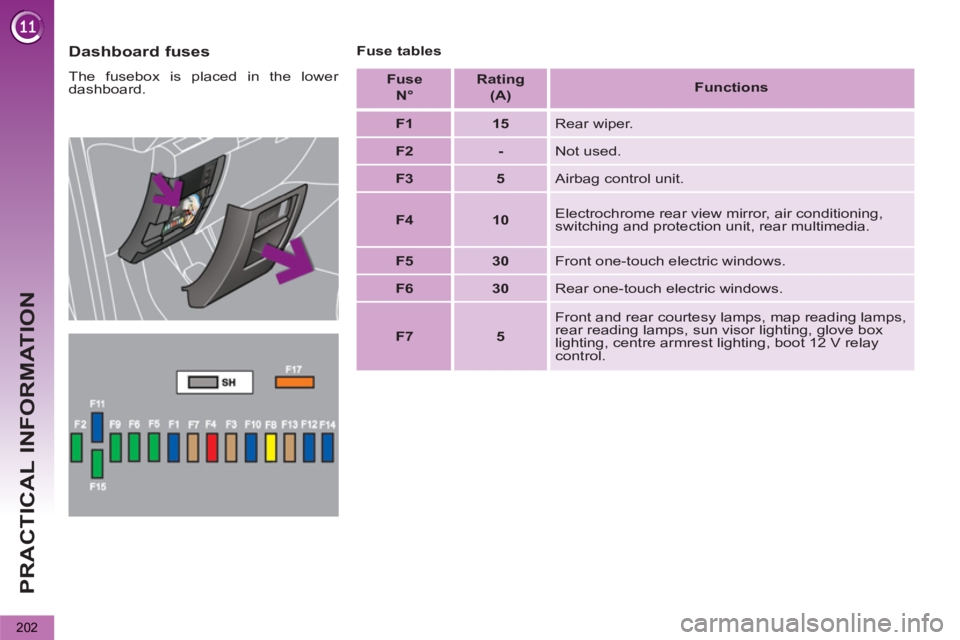

Dashboard fuses

The fusebox is placed in the lower
dashboard.
Fuse tables

F us e
N°


Ratin g
(A)


Functions




F1


15

Rear wiper.


F2


-

Not used.


F3


5

Airbag control unit.


F4


10
Electrochrome rear view mirror, air conditioning,
switching and protection unit, rear multimedia.


F5


30

Front one-touch electric windows.


F6


30

Rear one-touch electric windows.


F7


5
Front and rear courtesy lamps, map reading lamps,
rear reading lamps, sun visor lighting, glove box
lighting, centre armrest lighting, boot 12 V relay
control.

PRACTICAL INFORMATION
203

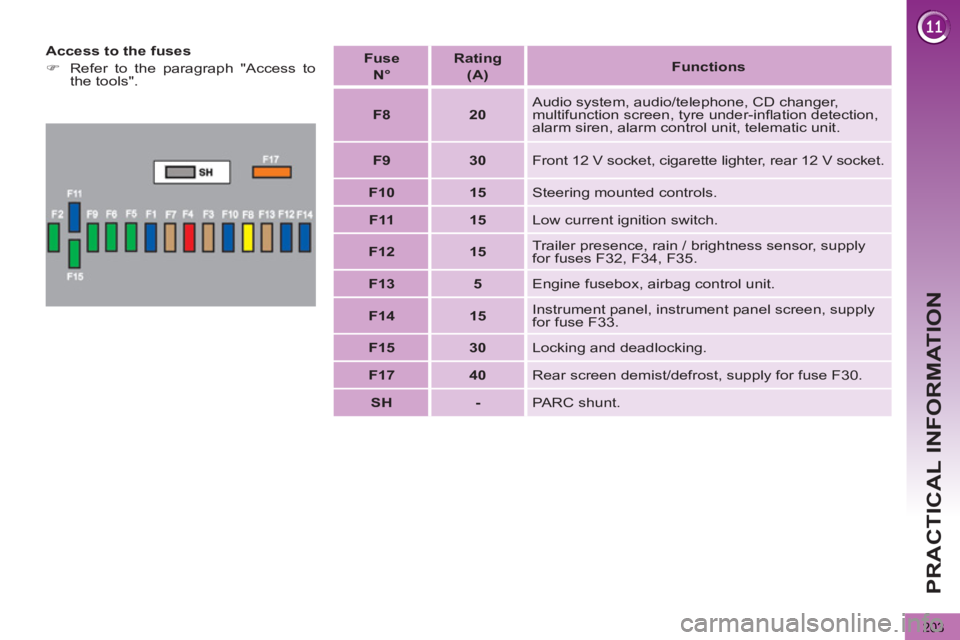

Access to the fuses


)
Refer to the paragraph "Access to
the tools".

Fuse
N°

Rating
(A)

Functions




F8



20

Audio system, audio/telephone, CD changer,
multifunction screen, tyre under-infl ation detection,
alarm siren, alarm control unit, telematic unit.


F9



30

Front 12 V socket, cigarette lighter, rear 12 V socket.


F10



15

Steering mounted controls.


F11



15

Low current ignition switch.


F12



15

Trailer presence, rain / brightness sensor, supply
for fuses F32, F34, F35.


F13



5

Engine fusebox, airbag control unit.


F14



15

Instrument panel, instrument panel screen, supply
for fuse F33.


F15



30

Locking and deadlocking.


F17



40

Rear screen demist/defrost, supply for fuse F30.


SH



-

PARC shunt.

PRACTICAL INFORMATION
204

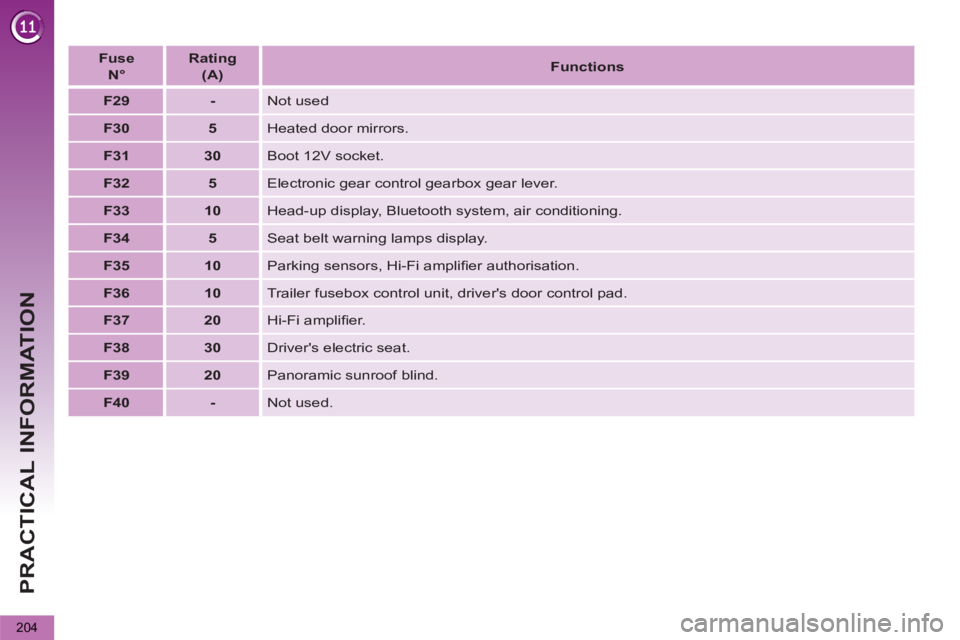

Fuse
N°



Rating
(A)



Functions




F29



-

Not used


F30



5

Heated door mirrors.


F31



30

Boot 12V socket.


F32



5

Electronic gear control gearbox gear lever.


F33



10

Head-up display, Bluetooth system, air conditioning.


F34



5

Seat belt warning lamps display.


F35



10

Parking sensors, Hi-Fi amplifi er authorisation.


F36



10

Trailer fusebox control unit, driver's door control pad.


F37



20

Hi-Fi amplifi er.


F38



30

Driver's electric seat.


F39



20

Panoramic sunroof blind.


F40



-

Not used.

PRACTICAL INFORMATION
205

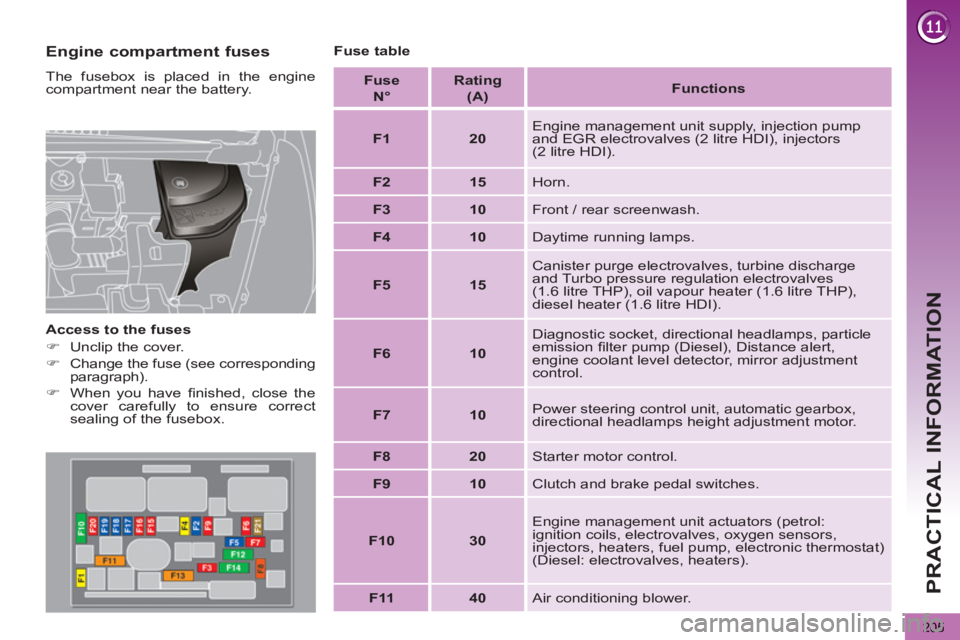

Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery.

Access to the fuses


)
Unclip the cover.

)
Change the fuse (see corresponding
paragraph).

)
When you have fi nished, close the
cover carefully to ensure correct
sealing of the fusebox.

Fuse table

Fuse
N°

Rating
(A)



Functions




F1



20

Engine management unit supply, injection pump
and EGR electrovalves (2 litre HDI), injectors
(2 litre HDI).


F2



15

Horn.


F3



10

Front / rear screenwash.


F4



10

Daytime running lamps.


F5



15

Canister purge electrovalves, turbine discharge
and Turbo pressure regulation electrovalves
(1.6 litre THP), oil vapour heater (1.6 litre THP),
diesel heater (1.6 litre HDI).


F6



10

Diagnostic socket, directional headlamps, particle
emission fi lter pump (Diesel), Distance alert,
engine coolant level detector, mirror adjustment
control.


F7



10

Power steering control unit, automatic gearbox,
directional headlamps height adjustment motor.


F8



20

Starter motor control.


F9



10

Clutch and brake pedal switches.



F10



30

Engine management unit actuators (petrol:
ignition coils, electrovalves, oxygen sensors,
injectors, heaters, fuel pump, electronic thermostat)
(Diesel: electrovalves, heaters).


F11



40

Air conditioning blower.

PRACTICAL INFORMATION
206

Fuse
N°

Rating
(A)

Functions




F12



30

Windscreen wipers slow / fast speed.


F13



40

Built-in systems interface supply (ignition positive).


F14



30

Air pump.


F15



10

Right-hand main beam headlamp.


F16



10

Left-hand main beam headlamp.


F17



15

Left-hand dipped headlamp.


F18



15

Right-hand dipped headlamp.


F19



15

Oil vapour heater (1.6 litre VTi), Turbo pressure
regulation electrovalve (Diesel), engine coolant
level detector (Diesel).


F20



10

Electronic thermostat, variable timing electrovalves,
Turbo pressure regulation electrovalve (Diesel),
engine coolant level detector (Diesel).


F21



5

Fan assembly relay supply, Valvetronic relay
control (1.6 litre VTi), Turbo cooling (1.6 litre THP),
air fl ow sensor (1.6 litre HDI).

PRACTICAL INFORMATION
207

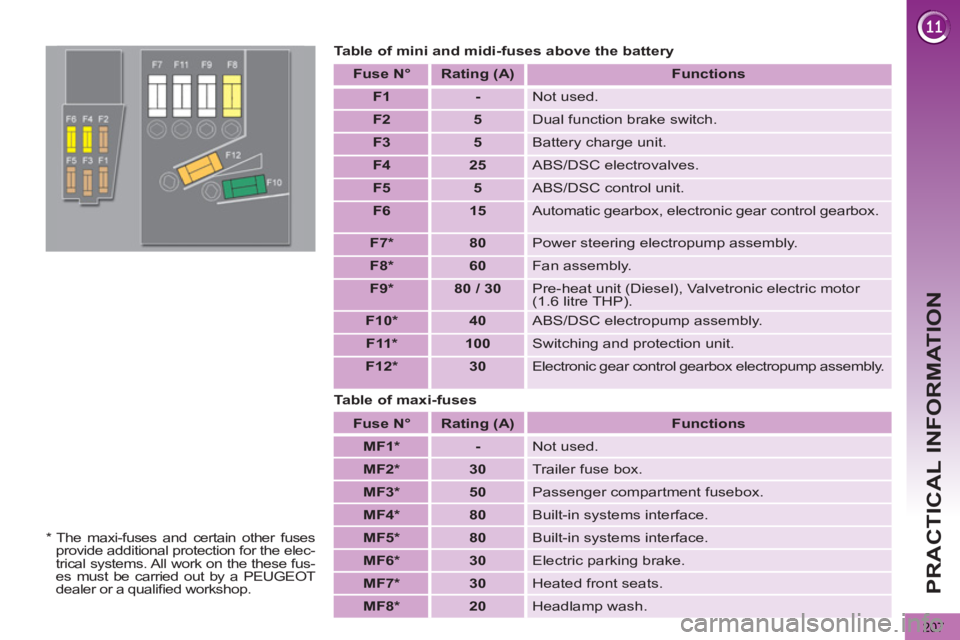

Table of mini and midi-fuses above the battery

Fuse N°

Rating
(A)


Functions




F1


-

Not used.


F2


5

Dual function brake switch.


F3


5

Battery charge unit.


F4


25

ABS/DSC electrovalves.


F5


5

ABS/DSC control unit.


F6


15

Automatic gearbox, electronic gear control gearbox.


F7 *



80

Power steering electropump assembly.


F8
*


60

Fan assembly.


F9 *



80 / 30

Pre-heat unit (Diesel), Valvetronic electric motor
(1.6 litre THP).


F10 *



40

ABS/DSC electropump assembly.


F11 *



100

Switching and protection unit.


F12 *



30

Electronic gear control gearbox electropump assembly.

Fuse N°

Rating (A)



Functions




MF1 *



-

Not used.


MF2 *



30

Trailer fuse box.


MF3 *



50

Passenger compartment fusebox.


MF4 *



80

Built-in systems interface.


MF5 *



80

Built-in systems interface.


MF6 *



30

Electric parking brake.


MF7 *



30

Heated front seats.


MF8 *



20

Headlamp wash.
Table of maxi-fuses

*

The maxi-fuses and certain other fuses
provide additional protection for the elec-
trical systems. All work on the these fus-
es must be carried out by a PEUGEOT
dealer or a qualifi ed workshop.

PRACTICAL INFORMATION
208

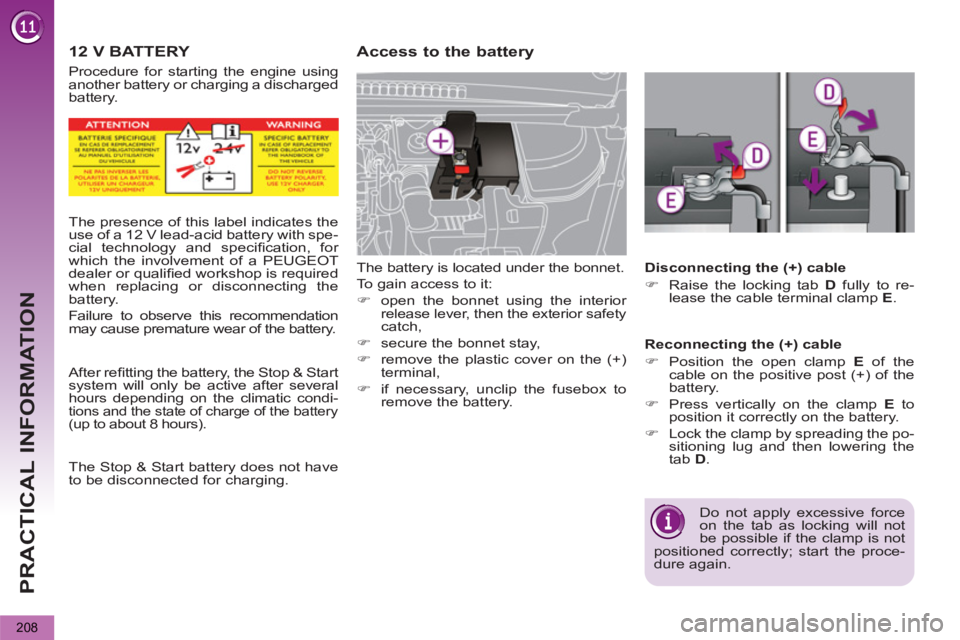

12 V BATTERY





Access to the battery

The battery is located under the bonnet.
To gain access to it:


)
open the bonnet using the interior
release lever, then the exterior safety
catch,

)
secure the bonnet stay,

)
remove the plastic cover on the (+)
terminal,

)
if necessary, unclip the fusebox to
remove the battery.


Disconnecting the (+) cable


)
Raise the locking tab D
fully to re-
lease the cable terminal clamp E
.


Reconnecting the (+) cable


)
Position the open clamp E
of the
cable on the positive post (+) of the
battery.

)
Press vertically on the clamp E
to
position it correctly on the battery.

)
Lock the clamp by spreading the po-
sitioning lug and then lowering the
tab D
.
Do not apply excessive force
on the tab as locking will not
be possible if the clamp is not
positioned correctly; start the proce-
dure again.






The presence of this label indicates the
use of a 12 V lead-acid battery with spe-
cial technology and specifi cation, for
which the involvement of a PEUGEOT
dealer or qualifi ed workshop is required
when replacing or disconnecting the
battery.
Failure to observe this recommendation
may cause premature wear of the battery.

After refi tting the battery, the Stop & Start
system will only be active after several
hours depending on the climatic condi-
tions and the state of charge of the battery (up to about 8 hours).

The Stop & Start battery does not have
to be disconnected for charging.
Procedure for starting the engine using
another battery or charging a discharged
battery.
