PEUGEOT 5008 2013 Workshop Manual
Manufacturer: PEUGEOT, Model Year: 2013, Model line: 5008, Model: PEUGEOT 5008 2013Pages: 364, PDF Size: 16.24 MB
Page 51 of 364
M
U
49

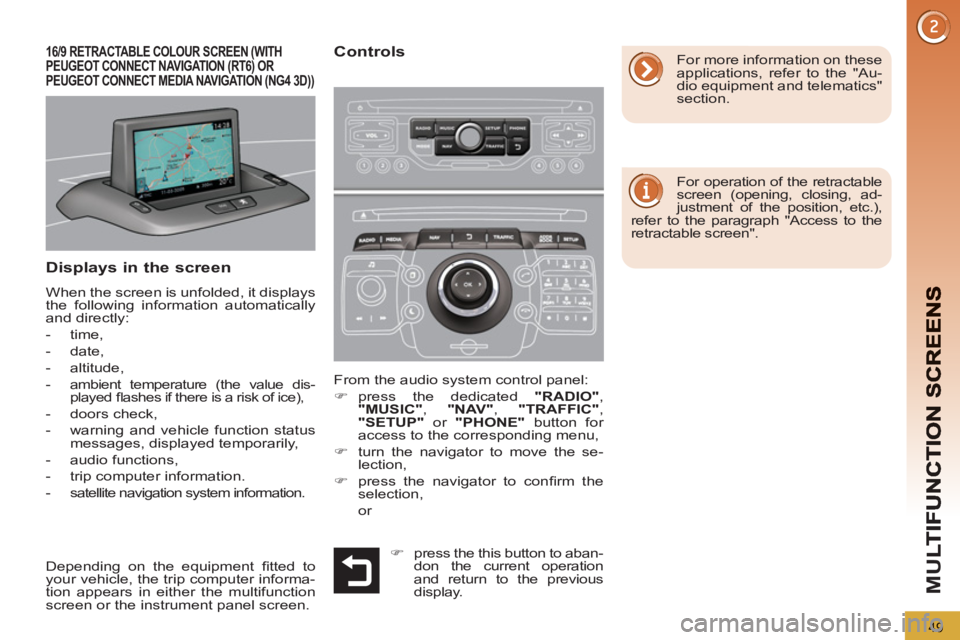

Displays in the screen
When the screen is unfolded, it displays
the following information automatically
and directly:
- time,
- date,
- altitude,
-
ambient temperature (the value dis-
played fl ashes if there is a risk of ice),
- doors check,
- warning and vehicle function status
messages, displayed temporarily,
- audio functions,
- trip computer information.
- satellite navigation system information. From the audio system control panel:
)
press the dedicated "RADIO"
,
"MUSIC"
, "NAV"
, "TRAFFIC"
,
"SETUP"
or "PHONE"
button for
access to the corresponding menu,
)
turn the navigator to move the se-
lection,
)
press the navigator to confi rm the
selection,
or
16/9 RETRACTABLE COLOUR SCREEN (WITH
PEUGEOT CONNECT NAVIGATION (RT6) OR
PEUGEOT CONNECT MEDIA NAVIGATION (NG4 3D))
Controls
For operation of the retractable
screen (opening, closing, ad-
justment of the position, etc.),
refer to the paragraph "Access to the
retractable screen".
For more information on these
applications, refer to the "Au-
dio equipment and telematics"
section.
Depending on the equipment fi tted to
your vehicle, the trip computer informa-
tion appears in either the multifunction
screen or the instrument panel screen.
)
press the this button to aban-
don the current operation
and return to the previous
display.
Page 52 of 364
M
U
50

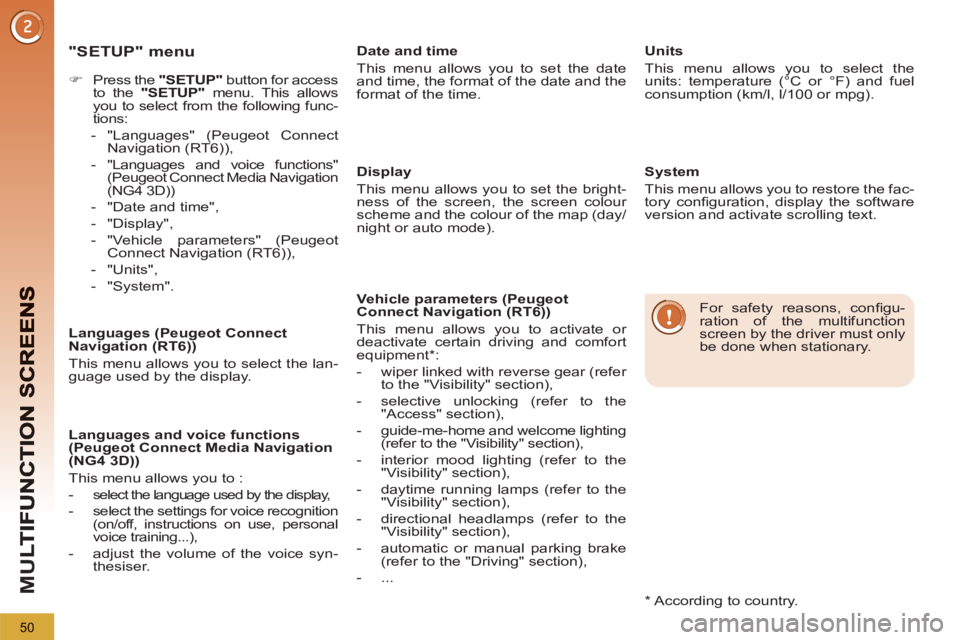

"SETUP" menu
)
Press the "SETUP"
button for access
to the "SETUP"
menu. This allows
you to select from the following func-
tions:
- "Languages" (Peugeot Connect
Navigation (RT6)),
- "Languages and voice functions"
(Peugeot Connect Media Navigation
(NG4 3D))
- "Date and time",
- "Display",
- "Vehicle parameters" (Peugeot
Connect Navigation (RT6)),
- "Units",
- "System".
Languages (Peugeot Connect
Navigation (RT6))
This menu allows you to select the lan-
guage used by the display.
Languages and voice functions
(Peugeot Connect Media Navigation
(NG4 3D))
This menu allows you to :
- select the language used by the display,
- select the settings for voice recognition
(on/off, instructions on use, personal
voice training...),
- adjust the volume of the voice syn-
thesiser.
Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time.
Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
Vehicle parameters (Peugeot
Connect Navigation (RT6))
This menu allows you to activate or
deactivate certain driving and comfort
equipment * :
- wiper linked with reverse gear (refer
to the "Visibility" section),
- selective unlocking (refer to the
"Access" section),
- guide-me-home and welcome lighting
(refer to the "Visibility" section),
- interior mood lighting (refer to the
"Visibility" section),
- daytime running lamps (refer to the
"Visibility" section),
- directional headlamps (refer to the
"Visibility" section),
- automatic or manual parking brake
(refer to the "Driving" section),
- ...
For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.
Units
This menu allows you to select the
units: temperature (°C or °F) and fuel
consumption (km/l, l/100 or mpg).
*
According to country.
System
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text.
Page 53 of 364
M
U
51

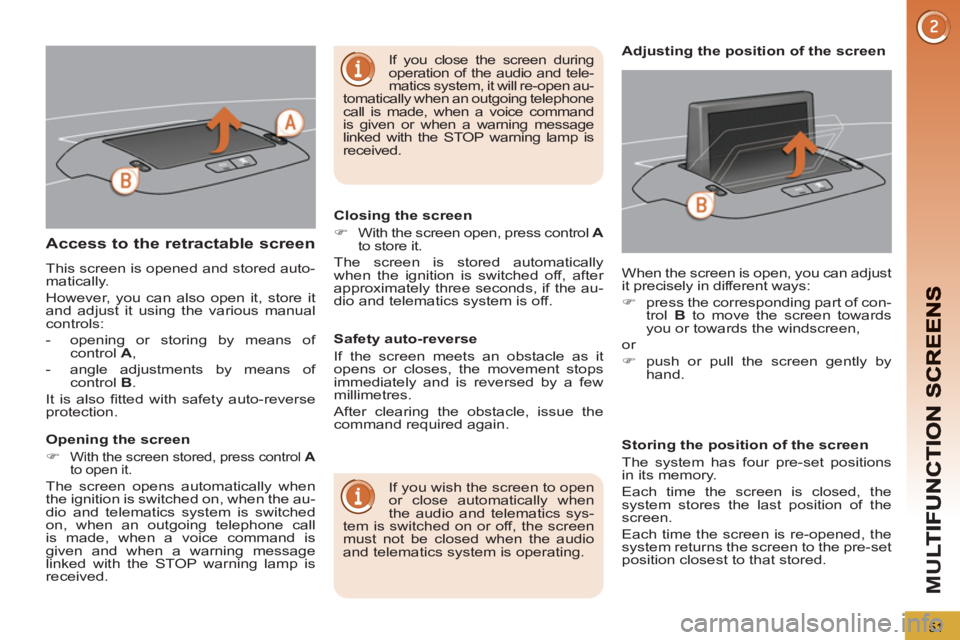

Access to the retractable screen
This screen is opened and stored auto-
matically.
However, you can also open it, store it
and adjust it using the various manual
controls:
- opening or storing by means of
control A
,
- angle adjustments by means of
control B
.
It is also fi tted with safety auto-reverse
protection.
Opening the screen
)
With the screen stored, press control A
to open it.
The screen opens automatically when
the ignition is switched on, when the au-
dio and telematics system is switched
on, when an outgoing telephone call
is made, when a voice command is
given and when a warning message
linked with the STOP warning lamp is
received.
Closing the screen
)
With the screen open, press control A
to store it.
The screen is stored automatically
when the ignition is switched off, after
approximately three seconds, if the au-
dio and telematics system is off.
If you wish the screen to open
or close automatically when
the audio and telematics sys-
tem is switched on or off, the screen
must not be closed when the audio
and telematics system is operating. When the screen is open, you can adjust
it precisely in different ways:
)
press the corresponding part of con-
trol B
to move the screen towards
you or towards the windscreen,
or
)
push or pull the screen gently by
hand.
Adjusting the position of the screen
Safety auto-reverse
If the screen meets an obstacle as it
opens or closes, the movement stops
immediately and is reversed by a few
millimetres.
After clearing the obstacle, issue the
command required again.
Storing the position of the screen
The system has four pre-set positions
in its memory.
Each time the screen is closed, the
system stores the last position of the
screen.
Each time the screen is re-opened, the
system returns the screen to the pre-set
position closest to that stored.
If you close the screen during
operation of the audio and tele-
matics system, it will re-open au-
tomatically when an outgoing telephone
call is made, when a voice command
is given or when a warning message
linked with the STOP warning lamp is
received.
Page 54 of 364
M
U
52

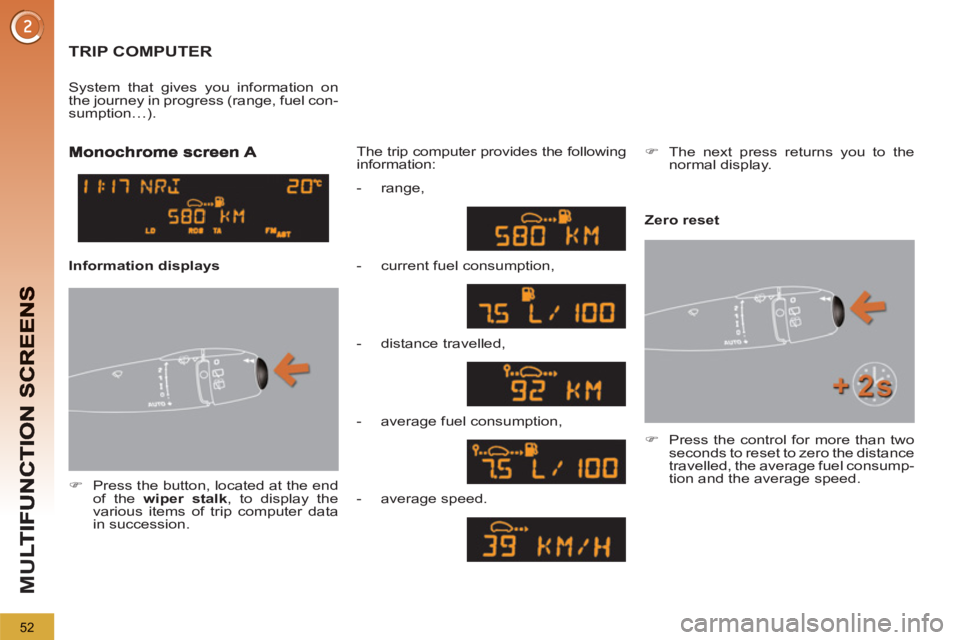

TRIP COMPUTER
)
Press the button, located at the end
of the wiper stalk
, to display the
various items of trip computer data
in succession.
The trip computer provides the following
information:
System that gives you information on
the journey in progress (range, fuel con-
sumption…).
)
Press the control for more than two
seconds to reset to zero the distance
travelled, the average fuel consump-
tion and the average speed.
Zero reset
Information displays
- range,
- current fuel consumption,
- distance travelled,
- average fuel consumption,
- average speed.
)
The next press returns you to the
normal display.
Page 55 of 364
M
U
53

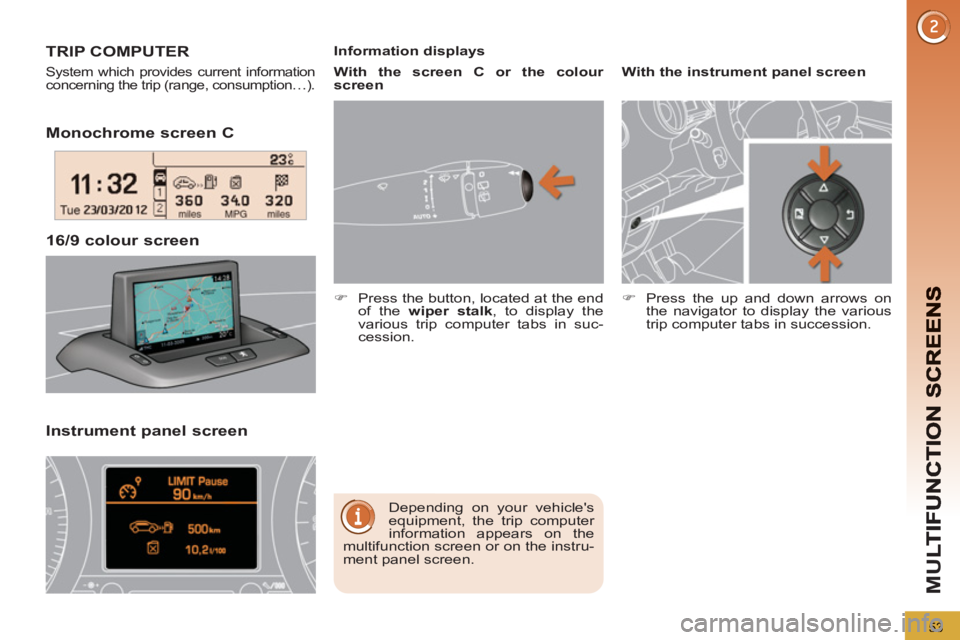

Monochrome screen C
Instrument
panel screen 16/9 colour screen
TRIP COMPUTER
System which provides current information
concerning the trip (range, consumption…).
Depending on your vehicle's
equipment, the trip computer
information appears on the
multifunction screen or on the instru-
ment panel screen.
Information displays
)
Press the button, located at the end
of the wiper stalk
, to display the
various trip computer tabs in suc-
cession.
With the instrument panel screen
)
Press the up and down arrows on
the navigator to display the various
trip computer tabs in succession.
With the screen C or the colour
screen
Page 56 of 364
54

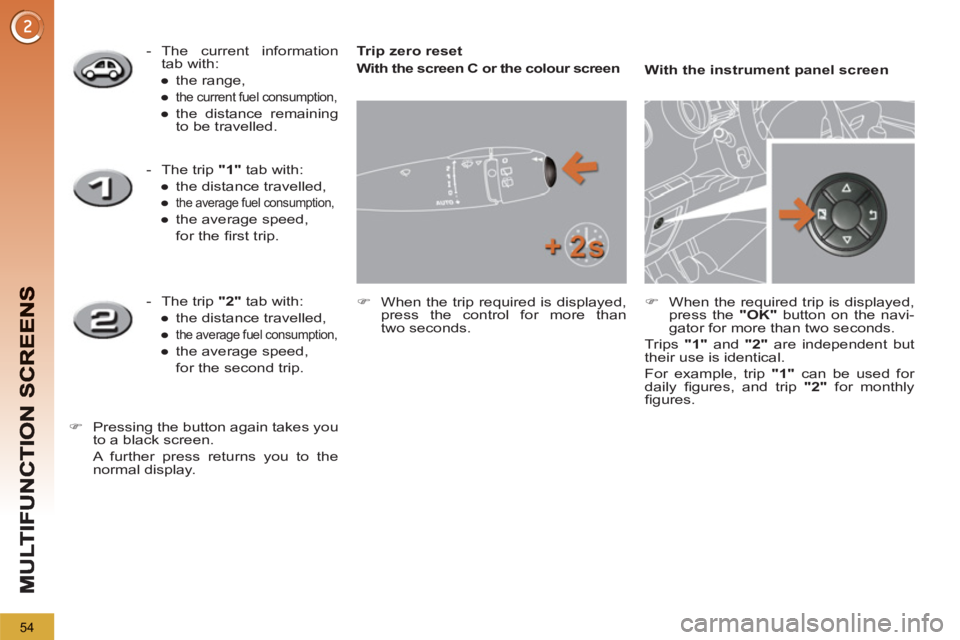

Trip zero reset
With the screen C or the colour screen
)
When the trip required is displayed,
press the control for more than
two seconds.
With the instrument panel screen
)
When the required trip is displayed,
press the "OK"
button on the navi-
gator for more than two seconds.
Trips "1"
and "2"
are independent but
their use is identical.
For example, trip "1"
can be used for
daily fi gures, and trip "2"
for monthly
fi gures.
- The current information
tab with:
●
the range,
●
the current fuel consumption,
●
the distance remaining
to be travelled.
- The trip "1"
tab with:
●
the distance travelled,
●
the average fuel consumption,
●
the average speed,
for the fi rst trip.
- The trip "2"
tab with:
●
the distance travelled,
●
the average fuel consumption,
●
the average speed,
for the second trip.
)
Pressing the button again takes you
to a black screen.
A further press returns you to the
normal display.
Page 57 of 364
M
U
55

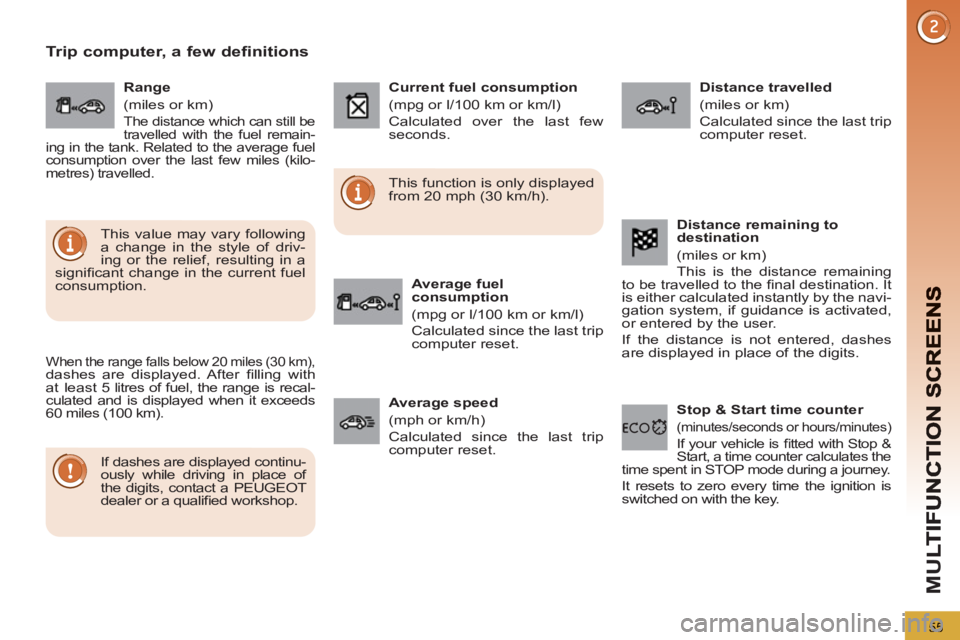

Trip computer, a few definitions
When the range falls below 20 miles (30 km), dashes are displayed. After fi lling with
at least 5 litres of fuel, the range is recal-
culated and is displayed when it exceeds
60 miles (100 km).
If dashes are displayed continu-
ously while driving in place of
the digits, contact a PEUGEOT
dealer or a qualifi ed workshop.
This function is only displayed
from 20 mph (30 km/h).
This value may vary following
a change in the style of driv-
ing or the relief, resulting in a
signifi cant change in the current fuel
consumption.
Range
(miles or km)
The distance which can still be
travelled with the fuel remain-
ing in the tank. Related to the average fuel
consumption over the last few miles (kilo-
metres) travelled.
Current fuel consumption
(mpg or l/100 km or km/l)
Calculated over the last few
seconds.
Average fuel
consumption
(mpg or l/100 km or km/l)
Calculated since the last trip
computer reset.
Distance travelled
(miles or km)
Calculated since the last trip
computer reset.
Average speed
(mph or km/h)
Calculated since the last trip
computer reset.
Stop & Start time counter
(minutes/seconds or hours/minutes)
If your vehicle is fi tted with Stop &
Start, a time counter calculates the
time spent in STOP mode during a journey.
It resets to zero every time the ignition is
switched on with the key.
Distance remaining to
destination
(miles or km)
This is the distance remaining
to be travelled to the fi nal destination. It
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Page 58 of 364
CO
56

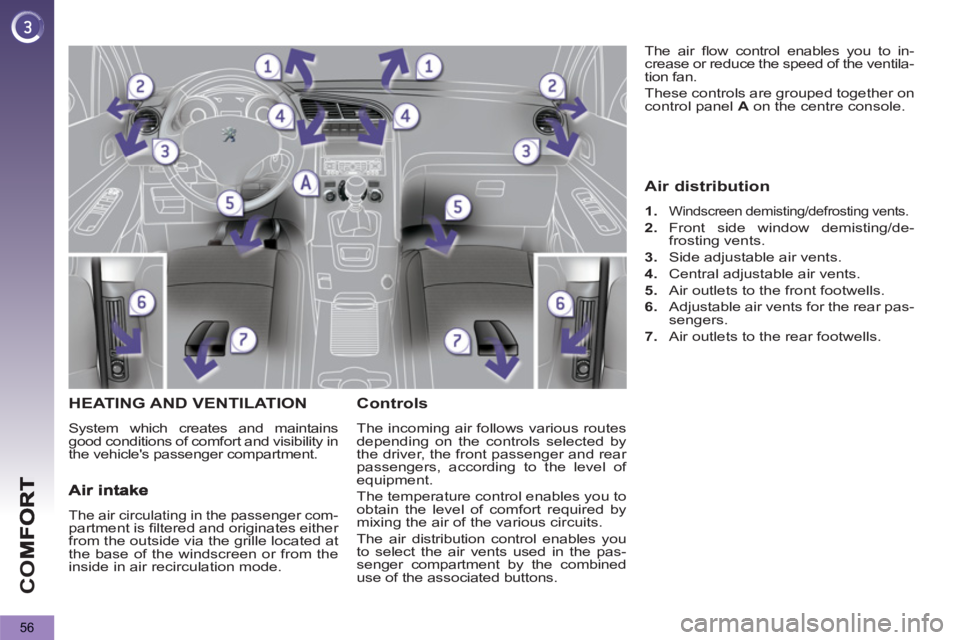

HEATING AND VENTILATION
System which creates and maintains
good conditions of comfort and visibility in
the vehicle's passenger compartment.
Controls
The incoming air follows various routes
depending on the controls selected by
the driver, the front passenger and rear
passengers, according to the level of
equipment.
The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits.
The air distribution control enables you
to select the air vents used in the pas-
senger compartment by the combined
use of the associated buttons. The air fl ow control enables you to in-
crease or reduce the speed of the ventila-
tion fan.
These controls are grouped together on
control panel A
on the centre console.
The air circulating in the passenger com-partment is fi ltered and originates either
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode.
Air distribution
1.
Windscreen demisting/defrosting vents.
2.
Front side window demisting/de-
frosting vents.
3.
Side adjustable air vents.
4.
Central adjustable air vents.
5.
Air outlets to the front footwells.
6.
Adjustable air vents for the rear pas-
sengers.
7.
Air outlets to the rear footwells.

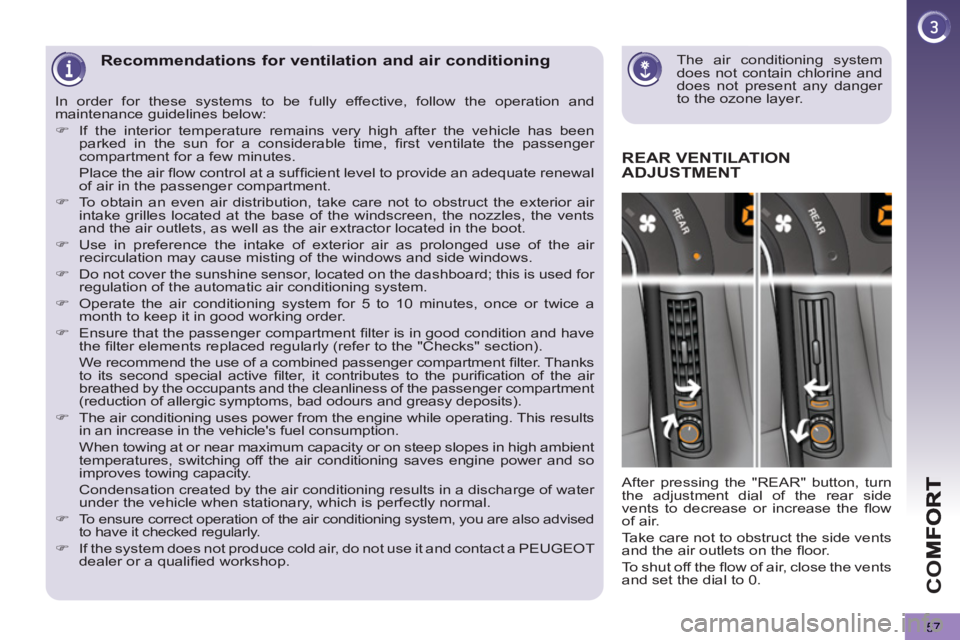

Page 59 of 364
CO
57
The air conditioning system
does not contain chlorine and
does not present any danger
to the ozone layer.
Recommendations for ventilation and air conditioning
REAR VENTILATION
ADJUSTMENT
After pressing the "REAR" button, turn
the adjustment dial of the rear side
vents to decrease or increase the fl ow
of air.
Take care not to obstruct the side vents
and the air outlets on the fl oor.
To shut off the fl ow of air, close the vents
and set the dial to 0. In order for these systems to be fully effective, follow the operation and
maintenance guidelines below:
)
If the interior temperature remains very high after the vehicle has been
parked in the sun for a considerable time, fi rst ventilate the passenger
compartment for a few minutes.
Place the air fl ow control at a suffi cient level to provide an adequate renewal
of air in the passenger compartment.
)
To obtain an even air distribution, take care not to obstruct the exterior air
intake grilles located at the base of the windscreen, the nozzles, the vents
and the air outlets, as well as the air extractor located in the boot.
)
Use in preference the intake of exterior air as prolonged use of the air
recirculation may cause misting of the windows and side windows.
)
Do not cover the sunshine sensor, located on the dashboard; this is used for
regulation of the automatic air conditioning system.
)
Operate the air conditioning system for 5 to 10 minutes, once or twice a
month to keep it in good working order.
)
Ensure that the passenger compartment fi lter is in good condition and have
the fi lter elements replaced regularly (refer to the "Checks" section).
We recommend the use of a combined passenger compartment fi lter. Thanks
to its second special active fi lter, it contributes to the purifi cation of the air
breathed by the occupants and the cleanliness of the passenger compartment
(reduction of allergic symptoms, bad odours and greasy deposits).
)
The air conditioning uses power from the engine while operating. This results
in an increase in the vehicle's fuel consumption.
When towing at or near maximum capacity or on steep slopes in high ambient
temperatures, switching off the air conditioning saves engine power and so
improves towing capacity.
Condensation created by the air conditioning results in a discharge of water
under the vehicle when stationary, which is perfectly normal.
)
To ensure correct operation of the air conditioning system, you are also advised
to have it checked regularly.
)
If the system does not produce cold air, do not use it and contact a PEUGEOT
dealer or a qualifi ed workshop.

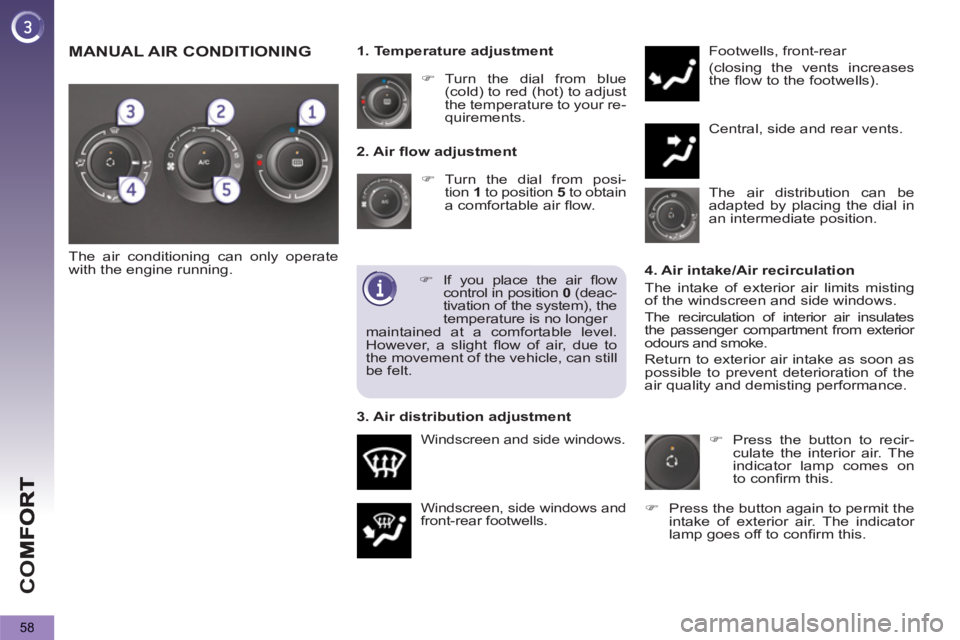

Page 60 of 364
CO
58
2. Air fl ow adjustment
)
Turn the dial from posi-
tion 1
to position 5
to obtain
a comfortable air fl ow.
Windscreen, side windows and
front-rear footwells.
Footwells, front-rear
(closing the vents increases
the fl ow to the footwells).
Central, side and rear vents.
)
Turn the dial from blue
(cold) to red (hot) to adjust
the temperature to your re-
quirements.
Windscreen and side windows.
1. Temperature adjustment
The air distribution can be
adapted by placing the dial in
an intermediate position.
The air conditioning can only operate
with the engine running.
4. Air intake/Air recirculation
The intake of exterior air limits misting
of the windscreen and side windows.
The recirculation of interior air insulates
the passenger compartment from exterior
odours and smoke.
Return to exterior air intake as soon as
possible to prevent deterioration of the
air quality and demisting performance.
)
If you place the air fl ow
control in position 0
(deac-
tivation of the system), the
temperature is no longer
3. Air distribution adjustment
)
Press the button to recir-
culate the interior air. The
indicator lamp comes on
to confi rm this.
)
Press the button again to permit the
intake of exterior air. The indicator
lamp goes off to confi rm this.
MANUAL AIR CONDITIONING
maintained at a comfortable level.
However, a slight fl ow of air, due to
the movement of the vehicle, can still
be felt.
