PEUGEOT 5008 2016 User Guide

9
5008_en_Chap00b_vue-ensemble_ed01-2015
Version 2
Side
Centre

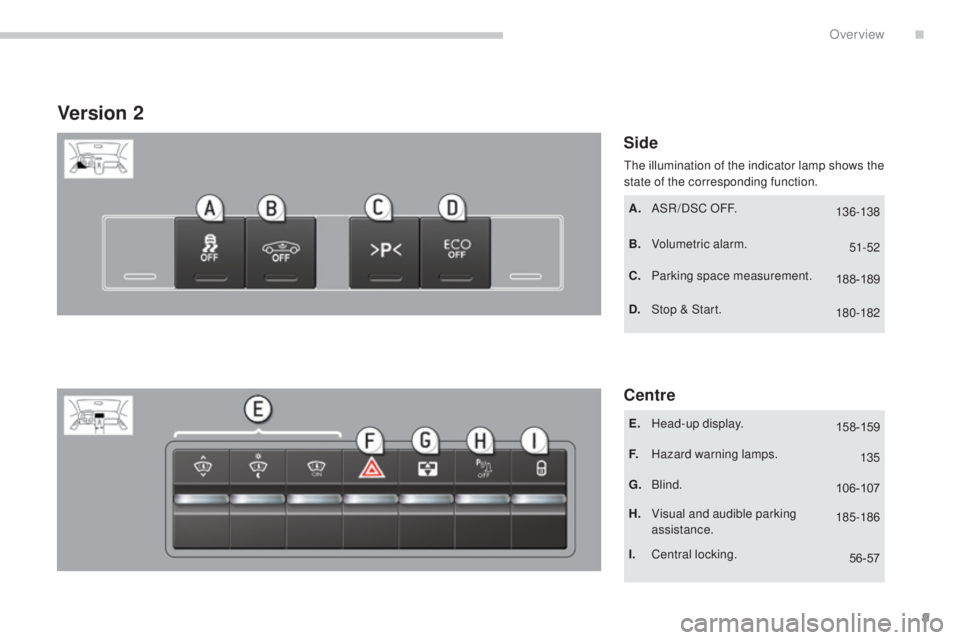

A. ASR/DSC OFF.
B.
V
olumetric alarm.
C.
P

arking space measurement.
D.
St

op & Start.
E.
H

ead-up display.
F.
H

azard warning lamps.
G.
B

lind.
H.
V

isual and audible parking
assistance.
I.
C

entral locking.
The illumination of the indicator lamp shows the
state of the corresponding function.
136-138
51-52
188-189
180-182
158-159 135
106-107
185-186
56-57
.
Over view

10
5008_en_Chap00b_vue-ensemble_ed01-2015
Version 3
Side
Centre

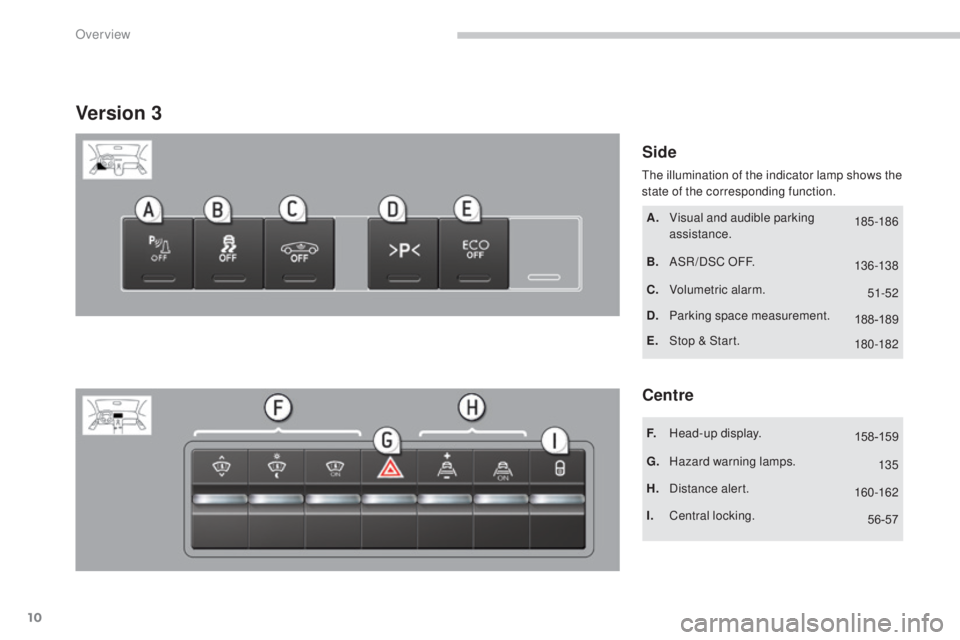

A. Visual and audible parking assistance.
B.
AS

R/DSC OFF.
C.
V

olumetric alarm.
D.
P

arking space measurement.
E.
St

op & Start.
F.
H

ead-up display.
G.
H

azard warning lamps.
H.
D

istance alert.
I.
C

entral locking.
The illumination of the indicator lamp shows the
state of the corresponding function.
185-186
136-13851-52
188-189
180-182
158-159
135
160-162 56-57
Over view

11
5008_en_Chap00b_vue-ensemble_ed01-2015

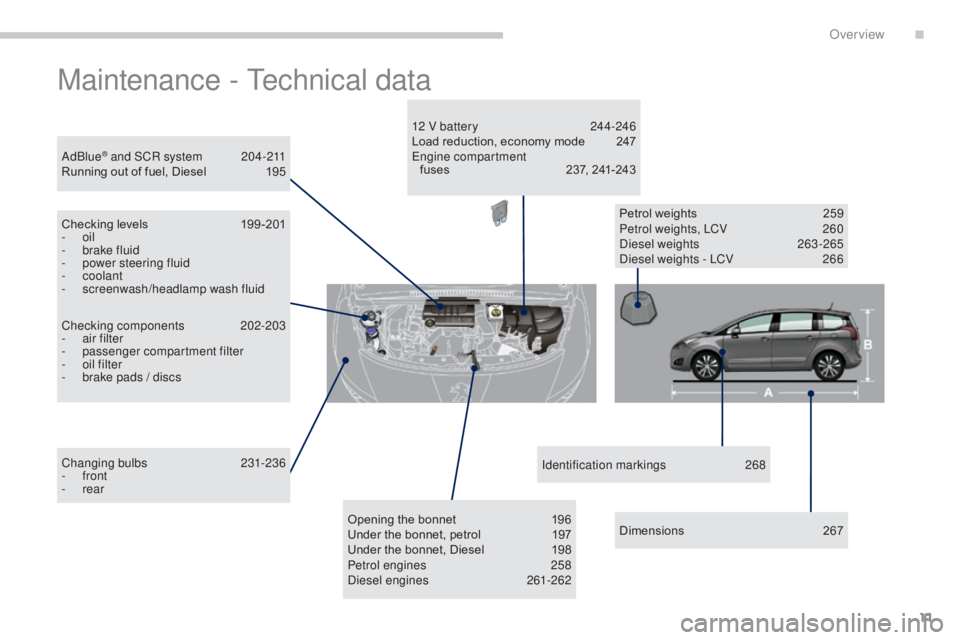

Maintenance - Technical data
Checking components 202-203
- a ir filter
-
p

assenger compartment filter
-

o
il filter
-

b
rake pads / discs
AdBlue
® and SCR system 2
04-211
Running out of fuel, Diesel 1 95
Checking levels

1
99 -201
-

oil
-

b

rake fluid
-

p

ower steering fluid
-


coolant
-
s

creenwash/headlamp wash fluid
Changing bulbs
2

31-236
-

front
-

rear Petrol weights

2
59
Petrol weights, LCV

2
60
Diesel weights
26

3-265
Diesel weights - LCV

2
66
12 V battery

2
44-246
Load reduction, economy mode 2 47
Engine compartment fuses
2 37, 241-243
Opening the bonnet

1
96
Under the bonnet, petrol

1
97
Under the bonnet, Diesel

1
98
Petrol engines

2
58
Diesel engines
2

61-262Identification markings
2

68
Dimensions
2

67
.
Over view

12
5008_en_Chap00c_eco-conduite_ed01-2015

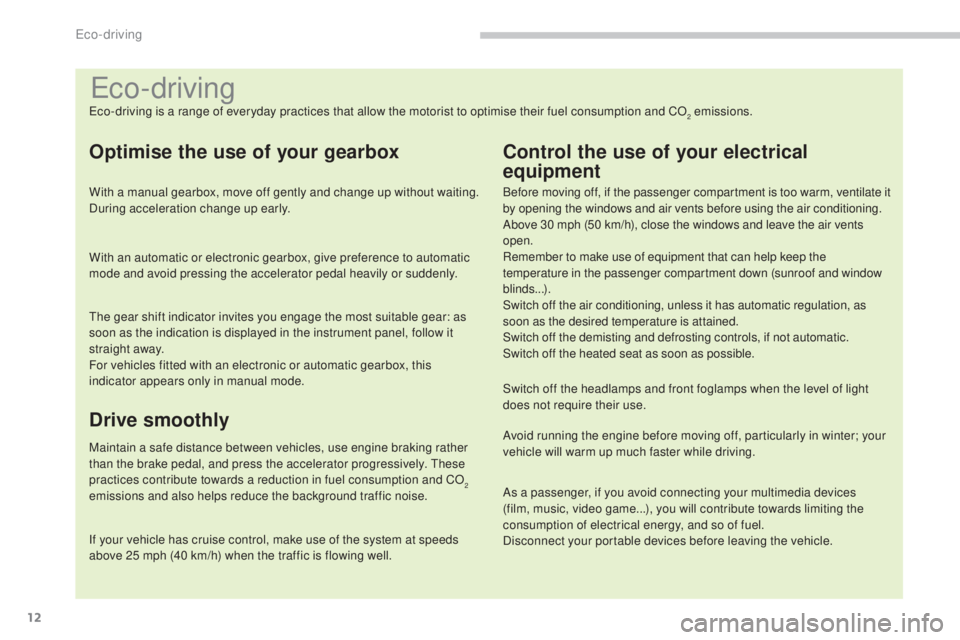

Eco-driving
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up without waiting.
During acceleration change up early.
With an automatic or electronic gearbox, give preference to automatic
mode and avoid pressing the accelerator pedal heavily or suddenly.
The gear shift indicator invites you engage the most suitable gear: as
soon as the indication is displayed in the instrument panel, follow it
straight away.
For vehicles fitted with an electronic or automatic gearbox, this
indicator appears only in manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. These
practices contribute towards a reduction in fuel consumption and CO
2
emissions and also helps reduce the background traffic noise.
If your vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffic is flowing well.
Control the use of your electrical
equipment
Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (sunroof and window
blinds...).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the level of light
does not require their use.
Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.
Eco-driving

13
5008_en_Chap00c_eco-conduite_ed01-2015

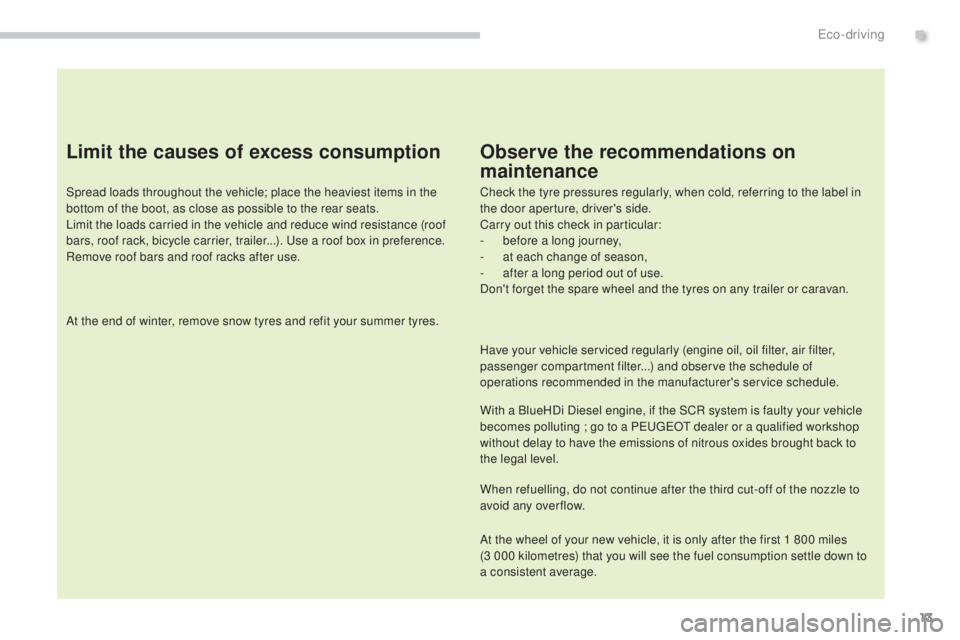

Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations on
maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
-
b
efore a long journey,
-

a
t each change of season,
-

a
fter a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the manufacturer's service schedule.
With a BlueHDi Diesel engine, if the SCR system is faulty your vehicle
becomes polluting ; go to a PEUGEOT dealer or a qualified workshop
without delay to have the emissions of nitrous oxides brought back to
the legal level.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any over flow.
At the wheel of your new vehicle, it is only after the first 1 800 miles
(3
000 kilometres) that you will see the fuel consumption settle down to
a consistent average.
.
Eco-driving

14
5008_en_Chap01_controle-marche_ed01-2015
Instrument panels

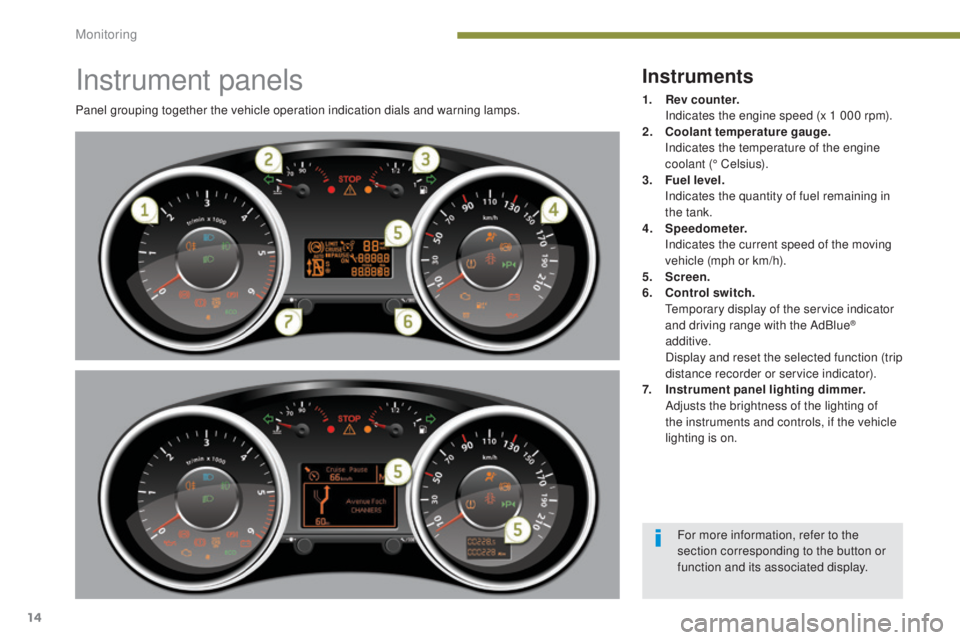

Panel grouping together the vehicle operation indication dials and warning lamps.
Instruments
1. Rev counter. I
ndicates the engine speed (x 1 000 rpm).
2.
C

oolant temperature gauge.
I

ndicates the temperature of the engine
coolant (° Celsius).
3.
F

uel level.
I

ndicates the quantity of fuel remaining in
the tank.
4.
S

peedometer.
I

ndicates the current speed of the moving
vehicle (mph or km/h).
5.
S

creen.
6.
C

ontrol switch.
T

emporary display of the service indicator
and driving range with the AdBlue
®
additive.
D

isplay and reset the selected function (trip
distance recorder or service indicator).
7.
I

nstrument panel lighting dimmer.
A

djusts the brightness of the lighting of
the instruments and controls, if the vehicle
lighting is on.
For more information, refer to the
section corresponding to the button or
function and its associated display.
Monitoring

15
5008_en_Chap01_controle-marche_ed01-2015
Screen(s)

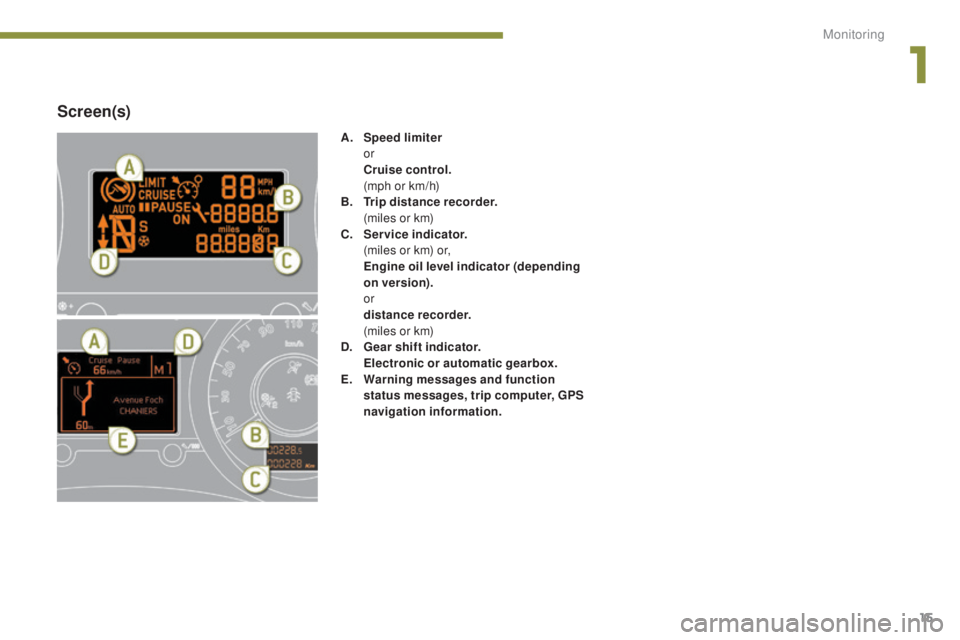

A. Speed limiter
or
C

ruise control.
(

mph or km/h)
B.
T

rip distance recorder.
(

miles or km)
C.
S

ervice indicator.
(

miles or km) or,


E
ngine oil level indicator (depending
on version).


or


d
istance recorder.
(

miles or km)
D.
G

ear shift indicator.
E

lectronic or automatic gearbox.
E.
W

arning messages and function
status messages, trip computer, GPS
navigation information.
1
Monitoring

16
5008_en_Chap01_controle-marche_ed01-2015
Left-hand
direction
indicator flashing with buzzer.
The lighting stalk is pushed down.
Right-hand
direction
indicator flashing with buzzer.
The lighting stalk is pushed up.

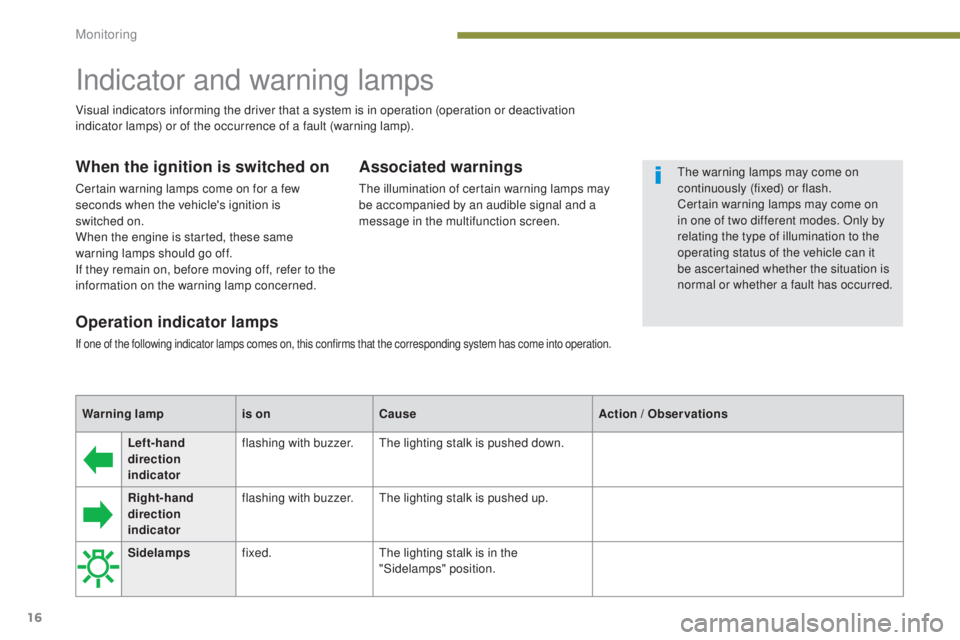

Operation indicator lamps
