Page 169 of 340
7
167
!
!
Safety

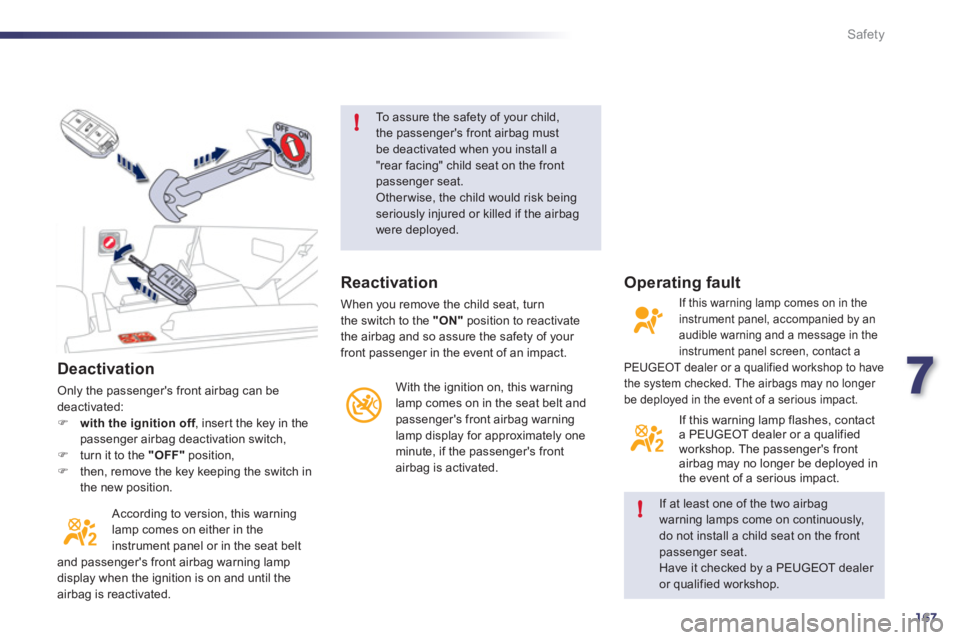

Deactivation
Only the passenger's front airbag can be
deactivated:
)
with the ignition off
, inser t the key in the
passenger airbag deactivation switch,
)
turn it to the "OFF"
position,
)
then, remove the key keeping the switch in
the new position.
According to version, this warning
lamp comes on either in the
instrument panel or in the seat belt
and passenger's front airbag warning lamp
display when the ignition is on and until the
airbag is reactivated. To assure the safety of your child,
the passenger's front airbag must
be deactivated when you install a
"rear facing" child seat on the front
passenger seat.
Other wise, the child would risk being
seriously injured or killed if the airbag
were deployed.
If at least one of the two airbag
warning lamps come on continuously,
do not install a child seat on the front
passenger seat.
Have it checked by a PEUGEOT dealer
or qualified workshop.
Reactivation
When you remove the child seat, turn
the switch to the "ON"
position to reactivate
the airbag and so assure the safety of your
front passenger in the event of an impact.
With the ignition on, this warning
lamp comes on in the seat belt and
passenger's front airbag warning
lamp display for approximately one
minute, if the passenger's front
airbag is activated.
Operating fault
If this warning lamp comes on in the
instrument panel, accompanied by an
audible warning and a message in the
instrument panel screen, contact a
PEUGEOT dealer or a qualified workshop to have
the system checked. The airbags may no longer
be deployed in the event of a serious impact.
If this warning lamp flashes, contact
a PEUGEOT dealer or a qualified
workshop. The passenger's front
airbag may no longer be deployed in
the event of a serious impact.
Page 170 of 340
168
!
Safety

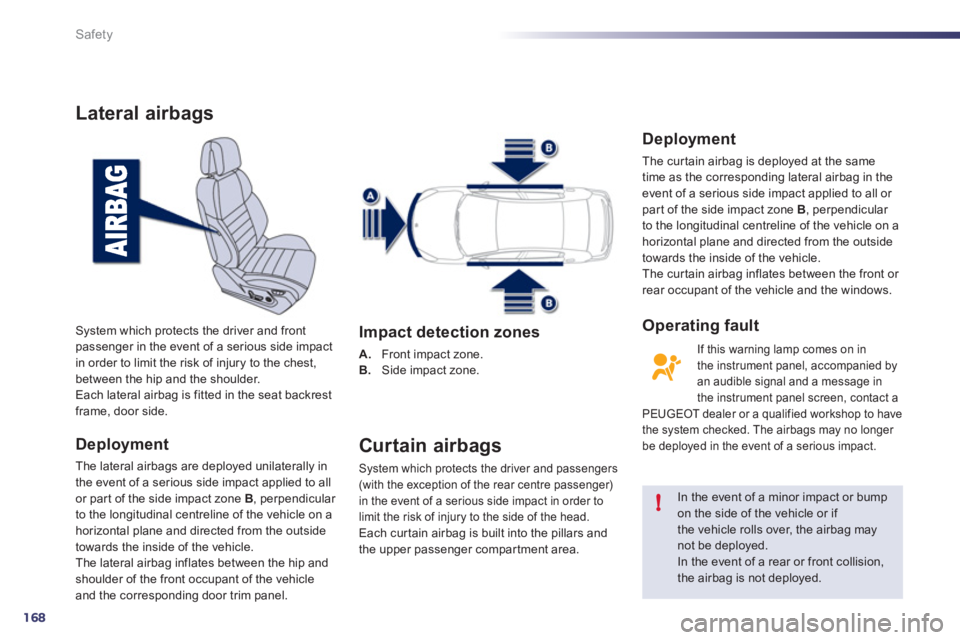

Lateral airbags
Deployment
The lateral airbags are deployed unilaterally in
the event of a serious side impact applied to all
or par t of the side impact zone B
, perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
The lateral airbag inflates between the hip and
shoulder of the front occupant of the vehicle
and the corresponding door trim panel. System which protects the driver and front
passenger in the event of a serious side impact
in order to limit the risk of injury to the chest,
between the hip and the shoulder.
Each lateral airbag is fitted in the seat backrest
frame, door side.
Impact detection zones
A.
Front impact zone.
B.
Side impact zone.
Curtain airbags
System which protects the driver and passengers
(with the exception of the rear centre passenger)
in the event of a serious side impact in order to
limit the risk of injury to the side of the head.
Each cur tain airbag is built into the pillars and
the upper passenger compar tment area. In the event of a minor impact or bump
on the side of the vehicle or if
the vehicle rolls over, the airbag may
not be deployed.
In the event of a rear or front collision,
the airbag is not deployed.
Deployment
The cur tain airbag is deployed at the same
time as the corresponding lateral airbag in the
event of a serious side impact applied to all or
par t of the side impact zone B
, perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
The cur tain airbag inflates between the front or
rear occupant of the vehicle and the windows.
If this warning lamp comes on in
the instrument panel, accompanied by
an audible signal and a message in
the instrument panel screen, contact a
PEUGEOT dealer or a qualified workshop to have
the system checked. The airbags may no longer
be deployed in the event of a serious impact.
Operating fault
Page 171 of 340
7
169
!
Safety

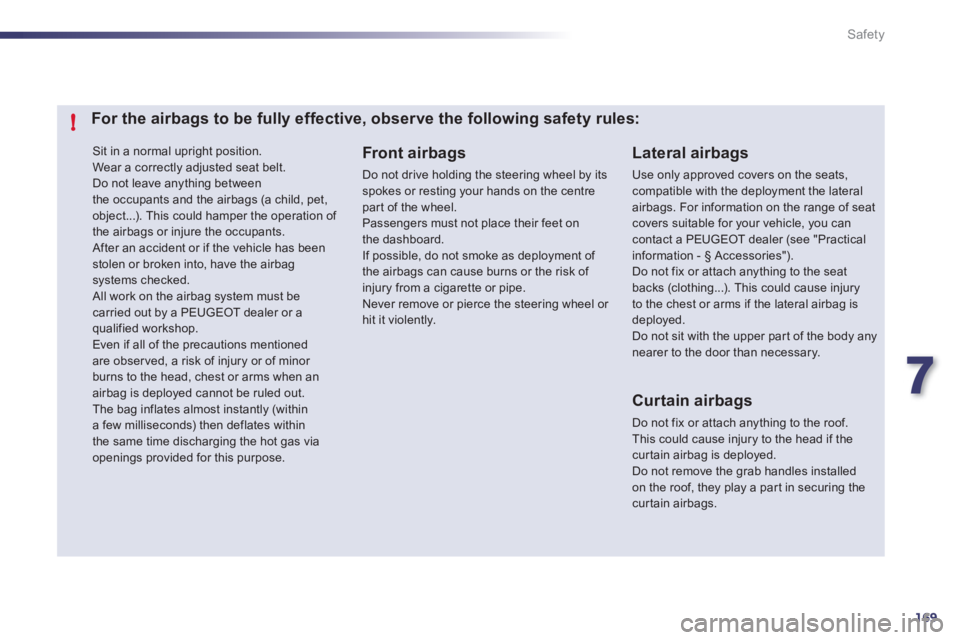

Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between
the occupants and the airbags (a child, pet,
object...). This could hamper the operation of
the airbags or injure the occupants.
After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.
All work on the airbag system must be
carried out by a PEUGEOT dealer or a
qualified workshop.
Even if all of the precautions mentioned
are obser ved, a risk of injury or of minor
burns to the head, chest or arms when an
airbag is deployed cannot be ruled out.
The bag inflates almost instantly (within
a few milliseconds) then deflates within
the same time discharging the hot gas via
openings provided for this purpose.
Lateral airbags
Use only approved covers on the seats,
compatible with the deployment the lateral
airbags. For information on the range of seat
covers suitable for your vehicle, you can
contact a PEUGEOT dealer (see "Practical
information - § Accessories").
Do not fix or attach anything to the seat
backs (clothing...). This could cause injury
to the chest or arms if the lateral airbag is
deployed.
Do not sit with the upper par t of the body any
nearer to the door than necessary.
Front airbags
Do not drive holding the steering wheel by its
spokes or resting your hands on the centre
part of the wheel.
Passengers must not place their feet on
the dashboard.
If possible, do not smoke as deployment of
the airbags can cause burns or the risk of
injury from a cigarette or pipe.
Never remove or pierce the steering wheel or
hit it violently.
Curtain airbags
Do not fix or attach anything to the roof.
This could cause injury to the head if the
cur tain airbag is deployed.
Do not remove the grab handles installed
on the roof, they play a par t in securing the
curtain airbags.
For the airbags to be fully effective, observe the following safety rules:
Page 172 of 340
170
Practical information
This kit is installed in the storage box,
under the boot floor. Complete system consisting of a compressor
and a sealant car tridge which permits
temporary repair
of a tyre so that you can
drive to the nearest garage.
It is designed to repair most punctures which
could affect the tyre, located on the tyre tread
or shoulder.
Temporary puncture repair kit
Access to the kit
List of tools
All of these tools are specific to your vehicle
and can vary according to equipment. Do not
use them for other purposes.
1.
12 V compressor.
Contains a sealant cartridge for the
temporary repair of a tyre and can also be
used for adjusting tyre pressures.
2.
One chock * to block one of the front wheels
of the vehicle.
3.
Removable towing eye.
See "Towing the vehicle".
* Depending on destination country or equipment.
Page 174 of 340
172
!i
Practical information

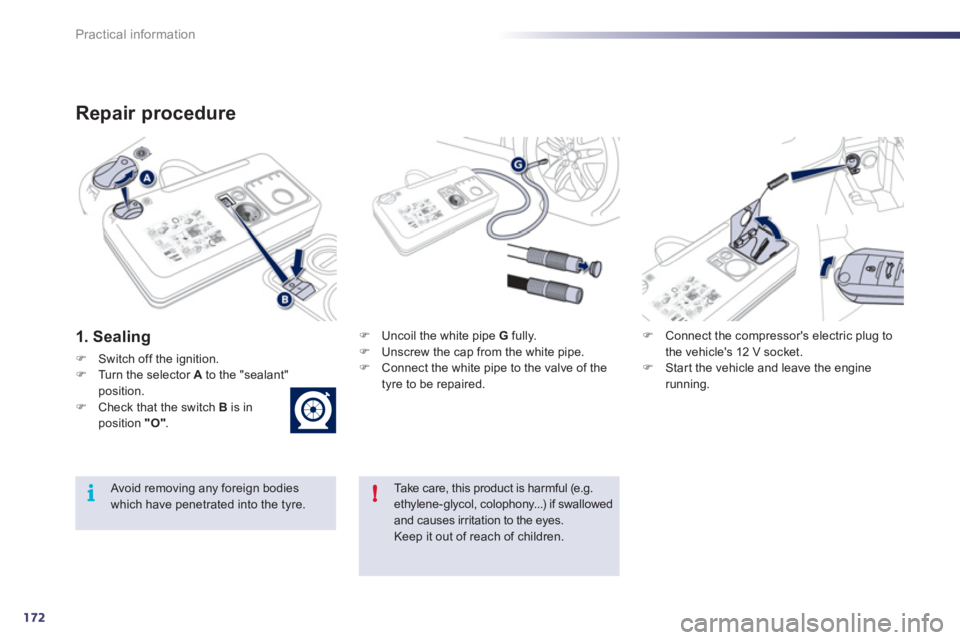

Repair procedure
1. Sealing
)
Switch off the ignition.
)
Turn the selector A
to the "sealant"
position.
)
Check that the switch B
is in
position "O"
.
)
Uncoil the white pipe G
fully.
)
Unscrew the cap from the white pipe.
)
Connect the white pipe to the valve of the
tyre to be repaired.
)
Connect the compressor's electric plug to
the vehicle's 12 V socket.
)
Star t the vehicle and leave the engine
running.
Take care, this product is harmful (e.g.
ethylene-glycol, colophony...) if swallowed
and causes irritation to the eyes.
Keep it out of reach of children.
Avoid removing any foreign bodies
which have penetrated into the tyre.
Page 175 of 340
8
173
i
i
Practical information
If after around 5 to 7 minutes the
pressure is not attained, this indicates
that the tyre is not repairable; contact
a PEUGEOT dealer or a qualified
workshop for assistance.
)
Switch on the compressor by moving
the switch B
to position "I"
until the tyre
pressure reaches 2.0 bars.
The sealant is injected into the tyre under
pressure; do not disconnect the pipe from
the valve during this operation
(risk of splashing).
)
Remove the kit and screw the cap back on
the white pipe.
Take care to avoid staining your vehicle
with traces of fluid. Keep the kit to hand.
)
Drive immediately for approximately three
miles (five kilometres), at reduced speed
(between 15 and 35 mph [20 and 60 km/h]),
to plug the puncture.
)
Stop to check the repair and the tyre
pressure using the kit.
Ty r e u n d e r - i nfl ation detection
If the vehicle is fitted with tyre under-
inflation detection, the under-inflation
warning lamp will remain on after the
wheel has been repaired until the
system is reinitialised by a PEUGEOT
dealer or a qualified workshop.
Page 176 of 340
174
!
Practical information
2. Infl ation
)
Turn the selector A
to the "air"
position.
)
Uncoil the black pipe H
fully.
)
Connect the black pipe to the
valve of the wheel.
)
Connect the compressor's electric plug to
the vehicle's 12 V socket.
)
Star t the vehicle again and leave the
engine running.
)
Adjust the pressure using the compressor
(to inflate: switch B
in position "I"
; to
deflate: switch B
in position "O"
and press
button C
), in accordance with the vehicle's
tyre pressure label (located on the left hand
door aperture).
A loss of pressure indicates that the
puncture has not been fully plugged;
contact a PEUGEOT dealer or qualified
workshop for assistance.
)
Remove and stow the kit.
)
Drive at reduced speed (50 mph [80 km/h]
max) limiting the distance travelled to
approximately 120 miles (200 km).
)
Visit a PEUGEOT dealer or a
qualified workshop as soon as
possible.
You must inform the technician
that you have used this kit. After
inspection, the technician will
inform you whether the tyre can be
repaired or must be replaced.
Page 177 of 340
8
175
!
Practical information
Removing the cartridge
)
Stow the black pipe.
)
Detach the angled base from the white pipe.
)
Suppor t the compressor ver tically.
)
Unscrew the car tridge from the bottom.
Beware of discharges of fluid.
The expiry date of the fluid is indicated
on the car tridge.
The sealant car tridge is designed for
single use; even if only par tly used, it
must be replaced.
After use, do not discard the car tridge
into the environment, take it to an
authorised waste disposal site or a
PEUGEOT dealer.
Do not forget to obtain a new sealant
car tridge, available from PEUGEOT
dealers or from a qualified workshop.
Checking tyre pressures/
inflating accessories
You can also use the compressor, without
injecting any product, to:
- check or adjust the pressure of your tyres,
- inflate other accessories (balls, bicycle
tyres...).
)
Turn the selector A
to the "Air"
position.
)
Uncoil the black pipe H
fully.
)
Connect the black pipe to the
valve of the wheel or accessory.
If necessary, fit one of the adaptors
supplied with the kit first.
)
Connect the compressor's electrical
connector to the vehicle's 12 V socket.
)
Star t the vehicle and let the engine run.
)
Adjust the pressure using the compressor
(to inflate: switch B
in position "I"
; to
deflate: switch B
in position "O"
and press
button C
), according to the vehicle's tyre
pressure label or the accessory's pressure
label.
)
Remove the kit then stow it.
Page 183 of 340
8
181
i
Practical information

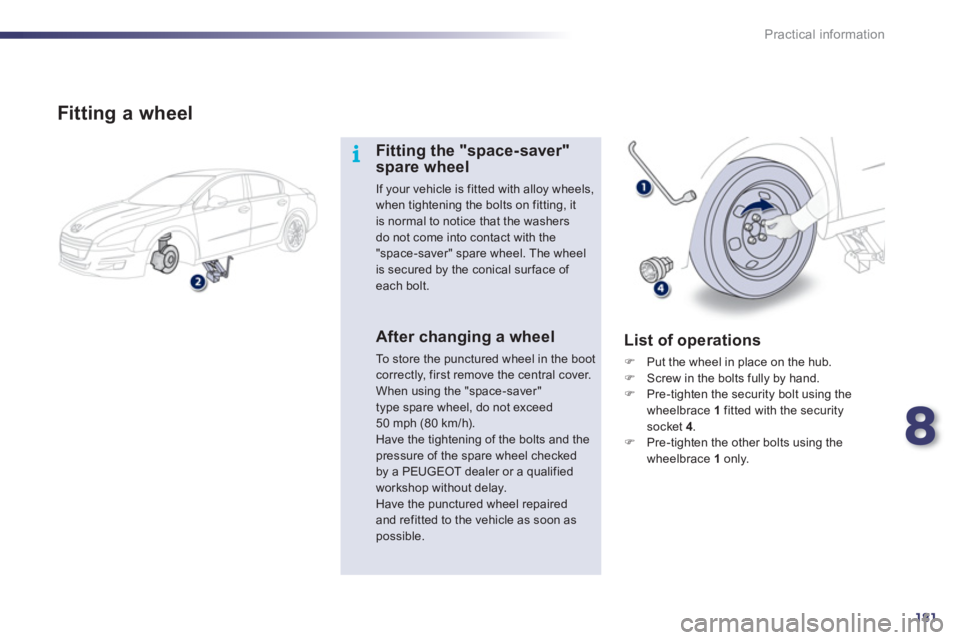

Fitting a wheel
Fitting the "space-saver"
spare wheel
If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting, it
is normal to notice that the washers
do not come into contact with the
"space-saver" spare wheel. The wheel
is secured by the conical sur face of
each bolt.
After changing a wheel
To store the punctured wheel in the boot
correctly, first remove the central cover.
When using the "space-saver"
type spare wheel, do not exceed
50 mph (80 km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a PEUGEOT dealer or a qualified
workshop without delay.
Have the punctured wheel repaired
and refitted to the vehicle as soon as
possible.
List of operations
)
Put the wheel in place on the hub.
)
Screw in the bolts fully by hand.
)
Pre-tighten the security bolt using the
wheelbrace 1
fitted with the security
socket 4
.
)
Pre-tighten the other bolts using the
wheelbrace 1
only.
Page 194 of 340
192
i
!
Practical information
Changing a fuse
Procedure for replacing a failed fuse with a new fuse to rectify a failure of the corresponding function.
The extraction tweezer and spare fuses are
located in the glove box.
Access to the tools
Before changing a fuse, the cause of the failure
must be identified and rectified.
)
Identify the failed fuse by checking the
condition of its filament.
Changing a fuse
Good
Failed
)
Use the special tweezer to extract the fuse
from its housing.
)
Always replace the faulty fuse with a fuse
of the same rating.
)
Check that the number marked on the
fusebox, the rating marked on the fuse and
the following tables all agree. PEUGEOT will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by PEUGEOT and
not installed in accordance with its
instructions, in par ticular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.
Installing electrical
accessories
Your vehicle’s electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer or
a qualified workshop.
