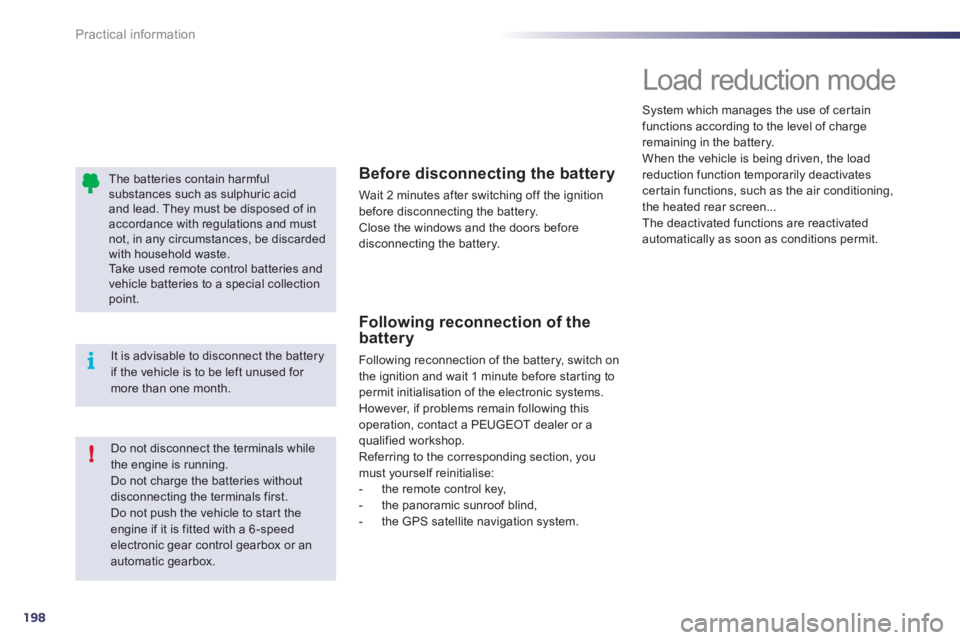

Practical information

The batteries contain harmful
substances such as sulphuric acid
and lead. They must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.

Do not disconnect the terminals while
the engine is running.
Do not charge the batteries without
disconnecting the terminals first.
Do not push the vehicle to star t the
engine if it is fitted with a 6 -speed
electronic gear control gearbox or an
automatic gearbox.
It is advisable to disconnect the battery
if the vehicle is to be left unused for
more than one month.

Before disconnecting the battery

Wait 2 minutes after switching off the ignition
before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.


Following reconnection of the
battery
Following reconnection of the battery, switch on
the ignition and wait 1 minute before star ting to
permit initialisation of the electronic systems.
However, if problems remain following this
operation, contact a PEUGEOT dealer or a
qualified workshop.
Referring to the corresponding section, you
must yourself reinitialise:


- the remote control key,

- the panoramic sunroof blind,

- the GPS satellite navigation system.











Load reduction mode

System which manages the use of cer tain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
cer tain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.

8
203
i
Practical information

Driving advice


Distribution of loads



)
Distribute the load in the trailer so that the
heaviest items are as close as possible to
the axle and the nose weight approaches
the maximum permitted without
exceeding it.
Air density decreases with altitude, thus
reducing engine per formance. Above
1 000 metres, the maximum towed load must
be reduced by 10 % for every 1 000 metres of
altitude.
Refer to the "Technical Data" section for details
of the weights and towed loads which apply to
your vehicle.


Side wind



)
Take into account the increased sensitivity
to side wind.



Cooling

Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.


)
To lower the engine speed, reduce your
speed.
The maximum towed load on a long incline
depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.


)
If the warning lamp and the
STOP
warning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.



Braking

Towing a trailer increases the braking distance.


Ty r e s



)
Check the tyre pressures of the towing
vehicle and of the trailer, obser ving the
recommended pressures.



Lighting



)
Check the electrical lighting and signalling
on the trailer.
The rear parking sensors will be
deactivated automatically if a genuine
PEUGEOT towbar is used.

8
205
Practical information




Accessories

A wide range of accessories and genuine par ts is available from the PEUGEOT dealer network.
These accessories and par ts have been tested and approved for reliability and safety.
They are all adapted to your vehicle and benefit from PEUGEOT's recommendation and warranty.








"Comfort":

cool box, smoker's kit, 230 V socket, torch...


"Transport solutions":

booster seats and child seats, boot tray, roof
box, ski carrier, towbar-mounted bicycle carrier,
towbars (swan-neck, quickly detachable ball,
folding), harnesses, sliding floor, utility vehicle
conversion kit, ...
The trailer towbar and its harness must be
fitted by a PEUGEOT dealer.


"Style":

spoiler, front and rear mud flaps, aluminium gear
lever knob, alloy wheels (16", 17", 18", 19"), body
kit, door mirror shells, door air deflectors, ...

*
To avoid any risk of jamming of the pedals:


- ensure that the mat is positioned and
secured correctly,

- never fit one mat on top of another.



"Safety and security":

speed limiter/cruise control, anti-theft alarm,
microwave unit, window etching, wheel security
bolts, breathalyser, first aid kit, warning
triangle, high visibility vest, stolen vehicle
tracking system, winter equipment (17" wheels
for snow chains), reversing camera, front and
rear parking sensors, boot spacers...


"Protection":

mats * , seat covers, vehicle covers, sun blinds,
boot net, load protection net, dog guard, door
and boot sill protectors, resin side rubbing
strips...

206
i
!i

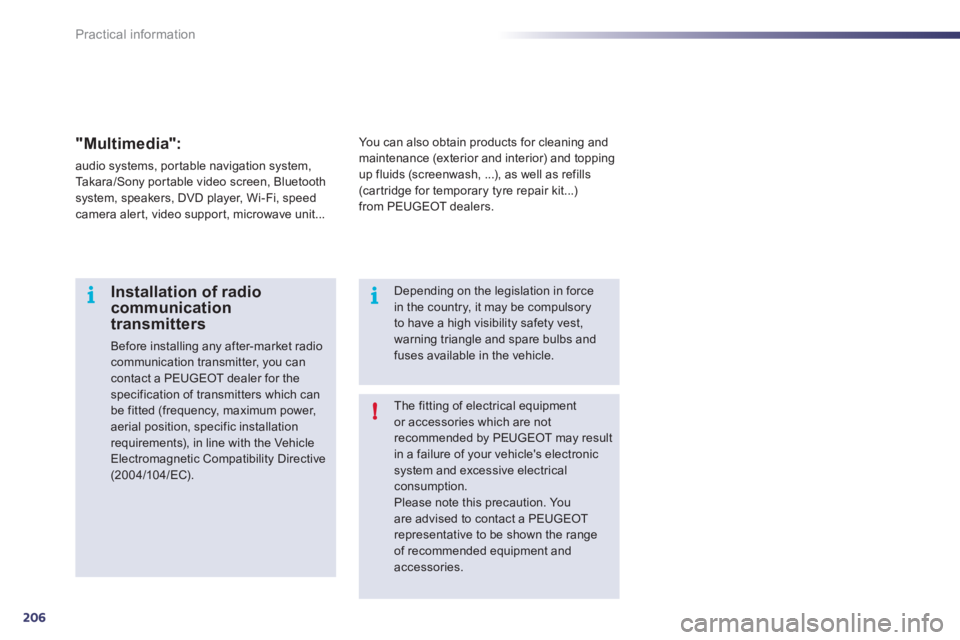

Practical information
The fitting of electrical equipment
or accessories which are not
recommended by PEUGEOT may result
in a failure of your vehicle's electronic
system and excessive electrical
consumption.
Please note this precaution. You
are advised to contact a PEUGEOT
representative to be shown the range
of recommended equipment and
accessories.



Installation of radio
communication
transmitters
Before installing any after-market radio
communication transmitter, you can
contact a PEUGEOT dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).


Depending on the legislation in force
in the country, it may be compulsory
to have a high visibility safety vest,
warning triangle and spare bulbs and
fuses available in the vehicle.
You can also obtain products for cleaning and
maintenance (exterior and interior) and topping
up fluids (screenwash, ...), as well as refills
(car tridge for temporary tyre repair kit...)
from PEUGEOT dealers.



"Multimedia":

audio systems, por table navigation system,
Takara/Sony por table video screen, Bluetooth
system, speakers, DVD player, Wi-Fi, speed
camera aler t, video suppor t, microwave unit...

216
i
Checks





























Checks
Unless other wise indicated, check these components in accordance with the Maintenance and Warranty Guide and according to your engine.
Other wise, have them checked by a PEUGEOT dealer or a qualified workshop.


Battery

The battery does not require any
maintenance.
However, check that the terminals
are clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery, refer to the "Practical
information" section for details of the precautions to be taken
before disconnecting the battery and following its reconnection.

Refer to the Maintenance and
Warranty Guide for details of the
replacement inter vals for these
components.
Depending on the environment (e.g. dusty
atmosphere) and the use of the vehicle
(e.g. city driving), replace them twice as often
if necessary
(refer to the "Engines" section).
A clogged passenger compar tment filter may
have an adverse effect on the per formance
of the air conditioning system and generate
undesirable odours.

Air filter and passenger compartment filter

Replace the oil filter each time the
engine oil is changed.

Refer to the Maintenance and
Warranty Guide for details of
the replacement inter val for this
component.


Oil filter






The presence of this label, in particular with
the Stop & Star t system, indicates the use of
a specific 12 V lead-acid battery with special
technology and specification, for which the
involvement of a PEUGEOT dealer or a
qualified workshop is required when replacing
or disconnecting the battery.
Failure to obser ve this recommendation may
shor ten the life of the battery.










Particle emission filter (Diesel)

Display of this warning lamp or a specific
message, together with the ser vice warning lamp,
indicates the star t of saturation of the par ticle
filter or low level in the Diesel additive reser voir.
As soon as the traffic conditions permit,
regenerate the filter by driving at a
speed of at least 40 mph (60 km/h) until
the ser vice warning lamp goes off.
If the ser vice warning lamp stays on,
this indicates a low additive level. Have
the additive reser voir topped up and
the par ticle emission filter ser viced
by a PEUGEOT dealer or a qualified
workshop.
Following prolonged operation of the
vehicle at very low speed or at idle,
you may, in exceptional circumstances,
notice the emission of water vapour at
the exhaust on acceleration. This does
not affect the behaviour of the vehicle or
the environment.

230

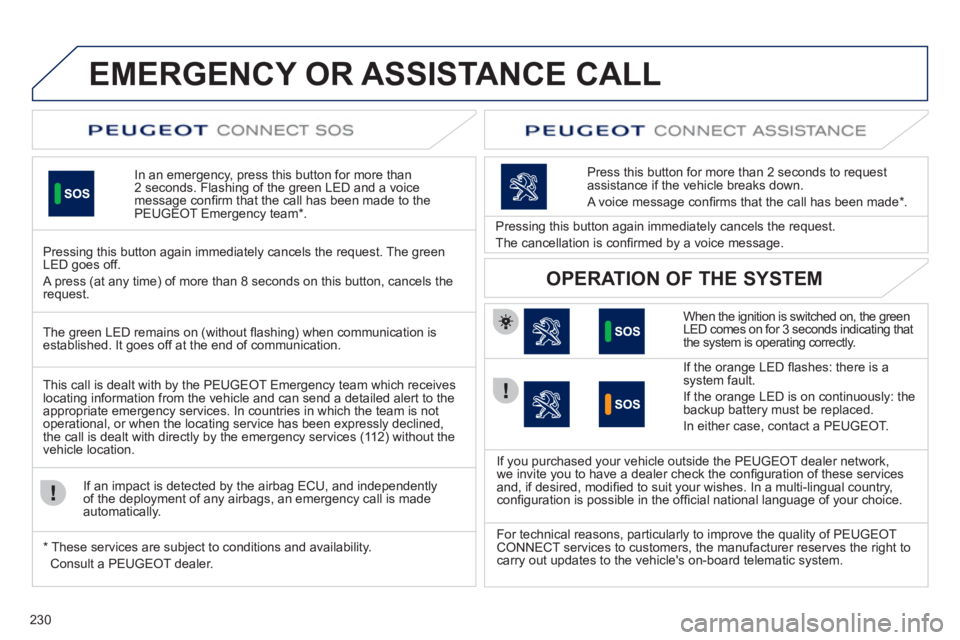

EMERGENCY OR ASSISTANCE CALL


In an emergency, press this button for more than
2 seconds. Flashing of the green LED and a voice
message confi rm that the call has been made to the
PEUGEOT Emergency team * .

Pressing this button again immediately cancels the request. The green
LED goes off.
A press (at any time) of more than 8 seconds on this button, cancels the
request.

When the ignition is switched on, the green
LED comes on for 3 seconds indicating that
the system is operating correctly.

If the orange LED fl ashes: there is a
system fault.
If the orange LED is on continuously: the
backup battery must be replaced.
In either case, contact a PEUGEOT.
Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.

Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made * .


OPERATION OF THE SYSTEM


The green LED remains on (without fl ashing) when communication is
established. It goes off at the end of communication.

This call is dealt with by the PEUGEOT Emergency team which receives
locating information from the vehicle and can send a detailed alert to the
appropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,
the call is dealt with directly by the emergency services (112) without the
vehicle location.

If an impact is detected by the airbag ECU, and independently
of the deployment of any airbags, an emergency call is made
automatically.



*
These services are subject to conditions and availability.
Consult a PEUGEOT dealer.
If you purchased your vehicle outside the PEUGEOT dealer network,
we invite you to have a dealer check the confi guration of these services
and, if desired, modifi ed to suit your wishes. In a multi-lingual country,
confi guration is possible in the offi cial national language of your choice.

For technical reasons, particularly to improve the quality of PEUGEOT
CONNECT services to customers, the manufacturer reserves the right to
carry out updates to the vehicle's on-board telematic system.

243
04
1
3
4
5
2

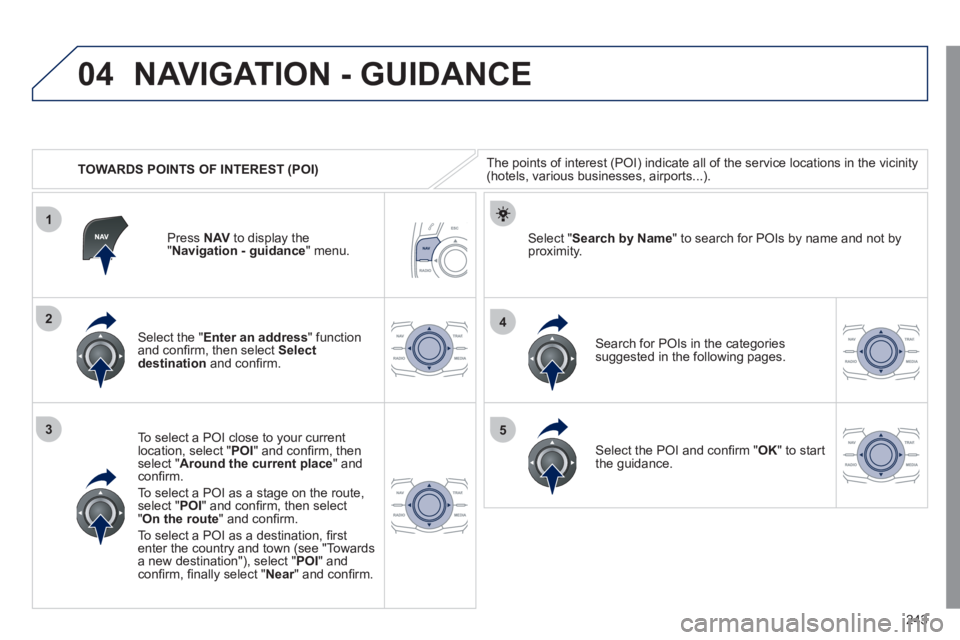

TOWARDS POINTS OF INTEREST (POI)

NAVIGATION - GUIDANCE

The points of interest (POI) indicate all of the service locations in the vicinity
(hotels, various businesses, airports...).

Select the " Enter an address
" function
and confi rm, then select Select
destination
and confi rm.

To select a POI close to your current
location, select " POI
" and confi rm, then
select " Around the current place
" and
confi rm.
To select a POI as a stage on the route,
select " POI
" and confi rm, then select
" On the route
" and confi rm.
To select a POI as a destination, fi rst
enter the country and town (see "Towards
a new destination"), select " POI
" and
confi rm, fi nally select " Near
" and confi rm.
Search for POIs in the categories
suggested in the following pages.
Select " Search by Name
" to search for POIs by name and not by
proximity.
Press NAV
to display the
" Navigation - guidance
" menu.

Select the POI and confi rm " OK
" to start
the guidance.

244
04

Service station
Garage
PEUGEOT
Motor racing circuit
Covered car park
Car park

Rest area
Hotel
Restaurant
Cafeteria
Bed and breakfast

Airport Bus station
Port

Industrial estate
Supermarket
Bank
Vending machine

Sports complex, sports centre,
sports ground
Swimming pool
Winter sports resort
Entertainment, show
Cinema Railway station

Hospital, Chemist, Vet
Police station
School
Town hall
Post offi ce
Museum, Culture, Theatre, Historic
monument
Tourist information, Tourist attraction
Automatic speed camera *
Red light camera *
Risk area *

Theme parks

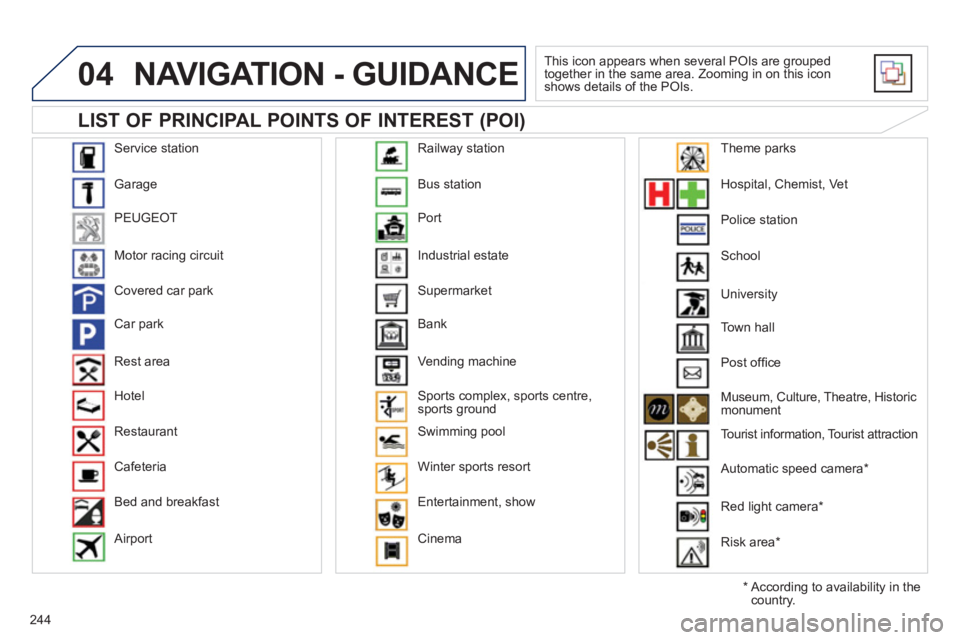

LIST OF PRINCIPAL POINTS OF INTEREST (POI)

NAVIGATION - GUIDANCE

This icon appears when several POIs are grouped
together in the same area. Zooming in on this icon
shows details of the POIs.

*
According to availability in the
country. University

257
1
2
5
6
3
4
06















PAIRING A BLUTOOTH TLEPHONE
FIRST CONNECTION
For reasons of safety and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetooth
mobile telephone to the hands-free system of the audio unit must be
carried out with the vehicle stationary
.

Activate the telephone's Bluetooth
function and ensure that it is "shown to
all" (telephone confi guration).

Press PHONE
.
Select the name of the desired
peripheral from the list of devices
detected then select " Connect
" and
confi rm.

The system offers to connect the
telephone:


- in " Hands-free mode
"
(telephone only),

- in " Audio
" mode (streaming: playing
music fi les on the telephone),

- or " All
" (for selection of both
modes).
Select " OK
" and confi rm.
Select " Bluetooth functions
"
and confi rm.
Select " Peripherals search
" and
confi rm.
The list of peripherals detected is
displayed. Wait until the " Connect
"
button is available.

USING THE TELEPHONE

Visit www.peugeot.co.uk for more information
(compatibility, additional help, ...).

258
8
06
7

Enter the same code on the telephone then accept
the connection.
Then accept automatic connection on the telephone to allow the
telephone to reconnect automatically every time the vehicle is
started.



On return to the vehicle, the last telephone connected
automatically reconnects, within around 30 seconds after
switching on the ignition (Bluetooth activated and visible).
To modify the automatic connection mode, remove the pairing and
pair the telephone again with the desired mode.

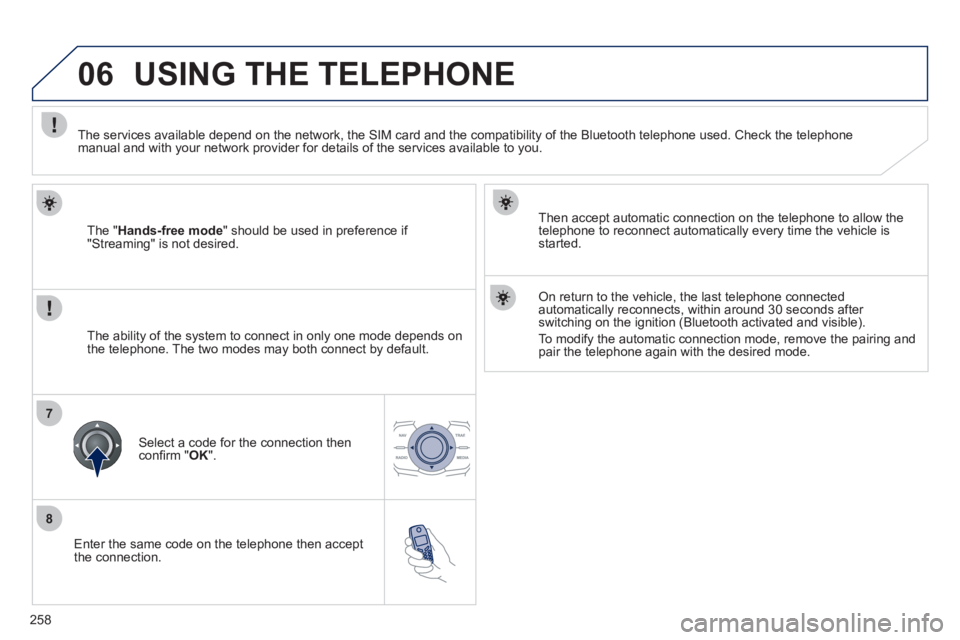

USING THE TELEPHONE


The " Hands-free mode
" should be used in preference if
"Streaming" is not desired.
The services available depend on the network, the SIM card and the compatibility of the Bluetooth telephone used. Check the telephone
manual and with your network provider for details of the services available to you.

The ability of the system to connect in only one mode depends on
the telephone. The two modes may both connect by default.

Select a code for the connection then
confi rm " OK
".
