Peugeot 508 2011 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2011, Model line: 508, Model: Peugeot 508 2011Pages: 340, PDF Size: 25.72 MB
Page 121 of 340
4
119
i !
Driving
)
With the engine running, press button 1
to
activate the system and deploy the strip.
)
Press and hold button 2
to deactivate the
system and retract the strip.
The activated/deactivated state is saved and
restored on restar ting the engine.
Activation/Deactivation
)
With the engine running, adjust the
brightness of the information displayed
using buttons 3
:
- the "sun" to increase the brightness,
- the "moon" to decrease the brightness.
Brightness adjustment
We recommend that adjustments are
made using these buttons only when
the vehicle is stationary.
When stationary or while driving, no
objects should be placed around the
strip (or in its recess) so as to not
impede deployment of the strip and its
correct operation.
In certain extreme weather conditions
(rain and/or snow, bright sunshine, ...)
the head-up display may not be legible
or may suffer temporary inter ference.
Some sunglasses may hamper reading
of the information.
To clean the strip, use a clean, soft
cloth (such as a spectacles cloth or
microfibre cloth). Do not use a dry or
abrasive cloth or detergent or solvent
products as these could scratch the
strip or damage the non-reflective
coating.
Height adjustment
)
With the engine running, adjust the display
to the desired height using buttons 4
:
- up to move the display up,
- down to move the display down.

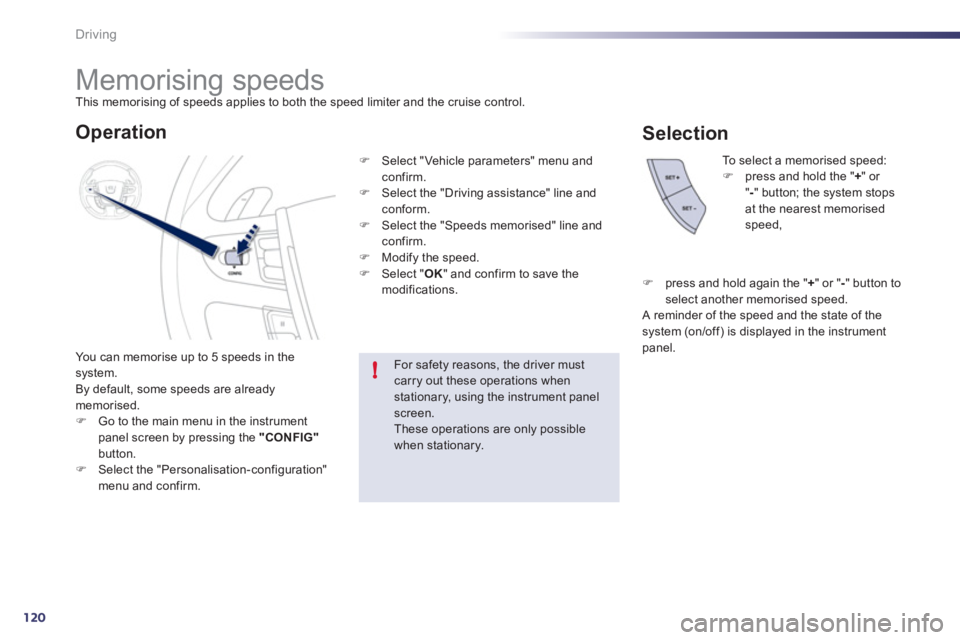

Page 122 of 340
120
!
Driving
Memorising speeds
This memorising of speeds applies to both the speed limiter and the cruise control.
You can memorise up to 5 speeds in the
system.
By default, some speeds are already
memorised.
)
Go to the main menu in the instrument
panel screen by pressing the "CONFIG"
button.
)
Select the "Personalisation-configuration"
menu and confirm. To select a memorised speed:
)
press and hold the " +
" or
" -
" button; the system stops
at the nearest memorised
speed,
For safety reasons, the driver must
carry out these operations when
stationary, using the instrument panel
screen.
These operations are only possible
when stationary.
Operation
)
Select "Vehicle parameters" menu and
confirm.
)
Select the "Driving assistance" line and
conform.
)
Select the "Speeds memorised" line and
confirm.
)
Modify the speed.
)
Select " OK
" and confirm to save the
modifications.
Selection
)
press and hold again the " +
" or " -
" button to
select another memorised speed.
A reminder of the speed and the state of the
system (on/off) is displayed in the instrument
panel.

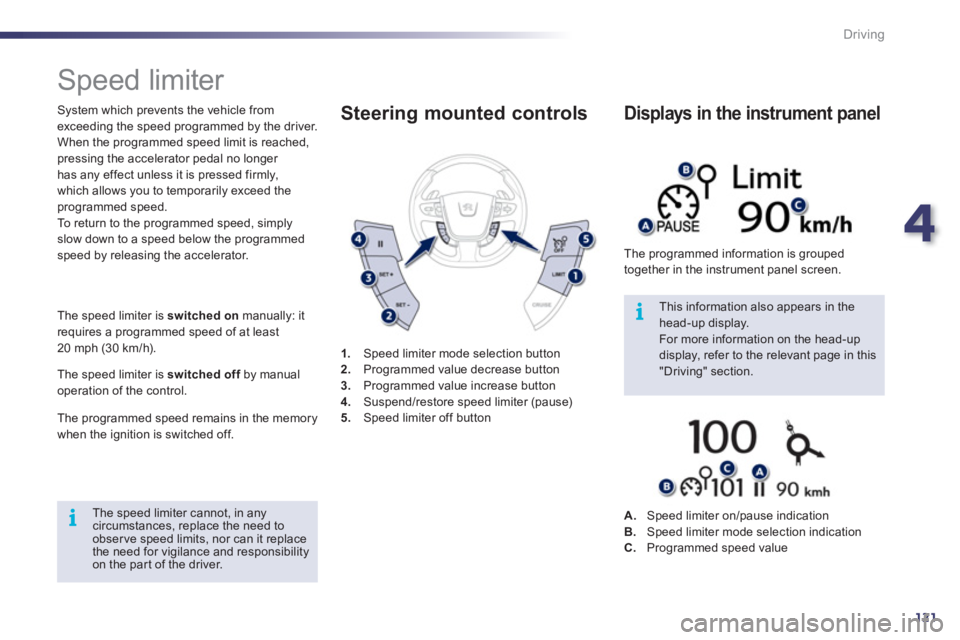

Page 123 of 340
4
121
i
i
Driving
Speed limiter
System which prevents the vehicle from
exceeding the speed programmed by the driver.
When the programmed speed limit is reached,
pressing the accelerator pedal no longer
has any effect unless it is pressed firmly,
which allows you to temporarily exceed the
programmed speed.
To return to the programmed speed, simply
slow down to a speed below the programmed
speed by releasing the accelerator.
The speed limiter is switched on
manually: it
requires a programmed speed of at least
20 mph (30 km/h).
The speed limiter is switched off
by manual
operation of the control.
The programmed speed remains in the memory
when the ignition is switched off.
The speed limiter cannot, in any
circumstances, replace the need to
obser ve speed limits, nor can it replace
the need for vigilance and responsibility
on the par t of the driver.
This information also appears in the
head-up display.
For more information on the head-up
display, refer to the relevant page in this
"Driving" section.
1.
Speed limiter mode selection button
2.
Programmed value decrease button
3.
Programmed value increase button
4.
Suspend/restore speed limiter (pause)
5.
Speed limiter off button
Steering mounted controls
The programmed information is grouped
together in the instrument panel screen.
Displays in the instrument panel
A.
Speed limiter on/pause indication
B.
Speed limiter mode selection indication
C.
Programmed speed value

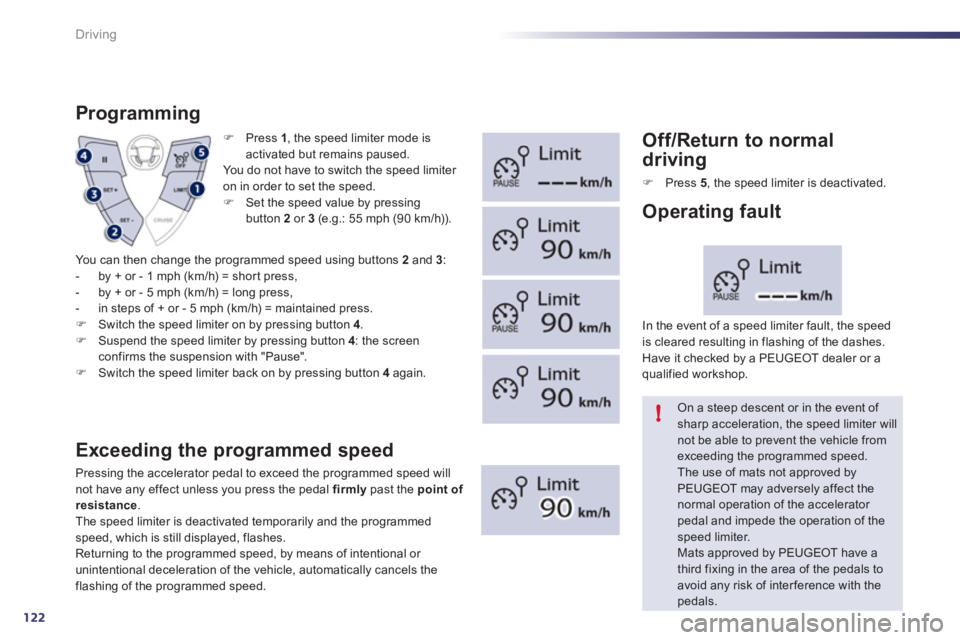

Page 124 of 340
122
!
Driving
)
Press 1
, the speed limiter mode is
activated but remains paused.
You do not have to switch the speed limiter
on in order to set the speed.
)
Set the speed value by pressing
button 2
or 3
(e.g.: 55 mph (90 km/h)).
Programming
Exceeding the programmed speed
Pressing the accelerator pedal to exceed the programmed speed will
not have any effect unless you press the pedal firmly
past the point of
resistance
.
The speed limiter is deactivated temporarily and the programmed
speed, which is still displayed, flashes.
Returning to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically cancels the
flashing of the programmed speed.
Off/Return to normal
driving
)
Press 5
, the speed limiter is deactivated.
On a steep descent or in the event of
sharp acceleration, the speed limiter will
not be able to prevent the vehicle from
exceeding the programmed speed.
The use of mats not approved by
PEUGEOT may adversely affect the
normal operation of the accelerator
pedal and impede the operation of the
speed limiter.
Mats approved by PEUGEOT have a
third fixing in the area of the pedals to
avoid any risk of inter ference with the
pedals.
In the event of a speed limiter fault, the speed
is cleared resulting in flashing of the dashes.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
Operating fault
You can then change the programmed speed using buttons 2
and 3
:
- by + or - 1 mph (km/h) = shor t press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press.
)
Switch the speed limiter on by pressing button 4
.
)
Suspend the speed limiter by pressing button 4
: the screen
confirms the suspension with "Pause".
)
Switch the speed limiter back on by pressing button 4
again.

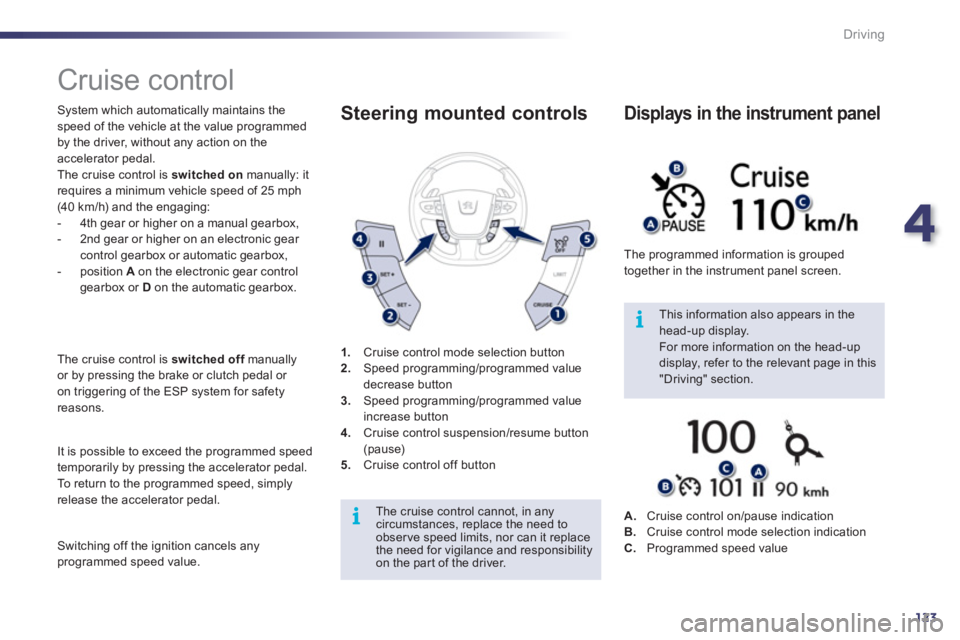

Page 125 of 340
4
123
i
i
Driving
Cruise control
System which automatically maintains the
speed of the vehicle at the value programmed
by the driver, without any action on the
accelerator pedal.
The cruise control is switched on
manually: it
requires a minimum vehicle speed of 25 mph
(40 km/h) and the engaging:
- 4th gear or higher on a manual gearbox,
- 2nd gear or higher on an electronic gear
control gearbox or automatic gearbox,
- position A
on the electronic gear control
gearbox or D
on the automatic gearbox.
The cruise control is switched off
manually
or by pressing the brake or clutch pedal or
on triggering of the ESP system for safety
reasons.
It is possible to exceed the programmed speed
temporarily by pressing the accelerator pedal.
To return to the programmed speed, simply
release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.
1.
Cruise control mode selection button
2.
Speed programming/programmed value
decrease button
3.
Speed programming/programmed value
increase button
4.
Cruise control suspension/resume button
(pause)
5.
Cruise control off button
Steering mounted controls
The cruise control cannot, in any
circumstances, replace the need to
obser ve speed limits, nor can it replace
the need for vigilance and responsibility
on the par t of the driver.
This information also appears in the
head-up display.
For more information on the head-up
display, refer to the relevant page in this
"Driving" section. The programmed information is grouped
together in the instrument panel screen.
Displays in the instrument panel
A.
Cruise control on/pause indication
B.
Cruise control mode selection indication
C.
Programmed speed value

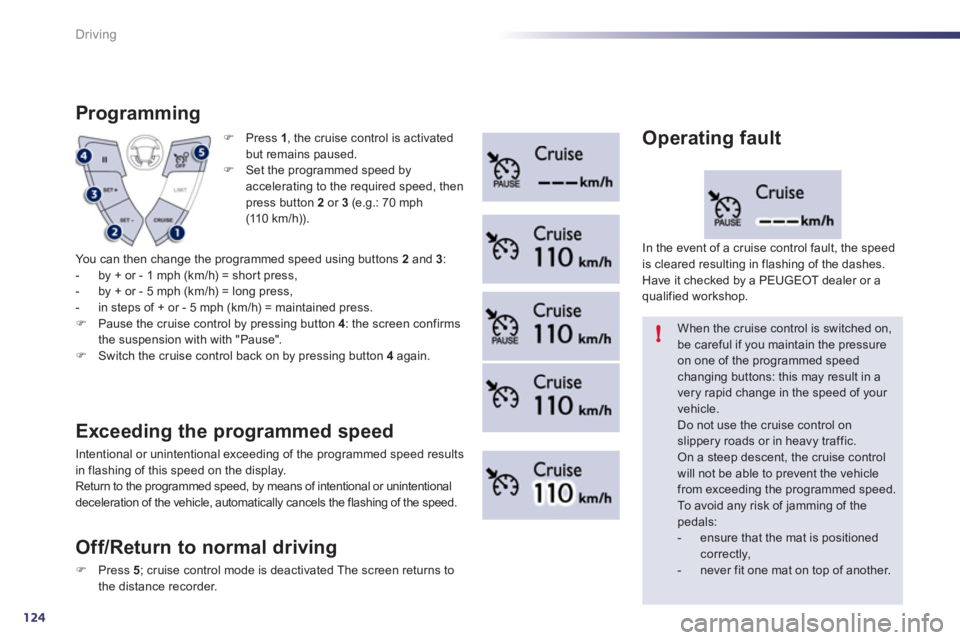

Page 126 of 340
124
!
Driving
)
Press 1
, the cruise control is activated
but remains paused.
)
Set the programmed speed by
accelerating to the required speed, then
press button 2
or 3
(e.g.: 70 mph
(110 km/h)).
Programming
You can then change the programmed speed using buttons 2
and 3
:
- by + or - 1 mph (km/h) = shor t press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press.
)
Pause the cruise control by pressing button 4
: the screen confirms
the suspension with with "Pause".
)
Switch the cruise control back on by pressing button 4
again.
Exceeding the programmed speed
Intentional or unintentional exceeding of the programmed speed results
in flashing of this speed on the display.
Return to the programmed speed, by means of intentional or unintentional
deceleration of the vehicle, automatically cancels the flashing of the speed. When the cruise control is switched on,
be careful if you maintain the pressure
on one of the programmed speed
changing buttons: this may result in a
very rapid change in the speed of your
vehicle.
Do not use the cruise control on
slippery roads or in heavy traffic.
On a steep descent, the cruise control
will not be able to prevent the vehicle
from exceeding the programmed speed.
To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned
correctly,
- never fit one mat on top of another.
In the event of a cruise control fault, the speed
is cleared resulting in flashing of the dashes.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
Operating fault
Off/Return to normal driving
)
Press 5
; cruise control mode is deactivated The screen returns to
the distance recorder.
Page 127 of 340
4
125
!
Driving
This system indicates the proximity of an
obstacle (person, vehicle, tree, gate, etc.) which
comes within the field of detection of sensors
located in the bumper.
Cer tain types of obstacle (stake, roadworks
cone, etc.) detected initially will no longer be
detected at the end of the manoeuvre due to
the presence of blind spots.
Parking sensors
This function cannot, in any
circumstances, take the place of the
vigilance and responsibility of the driver.
The system is switched on by engaging reverse
gear. This is accompanied by an audible signal.
The system is switched off when you exit
reverse gear.
Rear parking sensors
Audible assistance
The proximity information is given by an
intermittent audible signal, the frequency of which
increases as the vehicle approaches the obstacle.
The sound emitted by the speaker (right or
left) indicates the side on which the obstacle is
located.
When the distance between the vehicle and
the obstacle becomes less than approximately
thirty centimetres, the audible signal becomes
continuous.
Visual assistance
This supplements the audible signal by
displaying bars in the multifunction screen
which move progressively nearer to the vehicle.
When the obstacle is near, the "Danger"
symbol is also displayed in the screen.
Page 128 of 340
126
i
i
Driving
In bad weather or in winter, ensure
that the sensors are not covered with
mud, ice or snow. When reverse gear is
engaged, an audible signal (long beep)
indicates that the sensors may be dir ty.
When the vehicle is moving at a speed
below 6 mph (10 km/h), cer tain sound
sources (motorcycle, lorry, pneumatic
drill, etc.) may trigger the audible
signals of the parking sensor system.
In the event of a malfunction
of the system, when reverse
gear is engaged this warning
lamp is displayed in the instrument panel
and/or a message appears in the screen,
accompanied by an audible signal (shor t beep).
Contact a PEUGEOT dealer or a qualified
workshop.
Operating fault
In addition to the rear parking sensors, the front
parking sensors are triggered when an obstacle
is detected in front and the speed of the vehicle
is still below 6 mph (10 km/h).
The sound emitted by the speaker (front or
rear) indicates whether the obstacle is in front
or behind.
The front parking sensors are interrupted if
the vehicle stops for more than three seconds
in for ward gear, if no fur ther obstacles are
detected or when the speed of the vehicle
exceeds 6 mph (10 km/h).
Front parking sensors
The function will be deactivated
automatically if a trailer is being towed
or a bicycle carrier is fitted (vehicle
fitted with a towbar or bicycle carrier
recommended by PEUGEOT).
Deactivation/Activation of the
front and rear parking sensors
The function is deactivated by pressing this
button. The indicator lamp in the button comes
on.
Pressing this button again reactivates the
function. The indicator lamp in the button goes
off.
Page 129 of 340
4
127
Driving
System which measures the parking space
available between two vehicles or obstacles. It
measures the size of the space and gives you
information on:
- the possibility of fitting into a free space,
depending on the dimensions of your
vehicle and the distances needed for
manoeuvring,
- the level of difficulty of the parking
manoeuvre.
The system does not measure spaces which
are clearly much smaller or larger than the size
of the vehicle. The warning lamp in the control A
can have two different states:
Displays
- on fixed:
the system is switched on by a
press on control A
.
- off:
the system is not switched on.
Parking space sensors
Page 130 of 340
128
i !
Driving
Operation
When you have identified a parking space:
)
Engage a gear on a manual gearbox or put
the gear lever in position A
(electronic gear
control gearbox) or in position D
(automatic
gearbox).
)
Press button A
to star t the system.
)
Operate the direction indicator on the
side where the space is to be measured;
a message is displayed and the warning
lamp flashes to confirm that measurement
is in progress.
)
During measurement, go for ward the
length of the space, at a speed less than
12 mph (20 km/h), to prepare for your
manoeuvre.
)
Once the measurement has been
completed, the system informs you of
the level of difficulty of the manoeuvre
by a message in the multifunction screen
accompanied by an audible signal.
The system displays one of the following messages:
Parking possible
Parking difficult
Parking not advised
If the lateral distance between your
vehicle and the parking space is too
great, the system may not be able to
measure the space.
The system remains available after
each measurement and can therefore
measure several spaces in succession.
In poor or wintry weather, ensure that
the sensors are free of dir t, ice or snow.
The parking space sensor system
deactivates the front parking sensors
when measuring for wards.
If there is a fault, have the system
checked by a PEUGEOT dealer or a
qualified workshop.
The system switches itself off automatically:
- when you engage reverse gear,
- when you switch off the ignition,
- if measuring is not requested,
- within five minutes of switching on the
system,
- if the vehicle speed exceeds the threshold
of 45 mph (70 km/h) for one minute.
