Peugeot 508 2011 Owner's Manual

6
149./..
Child safety














Installing child seats attached using the seat belt
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved (a)
in accordance with the weight of the child and the seat in the vehicle.


Weight of the child and indicative age




Seat



Under 13 kg


(groups 0 ( b
) and 0+)
Up to approx 1 year

From 9 to 18 kg


(group 1)
1 to 3 years approx

From 15 to 25 kg


(group 2)
3 to 6 years approx

From 22 to 36 kg


(group 3)
6 to 10 years approx
Front passenger seat ( c )
with height adjuster


U (R)



U (R)



U (R)



U (R)


Front passenger seat (c)

without height adjuster

U



U



U



U



Saloon


Outer rear seats

U



U



U



U


Centre rear seat

X



X



X



X




SW


Outer rear seats

U



U



U



U


Centre rear seat

X



X



X



X

150
Child safety


a:
universal child seat, child seat that can be installed in all vehicles using a seat belt.

b:
group 0, from bir th to 10 kg. Shells seats and baby carriers cannot be installed in the front passenger seat.

c:
consult the legislation in force in your country before installing your child on this seat.

U:
seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rear wards-facing" and/or "forwards-facing".

U (R):
idem U
, with the vehicle's seat adjusted to the highest position and as far back as possible.

X:
seat position not suitable for installation of a child seat for the weight class indicated.

6
151
!
Child safety

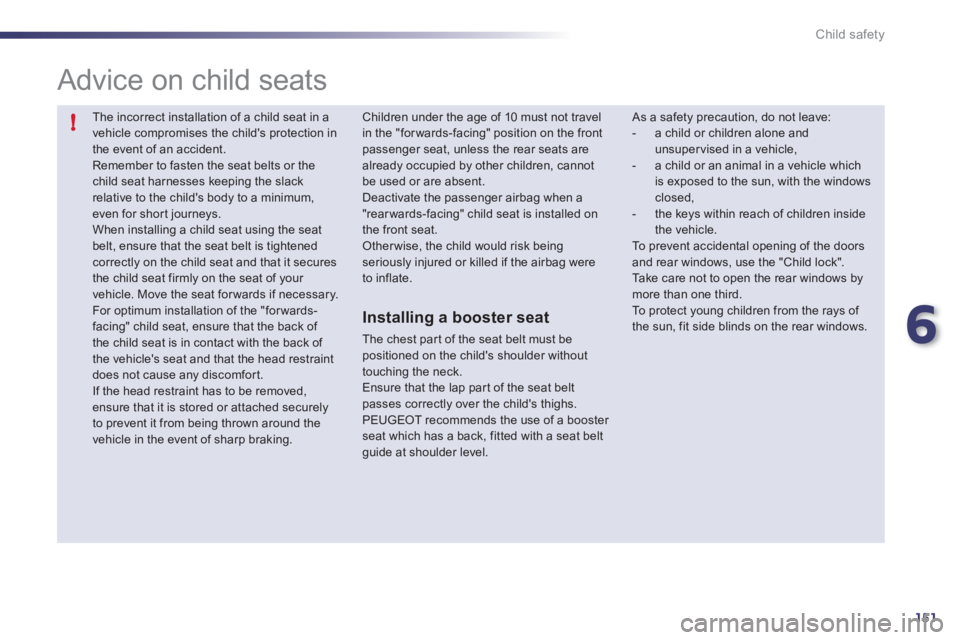

The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
relative to the child's body to a minimum,
even for shor t journeys.
When installing a child seat using the seat
belt, ensure that the seat belt is tightened
correctly on the child seat and that it secures
the child seat firmly on the seat of your
vehicle. Move the seat for wards if necessary.
For optimum installation of the "for wards-
facing" child seat, ensure that the back of
the child seat is in contact with the back of
the vehicle's seat and that the head restraint
does not cause any discomfor t.
If the head restraint has to be removed,
ensure that it is stored or attached securely
to prevent it from being thrown around the
vehicle in the event of sharp braking.
Advice on child seats

As a safety precaution, do not leave:


- a child or children alone and
unsuper vised in a vehicle,

- a child or an animal in a vehicle which
is exposed to the sun, with the windows
closed,

- the keys within reach of children inside
the vehicle.
To prevent accidental opening of the doors
and rear windows, use the "Child lock".
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds on the rear windows.
Children under the age of 10 must not travel
in the "for wards-facing" position on the front
passenger seat, unless the rear seats are
already occupied by other children, cannot
be used or are absent.
Deactivate the passenger airbag when a
"rear wards-facing" child seat is installed on
the front seat.
Other wise, the child would risk being
seriously injured or killed if the airbag were
to inflate.


Installing a booster seat

The chest par t of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
PEUGEOT recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.

152
!
Child safety

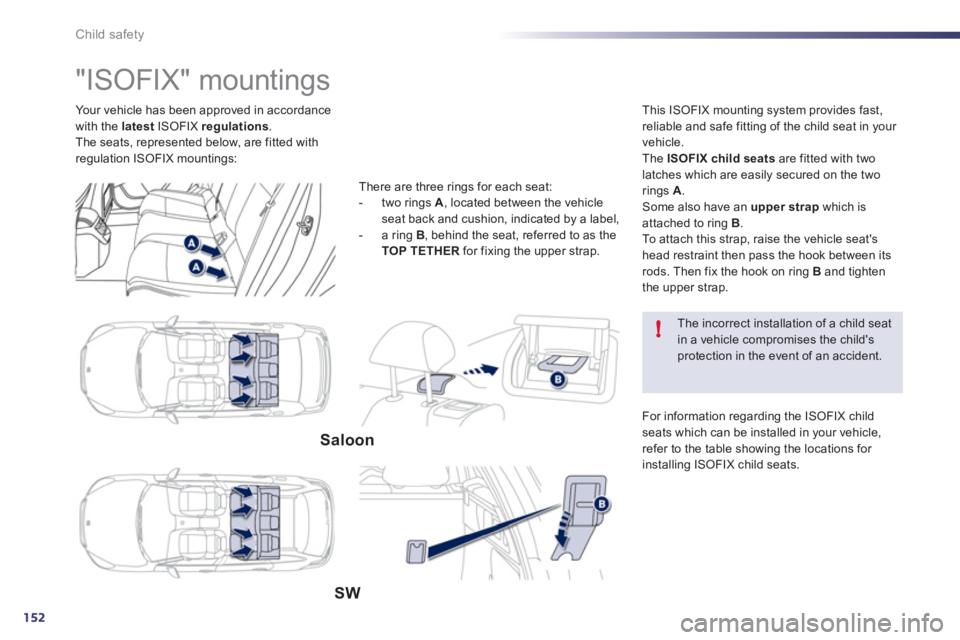

Your vehicle has been approved in accordance
with the latest
ISOFIX regulation

s
.
The seats, represented below, are fitted with
regulation ISOFIX mountings:














"ISOFIX" mountings

There are three rings for each seat:


- two rings A
, located between the vehicle
seat back and cushion, indicated by a label,

- a ring B
, behind the seat, referred to as the
TOP TETHER
for fixing the upper strap. This ISOFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
The ISOFIX child seats
are fitted with two
latches which are easily secured on the two
rings A
.
Some also have an upper strap
which is
attached to ring B
.
To attach this strap, raise the vehicle seat's
head restraint then pass the hook between its
rods. Then fix the hook on ring B
and tighten
the upper strap.


Saloon

SW


The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
For information regarding the ISOFIX child
seats which can be installed in your vehicle,
refer to the table showing the locations for
installing ISOFIX child seats.

6
153
i
Child safety










ISOFIX child seat recommended by PEUGEOT and approved for
your vehicle


RÖMER Duo Plus ISOFIX
(size category B1
)


Group 1: from 9 to 18 kg





Installed in the for wards-facing position.
Fitted with an upper strap to be secured on the upper ring B
, referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
This child seat can also be used on seats which are not fitted with ISOFIX mountings. In this case, it must be attached to the vehicle seat using
the three point seat belt.

Follow the instructions for fitting the child seat given in the seat manufacturer's installation guide.

154
Child safety

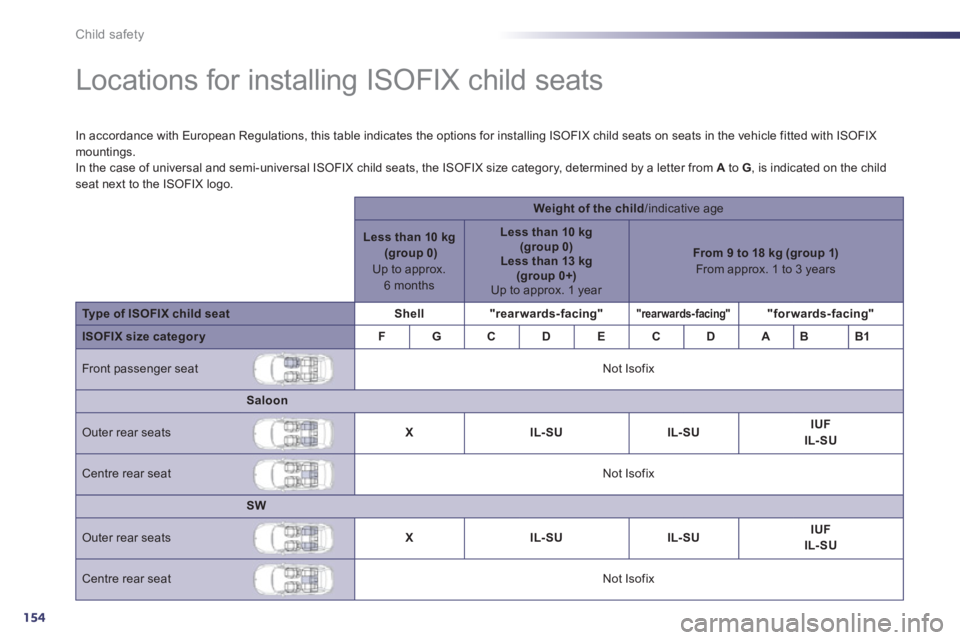

Locations for installing ISOFIX child seats


In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX
mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A
to G
, is indicated on the child
seat next to the ISOFIX logo.




Weight of the child
/indicative age


Less than 10 kg
(group 0)


Up to approx.
6 months

Less than 10 kg


(group 0)
Less than 13 kg


(group 0+)


Up to approx. 1 year

From 9 to 18 kg (group 1)


From approx. 1 to 3 years


Type of ISOFIX child seat



Shell



"rearwards-facing"





"rearwards-facing"




"forwards-facing"




ISOFIX size category



F



G



C



D



E



C



D



A



B



B1



Front passenger seat
Not Isofix

Saloon


Outer rear seats

X



IL-SU



IL-SU



IUF


IL-SU



Centre rear seat
Not Isofix

SW


Outer rear seats

X



IL-SU



IL-SU



IUF


IL-SU



Centre rear seat
Not Isofix

6
155
Child safety


IUF:
seat suitable for the installation of an I
sofix U
niversal seat, " F
or wards-facing" secured using the top belt.

IL-SU:
seat suitable for the installation of an I
sofix S
emi- U
niversal seat either:


- "rear wards-facing" fitted with a top belt or a stay,

- "for wards-facing" fitted with a stay,

- a shell seat fitted with an upper strap or a stay.
For advice on securing of the top belt, refer to the paragraph "Isofix mountings".

X:
seat not suitable for the installation of a child seat or shell for the weight group indicated.

156
!
!
Child safety
Electric child lock

Remote control system to prevent opening of the rear doors using their interior controls and use of the rear electric windows.


Switching on



)
With the ignition on, press button A
.
The indicator lamp on button A
comes on,
accompanied by a message to confirm that the
child lock is on.
This indicator lamp remains on until the child
lock is switched off.
It is still possible to open the doors from the
outside and operate the rear electric windows
from the driver's control panel.


Switching off



)
With the ignition on, press button A
again.
The indicator lamp on button A
goes off,
accompanied by a message to confirm that the
child lock is off.
This indicator lamp remains off while the child
lock is switched off.
Any other status of the indicator lamp
indicates a fault with the electric child
lock.
Have it checked by a PEUGEOT dealer
or a qualified workshop.

This system is independent and in no
circumstances does it take the place of
the central locking control.
Check the status of the child lock each
time you switch on the ignition.
Always remove the key from the ignition
when leaving the vehicle, even for a
shor t time.
In the event of a serious impact, the
electric child lock is switched off
automatically to permit the exit of the
rear passengers.

7
157
i
Safety

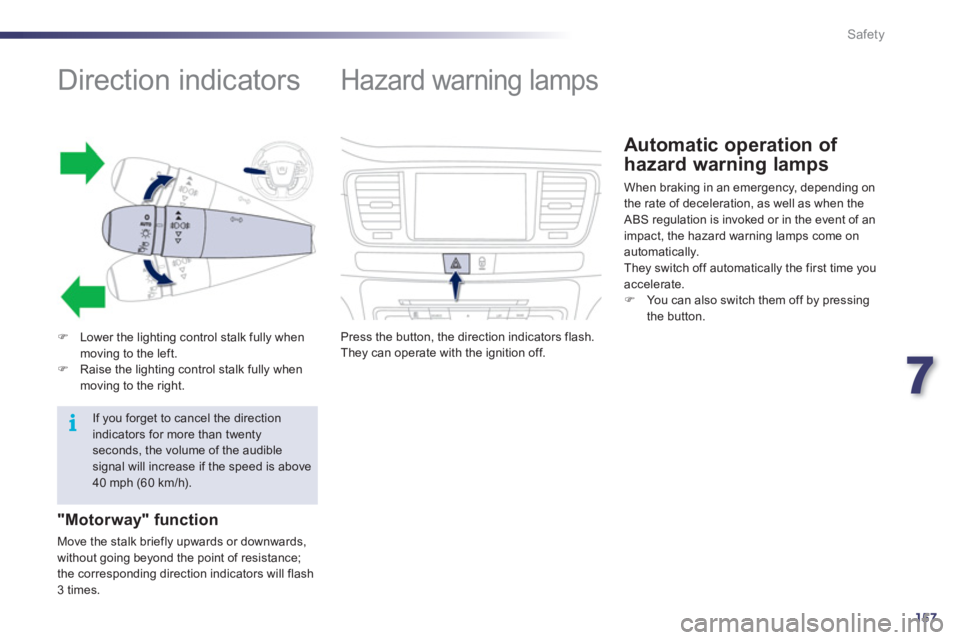

Direction indicators




)
Lower the lighting control stalk fully when
moving to the left.

)
Raise the lighting control stalk fully when
moving to the right.


"Motorway" function

Move the stalk briefly upwards or downwards,
without going beyond the point of resistance;
the corresponding direction indicators will flash
3 times.
If you forget to cancel the direction
indicators for more than twenty
seconds, the volume of the audible
signal will increase if the speed is above
40 mph (60 km/h).




Hazard warning lamps


Press the button, the direction indicators flash.
They can operate with the ignition off.













Automatic operation of
hazard warning lamps
When braking in an emergency, depending on
the rate of deceleration, as well as when the
ABS regulation is invoked or in the event of an
impact, the hazard warning lamps come on
automatically.
They switch off automatically the first time you
accelerate.


)
You can also switch them off by pressing
the button.

158
i
Safety

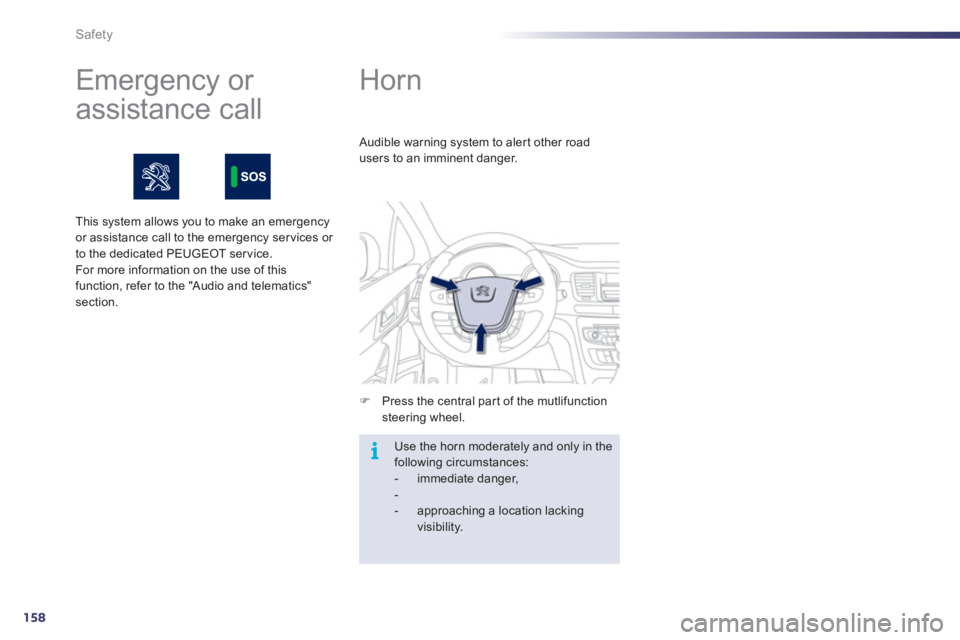

Horn



)
Press the central part of the mutlifunction
steering wheel. Audible warning system to aler t other road
users to an imminent danger.
Use the horn moderately and only in the
following circumstances:


- immediate danger,

-

- approaching a location lacking
visibility.









Emergency or
assistance call
This system allows you to make an emergency
or assistance call to the emergency ser vices or
to the dedicated PEUGEOT ser vice.
For more information on the use of this
function, refer to the "Audio and telematics"
section.
