Peugeot 508 2011 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2011, Model line: 508, Model: Peugeot 508 2011Pages: 340, PDF Size: 25.72 MB
Page 201 of 340
8
199
Practical information
System which manages the duration of use of
certain functions to conser ve a sufficient level
of charge in the battery.
After the engine has stopped, you can still use
functions such as the audio and telematics
system, windscreen wipers, dipped beam
headlamps, courtesy lamps, etc. for a
maximum combined duration of thir ty minutes.

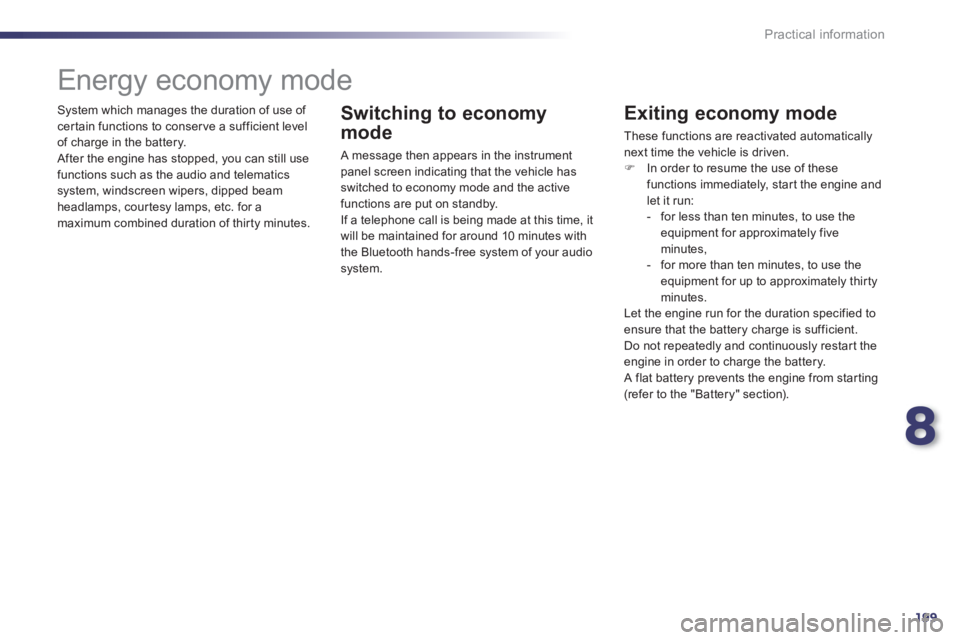

Energy economy mode
Switching to economy
mode
A message then appears in the instrument
panel screen indicating that the vehicle has
switched to economy mode and the active
functions are put on standby.
If a telephone call is being made at this time, it
will be maintained for around 10 minutes with
the Bluetooth hands-free system of your audio
system.
Exiting economy mode
These functions are reactivated automatically
next time the vehicle is driven.
)
In order to resume the use of these
functions immediately, star t the engine and
let it run:
- for less than ten minutes, to use the
equipment for approximately five
minutes,
- for more than ten minutes, to use the
equipment for up to approximately thir ty
minutes.
Let the engine run for the duration specified to
ensure that the battery charge is sufficient.
Do not repeatedly and continuously restart the
engine in order to charge the battery.
A flat battery prevents the engine from star ting
(refer to the "Battery" section).
Page 202 of 340
200
Practical information

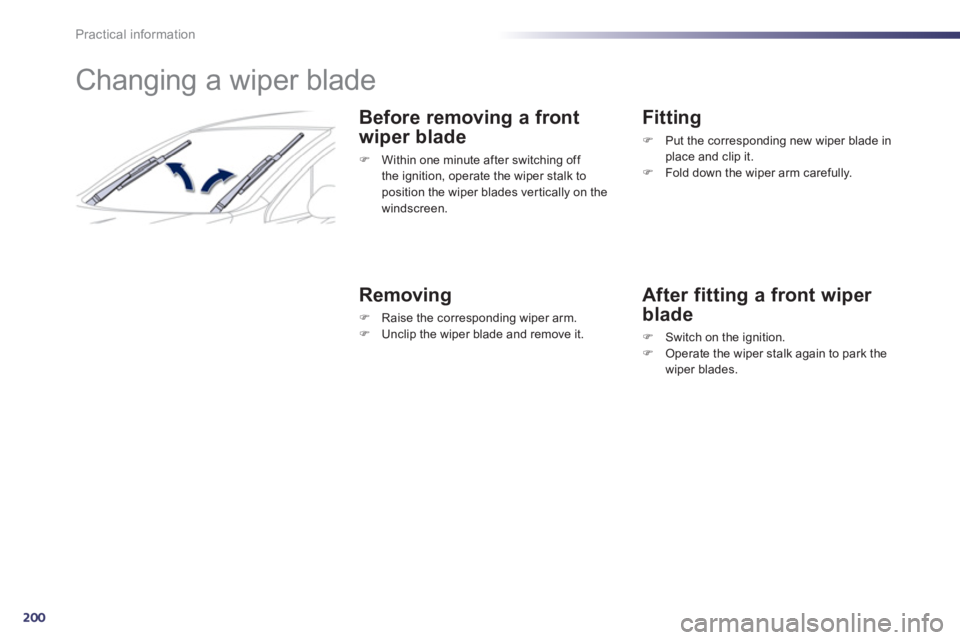

Changing a wiper blade
Before removing a front
wiper blade
)
Within one minute after switching off
the ignition, operate the wiper stalk to
position the wiper blades vertically on the
windscreen.
Removing
)
Raise the corresponding wiper arm.
)
Unclip the wiper blade and remove it.
Fitting
)
Put the corresponding new wiper blade in
place and clip it.
)
Fold down the wiper arm carefully.
After fitting a front wiper
blade
)
Switch on the ignition.
)
Operate the wiper stalk again to park the
wiper blades.
Page 203 of 340
8
201
i
!
Practical information

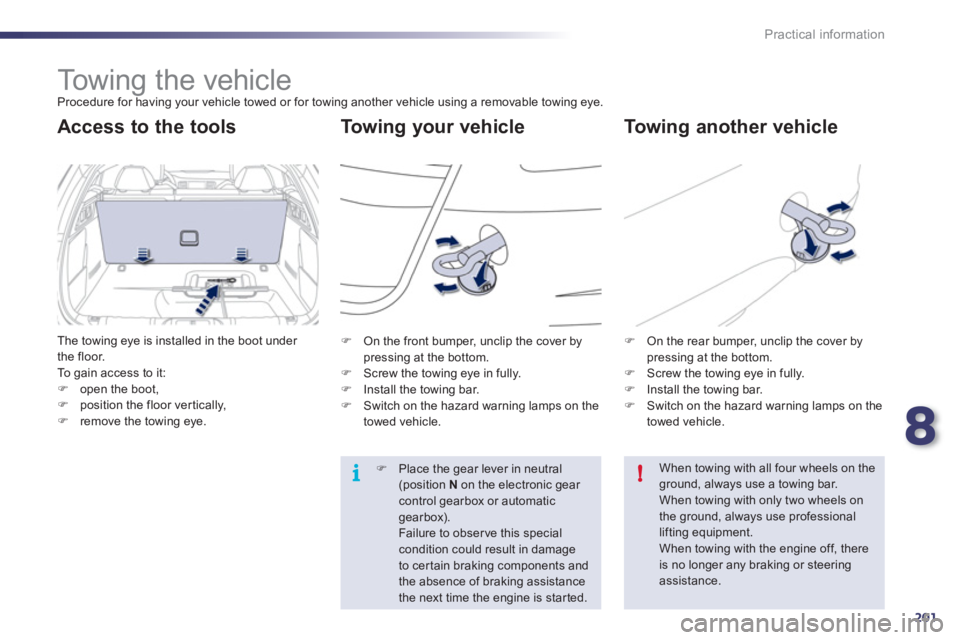

Towing the vehicle
Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.
Towing your vehicle
Towing another vehicle
Access to the tools
The towing eye is installed in the boot under
the floor.
To gain access to it:
)
open the boot,
)
position the floor ver tically,
)
remove the towing eye.
)
On the front bumper, unclip the cover by
pressing at the bottom.
)
Screw the towing eye in fully.
)
Install the towing bar.
)
Switch on the hazard warning lamps on the
towed vehicle.
)
On the rear bumper, unclip the cover by
pressing at the bottom.
)
Screw the towing eye in fully.
)
Install the towing bar.
)
Switch on the hazard warning lamps on the
towed vehicle.
When towing with all four wheels on the
ground, always use a towing bar.
When towing with only two wheels on
the ground, always use professional
lifting equipment.
When towing with the engine off, there
is no longer any braking or steering
assistance.
)
Place the gear lever in neutral
(position N
on the electronic gear
control gearbox or automatic
gearbox).
Failure to obser ve this special
condition could result in damage
to cer tain braking components and
the absence of braking assistance
the next time the engine is started.
Page 204 of 340
202
i
Practical information

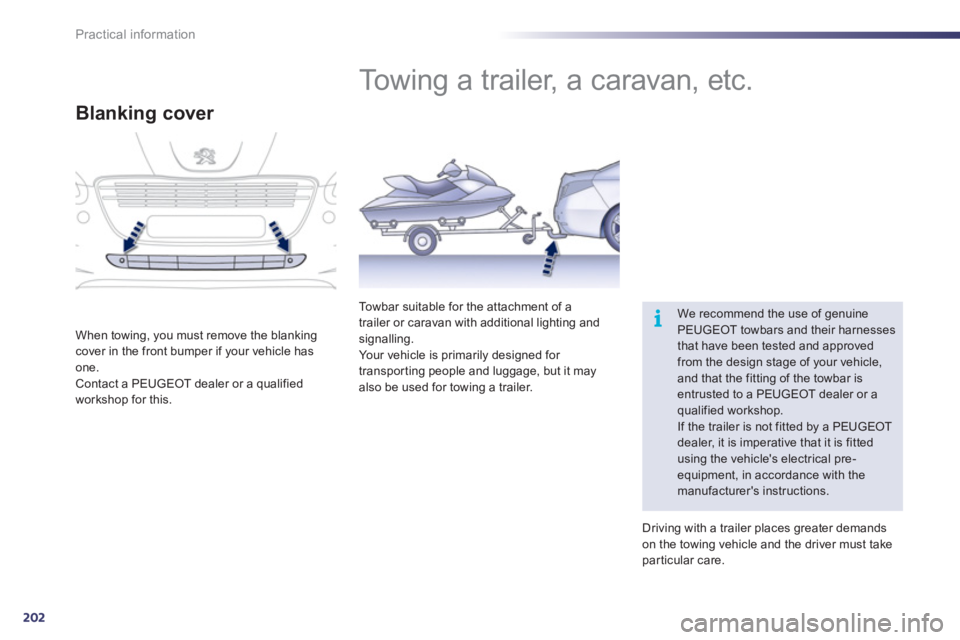

Towing a trailer, a caravan, etc.
We recommend the use of genuine
PEUGEOT towbars and their harnesses
that have been tested and approved
from the design stage of your vehicle,
and that the fitting of the towbar is
entrusted to a PEUGEOT dealer or a
qualified workshop.
If the trailer is not fitted by a PEUGEOT
dealer, it is imperative that it is fitted
using the vehicle's electrical pre-
equipment, in accordance with the
manufacturer's instructions.
Towbar suitable for the attachment of a
trailer or caravan with additional lighting and
signalling.
Your vehicle is primarily designed for
transpor ting people and luggage, but it may
also be used for towing a trailer.
Driving with a trailer places greater demands
on the towing vehicle and the driver must take
particular care.
Blanking cover
When towing, you must remove the blanking
cover in the front bumper if your vehicle has
one.
Contact a PEUGEOT dealer or a qualified
workshop for this.
Page 205 of 340
8
203
i
Practical information
Driving advice
Distribution of loads
)
Distribute the load in the trailer so that the
heaviest items are as close as possible to
the axle and the nose weight approaches
the maximum permitted without
exceeding it.
Air density decreases with altitude, thus
reducing engine per formance. Above
1 000 metres, the maximum towed load must
be reduced by 10 % for every 1 000 metres of
altitude.
Refer to the "Technical Data" section for details
of the weights and towed loads which apply to
your vehicle.
Side wind
)
Take into account the increased sensitivity
to side wind.
Cooling
Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.
)
To lower the engine speed, reduce your
speed.
The maximum towed load on a long incline
depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
)
If the warning lamp and the
STOP
warning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.
Braking
Towing a trailer increases the braking distance.
Ty r e s
)
Check the tyre pressures of the towing
vehicle and of the trailer, obser ving the
recommended pressures.
Lighting
)
Check the electrical lighting and signalling
on the trailer.
The rear parking sensors will be
deactivated automatically if a genuine
PEUGEOT towbar is used.
Page 206 of 340
204
i
!
Practical information

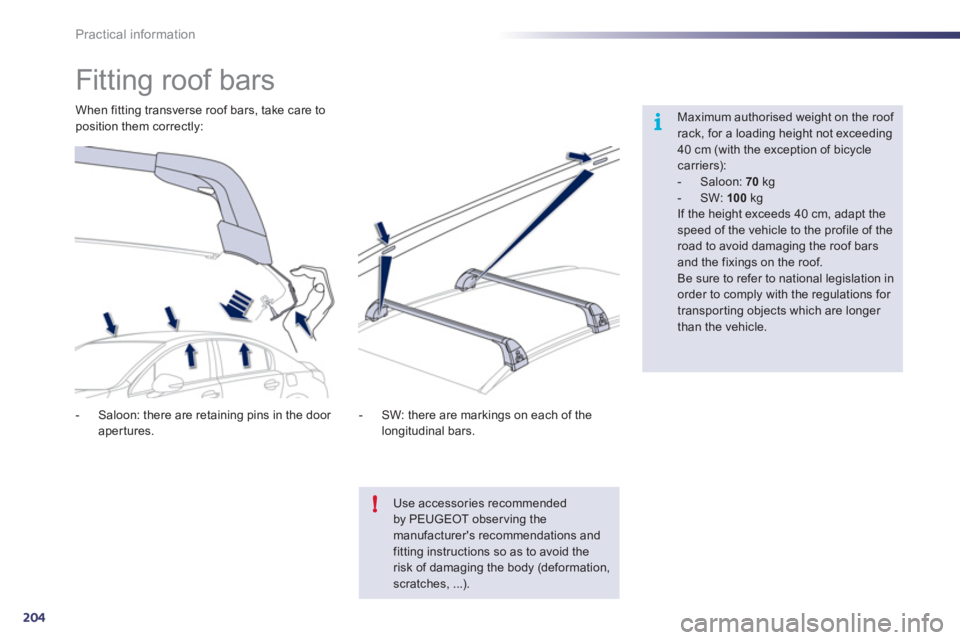

Fitting roof bars
Maximum authorised weight on the roof
rack, for a loading height not exceeding
40 cm (with the exception of bicycle
carriers):
- Saloon: 70
kg
- SW: 100
kg
If the height exceeds 40 cm, adapt the
speed of the vehicle to the profile of the
road to avoid damaging the roof bars
and the fixings on the roof.
Be sure to refer to national legislation in
order to comply with the regulations for
transpor ting objects which are longer
than the vehicle.
- Saloon: there are retaining pins in the door
apertures.
When fitting transverse roof bars, take care to
position them correctly:
- SW: there are markings on each of the
longitudinal bars.
Use accessories recommended
by PEUGEOT obser ving the
manufacturer's recommendations and
fitting instructions so as to avoid the
risk of damaging the body (deformation,
scratches, ...).
Page 207 of 340
8
205
Practical information
Accessories
A wide range of accessories and genuine par ts is available from the PEUGEOT dealer network.
These accessories and par ts have been tested and approved for reliability and safety.
They are all adapted to your vehicle and benefit from PEUGEOT's recommendation and warranty.
"Comfort":
cool box, smoker's kit, 230 V socket, torch...
"Transport solutions":
booster seats and child seats, boot tray, roof
box, ski carrier, towbar-mounted bicycle carrier,
towbars (swan-neck, quickly detachable ball,
folding), harnesses, sliding floor, utility vehicle
conversion kit, ...
The trailer towbar and its harness must be
fitted by a PEUGEOT dealer.
"Style":
spoiler, front and rear mud flaps, aluminium gear
lever knob, alloy wheels (16", 17", 18", 19"), body
kit, door mirror shells, door air deflectors, ...
*
To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and
secured correctly,
- never fit one mat on top of another.
"Safety and security":
speed limiter/cruise control, anti-theft alarm,
microwave unit, window etching, wheel security
bolts, breathalyser, first aid kit, warning
triangle, high visibility vest, stolen vehicle
tracking system, winter equipment (17" wheels
for snow chains), reversing camera, front and
rear parking sensors, boot spacers...
"Protection":
mats * , seat covers, vehicle covers, sun blinds,
boot net, load protection net, dog guard, door
and boot sill protectors, resin side rubbing
strips...
Page 208 of 340
206
i
!i
Practical information

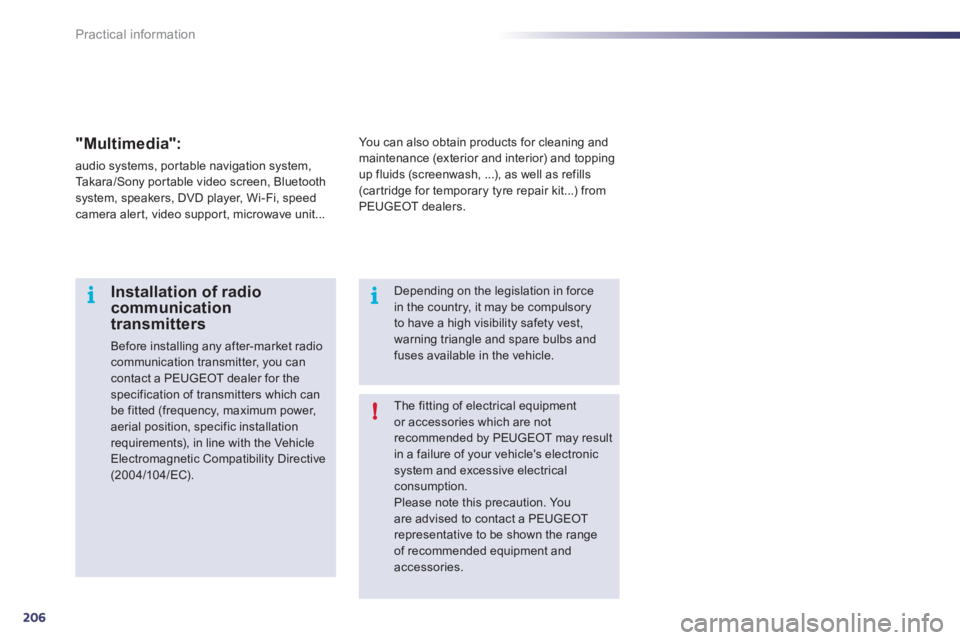

The fitting of electrical equipment
or accessories which are not
recommended by PEUGEOT may result
in a failure of your vehicle's electronic
system and excessive electrical
consumption.
Please note this precaution. You
are advised to contact a PEUGEOT
representative to be shown the range
of recommended equipment and
accessories.
Installation of radio
communication
transmitters
Before installing any after-market radio
communication transmitter, you can
contact a PEUGEOT dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).
Depending on the legislation in force
in the country, it may be compulsory
to have a high visibility safety vest,
warning triangle and spare bulbs and
fuses available in the vehicle.
You can also obtain products for cleaning and
maintenance (exterior and interior) and topping
up fluids (screenwash, ...), as well as refills
(car tridge for temporary tyre repair kit...) from
PEUGEOT dealers.
"Multimedia":
audio systems, por table navigation system,
Takara/Sony por table video screen, Bluetooth
system, speakers, DVD player, Wi-Fi, speed
camera aler t, video suppor t, microwave unit...
Page 209 of 340
9
207
Checks

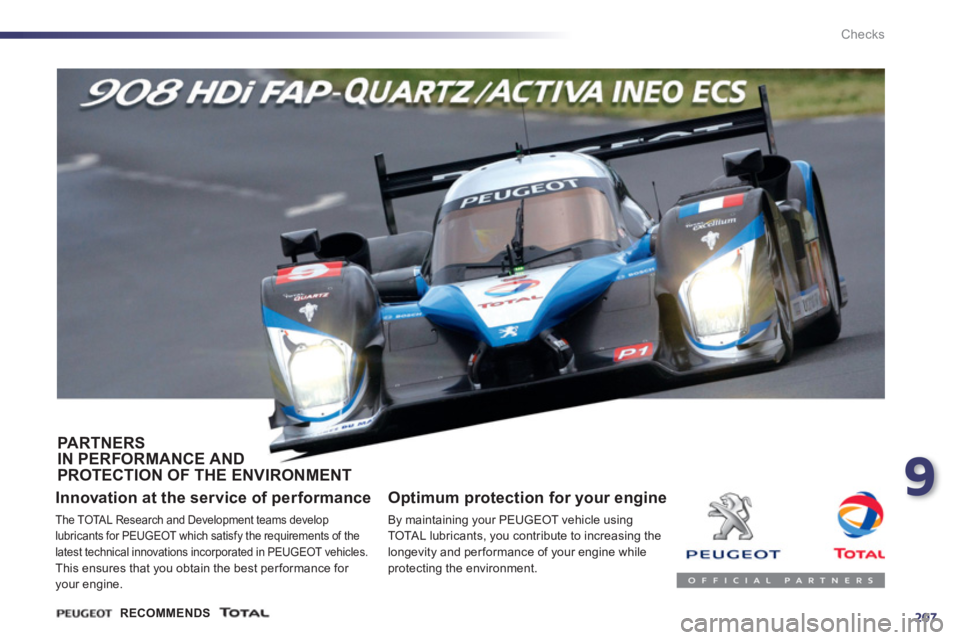

PA R T N E RS
IN PERFORMANCE AND
PROTECTION OF THE ENVIRONMENT
Innovation at the service of performance
The TOTAL Research and Development teams develop
lubricants for PEUGEOT which satisfy the requirements of the
latest technical innovations incorporated in PEUGEOT vehicles.
This ensures that you obtain the best per formance for
your engine.
Optimum protection for your engine
By maintaining your PEUGEOT vehicle using
TOTAL lubricants, you contribute to increasing the
longevity and per formance of your engine while
protecting the environment.
RECOMMENDS
Page 210 of 340
208
!
Checks

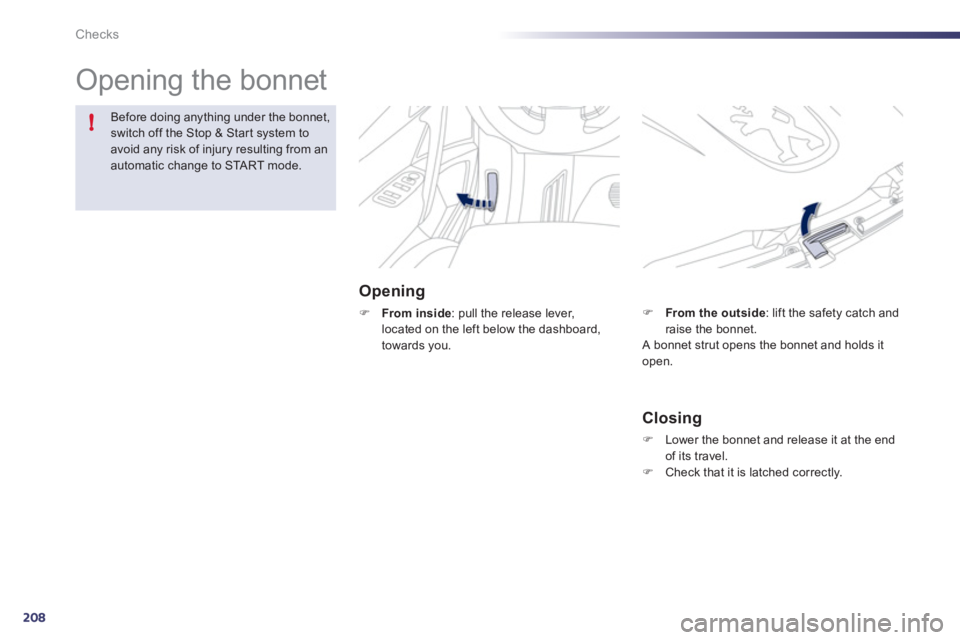

Opening the bonnet
Opening
)
From inside
: pull the release lever,
located on the left below the dashboard,
towards you.
Before doing anything under the bonnet,
switch off the Stop & Star t system to
avoid any risk of injury resulting from an
automatic change to START mode.
Closing
)
Lower the bonnet and release it at the end
of its travel.
)
Check that it is latched correctly.
)
From the outside
: lift the safety catch and
raise the bonnet.
A bonnet strut opens the bonnet and holds it
open.
