Peugeot 508 2011 Owner's Manual

299
3
2
4
04
1
AUDIO

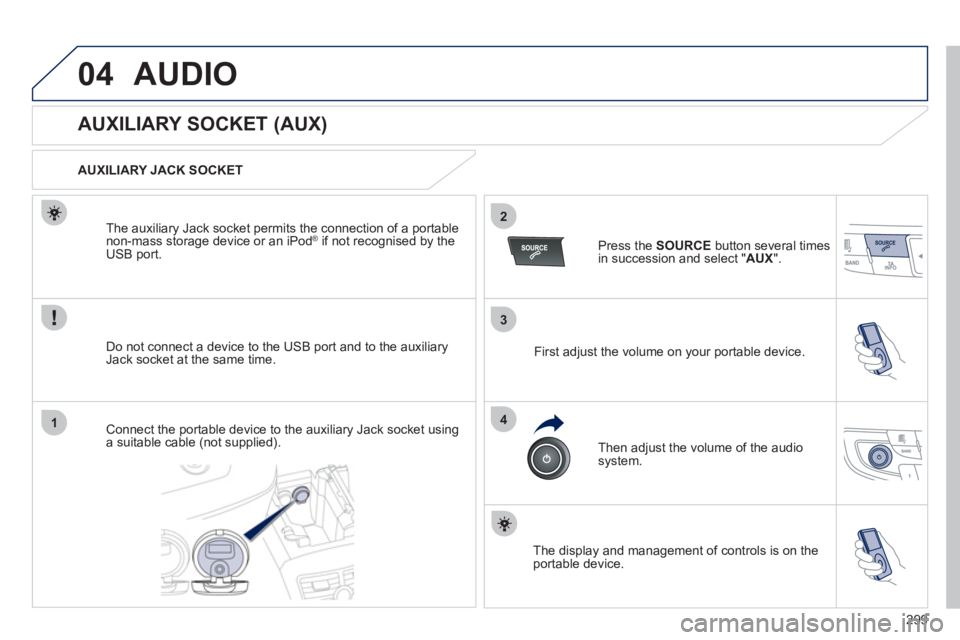

AUXILIARY SOCKET (AUX)


AUXILIARY JACK SOCKET

Do not connect a device to the USB port and to the auxiliary
Jack socket at the same time.
The auxiliary Jack socket permits the connection of a portable
non-mass storage device or an iPod
® if not recognised by the
USB port.

Connect the portable device to the auxiliary Jack socket using
a suitable cable (not supplied).
Press the SOURCE
button several times
in succession and select " AUX
".

First adjust the volume on your portable device.

Then adjust the volume of the audio
system.

The display and management of controls is on the
portable device.

300
04
1
2
1
2
3
4
5
AUDIO

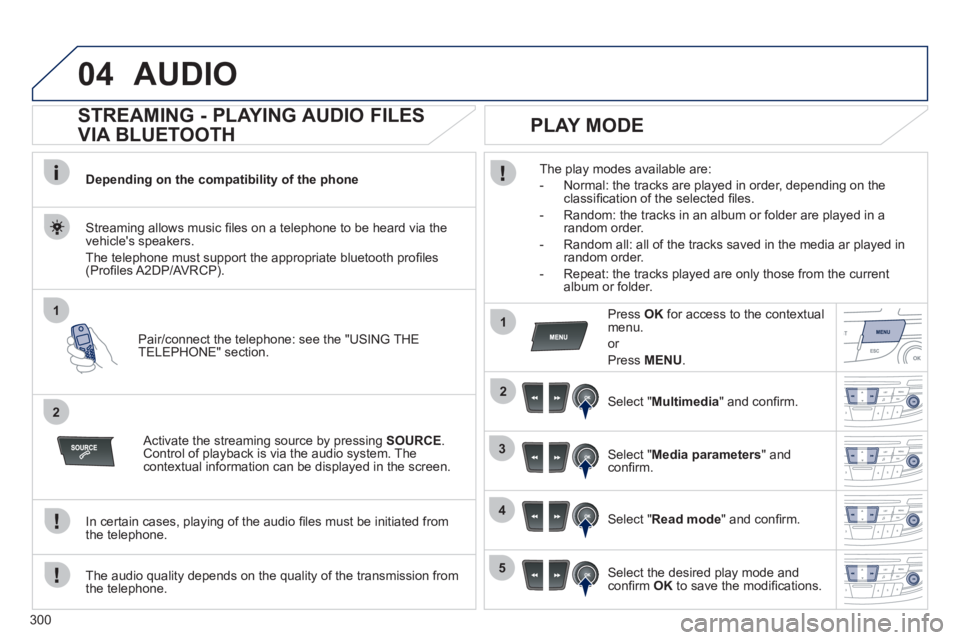

STREAMING - PLAYING AUDIO FILES
VIA BLUETOOTH

Depending on the compatibility of the phone

Pair/connect the telephone: see the "USING THE
TELEPHONE" section.
Streaming allows music fi les on a telephone to be heard via the
vehicle's speakers.
The telephone must support the appropriate bluetooth profi les
(Profi les A2DP/AVRCP).

Activate the streaming source by pressing SOURCE
.
Control of playback is via the audio system. The
contextual information can be displayed in the screen.

In certain cases, playing of the audio fi les must be initiated from
the telephone.

The audio quality depends on the quality of the transmission from
the telephone.



PLAY MODE


The play modes available are:


- Normal: the tracks are played in order, depending on the
classifi cation of the selected fi les.

- Random: the tracks in an album or folder are played in a
random order.

- Random all: all of the tracks saved in the media ar played in
random order.

- Repeat: the tracks played are only those from the current
album or folder.




Press OK
for access to the contextual
menu.
or
Press MENU
.

Select " Multimedia
" and confi rm.

Select " Media parameters
" and
confi rm.

Select " Read mode
" and confi rm.

Select the desired play mode and
confi rm OK
to save the modifi cations.

301
05
1
25
3
4
6
USING THE TELEPHONE

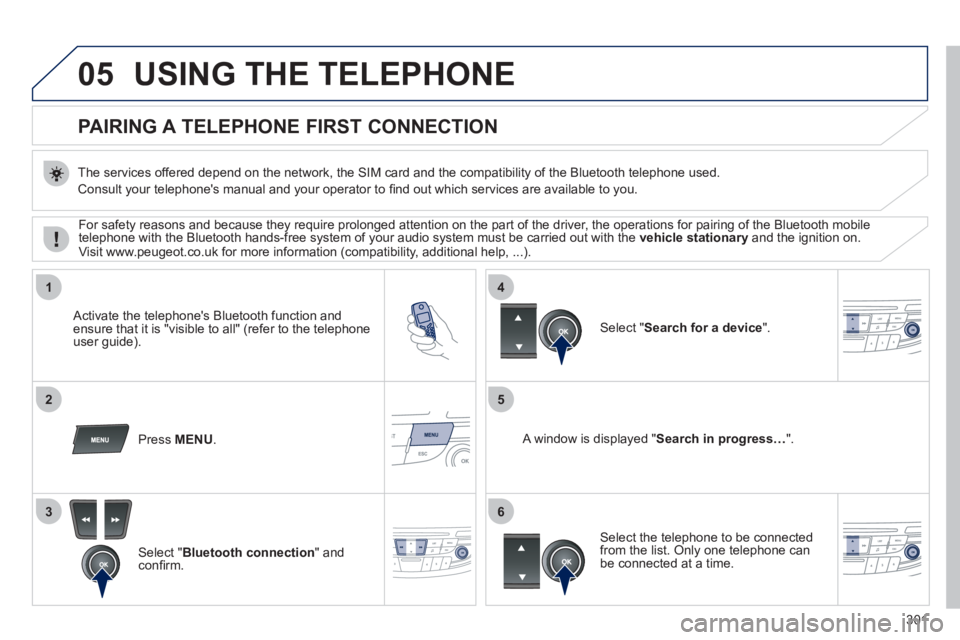

PAIRING A TELEPHONE
FIRST CONNECTION


The services offered depend on the network, the SIM card and the compatibility of the Bluetooth telephone used.
Consult your telephone's manual and your operator to fi nd out which services are available to you.

Activate the telephone's Bluetooth function and
ensure that it is "visible to all" (refer to the telephone
user guide).

Press MENU
.
A window is displayed " Search in progress…
".

Select the telephone to be connected
from the list. Only one telephone can
be connected at a time.
Select " Search for a device
".
For safety reasons and because they require prolonged attention on the part of the driver, the operations for pairing of the Bluetooth mobile
telephone with the Bluetooth hands-free system of your audio system must be carried out with the vehicle stationary
and the ignition on.
Visit www.peugeot.co.uk for more information (compatibility, additional help, ...).

Select " Bluetooth connection
" and
confi rm.

302
05
7
8
Saisir code authentification
01
OK Del23456789 _
9
10
USING THE TELEPHONE

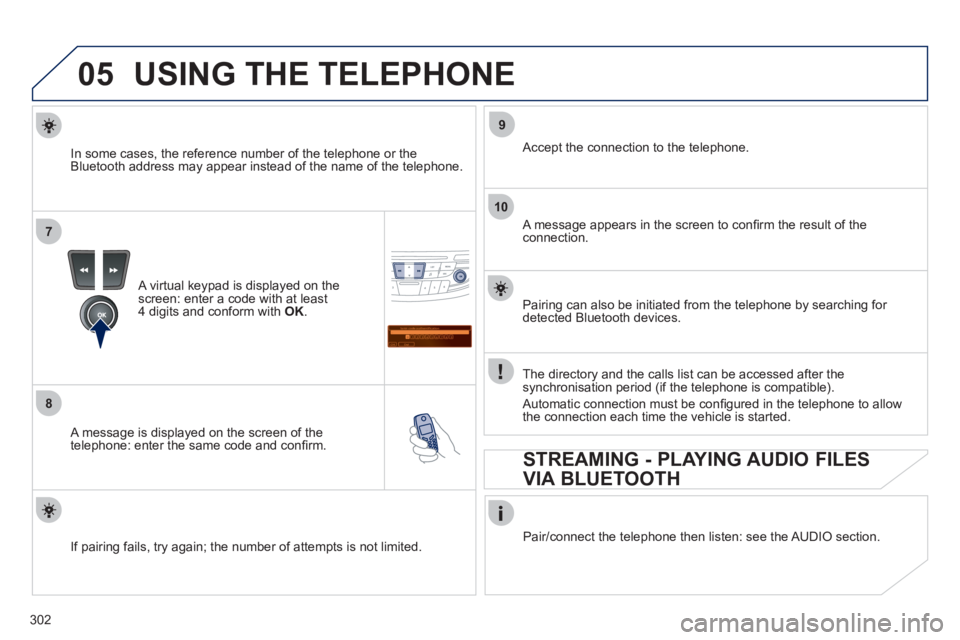

A virtual keypad is displayed on the
screen: enter a code with at least
4 digits and conform with OK
.

A message is displayed on the screen of the
telephone: enter the same code and confi rm.
A message appears in the screen to confi rm the result of the
connection.

Pairing can also be initiated from the telephone by searching for
detected Bluetooth devices.
Accept the connection to the telephone.

If pairing fails, try again; the number of attempts is not limited.
The directory and the calls list can be accessed after the
synchronisation period (if the telephone is compatible).
Automatic connection must be confi gured in the telephone to allow
the connection each time the vehicle is started.

In some cases, the reference number of the telephone or the
Bluetooth address may appear instead of the name of the telephone.

Pair/connect the telephone then listen: see the AUDIO section.








STREAMING - PLAYING AUDIO FILES
VIA BLUETOOTH

303


1
2
3
4
05
5
USING THE TELEPHONE


The telephone connection automatically includes hands free operation
and audio streaming.
The ability of the system to connect to just one profi le depends on the
telephone. Both profi les may connect by default.

Press MENU
.

Select " Bluetooth connection
" and
confi rm. Indicates connection of the audio steaming profi le.

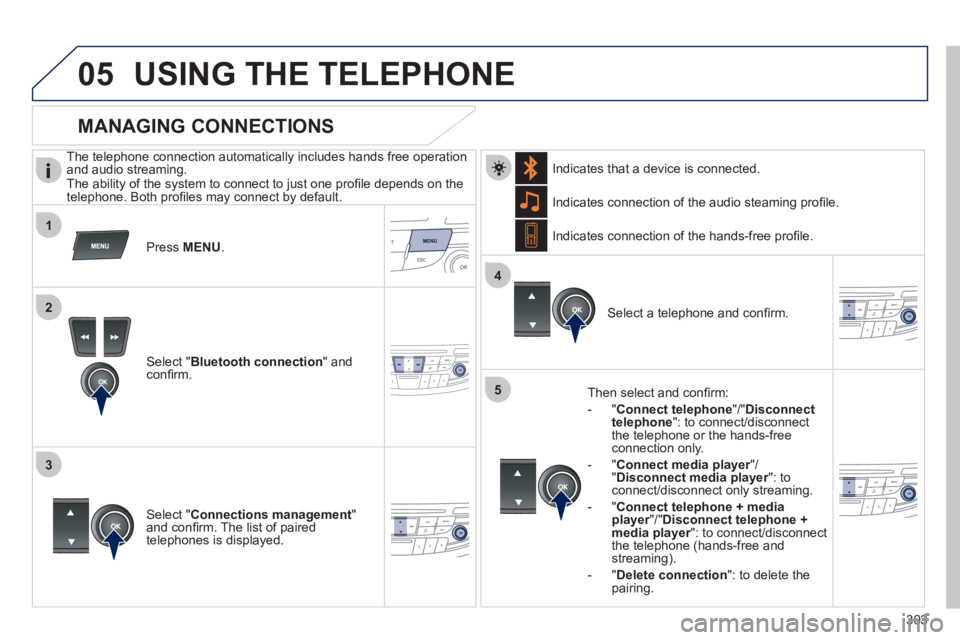

MANAGING CONNECTIONS


Select " Connections management
"
and confi rm. The list of paired
telephones is displayed.
Select a telephone and confi rm. Indicates connection of the hands-free profi le.

Then select and confi rm:


- " Connect telephone
"/" Disconnect
telephone
": to connect/disconnect
the telephone or the hands-free
connection only.

- " Connect media player
"/
" Disconnect media player
": to
connect/disconnect only streaming.

- " Connect telephone + media
player
"/" Disconnect telephone +
media player
": to connect/disconnect
the telephone (hands-free and
streaming).

- " Delete connection
": to delete the
pairing.


Indicates that a device is connected.

304


1
2
1
4
2
3
3
05 USING THE TELEPHONE


To display the " TELEPHONE
" menu:


- Make along press on SOURCE
.

- Or, press OK
to display the
contextual menu. Select " Call
" and
confi rm.

- Or, press MENU
, select
" Telephone
" and confi rm. Select
" Call
" and confi rm.


Select " Dial
" to enter a number and
confi rm.
Repeat the previous step 1
to display
the " TELEPHONE
" menu.

Select OK
and confi rm to start the
call.

Select " Calls list
" and confi rm.

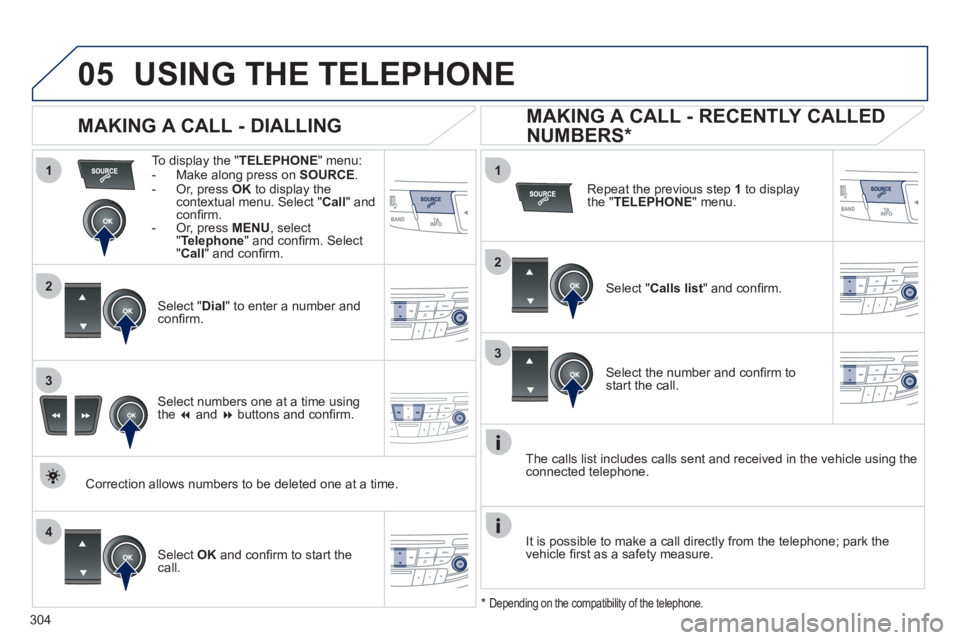

MAKING A CALL - DIALLING


Select numbers one at a time using
the
and
buttons and confi rm.


MAKING A CALL - RECENTLY CALLED
NUMBERS *


Select the number and confi rm to
start the call.

The calls list includes calls sent and received in the vehicle using the
connected telephone.

*

Depending on the compatibility of the telephone.


Correction allows numbers to be deleted one at a time.

It is possible to make a call directly from the telephone; park the
vehicle fi rst as a safety measure.

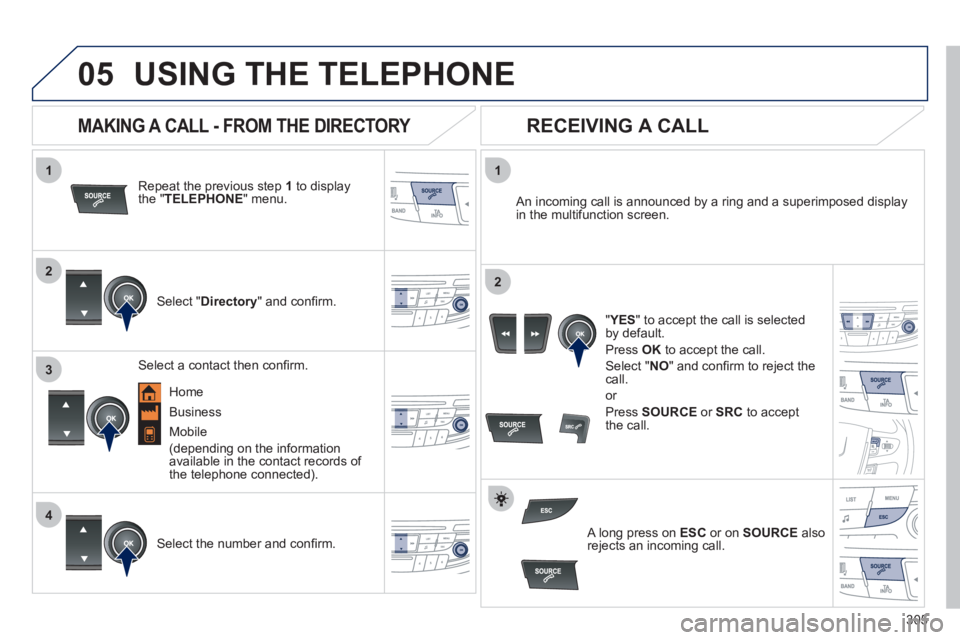

305


1
2
1
4
2
3
05 USING THE TELEPHONE


Repeat the previous step 1
to display
the " TELEPHONE
" menu.

Select " Directory
" and confi rm.
An incoming call is announced by a ring and a superimposed display
in the multifunction screen.
Mobile
(depending on the information
available in the contact records of
the telephone connected).
" YES
" to accept the call is selected
by default.
Press OK
to accept the call.
Select " NO
" and confi rm to reject the
call.
or
Press SOURCE
or SRC
to accept
the call.


MAKING A CALL - FROM THE DIRECTORY


Select a contact then confi rm.


RECEIVING A CALL


Select the number and confi rm.

A long press on ESC
or on SOURCE
also
rejects an incoming call.
Business
Home

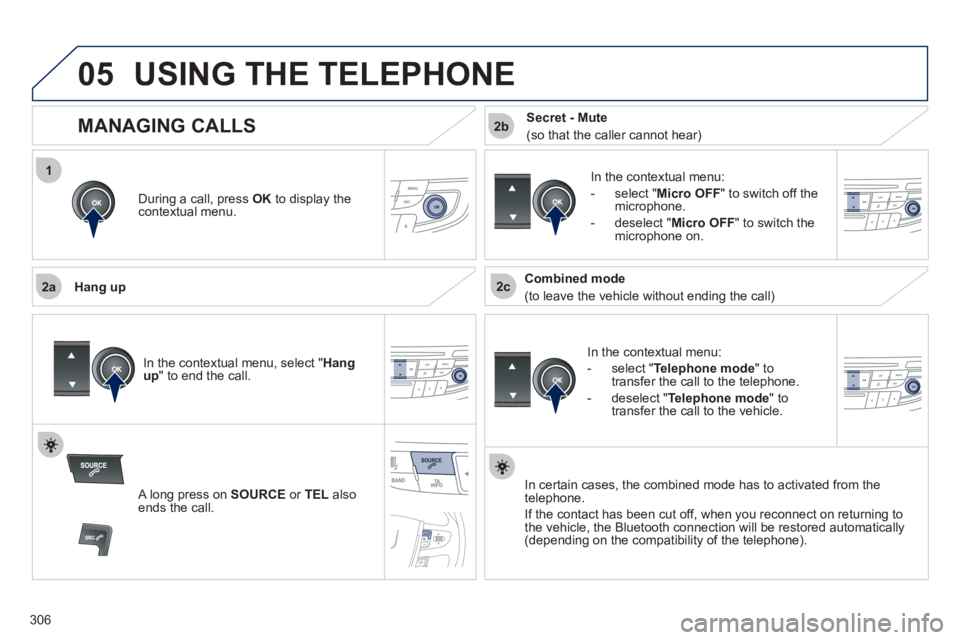

306

1
2a2c
2b
05 USING THE TELEPHONE


During a call, press OK
to display the
contextual menu.

Hang up

In the contextual menu:


- select " Telephone mode
" to
transfer the call to the telephone.

- deselect " Telephone mode
" to
transfer the call to the vehicle.

In the contextual menu:


- select " Micro OFF
" to switch off the
microphone.

- deselect " Micro OFF
" to switch the
microphone on.


In certain cases, the combined mode has to activated from the
telephone.
If the contact has been cut off, when you reconnect on returning to
the vehicle, the Bluetooth connection will be restored automatically
(depending on the compatibility of the telephone).


MANAGING CALLS


A long press on SOURCE
or TEL
also
ends the call. In the contextual menu, select " Hang
up
" to end the call.
Secret - Mute
(so that the caller cannot hear)

Combined mode
(to leave the vehicle without ending the call)

307

2e
2d
05 USING THE TELEPHONE

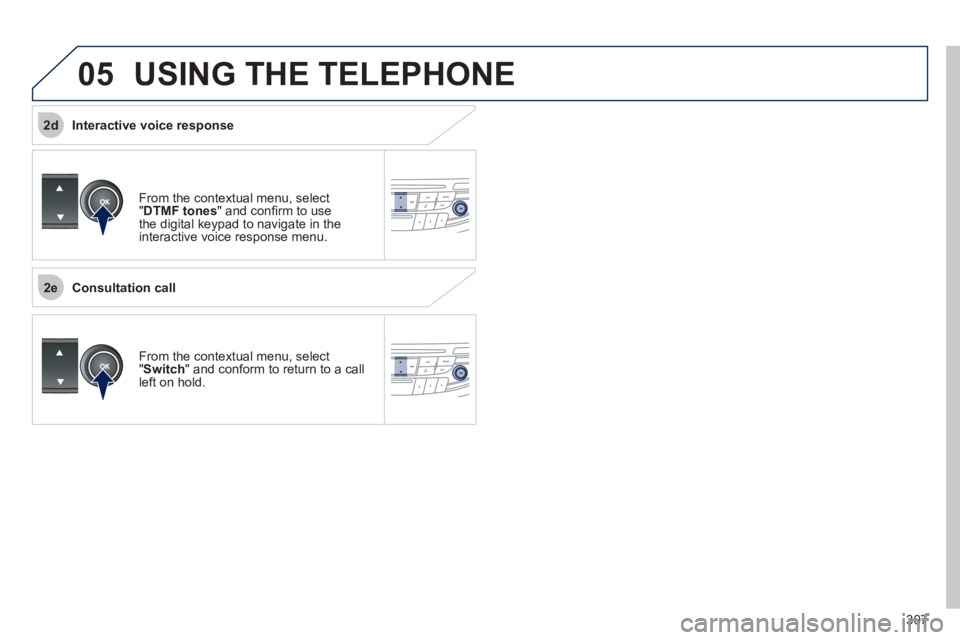

From the contextual menu, select
" DTMF tones
" and confi rm to use
the digital keypad to navigate in the
interactive voice response menu.
From the contextual menu, select
" Switch
" and conform to return to a call
left on hold.

Interactive voice response

Consultation call

308


2
3
1
05 USING THE TELEPHONE

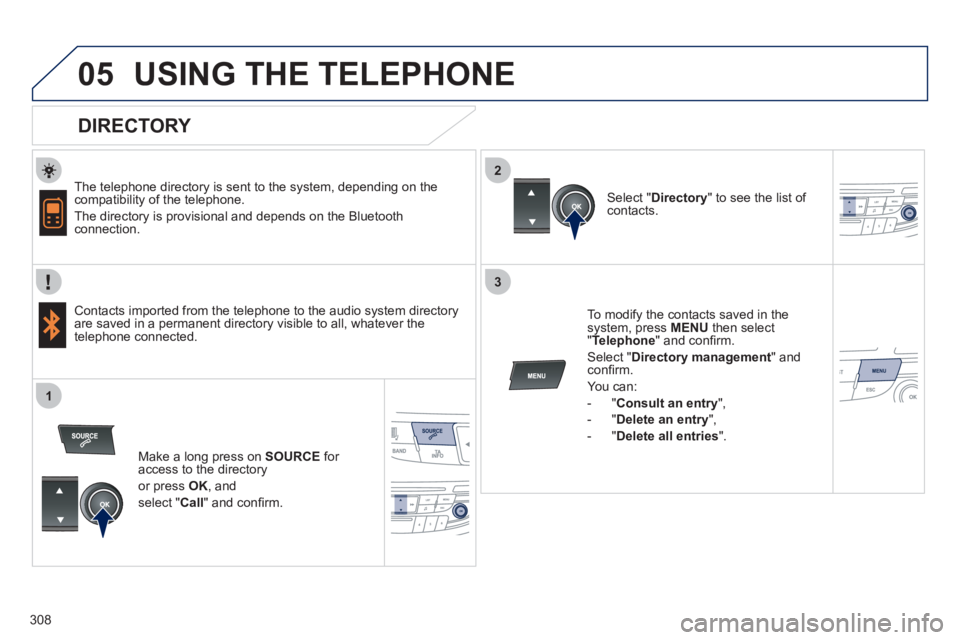

DIRECTORY


The telephone directory is sent to the system, depending on the
compatibility of the telephone.
The directory is provisional and depends on the Bluetooth
connection.

Contacts imported from the telephone to the audio system directory
are saved in a permanent directory visible to all, whatever the
telephone connected.
To modify the contacts saved in the
system, press MENU
then select
" Telephone
" and confi rm.
Select " Directory management
" and
confi rm.
You can:


- " Consult an entry
",

- " Delete an entry
",

- " Delete all entries
".


Select " Directory
" to see the list of
contacts.

Make a long press on SOURCE
for
access to the directory
or press OK
, and
select " Call
" and confi rm.
