Peugeot 508 2012 Owner's Manual - RHD (UK, Australia)

8
189
i
Practical information

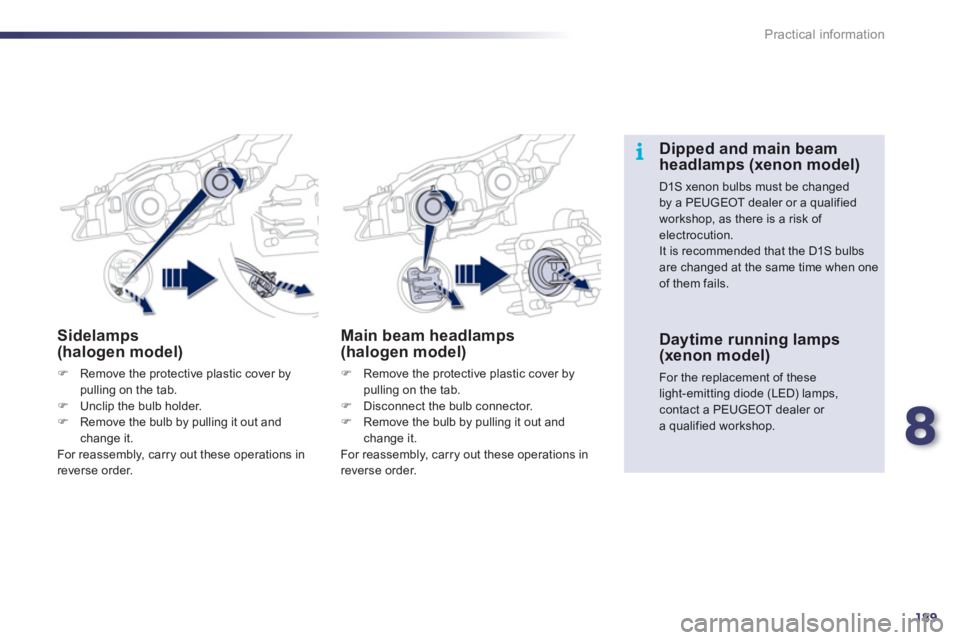

Sidelamps(halogen model)
)Remove the protective plastic cover bypulling on the tab.)Unclip the bulb holder. )Remove the bulb by pulling it out and change it.
For reassembly, carry out these operations in
reverse order.

Main beam headlamps(halogen model)
)
Remove the protective plastic cover by
pulling on the tab. ) Disconnect the bulb connector. )
Remove the bulb by pulling it out andchange it.
For reassembly, carry out these operations in reverse order.








Dipped and main beam
headlamps (xenon model)

D1S xenon bulbs must be changedby a PEUGEOT dealer or a qualifiedworkshop, as there is a risk of electrocution.
It is recommended that the D1S bulbsare changed at the same time when oneof them fails.
Daytime running lamps
(xenon model)

For the replacement of these light-emitting diode (LED) lamps, contact a PEUGEOT dealer or a qualified workshop.

190
Practical information

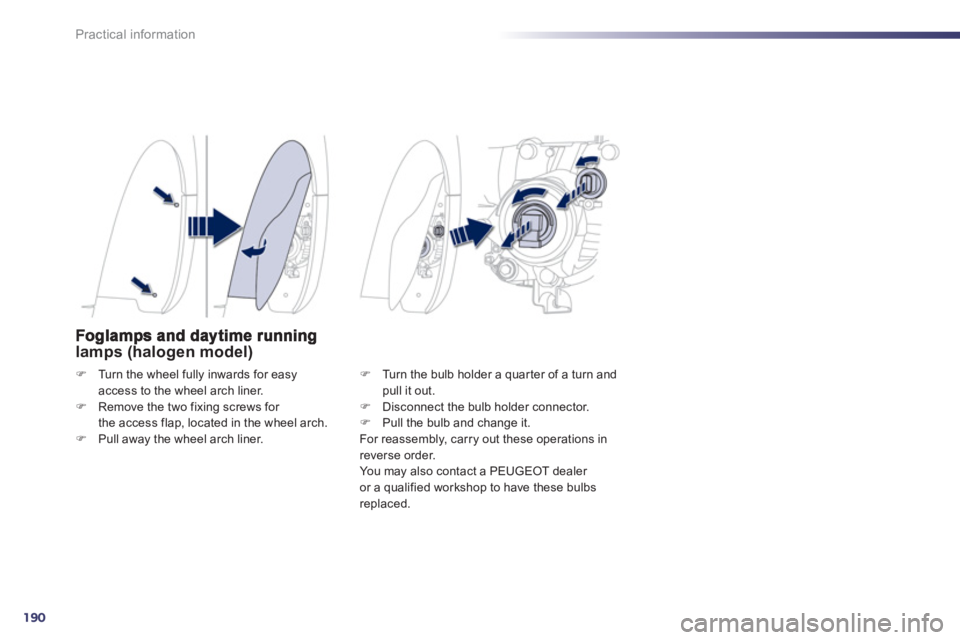

lamps (halogen model)
)Turn the wheel fully inwards for easy access to the wheel arch liner. )Remove the two fixing screws for
the access flap, located in the wheel arch.
)Pull away the wheel arch liner.
)Turn the bulb holder a quarter of a turn and
pull it out.
)Disconnect the bulb holder connector. )Pull the bulb and change it.
For reassembly, carry out these operations in reverse order.
Yo u m ay also contact a PEUGEOT dealer
or a qualified workshop to have these bulbs replaced.

8
191
Practical information

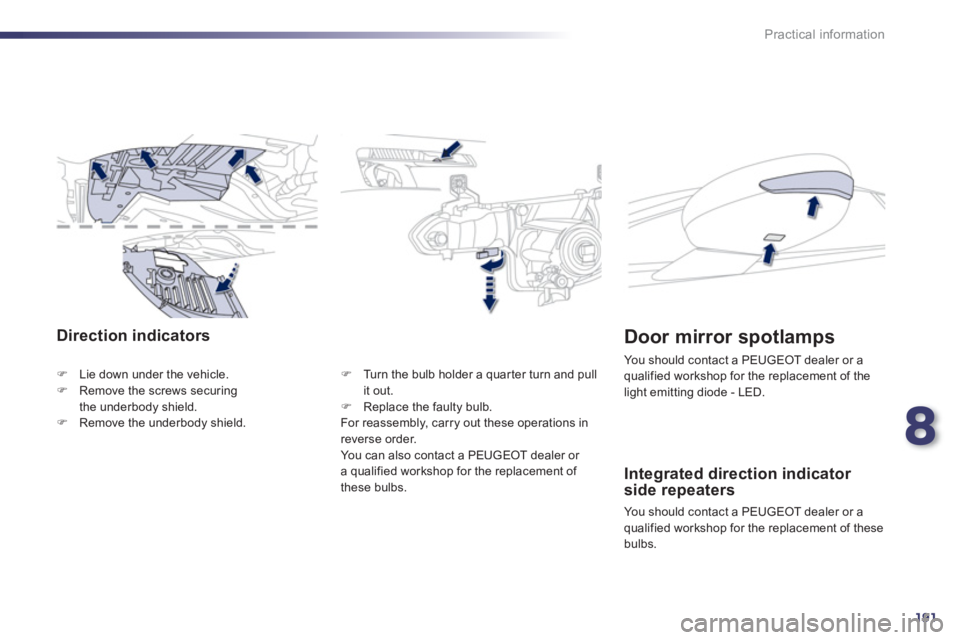

Direction indicators
)Lie down under the vehicle. )Remove the screws securing
the underbody shield.)Remove the underbody shield.
) Turn the bulb holder a quar ter turn and pull
it out. ) Replace the faulty bulb.
For reassembly, carry out these operations in reverse order.
You can also contact a PEUGEOT dealer or a qualified workshop for the replacement of
these bulbs.
Integrated direction indicator
side repeaters
You should contact a PEUGEOT dealer or a qualified workshop for the replacement of these
bulbs.
Door mirror spotlamps

You should contact a PEUGEOT dealer or a qualified workshop for the replacement of the light emitting diode - LED.

192
i
Practical information

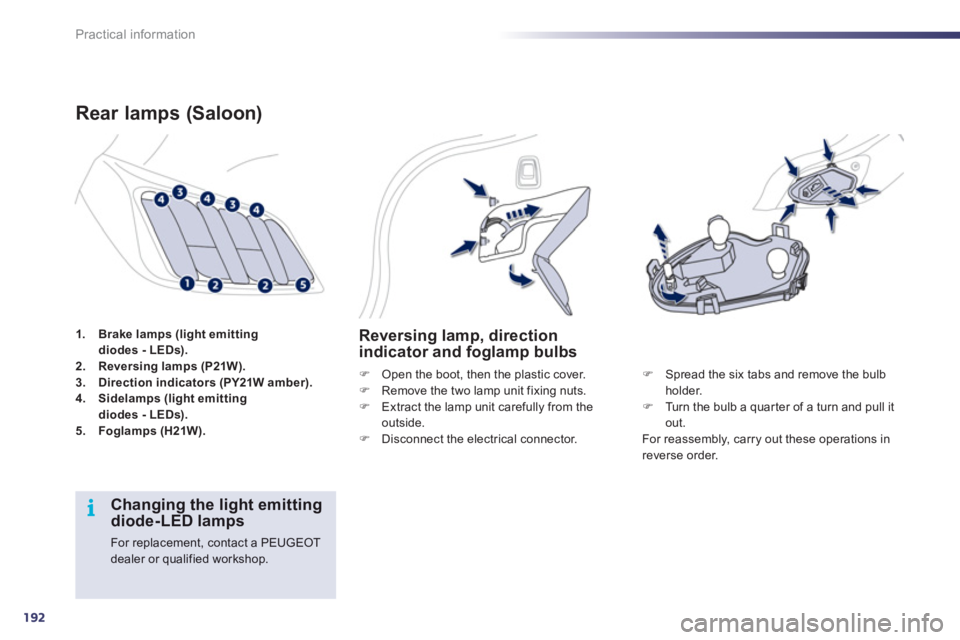

1.Brake lamps (light emitting diodes - LEDs).2. Reversing lamps (P21W).3.Direction indicators (PY21W amber).4.Sidelamps (light emittingdiodes - LEDs).5.Foglamps (H21W).
Rear lamps (Saloon)
Reversing lamp, direction
indicator and foglamp bulbs
) Open the boot, then the plastic cover. )
Remove the two lamp unit fixing nuts. )
Extract the lamp unit carefully from the outside.)
Disconnect the electrical connector.
)Spread the six tabs and remove the bulb holder. )Turn the bulb a quar ter of a turn and pull it out.
For reassembly, carry out these operations in
reverse order.




Changing the light emittingdiode-LED lamps

For replacement, contact a PEUGEOT dealer or qualified workshop.

8
193
i
Practical information

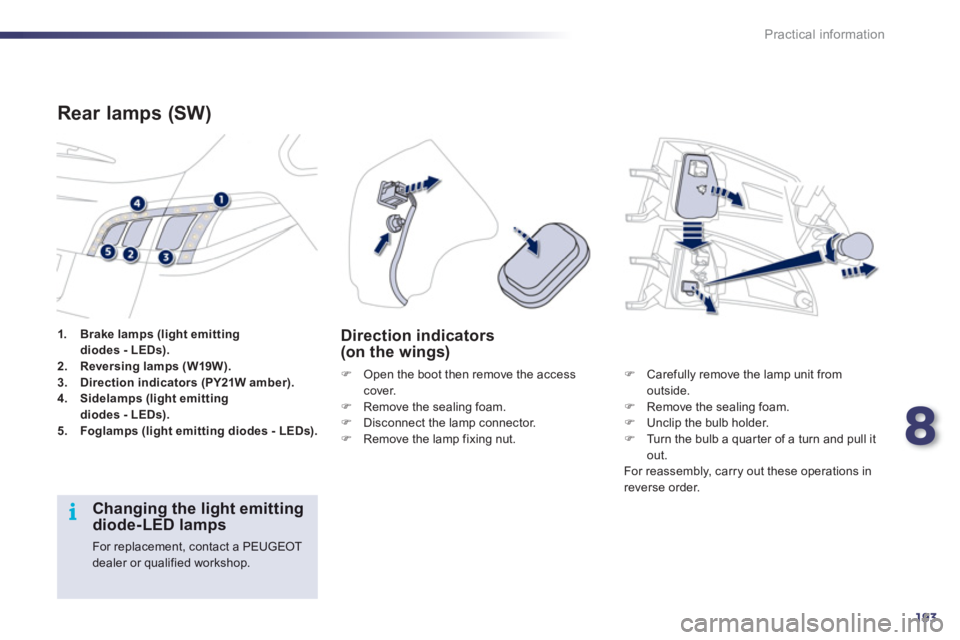

1.Brake lamps (light emitting diodes - LEDs).2.Reversing lamps (W19W).3.Direction indicators (PY21W amber).4.Sidelamps (light emittingdiodes - LEDs).5.Foglamps (light emitting diodes - LEDs).



















Rear lamps (SW)
)
Open the boot then remove the accesscover.)
Remove the sealing foam.)
Disconnect the lamp connector. )
Remove the lamp fixing nut.
Direction indicators(on the wings)
)
Carefully remove the lamp unit from outside.)
Remove the sealing foam. )
Unclip the bulb holder. )
Turn the bulb a quar ter of a turn and pull itout.
For reassembly, carry out these operations in
reverse order.



Changing the light emitting diode-LED lamps

For replacement, contact a PEUGEOT dealer or qualified workshop.

194
Practical information

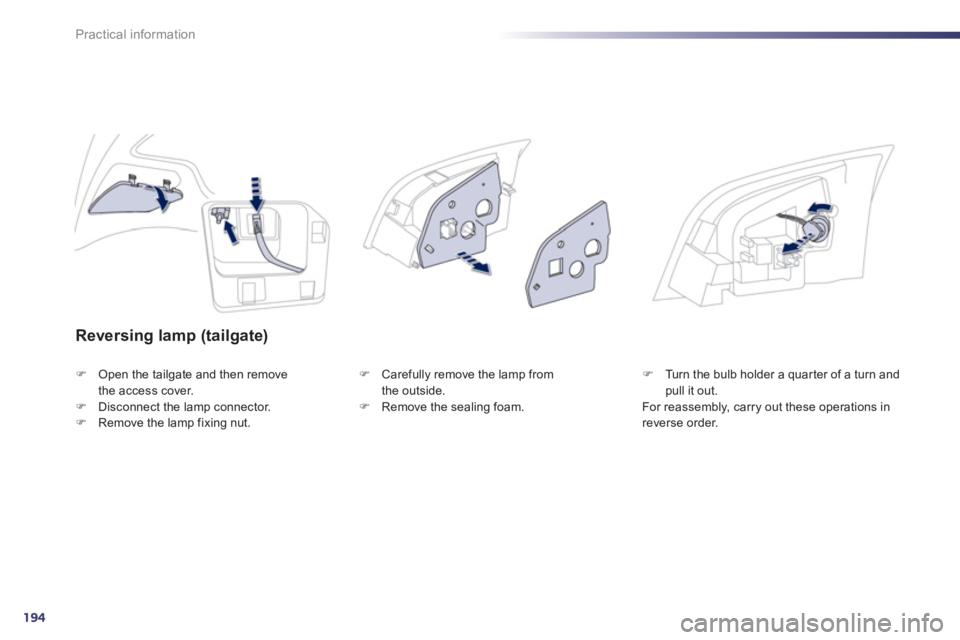

Reversing lamp (tailgate)
)Open the tailgate and then remove
the access cover. )Disconnect the lamp connector.)Remove the lamp fixing nut.
) Carefully remove the lamp from
the outside. ) Remove the sealing foam.
)Turn the bulb holder a quarter of a turn andpull it out.
For reassembly, carry out these operations in
reverse order.

8
195
Practical information

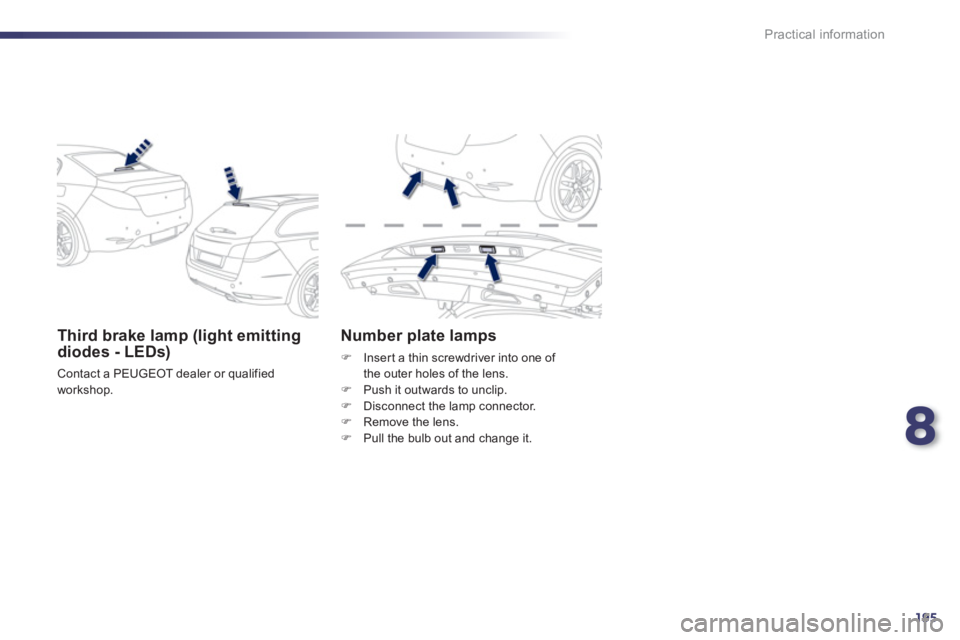

Third brake lamp (light emittingdiodes - LEDs)
Contact a PEUGEOT dealer or qualified
workshop.
Number plate lamps
) Insert a thin screwdriver into one of
the outer holes of the lens. ) Push it outwards to unclip.)
Disconnect the lamp connector. )
Remove the lens.)
Pull the bulb out and change it.

196
i
!
Practical information

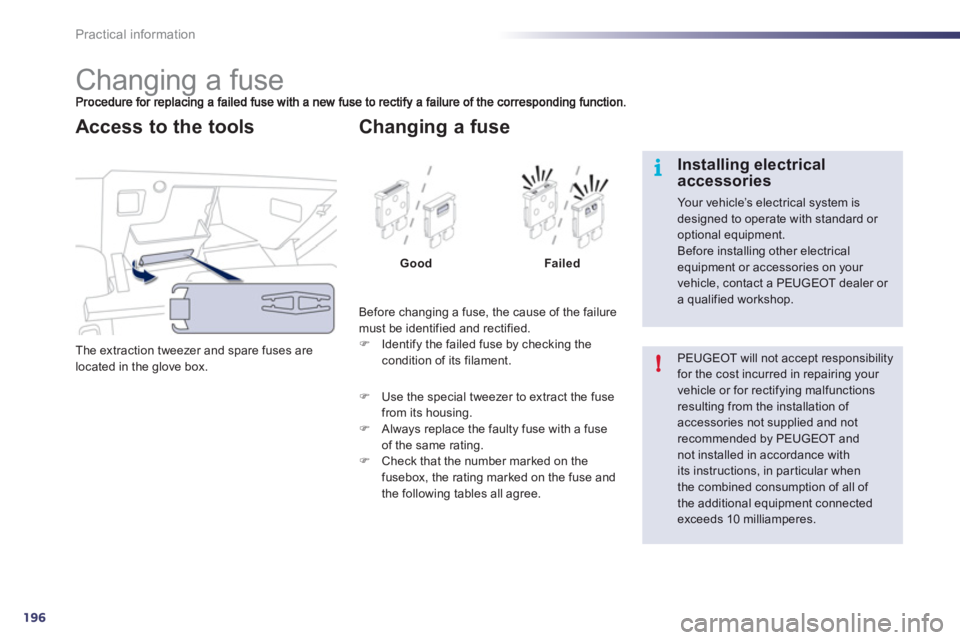

Changing a fuse
The extraction tweezer and spare fuses are
located in the glove box.
Access to the tools

Before changing a fuse, the cause of the failure
must be identified and rectified. ) Identify the failed fuse by checking thecondition of its filament.


Changing a fuse
Good Failed
)
Use the special tweezer to extract the fuse from its housing.)
Always replace the faulty fuse with a fuse of the same rating.)
Check that the number marked on thefusebox, the rating marked on the fuse and
the following tables all agree.
PEUGEOT will not accept responsibilityfor the cost incurred in repairing your vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and not
recommended by PEUGEOT andnot installed in accordance with its instructions, in par ticular when the combined consumption of all of the additional equipment connected exceeds 10 milliamperes.



Installing electricalaccessories

Yo u r v e h i c l e’s electrical system isdesigned to operate with standard or optional equipment.
Before installing other electrical equipment or accessories on your vehicle, contact a PEUGEOT dealer or a qualified workshop.

8
197
Practical information

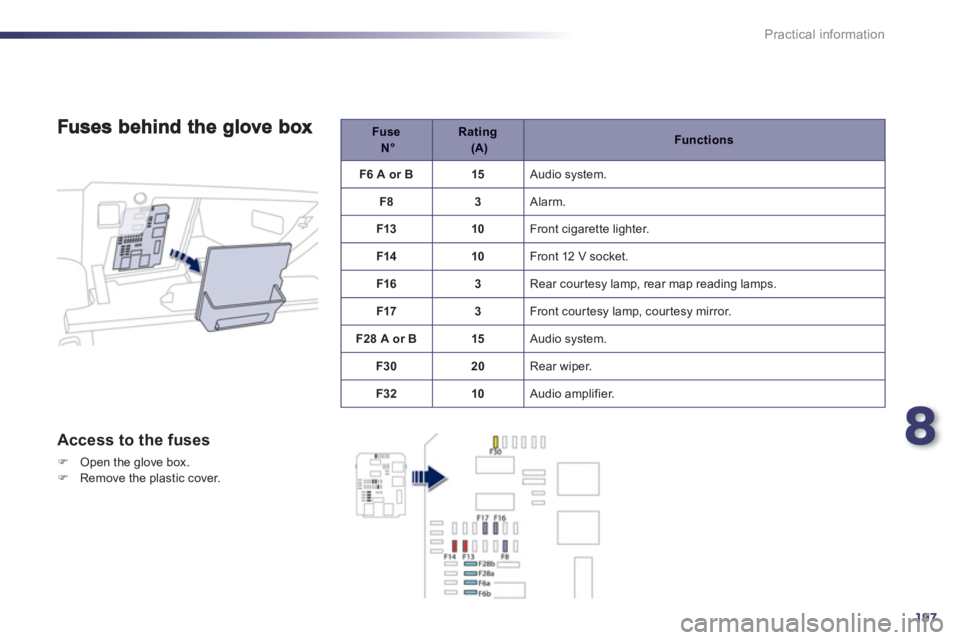

Access to the fuses
)Open the glove box. )Remove the plastic cover.
FuseN°

Rating(A)Functions
F6 A or B 15
Audio s
ystem.
F
83 Alarm.
F1
310 Front cigarette lighter.
F1410
Front 12 V socket.
F1
63 Rear courtesy lamp, rear map reading lamps.
F17
3 Front cour tesy lamp, cour tesy mirror.
F2
8 A or B15 Audio system.
F3
020 Rear wiper.
F32 10
Audio amplifier.

198
Practical information
Fuse N°Rating (A)Functions
F
315 Driver’s electric window panel, 12 V socket for rear seats.
F
415 12 V socket in boot.
F530 One-touch rear window.
F
630 One-touch front window.
F1
120
Trailer unit.
F12 20
Audio ampli
fier.
F1
520
Panoramic sunroof blind (SW).
F1
65
Driver’s electric window switch panel.
Dashboard fuses
The fusebox is placed in the lower dashboard (right-hand side).
Access to the fuses
)Open the folding panel then apply pressure
to bypass the stops.
