Practical information

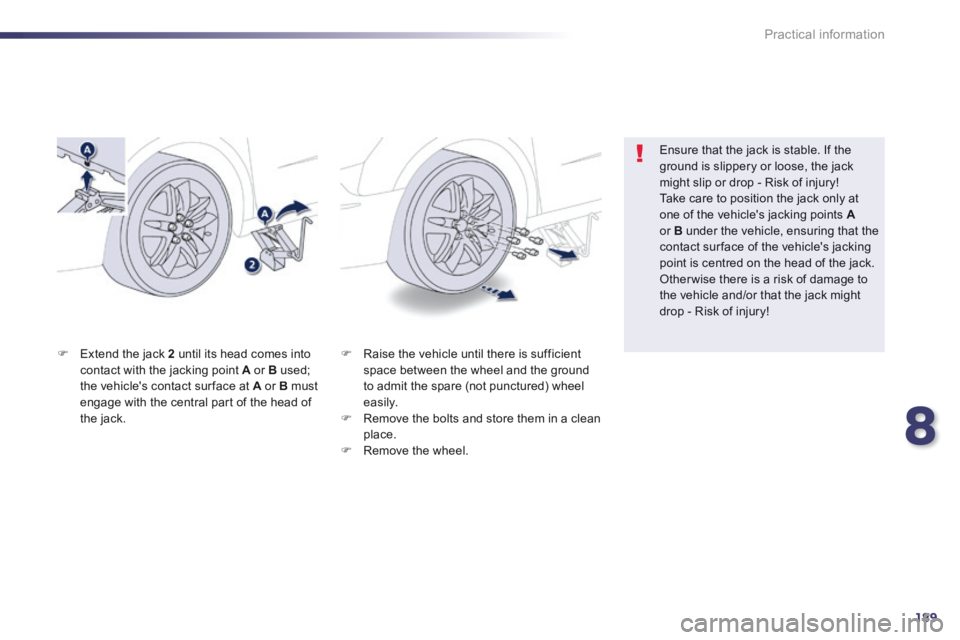

 Raise the vehicle until there is sufficient space between the wheel and the ground to admit the spare (not punctured) wheel easily.  Remove the bolts and store them in a clean place.  Remove the wheel.
 Extend the jack 2 until its head comes into contact with the jacking point A or B used; the vehicle's contact sur face at A or B must engage with the central part of the head of the jack.
Ensure that the jack is stable. If the ground is slippery or loose, the jack might slip or drop - Risk of injury! Take care to position the jack only at one of the vehicle's jacking points Aor B under the vehicle, ensuring that the contact sur face of the vehicle's jacking point is centred on the head of the jack. Otherwise there is a risk of damage to the vehicle and/or that the jack might drop - Risk of injury!

190
Practical information

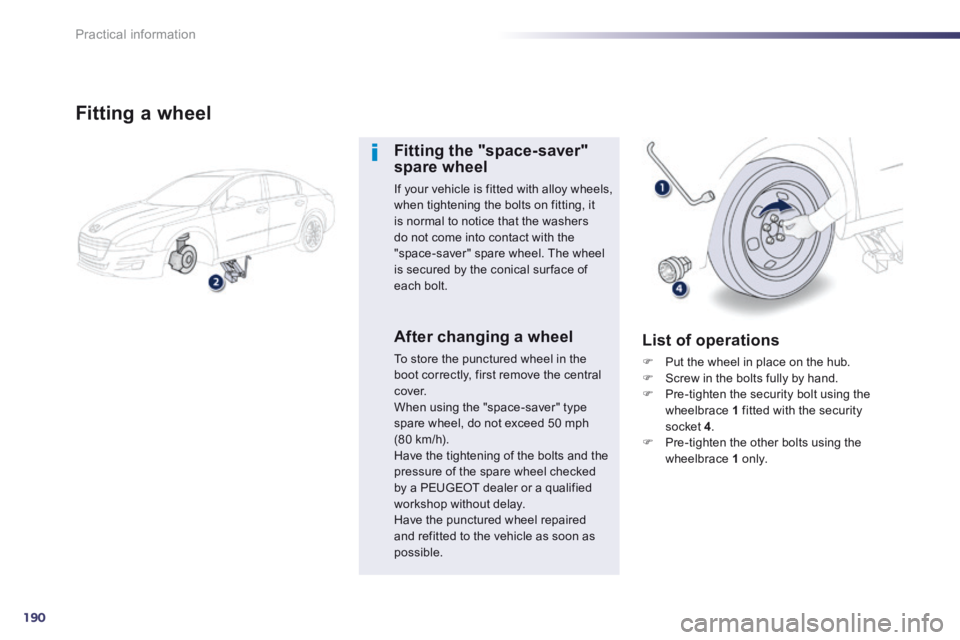

Fitting a wheel
Fitting the "space-saver" spare wheel
If your vehicle is fitted with alloy wheels, when tightening the bolts on fitting, it is normal to notice that the washers do not come into contact with the "space-saver" spare wheel. The wheel is secured by the conical sur face of each bolt.
After changing a wheel
To store the punctured wheel in the boot correctly, first remove the central cover. When using the "space-saver" type spare wheel, do not exceed 50 mph (80 km/h). Have the tightening of the bolts and the pressure of the spare wheel checked by a PEUGEOT dealer or a qualified workshop without delay. Have the punctured wheel repaired and refitted to the vehicle as soon as possible.
List of operations
 Put the wheel in place on the hub.  Screw in the bolts fully by hand.  Pre-tighten the security bolt using the wheelbrace 1 fitted with the security socket 4 .
 Pre-tighten the other bolts using the wheelbrace 1 o n l y.

8
191
Practical information

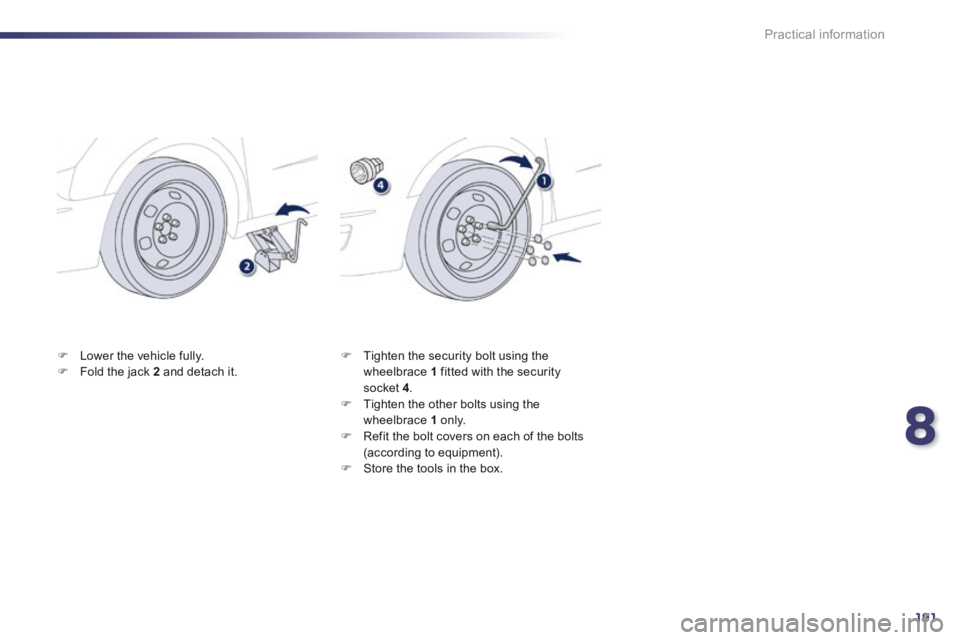

 Lower the vehicle fully.  Fold the jack 2 and detach it.  Tighten the security bolt using the wheelbrace 1 fitted with the security socket 4 .  Tighten the other bolts using the wheelbrace 1 o n l y.  Refit the bolt covers on each of the bolts (according to equipment).  Store the tools in the box.

192
Practical information

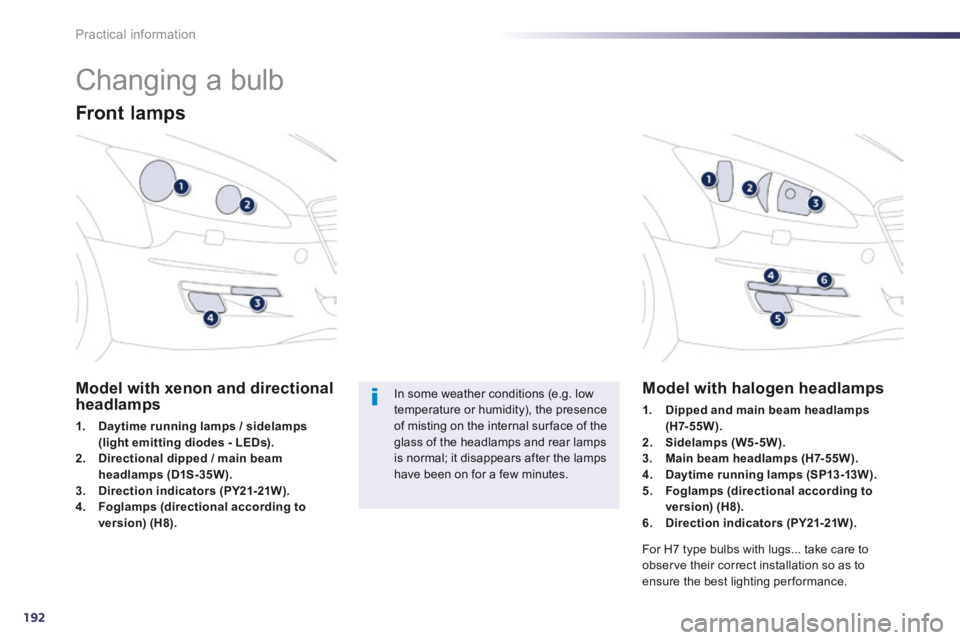

Changing a bulb
Front lamps
Model with xenon and directional headlamps
1. Daytime running lamps / sidelamps (light emitting diodes - LEDs).2. Directional dipped / main beam headlamps (D1S-35W).3. Direction indicators (PY21-21W).4. Foglamps (directional according to version) (H8).
Model with halogen headlamps
1. Dipped and main beam headlamps( H 7- 5 5 W ) .2. Sidelamps (W5-5W).3. Main beam headlamps (H7-55W).4. Daytime running lamps (SP13-13W).5. Foglamps (directional according to version) (H8).6. Direction indicators (PY21-21W).
For H7 type bulbs with lugs... take care to observe their correct installation so as to ensure the best lighting per formance.
In some weather conditions (e.g. low temperature or humidity), the presence of misting on the internal sur face of the glass of the headlamps and rear lamps is normal; it disappears after the lamps have been on for a few minutes.

8
193
Practical information

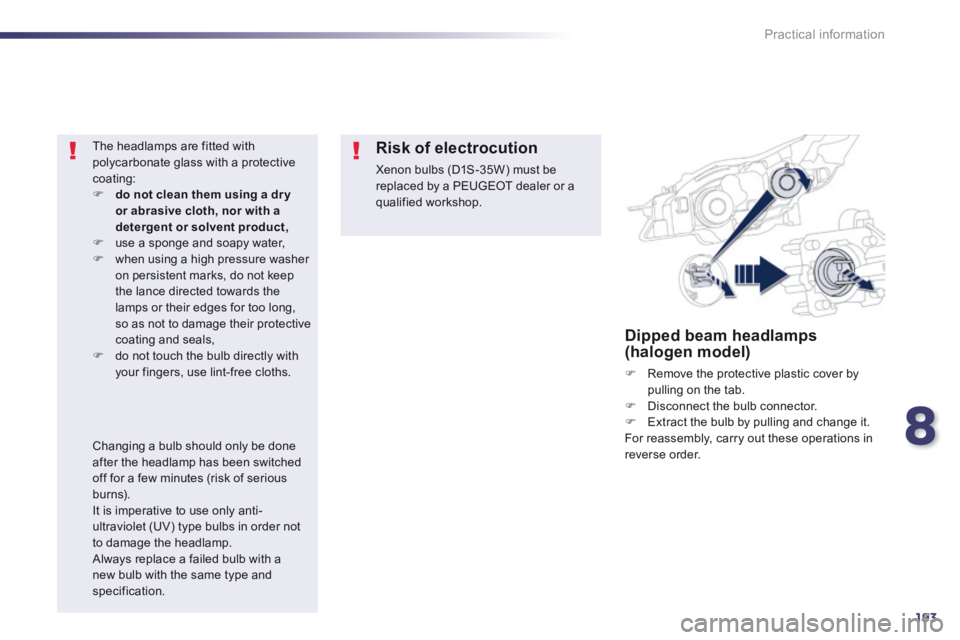

Dipped beam headlamps (halogen model)
 Remove the protective plastic cover by pulling on the tab.  Disconnect the bulb connector.  Extract the bulb by pulling and change it. For reassembly, carry out these operations in reverse order.
The headlamps are fitted with polycarbonate glass with a protective coating:  do not clean them using a dr y or abrasive cloth, nor with a detergent or solvent product, use a sponge and soapy water,  when using a high pressure washer on persistent marks, do not keep the lance directed towards the lamps or their edges for too long, so as not to damage their protective coating and seals,  do not touch the bulb directly with your fingers, use lint-free cloths.
Risk of electrocution
Xenon bulbs (D1S-35W) must be replaced by a PEUGEOT dealer or a qualified workshop.
Changing a bulb should only be done after the headlamp has been switched off for a few minutes (risk of serious burns). It is imperative to use only anti-ultraviolet (UV) type bulbs in order not
to damage the headlamp. Always replace a failed bulb with a new bulb with the same type and specification.

194
Practical information

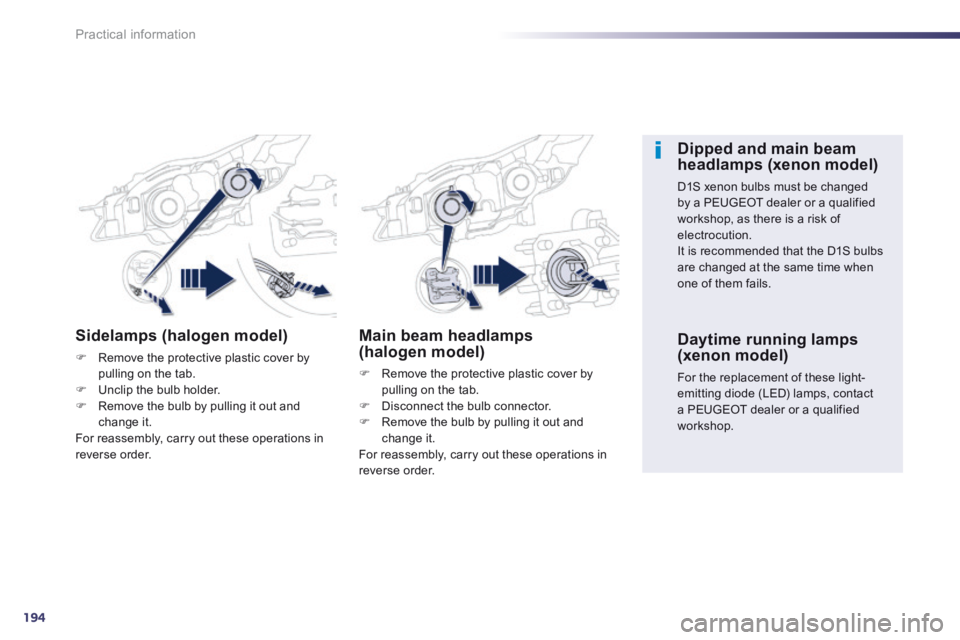

Sidelamps (halogen model)
 Remove the protective plastic cover by pulling on the tab.  Unclip the bulb holder.  Remove the bulb by pulling it out and change it. For reassembly, carry out these operations in reverse order.
Main beam headlamps (halogen model)
 Remove the protective plastic cover by pulling on the tab.  Disconnect the bulb connector.  Remove the bulb by pulling it out and change it. For reassembly, carry out these operations in reverse order.
Dipped and main beam headlamps (xenon model)
D1S xenon bulbs must be changed by a PEUGEOT dealer or a qualified workshop, as there is a risk of electrocution. It is recommended that the D1S bulbs are changed at the same time when one of them fails.
Daytime running lamps
(xenon model)
For the replacement of these light-emitting diode (LED) lamps, contact a PEUGEOT dealer or a qualified workshop.

8
195
Practical information

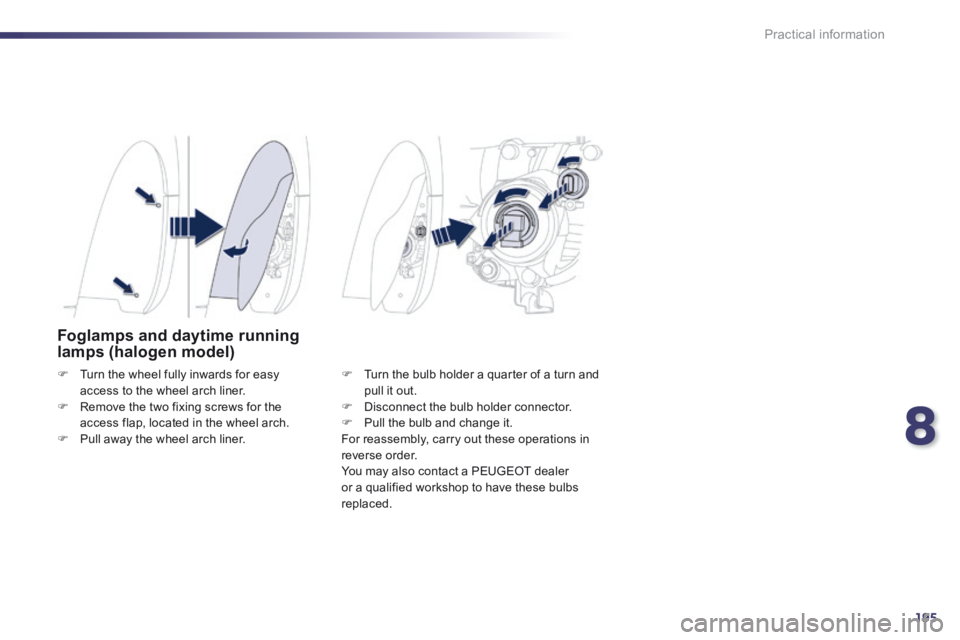

Foglamps and daytime running lamps (halogen model)
 Turn the wheel fully inwards for easy access to the wheel arch liner.  Remove the two fixing screws for the access flap, located in the wheel arch.  Pull away the wheel arch liner.
 Turn the bulb holder a quarter of a turn and pull it out.  Disconnect the bulb holder connector.  Pull the bulb and change it. For reassembly, carry out these operations in reverse order. You may also contact a PEUGEOT dealer or a qualified workshop to have these bulbs replaced.

196
Practical information

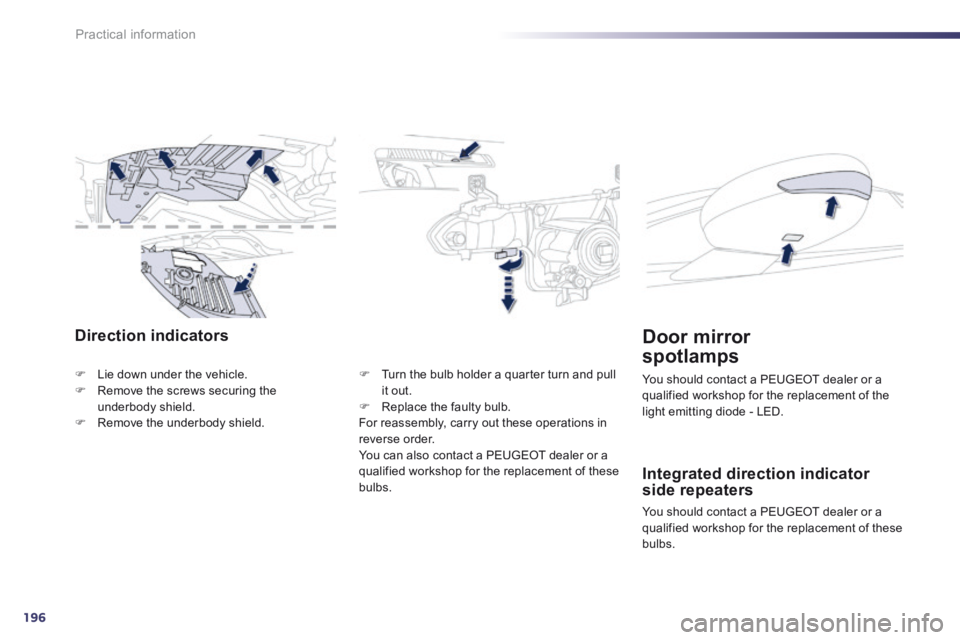

Direction indicators
 Lie down under the vehicle.  Remove the screws securing the underbody shield.  Remove the underbody shield.
 Turn the bulb holder a quarter turn and pull it out.  Replace the faulty bulb. For reassembly, carry out these operations in reverse order. You can also contact a PEUGEOT dealer or a qualified workshop for the replacement of these bulbs. Integrated direction indicator side repeaters
You should contact a PEUGEOT dealer or a qualified workshop for the replacement of these bulbs.
Door mirror
spotlamps
You should contact a PEUGEOT dealer or a qualified workshop for the replacement of the light emitting diode - LED.

8
197
Practical information
1. Brake lamps (light emittingdiodes - LEDs).2. Reversing lamps (P21W).3. Direction indicators (PY21W amber).4. Sidelamps (light emitting diodes - LEDs).5. Foglamps (H21W ).

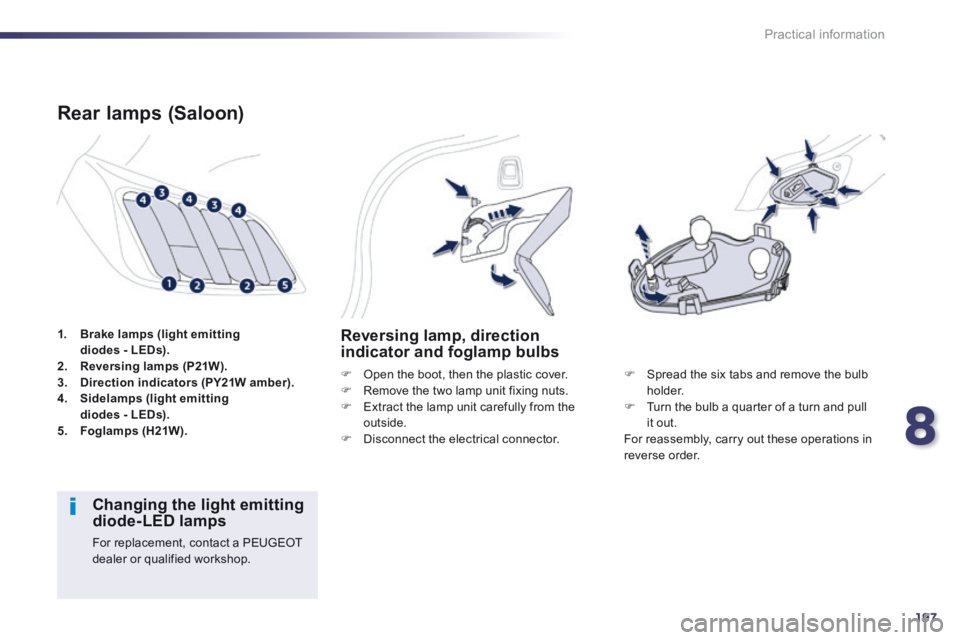

Rear lamps (Saloon)
Reversing lamp, direction indicator and foglamp bulbs
 Open the boot, then the plastic cover.  Remove the two lamp unit fixing nuts.  Extract the lamp unit carefully from the outside.  Disconnect the electrical connector.
 Spread the six tabs and remove the bulb h o l d e r.  Turn the bulb a quarter of a turn and pull it out. For reassembly, carry out these operations in reverse order.
Changing the light emitting diode-LED lamps
For replacement, contact a PEUGEOT dealer or qualified workshop.

198
Practical information
1. Brake lamps (light emittingdiodes - LEDs).2. Reversing lamps (W19W).3. Direction indicators (PY21W amber).4. Sidelamps (light emittingdiodes - LEDs).5. Foglamps (light emitting diodes - LEDs).
Rear lamps (SW)
 Open the boot then remove the access cover.  Remove the sealing foam.  Disconnect the lamp connector.  Remove the lamp fixing nut.

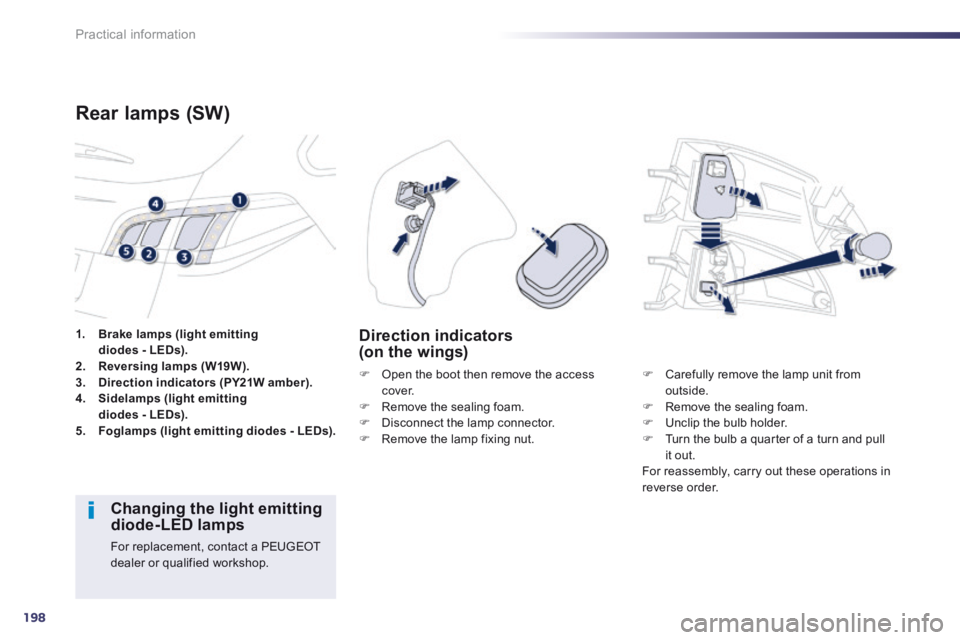

Direction indicators(on the wings)
 Carefully remove the lamp unit from outside.  Remove the sealing foam.  Unclip the bulb holder.  Turn the bulb a quarter of a turn and pull it out. For reassembly, carry out these operations in reverse order.
Changing the light emitting diode-LED lamps
For replacement, contact a PEUGEOT dealer or qualified workshop.
