Peugeot 508 2014 Owner's Manual - RHD (UK, Australia)

02
309

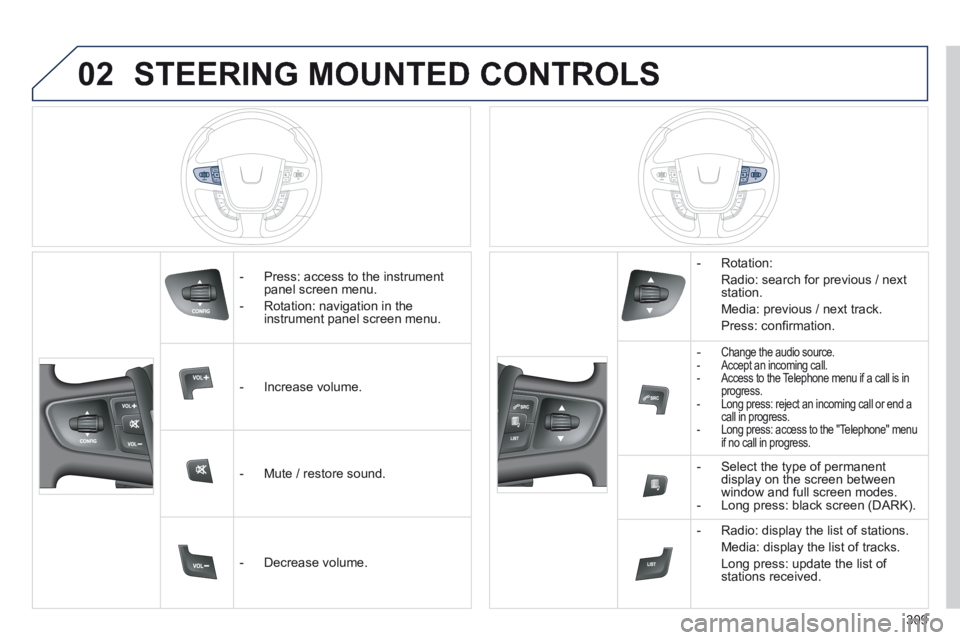

STEERING MOUNTED CONTROLS
- Press: access to the instrument panel screen menu.
- Rotation: navigation in the instrument panel screen menu.
- Increase volume.
- Mute / restore sound.
- Decrease volume.
- Rotation:
Radio: search for previous / next station.
Media: previous / next track.
Press: confi rmation.
- Change the audio source. - Accept an incoming call. - Access to the Telephone menu if a call is in progress. - Long press: reject an incoming call or end a call in progress. - Long press: access to the "Telephone" menu if no call in progress.
- Select the type of permanent display on the screen between window and full screen modes. - Long press: black screen (DARK).
- Radio: display the list of stations.
Media: display the list of tracks.
Long press: update the list of stations received.

03
310

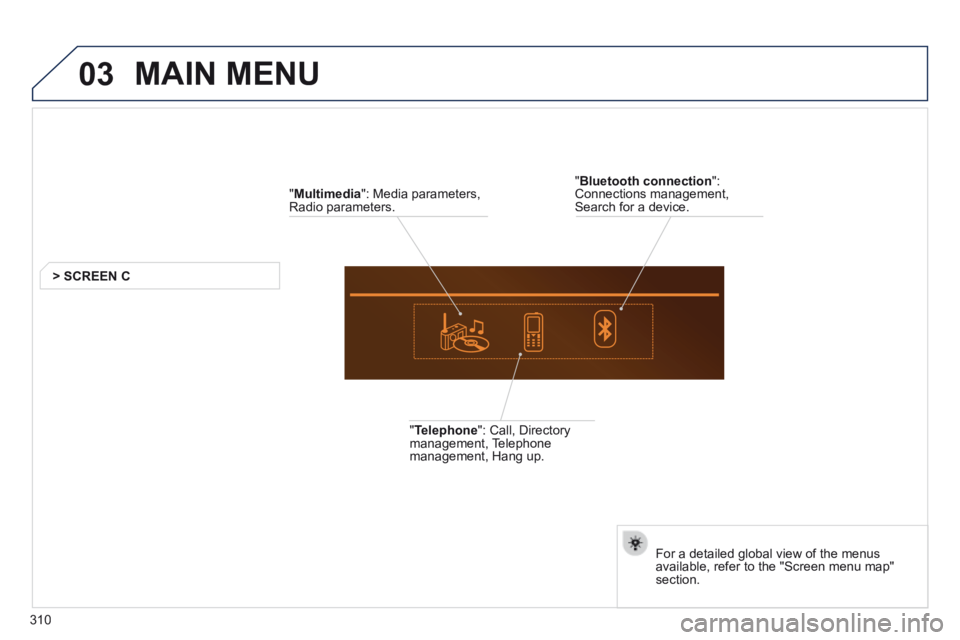

MAIN MENU
" Multimedia ": Media parameters, Radio parameters.
> SCREEN C
" Telephone ": Call, Directory management, Telephone management, Hang up.
For a detailed global view of the menus available, refer to the "Screen menu map" section.
" Bluetooth connection ": Connections management, Search for a device.

3 11
04 AUDIO
Press SOURCE or SRC several times in succession and select radio.
Press BAND to select a waveband.
Press LIST to display the list of stations received in alphabetical order.
A press changes to the next or previous letter (e.g. A, B, D, F, G, J, K, ...).

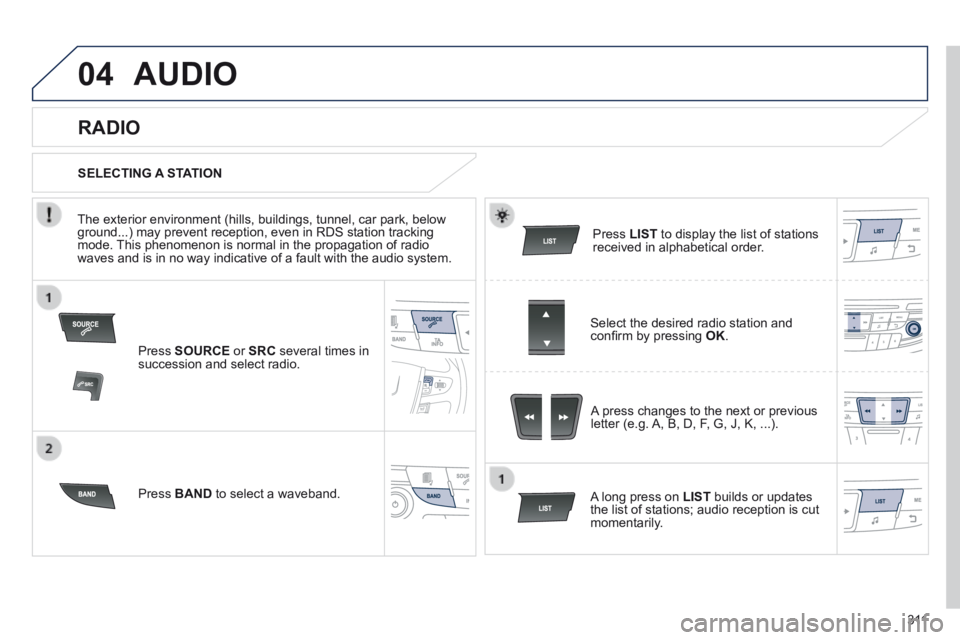

RADIO
Select the desired radio station and confi rm by pressing OK .
SELECTING A STATION
A long press on LIST builds or updates the list of stations; audio reception is cut momentarily.
The exterior environment (hills, buildings, tunnel, car park, below ground...) may prevent reception, even in RDS station tracking mode. This phenomenon is normal in the propagation of radio waves and is in no way indicative of a fault with the audio system.

312
04
RDS, if displayed, enables you to continue listening to the same station by automatic retuning to alternative frequencies. However, in certain conditions, coverage of an RDS station may not be assured throughout the country as radio stations do not cover 100 % of the territory. This explains the loss of reception of the station during a journey.
AUDIO

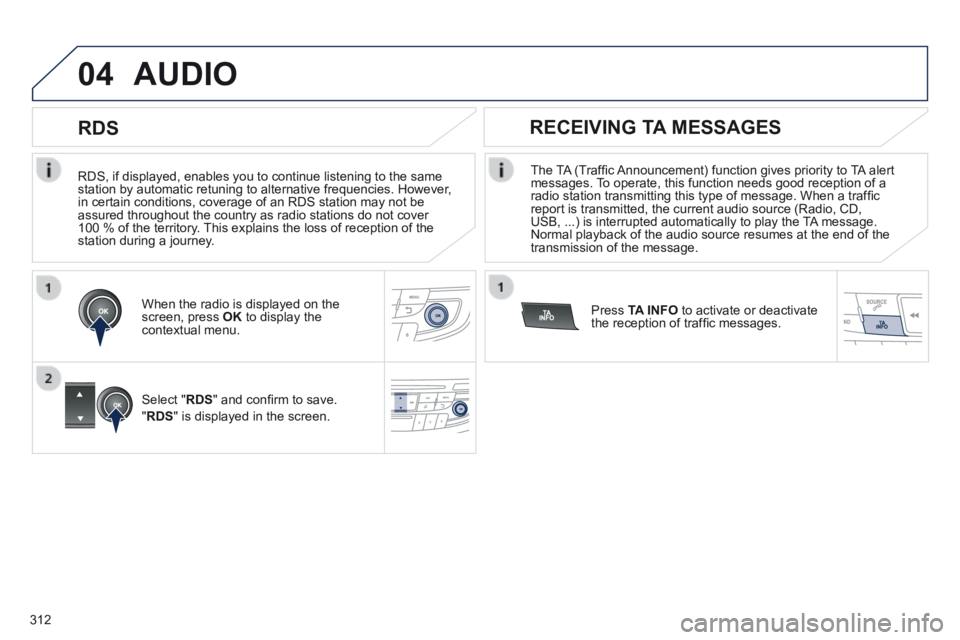

RDS
RECEIVING TA MESSAGES
The TA (Traffi c Announcement) function gives priority to TA alert messages. To operate, this function needs good reception of a radio station transmitting this type of message. When a traffi c report is transmitted, the current audio source (Radio, CD, USB, ...) is interrupted automatically to play the TA message. Normal playback of the audio source resumes at the end of the transmission of the message.
Press TA INFO to activate or deactivate the reception of traffi c messages.
When the radio is displayed on the screen, press OK to display the contextual menu.
Select " RDS " and confi rm to save.
" RDS " is displayed in the screen.

313
04AUDIO

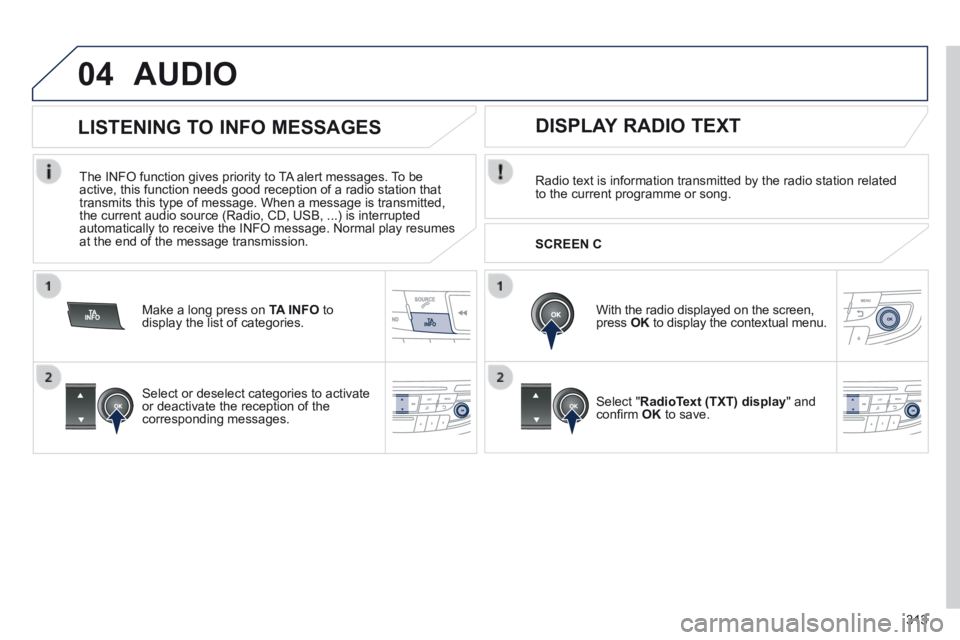

Radio text is information transmitted by the radio station related to the current programme or song.
With the radio displayed on the screen, press OK to display the contextual menu. OK to display the contextual menu. OK
Select " RadioText (TXT) display " and confi rm OK to save.
DISPLAY RADIO TEXT
The INFO function gives priority to TA alert messages. To be active, this function needs good reception of a radio station that transmits this type of message. When a message is transmitted, the current audio source (Radio, CD, USB, ...) is interrupted automatically to receive the INFO message. Normal play resumes at the end of the message transmission.
Make a long press on TA INFO to display the list of categories.
LISTENING TO INFO MESSAGES
Select or deselect categories to activate or deactivate the reception of the corresponding messages.
SCREEN C

314
04AUDIO

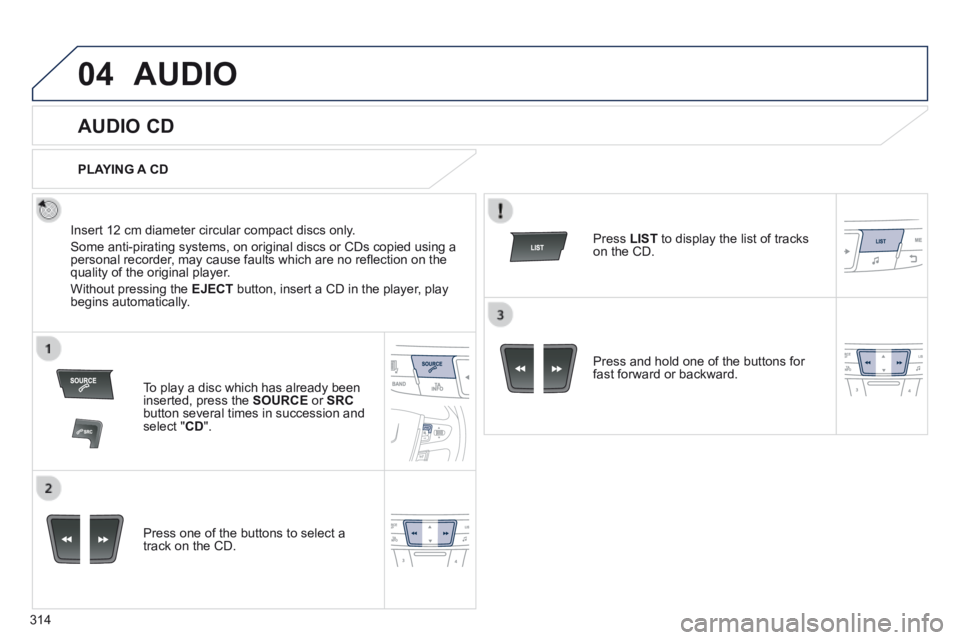

AUDIO CD
Insert 12 cm diameter circular compact discs only.
Some anti-pirating systems, on original discs or CDs copied using a personal recorder, may cause faults which are no refl ection on the quality of the original player.
Without pressing the EJECT button, insert a CD in the player, play begins automatically.
To play a disc which has already been inserted, press the SOURCE or SRCbutton several times in succession and select " CD ".
Press one of the buttons to select a track on the CD.
PLAYING A CD
Press LIST to display the list of tracks on the CD.
Press and hold one of the buttons for fast forward or backward.

315
04AUDIO
CD, USB

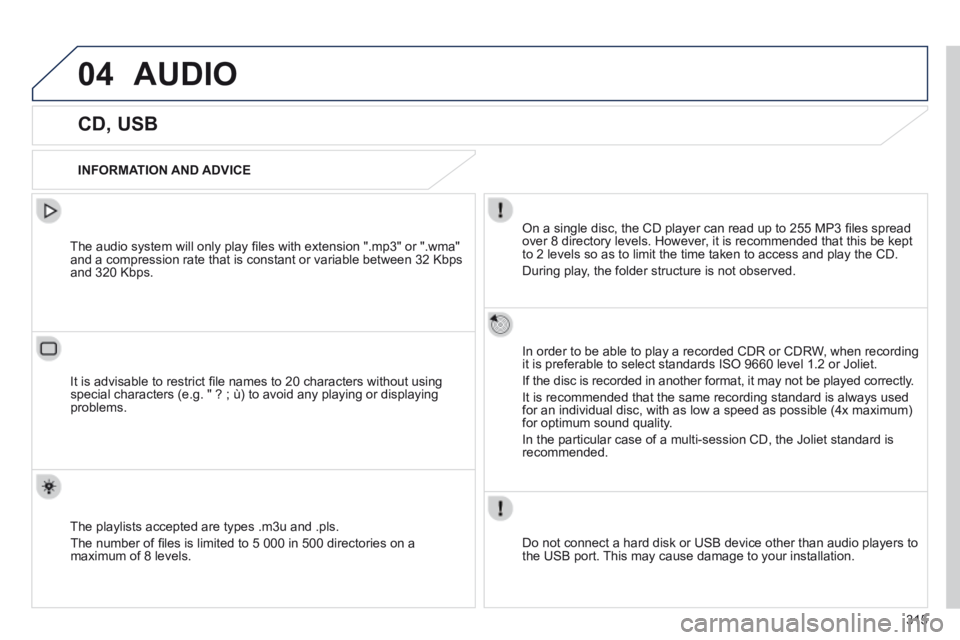

INFORMATION AND ADVICE
On a single disc, the CD player can read up to 255 MP3 fi les spread over 8 directory levels. However, it is recommended that this be kept to 2 levels so as to limit the time taken to access and play the CD.
During play, the folder structure is not observed.
In order to be able to play a recorded CDR or CDRW, when recording it is preferable to select standards ISO 9660 level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played correctl\
y.
It is recommended that the same recording standard is always used for an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is recommended.
Do not connect a hard disk or USB device other than audio players to the USB port. This may cause damage to your installation.
The audio system will only play fi les with extension ".mp3" or ".wma" and a compression rate that is constant or variable between 32 Kbps and 320 Kbps.
It is advisable to restrict fi le names to 20 characters without using special characters (e.g. " ? ; ù) to avoid any playing or displayin\
g problems.
The playlists accepted are types .m3u and .pls.
The number of fi les is limited to 5 000 in 500 directories on a maximum of 8 levels.

316
04
CD, USB
AUDIO
PLAYING A COMPILATION
Insert an MP3 compilation in the CD player or connect a memory stick to the USB port, directly or via an extension lead.
The system creates playlists (temporary memory) the creation time for which can take from a few seconds to several minutes.
The playlists are updated every time the ignition is switched off or a USB memory stick is connected.
Play starts automatically after a period which depends on the capacity of the USB memory stick.
At a fi rst connection, the order suggested is by folder. When connecting again, the order previously chosen is retained.
To play a disc or memory stick which has already been inserted, press SOURCE or SRC several times in succession and select " CD " or " USB ".
Press one of the buttons to select the next or previous track.
Press one of the buttons to select the next or previous folder in the order chosen.
Press and hold one of the buttons for fast forwards or backwards.
Press LIST to display the menu of folders in the compilation.

317
04
Select a line in the list.
Select a track or a folder.
Skip a track.
Up a level in the menu.
AUDIO

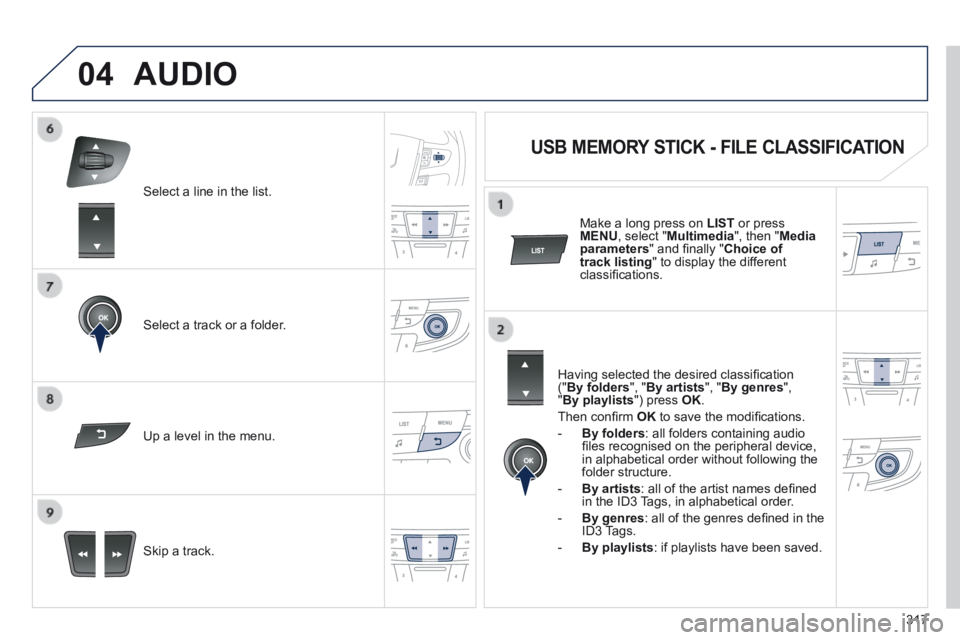

USB MEMORY STICK - FILE CLASSIFICATION
Having selected the desired classifi cation (" By folders ", " By artists ", " By genres ", " By playlists ") press OK .
Then confi rm OK to save the modifi cations.
- By folders : all folders containing audio fi les recognised on the peripheral device, in alphabetical order without following the folder structure.
- By artists : all of the artist names defi ned in the ID3 Tags, in alphabetical order.
- By genres : all of the genres defi ned in the ID3 Tags.
- By playlists : if playlists have been saved.
Make a long press on LIST or press MENU , select " Multimedia ", then " Media parameters " and fi nally " Choice of track listing " to display the different classifi cations.

318
04AUDIO

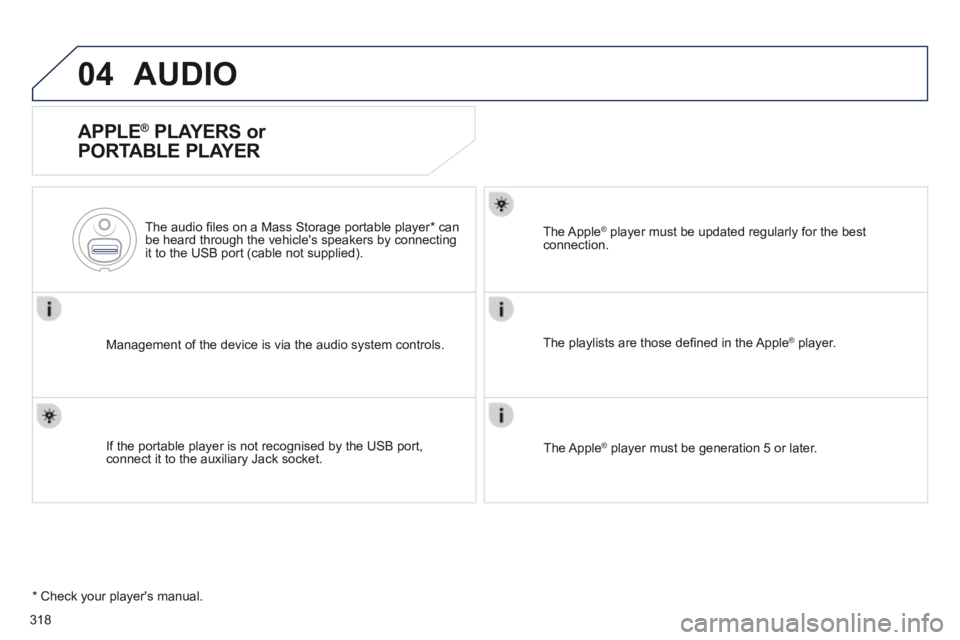

APPLE ® PLAYERS or
PORTABLE PLAYER
Management of the device is via the audio system controls.
The audio fi les on a Mass Storage portable player * can be heard through the vehicle's speakers by connecting it to the USB port (cable not supplied).
If the portable player is not recognised by the USB port, connect it to the auxiliary Jack socket.
The Apple ® player must be updated regularly for the best ® player must be updated regularly for the best ®
connection.
The playlists are those defi ned in the Apple ® player. ® player. ®
The Apple ® player must be generation 5 or later. ® player must be generation 5 or later. ®
* Check your player's manual.
