Instrument panel
System which provides current information
concerning the trip (range, fuel consumption…).

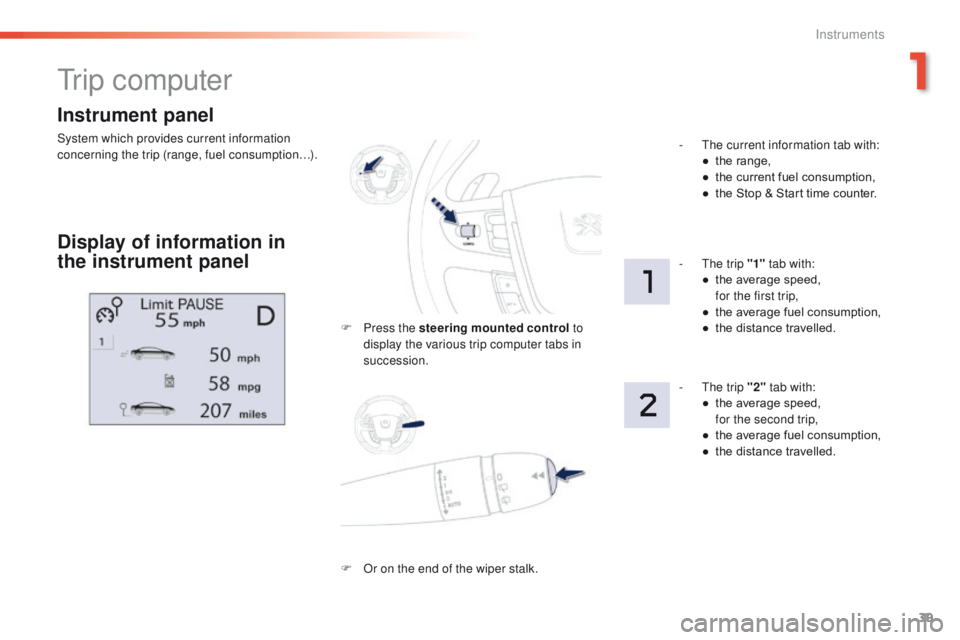

tr i p c o m p u t e r
Display of information in
the instrument panel
F Press the steering mounted control to
display the various trip computer tabs in
succession. -
t
h
e current information tab with:
●
t
he range,
●
t
he current fuel consumption,
●
t
he Stop & Start time counter.
- t
h
e trip "1"
tab with:
●
t
he average speed,
f

or the first trip,
●
t
he average fuel consumption,
● t he distance travelled.
- t
h
e trip "2" tab with:
●

t
he average speed,
f

or the second trip,
●

t
he average fuel consumption,
●

t
he distance travelled.
F

O
r on the end of the wiper stalk.
1
Instruments

40

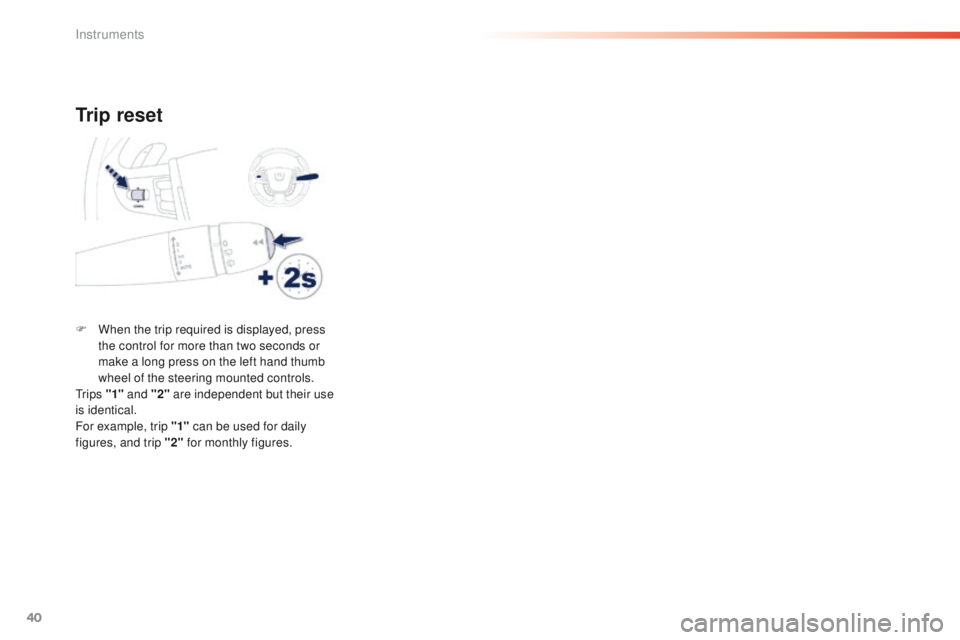

Trip reset
F When the trip required is displayed, press the control for more than two seconds or
make a long press on the left hand thumb
wheel of the steering mounted controls.
t

r i p s "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.
Instruments

41

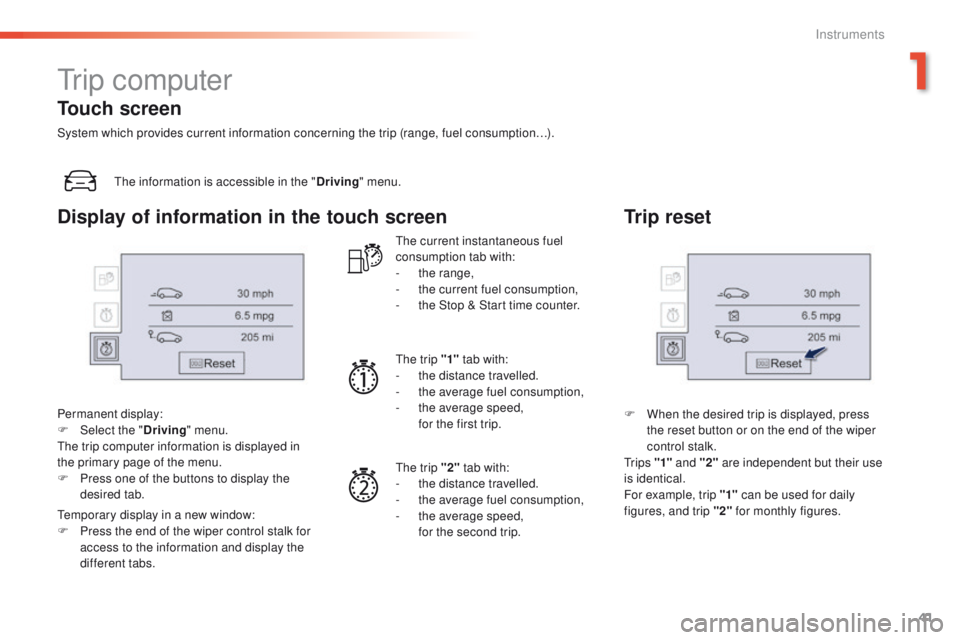

tr i p c o m p u t e r
the information is accessible in the "Driving" menu.
Permanent display:
F

Sel

ect the " Driving" menu.
th

e trip computer information is displayed in
the primary page of the menu.
F

P

ress one of the buttons to display the
desired tab.
te

mporary display in a new window:
F

P

ress the end of the wiper control stalk for
access to the information and display the
different tabs.
th

e current instantaneous fuel
consumption tab with:
-

t
he range,
-

t
he current fuel consumption,
-

t
he Stop & Start time counter.
th

e trip "1" tab with:
-

t
he distance travelled.
-
t

he average fuel consumption,
-

t
he average speed,
f

or the first trip.
th

e trip "2" tab with:
-

t
he distance travelled.
-
t

he average fuel consumption,
-

t
he average speed,
f

or the second trip.
Trip reset
F When the desired trip is displayed, press the reset button or on the end of the wiper
control stalk.
t

r i p s "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.
Touch screen
System which provides current information concerning the trip (range, fuel consumption…).
Display of information in the touch screen
1
Instruments

42
If dashes are displayed continuously
while driving in place of the digits,
contact a P
e
uge
Ot
dealer or a
qualified workshop.
th
is function is only displayed from
20 mph (30 km/h).
th

is value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.

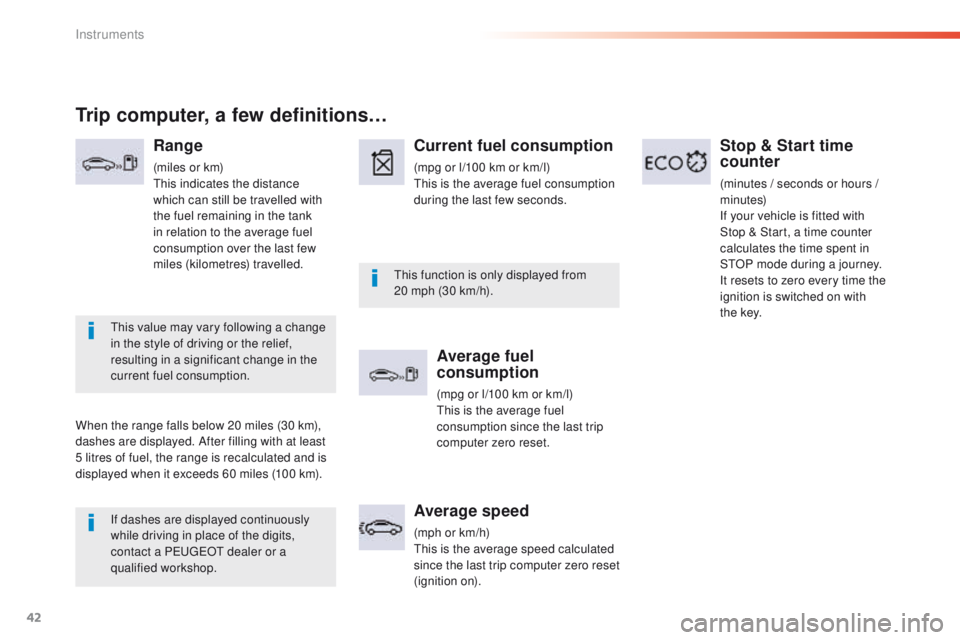

Trip computer, a few definitions…
Range
(miles or km)th is indicates the distance
which can still be travelled with
the fuel remaining in the tank
in relation to the average fuel
consumption over the last few
miles (kilometres) travelled.
When the range falls below 20 miles (30 km),
dashes are displayed. After filling with at least
5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).
Current fuel consumption
(mpg or l/100 km or km/l)th is is the average fuel consumption
during the last few seconds.
Average fuel
consumption
(mpg or l/100 km or km/l)th is is the average fuel
consumption since the last trip
computer zero reset.
Average speed
(mph or km/h)th is is the average speed calculated
since the last trip computer zero
reset
(ignition on).
Stop & Start time
counter
(minutes / seconds or hours /
minutes)
If your vehicle is fitted with
Stop
& Start, a time counter
calculates the time spent in
S
tO

P mode during a journey.
It resets to zero every time the
ignition is switched on with
t h e


key.
Instruments

43

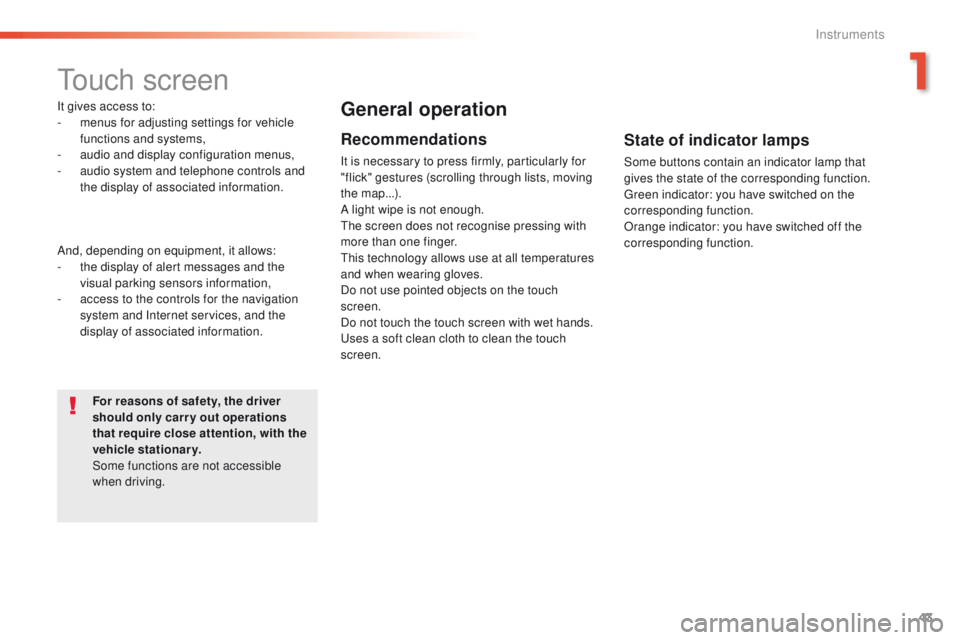

touch screen
It gives access to:
- m enus for adjusting settings for vehicle
functions and systems,
-

a
udio and display configuration menus,
-

a
udio system and telephone controls and
the display of associated information.
And, depending on equipment, it allows:
-

t
he display of alert messages and the
visual parking sensors information,
-

a
ccess to the controls for the navigation
system and Internet services, and the
display of associated information.
For reasons of safety, the driver
should only carr y out operations
that require close attention, with the
vehicle stationary.
Some functions are not accessible
when driving.General operation
Recommendations
It is necessary to press firmly, particularly for
"flick" gestures (scrolling through lists, moving
the map...).
A light wipe is not enough.
th
e screen does not recognise pressing with
more than one finger.
th

is technology allows use at all temperatures
and when wearing gloves.
Do not use pointed objects on the touch
screen.
Do not touch the touch screen with wet hands.
us

es a soft clean cloth to clean the touch
screen.
State of indicator lamps
Some buttons contain an indicator lamp that
gives the state of the corresponding function.
gr

een indicator: you have switched on the
corresponding function.
Orange indicator: you have switched off the
corresponding function.
1
Instruments

44
use this button to go to the
secondary page.
us
e this button to return to the
primary page.
us

e this button for access to
additional information and to the
settings for certain functions.
us

e this button to confirm.
us

e this button to quit.

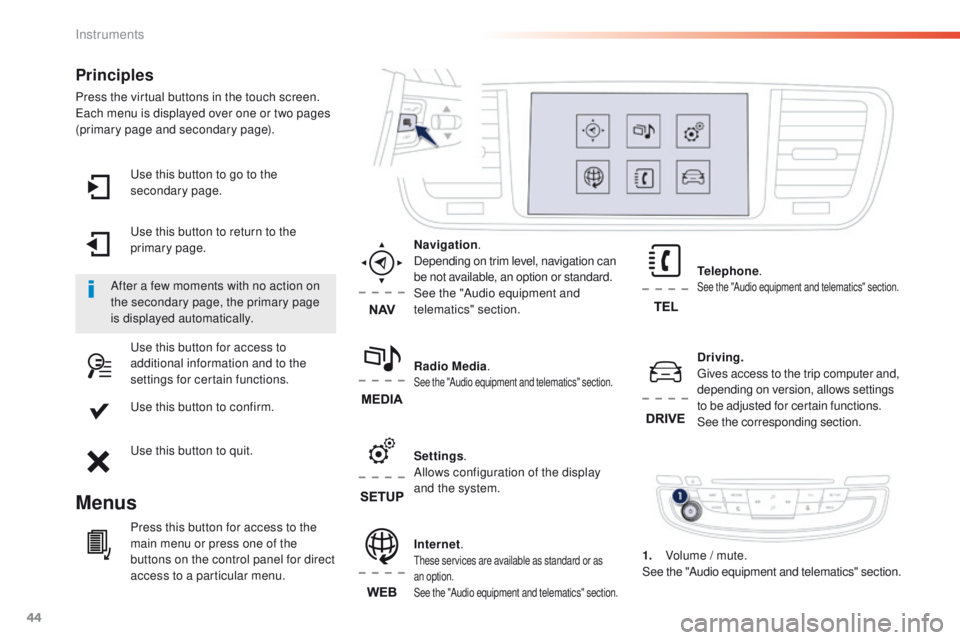

Principles
Press the virtual buttons in the touch screen.each menu is displayed over one or two pages
(primary page and secondary page).
Menus
Driving . gi
ves access to the trip computer and,
depending on version, allows settings
to be adjusted for certain functions.
See the corresponding section.
Internet.
these services are available as standard or as
an option.
See the "Audio equipment and telematics" section.
Telephone .See the "Audio equipment and telematics" section.
Radio Media .See the "Audio equipment and telematics" section.
Navigation.
Depending on trim level, navigation can
be not available, an option or standard.
See the "Audio equipment and
telematics" section.
Settings .
Allows configuration of the display
and the system.
After a few moments with no action on
the secondary page, the primary page
is displayed automatically.
Press this button for access to the
main menu or press one of the
buttons on the control panel for direct
access to a particular menu. 1.
V

olume / mute.
See the "Audio equipment and telematics" section.
Instruments

45
"Settings" menu
the functions available through this menu are detailed in the table below.Button Corresponding function Comments
Audio settings Adjustment of volume, balance...
Color schemes Choice of color scheme.
Turn off screen
tu

rn off the display in the the touch screen (black screen). Pressing the black screen or one
of the menu buttons restores the display.
System Settings Choice of units:
-
t

emperature (°Celsius or °Fahrenheit)
-

d
istance and fuel consumption (l/100 km, mpg or km/l).
Time/Date Setting the date and time.
Languages Choice of language used: French,
e
n
glish, Italian, Spanish, g
e
rman, Dutch, Portuguese,
Polish,
t
u
rkish, Russian.
Screen settings Adjustment of the display settings (scrolling of text, animations...)
Calculator Display the calculator.
Calendar Display the calendar.
1
Instruments

46
"Driving" menu
ButtonCorresponding function Comments
Parking sensors Deactivation of the function.
Blind spot monitoring system Activation of the function.
th
e systems with settings that can be adjusted (depending on version) are detailed in the table below.
Instruments

47

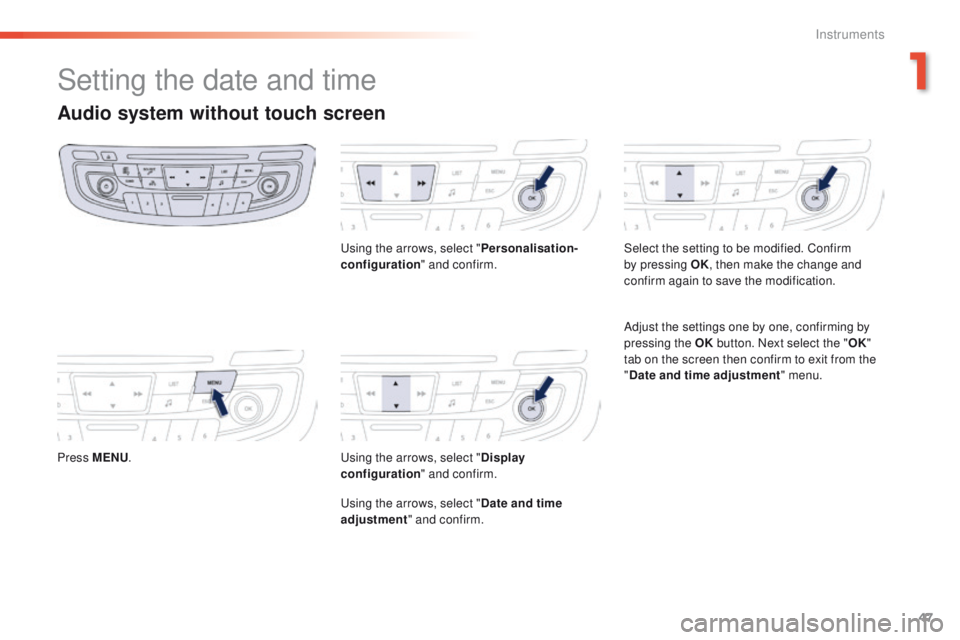

Setting the date and time
Audio system without touch screen
Press MENU.
us
ing the arrows, select "
Personalisation-
configuration " and confirm.us ing the arrows, select "Display
configuration " and confirm.
us

ing the arrows, select "Date and time
adjustment " and confirm. Select the setting to be modified. Confirm
by pressing OK
, then make the change and
confirm again to save the modification.
Adjust the settings one by one, confirming by
pressing the OK button. Next select the " OK"
tab on the screen then confirm to exit from the
" Date and time adjustment " menu.
1
Instruments

48
Audio system with touch screen
F Select the "Settings" menu.
F
I
n the secondary page, press on
" Time/Date ". F
Sel ect "
Adjust time " or "Adjust date"
and modify the settings using the numeric
keypad, then confirm. F
P ress "Confirm " to quit.
