79

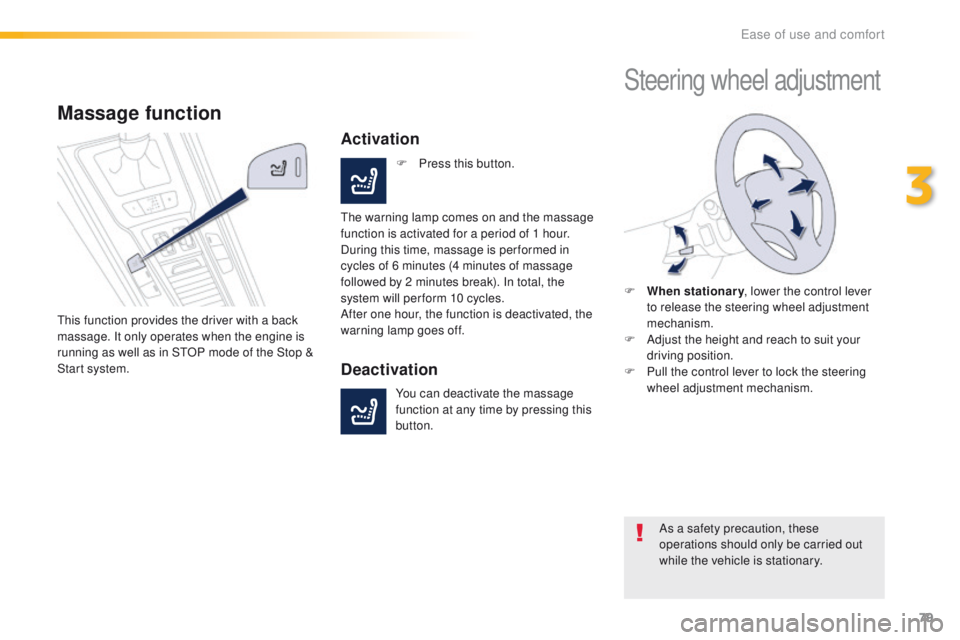

Massage function
this function provides the driver with a back
massage. It only operates when the engine is
running as well as in S
tO
P mode of the Stop &
Start system.
Activation
F Press this button.
th

e warning lamp comes on and the massage
function is activated for a period of 1 hour.
During this time, massage is per formed in
cycles of 6 minutes (4 minutes of massage
followed by 2 minutes break). In total, the
system will per form 10 cycles.
After one hour, the function is deactivated, the
warning lamp goes off.
Deactivation
You can deactivate the massage
function at any time by pressing this
button.
Steering wheel adjustment
F When stationary , lower the control lever
to release the steering wheel adjustment
mechanism.
F

A
djust the height and reach to suit your
driving position.
F

P
ull the control lever to lock the steering
wheel adjustment mechanism.
As a safety precaution, these
operations should only be carried out
while the vehicle is stationary.
3
Ease of use and comfort

80

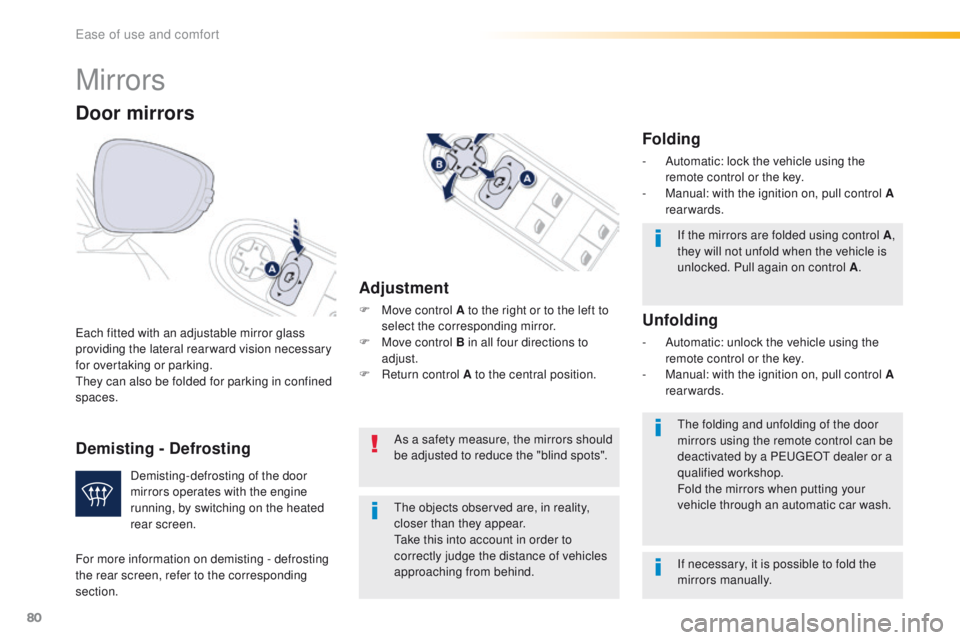

Mirrors
each fitted with an adjustable mirror glass
providing the lateral rear ward vision necessary
for overtaking or parking.
th
ey can also be folded for parking in confined
spaces.
Door mirrors
If the mirrors are folded using control A ,
they will not unfold when the vehicle is
unlocked. Pull again on control A .
th

e folding and unfolding of the door
mirrors using the remote control can be
deactivated by a P
e

uge
Ot
dealer or a
qualified workshop.
Fold the mirrors when putting your
vehicle through an automatic car wash.
th

e objects observed are, in reality,
closer than they appear.
ta

ke this into account in order to
correctly judge the distance of vehicles
approaching from behind.
Demisting-defrosting of the door
mirrors operates with the engine
running, by switching on the heated
rear screen.
Adjustment
F Move control A to the right or to the left to
select the corresponding mirror.
F

M
ove control B in all four directions to
adjust.
F

R
eturn control A to the central position.
Folding
- Automatic: lock the vehicle using the remote control or the key.
-

M
anual: with the ignition on, pull control A
rearwards.
Unfolding
- Automatic: unlock the vehicle using the remote control or the key.
-

M
anual: with the ignition on, pull control A
rearwards.
As a safety measure, the mirrors should
be adjusted to reduce the "blind spots".
If necessary, it is possible to fold the
mirrors manually.
For more information on demisting - defrosting
the rear screen, refer to the corresponding
section.
Demisting - Defrosting
ease of use and comfort

81

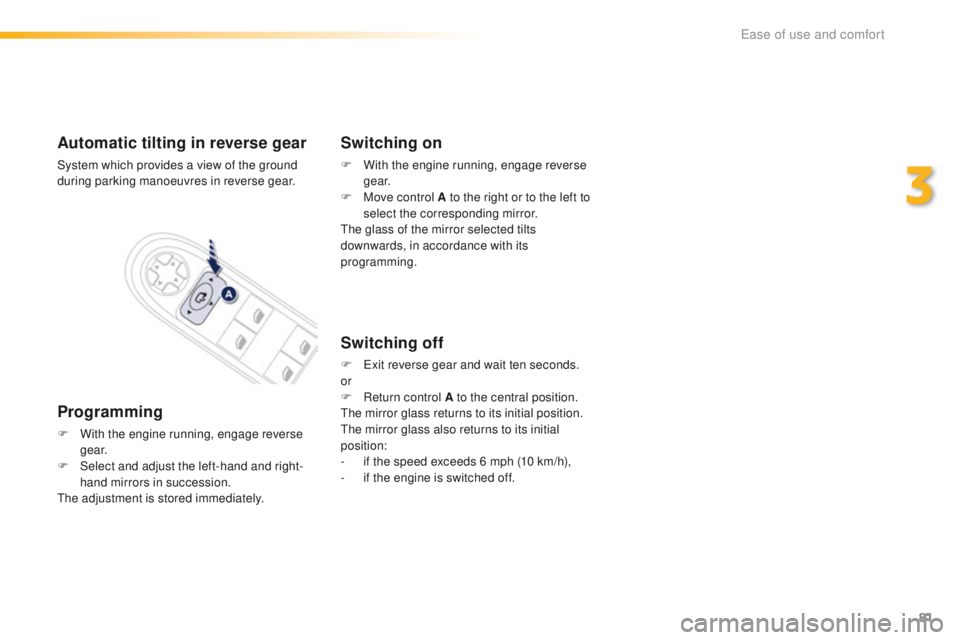

Automatic tilting in reverse gear
System which provides a view of the ground
during parking manoeuvres in reverse gear.
Programming
F With the engine running, engage reverse g e a r.
F

S
elect and adjust the left-hand and right-
hand mirrors in succession.
th

e adjustment is stored immediately.
Switching on
F With the engine running, engage reverse g e a r.
F

M
ove control A to the right or to the left to
select the corresponding mirror.
th

e glass of the mirror selected tilts
downwards, in accordance with its
programming.
Switching off
F exit reverse gear and wait ten seconds.
or
F

R
eturn control A to the central position.
th

e mirror glass returns to its initial position.
th

e mirror glass also returns to its initial
position:
-

i
f the speed exceeds 6 mph (10 km/h),
-

i
f the engine is switched off.
3
Ease of use and comfort

82

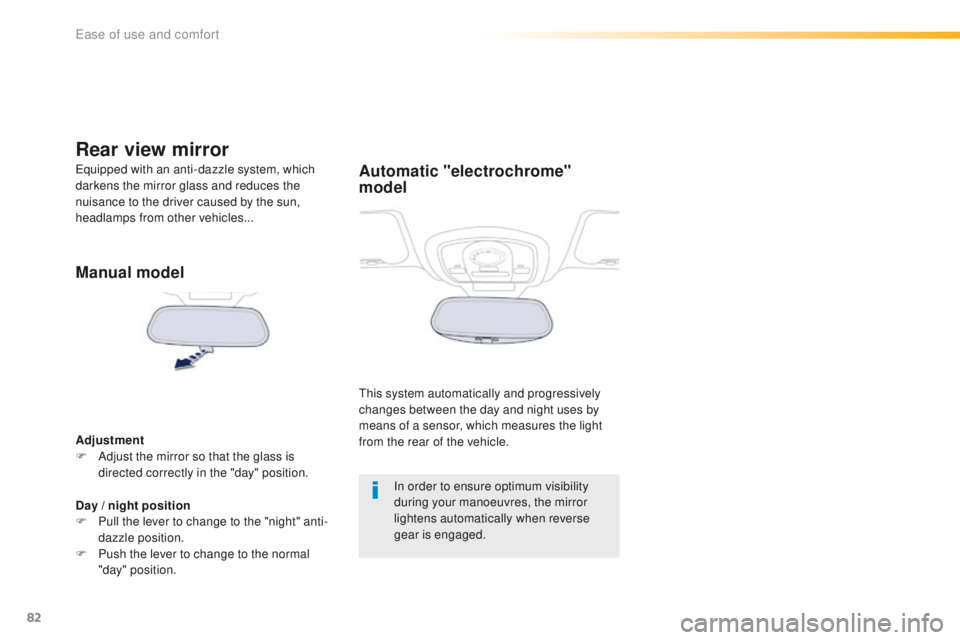

Automatic "electrochrome"
model
this system automatically and progressively
changes between the day and night uses by
means of a sensor, which measures the light
from the rear of the vehicle.
eq

uipped with an anti-dazzle system, which
darkens the mirror glass and reduces the
nuisance to the driver caused by the sun,
headlamps from other vehicles...
Rear view mirror
Manual model
Adjustment
F A djust the mirror so that the glass is
directed correctly in the "day" position.
Day
/ night position
F

P
ull the lever to change to the "night" anti-
dazzle position.
F

P
ush the lever to change to the normal
"day" position. In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
Ease of use and comfort

83

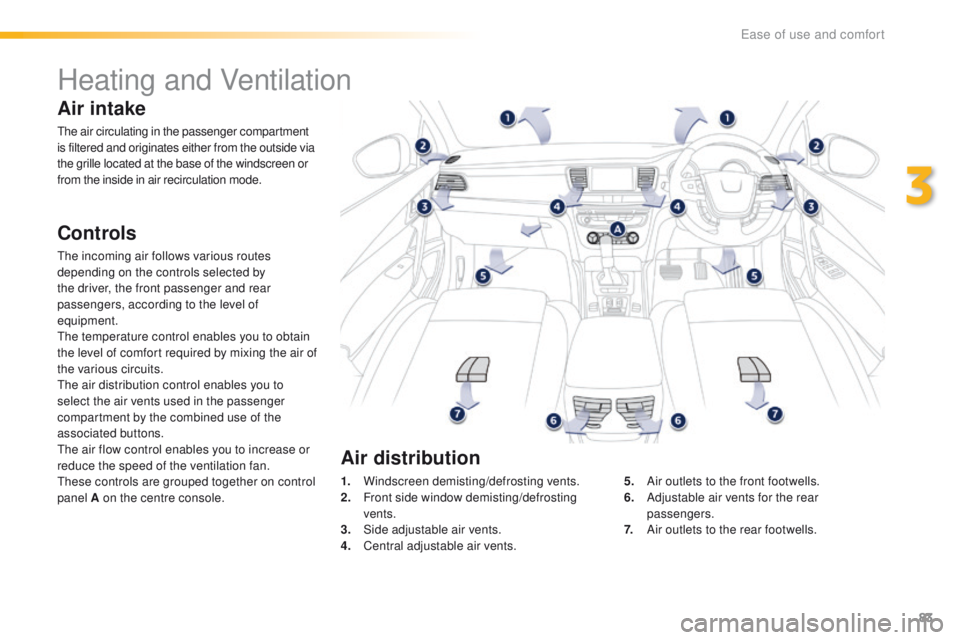

Heating and Ventilation
Air intake
the air circulating in the passenger compartment
is filtered and originates either from the outside via
the grille located at the base of the windscreen or
from the inside in air recirculation mode.
Controls
the incoming air follows various routes
depending on the controls selected by
the driver, the front passenger and rear
passengers, according to the level of
equipment.
th
e temperature control enables you to obtain
the level of comfort required by mixing the air of
the various circuits.
th

e air distribution control enables you to
select the air vents used in the passenger
compartment by the combined use of the
associated buttons.
th

e air flow control enables you to increase or
reduce the speed of the ventilation fan.
th

ese controls are grouped together on control
panel A on the centre console. 1.
W

indscreen demisting/defrosting vents.
2.
F

ront side window demisting/defrosting
vents.
3.
S

ide adjustable air vents.
4.
C

entral adjustable air vents.5.
A

ir outlets to the front footwells.
6.
A

djustable air vents for the rear
passengers.
7.
A

ir outlets to the rear footwells.
Air distribution
3
ease of use and comfort

84
Digital air conditioning: use fully automatic operation in preference, by pressing the "AUTO" button.

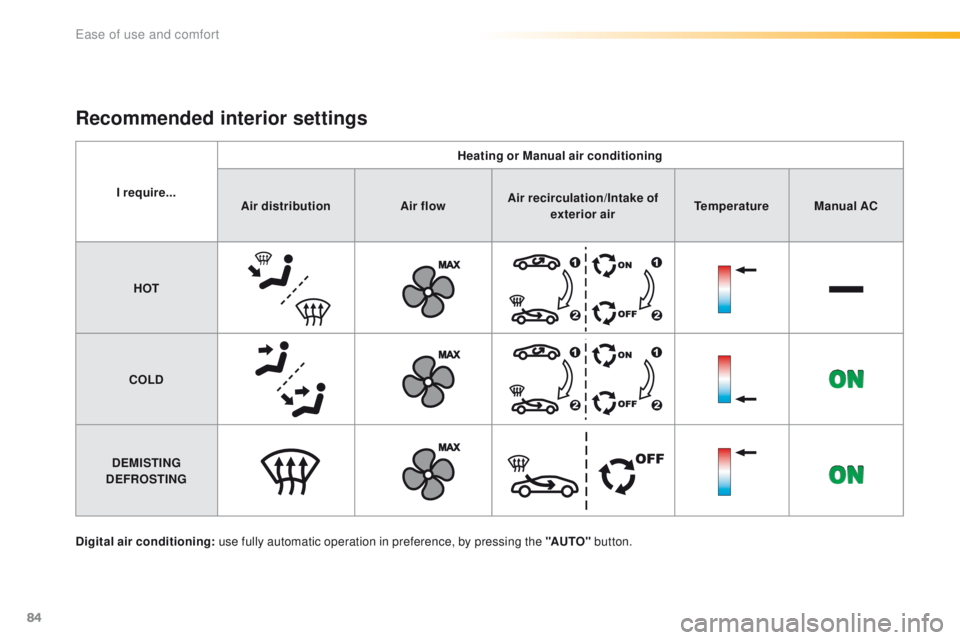

Recommended interior settings
I require...Heating or Manual air conditioning
Air distribution Air flowAir recirculation/Intake of
exterior air Temperature Manual AC
HOT
COLD
DEMISTING
DEFROSTING
Ease of use and comfort

85

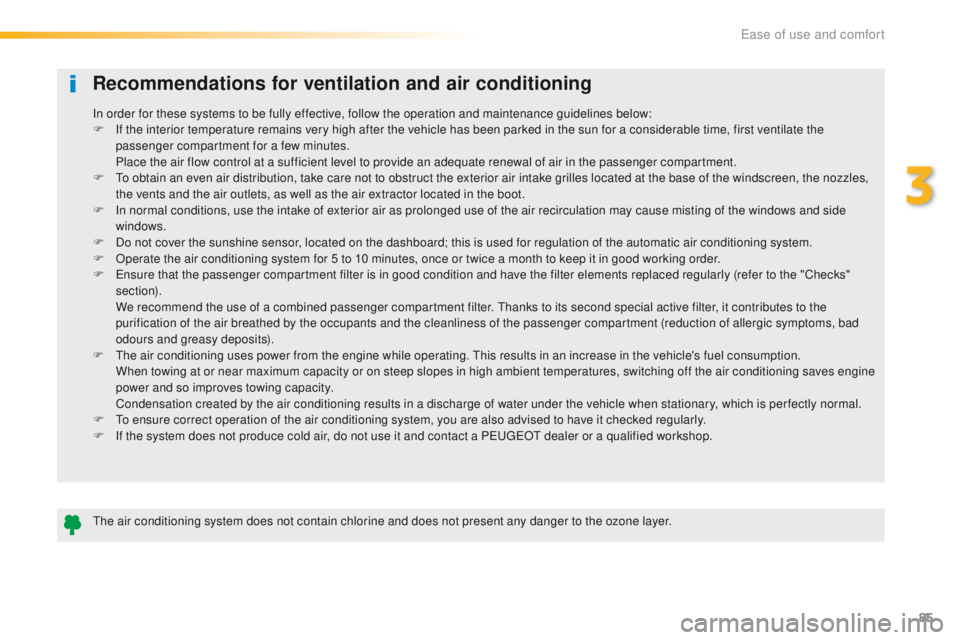

Recommendations for ventilation and air conditioning
the air conditioning system does not contain chlorine and does not present any danger to the ozone layer. In order for these systems to be fully effective, follow the operation and maintenance guidelines below:
F
I
f the interior temperature remains very high after the vehicle has been parked in the sun for a considerable time, first ventilate the
passenger compartment for a few minutes.
P
lace the air flow control at a sufficient level to provide an adequate renewal of air in the passenger compartment.
F t
o o
btain an even air distribution, take care not to obstruct the exterior air intake grilles located at the base of the windscreen, the nozzles,
the vents and the air outlets, as well as the air extractor located in the boot.
F
I
n normal conditions, use the intake of exterior air as prolonged use of the air recirculation may cause misting of the windows and side
windows.
F
D
o not cover the sunshine sensor, located on the dashboard; this is used for regulation of the automatic air conditioning system.
F
O
perate the air conditioning system for 5 to 10 minutes, once or twice a month to keep it in good working order.
F e
n
sure that the passenger compartment filter is in good condition and have the filter elements replaced regularly (refer to the "Checks"
section).
W
e recommend the use of a combined passenger compartment filter. t
h
anks to its second special active filter, it contributes to the
purification of the air breathed by the occupants and the cleanliness of the passenger compartment (reduction of allergic symptoms, bad
odours and greasy deposits).
F t
h
e air conditioning uses power from the engine while operating. t
h
is results in an increase in the vehicle's fuel consumption.
W

hen towing at or near maximum capacity or on steep slopes in high ambient temperatures, switching off the air conditioning saves engine
power and so improves towing capacity.
C
ondensation created by the air conditioning results in a discharge of water under the vehicle when stationary, which is per fectly normal.
F t
o e
nsure correct operation of the air conditioning system, you are also advised to have it checked regularly.
F
I
f the system does not produce cold air, do not use it and contact a P
e
uge
Ot
dealer or a qualified workshop.
3
Ease of use and comfort

86

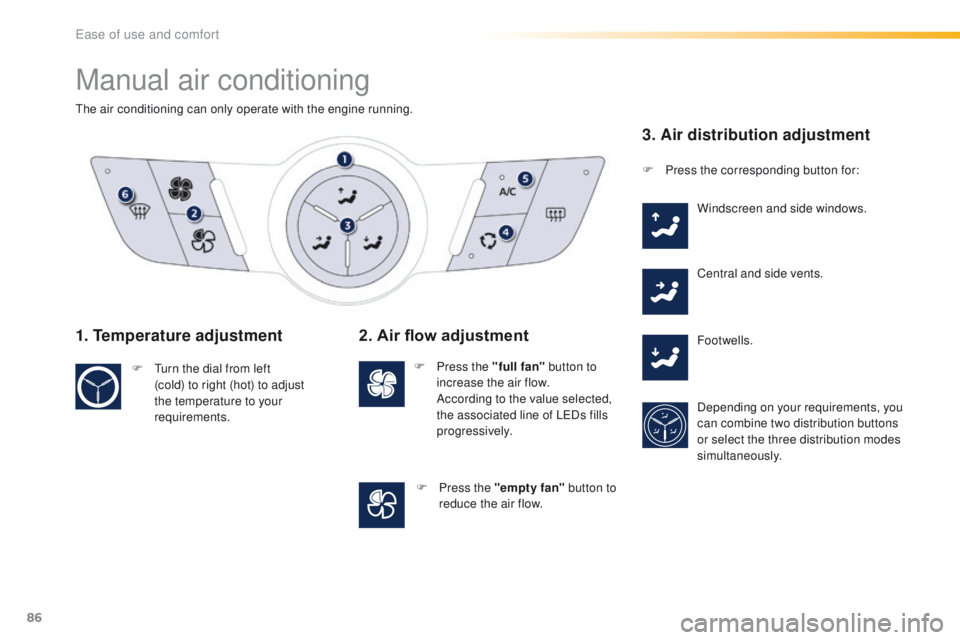

Manual air conditioning
the air conditioning can only operate with the engine running.
1. Temperature adjustment
F turn the dial from left (cold) to right (hot) to adjust
the temperature to your
requirements.
2. Air flow adjustment
F Press the "full fan" button to
increase the air flow.
A

ccording to the value selected,
the associated line of L
eD

s fills
progressively.
F

P
ress the "empty fan"

button to
reduce the air flow.
3. Air distribution adjustment
F Press the corresponding button for:
Windscreen and side windows.
Central and side vents.
Footwells.
Depending on your requirements, you
can combine two distribution buttons
or select the three distribution modes
simultaneously.
ease of use and comfort

87

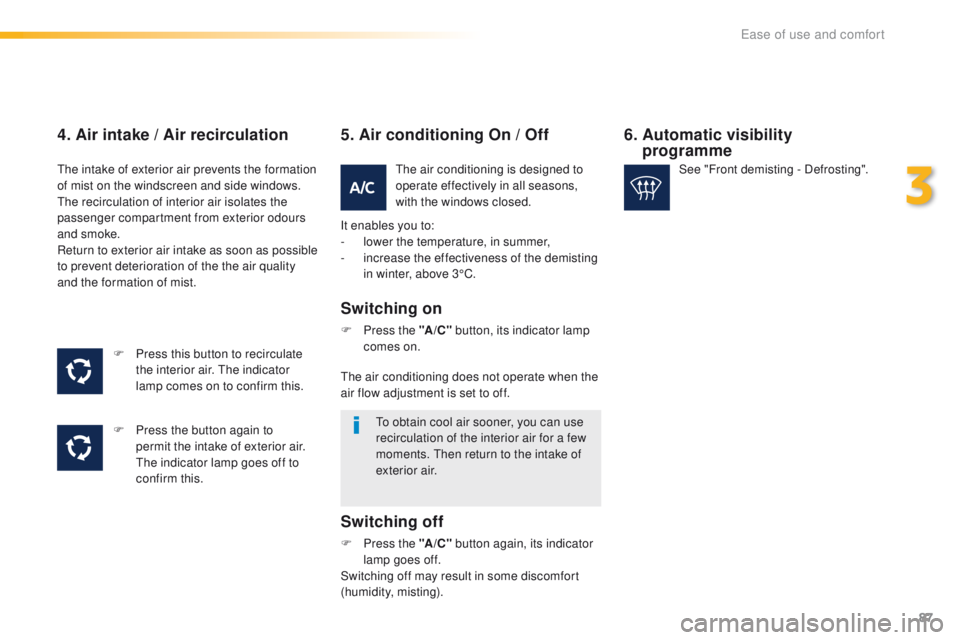

4. Air intake / Air recirculation
F Press this button to recirculate the interior air. th e indicator
lamp comes on to confirm this.
F

P
ress the button again to
permit the intake of exterior air.
th

e indicator lamp goes off to
confirm this.
th

e intake of exterior air prevents the formation
of mist on the windscreen and side windows.
th

e recirculation of interior air isolates the
passenger compartment from exterior odours
and smoke.
Return to exterior air intake as soon as possible
to prevent deterioration of the the air quality
and the formation of mist.
5. Air conditioning On / Off
the air conditioning is designed to
operate effectively in all seasons,
with the windows closed.
It enables you to:
-

l

ower the temperature, in summer,
-
i

ncrease the effectiveness of the demisting
in winter, above 3°C.
Switching on
F Press the "A /C " button, its indicator lamp
comes on.
th

e air conditioning does not operate when the
air flow adjustment is set to off.
6. Automatic visibility programme
See "Front demisting - Defrosting".
Switching off
F Press the "A /C " button again, its indicator
lamp goes off.
Switching off may result in some discomfort
(humidity, misting).
to o
btain cool air sooner, you can use
recirculation of the interior air for a few
moments. t
h
en return to the intake of
exterior air.
3
Ease of use and comfort

88

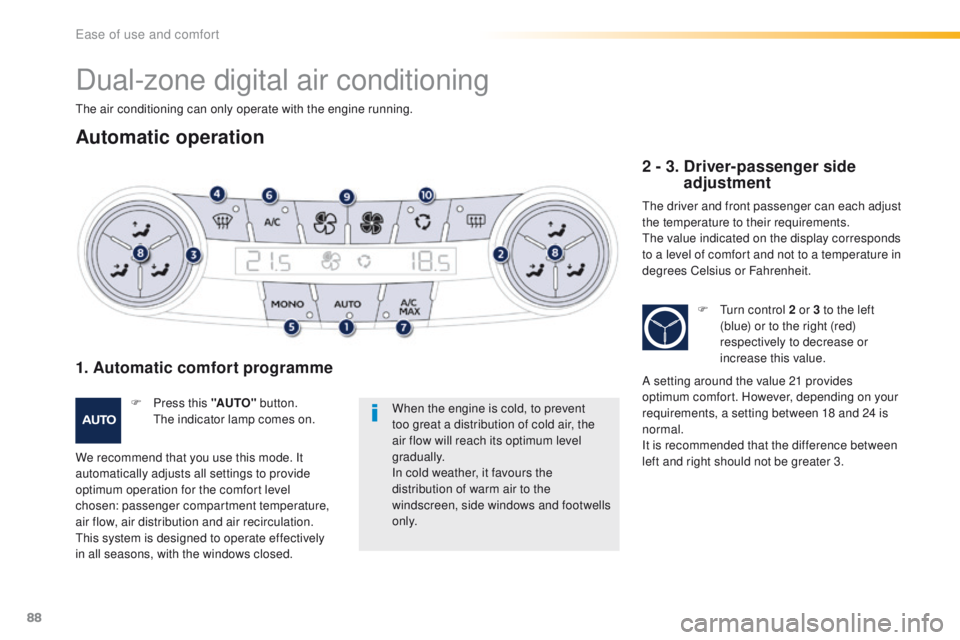

Dual-zone digital air conditioning
the air conditioning can only operate with the engine running.
Automatic operation
When the engine is cold, to prevent
too great a distribution of cold air, the
air flow will reach its optimum level
gradually.
In cold weather, it favours the
distribution of warm air to the
windscreen, side windows and footwells
o n l y.
F
P
ress this "AUTO"
button. th
e

indicator lamp comes on.
1. Automatic comfort programme
We recommend that you use this mode. It
automatically adjusts all settings to provide
optimum operation for the comfort level
chosen: passenger compartment temperature,
air flow, air distribution and air recirculation.
th

is system is designed to operate effectively
in all seasons, with the windows closed.
2 - 3. Driver-passenger side adjustment
the driver and front passenger can each adjust
the temperature to their requirements.
th

e value indicated on the display corresponds
to a level of comfort and not to a temperature in
degrees Celsius or Fahrenheit.
F
t
u
rn control 2 or 3 to the left
(blue) or to the right (red)
respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depending on your
requirements, a setting between 18 and 24 is
normal.
It is recommended that the difference between
left and right should not be greater 3.
ease of use and comfort
