Page 11 of 320
9
As a safety measure, these adjustments
must be carried out with the vehicle
stationary.

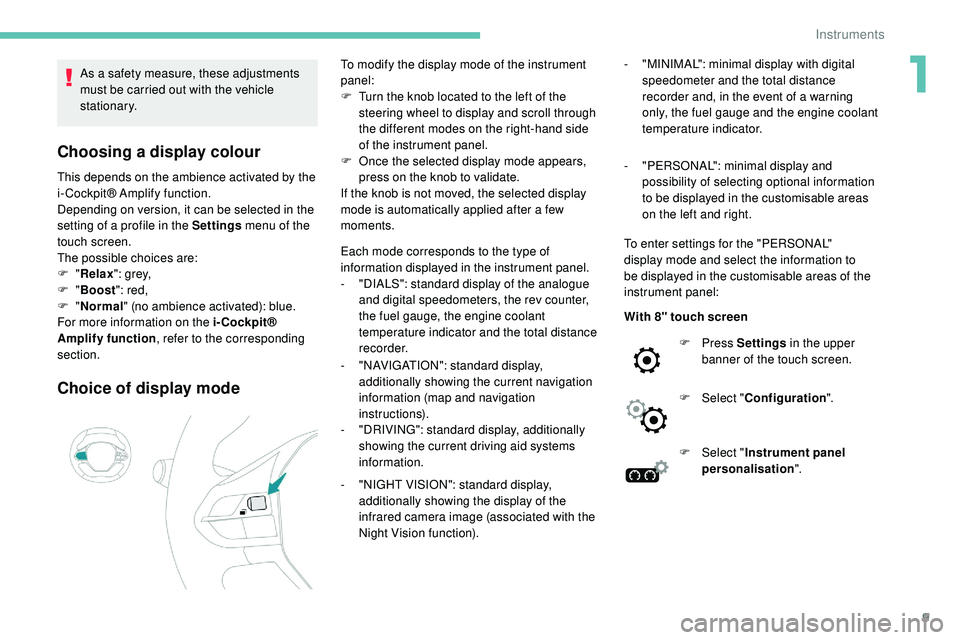

Choosing a display colour
This depends on the ambience activated by the
i- Cockpit® Amplify function.
Depending on version, it can be selected in the
setting of a profile in the Settings menu of the
touch screen.
The possible choices are:
F
"Relax ": grey,
F
"Boost ": red,
F
"Normal " (no ambience activated): blue.
For more information on the i-Cockpit®
Amplify function , refer to the corresponding
section.
Choice of display mode
To modify the display mode of the instrument
panel:
F
T
urn the knob located to the left of the
steering wheel to display and scroll through
the different modes on the right-hand side
of the instrument panel.
F
O
nce the selected display mode appears,
press on the knob to validate.
If the knob is not moved, the selected display
mode is automatically applied after a few
moments.
Each mode corresponds to the type of
information displayed in the instrument panel.
-
"
DIALS": standard display of the analogue
and digital speedometers, the rev counter,
the fuel gauge, the engine coolant
temperature indicator and the total distance
recorder.
-
"
NAVIGATION": standard display,
additionally showing the current navigation
information (map and navigation
instructions).
-
"
DRIVING": standard display, additionally
showing the current driving aid systems
information.
-
"
NIGHT VISION": standard display,
additionally showing the display of the
infrared camera image (associated with the
Night Vision function). - "
MINIMAL": minimal display with digital
speedometer and the total distance
recorder and, in the event of a warning
only, the fuel gauge and the engine coolant
temperature indicator.
-
"
PERSONAL": minimal display and
possibility of selecting optional information
to be displayed in the customisable areas
on the left and right.
To enter settings for the "PERSONAL"
display mode and select the information to
be displayed in the customisable areas of the
instrument panel:
With 8" touch screen F
Press Settings in the upper
banner of the touch screen.
F
Sel
ect "Configuration ".
F
Sel
ect "Instrument panel
personalisation ".
1
Instruments
Page 12 of 320
10

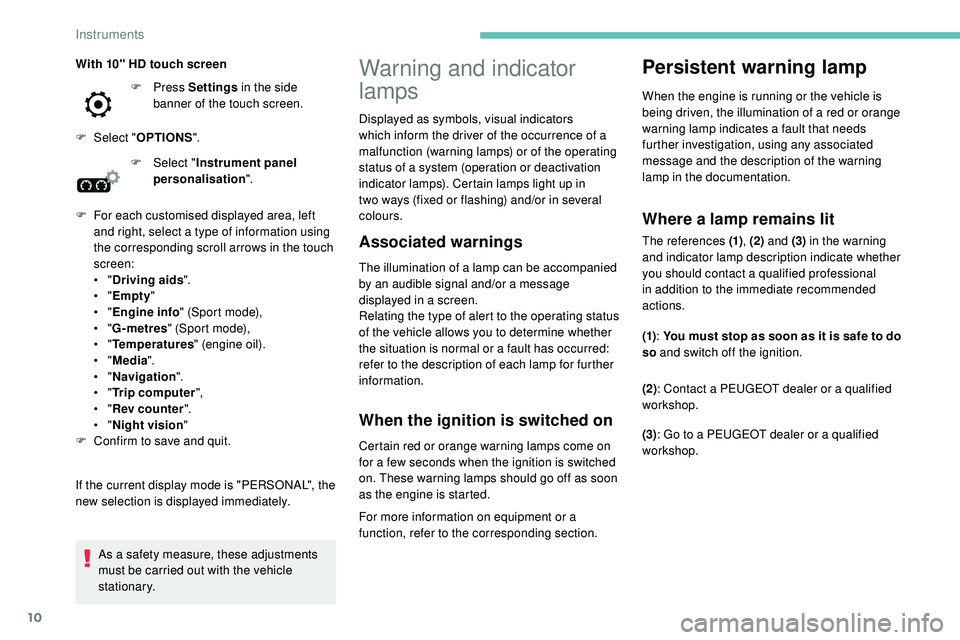

Warning and indicator
lamps
Associated warnings
The illumination of a lamp can be accompanied
by an audible signal and/or a message
displayed in a screen.
Relating the type of alert to the operating status
of the vehicle allows you to determine whether
the situation is normal or a fault has occurred:
refer to the description of each lamp for further
information.
When the ignition is switched on
Certain red or orange warning lamps come on
for a few seconds when the ignition is switched
on. These warning lamps should go off as soon
as the engine is started.
Persistent warning lamp
When the engine is running or the vehicle is
being driven, the illumination of a red or orange
warning lamp indicates a fault that needs
further investigation, using any associated
message and the description of the warning
lamp in the documentation.
Where a lamp remains lit
The references (1), (2) and (3) in the warning
and indicator lamp description indicate whether
you should contact a qualified professional
in addition to the immediate recommended
actions.
(1) : You must stop as soon as it is safe to do
so and switch off the ignition.
(2): Contact a PEUGEOT dealer or a qualified
workshop.
(3) : Go to a PEUGEOT dealer or a qualified
workshop.
As a safety measure, these adjustments
must be carried out with the vehicle
stationary. Displayed as symbols, visual indicators
which inform the driver of the occurrence of a
malfunction (warning lamps) or of the operating
status of a system (operation or deactivation
indicator lamps). Certain lamps light up in
two ways (fixed or flashing) and/or in several
colours.
For more information on equipment or a
function, refer to the corresponding section.
F
Sel
ect "
Instrument panel
personalisation ".
F
F
or each customised displayed area, left
and right, select a type of information using
the corresponding scroll arrows in the touch
screen:
•
" Driving aids ".
•
" Empty "
•
" Engine info " (Sport mode),
•
" G-metres " (Sport mode),
•
" Temperatures " (engine oil).
•
" Media ".
•
" Navigation ".
•
" Trip computer ",
•
" Rev counter ".
•
" Night vision "
F
C
onfirm to save and quit.
If the current display mode is "PERSONAL", the
new selection is displayed immediately. With 10" HD touch screen F
Press
Settings in the side
banner of the touch screen.
F
Sel
ect "
OPTIONS ".
Instruments
Page 13 of 320
11

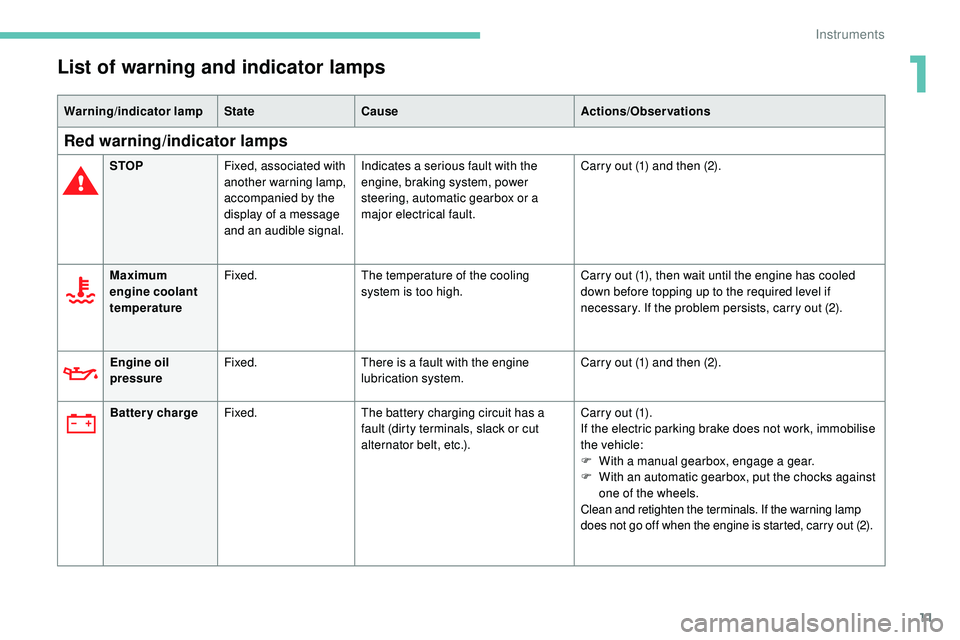

List of warning and indicator lamps
Warning/indicator lampStateCause Actions/Observations
Red warning/indicator lamps
STOPFixed, associated with
another warning lamp,
accompanied by the
display of a message
and an audible signal. Indicates a serious fault with the
engine, braking system, power
steering, automatic gearbox or a
major electrical fault.
Carry out (1) and then (2).
Maximum
engine coolant
temperature Fixed.
The temperature of the cooling
system is too high. Carry out (1), then wait until the engine has cooled
down before topping up to the required level if
necessary. If the problem persists, carry out (2).
Engine oil
pressure Fixed.
There is a fault with the engine
lubrication system. Carry out (1) and then (2).
Battery charge Fixed. The battery charging circuit has a
fault (dirty terminals, slack or cut
alternator belt, etc.). Carry out (1).
If the electric parking brake does not work, immobilise
the vehicle:
F
W
ith a manual gearbox, engage a gear.
F
W
ith an automatic gearbox, put the chocks against
one of the wheels.
Clean and retighten the terminals. If the warning lamp
does not go off when the engine is started, carry out (2).
1
Instruments
Page 14 of 320
12

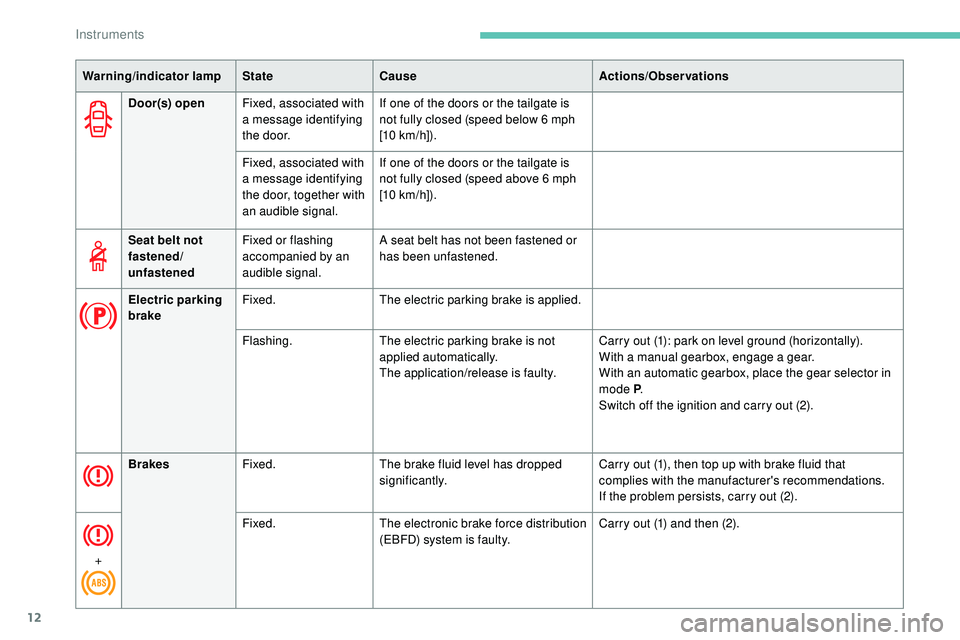

Door(s) openFixed, associated with
a message identifying
the door. If one of the doors or the tailgate is
not fully closed (speed below 6 mph
[10 km/h]).
Fixed, associated with
a message identifying
the door, together with
an audible signal. If one of the doors or the tailgate is
not fully closed (speed above 6 mph
[10 km/h]).
Warning/indicator lamp
StateCause Actions/Observations
Seat belt not
fastened/
unfastened Fixed or flashing
accompanied by an
audible signal. A seat belt has not been fastened or
has been unfastened.
Electric parking
brake Fixed.
The electric parking brake is applied.
Flashing. The electric parking brake is not
applied automatically.
The application/release is faulty. Carry out (1): park on level ground (horizontally).
With a manual gearbox, engage a gear.
With an automatic gearbox, place the gear selector in
mode P
.
Switch off the ignition and carry out (2).
Brakes Fixed. The brake fluid level has dropped
significantly. Carry out (1), then top up with brake fluid that
complies with the manufacturer's recommendations.
If the problem persists, carry out (2).
+ Fixed.
The electronic brake force distribution
(EBFD) system is faulty. Carry out (1) and then (2).
Instruments
Page 15 of 320
13
Warning/indicator lampStateCause Actions/Observations

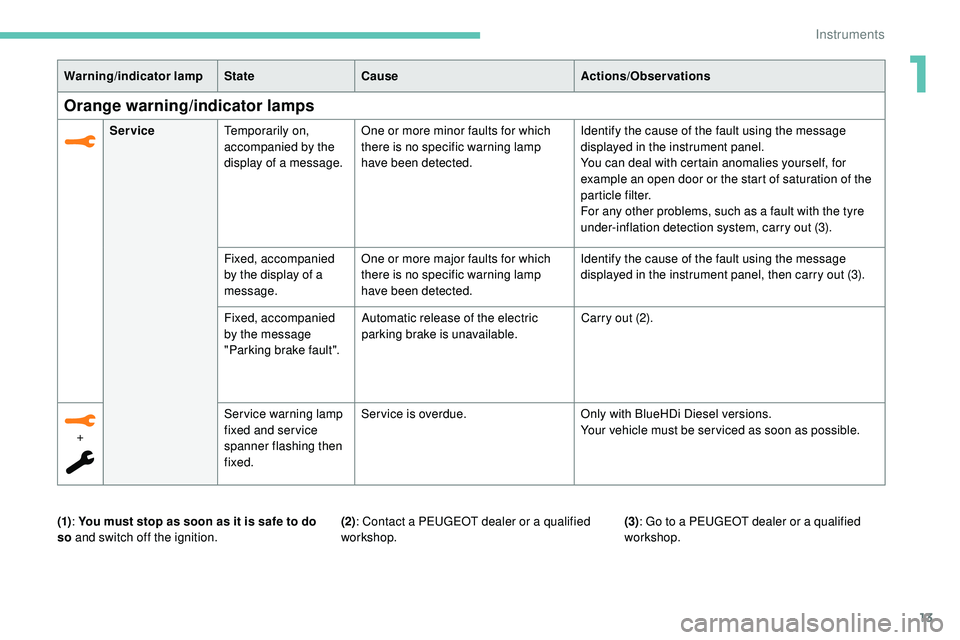

Orange warning/indicator lamps
ServiceTemporarily on,
accompanied by the
display of a message. One or more minor faults for which
there is no specific warning lamp
have been detected. Identify the cause of the fault using the message
displayed in the instrument panel.
You can deal with certain anomalies yourself, for
example an open door or the start of saturation of the
particle filter.
For any other problems, such as a fault with the tyre
under-inflation detection system, carry out (3).
Fixed, accompanied
by the display of a
message. One or more major faults for which
there is no specific warning lamp
have been detected. Identify the cause of the fault using the message
displayed in the instrument panel, then carry out (3).
+ Service warning lamp
fixed and ser vice
spanner flashing then
fixed.Service is overdue.
Only with BlueHDi Diesel versions.
Your vehicle must be ser viced as soon as possible.
Fixed, accompanied
by the message
"Parking brake fault".
Automatic release of the electric
parking brake is unavailable.
Carry out (2).
(1) : You must stop as soon as it is safe to do
so and switch off the ignition. (2): Contact a PEUGEOT dealer or a qualified
workshop. (3)
: Go to a PEUGEOT dealer or a qualified
workshop.
1
Instruments
Page 16 of 320
14

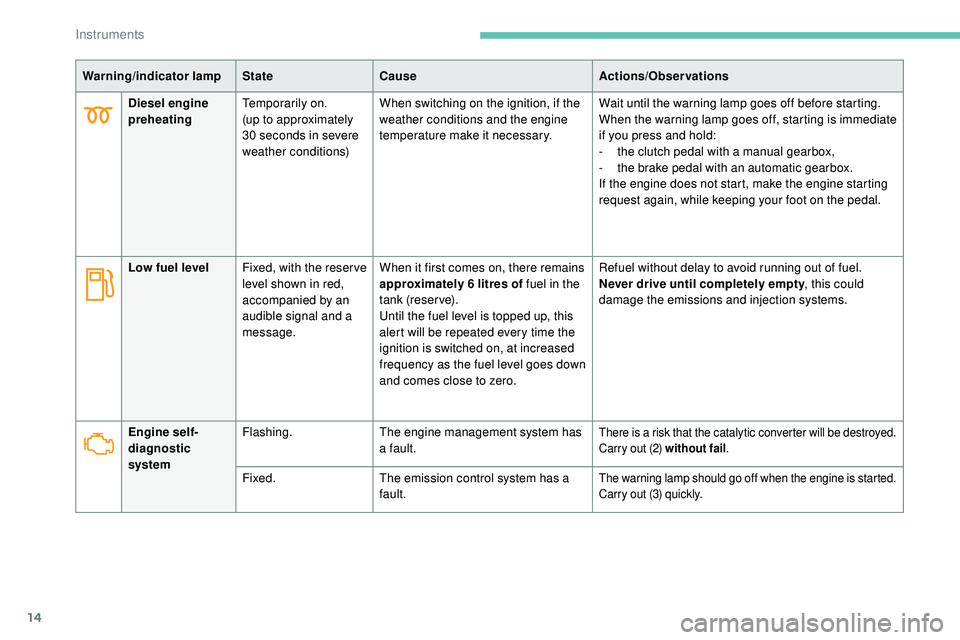

Diesel engine
preheatingTemporarily on.
(up to approximately
30 seconds in severe
weather conditions) When switching on the ignition, if the
weather conditions and the engine
temperature make it necessary.
Wait until the warning lamp goes off before starting.
When the warning lamp goes off, starting is immediate
if you press and hold:
-
t
he clutch pedal with a manual gearbox,
-
t
he brake pedal with an automatic gearbox.
If the engine does not start, make the engine starting
request again, while keeping your foot on the pedal.
Low fuel level Fixed, with the reser ve
level shown in red,
accompanied by an
audible signal and a
message. When it first comes on, there remains
approximately 6 litres of fuel in the
tank (reserve).
Until the fuel level is topped up, this
alert will be repeated every time the
ignition is switched on, at increased
frequency as the fuel level goes down
and comes close to zero. Refuel without delay to avoid running out of fuel.
Never drive until completely empty
, this could
damage the emissions and injection systems.
Engine self-
diagnostic
system Flashing.
The engine management system has
a fault.
There is a risk that the catalytic converter will be destroyed.
Carry out (2) without fail.
Fixed. The emission control system has a
fault.The warning lamp should go off when the engine is started.
Carry out (3) quickly.
Warning/indicator lamp StateCause Actions/Observations
Instruments
Page 17 of 320
15

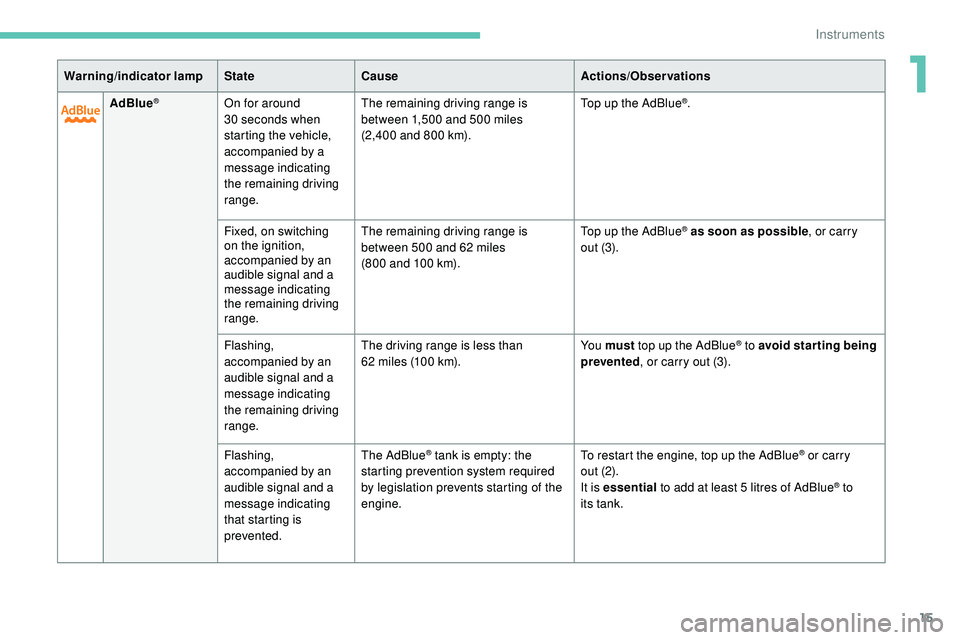

AdBlue®On for around
30 seconds when
starting the vehicle,
accompanied by a
message indicating
the remaining driving
range. The remaining driving range is
between 1,500 and 500 miles
(2,400
and 800 km).Top up the AdBlue®.
Fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating
the remaining driving
range. The remaining driving range is
between 500 and 62 miles
(800 and 100 km).
Top up the AdBlue
® as soon as possible
, or carry
out
(3).
Flashing,
accompanied by an
audible signal and a
message indicating
the remaining driving
range. The driving range is less than
62
miles (100
km). Yo u must
top up the AdBlue
® to avoid star ting being
prevented , or carry out (3).
Flashing,
accompanied by an
audible signal and a
message indicating
that starting is
prevented. The AdBlue
® tank is empty: the
starting prevention system required
by legislation prevents starting of the
engine. To restart the engine, top up the AdBlue® or carry
out
(2).
It is essential to add at least 5 litres of AdBlue
® to
its
tank.
Warning/indicator lamp
StateCause Actions/Observations
1
Instruments
Page 18 of 320
16
+

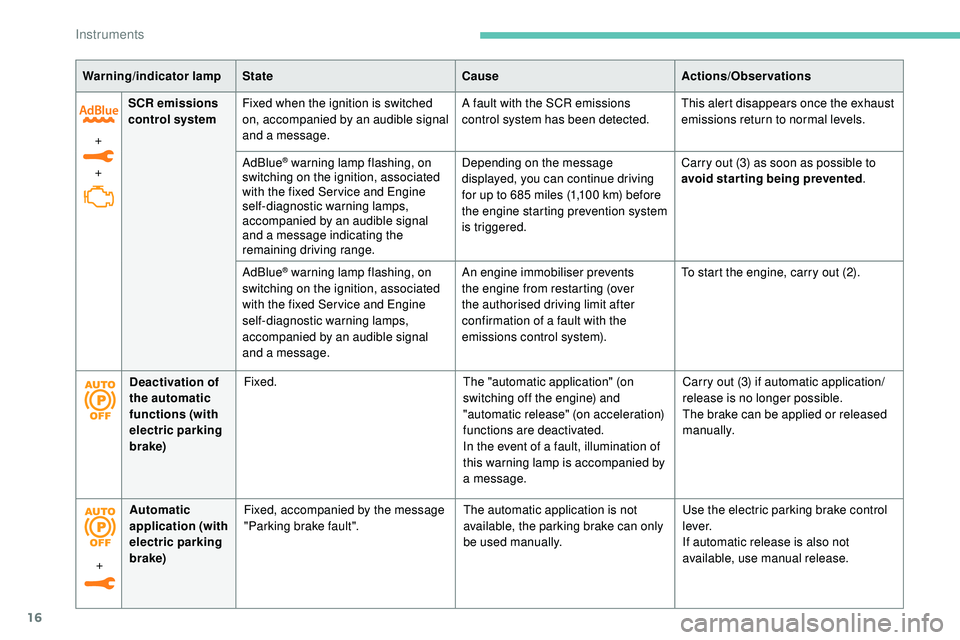

+SCR emissions
control system
Fixed when the ignition is switched
on, accompanied by an audible signal
and a message. A fault with the SCR emissions
control system has been detected.
This alert disappears once the exhaust
emissions return to normal levels.
AdBlue
® warning lamp flashing, on
switching on the ignition, associated
with the fixed Ser vice and Engine
self-diagnostic warning lamps,
accompanied by an audible signal
and a message indicating the
remaining driving range. Depending on the message
displayed, you can continue driving
for up to 685 miles (1,100
km) before
the engine starting prevention system
is triggered. Carry out (3) as soon as possible to
avoid starting being prevented
.
AdBlue
® warning lamp flashing, on
switching on the ignition, associated
with the fixed Ser vice and Engine
self-diagnostic warning lamps,
accompanied by an audible signal
and a message. An engine immobiliser prevents
the engine from restarting (over
the authorised driving limit after
confirmation of a fault with the
emissions control system).
To start the engine, carry out (2).
Warning/indicator lamp
State CauseActions/Observations
Deactivation of
the automatic
functions (with
electric parking
brake) Fixed.
The "automatic application" (on
switching off the engine) and
"automatic release" (on acceleration)
functions are deactivated.
In the event of a fault, illumination of
this warning lamp is accompanied by
a message.Carry out (3) if automatic application/
release is no longer possible.
The brake can be applied or released
manually.
+ Automatic
application (with
electric parking
brake)
Fixed, accompanied by the message
"Parking brake fault".
The automatic application is not
available, the parking brake can only
be used manually.Use the electric parking brake control
l eve r.
If automatic release is also not
available, use manual release.
Instruments
Page 19 of 320
17
BrakingFixed. A minor fault with the braking system. Drive carefully.
Carry out (3).
Warning/indicator lamp
StateCause Actions/Observations
+ Fixed, accompanied
by the message
"Parking brake fault".
You can no longer immobilise the
vehicle with the engine running.
If manual application and release are not working, the
electric parking brake control lever is faulty.
The automatic functions must be used at all times and
are automatically reactivated in the event of failure of
the control lever.
Carry out (2).

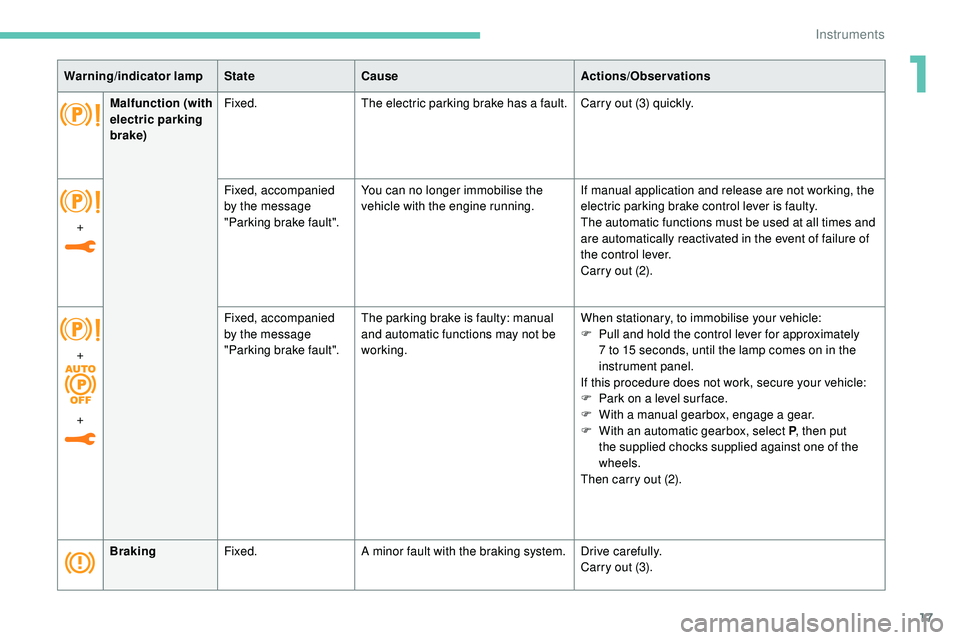

Malfunction (with
electric parking
brake)
Fixed.
The electric parking brake has a fault. Carry out (3) quickly.
+
+ Fixed, accompanied
by the message
"Parking brake fault".
The parking brake is faulty: manual
and automatic functions may not be
working. When stationary, to immobilise your vehicle:
F
P
ull and hold the control lever for approximately
7 to 15 seconds, until the lamp comes on in the
instrument panel.
If this procedure does not work, secure your vehicle:
F
P
ark on a level sur face.
F
W
ith a manual gearbox, engage a gear.
F
W
ith an automatic gearbox, select P
, then put
the supplied chocks supplied against one of the
wheels.
Then carry out (2).
1
Instruments
Page 20 of 320
18

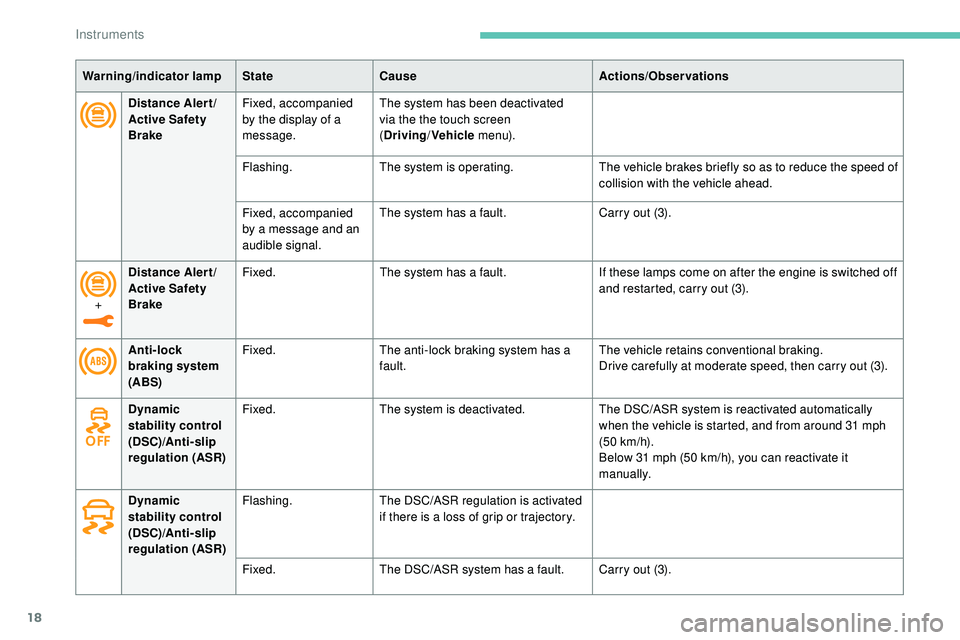

Distance Alert/
Active Safety
BrakeFixed, accompanied
by the display of a
message. The system has been deactivated
via the the touch screen
(
Driving /Vehicle m e n u).
Flashing. The system is operating. The vehicle brakes briefly so as to reduce the speed of
collision with the vehicle ahead.
Fixed, accompanied
by a message and an
audible signal. The system has a fault.
Carry out (3).
Anti-lock
braking system
(ABS) Fixed.
The anti-lock braking system has a
fault. The vehicle retains conventional braking.
Drive carefully at moderate speed, then carry out (3).
Warning/indicator lamp
StateCause Actions/Observations
Dynamic
stability control
(DSC)/Anti- slip
regulation (ASR) Fixed.
The system is deactivated. The DSC/ASR system is reactivated automatically
when the vehicle is started, and from around 31 mph
(50
km/h).
Below 31 mph (50
km/h), you can reactivate it
manually.
Dynamic
stability control
(DSC)/Anti- slip
regulation (ASR) Flashing.
The DSC/ASR regulation is activated
if there is a loss of grip or trajectory.
Fixed. The DSC/ASR system has a fault. Carry out (3).
+
Distance Alert/
Active Safety
Brake Fixed.
The system has a fault. If these lamps come on after the engine is switched off
and restarted, carry out (3).
Instruments
