29

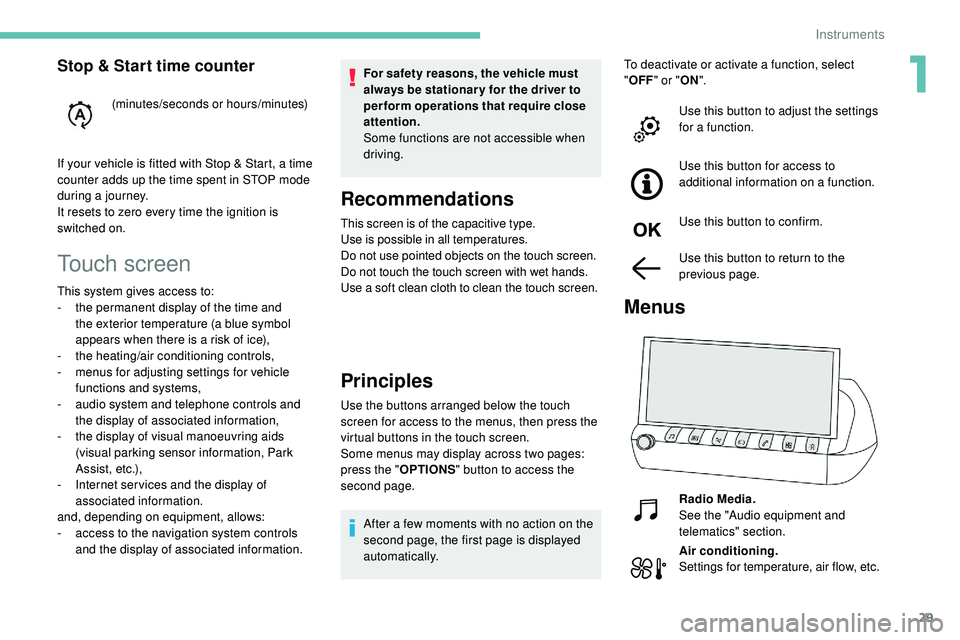

Touch screen
For safety reasons, the vehicle must
always be stationar y for the driver to
perform operations that require close
attention.
Some functions are not accessible when
driving.
Recommendations
This screen is of the capacitive type.
Use is possible in all temperatures.
Do not use pointed objects on the touch screen.
Do not touch the touch screen with wet hands.
Use a soft clean cloth to clean the touch screen.
Stop & Start time counter
(minutes/seconds or hours/minutes)
If your vehicle is fitted with Stop & Start, a time
counter adds up the time spent in STOP mode
during a journey.
It resets to zero every time the ignition is
switched on.
This system gives access to:
-
t
he permanent display of the time and
the exterior temperature (a blue symbol
appears when there is a risk of ice),
-
t
he heating/air conditioning controls,
-
m
enus for adjusting settings for vehicle
functions and systems,
-
a
udio system and telephone controls and
the display of associated information,
-
t
he display of visual manoeuvring aids
(visual parking sensor information, Park
A s s i s t , e t c .),
-
I
nternet ser vices and the display of
associated information.
and, depending on equipment, allows:
-
a
ccess to the navigation system controls
and the display of associated information.
Principles
Use the buttons arranged below the touch
screen for access to the menus, then press the
virtual buttons in the touch screen.
Some menus may display across two pages:
press the " OPTIONS" button to access the
second page.
After a few moments with no action on the
second page, the first page is displayed
automatically. To deactivate or activate a function, select
"
OFF " or " ON".
Use this button to adjust the settings
for a function.
Use this button for access to
additional information on a function.
Use this button to confirm.
Use this button to return to the
previous page.
Menus
Radio Media.
See the "Audio equipment and
telematics" section.
Air conditioning.
Settings for temperature, air flow, etc.
1
Instruments
Page 32 of 320
30

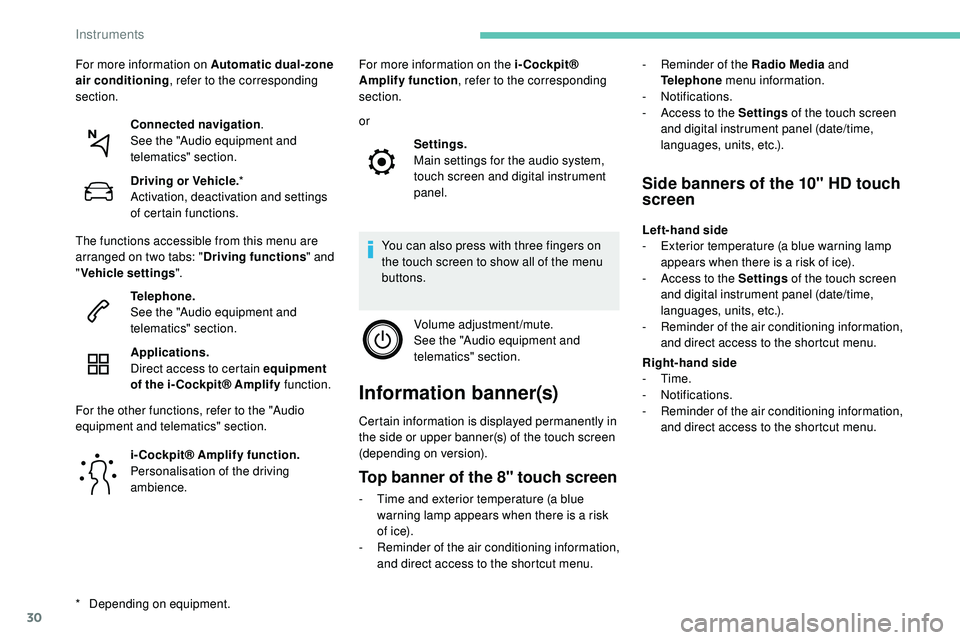

i-Cockpit® Amplify function.
Personalisation of the driving
ambience.or
You can also press with three fingers on
the touch screen to show all of the menu
buttons. Volume adjustment/mute.
See the "Audio equipment and
telematics" section.
Information banner(s)
Certain information is displayed permanently in
the side or upper banner(s) of the touch screen
(depending on version).
Connected navigation
.
See the "Audio equipment and
telematics" section.
Driving or Vehicle. *
Activation, deactivation and settings
of certain functions.
Telephone.
See the "Audio equipment and
telematics" section.
Applications.
Direct access to certain equipment
of the i- Cockpit® Amplify function.
For more information on Automatic dual-zone
air conditioning
, refer to the corresponding
section.
The functions accessible from this menu are
arranged on two tabs: " Driving functions" and
" Vehicle settings ".
For the other functions, refer to the "Audio
equipment and telematics" section. Settings.
Main settings for the audio system,
touch screen and digital instrument
panel.
For more information on the i-Cockpit®
Amplify function
, refer to the corresponding
section.
Top banner of the 8" touch screen
- Time and exterior temperature (a blue warning lamp appears when there is a risk
of i c e).
-
R
eminder of the air conditioning information,
and direct access to the shortcut menu.
Side banners of the 10" HD touch
screen
Left-hand side
- E xterior temperature (a blue warning lamp
appears when there is a risk of ice).
-
A
ccess to the Settings of the touch screen
and digital instrument panel (date/time,
languages, units, etc.).
-
R
eminder of the air conditioning information,
and direct access to the shortcut menu.
Right-hand side
-
Time.
-
Notifications.
-
R
eminder of the air conditioning information,
and direct access to the shortcut menu.
-
R
eminder of the Radio Media
and
Telephone menu information.
-
Notifications.
-
A
ccess to the Settings
of the touch screen
and digital instrument panel (date/time,
languages, units, etc.).
*
D
epending on equipment.
Instruments
Page 33 of 320
31

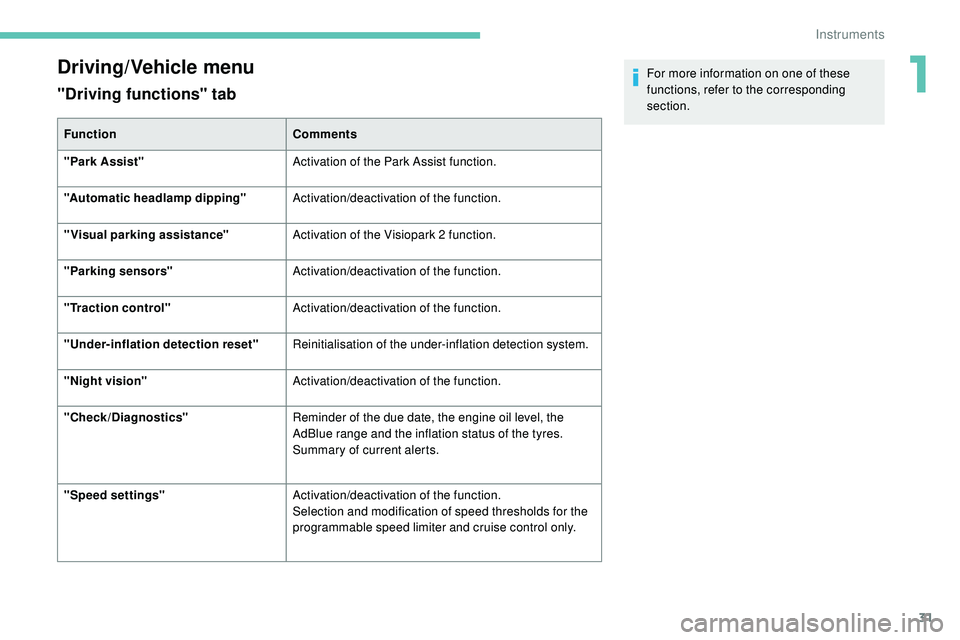

Driving/Vehicle menu
"Driving functions" tab
FunctionComments
"Park Assist" Activation of the Park Assist function.
"Automatic headlamp dipping" Activation/deactivation of the function.
"Visual parking assistance" Activation of the Visiopark 2 function.
"Parking sensors" Activation/deactivation of the function.
"Traction control" Activation/deactivation of the function.
"Under-inflation detection reset" Reinitialisation of the under-inflation detection system.
"Night vision" Activation/deactivation of the function.
"Check/Diagnostics" Reminder of the due date, the engine oil level, the
AdBlue range and the inflation status of the tyres.
Summary of current alerts.
"Speed settings" Activation/deactivation of the function.
Selection and modification of speed thresholds for the
programmable speed limiter and cruise control only. For more information on one of these
functions, refer to the corresponding
section.
1
Instruments
Page 34 of 320
32

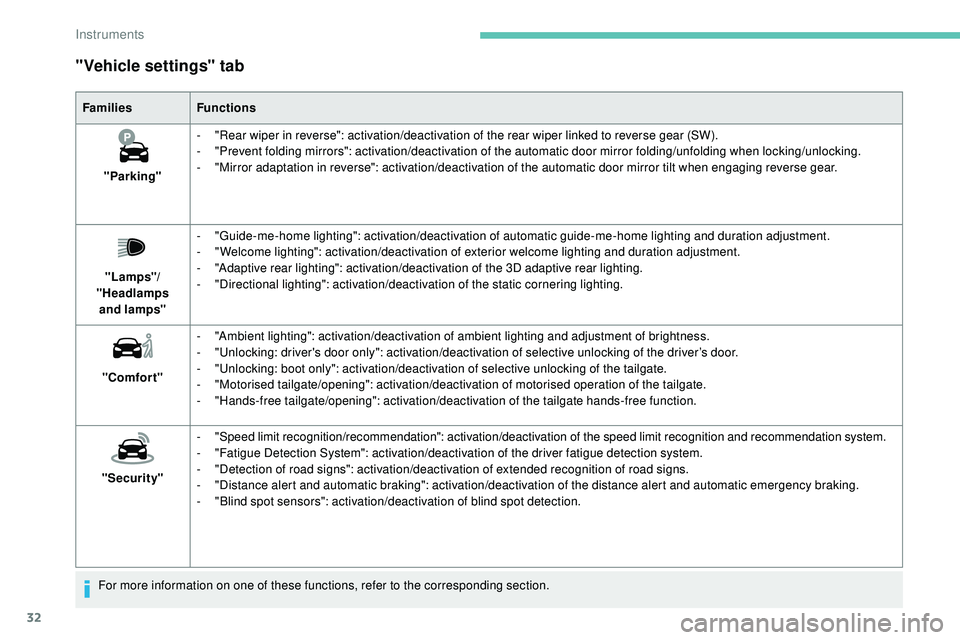

"Vehicle settings" tab
FamiliesFunctions
"Parking" -
"
Rear wiper in reverse": activation/deactivation of the rear wiper linked to reverse gear (SW).
-
"
Prevent folding mirrors": activation/deactivation of the automatic door mirror folding/unfolding when locking/unlocking.
-
"
Mirror adaptation in reverse": activation/deactivation of the automatic door mirror tilt when engaging reverse gear.
"Lamps"/
"Headlamps and
lamps" -
"
Guide-me-home lighting": activation/deactivation of automatic guide-me-home lighting and duration adjustment.
-
"
Welcome lighting": activation/deactivation of exterior welcome lighting and duration adjustment.
-
"
Adaptive rear lighting": activation/deactivation of the 3D adaptive rear lighting.
-
"
Directional lighting": activation/deactivation of the static cornering lighting.
"Comfort" -
"
Ambient lighting": activation/deactivation of ambient lighting and adjustment of brightness.
-
"
Unlocking: driver's door only": activation/deactivation of selective unlocking of the driver’s door.
-
"
Unlocking: boot only": activation/deactivation of selective unlocking of the tailgate.
-
"
Motorised tailgate/opening": activation/deactivation of motorised operation of the tailgate.
-
"
Hands-free tailgate/opening": activation/deactivation of the tailgate hands-free function.
"Security" -
"
Speed limit recognition/recommendation": activation/deactivation of the speed limit recognition and recommendation system.
-
"
Fatigue Detection System": activation/deactivation of the driver fatigue detection system.
-
"
Detection of road signs": activation/deactivation of extended recognition of road signs.
-
"
Distance alert and automatic braking": activation/deactivation of the distance alert and automatic emergency braking.
-
"
Blind spot sensors": activation/deactivation of blind spot detection.
For more information on one of these functions, refer to the corresponding section.
Instruments
Page 35 of 320
33

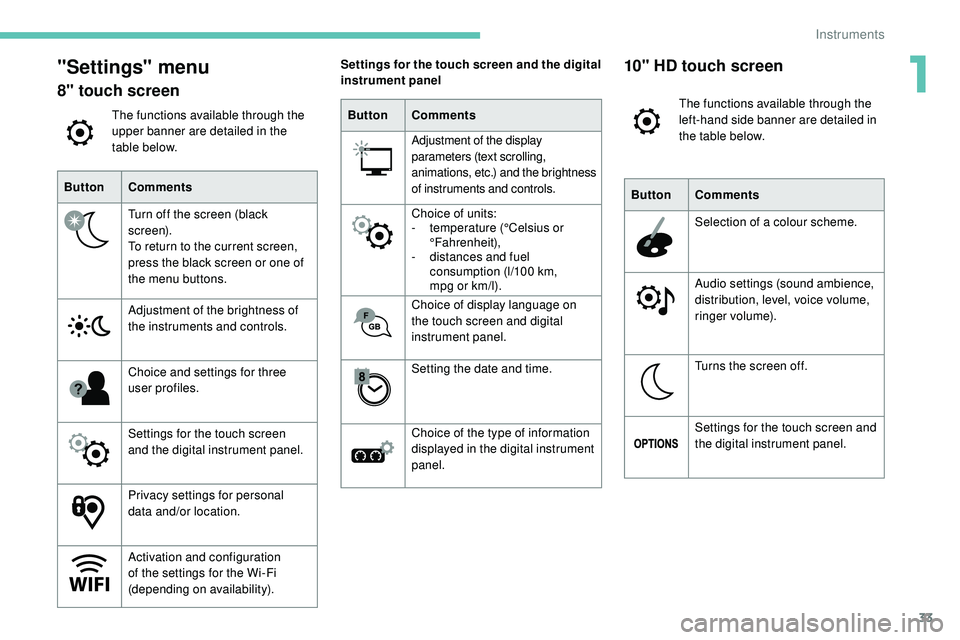

"Settings" menu
8" touch screen
The functions available through the
upper banner are detailed in the
table below.
Button Comments
Turn off the screen (black
screen).
To return to the current screen,
press the black screen or one of
the menu buttons.
Adjustment of the brightness of
the instruments and controls.
Choice and settings for three
user profiles.
Settings for the touch screen
and the digital instrument panel.
Privacy settings for personal
data and/or location.
Activation and configuration
of the settings for the Wi-Fi
(depending on availability). Settings for the touch screen and the digital
instrument panel
Button Comments
Adjustment of the display
parameters (text scrolling,
animations, etc.) and the brightness
of instruments and controls.
Choice of units:
- t
emperature (°Celsius or
°Fahrenheit),
-
d
istances and fuel
consumption (l/100 km,
mpg
or km/l).
Choice of display language on
the touch screen and digital
instrument panel.
Setting the date and time.
Choice of the type of information
displayed in the digital instrument
panel.
10" HD touch screen
The functions available through the
left-hand side banner are detailed in
the table below.
Button Comments
Selection of a colour scheme.
Audio settings (sound ambience,
distribution, level, voice volume,
ringer volume).
Turns the screen off.
Settings for the touch screen and
the digital instrument panel.
1
Instruments
Page 36 of 320
34
ButtonComments
Choice of units:
-
t
emperature (°Celsius or
°Fahrenheit),
-
d
istances and fuel
consumption (l/100 km, mpg
or km/l).
Privacy settings for personal data
and/or location.
Choice of display language on
the touch screen and digital
instrument panel.
Setting the date and time.
Option of synchronisation with
GPS.
Adjustment of the display
parameters (text scrolling,
animations, etc.) and the brightness
of instruments and controls.
Choice and settings for three
user profiles.
Choice of the type of information
displayed in the digital instrument
panel.
Settings for the touch screen and the digital
instrument panel
Date and time adjustment
With PEUGEOT
Connect
Radio
F Select the Settings menu in
the upper banner of the touch
screen.
F
Sel
ect " System configuration ".
F
Sel
ect "Date and time ".
F
Sel
ect " Date " or "Time ".
F
C
hoose the display formats.
F
C
hange the date and/or time using the
numeric keypad.
F
C
onfirm with " OK".
With PEUGEOT
Connect
Nav
Setting of the time and date is only available if
synchronisation with the GPS is deactivated.
F
Sel
ect the Settings menu in the
banner of the touch screen.
F
P
ress the " OPTIONS " button to go to the
secondary page. F
Sel
ect "
Setting the time- date".
F
Sel
ect the "
Date" or "Time " tab.
F
S
et the date and/or time using the numeric
keypad.
F
C
onfirm with "
OK".
Additional settings
You can choose:
-
T o change the time zone.
-
T
o change the display format of the date
and time (12h/24h).
-
T
o activate or deactivate the summer time
management function (+1 hour).
-
T
o activate or deactivate the
synchronisation with the GPS (UTC).
The system does not automatically manage
the change between winter and summer
time (depending on the country of sale).
Instruments
Page 37 of 320
35
Remote control
General pointsEjecting the keyUnlocking the vehicle
Complete unlocking
F Press the button.
The remote control can be used for the
following functions, depending on version:
-
u
nlocking/locking/deadlocking the vehicle.
-
u
nlocking – opening/closing the boot.
-
t
urning the lighting on.
-
fo
lding/unfolding the door mirrors.
-
a
ctivating/deactivating the alarm.
-
o
pening the windows.
-
c
losing the windows and the sunroof.
-
l
ocating the vehicle.
-
i
mmobilising the vehicle. The key, integral with the remote control, can
be used for the following functions, depending
on version:
-
u
nlocking/locking/deadlocking the vehicle.
-
a
ctivation/deactivation of the mechanical
child lock.
-
a
ctivation/deactivation of the front
passenger airbag.
-
b
ack-up door locking.
F
P
ull on this button to remove the key from
the housing.
To return it to the housing, first pull on this
button.
Selective unlocking
Driver's door and fuel flap
It is set via the Driving /Vehicle
menu of the touch screen.
F
P
ress the unlocking button.
F
P
ress it again to unlock the other doors and
the boot.
On the first press of the unlocking button,
flashing of the direction indicators for a few
seconds signals:
-
c
omplete or selective unlocking of the
vehicle for versions without alarm,
-
d
eactivation of the alarm for other versions.
The door mirrors unfold.
Opening the windows
Depending on version, holding the
unlocking button pressed for more
than 3 seconds opens the windows.
2
Access
Page 38 of 320
36

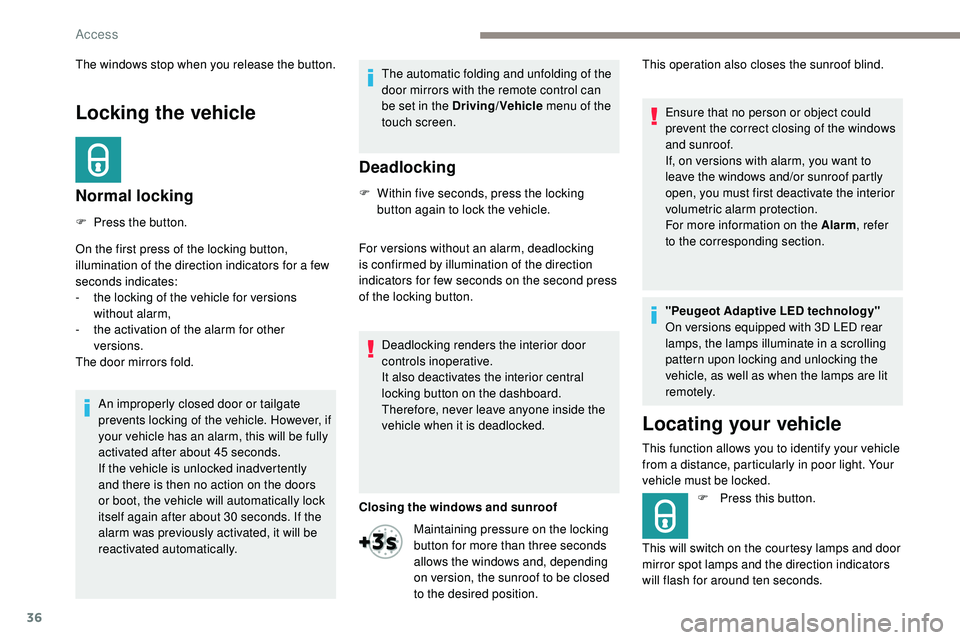

Locking the vehicle
Normal locking
F Press the button.
On the first press of the locking button,
illumination of the direction indicators for a few
seconds indicates:
-
t
he locking of the vehicle for versions
without alarm,
-
t
he activation of the alarm for other
versions.
The door mirrors fold.
An improperly closed door or tailgate
prevents locking of the vehicle. However, if
your vehicle has an alarm, this will be fully
activated after about 45 seconds.
If the vehicle is unlocked inadvertently
and there is then no action on the doors
or boot, the vehicle will automatically lock
itself again after about 30 seconds. If the
alarm was previously activated, it will be
reactivated automatically. The automatic folding and unfolding of the
door mirrors with the remote control can
be set in the Driving/Vehicle menu of the
touch screen.
Deadlocking
F Within five seconds, press the locking
button again to lock the vehicle.
For versions without an alarm, deadlocking
is confirmed by illumination of the direction
indicators for few seconds on the second press
of the locking button.
Deadlocking renders the interior door
controls inoperative.
It also deactivates the interior central
locking button on the dashboard.
Therefore, never leave anyone inside the
vehicle when it is deadlocked.
Closing the windows and sunroof Ensure that no person or object could
prevent the correct closing of the windows
and sunroof.
If, on versions with alarm, you want to
leave the windows and/or sunroof partly
open, you must first deactivate the interior
volumetric alarm protection.
For more information on the Alarm
, refer
to the corresponding section.
"Peugeot Adaptive LED technology"
On versions equipped with 3D LED rear
lamps, the lamps illuminate in a scrolling
pattern upon locking and unlocking the
vehicle, as well as when the lamps are lit
remotely.
Locating your vehicle
This function allows you to identify your vehicle
from a distance, particularly in poor light. Your
vehicle must be locked.
F
P
ress this button.
This will switch on the courtesy lamps and door
mirror spot lamps and the direction indicators
will flash for around ten seconds.
The windows stop when you release the button.
Maintaining pressure on the locking
button for more than three seconds
allows the windows and, depending
on version, the sunroof to be closed
to the desired position.This operation also closes the sunroof blind.
Access
Page 39 of 320
37

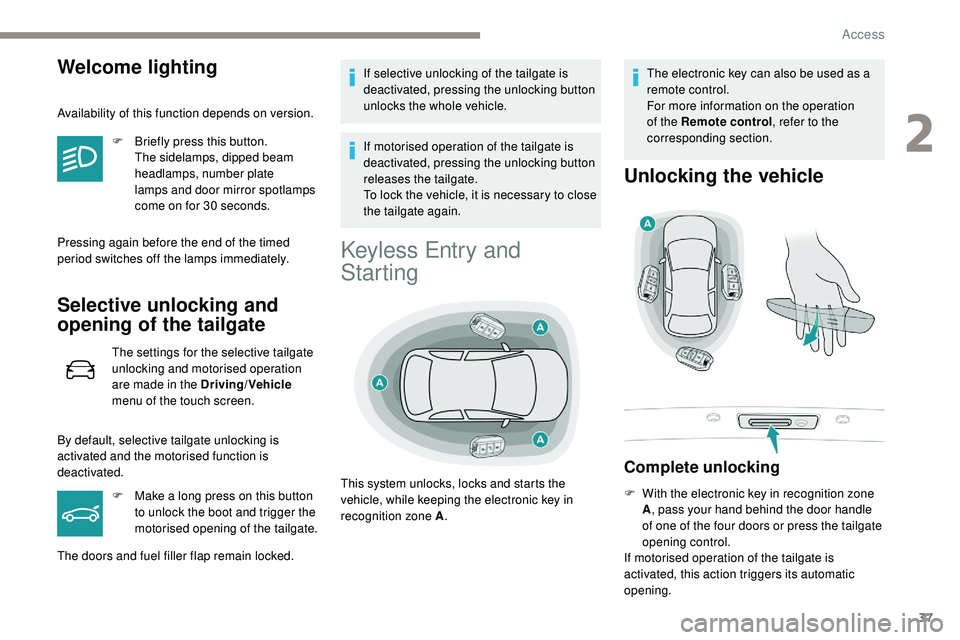

Welcome lighting
Availability of this function depends on version.F
B
riefly press this button.
The
sidelamps, dipped beam
headlamps, number plate
lamps
and door mirror spotlamps
come on for 30 seconds.
Pressing again before the end of the timed
period switches off the lamps immediately.
Selective unlocking and
opening of the tailgate
The settings for the selective tailgate
unlocking and motorised operation
are made in the Driving/Vehicle
menu of the touch screen.
By default, selective tailgate unlocking is
activated and the motorised function is
deactivated. F
M
ake a long press on this button
to unlock the boot and trigger the
motorised opening of the tailgate.
The doors and fuel filler flap remain locked. If selective unlocking of the tailgate is
deactivated, pressing the unlocking button
unlocks the whole vehicle.
If motorised operation of the tailgate is
deactivated, pressing the unlocking button
releases the tailgate.
To lock the vehicle, it is necessary to close
the tailgate again.
Keyless Entry and
Starting
The electronic key can also be used as a
remote control.
For more information on the operation
of the Remote control
, refer to the
corresponding section.
Unlocking the vehicle
Complete unlocking
F With the electronic key in recognition zone A, pass your hand behind the door handle
of one of the four doors or press the tailgate
opening control.
If motorised operation of the tailgate is
activated, this action triggers its automatic
opening.
This system unlocks, locks and starts the
vehicle, while keeping the electronic key in
recognition zone A
.
2
Access
Page 40 of 320
38

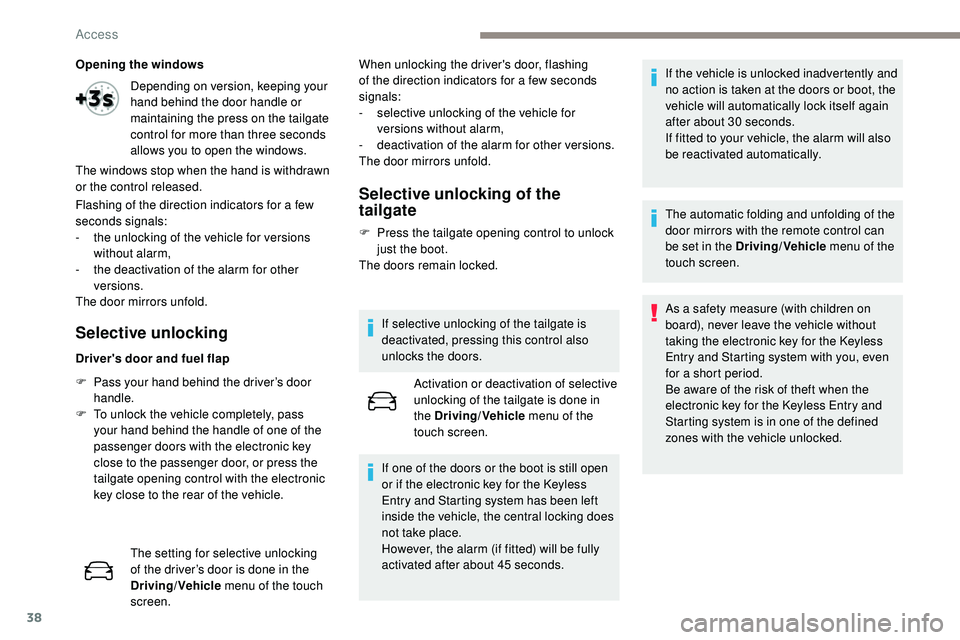

Opening the windows
Flashing of the direction indicators for a few
seconds signals:
-
t
he unlocking of the vehicle for versions
without alarm,
-
t
he deactivation of the alarm for other
versions.
The door mirrors unfold.
Selective unlocking
Driver's door and fuel flap
F
P
ass your hand behind the driver’s door
handle.
F
T
o unlock the vehicle completely, pass
your hand behind the handle of one of the
passenger doors with the electronic key
close to the passenger door, or press the
tailgate opening control with the electronic
key close to the rear of the vehicle.
The setting for selective unlocking
of the driver’s door is done in the
Driving/Vehicle menu of the touch
screen. When unlocking the driver's door, flashing
of the direction indicators for a few seconds
signals:
-
s
elective unlocking of the vehicle for
versions without alarm,
-
d
eactivation of the alarm for other versions.
The door mirrors unfold.
Selective unlocking of the
tailgate
F Press the tailgate opening control to unlock just the boot.
The doors remain locked.
If selective unlocking of the tailgate is
deactivated, pressing this control also
unlocks the doors. Activation or deactivation of selective
unlocking of the tailgate is done in
the Driving/Vehicle menu of the
touch screen.
If one of the doors or the boot is still open
or if the electronic key for the Keyless
Entry and Starting system has been left
inside the vehicle, the central locking does
not take place.
However, the alarm (if fitted) will be fully
activated after about 45 seconds. If the vehicle is unlocked inadvertently and
no action is taken at the doors or boot, the
vehicle will automatically lock itself again
after about 30 seconds.
If fitted to your vehicle, the alarm will also
be reactivated automatically.
The automatic folding and unfolding of the
door mirrors with the remote control can
be set in the Driving/Vehicle menu of the
touch screen.
As a safety measure (with children on
board), never leave the vehicle without
taking the electronic key for the Keyless
Entry and Starting system with you, even
for a short period.
Be aware of the risk of theft when the
electronic key for the Keyless Entry and
Starting system is in one of the defined
zones with the vehicle unlocked.
Depending on version, keeping your
hand behind the door handle or
maintaining the press on the tailgate
control for more than three seconds
allows you to open the windows.
The windows stop when the hand is withdrawn
or the control released.
Access
