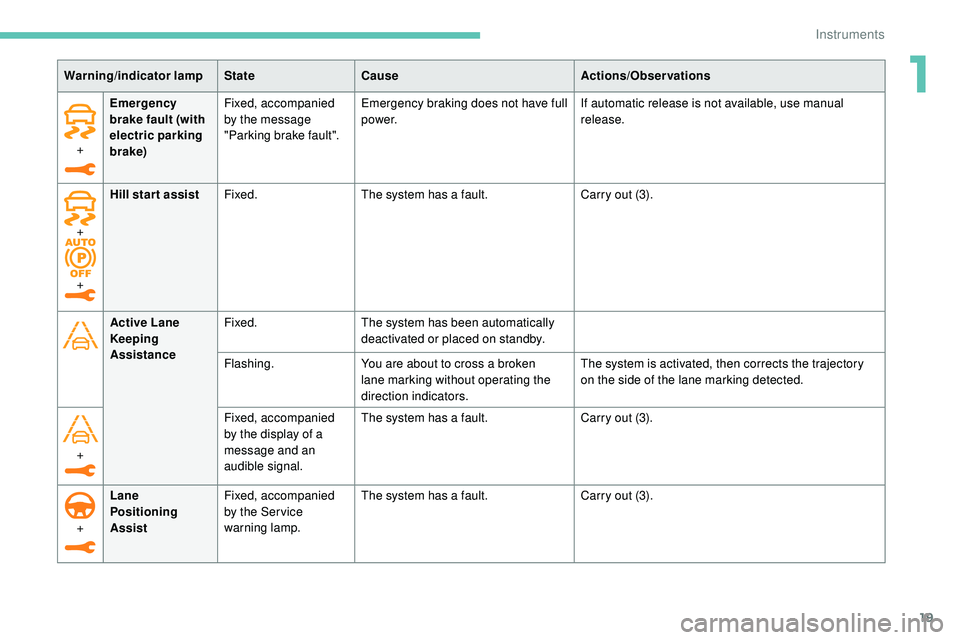

+Emergency
brake fault (with
electric parking
brake) Fixed, accompanied
by the message
"Parking brake fault".
Emergency braking does not have full
p o w e r.
If automatic release is not available, use manual
release.
Active Lane
Keeping
Assistance Fixed.
The system has been automatically
deactivated or placed on standby.
Flashing. You are about to cross a broken
lane marking without operating the
direction indicators. The system is activated, then corrects the trajectory
on the side of the lane marking detected.
+ Fixed, accompanied
by the display of a
message and an
audible signal.The system has a fault.
Carry out (3).
+ Lane
Positioning
Assist Fixed, accompanied
by the Ser vice
warning lamp. The system has a fault.
Carry out (3).
Warning/indicator lamp
StateCause Actions/Observations
+
+ Hill start assist
Fixed. The system has a fault. Carry out (3).
1
Instruments
Page 22 of 320
20

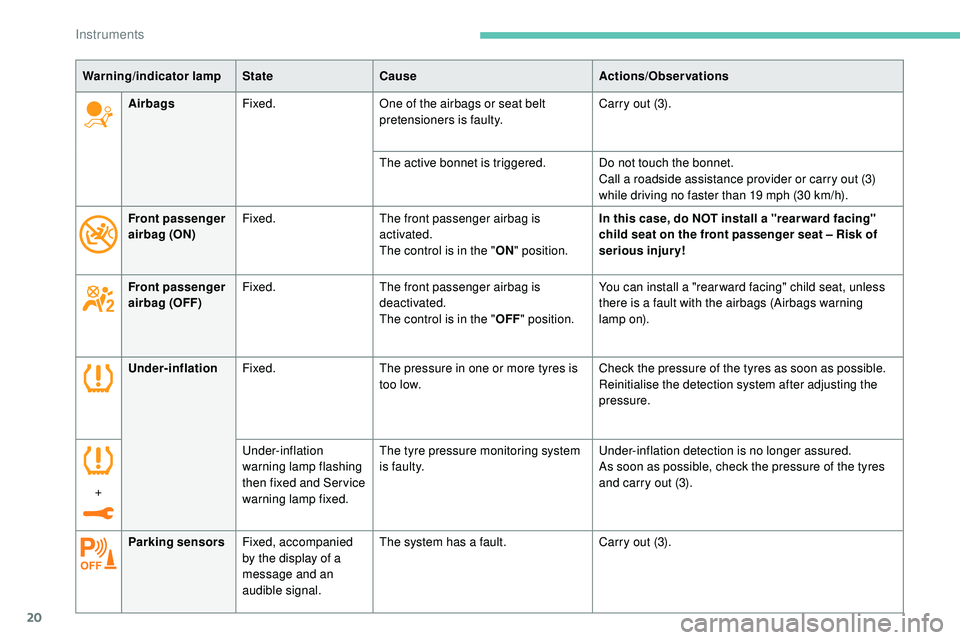

Under-inflationFixed. The pressure in one or more tyres is
too low. Check the pressure of the tyres as soon as possible.
Reinitialise the detection system after adjusting the
pressure.
+ Under-inflation
warning lamp flashing
then fixed and Ser vice
warning lamp fixed.The tyre pressure monitoring system
is faulty.
Under-inflation detection is no longer assured.
As soon as possible, check the pressure of the tyres
and carry out (3).
Warning/indicator lamp
StateCause Actions/Observations
Parking sensors Fixed, accompanied
by the display of a
message and an
audible signal. The system has a fault.
Carry out (3).
Airbags
Fixed. One of the airbags or seat belt
pretensioners is faulty. Carry out (3).
The active bonnet is triggered. Do not touch the bonnet. Call a roadside assistance provider or carry out (3)
while driving no faster than 19 mph (30 km/h).
Front passenger
airbag (ON) Fixed.
The front passenger airbag is
activated.
The control is in the "ON" position. In this case, do NOT install a "rear ward facing"
child seat on the front passenger seat – Risk of
serious injury!
Front passenger
airbag (OFF) Fixed.
The front passenger airbag is
deactivated.
The control is in the "OFF" position. You can install a "rear ward facing" child seat, unless
there is a fault with the airbags (Airbags warning
lamp
on).
Instruments
Page 23 of 320
21

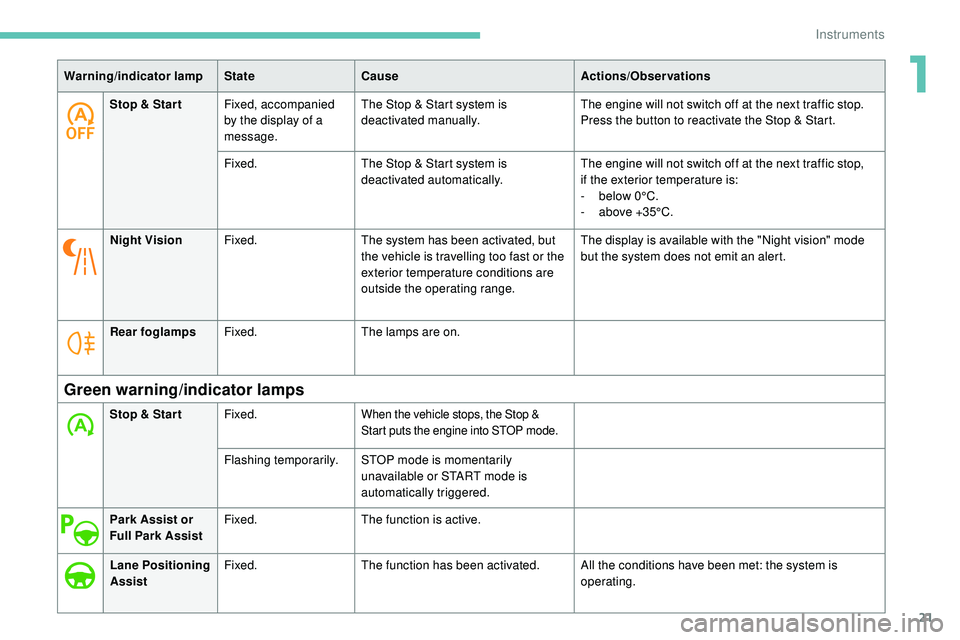

Stop & Star tFixed, accompanied
by the display of a
message. The Stop & Start system is
deactivated manually.
The engine will not switch off at the next traffic stop.
Press the button to reactivate the Stop & Start.
Fixed. The Stop & Start system is
deactivated automatically. The engine will not switch off at the next traffic stop,
if
the exterior temperature is:
-
belo
w 0°C.
-
a
bove +35°C.
Night Vision Fixed. The system has been activated, but
the vehicle is travelling too fast or the
exterior temperature conditions are
outside the operating range. The display is available with the "Night vision" mode
but the system does not emit an alert.
Rear foglamps Fixed. The lamps are on.
Warning/indicator lamp
StateCause Actions/Observations
Green warning/indicator lamps
Stop & Star tFixed.When the vehicle stops, the Stop &
Start puts the engine into STOP mode.
Flashing temporarily. STOP mode is momentarily
unavailable or START mode is
automatically triggered.
Park Assist or
Full Park Assist Fixed.
The function is active.
Lane Positioning
Assist Fixed.
The function has been activated. All the conditions have been met: the system is
operating.
1
Instruments
Page 24 of 320
22

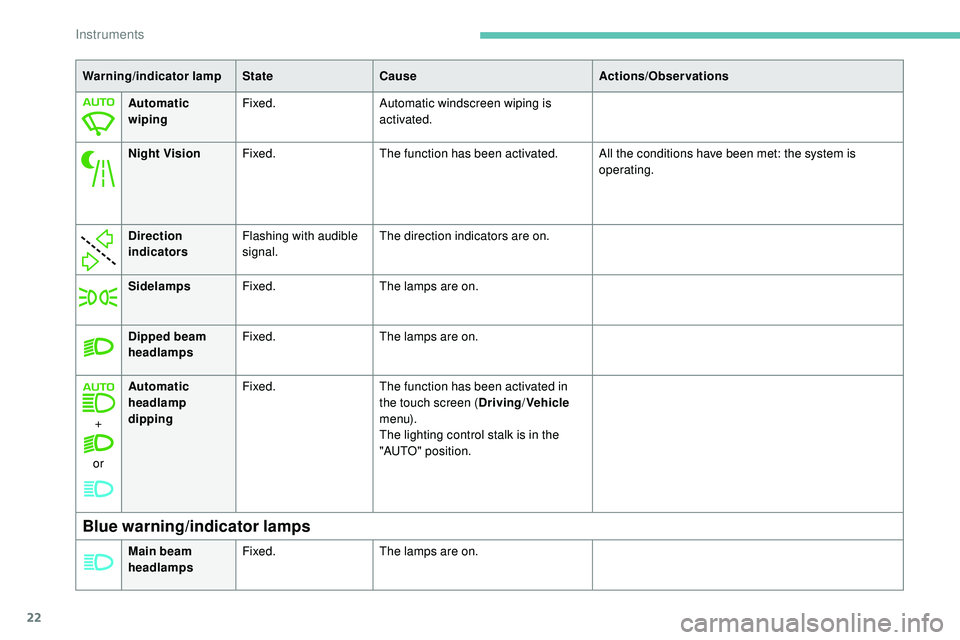

Dipped beam
headlampsFixed.
The lamps are on.
+
or Automatic
headlamp
dipping
Fixed.
The function has been activated in
the touch screen (Driving/Vehicle
m e n u).
The lighting control stalk is in the
"AUTO" position.
Warning/indicator lamp
StateCause Actions/Observations
Blue warning/indicator lamps
Main beam
headlampsFixed.
The lamps are on.
Automatic
wiping
Fixed.
Automatic windscreen wiping is
activated.
Night Vision Fixed. The function has been activated. All the conditions have been met: the system is
operating.
Direction
indicators Flashing with audible
signal. The direction indicators are on.
Sidelamps Fixed. The lamps are on.
Instruments
Page 25 of 320
23
Indicators
Service indicator
The ser vice indicator is displayed in the
instrument panel. Depending on the vehicle
version:
-
t
he distance recorder display line indicates
the distance remaining before the next
ser vice is due, or the distance travelled
since it was due preceded by the sign "-". The distance indicated (in miles or
kilometres) is calculated according to the
distance covered and the time elapsed
since the last ser vice.
The alert may be triggered close to a due
date.
Warning/indicator
lamp State
CauseActions/
Observations
Ser vice
spanner Lights up temporarily
when the ignition is
switched on. Between 620 and 1,860
miles (1,000 and 3,000
km) remain before the
next ser vice is due.
Fixed, when the
ignition is switched on. The ser vice is due in
less than 620 miles
(1,000 km).Have your vehicle
serviced very soon.
+ Ser vice
spanner
flashing
Flashing then fixed,
when the ignition is
switched on.
(For BlueHDi Diesel
versions, associated
with the Ser vice
warning lamp). The servicing interval
has been exceeded.
Have your vehicle
ser viced as soon as
possible.
-
a
n alert message indicates the distance
remaining, as well as the period before the
next ser vice is due or how long it is overdue.
Resetting the service indicator
The ser vice indicator must be reset after each
service.
If you have carried out the ser vice on your
vehicle yourself:
F
S
witch off the ignition.
F
P
ress the button located at the end of the
wiper control stalk and hold it down.
F
S
witch on the ignition; a temporary display
window appears and a countdown begins.
F
W
hen the display indicates =0, release the
button; the spanner disappears.
If you have to disconnect the battery
following this operation, lock the vehicle
and wait at least 5 minutes for the reset to
be registered.
1
Instruments
Page 26 of 320
24

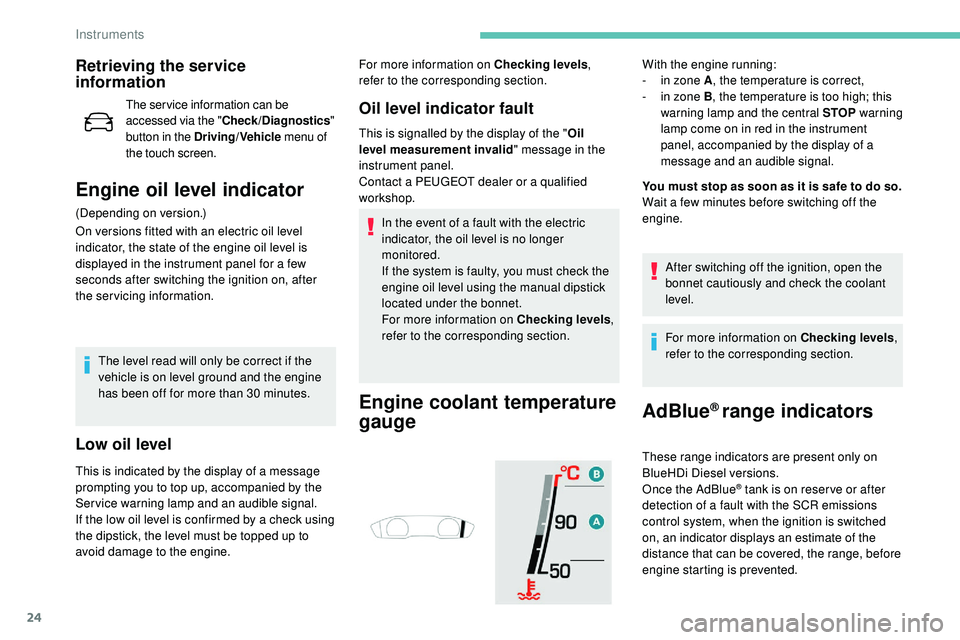

Retrieving the service
information
The ser vice information can be
accessed via the "Check/Diagnostics "
button in the Driving/Vehicle menu of
the touch screen.
Engine oil level indicator
(Depending on version.)
On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds after switching the ignition on, after
the servicing information.
The level read will only be correct if the
vehicle is on level ground and the engine
has been off for more than 30 minutes.
Low oil level
This is indicated by the display of a message
prompting you to top up, accompanied by the
Service warning lamp and an audible signal.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine. For more information on Checking levels
,
refer to the corresponding section.
Oil level indicator fault
This is signalled by the display of the " Oil
level measurement invalid " message in the
instrument panel.
Contact a PEUGEOT dealer or a qualified
workshop.
In the event of a fault with the electric
indicator, the oil level is no longer
monitored.
If the system is faulty, you must check the
engine oil level using the manual dipstick
located under the bonnet.
For more information on Checking levels ,
refer to the corresponding section.
Engine coolant temperature
gauge
With the engine running:
- i n zone A , the temperature is correct,
-
i
n zone B , the temperature is too high; this
warning lamp and the central STOP warning
lamp come on in red in the instrument
panel, accompanied by the display of a
message and an audible signal.
You must stop as soon as it is safe to do so.
Wait a few minutes before switching off the
engine.
After switching off the ignition, open the
bonnet cautiously and check the coolant
level.
For more information on Checking levels ,
refer to the corresponding section.
AdBlue® range indicators
These range indicators are present only on
BlueHDi Diesel versions.
Once the AdBlue
® tank is on reser ve or after
detection of a fault with the SCR emissions
control system, when the ignition is switched
on, an indicator displays an estimate of the
distance that can be covered, the range, before
engine starting is prevented.
Instruments
Page 27 of 320
25

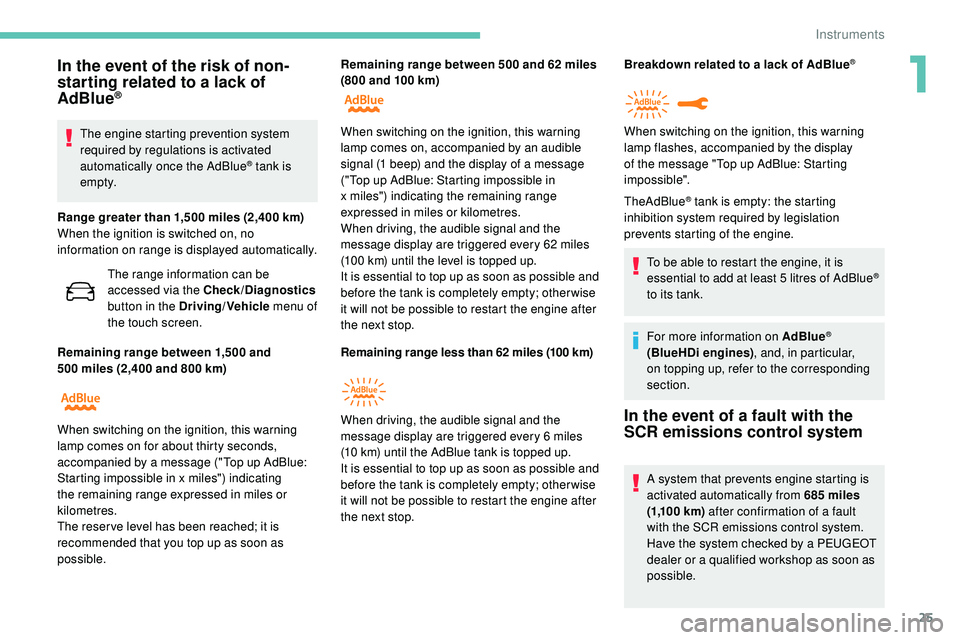

In the event of the risk of non-
starting related to a lack of
AdBlue
®
The engine starting prevention system
required by regulations is activated
automatically once the AdBlue
® tank is
e m pt y.
Range greater than 1,500 miles (2,400 km)
When the ignition is switched on, no
information on range is displayed automatically. The range information can be
accessed via the Check/Diagnostics
button in the Driving/Vehicle menu of
the touch screen.
Remaining range between 1,500 and
500
miles (2,400 and 800
km) Remaining range between 500 and 62 miles
(800 and 100
km)
Remaining range less than 62 miles (100 km)
When driving, the audible signal and the
message display are triggered every 6 miles
(10 km) until the AdBlue tank is topped up.
It is essential to top up as soon as possible and
before the tank is completely empty; other wise
it will not be possible to restart the engine after
the next stop. Breakdown related to a lack of AdBlue
®
TheAdBlue® tank is empty: the starting
inhibition system required by legislation
prevents starting of the engine.
To be able to restart the engine, it is
essential to add at least 5 litres of AdBlue
®
to its tank.
For more information on AdBlue
®
(BlueHDi engines) , and, in particular,
on topping up, refer to the corresponding
section.
When switching on the ignition, this warning
lamp comes on for about thirty seconds,
accompanied by a message ("Top up AdBlue:
Starting impossible in x miles") indicating
the remaining range expressed in miles or
kilometres.
The reser ve level has been reached; it is
recommended that you top up as soon as
possible. When switching on the ignition, this
warning
lamp comes on, accompanied by an audible
signal (1 beep) and the display of a message
("Top up AdBlue: Starting impossible in
x miles") indicating the remaining range
expressed in miles or kilometres.
When driving, the audible signal and the
message display are triggered every 62 miles
(100 km) until the level is topped up.
It is essential to top up as soon as possible and
before the tank is completely empty; other wise
it will not be possible to restart the engine after
the next stop. When switching on the ignition, this warning
lamp flashes, accompanied by the display
of the message "Top up AdBlue: Starting
impossible".
In the event of a fault with the
SCR emissions control system
A system that prevents engine starting is
activated automatically from 685 miles
(1,10 0 k m)
after confirmation of a fault
with the SCR emissions control system.
Have the system checked by a PEUGEOT
dealer or a qualified workshop as soon as
possible.
1
Instruments
Page 28 of 320
26

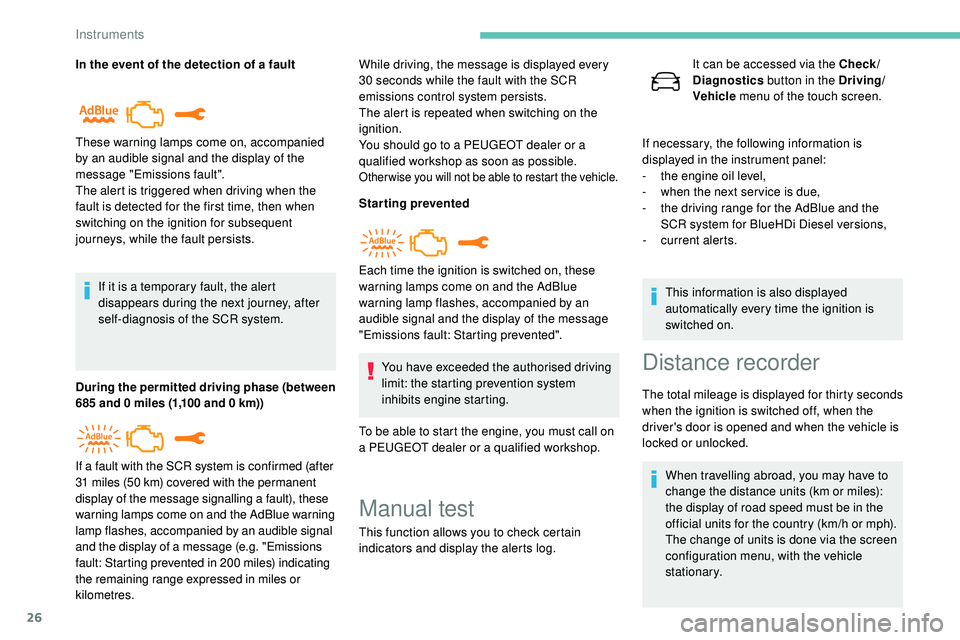

In the event of the detection of a faultIf it is a temporary fault, the alert
disappears during the next journey, after
self-diagnosis of the SCR system.
During the permitted driving phase (between
685 and 0 miles (1,100 and 0 km)) While driving, the message is displayed every
30 seconds while the fault with the SCR
emissions control system persists.
The alert is repeated when switching on the
ignition.
You should go to a PEUGEOT dealer or a
qualified workshop as soon as possible.
Other wise you will not be able to restart the vehicle.
Starting prevented
You have exceeded the authorised driving
limit: the starting prevention system
inhibits engine starting.
To be able to start the engine, you must call on
a PEUGEOT dealer or a qualified workshop.
These warning lamps come on, accompanied
by an audible signal and the display of the
message "Emissions fault".
The alert is triggered when driving when the
fault is detected for the first time, then when
switching on the ignition for subsequent
journeys, while the fault persists.
If a fault with the SCR system is confirmed (after
31 miles (50 km) covered with the permanent
display of the message signalling a fault), these
warning lamps come on and the AdBlue warning
lamp flashes, accompanied by
an audible signal
and the display of a message (e.g. "Emissions
fault: Starting prevented in 200 miles) indicating
the remaining range expressed in miles or
kilometres. Each time the ignition is switched on, these
warning lamps come on and the AdBlue
warning lamp flashes, accompanied by an
audible signal and the display of the message
"Emissions fault: Starting prevented".
Manual test
This function allows you to check certain
indicators and display the alerts log. It can be accessed via the Check/
Diagnostics
button in the Driving/
Vehicle menu of the touch screen.
If necessary, the following information is
displayed in the instrument panel:
-
t
he engine oil level,
-
w
hen the next ser vice is due,
-
t
he driving range for the AdBlue and the
SCR system for BlueHDi Diesel versions,
-
c
urrent alerts.
Distance recorder
The total mileage is displayed for thirty seconds
when the ignition is switched off, when the
driver's door is opened and when the vehicle is
locked or unlocked.
When travelling abroad, you may have to
change the distance units (km or miles):
the display of road speed must be in the
official units for the country (km/h or mph).
The change of units is done via the screen
configuration menu, with the vehicle
stationary. This information is also displayed
automatically every time the ignition is
switched on.
Instruments
Page 29 of 320
27

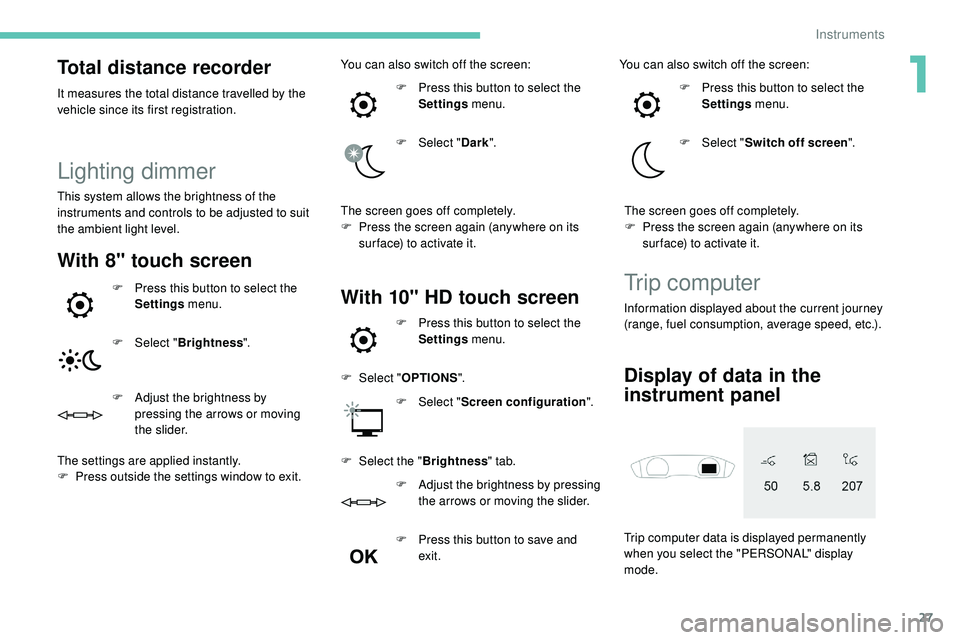

Total distance recorder
It measures the total distance travelled by the
vehicle since its first registration.
Lighting dimmer
This system allows the brightness of the
instruments and controls to be adjusted to suit
the ambient light level.
With 8" touch screen
F Press this button to select the Settings menu.
F
Sel
ect "Brightness ".
F
A
djust the brightness by
pressing the arrows or moving
the slider.
The settings are applied instantly.
F
P
ress outside the settings window to exit. You can also switch off the screen:
F
P
ress this button to select the
Settings menu.
F
Sel
ect "
Dark ".
The screen goes off completely.
F
P
ress the screen again (anywhere on its
sur face) to activate it.With 10" HD touch screenTrip computer
Information displayed about the current journey
(range, fuel consumption, average speed, etc.).
Trip computer data is displayed permanently
when you select the "PERSONAL" display
mode.
Display of data in the
instrument panel
F Press this button to select the Settings menu.
F
Sel
ect " OPTIONS ".
F
Sel
ect "Screen configuration ".
F
Sel
ect the " Brightness " tab.
F
A
djust the brightness by pressing
the arrows or moving the slider.
F
P
ress this button to save and
exit. You can also switch off the screen:
F
P
ress this button to select the
Settings menu.
F
Sel
ect "
Switch off screen ".
The screen goes off completely.
F
P
ress the screen again (anywhere on its
sur face) to activate it.
1
Instruments
Page 30 of 320
28

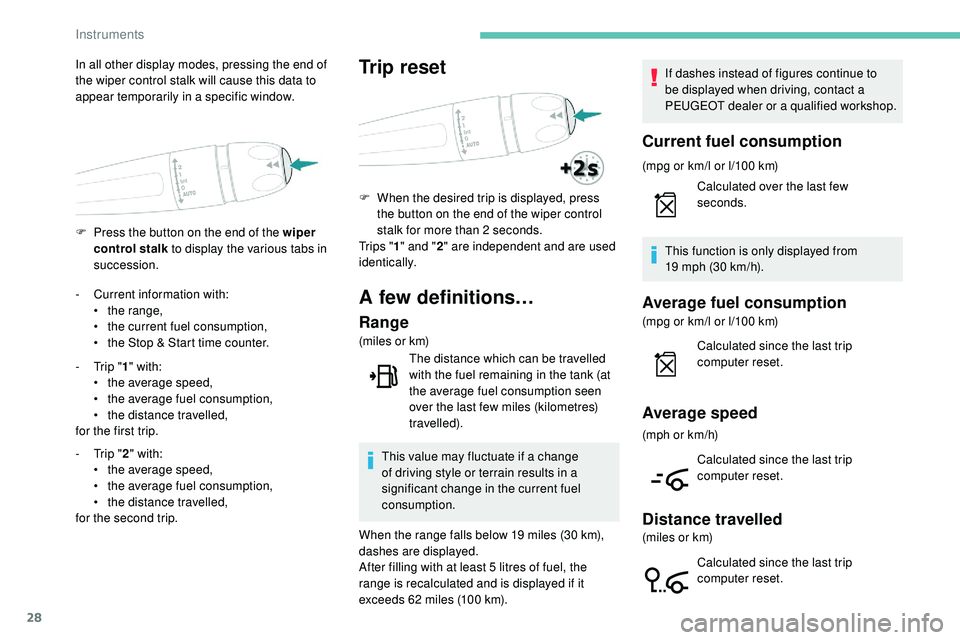

F Press the button on the end of the wiper control stalk to display the various tabs in
succession.
In all other display modes, pressing the end of
the wiper control stalk will cause this data to
appear temporarily in a specific window.
-
C
urrent information with:
•
t
he range,
•
t
he current fuel consumption,
•
t
he Stop & Start time counter.
-
T
rip "1" with:
•
t
he average speed,
•
t
he average fuel consumption,
•
t
he distance travelled,
for the first trip.
-
T
rip "2" with:
•
t
he average speed,
•
t
he average fuel consumption,
•
t
he distance travelled,
for the second trip.
Trip reset
F When the desired trip is displayed, press the button on the end of the wiper control
stalk for more than 2 seconds.
Tr i p s " 1" and " 2" are independent and are used
identically.
A few definitions…
Range
(miles or km)
The distance which can be travelled
with the fuel remaining in the tank (at
the average fuel consumption seen
over the last few miles (kilometres)
travelled).
This value may fluctuate if a change
of driving style or terrain results in a
significant change in the current fuel
consumption.
When the range falls below 19 miles (30 km),
dashes are displayed.
After filling with at least 5 litres of fuel, the
range is recalculated and is displayed if it
exceeds 62 miles (100 km). If dashes instead of figures continue to
be displayed when driving, contact a
PEUGEOT dealer or a qualified workshop.
Current fuel consumption
(mpg or km/l or l/100 km)
Calculated over the last few
seconds.
This function is only displayed from
19
mph (30 km/h).
Average fuel consumption
(mpg or km/l or l/100 km) Calculated since the last trip
computer reset.
Average speed
(mph or km/h)
Calculated since the last trip
computer reset.
Distance travelled
(miles or km)Calculated since the last trip
computer reset.
Instruments
