PEUGEOT 607 2003 Owners Manual

10-02-2003
PRACTICAL INFORMATION
150

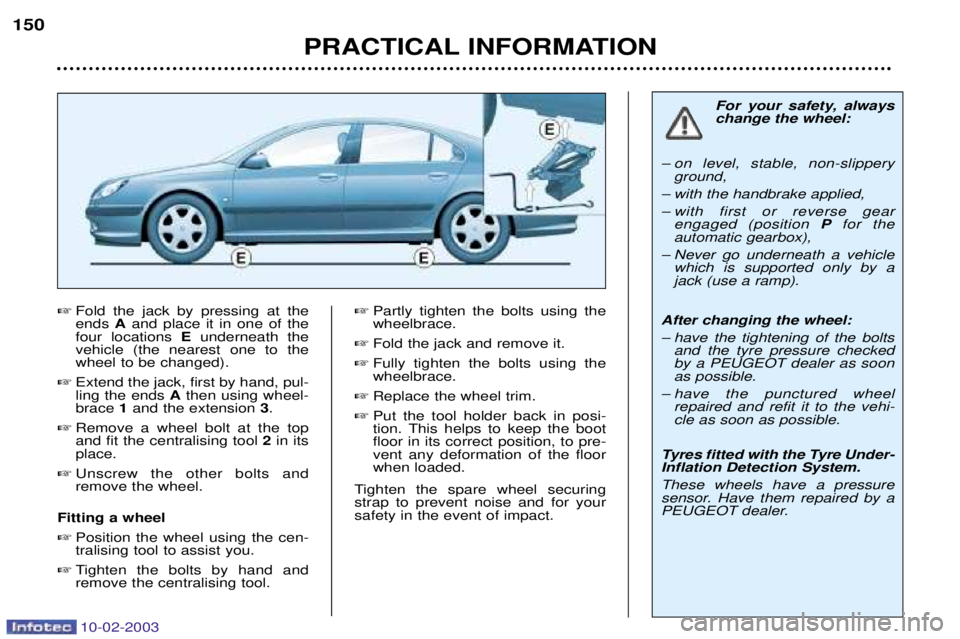

Fold the jack by pressing at the ends Aand place it in one of the
four locations Eunderneath the
vehicle (the nearest one to thewheel to be changed).
 Extend the jack, first by hand, pul-ling the ends Athen using wheel-
brace 1and the extension 3.
 Remove a wheel bolt at the topand fit the centralising tool 2in its
place.
 Unscrew the other bolts andremove the wheel.
Fitting a wheel  Position the wheel using the cen-tralising tool to assist you.
 Tighten the bolts by hand andremove the centralising tool.
Partly tighten the bolts using thewheelbrace.
 Fold the jack and remove it.
 Fully tighten the bolts using thewheelbrace.
 Replace the wheel trim.
 Put the tool holder back in posi-
tion. This helps to keep the bootfloor in its correct position, to pre-vent any deformation of the floorwhen loaded.
Tighten the spare wheel securingstrap to prevent noise and for yoursafety in the event of impact. For your safety, alwayschange the wheel:
Ð on level, stable, non-slippery ground,
Ð with the handbrake applied,
Ð with first or reverse gear engaged (position Pfor the
automatic gearbox),
Ð Never go underneath a vehicle which is supported only by a jack (use a ramp).
After changing the wheel:
Ð have the tightening of the bolts and the tyre pressure checked by a PEUGEOT dealer as soonas possible.
Ð have the punctured wheel repaired and refit it to the vehi-cle as soon as possible.
Tyres fitted with the Tyre Under-Inflation Detection System. These wheels have a pressure
sensor. Have them repaired by a
PEUGEOT dealer.

10-02-2003

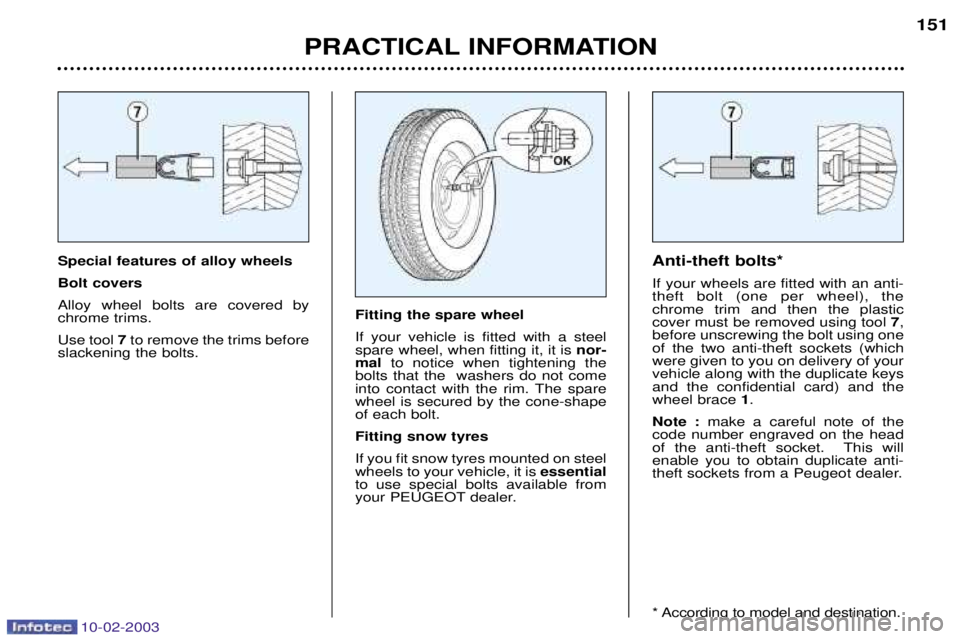

Special features of alloy wheels Bolt coversAlloy wheel bolts are covered by chrome trims. Use tool7to remove the trims before
slackening the bolts. Anti-theft bolts*If your wheels are fitted with an anti- theft bolt (one per wheel), thechrome trim and then the plasticcover must be removed using tool
7,
before unscrewing the bolt using oneof the two anti-theft sockets (whichwere given to you on delivery of yourvehicle along with the duplicate keysand the confidential card) and thewheel brace 1.
Note : make a careful note of the
code number engraved on the head
of the anti-theft socket. This willenable you to obtain duplicate anti-
theft sockets from a Peugeot dealer.
* According to model and destination.
PRACTICAL INFORMATION 151
Fitting the spare wheel If your vehicle is fitted with a steel spare wheel, when fitting it, it is
nor-
mal to notice when tightening the
bolts that the washers do not come
into contact with the rim. The sparewheel is secured by the cone-shapeof each bolt. Fitting snow tyresIf you fit snow tyres mounted on steel wheels to your vehicle, it is essential
to use special bolts available from
your PEUGEOT dealer.

10-02-2003
PRACTICAL INFORMATION
152

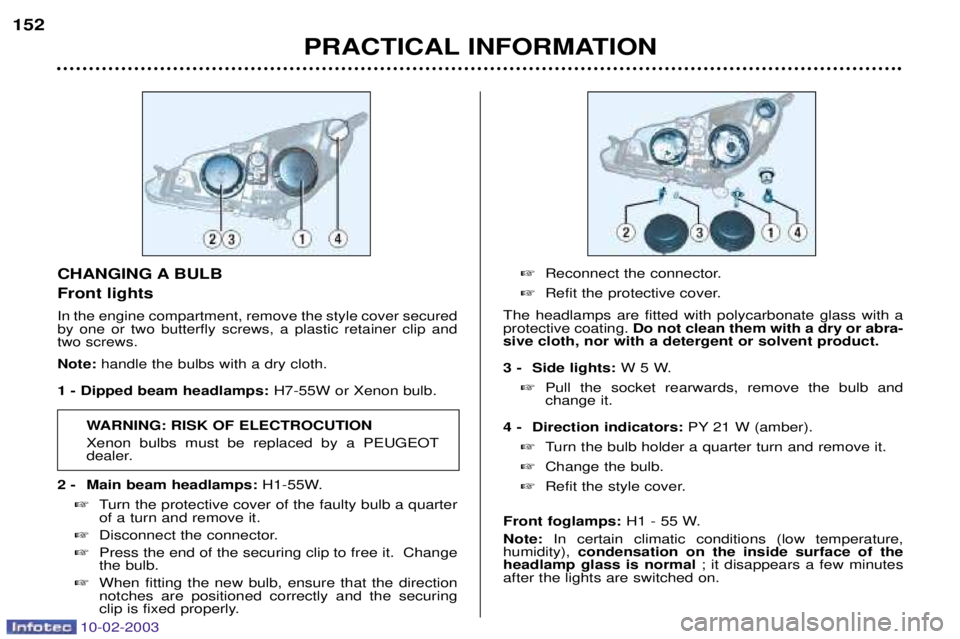

CHANGING A BULB Front lights
In the engine compartment, remove the style cover secured by one or two butterfly screws, a plastic retainer clip andtwo screws. Note:
handle the bulbs with a dry cloth.
1 - Dipped beam headlamps: H7-55W or Xenon bulb.
WARNING: RISK OF ELECTROCUTION Xenon bulbs must be replaced by a PEUGEOT
dealer.
2 - Main beam headlamps: H1-55W.
 Turn the protective cover of the faulty bulb a quarterof a turn and remove it.
 Disconnect the connector.
 Press the end of the securing clip to free it. Changethe bulb.
 When fitting the new bulb, ensure that the directionnotches are positioned correctly and the securing
clip is fixed properly.
Reconnect the connector.
 Refit the protective cover.
The headlamps are fitted with polycarbonate glass with aprotective coating. Do not clean them with a dry or abra-
sive cloth, nor with a detergent or solvent product.
3 - Side lights: W 5 W.
 Pull the socket rearwards, remove the bulb and change it.
4 - Direction indicators: PY 21 W (amber).
 Turn the bulb holder a quarter turn and remove it.
 Change the bulb.
 Refit the style cover.
Front foglamps: H1 - 55 W.
Note: In certain climatic conditions (low temperature,
humidity), condensation on the inside surface of the
headlamp glass is normal ; it disappears a few minutes
after the lights are switched on.

10-02-2003

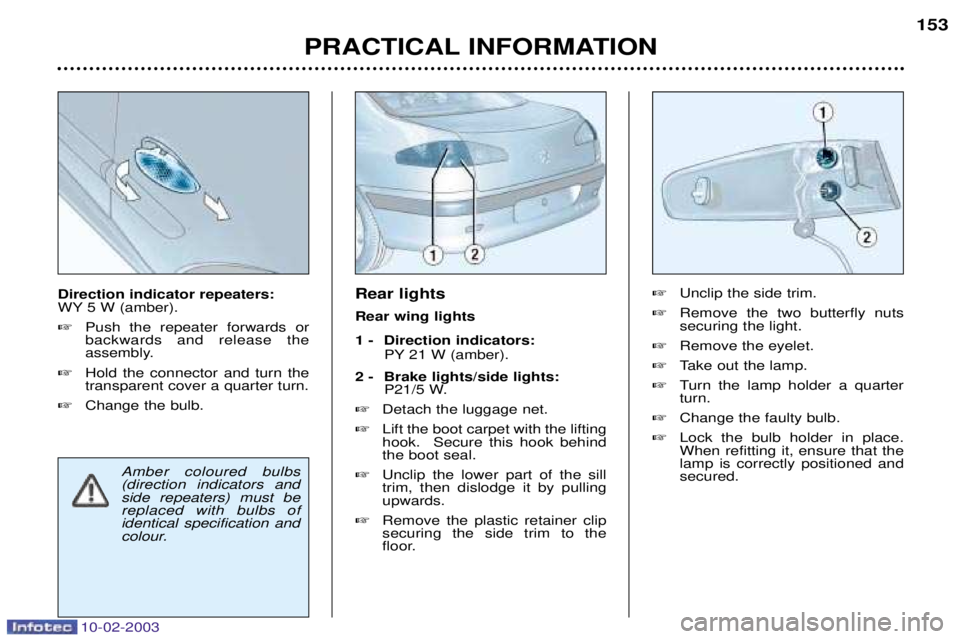

Rear lights Rear wing lights
1 - Direction indicators: PY 21 W (amber).
2 - Brake lights/side lights: P21/5 W.
 Detach the luggage net.
 Lift the boot carpet with the lifting hook. Secure this hook behindthe boot seal.
 Unclip the lower part of the silltrim, then dislodge it by pullingupwards.
 Remove the plastic retainer clipsecuring the side trim to the
floor.
Unclip the side trim.
 Remove the two butterfly nutssecuring the light.
 Remove the eyelet.
 Take out the lamp.
 Turn the lamp holder a quarterturn.
 Change the faulty bulb.
 Lock the bulb holder in place.When refitting it, ensure that thelamp is correctly positioned andsecured.
PRACTICAL INFORMATION
153Direction indicator repeaters:
WY 5 W (amber).
 Push the repeater forwards orbackwards and release the
assembly.
 Hold the connector and turn thetransparent cover a quarter turn.
 Change the bulb.
Amber coloured bulbs
(direction indicators and side repeaters) must bereplaced with bulbs of
identical specification and
colour.

10-02-2003
Rear lights Rear wing lights
1 - Direction indicators: PY 21 W (amber).
2 - Brake lights/side lights: P21/5 W.
 Detach the luggage net.
 Lift the boot carpet with the lifting hook. Secure this hook behindthe boot seal.
 Unclip the lower part of the silltrim, then dislodge it by pullingupwards.
 Remove the plastic retainer clipsecuring the side trim to the
floor.
Unclip the side trim.
 Remove the two butterfly nutssecuring the light.
 Remove the eyelet.
 Take out the lamp.
 Turn the lamp holder a quarterturn.
 Change the faulty bulb.
 Lock the bulb holder in place.When refitting it, ensure that thelamp is correctly positioned andsecured.
PRACTICAL INFORMATION
153Direction indicator repeaters:
WY 5 W (amber).
 Push the repeater forwards orbackwards and release the
assembly.
 Hold the connector and turn thetransparent cover a quarter turn.
 Change the bulb.
Amber coloured bulbs
(direction indicators and side repeaters) must bereplaced with bulbs of
identical specification and
colour.

10-02-2003
154PRACTICAL INFORMATION

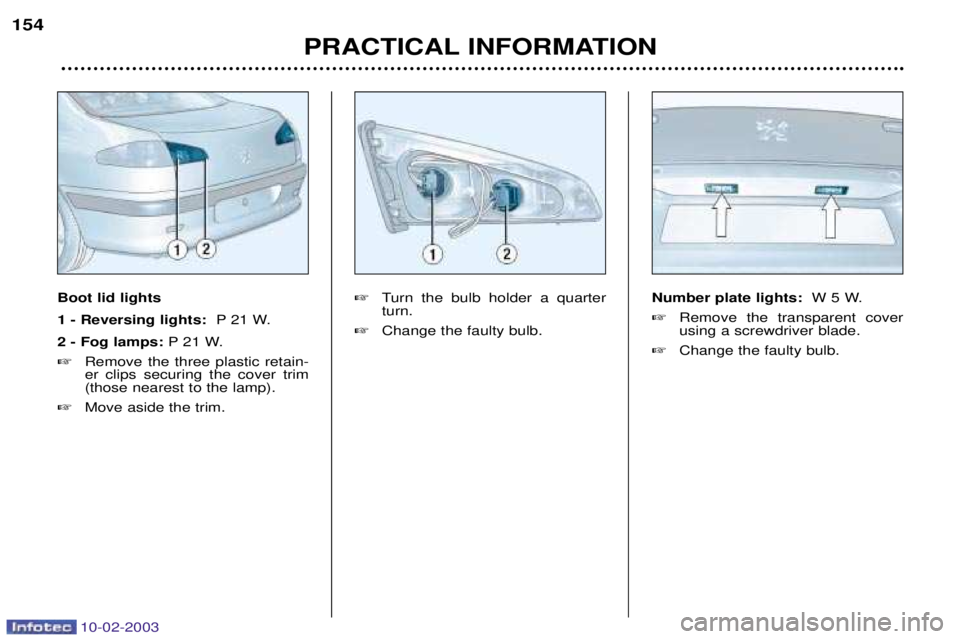

Boot lid lights 1 - Reversing lights: P 21 W.
2 - Fog lamps: P 21 W.
 Remove the three plastic retain- er clips securing the cover trim(those nearest to the lamp).
 Move aside the trim.
Turn the bulb holder a quarterturn.
 Change the faulty bulb. Number plate lights:
W 5 W.
 Remove the transparent coverusing a screwdriver blade.
 Change the faulty bulb.

PRACTICAL INFORMATION155
Correct Incorrect
Pliers A

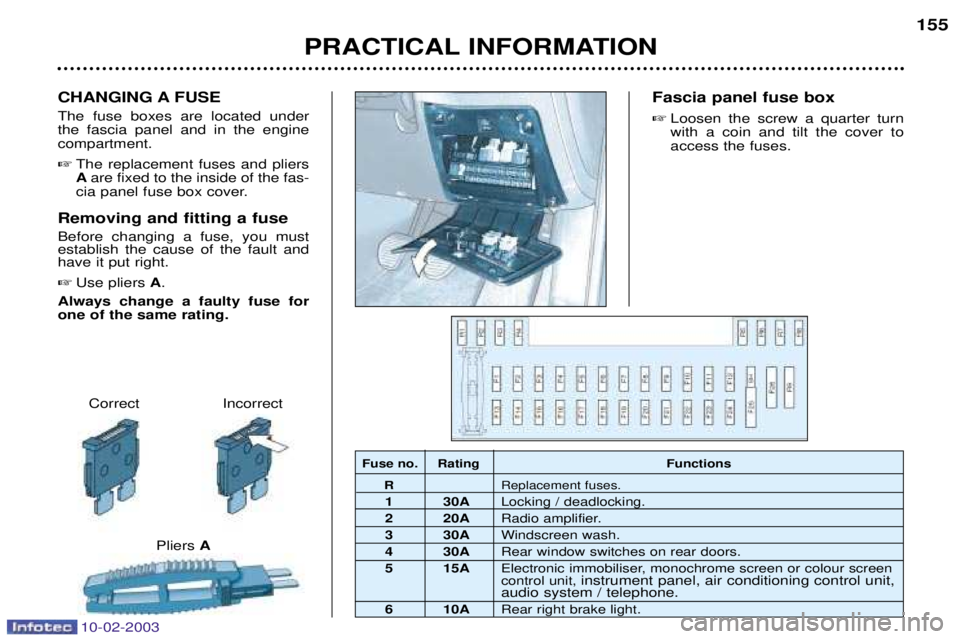

CHANGING A FUSE The fuse boxes are located under the fascia panel and in the enginecompartment.
 The replacement fuses and pliersAare fixed to the inside of the fas-
cia panel fuse box cover.
Removing and fitting a fuse Before changing a fuse, you must establish the cause of the fault andhave it put right.  Use pliers A.
Always change a faulty fuse for one of the same rating. Fascia panel fuse box
 Loosen the screw a quarter turnwith a coin and tilt the cover toaccess the fuses.
Fuse no. Rating Functions R Replacement fuses.
1 30A Locking / deadlocking.
2 20A Radio amplifier.
3 30A Windscreen wash.
4 30A Rear window switches on rear doors.
5 15A Electronic immobiliser, monochrome screen or colour screen control unit, instrument panel, air conditioning control unit,
audio system / telephone.
6 10A Rear right brake light.
10-02-2003

10-02-2003
The electrical system of your vehicle is designedto operate with standardor optional equipment. Before installing other
electrical equipment or acces- sories on your vehicle, contact a
PEUGEOT dealer. PEUGEOT will not accept respon- sibility for the cost incurred inrepairing your vehicle or for rectify-ing the malfunctions resulting fromthe installation of accessories notsupplied and not recommended byPEUGEOT and not installed inaccordance with its instructions, inparticular where the equipment in question consumes more than10 milliamperes. *Maxi fuses provide additional protection for electrical systems.All work must be carried out by
your PEUGEOT dealer.
PRACTICAL INFORMATION 157

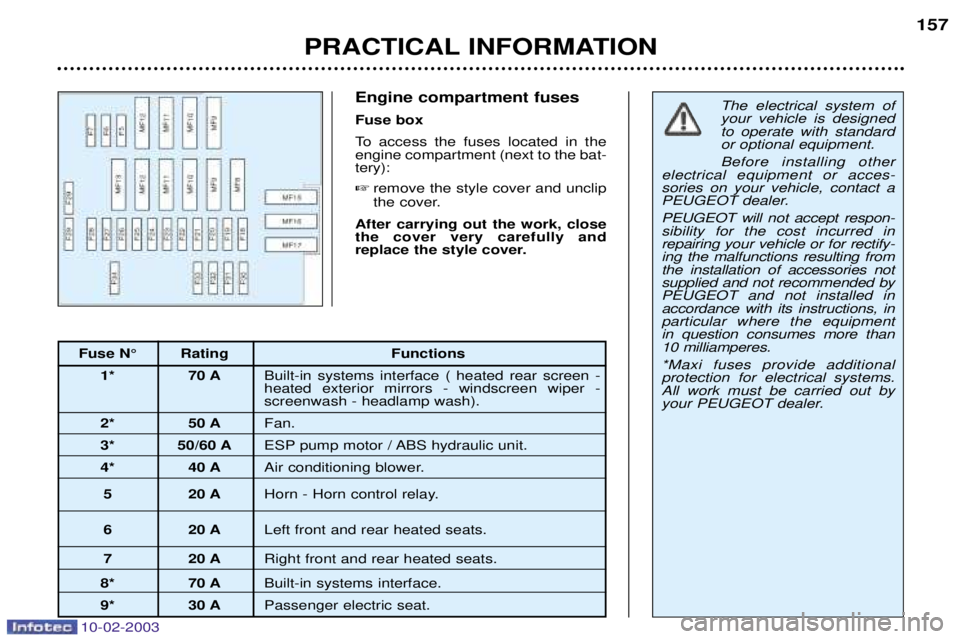

Engine compartment fuses Fuse box
To access the fuses located in the engine compartment (next to the bat-tery):
 remove the style cover and unclip
the cover.
After carrying out the work, close the cover very carefully and
replace the style cover.
Fuse N¡ Rating Functions 1* 70 A Built-in systems interface ( heated rear screen - heated exterior mirrors - windscreen wiper -screenwash - headlamp wash).
2* 50 A Fan.
3* 50/60 A ESP pump motor / ABS hydraulic unit.
4* 40 A Air conditioning blower.
5 20 A Horn - Horn control relay.
6 20 A Left front and rear heated seats.
7 20 A Right front and rear heated seats.
8* 70 A Built-in systems interface.
9* 30 A Passenger electric seat.

10-02-2003

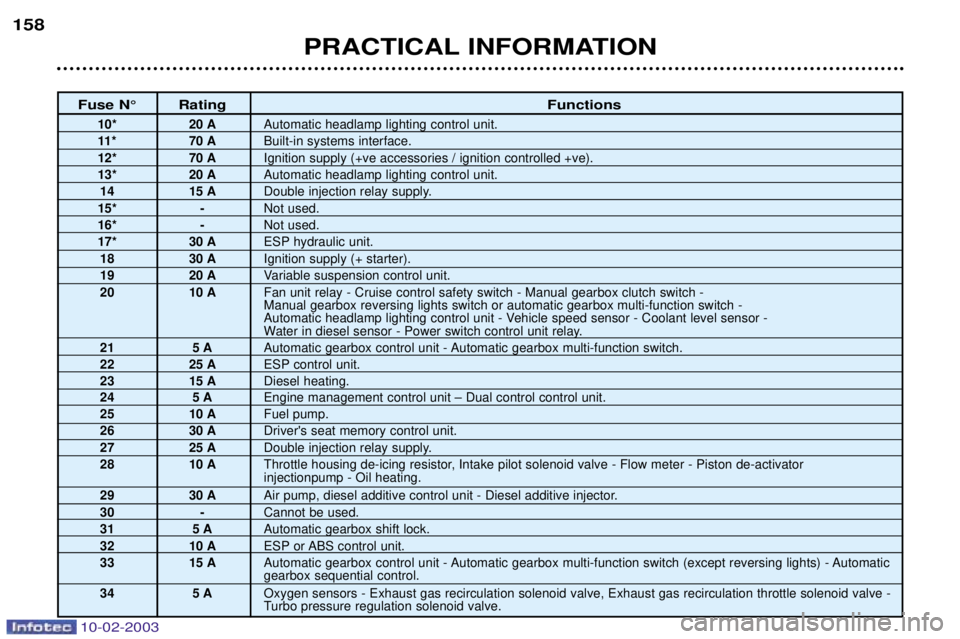

Fuse N¡ RatingFunctions
10* 20 AAutomatic headlamp lighting control unit.
11* 70 A Built-in systems interface.
12* 70 A Ignition supply (+ve accessories / ignition controlled +ve).
13* 20 A Automatic headlamp lighting control unit.
14 15 A Double injection relay supply.
15* - Not used.
16* - Not used.
17* 30 A ESP hydraulic unit.
18 30 A Ignition supply (+ starter).
19 20 A Variable suspension control unit.
20 10 A Fan unit relay - Cruise control safety switch - Manual gearbox clutch switch - Manual gearbox reversing lights switch or automatic gearbox multi-function switch -
Automatic headlamp lighting control unit - Vehicle speed sensor - Coolant level sensor -
Water in diesel sensor - Power switch control unit relay.
21 5 A Automatic gearbox control unit - Automatic gearbox multi-function switch.
22 25 A ESP control unit.
23 15 A Diesel heating.
24 5 A Engine management control unit Ð Dual control control unit.
25 10 A Fuel pump.
26 30 A Driver's seat memory control unit.
27 25 A Double injection relay supply.
28 10 A Throttle housing de-icing resistor, Intake pilot solenoid valve - Flow meter - Piston de-activator injectionpump - Oil heating.
29 30 A Air pump, diesel additive control unit - Diesel additive injector.
30 - Cannot be used.
31 5 A Automatic gearbox shift lock.
32 10 A ESP or ABS control unit.
33 15 A Automatic gearbox control unit - Automatic gearbox multi-function switch (except reversing lights) - Automaticgearbox sequential control.
34 5 A Oxygen sensors - Exhaust gas recirculation solenoid valve, Exhaust gas recirculation throttle solenoid valve -
Turbo pressure regulation solenoid valve.
PRACTICAL INFORMATION
158

PRACTICAL INFORMATION155
Correct Incorrect
Pliers A
CHANGING A FUSE The fuse boxes are located under the fascia panel and in the enginecompartment.
 The replacement fuses and pliersAare fixed to the inside of the fas-
cia panel fuse box cover.
Removing and fitting a fuse Before changing a fuse, you must establish the cause of the fault andhave it put right.  Use pliers A.
Always change a faulty fuse for one of the same rating. Fascia panel fuse box
 Loosen the screw a quarter turnwith a coin and tilt the cover toaccess the fuses.
Fuse no. Rating Functions R Replacement fuses.
1 30A Locking / deadlocking.
2 20A Radio amplifier.
3 30A Windscreen wash.
4 30A Rear window switches on rear doors.
5 15A Electronic immobiliser, monochrome screen or colour screen control unit, instrument panel, air conditioning control unit,
audio system / telephone.
6 10A Rear right brake light.
10-02-2003
