PRACTICAL INFORMATION
156

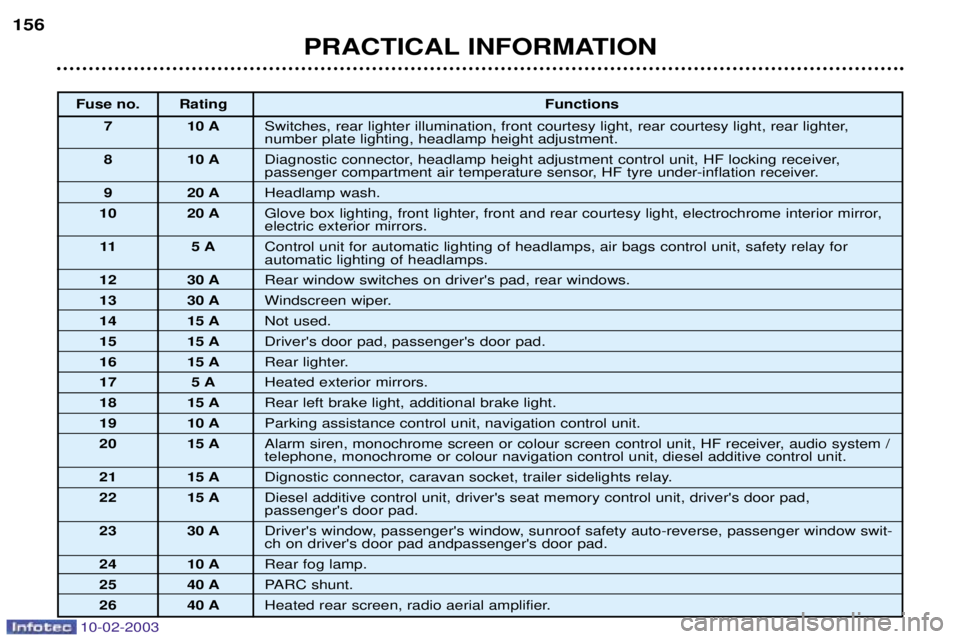

Fuse no. Rating Functions
7 10 A Switches, rear lighter illumination, front courtesy light, rear courtesy light, rear lighter, number plate lighting, headlamp height adjustment.
8 10 A Diagnostic connector, headlamp height adjustment control unit, HF locking receiver,
passenger compartment air temperature sensor, HF tyre under-inflation receiver.
9 20 A Headlamp wash.
10 20 A Glove box lighting, front lighter, front and rear courtesy light, electrochrome interior mirror,electric exterior mirrors.
11 5 A Control unit for automatic lighting of headlamps, air bags control unit, safety relay for automatic lighting of headlamps.
12 30 A Rear window switches on driver's pad, rear windows.
13 30 A Windscreen wiper.
14 15 A Not used.
15 15 A Driver's door pad, passenger's door pad.
16 15 A Rear lighter.
17 5 A Heated exterior mirrors.
18 15 A Rear left brake light, additional brake light.
19 10 A Parking assistance control unit, navigation control unit.
20 15 A Alarm siren, monochrome screen or colour screen control unit, HF receiver, audio system /telephone, monochrome or colour navigation control unit, diesel additive control unit.
21 15 A Dignostic connector, caravan socket, trailer sidelights relay.
22 15 A Diesel additive control unit, driver's seat memory control unit, driver's door pad, passenger's door pad.
23 30 A Driver's window, passenger's window, sunroof safety auto-reverse, passenger window swit-ch on driver's door pad andpassenger's door pad.
24 10 A Rear fog lamp.
25 40 A PARC shunt.
26 40 A Heated rear screen, radio aerial amplifier.

10-02-2003
PRACTICAL INFORMATION159
CHANGING A WINDSCREEN WIPER BLADE Placing the wiper blades in the maintenance position  Less than one minute after switch-
ing off the ignition, activate thewindscreen wiper stalk to positionthe blades in the centre of thewindscreen (maintenance posi-tion).
Replacing a blade  Lift the arm, then unclip the bladeand remove it.
 Fit the new blade and fold downthe arm.
To park the blades, switch on theignition and operate the wind-screen wiper stalk.

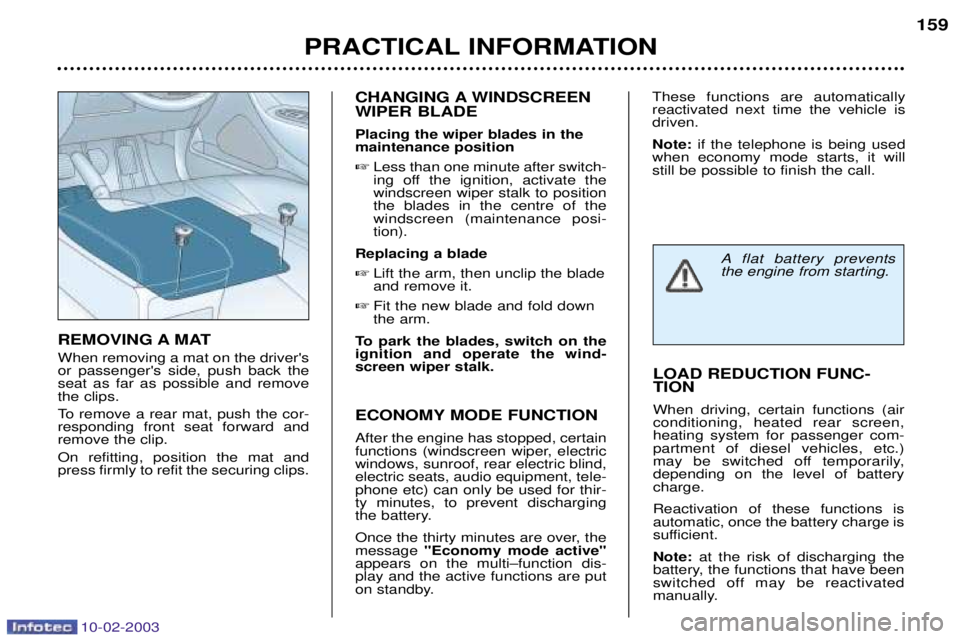

REMOVING A MAT When removing a mat on the driver's or passenger's side, push back theseat as far as possible and removethe clips.
To remove a rear mat, push the cor- responding front seat forward andremove the clip. On refitting, position the mat and press firmly to refit the securing clips.
LOAD REDUCTION FUNC- TION When driving, certain functions (air conditioning, heated rear screen,heating system for passenger com-partment of diesel vehicles, etc.)
may be switched off temporarily,depending on the level of batterycharge. Reactivation of these functions is automatic, once the battery charge is
sufficient. Note:
at the risk of discharging the
battery, the functions that have been
switched off may be reactivated
manually.
A flat battery prevents the engine from starting.
ECONOMY MODE FUNCTION After the engine has stopped, certain
functions (windscreen wiper, electricwindows, sunroof, rear electric blind,electric seats, audio equipment, tele-phone etc) can only be used for thir-ty minutes, to prevent discharging
the battery.
Once the thirty minutes are over, the message "Economy mode active"
appears on the multiÐfunction dis-play and the active functions are put
on standby. These functions are automaticallyreactivated next time the vehicle isdriven. Note:
if the telephone is being used
when economy mode starts, it will still be possible to finish the call.

10-02-2003

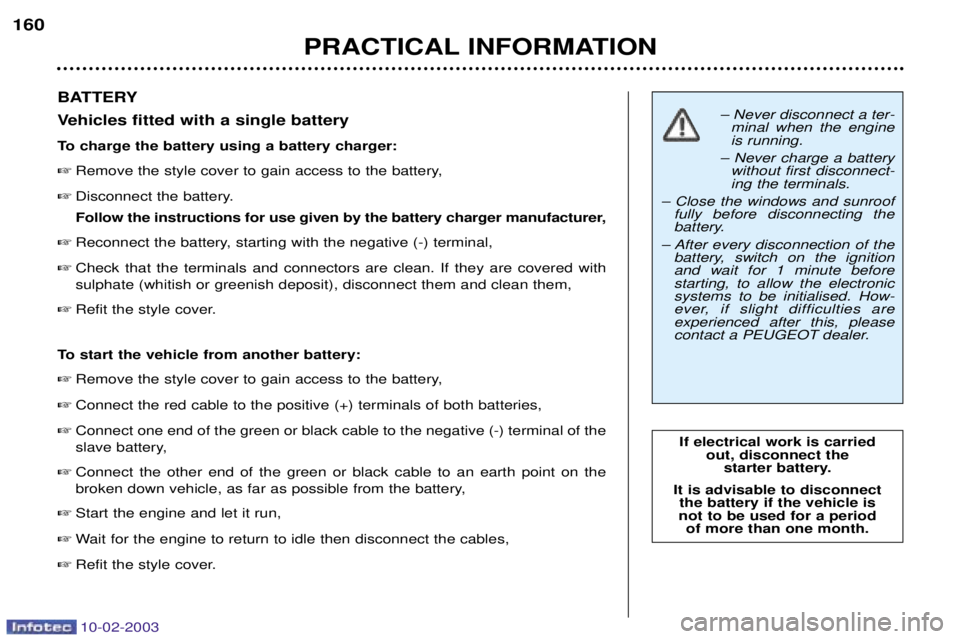

Ð Never disconnect a ter-minal when the engine is running.
Ð Never charge a battery without first disconnect-ing the terminals.
Ð Close the windows and sunroof fully before disconnecting the
battery.
Ð After every disconnection of the battery, switch on the ignitionand wait for 1 minute beforestarting, to allow the electronicsystems to be initialised. How-
ever, if slight difficulties areexperienced after this, please
contact a PEUGEOT dealer.
PRACTICAL INFORMATION
160
BATTERY
Vehicles fitted with a single battery
To charge the battery using a battery charger: Remove the style cover to gain access to the battery,
 Disconnect the battery.
Follow the instructions for use given by the battery charger manufacturer,
 Reconnect the battery, starting with the negative (-) terminal,
 Check that the terminals and connectors are clean. If they are covered with sulphate (whitish or greenish deposit), disconnect them and clean them,
 Refit the style cover.
To start the vehicle from another battery:  Remove the style cover to gain access to the battery,
 Connect the red cable to the positive (+) terminals of both batteries,
 Connect one end of the green or black cable to the negative (-) terminal of the
slave battery,
 Connect the other end of the green or black cable to an earth point on the
broken down vehicle, as far as possible from the battery,
 Start the engine and let it run,
 Wait for the engine to return to idle then disconnect the cables,
 Refit the style cover.
If electrical work is carried
out, disconnect the starter battery.
It is advisable to disconnect the battery if the vehicle is
not to be used for a period of more than one month.

10-02-2003

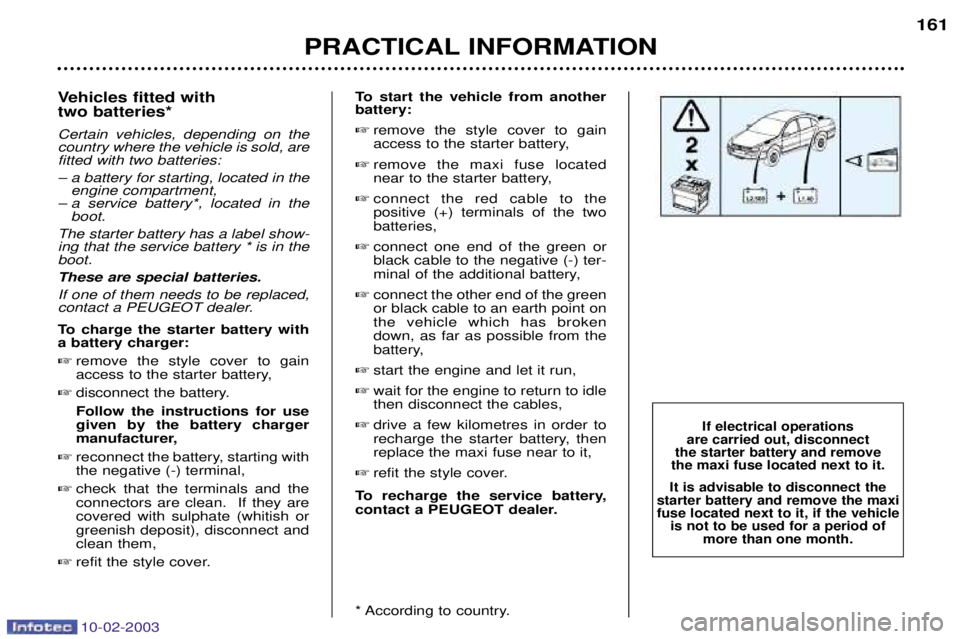

Vehicles fitted with two batteries* Certain vehicles, depending on the country where the vehicle is sold, arefitted with two batteries:
Ð a battery for starting, located in theengine compartment,
Ð a service battery*, located in the boot.
The starter battery has a label show- ing that the service battery * is in theboot. These are special batteries.If one of them needs to be replaced,
contact a PEUGEOT dealer.
To charge the starter battery with a battery charger:
 remove the style cover to gain
access to the starter battery,
 disconnect the battery. Follow the instructions for use given by the battery charger
manufacturer,
 reconnect the battery, starting withthe negative (-) terminal,
 check that the terminals and theconnectors are clean. If they arecovered with sulphate (whitish orgreenish deposit), disconnect andclean them,
 refit the style cover. To start the vehicle from another battery:
remove the style cover to gain
access to the starter battery,
 remove the maxi fuse located
near to the starter battery,
 connect the red cable to the positive (+) terminals of the twobatteries,
 connect one end of the green orblack cable to the negative (-) ter-
minal of the additional battery,
 connect the other end of the greenor black cable to an earth point onthe vehicle which has brokendown, as far as possible from the
battery,
 start the engine and let it run,
 wait for the engine to return to idlethen disconnect the cables,
 drive a few kilometres in order to
recharge the starter battery, thenreplace the maxi fuse near to it,
 refit the style cover.
To recharge the service battery,
contact a PEUGEOT dealer.
* According to country.
PRACTICAL INFORMATION 161
If electrical operations
are carried out, disconnect
the starter battery and remove
the maxi fuse located next to it.
It is advisable to disconnect the
starter battery and remove the maxi fuse located next to it, if the vehicle is not to be used for a period of more than one month.

10-02-2003
PRACTICAL INFORMATION
162
TOWING YOUR VEHICLE
Without lifting (4 wheels on the road)

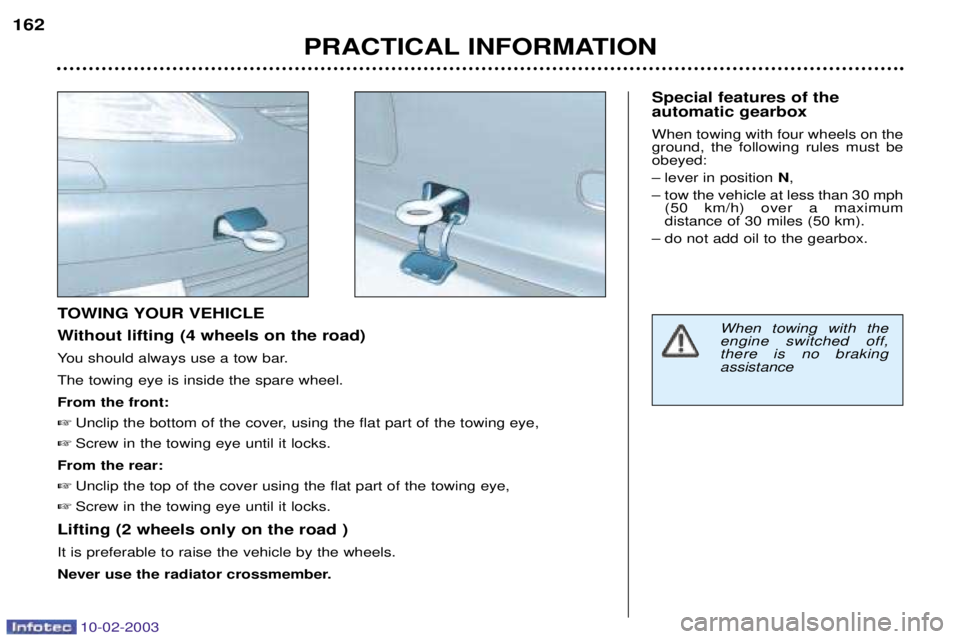

You should always use a tow bar.The towing eye is inside the spare wheel.From the front:
 Unclip the bottom of the cover, using the flat part of the towing eye,
 Screw in the towing eye until it locks.
From the rear:  Unclip the top of the cover using the flat part of the towing eye,
 Screw in the towing eye until it locks.
Lifting (2 wheels only on the road )It is preferable to raise the vehicle by the wheels.
Never use the radiator crossmember. Special features of the automatic gearbox When towing with four wheels on the ground, the following rules must beobeyed:
Ð lever in position
N,
Ð tow the vehicle at less than 30 mph (50 km/h) over a maximum distance of 30 miles (50 km).
Ð do not add oil to the gearbox.
When towing with theengine switched off,there is no brakingassistance

10-02-2003
TOWING A TRAILER,
CARAVAN, BOAT ETC...
Only use original PEUGEOT tow bars which have been tested andapproved from the design stage ofyour vehicle. The tow bar must be fitted by a
PEUGEOT dealer. Driving advice Distribution of loads: distribute the
load in the trailer so that the heaviest loads are as close as possible to theaxle and the nose weight is close tothe maximum authorised without,
however, exceeding it. Cooling: towing a trailer on a slope
increases the coolant temperature.As the fan is electronically controlled, its cooling capacity is not dependenton the engine speed.
On the contrary, use a high gear to lower the engine speed, and reduceyour speed. In all cases, pay attention to thecoolant temperature. Note:
in certain cases of particularly
arduous use (towing the maximum load up a steep slope in high tem-peratures), the engine automatically
limits its power. In this case, cutting
off the air conditioning allows theengine power to be recovered, andtherefore the towing speed to be sig-nificantly increased (approximately12mph [20 km/h] more). If the coolant temperature warning light comes on, stop the vehicle and
switch off the engine as soon aspossible.
Tyres: check the tyre pressures of
the towing vehicle and of the trailer, observing the recommended pres-sure. Brakes: towing increases the brak-
ing distance. Drive at a moderate speed, change down early and brake
gradually. Side wind: sensitivity to side wind is
increased. Drive smoothly and at a moderate speed. Lighting Manual adjustmentAdjust your headlamps so as not to dazzle other road users (see sectionon ''Manual adjustment of head-lamps''). Check the electrical sig-
nalling of the trailer. Automatic beam correction For vehicles with Xenon bulbs, this system automatically corrects theheight of the beam, whatever the
load of the vehicle. The driver is thenassured of having optimum lightingand not causing a nuisance to otherroad users. In cases of malfunction, the driver is alerted by means of the warning lighton the instrument panel. In this situation the system adjusts your headlamps to the low position.
PRACTICAL INFORMATION
163

PRACTICAL INFORMATION
164
ACCESSORIES FOR YOUR 607

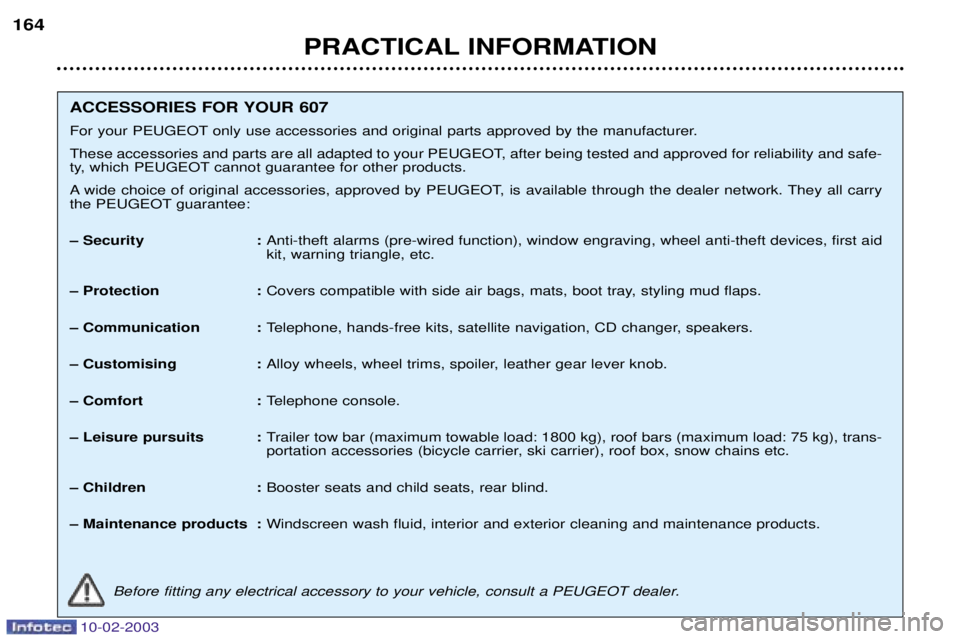

For your PEUGEOT only use accessories and original parts approved by the manufacturer.
These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and safe-
ty, which PEUGEOT cannot guarantee for other products.
A wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry
the PEUGEOT guarantee:
Ð Security :
Anti-theft alarms (pre-wired function), window engraving, wheel anti-theft devices, first aid kit, warning triangle, etc.
Ð Protection : Covers compatible with side air bags, mats, boot tray, styling mud flaps.
Ð Communication : Telephone, hands-free kits, satellite navigation, CD changer, speakers.
Ð Customising : Alloy wheels, wheel trims, spoiler, leather gear lever knob.
Ð Comfort : Telephone console.
Ð Leisure pursuits : Trailer tow bar (maximum towable load: 1800 kg), roof bars (maximum load: 75 kg), trans-
portation accessories (bicycle carrier, ski carrier), roof box, snow chains etc.
Ð Children : Booster seats and child seats, rear blind.
Ð Maintenance products : Windscreen wash fluid, interior and exterior cleaning and maintenance products.
Before fitting any electrical accessory to your vehicle, consult a PEUGEOT dealer.
10-02-2003

TECHNICAL DATA165
* According to country. MODELS: Model codes

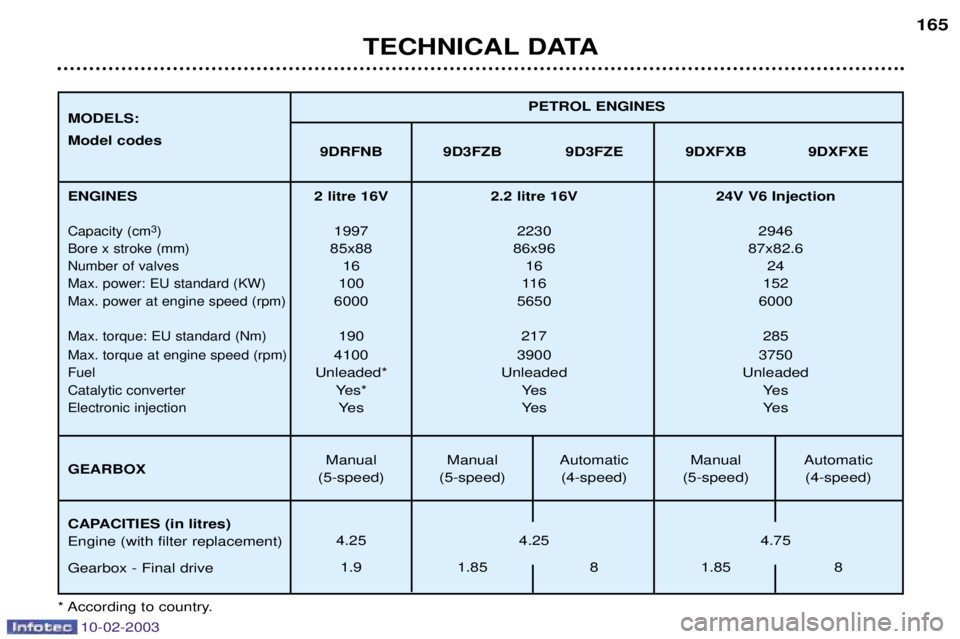

PETROL ENGINES
9DRFNB 9D3FZB 9D3FZE 9DXFXB 9DXFXE
ENGINES
Capacity (cm 3
)
Bore x stroke (mm) Number of valvesMax. power: EU standard (KW)Max. power at engine speed (rpm) Max. torque: EU standard (Nm) Max. torque at engine speed (rpm) FuelCatalytic converterElectronic injection
GEARBOX
CAPACITIES (in litres) Engine (with filter replacement) Gearbox - Final drive 2 litre 16V 2.2 litre 16V 24V V6 Injection
1997 2230 2946
85x88 86x96 87x82.6 16 16 24
100 116 152
6000 5650 6000
190 217 285
4100 3900 3750
Unleaded* Unleaded Unleaded Yes* Yes YesYe s Ye s Ye s
Manual Manual Automatic Manual Automatic
(5-speed) (5-speed) (4-speed) (5-speed) (4-speed)
4.25 4.25 4.751.9 1.85 8 1.85 8
10-02-2003

TECHNICAL DATA
166
Turbo diesel Turbo diesel2 litre HDI 2.2 litre 16V HDI 1997 2179
85x88 85x96
81 6
80 79 98 4000 4000
250 314
1750 2000
Diesel Diesel Yes* Yes
No Yes Yes Ye s Ye s
Manual Manual Automatic
(5-speed) (5-speed) (4-speed)
4.75 4.75
1.85 1.85 8
DIESEL ENGINES

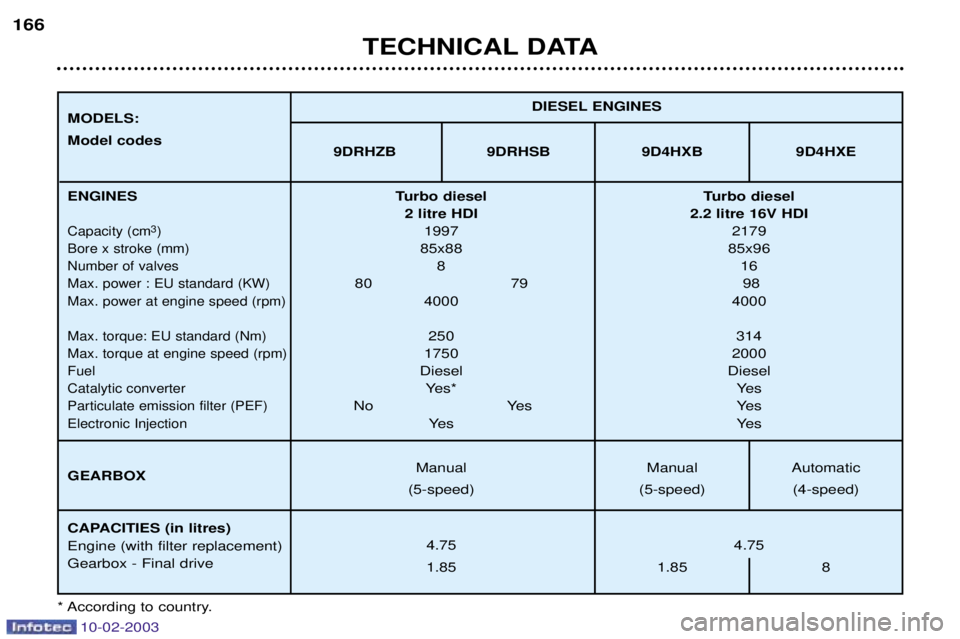

MODELS: Model codes 9DRHZB 9DRHSB 9D4HXB 9D4HXE
ENGINES
Capacity (cm 3
)
Bore x stroke (mm) Number of valvesMax. power : EU standard (KW) Max. power at engine speed (rpm) Max. torque: EU standard (Nm) Max. torque at engine speed (rpm)FuelCatalytic converterParticulate emission filter (PEF)Electronic Injection
GEARBOX
CAPACITIES (in litres) Engine (with filter replacement)Gearbox - Final drive
* According to country.
10-02-2003

TECHNICAL DATA167
2 litre 16V
Manual 9DRFNB 12,3* 6,6* 8,6* 205 g/km*
2.2 litre 16V Manual 9D3FZB 12,7 7,2 9,2 219 g/km
2.2 litre 16V Automatic 9D3FZE 13,8 7,2 9,6 230 g/km
24V V6 injection Manual 9DXFXB 14,2 7,3 9,9 237 g/km
24V V6 injection Automatic 9DXFXE 14,7 7,7 10,2 245 g/km
2 litre turbo diesel HDI Manual 8,0* 4,8* 6,0* 160 g/km*
2.2 litre 16V
turbo diesel HDIManual 9D4HXB 8,9 5,5 6,7 178 g/km
2.2 litre 16V
turbo diesel HDI
Automatic 9D4HXE 9,8 5,8 7,2 193 g/km
Fuel consumption values correct at time of printing. * According to country. Consumption As per directive 99/100 in MPG (litres/100km)

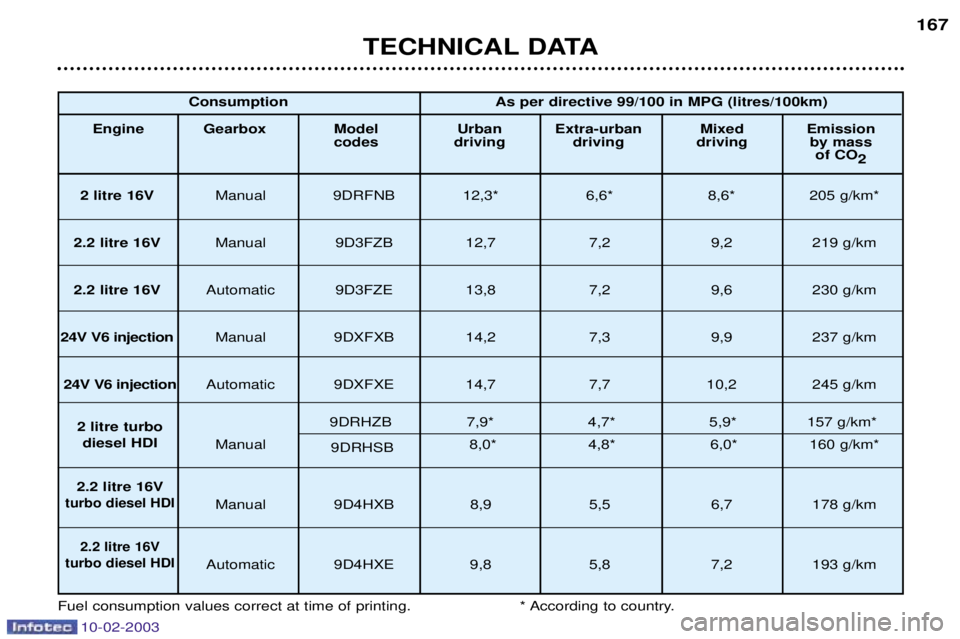

Engine Gearbox Model Urban Extra-urban Mixed Emission codes driving driving driving by mass of CO2
9DRHZB 7,9* 4,7* 5,9* 157 g/km*
9DRHSB
