PEUGEOT 607 2004 Owners Manual

02-02-2004

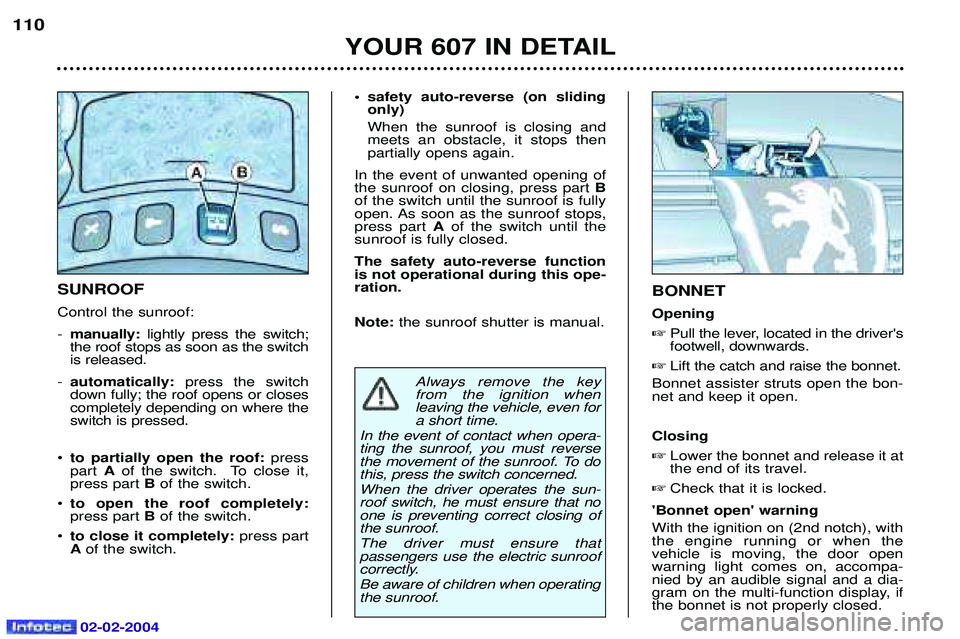

YOUR 607 IN DETAIL
110
BONNET Opening Pull the lever, located in the driver's footwell, downwards.
 Lift the catch and raise the bonnet.
Bonnet assister struts open the bon-net and keep it open. Closing
 Lower the bonnet and release it at the end of its travel.
 Check that it is locked.
'Bonnet open' warning With the ignition on (2nd notch), with the engine running or when thevehicle is moving, the door openwarning light comes on, accompa-nied by an audible signal and a dia-
gram on the multi-function display, ifthe bonnet is not properly closed.
¥ safety auto-reverse (on sliding only) When the sunroof is closing and meets an obstacle, it stops thenpartially opens again.
In the event of unwanted opening ofthe sunroof on closing, press part B
of the switch until the sunroof is fully
open. As soon as the sunroof stops,press part Aof the switch until the
sunroof is fully closed. The safety auto-reverse function is not operational during this ope-ration. Note: the sunroof shutter is manual.
Always remove the key from the ignition when leaving the vehicle, even fora short time.
In the event of contact when opera-ting the sunroof, you must reverse
the movement of the sunroof. To dothis, press the switch concerned. When the driver operates the sun- roof switch, he must ensure that noone is preventing correct closing ofthe sunroof. The driver must ensure that passengers use the electric sunroof
correctly. Be aware of children when operating the sunroof.
SUNROOF Control the sunroof:- manually: lightly press the switch;
the roof stops as soon as the switch is released.
- automatically: press the switch
down fully; the roof opens or closescompletely depending on where theswitch is pressed.
¥ to partially open the roof: press
part Aof the switch. To close it,
press part B of the switch.
¥ to open the roof completely:press part Bof the switch.
¥ to close it completely: press part
A of the switch.

02-02-2004

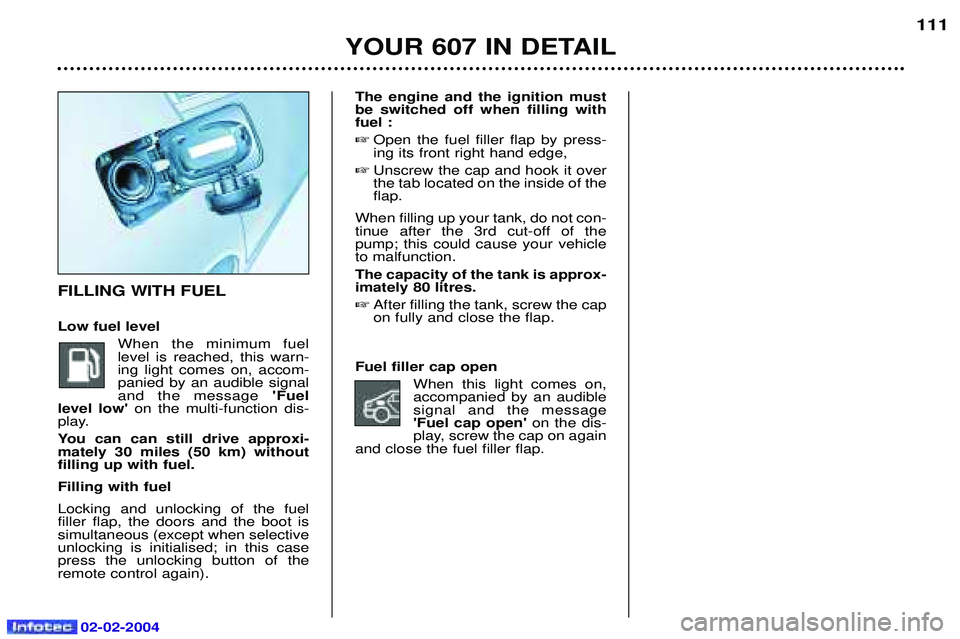

The engine and the ignition must be switched off when filling withfuel : Open the fuel filler flap by press-ing its front right hand edge,
 Unscrew the cap and hook it overthe tab located on the inside of theflap.
When filling up your tank, do not con-
tinue after the 3rd cut-off of thepump; this could cause your vehicleto malfunction. The capacity of the tank is approx- imately 80 litres.  After filling the tank, screw the capon fully and close the flap.
Fuel filler cap open When this light comes on,accompanied by an audiblesignal and the message'Fuel cap open' on the dis-
play, screw the cap on again
and close the fuel filler flap.
FILLING WITH FUEL Low fuel level
When the minimum fuel level is reached, this warn-ing light comes on, accom-panied by an audible signaland the message 'Fuel
level low' on the multi-function dis-
play.
You can can still drive approxi- mately 30 miles (50 km) withoutfilling up with fuel. Filling with fuelLocking and unlocking of the fuel filler flap, the doors and the boot issimultaneous (except when selectiveunlocking is initialised; in this casepress the unlocking button of theremote control again).
YOUR 607 IN DETAIL 111

02-02-2004

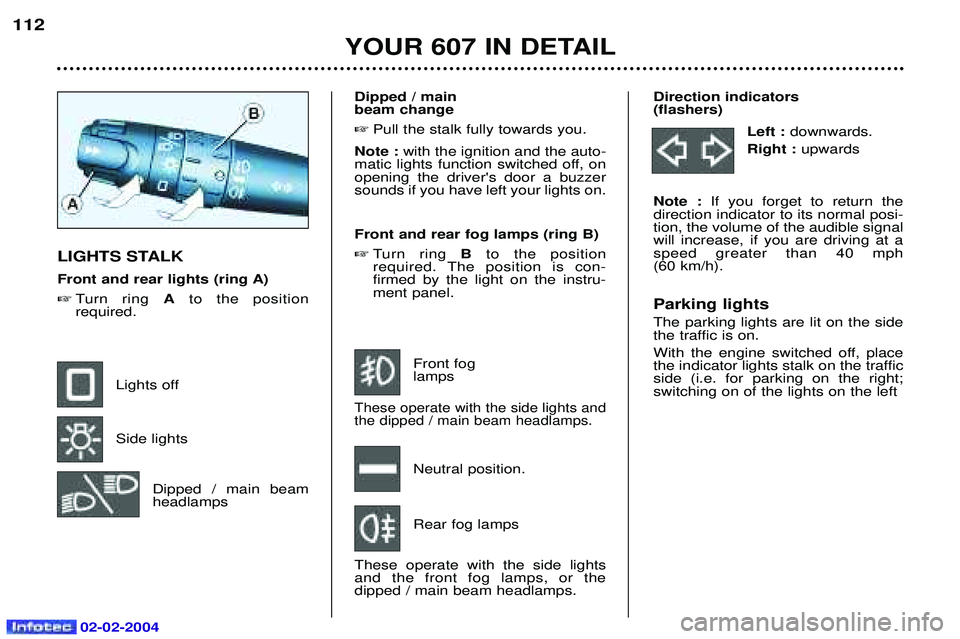

YOUR 607 IN DETAIL
112
Direction indicators (flashers)Left : downwards.
Right : upwards
Note : If you forget to return the
direction indicator to its normal posi-tion, the volume of the audible signalwill increase, if you are driving at aspeed greater than 40 mph (60 km/h). Parking lights The parking lights are lit on the side
the traffic is on.
With the engine switched off, place
the indicator lights stalk on the trafficside (i.e. for parking on the right;switching on of the lights on the left
Dipped / main beam change
 Pull the stalk fully towards you.
Note : with the ignition and the auto-
matic lights function switched off, onopening the driver's door a buzzersounds if you have left your lights on. Front and rear fog lamps (ring B)
 Turn ring Bto the position
required. The position is con- firmed by the light on the instru-ment panel.
Front foglamps
These operate with the side lights andthe dipped / main beam headlamps.
Neutral position. Rear fog lamps
These operate with the side lights and the front fog lamps, or thedipped / main beam headlamps.
LIGHTS STALK
Front and rear lights (ring A)
 Turn ring Ato the position
required.
Lights off Side lightsDipped / main beam headlamps

YOUR 607 IN DETAIL113
Automatic switching on of the lights Side lights and dipped beam head- lamps switch on automatically if the
light is poor, or during continuousoperation of the windscreen wipers.
They switch off as soon as the lightbecomes bright enough or the wind-screen wipers stop. Note :
in foggy weather, the bright-
ness sensor can detect sufficient
light. As a consequence, the lights
will not come on automatically. This function is active when the vehi-
cle is supplied to the customer.
To switch the function on or off:
 Place the key in the accessories position (1st notch),
 Change the stalk position to 0,
 Press the end of the stalk for morethan two seconds.
Note : after the ignition is switched
off and depending on the brightness,the lights remain on for approximate-ly thirty seconds or until the vehicle islocked. Do not cover the sunshine / brightness sensor located in thecentre of the fascia. It helps toregulate the air conditioning,automatic switching on of thelights and the automatic adjust-ment of the instrument panelbrightness. Operating check Activation
When this function is acti- vated, the indicator lightcomes on, accompanied byan audible signal.
The light also comes on as soon asthe driver changes the stalk positionto 0.
Neutralisation When neutralising the func-tion, the indicator lightcomes on, accompanied byan audible signal.
The indicator light also comes on assoon as the driver uses the manuallighting controls. If the sunshine / brightness sen-
sor does not function correctly,the system activates the function(the lights come on) and the dippedbeam headlamps indicator light onthe instrument panel flashes.
Contact a PEUGEOT dealer to have the system checked.
02-02-2004

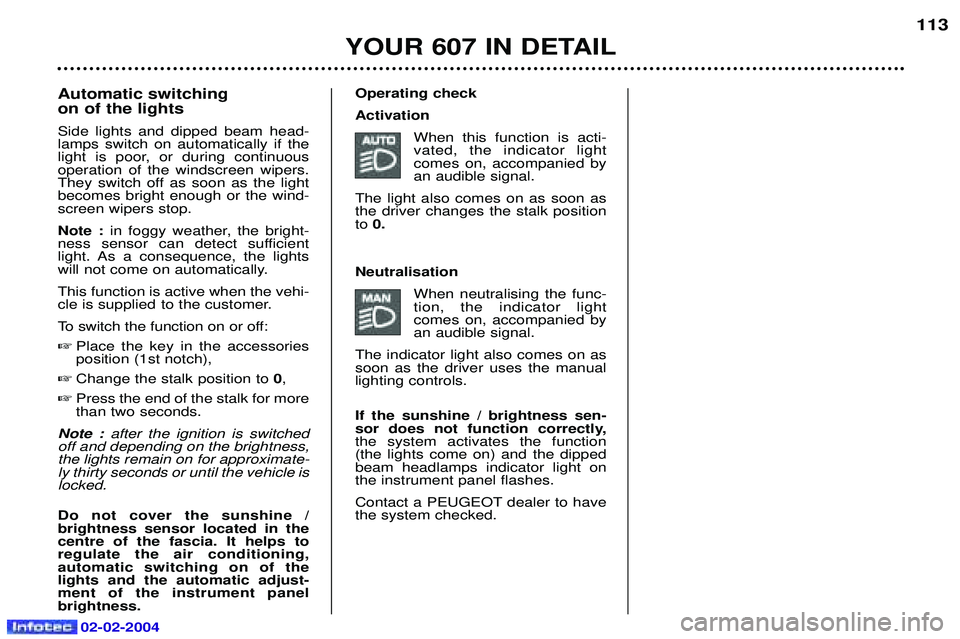

YOUR 607 IN DETAIL113
Automatic switching on of the lights Side lights and dipped beam head- lamps switch on automatically if the
light is poor, or during continuousoperation of the windscreen wipers.
They switch off as soon as the lightbecomes bright enough or the wind-screen wipers stop. Note :
in foggy weather, the bright-
ness sensor can detect sufficient
light. As a consequence, the lights
will not come on automatically. This function is active when the vehi-
cle is supplied to the customer.
To switch the function on or off:
 Place the key in the accessories position (1st notch),
 Change the stalk position to 0,
 Press the end of the stalk for morethan two seconds.
Note : after the ignition is switched
off and depending on the brightness,the lights remain on for approximate-ly thirty seconds or until the vehicle islocked. Do not cover the sunshine / brightness sensor located in thecentre of the fascia. It helps toregulate the air conditioning,automatic switching on of thelights and the automatic adjust-ment of the instrument panelbrightness. Operating check Activation
When this function is acti- vated, the indicator lightcomes on, accompanied byan audible signal.
The light also comes on as soon asthe driver changes the stalk positionto 0.
Neutralisation When neutralising the func-tion, the indicator lightcomes on, accompanied byan audible signal.
The indicator light also comes on assoon as the driver uses the manuallighting controls. If the sunshine / brightness sen-
sor does not function correctly,the system activates the function(the lights come on) and the dippedbeam headlamps indicator light onthe instrument panel flashes.
Contact a PEUGEOT dealer to have the system checked.
02-02-2004

02-02-2004

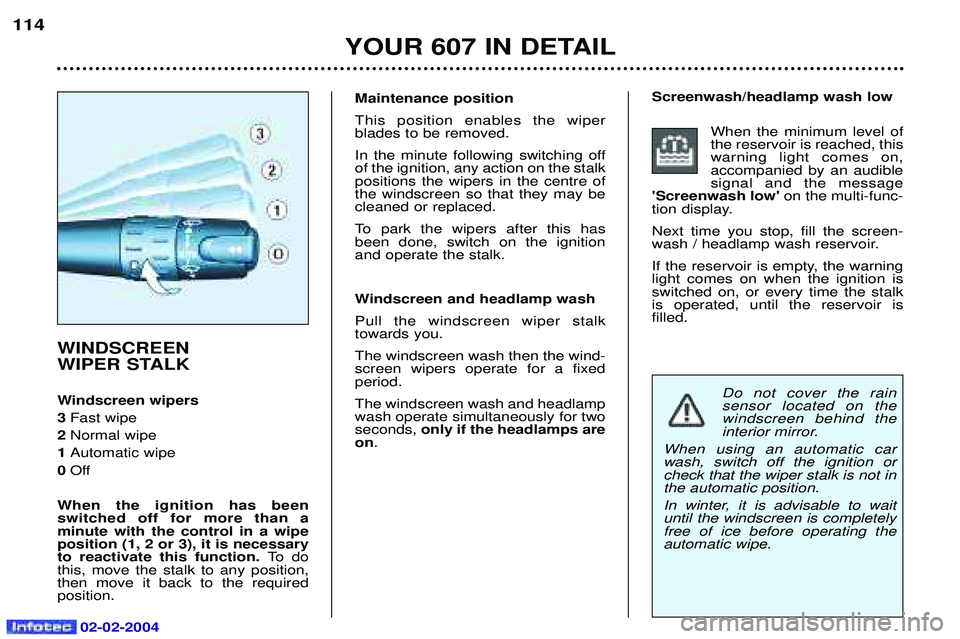

YOUR 607 IN DETAIL
114
Do not cover the rain sensor located on thewindscreen behind the
interior mirror.
When using an automatic carwash, switch off the ignition orcheck that the wiper stalk is not inthe automatic position.
In winter, it is advisable to wait until the windscreen is completelyfree of ice before operating theautomatic wipe.
WINDSCREEN
WIPER STALK
Windscreen wipers 3 Fast wipe
2 Normal wipe
1 Automatic wipe
0 Off
When the ignition has been switched off for more than aminute with the control in a wipeposition (1, 2 or 3), it is necessaryto reactivate this function. To d o
this, move the stalk to any position,then move it back to the requiredposition. Maintenance position This position enables the wiper blades to be removed.
In the minute following switching off of the ignition, any action on the stalkpositions the wipers in the centre ofthe windscreen so that they may becleaned or replaced.
To park the wipers after this has been done, switch on the ignitionand operate the stalk.
Windscreen and headlamp wash Pull the windscreen wiper stalk towards you. The windscreen wash then the wind- screen wipers operate for a fixedperiod. The windscreen wash and headlamp wash operate simultaneously for twoseconds,
only if the headlamps are
on .
Screenwash/headlamp wash low
When the minimum level of the reservoir is reached, thiswarning light comes on,accompanied by an audiblesignal and the message
'Screenwash low' on the multi-func-
tion display. Next time you stop, fill the screen-
wash / headlamp wash reservoir.
If the reservoir is empty, the warning light comes on when the ignition isswitched on, or every time the stalkis operated, until the reservoir isfilled.

02-02-2004
YOUR 607 IN DETAIL
114
Do not cover the rain sensor located on thewindscreen behind the
interior mirror.
When using an automatic carwash, switch off the ignition orcheck that the wiper stalk is not inthe automatic position.
In winter, it is advisable to wait until the windscreen is completelyfree of ice before operating theautomatic wipe.
WINDSCREEN
WIPER STALK
Windscreen wipers 3 Fast wipe
2 Normal wipe
1 Automatic wipe
0 Off
When the ignition has been switched off for more than aminute with the control in a wipeposition (1, 2 or 3), it is necessaryto reactivate this function. To d o
this, move the stalk to any position,then move it back to the requiredposition. Maintenance position This position enables the wiper blades to be removed.
In the minute following switching off of the ignition, any action on the stalkpositions the wipers in the centre ofthe windscreen so that they may becleaned or replaced.
To park the wipers after this has been done, switch on the ignitionand operate the stalk.
Windscreen and headlamp wash Pull the windscreen wiper stalk towards you. The windscreen wash then the wind- screen wipers operate for a fixedperiod. The windscreen wash and headlamp wash operate simultaneously for twoseconds,
only if the headlamps are
on .
Screenwash/headlamp wash low
When the minimum level of the reservoir is reached, thiswarning light comes on,accompanied by an audiblesignal and the message
'Screenwash low' on the multi-func-
tion display. Next time you stop, fill the screen-
wash / headlamp wash reservoir.
If the reservoir is empty, the warning light comes on when the ignition isswitched on, or every time the stalkis operated, until the reservoir isfilled.

02-02-2004

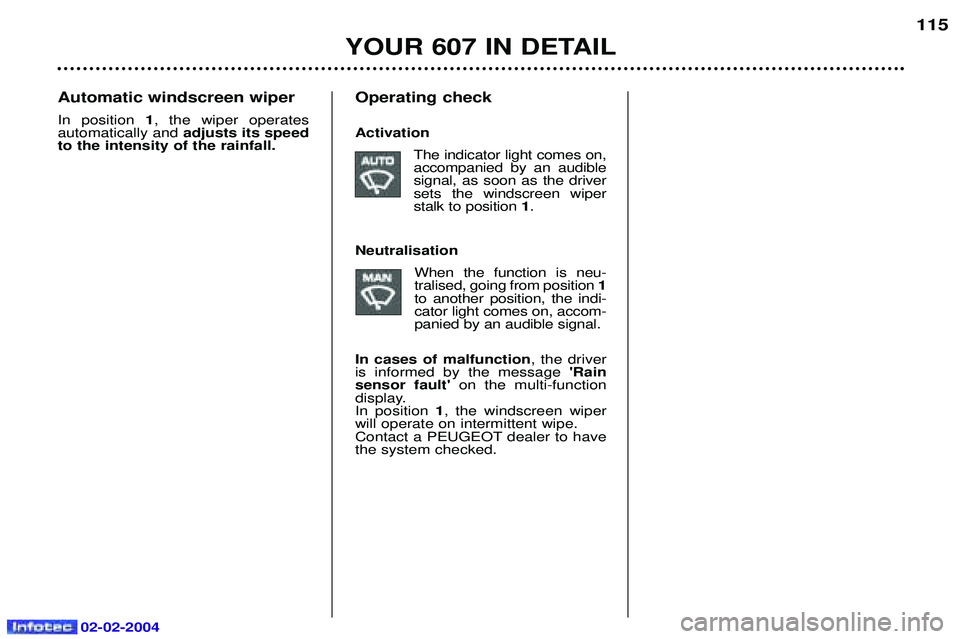

YOUR 607 IN DETAIL115
Automatic windscreen wiper In position
1, the wiper operates
automatically and adjusts its speed
to the intensity of the rainfall. Operating check Activation
The indicator light comes on, accompanied by an audiblesignal, as soon as the driversets the windscreen wiperstalk to position 1.
Neutralisation When the function is neu-tralised, going from position 1
to another position, the indi-cator light comes on, accom-panied by an audible signal.
In cases of malfunction , the driver
is informed by the message 'Rain
sensor fault' on the multi-function
display.In position 1, the windscreen wiper
will operate on intermittent wipe.
Contact a PEUGEOT dealer to havethe system checked.

02-02-2004

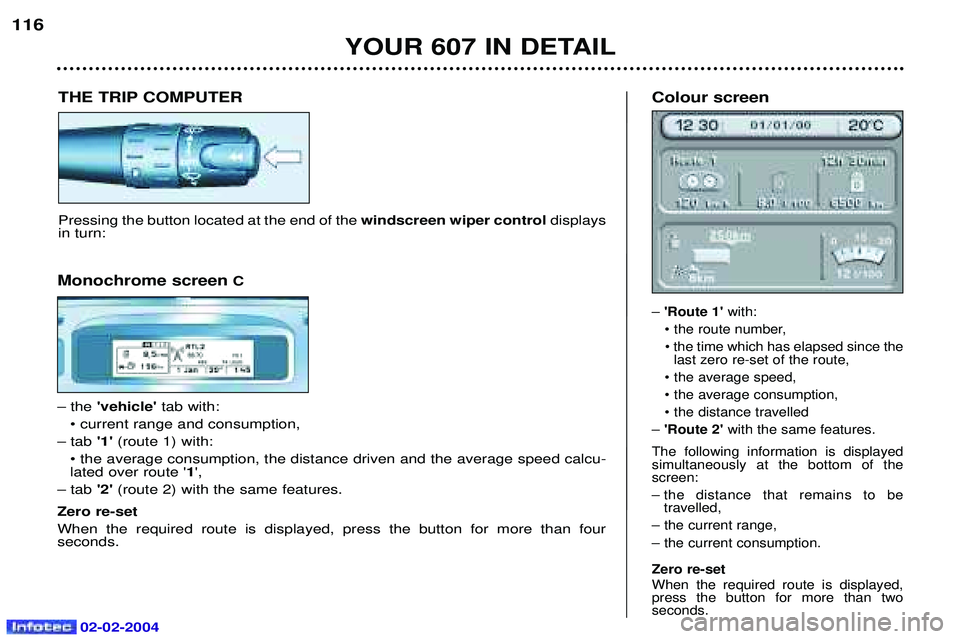

Monochrome screenC
Ð the 'vehicle' tab with:
¥ current range and consumption,
Ð tab '1' (route 1) with:
¥ the average consumption, the distance driven and the average speed calcu- lated over route ' 1',
Ð tab '2' (route 2) with the same features.
Zero re-set When the required route is displayed, press the button for more than four seconds.
116
YOUR 607 IN DETAIL
THE TRIP COMPUTER
Pressing the button located at the end of the windscreen wiper controldisplays
in turn: Colour screen
Ð
'Route 1' with:
¥ the route number, ¥ the time which has elapsed since the last zero re-set of the route,
¥ the average speed, ¥ the average consumption,¥ the distance travelled
Ð 'Route 2' with the same features.
The following information is displayed simultaneously at the bottom of thescreen:
Ð the distance that remains to be travelled,
Ð the current range,Ð the current consumption. Zero re-set When the required route is displayed, press the button for more than twoseconds.

02-02-2004

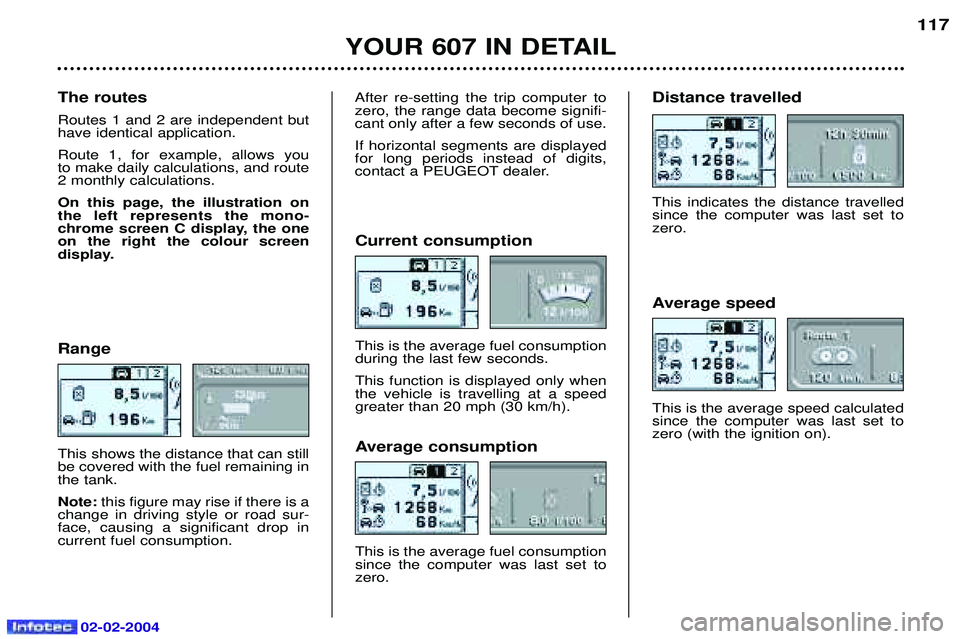

117
Range This shows the distance that can still be covered with the fuel remaining inthe tank. Note: this figure may rise if there is a
change in driving style or road sur- face, causing a significant drop incurrent fuel consumption. Average consumption This is the average fuel consumption since the computer was last set tozero.Distance travelled This indicates the distance travelled since the computer was last set tozero.
YOUR 607 IN DETAIL
Current consumption This is the average fuel consumption during the last few seconds. This function is displayed only when the vehicle is travelling at a speedgreater than 20 mph (30 km/h).
Average speed This is the average speed calculated since the computer was last set tozero (with the ignition on).
The routes Routes 1 and 2 are independent but have identical application. Route 1, for example, allows you to make daily calculations, and route2 monthly calculations. On this page, the illustration on the left represents the mono-
chrome screen C display, the oneon the right the colour screen
display.
After re-setting the trip computer to zero, the range data become signifi-cant only after a few seconds of use. If horizontal segments are displayed for long periods instead of digits,
contact a PEUGEOT dealer.
