PEUGEOT 607 2004 Owners Manual

02-02-2004
Monochrome screenC
Ð the 'vehicle' tab with:
¥ current range and consumption,
Ð tab '1' (route 1) with:
¥ the average consumption, the distance driven and the average speed calcu- lated over route ' 1',
Ð tab '2' (route 2) with the same features.
Zero re-set When the required route is displayed, press the button for more than four seconds.
116
YOUR 607 IN DETAIL

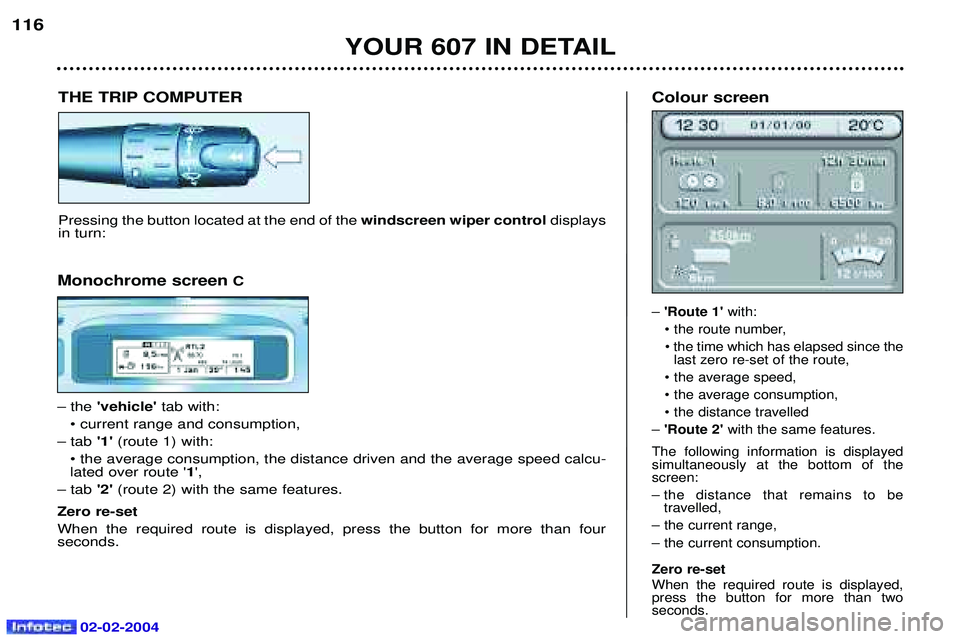

THE TRIP COMPUTER
Pressing the button located at the end of the windscreen wiper controldisplays
in turn: Colour screen
Ð
'Route 1' with:
¥ the route number, ¥ the time which has elapsed since the last zero re-set of the route,
¥ the average speed, ¥ the average consumption,¥ the distance travelled
Ð 'Route 2' with the same features.
The following information is displayed simultaneously at the bottom of thescreen:
Ð the distance that remains to be travelled,
Ð the current range,Ð the current consumption. Zero re-set When the required route is displayed, press the button for more than twoseconds.

02-02-2004
117

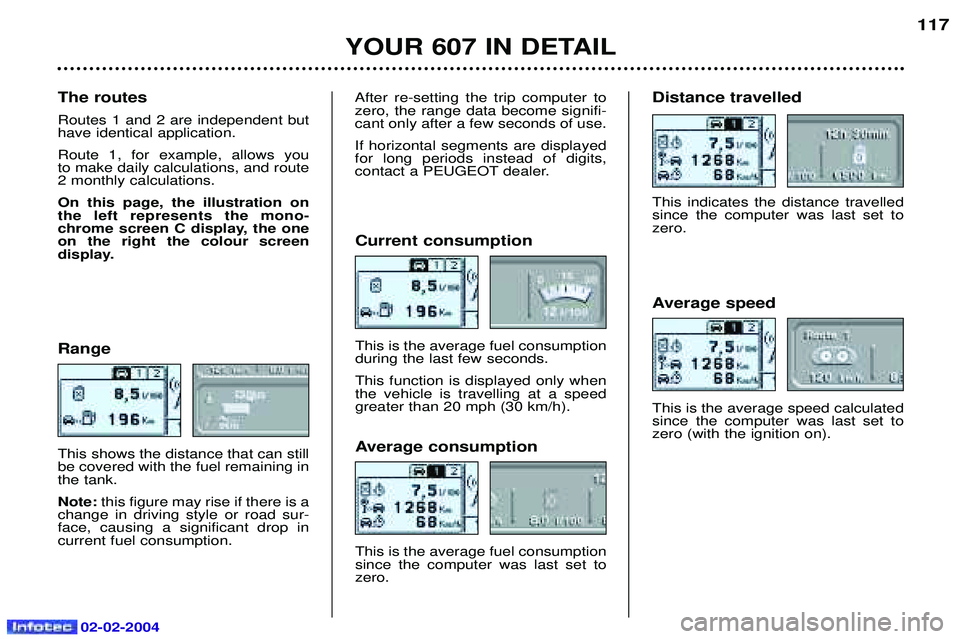

Range This shows the distance that can still be covered with the fuel remaining inthe tank. Note: this figure may rise if there is a
change in driving style or road sur- face, causing a significant drop incurrent fuel consumption. Average consumption This is the average fuel consumption since the computer was last set tozero.Distance travelled This indicates the distance travelled since the computer was last set tozero.
YOUR 607 IN DETAIL
Current consumption This is the average fuel consumption during the last few seconds. This function is displayed only when the vehicle is travelling at a speedgreater than 20 mph (30 km/h).
Average speed This is the average speed calculated since the computer was last set tozero (with the ignition on).
The routes Routes 1 and 2 are independent but have identical application. Route 1, for example, allows you to make daily calculations, and route2 monthly calculations. On this page, the illustration on the left represents the mono-
chrome screen C display, the oneon the right the colour screen
display.
After re-setting the trip computer to zero, the range data become signifi-cant only after a few seconds of use. If horizontal segments are displayed for long periods instead of digits,
contact a PEUGEOT dealer.

02-02-2004

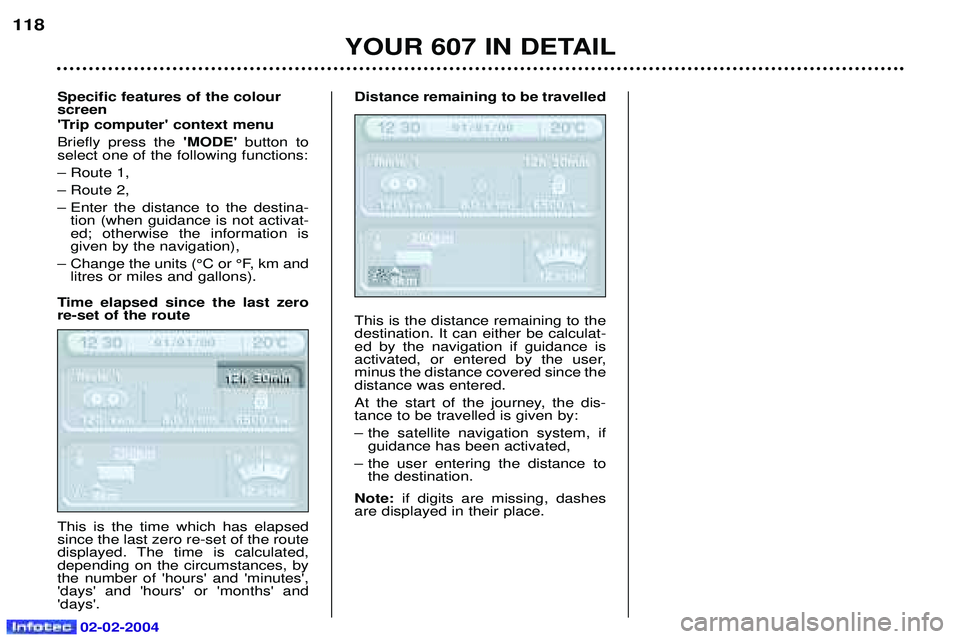

Specific features of the colour screen
'Trip computer' context menu Briefly press the 'MODE' button to
select one of the following functions:Ð Route 1,Ð Route 2,
Ð Enter the distance to the destina- tion (when guidance is not activat- ed; otherwise the information isgiven by the navigation),
Ð Change the units (¡C or ¡F, km and litres or miles and gallons).
Time elapsed since the last zerore-set of the route This is the time which has elapsed since the last zero re-set of the route
displayed. The time is calculated,depending on the circumstances, bythe number of 'hours' and 'minutes','days' and 'hours' or 'months' and'days'. Distance remaining to be travelled This is the distance remaining to the destination. It can either be calculat-ed by the navigation if guidance is
activated, or entered by the user,minus the distance covered since thedistance was entered.
At the start of the journey, the dis- tance to be travelled is given by:
Ð the satellite navigation system, if
guidance has been activated,
Ð the user entering the distance to the destination.
Note: if digits are missing, dashes
are displayed in their place.
YOUR 607 IN DETAIL
118

02-02-2004

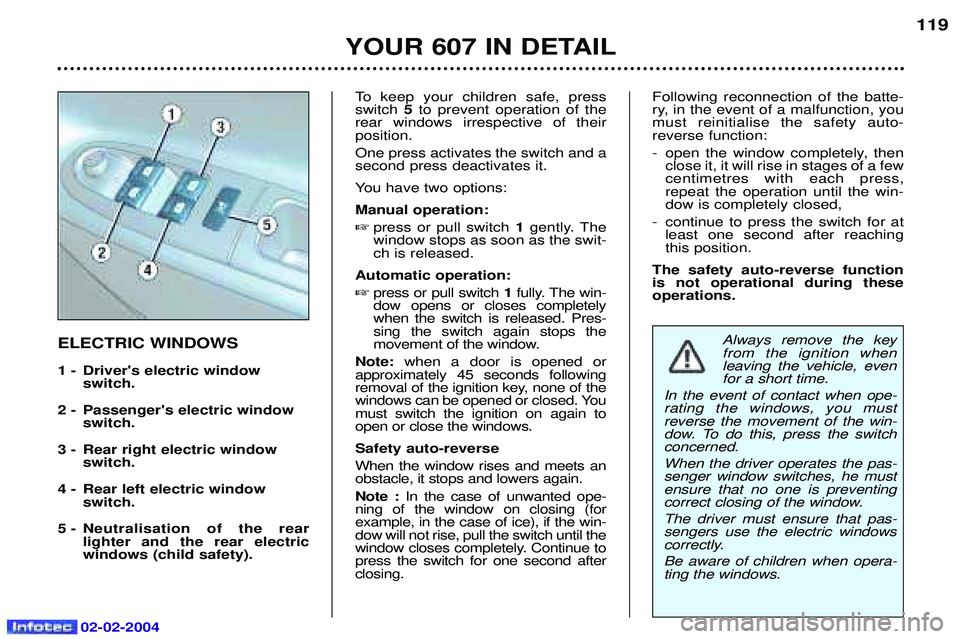

YOUR 607 IN DETAIL119
To keep your children safe, press switch
5to prevent operation of the
rear windows irrespective of theirposition. One press activates the switch and a second press deactivates it.
You have two options:Manual operation:
 press or pull switch 1gently. The
window stops as soon as the swit- ch is released.
Automatic operation:  press or pull switch 1fully. The win-
dow opens or closes completelywhen the switch is released. Pres-sing the switch again stops the
movement of the window.
Note: when a door is opened or
approximately 45 seconds following
removal of the ignition key, none of the
windows can be opened or closed. Youmust switch the ignition on again toopen or close the windows. Safety auto-reverse When the window rises and meets an obstacle, it stops and lowers again. Note : In the case of unwanted ope-
ning of the window on closing (for example, in the case of ice), if the win-dow will not rise, pull the switch until the
window closes completely. Continue topress the switch for one second afterclosing. Following reconnection of the batte-
ry, in the event of a malfunction, youmust reinitialise the safety auto-reverse function:
- open the window completely, then
close it, it will rise in stages of a few centimetres with each press,repeat the operation until the win-dow is completely closed,
- continue to press the switch for at least one second after reachingthis position.
The safety auto-reverse functionis not operational during theseoperations.
ELECTRIC WINDOWS
1 - Driver's electric window switch.
2 - Passenger's electric window switch.
3 - Rear right electric window switch.
4 - Rear left electric window switch.
5 - Neutralisation of the rear lighter and the rear electric windows (child safety).
Always remove the key from the ignition whenleaving the vehicle, evenfor a short time.
In the event of contact when ope-rating the windows, you mustreverse the movement of the win-
dow. To do this, press the switchconcerned. When the driver operates the pas- senger window switches, he mustensure that no one is preventing
correct closing of the window. The driver must ensure that pas- sengers use the electric windows
correctly. Be aware of children when opera- ting the windows.

YOUR 607 IN DETAIL
120
Note:
to be active, this function must
be initialised by adjusting the mirror, with reverse gear engaged and thedirection indicator on the side of themirror to be adjusted switched on. Each remote control can memorise a specific setting.
* According to version.

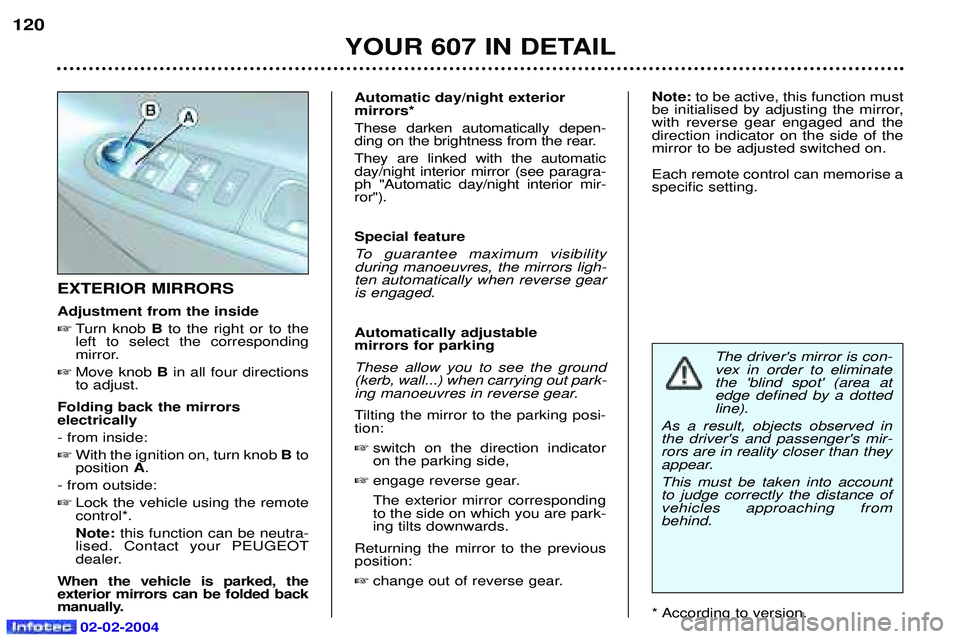

EXTERIOR MIRRORS Adjustment from the inside
Turn knob Bto the right or to the
left to select the corresponding
mirror.
 Move knob Bin all four directions
to adjust.
Folding back the mirrors electrically - from inside: With the ignition on, turn knob Bto
position A.
- from outside: Lock the vehicle using the remote control*. Note: this function can be neutra-
lised. Contact your PEUGEOT
dealer.
When the vehicle is parked, theexterior mirrors can be folded back
manually. Automatic day/night exteriormirrors* These darken automatically depen-
ding on the brightness from the rear. They are linked with the automatic day/night interior mirror (see paragra-ph "Automatic day/night interior mir-ror"). Special feature
To guarantee maximum visibility during manoeuvres, the mirrors ligh-ten automatically when reverse gearis engaged. Automatically adjustable mirrors for parking These allow you to see the ground (kerb, wall...) when carrying out park-
ing manoeuvres in reverse gear.
Tilting the mirror to the parking posi- tion:
 switch on the direction indicatoron the parking side,
 engage reverse gear. The exterior mirror corresponding to the side on which you are park-ing tilts downwards.
Returning the mirror to the previousposition:  change out of reverse gear.
The driver's mirror is con- vex in order to eliminatethe 'blind spot' (area atedge defined by a dottedline).
As a result, objects observed inthe driver's and passenger's mir-rors are in reality closer than they
appear. This must be taken into account to judge correctly the distance ofvehicles approaching frombehind.
02-02-2004

02-02-2004
YOUR 607 IN DETAIL121

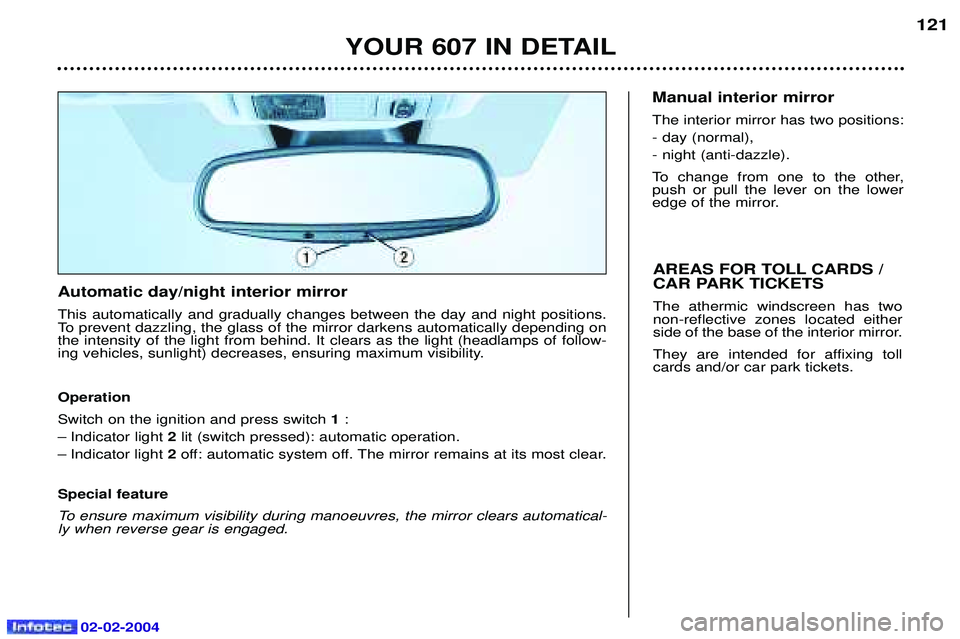

Automatic day/night interior mirror This automatically and gradually changes between the day and night positions.
To prevent dazzling, the glass of the mirror darkens automatically depending onthe intensity of the light from behind. It clears as the light (headlamps of follow-
ing vehicles, sunlight) decreases, ensuring maximum visibility. Operation Switch on the ignition and press switch
1:
Ð Indicator light 2lit (switch pressed): automatic operation.
Ð Indicator light 2off: automatic system off. The mirror remains at its most clear.
Special feature
To ensure maximum visibility during manoeuvres, the mirror clears automatical- ly when reverse gear is engaged. Manual interior mirror The interior mirror has two positions: - day (normal),- night (anti-dazzle).
To change from one to the other, push or pull the lever on the lower
edge of the mirror.
AREAS FOR TOLL CARDS /
CAR PARK TICKETS The athermic windscreen has two non-reflective zones located either
side of the base of the interior mirror.
They are intended for affixing toll cards and/or car park tickets.

02-02-2004
YOUR 607 IN DETAIL

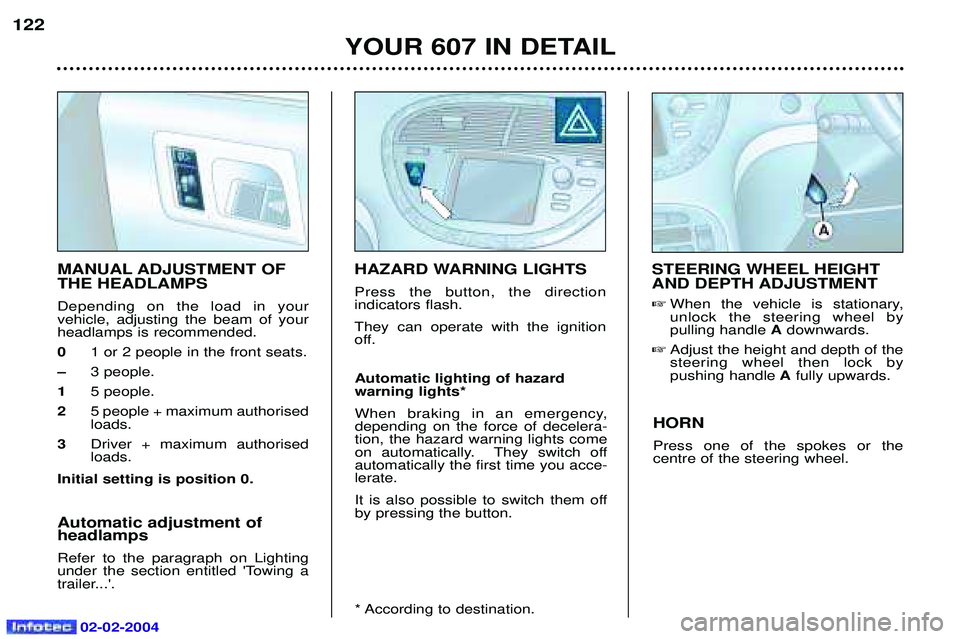

122
HORN Press one of the spokes or the centre of the steering wheel.
MANUAL ADJUSTMENT OF THE HEADLAMPS Depending on the load in your vehicle, adjusting the beam of yourheadlamps is recommended.0 1 or 2 people in the front seats.
Ð 3 people.
1 5 people.
2 5 people + maximum authorisedloads.
3 Driver + maximum authorisedloads.
Initial setting is position 0.
Automatic adjustment ofheadlamps Refer to the paragraph on Lighting
under the section entitled 'Towing a
trailer...'. HAZARD WARNING LIGHTS Press the button, the direction indicators flash. They can operate with the ignition
off.
STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT
 When the vehicle is stationary, unlock the steering wheel by pulling handle Adownwards.
 Adjust the height and depth of thesteering wheel then lock bypushing handle Afully upwards.
Automatic lighting of hazard warning lights*
When braking in an emergency, depending on the force of decelera-tion, the hazard warning lights come
on automatically. They switch offautomatically the first time you acce-lerate.
It is also possible to switch them off by pressing the button.
* According to destination.

02-02-2004
YOUR 607 IN DETAIL123
SUN VISOR WITH
ILLUMINATED COURTESYMIRROR With the ignition on, the mirror is automatically lit up when the flap isopened.

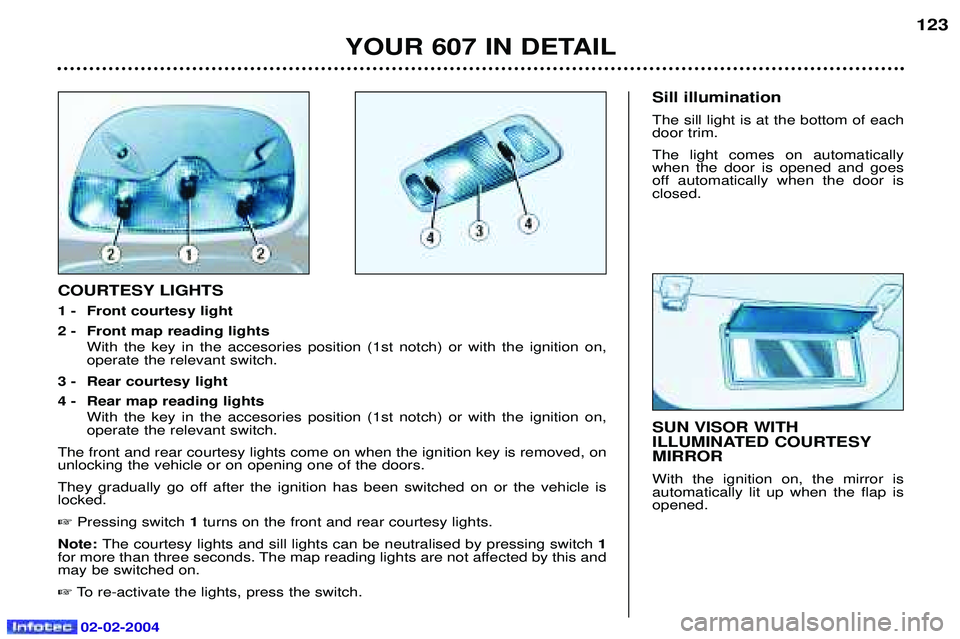

COURTESY LIGHTS
1 - Front courtesy light
2 - Front map reading lights
With the key in the accesories position (1st notch) or with the ignition on, operate the relevant switch.
3 - Rear courtesy light
4 - Rear map reading lights With the key in the accesories position (1st notch) or with the ignition on, operate the relevant switch.
The front and rear courtesy lights come on when the ignition key is removed, onunlocking the vehicle or on opening one of the doors.
They gradually go off after the ignition has been switched on or the vehicle is locked.  Pressing switch 1turns on the front and rear courtesy lights.
Note: The courtesy lights and sill lights can be neutralised by pressing switch 1
for more than three seconds. The map reading lights are not affected by this and may be switched on.  To re-activate the lights, press the switch. Sill illuminationThe sill light is at the bottom of each door trim. The light comes on automatically when the door is opened and goes
off automatically when the door isclosed.

02-02-2004
YOUR 607 IN DETAIL
124

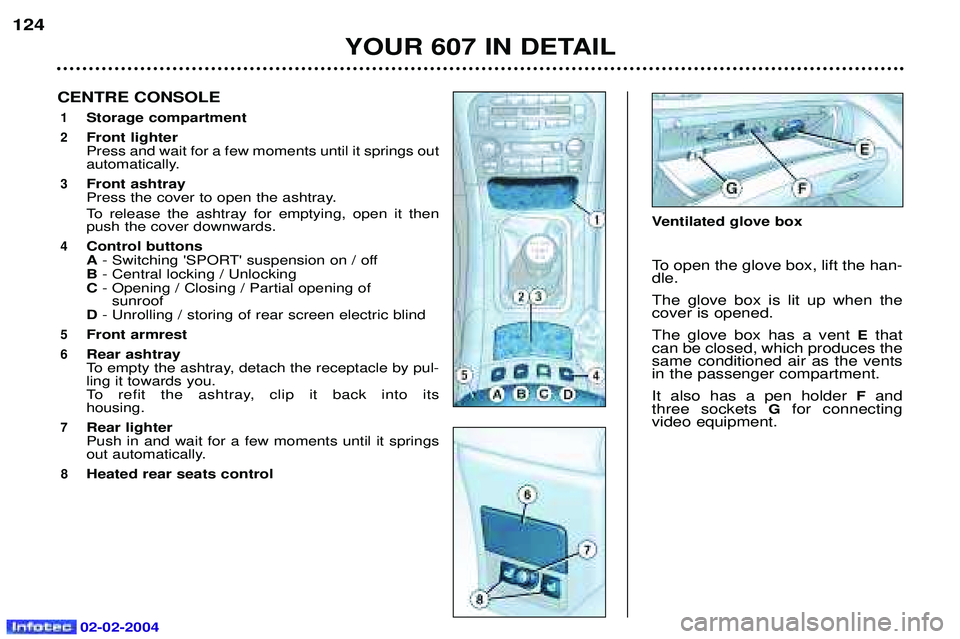

CENTRE CONSOLE
1Storage compartment
2Front lighter Press and wait for a few moments until it springs out
automatically.
3Front ashtray
Press the cover to open the ashtray.
To release the ashtray for emptying, open it then push the cover downwards.
4Control buttons A
- Switching 'SPORT' suspension on / off
B - Central locking / Unlocking
C - Opening / Closing / Partial opening of
sunroof
D - Unrolling / storing of rear screen electric blind
5Front armrest
6Rear ashtray
To empty the ashtray, detach the receptacle by pul- ling it towards you.
To refit the ashtray, clip it back into its housing.
7Rear lighter Push in and wait for a few moments until it springs
out automatically.
8Heated rear seats control
Ventilated glove box
To open the glove box, lift the han- dle. The glove box is lit up when the cover is opened. The glove box has a vent Ethat
can be closed, which produces the same conditioned air as the ventsin the passenger compartment. It also has a pen holder F
and
three sockets Gfor connecting
video equipment.

02-02-2004
Luggage net The stowing rings allow the net to be
placed in different positions.
YOUR 607 IN DETAIL125

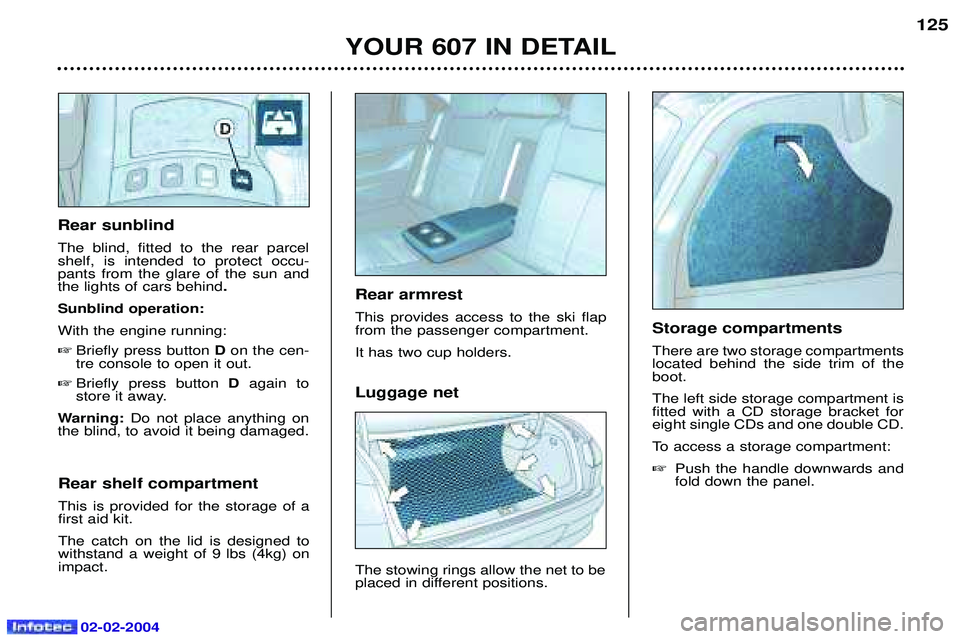

Rear sunblind The blind, fitted to the rear parcel shelf, is intended to protect occu-pants from the glare of the sun andthe lights of cars behind
.
Sunblind operation: With the engine running:  Briefly press button Don the cen-
tre console to open it out.
 Briefly press button Dagain to
store it away.
Warning: Do not place anything on
the blind, to avoid it being damaged. Rear armrest This provides access to the ski flap from the passenger compartment. It has two cup holders.
Storage compartmentsThere are two storage compartments located behind the side trim of theboot. The left side storage compartment is fitted with a CD storage bracket foreight single CDs and one double CD.
To access a storage compartment:
Push the handle downwards and fold down the panel.
Rear shelf compartment This is provided for the storage of a first aid kit. The catch on the lid is designed to withstand a weight of 9 lbs (4kg) onimpact.
