INSTRUMENTS AND CONTROLS25

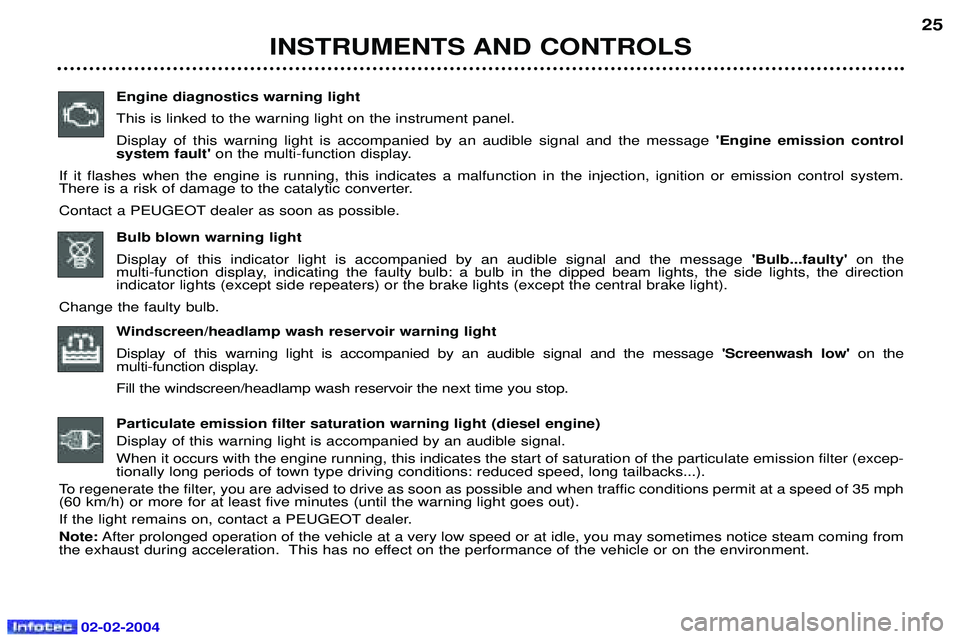

Engine diagnostics warning light This is linked to the warning light on the instrument panel.Display of this warning light is accompanied by an audible signal and the message
'Engine emission control
system fault' on the multi-function display.
If it flashes when the engine is running, this indicates a malfunction in the injection, ignition or emission control system.
There is a risk of damage to the catalytic converter.
Contact a PEUGEOT dealer as soon as possible.
Bulb blown warning lightDisplay of this indicator light is accompanied by an audible signal and the message 'Bulb...faulty'on the
multi-function display, indicating the faulty bulb: a bulb in the dipped beam lights, the side lights, the direction indicator lights (except side repeaters) or the brake lights (except the central brake light).
Change the faulty bulb.
Windscreen/headlamp wash reservoir warning light Display of this warning light is accompanied by an audible signal and the message 'Screenwash low' on the
multi-function display. Fill the windscreen/headlamp wash reservoir the next time you stop. Particulate emission filter saturation warning light (diesel engine) Display of this warning light is accompanied by an audible signal.When it occurs with the engine running, this indicates the start of saturation of the particulate emission filter (excep- tionally long periods of town type driving conditions: reduced speed, long tailbacks...).
To regenerate the filter, you are advised to drive as soon as possible and when traffic conditions permit at a speed of 35 mph(60 km/h) or more for at least five minutes (until the warning light goes out).
If the light remains on, contact a PEUGEOT dealer.Note: After prolonged operation of the vehicle at a very low speed or at idle, you may sometimes notice steam coming from
the exhaust during acceleration. This has no effect on the performance of the vehicle or on the environment.

02-02-2004
INSTRUMENTS AND CONTROLS
26

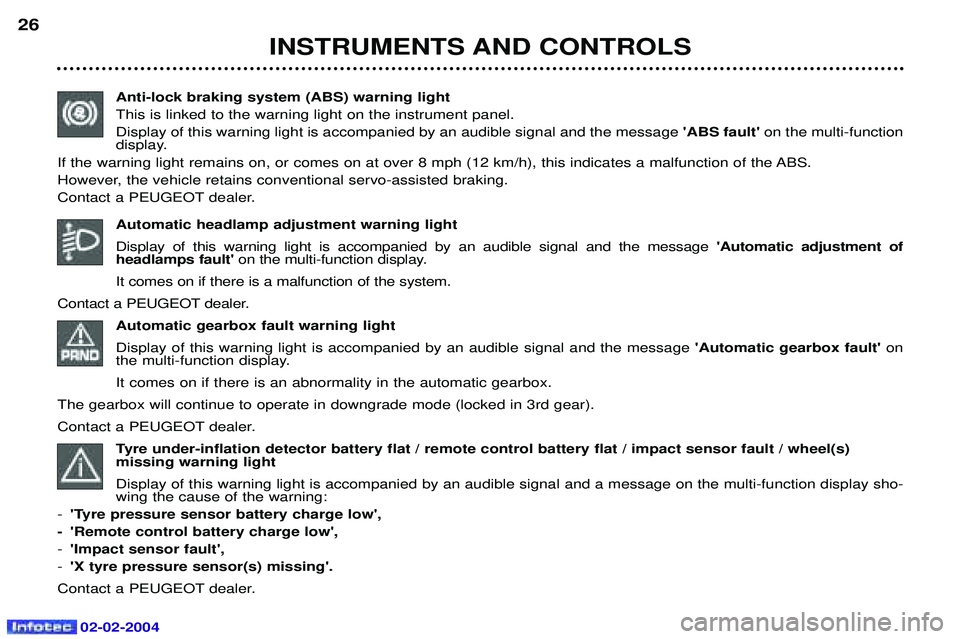

Anti-lock braking system (ABS) warning light This is linked to the warning light on the instrument panel.Display of this warning light is accompanied by an audible signal and the message 'ABS fault'on the multi-function
display.
If the warning light remains on, or comes on at over 8 mph (12 km/h), this indicates a malfunction of the ABS.
However, the vehicle retains conventional servo-assisted braking.
Contact a PEUGEOT dealer.
Automatic headlamp adjustment warning light Display of this warning light is accompanied by an audible signal and the message 'Automatic adjustment of
headlamps fault' on the multi-function display.
It comes on if there is a malfunction of the system.
Contact a PEUGEOT dealer. Automatic gearbox fault warning light Display of this warning light is accompanied by an audible signal and the message 'Automatic gearbox fault' on
the multi-function display. It comes on if there is an abnormality in the automatic gearbox.
The gearbox will continue to operate in downgrade mode (locked in 3rd gear).
Contact a PEUGEOT dealer. Tyre under-inflation detector battery flat / remote control battery flat / impact sensor fault / wheel(s) missing warning light Display of this warning light is accompanied by an audible signal and a message on the multi-function display sho- wing the cause of the warning:
- 'Tyre pressure sensor battery charge low',
- 'Remote control battery charge low', - 'Impact sensor fault',
- 'X tyre pressure sensor(s) missing'.
Contact a PEUGEOT dealer.

INSTRUMENTS AND CONTROLS27

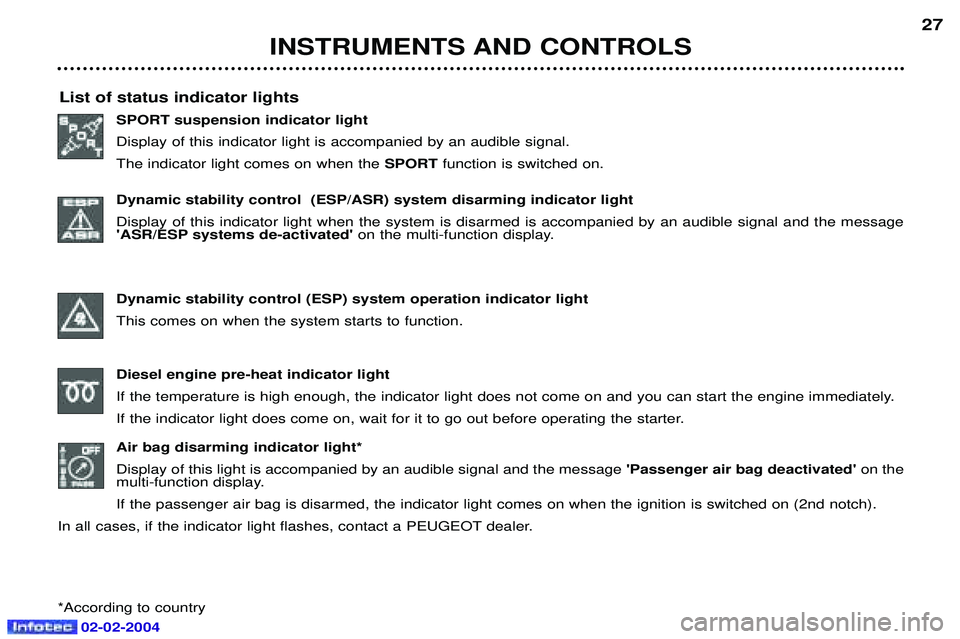

List of status indicator lights SPORT suspension indicator light Display of this indicator light is accompanied by an audible signal. The indicator light comes on when the SPORTfunction is switched on.
Dynamic stability control (ESP/ASR) system disarming indicator lightDisplay of this indicator light when the system is disarmed is accompanied by an audible signal and the message
'ASR/ESP systems de-activated' on the multi-function display.
Dynamic stability control (ESP) system operation indicator light This comes on when the system starts to function. Diesel engine pre-heat indicator light
If the temperature is high enough, the indicator light does not come on and you can start the engine immediately.
If the indicator light does come on, wait for it to go out before operating the starter.
Air bag disarming indicator light* Display of this light is accompanied by an audible signal and the message 'Passenger air bag deactivated' on the
multi-function display.If the passenger air bag is disarmed, the indicator light comes on when the ignition is switched on (2nd notch).
In all cases, if the indicator light flashes, contact a PEUGEOT dealer. *According to country
02-02-2004

02-02-2004
INSTRUMENTS AND CONTROLS
28

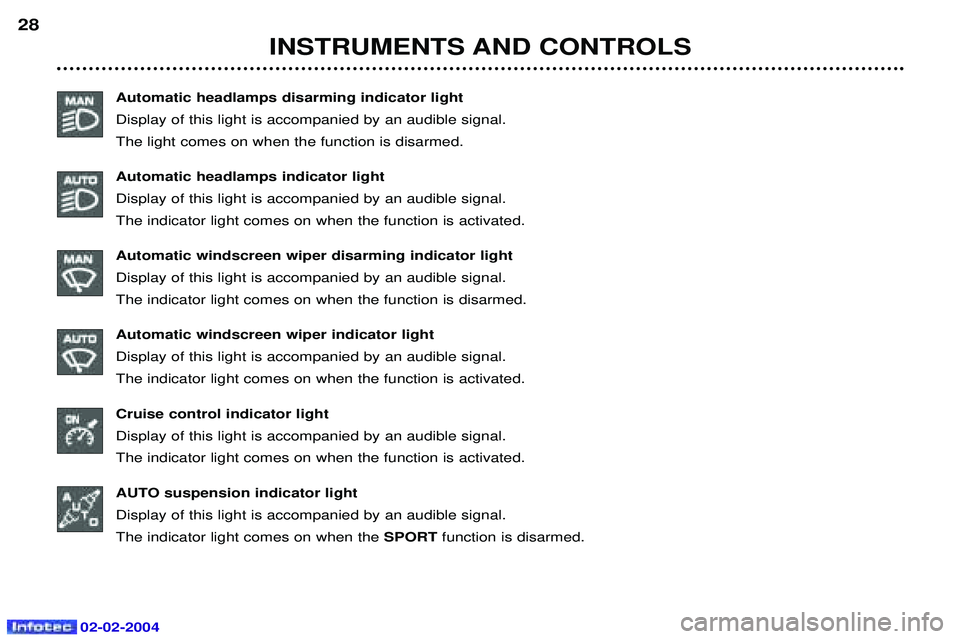

Automatic headlamps disarming indicator light Display of this light is accompanied by an audible signal.The light comes on when the function is disarmed. Automatic headlamps indicator light Display of this light is accompanied by an audible signal.The indicator light comes on when the function is activated. Automatic windscreen wiper disarming indicator light Display of this light is accompanied by an audible signal.The indicator light comes on when the function is disarmed. Automatic windscreen wiper indicator light Display of this light is accompanied by an audible signal.The indicator light comes on when the function is activated. Cruise control indicator light Display of this light is accompanied by an audible signal.The indicator light comes on when the function is activated.
AUTO suspension indicator light Display of this light is accompanied by an audible signal.The indicator light comes on when the
SPORTfunction is disarmed.

02-02-2004
INSTRUMENTS AND CONTROLS
30

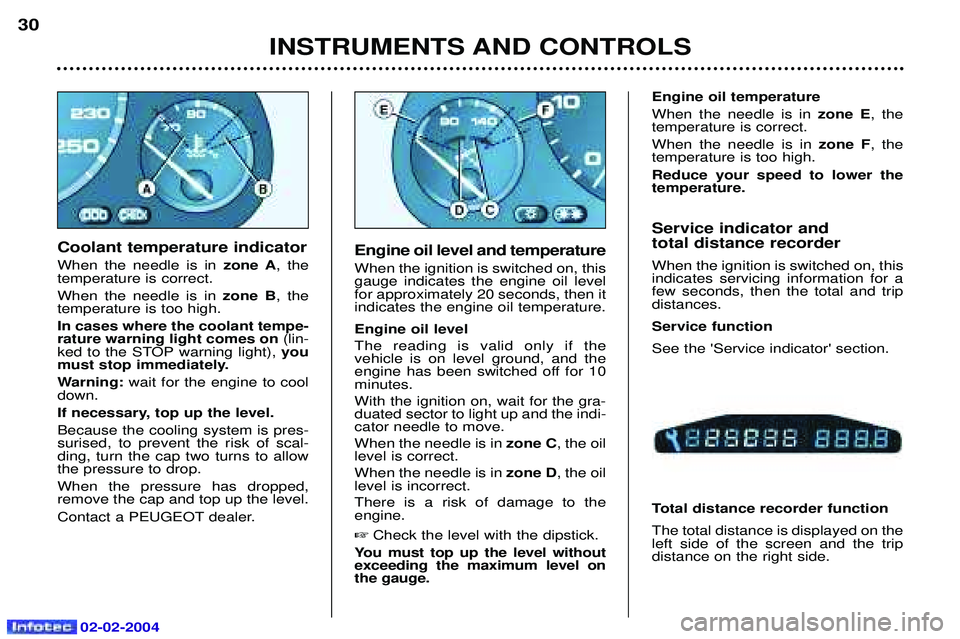

Coolant temperature indicator When the needle is in zone A, the
temperature is correct.When the needle is in zone B, the
temperature is too high.In cases where the coolant tempe- rature warning light comes on (lin-
ked to the STOP warning light), you
must stop immediately.
Warning: wait for the engine to cool
down.
If necessary, top up the level.Because the cooling system is pres- surised, to prevent the risk of scal-ding, turn the cap two turns to allowthe pressure to drop. When the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
Engine oil level and temperature When the ignition is switched on, this gauge indicates the engine oil levelfor approximately 20 seconds, then itindicates the engine oil temperature. Engine oil level The reading is valid only if the vehicle is on level ground, and the
engine has been switched off for 10minutes. With the ignition on, wait for the gra- duated sector to light up and the indi-cator needle to move. When the needle is in zone C, the oil
level is correct.When the needle is in zone D, the oil
level is incorrect.There is a risk of damage to the engine.
 Check the level with the dipstick.
You must top up the level withoutexceeding the maximum level onthe gauge.
Engine oil temperature When the needle is in zone E, the
temperature is correct.When the needle is in zone F, the
temperature is too high.Reduce your speed to lower the temperature.
Service indicator and total distance recorder When the ignition is switched on, this indicates servicing information for afew seconds, then the total and tripdistances. Service functionSee the 'Service indicator' section.
Total distance recorder function The total distance is displayed on the left side of the screen and the tripdistance on the right side.

02-02-2004
INSTRUMENTS AND CONTROLS29

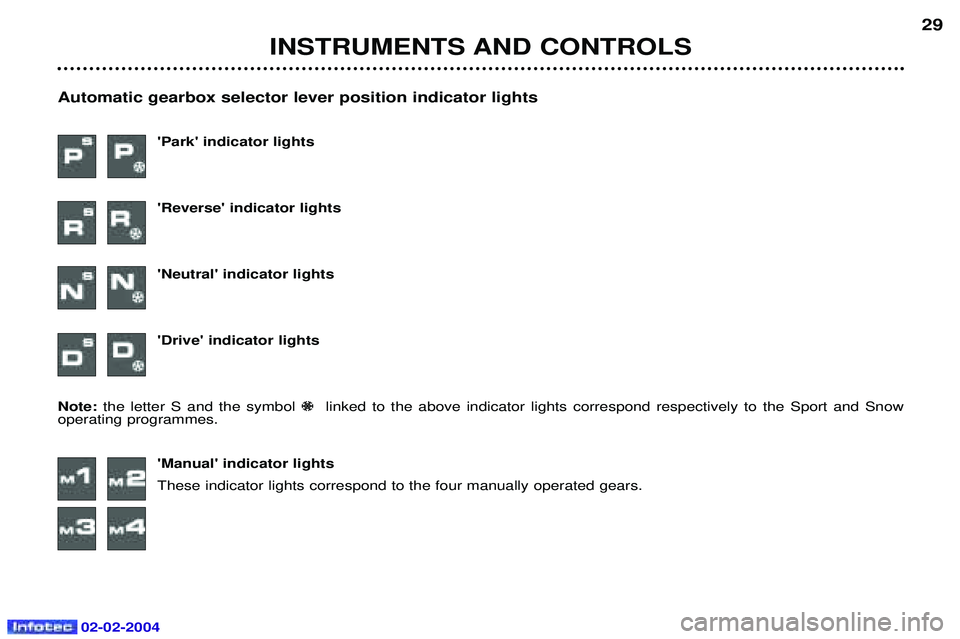

Automatic gearbox selector lever position indicator lights 'Park' indicator lights 'Reverse' indicator lights'Neutral' indicator lights'Drive' indicator lights
Note: the letter S and the symbol linked to the above indicator lights correspond respectively to the Sport and Snow
operating programmes.
'Manual' indicator lights These indicator lights correspond to the four manually operated gears.

02-02-2004

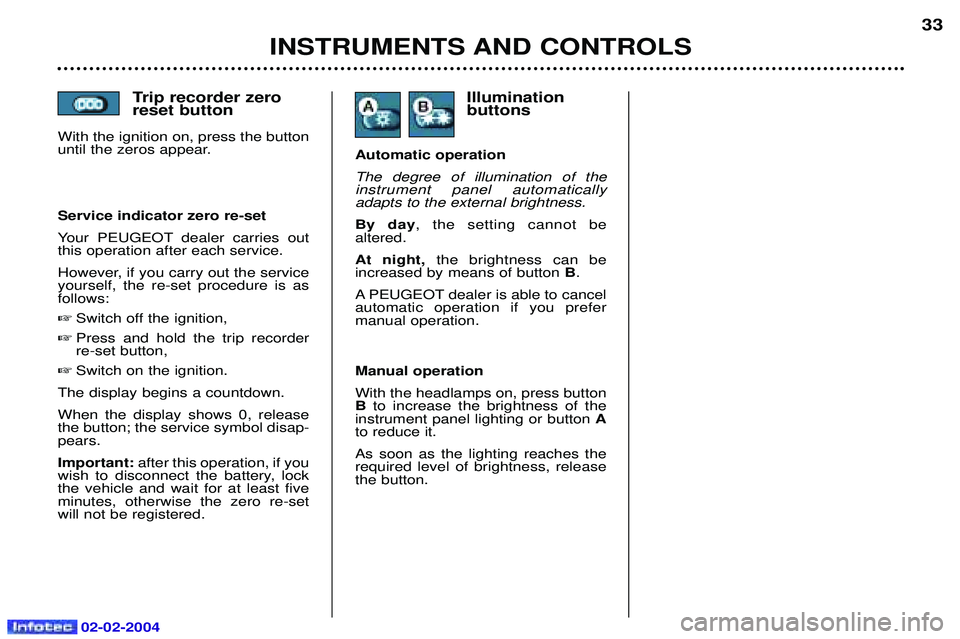

Trip recorder zero reset button
With the ignition on, press the button
until the zeros appear.
INSTRUMENTS AND CONTROLS 33
Manual operation With the headlamps on, press button B to increase the brightness of the
instrument panel lighting or button A
to reduce it. As soon as the lighting reaches the required level of brightness, releasethe button. Illuminationbuttons
Automatic operation The degree of illumination of the instrument panel automaticallyadapts to the external brightness. By day , the setting cannot be
altered.At night, the brightness can be
increased by means of button B.
A PEUGEOT dealer is able to cancel automatic operation if you prefermanual operation.
Service indicator zero re-set
Your PEUGEOT dealer carries out this operation after each service.
However, if you carry out the service yourself, the re-set procedure is asfollows:  Switch off the ignition,
 Press and hold the trip recorderre-set button,
 Switch on the ignition.
The display begins a countdown. When the display shows 0, release the button; the service symbol disap-pears. Important: after this operation, if you
wish to disconnect the battery, lock the vehicle and wait for at least fiveminutes, otherwise the zero re-setwill not be registered.

02-02-2004
INSTRUMENTS AND CONTROLS
32
5 seconds after the ignition is swit- ched on, the total distance recorderresumes normal operation and thedisplay shows the total or trip dis-tances. The distance remaining before the next service is less than 500 miles(1,000 km). Example:
400 miles (900 km) remain
before the next service is due. When switching on the ignition and for 5 seconds, the display shows: 5 seconds after the ignition is swit- ched on, the total distance recorderresumes normal operation and thesymbol remains lit. This indicates that a service should

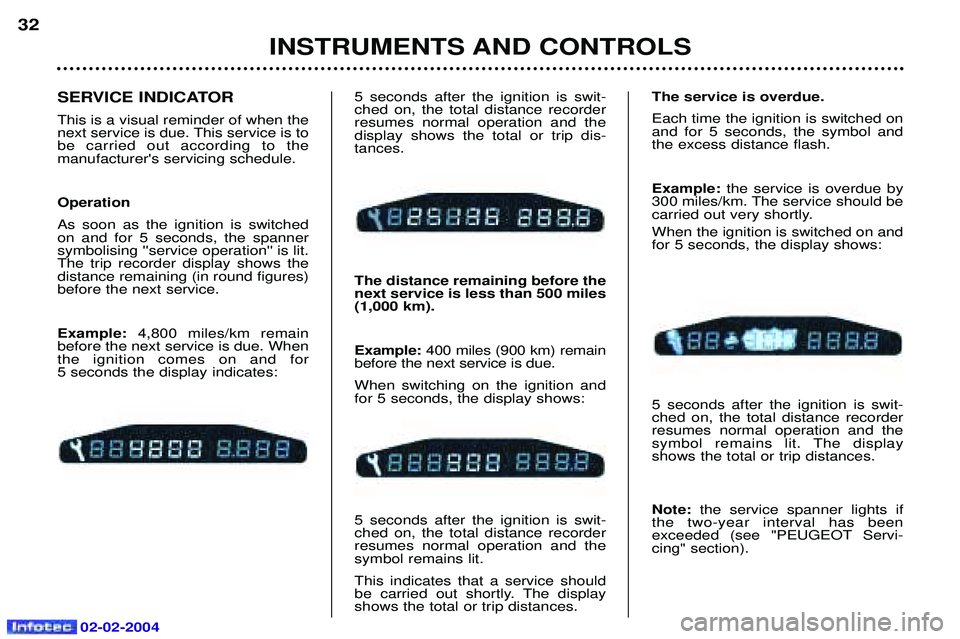

be carried out shortly. The displayshows the total or trip distances.SERVICE INDICATOR This is a visual reminder of when the
next service is due. This service is tobe carried out according to themanufacturer's servicing schedule. Operation As soon as the ignition is switched on and for 5 seconds, the spannersymbolising ''service operation'' is lit.The trip recorder display shows thedistance remaining (in round figures)before the next service. Example: 4,800 miles/km remain
before the next service is due. When the ignition comes on and for 5 seconds the display indicates: The service is overdue. Each time the ignition is switched on and for 5 seconds, the symbol andthe excess distance flash. Example:
the service is overdue by
300 miles/km. The service should be
carried out very shortly. When the ignition is switched on and for 5 seconds, the display shows: 5 seconds after the ignition is swit- ched on, the total distance recorderresumes normal operation and the
symbol remains lit. The displayshows the total or trip distances. Note: the service spanner lights if
the two-year interval has been
exceeded (see "PEUGEOT Servi-cing" section).

YOUR 607 IN DETAIL
34

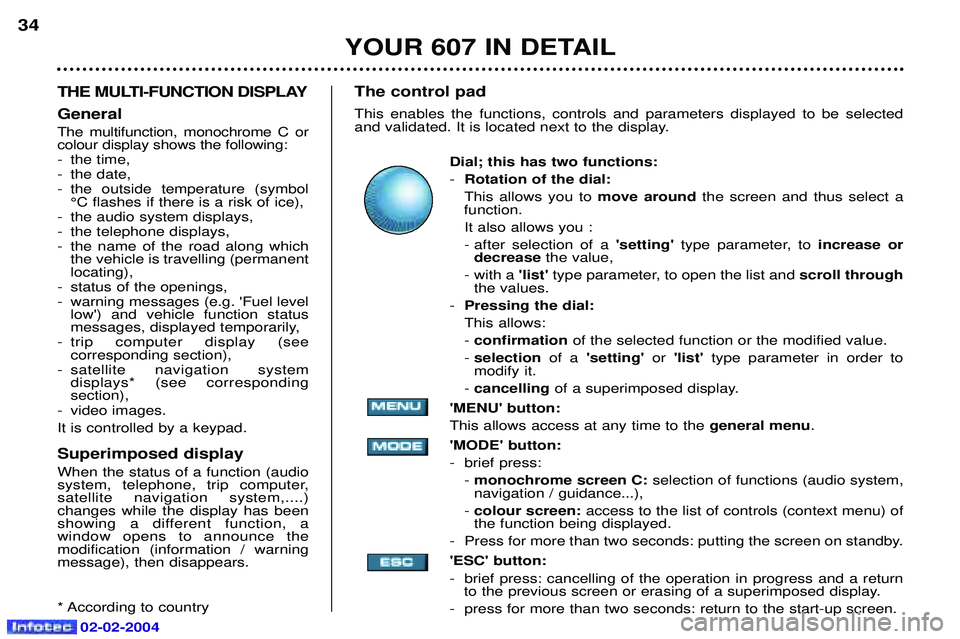

THE MULTI-FUNCTION DISPLAY General The multifunction, monochrome C or colour display shows the following:
- the time,
- the date,
- the outside temperature (symbol¡C flashes if there is a risk of ice),
- the audio system displays,
- the telephone displays,
- the name of the road along which the vehicle is travelling (permanent locating),
- status of the openings,
- warning messages (e.g. 'Fuel level low') and vehicle function status
messages, displayed temporarily,
- trip computer display (see corresponding section),
- satellite navigation system displays* (see corresponding section),
- video images. It is controlled by a keypad. Superimposed display When the status of a function (audio
system, telephone, trip computer,satellite navigation system,....)changes while the display has been
showing a different function, a window opens to announce themodification (information / warningmessage), then disappears.
* According to country The control pad This enables the functions, controls and parameters displayed to be selected
and validated. It is located next to the display.
Dial; this has two functions: -Rotation of the dial:
This allows you to move aroundthe screen and thus select a
function.
It also allows you :
- after selection of a 'setting'type parameter, to increase or
decrease the value,
- with a 'list'type parameter, to open the list and scroll through
the values.
- Pressing the dial:This allows:- confirmation of the selected function or the modified value.
- selection of a 'setting' or'list' type parameter in order to
modify it.
- cancelling of a superimposed display.
'MENU' button:This allows access at any time to the general menu.
'MODE' button:
- brief press: - monochrome screen C: selection of functions (audio system,
navigation / guidance...),
- colour screen: access to the list of controls (context menu) of
the function being displayed.
- Press for more than two seconds: putting the screen on standby. 'ESC' button:
- brief press: cancelling of the operation in progress and a return to the previous screen or erasing of a superimposed display.
- press for more than two seconds: return to the start-up screen.
02-02-2004

YOUR 607 IN DETAIL35
Setting the parameters From the
'general menu' , the
'Display configuration' menu
allows you to access the following parameters:
- setting the video brightness and display,
- setting the date and time,
- choosing the language in which information is heard and displayed (German, Spanish, French, English, Italian, Dutch), setting the
formats and the units. These settings allow you to choose a display in km/h or mph, the temperature in Celsius or in Fahrenheit, and to modify the hour(12 or 24 hour) and date format.

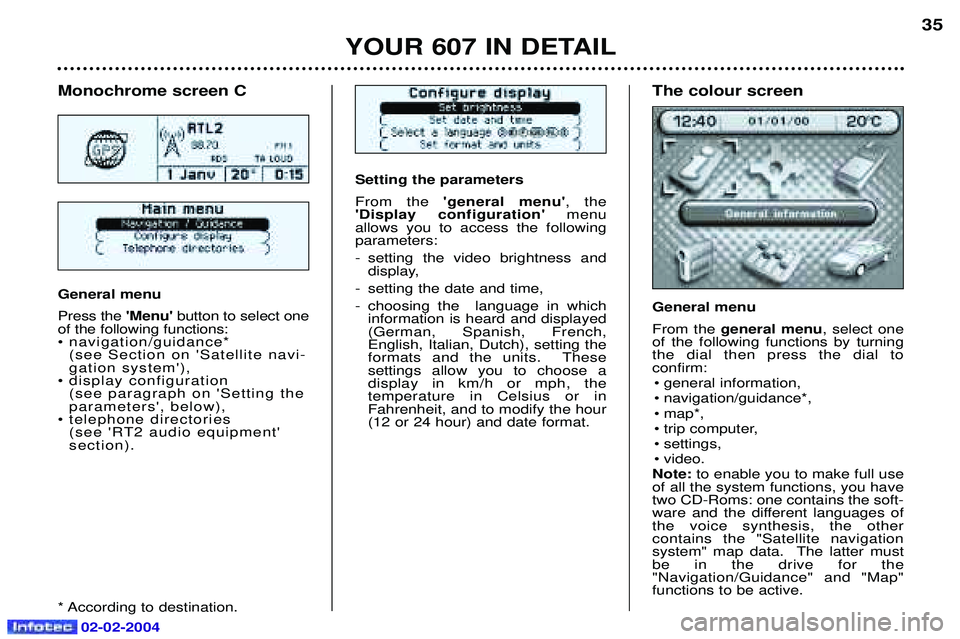

Monochrome screen C General menu Press the 'Menu' button to select one
of the following functions:
¥ navigation/guidance* (see Section on 'Satellite navi-gation system'),
¥ display configuration (see paragraph on 'Setting theparameters', below),
¥ telephone directories (see 'RT2 audio equipment'section).
* According to destination. The colour screen General menu From the general menu , select one
of the following functions by turning the dial then press the dial toconfirm:
¥ general information,
¥ navigation/guidance*,
¥ map*,
¥ trip computer,
¥ settings,
¥ video.
Note: to enable you to make full use
of all the system functions, you have two CD-Roms: one contains the soft-
ware and the different languages ofthe voice synthesis, the othercontains the "Satellite navigation
system" map data. The latter mustbe in the drive for the"Navigation/Guidance" and "Map"functions to be active.
02-02-2004
