Peugeot 607 Dag 2002.5 Owner's Manual

15-07-2002
YOUR 607 IN DETAIL101

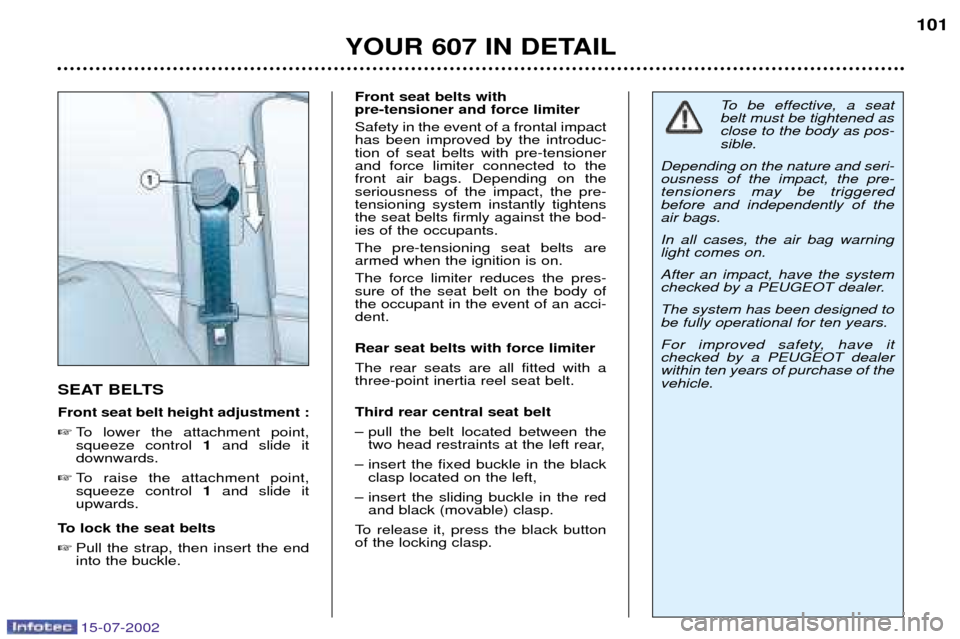

SEAT BELTS Front seat belt height adjustment :  To lower the attachment point, squeeze control 1and slide it
downwards.
 To raise the attachment point,squeeze control 1 and slide it
upwards.
To lock the seat belts  Pull the strap, then insert the endinto the buckle. Front seat belts with pre-tensioner and force limiter Safety in the event of a frontal impact has been improved by the introduc-tion of seat belts with pre-tensionerand force limiter connected to thefront air bags. Depending on theseriousness of the impact, the pre-tensioning system instantly tightensthe seat belts firmly against the bod-ies of the occupants. The pre-tensioning seat belts are armed when the ignition is on. The force limiter reduces the pres- sure of the seat belt on the body ofthe occupant in the event of an acci-dent. Rear seat belts with force limiter The rear seats are all fitted with a three-point inertia reel seat belt. Third rear central seat belt
Ð pull the belt located between the
two head restraints at the left rear,
Ð insert the fixed buckle in the black clasp located on the left,
Ð insert the sliding buckle in the red and black (movable) clasp.
To release it, press the black button of the locking clasp. To be effective, a seatbelt must be tightened asclose to the body as pos-sible.
Depending on the nature and seri-ousness of the impact, the pre-tensioners may be triggeredbefore and independently of theair bags. In all cases, the air bag warning light comes on. After an impact, have the system
checked by a PEUGEOT dealer. The system has been designed to be fully operational for ten years.
For improved safety, have it checked by a PEUGEOT dealerwithin ten years of purchase of thevehicle.

15-07-2002
YOUR 607 IN DETAIL
102
THE REMOTE CONTROL KEY
From the driver's door, the key allows you to lock or unlock thedoors, the boot and the fuel filler flap,as well as to fold back and unfold theexterior mirrors. The remote control in the key per- forms the same functions at a dis-tance. If one of the front doors or the boot is open, the central locking does notfunction. Selective unlocking with theremote control key This function must be initialised by a
PEUGEOT dealer. Press button Bto unlock the driver's
door as well as to fold out the exteri- or mirrors. Press button Bagain to unlock the
other doors, the boot and the fuel filler flap. Folding/opening out the key
To tuck away the key blade, fold it down into the remote control module.
To open out the key, press button
D.
Deadlocking This renders the internal and exter- nal door controls inoperative, andenables automatic closing of the win-dows and the sunroof.
With the key  Lock the vehicle and keep the key in the locking position for approxi-mately one second.
With the remote control incorpo-rated in the key  Press button Aonce to lock the
vehicle (the direction indicatorscome on for approximately twoseconds).
 Within a maximum of five sec-onds, press button Aa second
time to deadlock the vehicle (thedirection indicators come on forapproximately two seconds).
Unlocking with the remotecontrol key  Press button B.
This is confirmed by rapid flashing ofthe direction indicators.
Locking with the remote control key
 Press button A.
This is confirmed by fixed lighting of the direction indicators for approxi-mately two seconds. If one of the doors or the boot is open, the central locking does notfunction. Note: the function that controls fold-
ing back of the exterior mirrors can
be disarmed by a PEUGEOT dealer. Opening the boot with theremote control key
 Press and hold button C.
Note: this also unlocks the doors or
the driver's door only, if selectiveunlocking is initialised.

15-07-2002
YOUR 607 IN DETAIL103
Electronic engine immobiliser This locks the engine control system a few moments after the ignition has
been switched off and therefore pre-vents starting of the vehicle by any-
one who does not have the key. The ignition key has an electronic chip which has a special code. Whenthe ignition is switched on, the codeis recognised and starting is possi-ble. If the system does not function
correctly, the central locking button
indicator light, situated on the centreconsole, flashes rapidly when theignition is switched on (2nd notch).
WARNING: your vehicle is no longer
protected in this event.
Contact a PEUGEOT dealer as soon as possible. Flat battery (CR 2025/3 volt battery) This is indicated by illumination of a warning light on the instrument panel
display, accompanied by an audiblesignal and a message on the multi-
function display.
Contact a PEUGEOT dealer to
replace the battery.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition. Locating your car
To locate your car in a car park:
 press button A; the courtesy lights
come on and the direction indica- tors flash for a few seconds.
CONFIDENTIAL CARD The confidential card contains the identification code necessary for anywork carried out by a PEUGEOT
dealer on the system. This code ishidden by a film, which should be
removed only if necessary. Keep your card in a safe place, never inside the vehicle. Programming the remote control in the key Switch off the ignition.
 Switch the ignition on again.
 Immediately press button A.
 Switch off the ignition and remove the remote control key from the
ignition lock. The remote controlkey is now working again.

15-07-2002
Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the key is lost, your PEUGEOT dealer can rapidly supply you with new keys. The high-frequency remote control key is a high-performance system.Do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle without your
knowledge.The remote control cannot operate if the key is in the ignition, even if the ignition is switched off, except for reprogramming. Do not operate the deadlock if there is someone inside the vehicle.As a safety measure (when there are children on board), remove the ignition key when leaving the vehicle, even for a short time. Do not handle the buttons of your remote control when out of range of your vehicle as you run the risk of stopping it from working. It would then be necessary to reprogramme the remote control. When buying a second-hand car: Ð Ensure that you are given the confidential card;
Ð Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start your vehicle.
Do not make any modifications to the electronic engine immobiliser system.
YOUR 607 IN DETAIL
104

15-07-2002
YOUR 607 IN DETAIL103
Electronic engine immobiliser This locks the engine control system a few moments after the ignition has
been switched off and therefore pre-vents starting of the vehicle by any-
one who does not have the key. The ignition key has an electronic chip which has a special code. Whenthe ignition is switched on, the codeis recognised and starting is possi-ble. If the system does not function
correctly, the central locking button
indicator light, situated on the centreconsole, flashes rapidly when theignition is switched on (2nd notch).
WARNING: your vehicle is no longer
protected in this event.
Contact a PEUGEOT dealer as soon as possible. Flat battery (CR 2025/3 volt battery) This is indicated by illumination of a warning light on the instrument panel
display, accompanied by an audiblesignal and a message on the multi-
function display.
Contact a PEUGEOT dealer to
replace the battery.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition. Locating your car
To locate your car in a car park:
 press button A; the courtesy lights
come on and the direction indica- tors flash for a few seconds.
CONFIDENTIAL CARD The confidential card contains the identification code necessary for anywork carried out by a PEUGEOT
dealer on the system. This code ishidden by a film, which should be
removed only if necessary. Keep your card in a safe place, never inside the vehicle. Programming the remote control in the key Switch off the ignition.
 Switch the ignition on again.
 Immediately press button A.
 Switch off the ignition and remove the remote control key from the
ignition lock. The remote controlkey is now working again.

15-07-2002
Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the key is lost, your PEUGEOT dealer can rapidly supply you with new keys. The high-frequency remote control key is a high-performance system.Do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle without your
knowledge.The remote control cannot operate if the key is in the ignition, even if the ignition is switched off, except for reprogramming. Do not operate the deadlock if there is someone inside the vehicle.As a safety measure (when there are children on board), remove the ignition key when leaving the vehicle, even for a short time. Do not handle the buttons of your remote control when out of range of your vehicle as you run the risk of stopping it from working. It would then be necessary to reprogramme the remote control. When buying a second-hand car: Ð Ensure that you are given the confidential card;
Ð Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start your vehicle.
Do not make any modifications to the electronic engine immobiliser system.
YOUR 607 IN DETAIL
104

15-07-2002
YOUR 607 IN DETAIL105
THE ALARM This provides two types of protec- tion, exterior and interior:
Ð exterior protection: when this is
set, the alarm sounds if a door, the boot or the bonnet is opened.
Ð interior protection: when this is set, the alarm sounds if the sensorsdetect a variation in the air move-ment inside the vehicle (breakingof a window or a movement insidethe vehicle).
Setting the alarm  Switch off the ignition and get outof the vehicle.
 Set the alarm within five minutesof getting out of the vehicle, bylocking or deadlocking using theremote control (button Bindicator
light flashes once per second). Note:
if you wish to lock your vehicle
without setting the alarm, use thedoor lock. When the alarm is triggered, the siren sounds and the direction indi-cators flash for thirty seconds. It then stops, but the alarm remains set.
Warning: if the alarm has been trig-
gered ten times in succession, on the eleventh time it becomes inac-tive. Note: if button B flashes rapidly, the
alarm has been triggered while you were away from your vehicle. Automatic activation The alarm is activated automatically two minutes after the door or bootwere last closed. In order to avoid accidental triggering of the alarm when a door or the bootis opened, it is essential to press theremote control opening button first. Disarming Unlock the vehicle with the remote control key (button Bindicator light
goes out). Note: if the alarm has been triggered
while you were away from your car, the rapid flashing of the indicatorlight will stop when you switch on theignition. To set the alarm with exteriorprotection only If, while you are away from the vehi- cle, you wish to leave a window par-tially open or a pet inside the vehicle,you should choose exterior protec-
tion only.
 Switch off the ignition
 In the next ten seconds, pressbutton Auntil indicator light B is
on continuously.
 Get out of the vehicle.
 Set the alarm by locking or dead-locking using the remote controlswitch (button Bindicator light
flashes once a second).
Note: when the alarm is set but the
remote control does not operate:
 Unlock the doors with the key and
open the door. The alarm is trig-gered.
 Switch on the ignition in the next
ten seconds. The alarm is disar-med.
Incorrect operation When the ignition is switched on, if button Blights for ten seconds, there
is a fault in the siren connection.
Contact a PEUGEOT dealer to have the system checked.

15-07-2002
YOUR 607 IN DETAIL
106
DOORS Opening the doors from outside Opening the doors from inside
Locking / unlocking from the inside
Ð Using button Aof the centre con-
sole : This allows the doors, the boot and the fuel filler flap to be locked orunlocked.
Ð Using button B on the door :
¥ on the front doors this allows the doors, the boot and the fuel fillerflap to be locked or unlocked.
¥ on the rear doors this allows the door concerned to be locked orunlocked.
Note : button Bis neutralised if the
vehicle is deadlocked.
' Door open' alert
With the ignition on (2nd notch), withthe engine running or when the vehi-cle is moving, if a door is not proper-ly closed then the door open warninglight comes on, accompanied by anaudible signal and a diagram indicat-ing the relevant door on the
multiÐfunction display, if a door is notproperlyclosed. Child safety This prevents either of the rear doors being opened from inside.
 Turn the red plastic switch a quar-
ter of a turn using the ignition key.

15-07-2002
YOUR 607 IN DETAIL107
Vehicle unlocked
 Press and hold button Cof the
remote control key or press push- button A.
Note: push-button Acan be deacti-
vated. Rotate control B,located
inside the boot lid, a quarter of a turn
(anti-clockwise) using the key.
Closing the boot  Press the centre of the boot lidwith both hands, until it locks.
'Boot open' warning With the ignition on (2nd notch), with the engine running or when the vehi-cle is moving, the door open warninglight comes on, accompanied by anaudible signal and a diagram on the
multi-function display, if the boot isnot properly closed.
THE BOOT Opening the boot
With the vehicle locked / deadlocked

Press and hold button Cof the
remote control key.
This action will also unlock the doors and the fuel filler flap. SUNROOF Control the sunroof:
Ð manually
: lightly press the switch;
the roof stops as soon as the switch is released.
Ð automatically : press the switch
down; the roof opens partially oropens or closes completelydepending on where the switch ispressed.
¥to partially open the roof: press
part Aof the switch. To close it,
press part Bof the switch.
¥to open the roof completely:press part Bof the switch.
¥to close it completely: press part
A of the switch .
¥safety auto-reverse When the sunroof is closing and meets an obstacle, it stops thenopens again.
Note: the sunroof shutter is manual.

15-07-2002
The engine and the ignition must be switched off when filling withfuel : Open the fuel filler flap by press-ing its front right hand edge,
 Unscrew the cap and hook it overthe tab located on the inside of theflap.
When filling up your tank, do not con-
tinue after the 3rd cut-off of thepump; this could cause your vehicleto malfunction. The capacity of the tank is approx- imately 80 litres.  After filling the tank, screw the capon fully and close the flap.
Fuel filler cap open When this light comes on,accompanied by an audiblesignal and the message'Fuel cap open' on the dis-
play, screw the cap on againand close the fuel filler flap.
FILLING WITH FUEL Low fuel level
When the minimum fuel level is reached, this warn-ing light comes on, accom-panied by an audible signaland the message 'Fuel
level low' on the multi-function dis-
play.
You can can still drive approxi- mately 30 miles (50 km) withoutfilling up with fuel. Filling with fuelLocking and unlocking of the fuel filler flap, the doors and the boot issimultaneous (except when selectiveunlocking is initialised; in this casepress the unlocking button of theremote control again).
YOUR 607 IN DETAIL
108
BONNET Opening Pull the lever, located in the dri- ver's footwell, downwards.
 Lift the catch and raise the bon-net.
Bonnet assister struts open the bon-net and keep it open. Closing
 Lower the bonnet and release it at the end of its travel.
 Check that it is locked.
'Bonnet open' warning With the ignition on (2nd notch), with the engine running or when the vehi-cle is moving, the door open warn-ing light comes on, accompanied byan audible signal and a diagram on
the multi-function display, if the bon-net is not properly closed.
