Peugeot 607 Dag 2002.5 Owners Manual

15-07-2002
YOUR 607 IN DETAIL93
THE SEATS Manual front seats
1 - Forwards-backwards adjustment
Lift the lever and slide the seat forwards or backwards.
2 - Seat cushion angle adjustment *
Raise the catch while pressing on or easing off the seat back to obtain the required height.
3 - Driver's seat height adjustment* Raise the catch to obtain the required height.
4 - Seat back angle adjustment Raise the catch to obtain the required angle.
5 - Lumbar adjustment *
Raise or lower the lever to obtain the correct position.
6 - Head restraint height adjustment The head restraint has a frame with notches whichprevent the head restraint dropping down (safety
device in the event of an impact).
To raise the head restraint, push it upwards.
The setting is correct when the upper edge of the head restraint is level with the top of the head.
To lower the head restraint, it is necessary to pushsimultaneously : Ð
the button located on the base of the head restraint frame,
Ð the head restraint downwards.The head restraint angle is also adjustable.
To remove the head restraint, lift it out by pressing the lug.
Warning : never drive with the head restraints removed; they
must be in place and correctly adjusted.
* Driver's seat only.

15-07-2002
YOUR 607 IN DETAIL
94
Electric front seats
A - Forwards-backwards adjustment
Push the control forwards or backwards to slide the seat.
B - Seat cushion angle adjustment Tilt the front of the control upwards or downwards toobtain the required angle.
C - Seat height adjustment Tilt the rear part of the control upwards or downwardsto obtain the required height.
D - Seat back angle adjustment Tilt the control to the front or the rear to obtain the cor-rect angle.
E - Lumbar adjustment (mechanical adjustment) Raise or lower the lever to obtain the correct position.
F - Head restraint height adjustment Tilt the control upwards or push it downwards to obtainthe correct height.
The setting is correct when the upper edge ofthe head restraint is level with the top of thehead.
The head restraint angle is also adjustable manually.
To remove the head restraint, tilt the seat back to 45¡ and place the head restraint in the high position, thenpull with both hands.
Note: the electrical functions of the driver's seat are inoper-
ative three minutes after the ignition has been switched off.

15-07-2002
YOUR 607 IN DETAIL95
Memorising using the buttons
To memorise:
 Place the ignition key in the 'run- ning' position (2nd notch),
 Adjust your seat and mirrors,
 Press button M,then button 1
(first driving position) or button 2
(second driving position) withinfour seconds.
An audible signal confirms that aposition has been memorised. Memorising a new position cancels the previous one. Recalling a memorised position Engine off  Briefly press button 1 or 2to recall
the corresponding memorised
position. The end of the setting isindicated by a bleep.
Note: after recalling a memorised
position five times in succession, thefunction will be cancelled until theengine is started. Engine running
 Keep button 1 or 2pressed down
until the bleep indicates the end of setting of the corresponding mem-orised position.
Memorising seat and mirror positions Four driving positions can be memo- rised:
Ð two, using two remote control
keys (two users) ,
Ð two, using buttons M/1 and M/2.
Driving positions memorised bythe remote control key When locking the doors, the remote control key memorises the positionof the driver's seat and the exteriormirrors. When unlocking the doors, the dri- ver's seat and the exterior mirrorsresume the position memorised bythe remote control key if this haschanged in the meantime. Each remote control key can memorise a specific setting. Front and rear heated seats controls
 Press the switch. The tempera-
ture is regulated automatically.
 Press it again to stop operation.
Note: the command to activate heat-
ing of the seat(s) remains in thememory for two minutes after the
ignition is switched off.

15-07-2002
YOUR 607 IN DETAIL
94
Electric front seats
A - Forwards-backwards adjustment
Push the control forwards or backwards to slide the seat.
B - Seat cushion angle adjustment Tilt the front of the control upwards or downwards toobtain the required angle.
C - Seat height adjustment Tilt the rear part of the control upwards or downwardsto obtain the required height.
D - Seat back angle adjustment Tilt the control to the front or the rear to obtain the cor-rect angle.
E - Lumbar adjustment (mechanical adjustment) Raise or lower the lever to obtain the correct position.
F - Head restraint height adjustment Tilt the control upwards or push it downwards to obtainthe correct height.
The setting is correct when the upper edge ofthe head restraint is level with the top of thehead.
The head restraint angle is also adjustable manually.
To remove the head restraint, tilt the seat back to 45¡ and place the head restraint in the high position, thenpull with both hands.
Note: the electrical functions of the driver's seat are inoper-
ative three minutes after the ignition has been switched off.

15-07-2002
YOUR 607 IN DETAIL95
Memorising using the buttons
To memorise:
 Place the ignition key in the 'run- ning' position (2nd notch),
 Adjust your seat and mirrors,
 Press button M,then button 1
(first driving position) or button 2
(second driving position) withinfour seconds.
An audible signal confirms that aposition has been memorised. Memorising a new position cancels the previous one. Recalling a memorised position Engine off  Briefly press button 1 or 2to recall
the corresponding memorised
position. The end of the setting isindicated by a bleep.
Note: after recalling a memorised
position five times in succession, thefunction will be cancelled until theengine is started. Engine running
 Keep button 1 or 2pressed down
until the bleep indicates the end of setting of the corresponding mem-orised position.
Memorising seat and mirror positions Four driving positions can be memo- rised:
Ð two, using two remote control
keys (two users) ,
Ð two, using buttons M/1 and M/2.
Driving positions memorised bythe remote control key When locking the doors, the remote control key memorises the positionof the driver's seat and the exteriormirrors. When unlocking the doors, the dri- ver's seat and the exterior mirrorsresume the position memorised bythe remote control key if this haschanged in the meantime. Each remote control key can memorise a specific setting. Front and rear heated seats controls
 Press the switch. The tempera-
ture is regulated automatically.
 Press it again to stop operation.
Note: the command to activate heat-
ing of the seat(s) remains in thememory for two minutes after the
ignition is switched off.

15-07-2002
YOUR 607 IN DETAIL
96

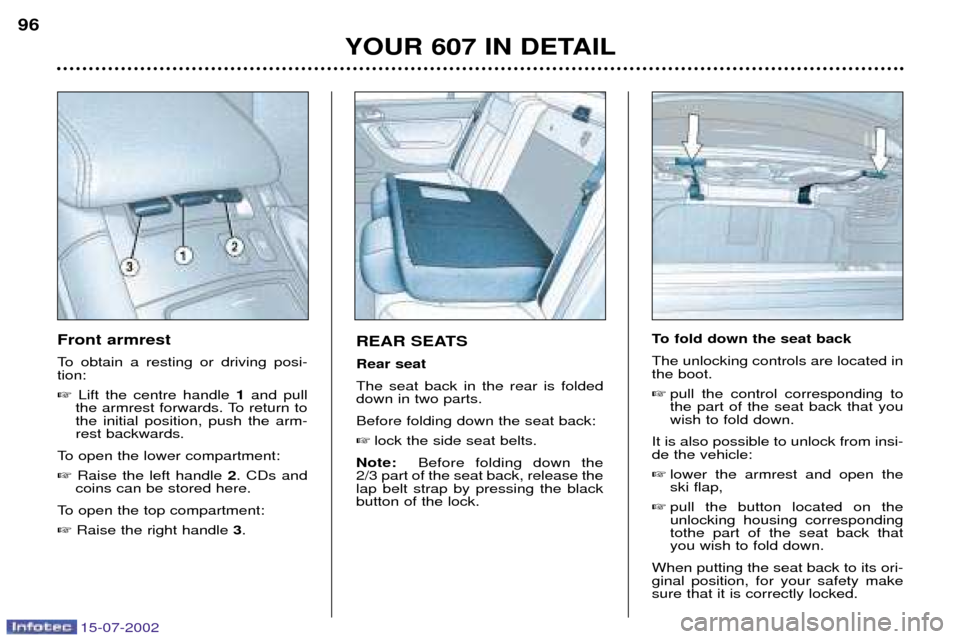

REAR SEATS Rear seatThe seat back in the rear is folded down in two parts. Before folding down the seat back:
 lock the side seat belts.
Note: Before folding down the
2/3 part of the seat back, release the lap belt strap by pressing the blackbutton of the lock.
Front armrest
To obtain a resting or driving posi- tion:
 Lift the centre handle 1and pull
the armrest forwards. To return tothe initial position, push the arm-rest backwards.
To open the lower compartment:  Raise the left handle 2. CDs and
coins can be stored here.
To open the top compartment:  Raise the right handle 3. To fold down the seat back The unlocking controls are located in the boot.
 pull the control corresponding tothe part of the seat back that youwish to fold down.
It is also possible to unlock from insi-de the vehicle:  lower the armrest and open theski flap,
 pull the button located on theunlocking housing correspondingtothe part of the seat back thatyou wish to fold down.
When putting the seat back to its ori-ginal position, for your safety makesure that it is correctly locked.

15-07-2002
YOUR 607 IN DETAIL97
''Isofix'' mountings*
Available on the one third side of the rear seat, the Isofix mountings allowfitting of a special child seat ,
approved for PEUGEOT vehiclesand sold within its network. The locks incorporated in the child seat fit onto the Isofix mountings andensure safe, reliable and fast assem-
bly.
* According to current legislation. Ski flap
 Lower the armrest to access the ski flap. Open by pulling the han-dle.
The special child seat approved by
PEUGEOT is the KIDDY Isofix seat.It can be used in the rearwards fac-ing position from birth to 13 kg and inthe forwards facing position from 9 to18 kg. In the forwards facing position,
the
front seat must be in the interme- diate longitudinal position, withthe seat back upright. In this position, the combined use of the Isofix mountings, the restrainingcushion and the seat belt is compul-
sory. This seat may also be used where there are no Isofix mountings: in thiscase it is compulsory to wear athree-point seat belt.
 Follow the instructions in thebrochure for fitting the childseat.

15-07-2002
YOUR 607 IN DETAIL
98
CHILD SEATS Although one of PEUGEOT's main concerns when designing your vehicle, the safety of your children also depends on you.
For maximum safety, please follow these precautions:ÐAll children under the age of 10* must travel in a special approved child seat*, adapted to their weight, in a seat fitted with a seat belt.
Ð Front passenger seat*: children under the age of 10 must not travel in the forwards facing position**. The rearwards facing position is permitted. In this position it is compulsory to disarm the passenger air bag.
After carrying out numerous tests, PEUGEOT recommends the following systems: Up to 18 months (up to 13 kg)
"Britax Babysure": installed with its back to the engine in the front or in the rear using a three-point seat belt. In the front, the passenger seat must be in the 'mid-way'position on the slide.
From 9 months to 3 or 4 years (9 to 18 kg) "Ršmer Prince": installed in the rear using a three-point seat belt. For the safety of your child, the seat and the restraining cushion must never be separated.
From 3 to 6 years (15 to 25 kg) "Ršmer Vario'': installed in the rear with a three point seat belt.
1
2
3

15-07-2002
YOUR 607 IN DETAIL99
Never leave a child or an animal in a vehicle whichis exposed to the sun andhas the windows closed.
Never leave the keys within reach
of children inside the car. Disarm the passenger air bag when installing a rearwards-facingchild seat in the front. The child would risk being killed or seriously injured if the air bagwere to inflate. Observe strictly the recommenda- tions for assembling or attachingthe child seat as shown in thechild seat instructions.
From 3 to 10 years (15 to 36 kg)
''Recaro start'': installed in the rear with a threeÐpoint seat belt. The height and width of the seat back must be adjusted according to the age and the build of your child. "Klippan Optima": installed in the rear with a threeÐpoint seat belt. From the age of 6 years (approximately 22 kg), the booster is used on its own.
Remember, even for short journeys, to fasten the three-point seat belts or thechild seat straps, keeping the slack in relation to the child's body to a mini-mum.
To prevent the doors from opening accidentally, use the child-lock. Also, do not open the rear windows more than a third.
* According to current legislation in the country of destination.
** Unless the rear seats are already occupied by other children or the rear seats cannot be used (because they are missing or folded down). In this case, adjustthe front passenger seat to the rear-most position and leave the air bag active.
4
5

15-07-2002
In accordance with European regulations (Directive 2000/3), the table below indicates to what extent each seat in your vehicle may be fitted with a child seat:
U : universal category
U (R) : universal category, rearwards facing and forwards facing, set in the highest position.
X : no child seat According to destination:
L1 : BRITAX Babysure E11 0344117 Universal (birth to 13 kg).
L2 : R…MER Prince E1 03301058 Universal (9 to18 kg).
L3 : R…MER Vario E1 03301120 Universal (15 to 25 kg).
L4 : RECARO Start E1 03301108 Universal (15 to 36 kg).
L5 : KLIPPAN Optima E17 030007 Universal (15 to 36 kg).
L6 : KIDDY Isofix Rearwards facing E1 03301123 and Universal (birth to 13 kg)*.
L7 : KIDDY Isofix Forwards facing E2 030011 Universal (9 to 18 kg)*.
* See section "Seats - Isofix mountings" for use of the KIDDY child seat on the vehicle's Isofix mountings. Weight range
Seat < 13 kg 9 - 18 kg 15 - 25 kg 22 - 36 kg
Front passenger Fixed seat L1, L6 L2, L7 L3, L4, L5 L4, L5
Front passenger U (R) U (R) U (R) U (R)
Booster seat (R) L1, L6 L2, L7 L3, L4, L5 L4, L5
Rear passenger UU UU
Side L1, L6 L2, L7 L3, L4, L5 L4, L5
Rear passenger XX L3, L4, L5 L4, L5
Centre
YOUR 607 IN DETAIL
100
