sensor Peugeot 607 Dag 2002.5 User Guide

15-07-2002
Do not cover the rain sensor located on thewindscreen behind the
interior mirror. When using an automatic
car wash, switch off the ignition or check that the wiper stalk is not inthe automatic position.
In winter, it is advisable to wait until the windscreen is completelyfree of ice before operating theautomatic wipe
YOUR 607 IN DETAIL 111
WINDSCREEN
WIPER STALK
Windscreen wipers 3
Fast wipe
2 Normal wipe
1 Automatic wipe
0 Off
When the ignition has been switched off for more than aminute with the control in a wipeposition (1, 2 or 3), it is necesaryto reactivate this function. To d o
this, move the stalk to any position,then move it back to the requiredposition. Maintenance position This position enables the wiper blades to be removed.
In the minute following switching off of the ignition, any action on the stalkpositions the wipers in the centre ofthe windscreen so that they may becleaned or replaced.
To park the wipers after this has been done, switch on the ignitionand operate the stalk.
Windscreen and headlamp wash Pull the windscreen wiper stalk towards you. The windscreen wash then the wind- screen wipers operate for a fixed
period. The windscreen wash andheadlamp wash operate simultane-ously for a few seconds,
only if the
dipped beam or main beam head-lamps are on.
Screenwash/headlamp wash low
When the minimum level of the reservoir is reached, thiswarning light comes on,accompanied by an audiblesignal and the message
'Screenwash low' on the multi-func-
tion display. Next time you stop, fill the screen-
wash / headlamp wash reservoir.
If the reservoir is empty, the warning light comes on when the ignition isswitched on, or every time the stalkis operated, until the reservoir isfilled.

15-07-2002
YOUR 607 IN DETAIL
112
Automatic windscreen wiper In position 1, the wiper operates
automatically and adjusts its speed
to the intensity of the rainfall. Operating check Activation
The indicator light comes on, accompanied by an audiblesignal, as soon as the driversets the windscreen wiperstalk to position 1.
Neutralisation When the function is neu-tralised, going from position 1
to another position, the indi-cator light comes on, accom-panied by an audible signal.
In cases of malfunction, the driver
is informed by the message 'Rain
sensor faulty' on the multi-function
display. In position 1, the windscreen wiper
will operate on intermittent wipe.
Contact a PEUGEOT dealer to have the system checked.

15-07-2002
YOUR 607 IN DETAIL129
If there is an operating fault, the audible signal willbe a short bleep followedby a long bleep when
changing to reverse gear.
REAR PARKING ASSISTANCE
This system consists of four proximity
sensors, located in the rear bumper,and a special speaker fitted under therear parcel shelf. It detects any obstacle (person, vehicle, tree, gate, pavement etc.) behind thevehicle. Note:
this function will be disarmed
when the vehicle is towing a trailer (vehicle fitted with towing attachmentrecommended by PEUGEOT). In win-
ter, ensure that the sensors are not
covered with frost or snow.
Activation The system is activated as soon as reverse gear is engaged; an audiblebleep shows that it is active. An audible signal indicates the prox-
imity of the obstacle. This signalbecomes more rapid as the vehicleapproaches the obstacle. When the distance between the rear of the vehicle and the obstacle isless than approximately twenty-fivecentimetres, the audible signalbecomes continuous. Deactivation
 Change to neutral, the system
becomes inactive.
Detection zone

15-07-2002
140TYRE UNDER-INFLATION DETECTION Sensors check the tyre pressure during driving, and trigger a warningin the event of malfunction (speedgreater than 15mph [25 km/h]). Flat tyre When this warning light comes on, accompanied byan audible signal and themessage 'Tyre pressure
low' on the multi-function
display, have the tyre pressurechecked as soon as possible. Puncture
This warning light, accom- panied by an audible signaland the message 'Punc-
tured tyre(s) detected' on
the multi-function display, is
followed by illumination of the
'STOP' warning light.
Stop immediately, avoiding any sud-den movement of the steering wheeland the brakes.
Change the damaged (punctured orvery deflated) tyre, and have the tyrepresure checked as soon as possible.
Note: if the damaged tyre is tem-
porarily stored in the boot, it willagain emit this message to remindyou of the necessity of having it
repaired. This will prevent anotherwarning of the same type being dis-played. Sensor(s) not detected
This warning light, accom-panied by an audible signaland the message ' X tyre
pressure sensor(s) miss-ing ' on the multi-function
display, indicates that under-inflationdetection is absent from one (or sev-eral) tyre(s).
Contact a PEUGEOT dealer to replace the faulty sensor(s). Note: this message is also displayed
when one of the tyres is away from the vehicle (being repaired) or whena wheel without a sensor is fitted.
PRACTICAL INFORMATION
All repairs and changing of tyres on a wheel fittedwith this system must becarried out by a
PEUGEOT dealer.
The tyre under-inflation detec-tion system is an aid to drivingwhich does not replace theneed for the driver to be vigilant
or to drive responsibly. This system does not remove the necessity for having the tyre pres-sure (including that of the spare
wheel) checked regularly, toensure optimum dynamic perfor-mance of the vehicle and to pre-vent premature wear of the tyres,particularly in the case of arduousdriving conditions (heavy load,high speed). The system may temporarily be disturbed by radio broadcasts ona frequency close to it.

15-07-2002
PRACTICAL INFORMATION
142

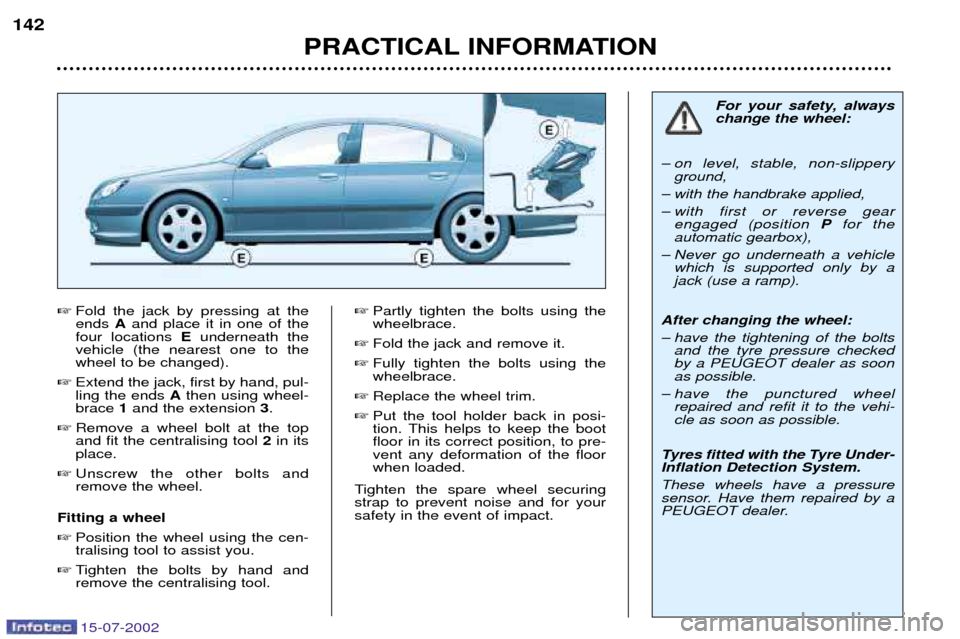

Fold the jack by pressing at the ends Aand place it in one of the
four locations Eunderneath the
vehicle (the nearest one to thewheel to be changed).
 Extend the jack, first by hand, pul-ling the ends Athen using wheel-
brace 1and the extension 3.
 Remove a wheel bolt at the topand fit the centralising tool 2in its
place.
 Unscrew the other bolts andremove the wheel.
Fitting a wheel  Position the wheel using the cen-tralising tool to assist you.
 Tighten the bolts by hand andremove the centralising tool.
Partly tighten the bolts using thewheelbrace.
 Fold the jack and remove it.
 Fully tighten the bolts using thewheelbrace.
 Replace the wheel trim.
 Put the tool holder back in posi-
tion. This helps to keep the bootfloor in its correct position, to pre-vent any deformation of the floorwhen loaded.
Tighten the spare wheel securingstrap to prevent noise and for yoursafety in the event of impact. For your safety, alwayschange the wheel:
Ð on level, stable, non-slippery ground,
Ð with the handbrake applied,
Ð with first or reverse gear engaged (position Pfor the
automatic gearbox),
Ð Never go underneath a vehicle which is supported only by a jack (use a ramp).
After changing the wheel:
Ð have the tightening of the bolts and the tyre pressure checked by a PEUGEOT dealer as soonas possible.
Ð have the punctured wheel repaired and refit it to the vehi-cle as soon as possible.
Tyres fitted with the Tyre Under-Inflation Detection System. These wheels have a pressure
sensor. Have them repaired by a
PEUGEOT dealer.

15-07-2002
Fuse N¡ RatingFunctions
10* 20 AAutomatic headlamp lighting control unit.
11* 70 A Built-in systems interface.
12* 70 A Ignition supply (+ve accessories / ignition controlled +ve).
13* 20 A Automatic headlamp lighting control unit.
14 15 A Double injection relay supply.
15* - Not used.
16* - Not used.
17* 30 A ESP hydraulic unit.
18 30 A Ignition supply (+ starter).
19 20 A Variable suspension control unit.
20 10 A Fan unit relay - Cruise control safety switch - Manual gearbox clutch switch - Manual gearbox reversing lights switch or automatic gearbox multi-function switch -
Automatic headlamp lighting control unit - Vehicle speed sensor - Coolant level sensor -
Water in diesel sensor - Power switch control unit relay.
21 5 A Automatic gearbox control unit - Automatic gearbox multi-function switch.
22 25 A ESP control unit.
23 15 A Diesel heating.
24 5 A Engine management control unit Ð Dual control control unit.
25 10 A Fuel pump.
26 30 A Driver's seat memory control unit.
27 25 A Double injection relay supply.
28 10 A Throttle housing de-icing resistor, Intake pilot solenoid valve - Flow meter - Piston de-activator injectionpump - Oil heating.
29 30 A Air pump, diesel additive control unit - Diesel additive injector.
30 - Cannot be used.
31 5 A Automatic gearbox shift lock.
32 10 A ESP or ABS control unit.
33 15 A Automatic gearbox control unit - Automatic gearbox multi-function switch (except reversing lights) - Automaticgearbox sequential control.
34 5 A Oxygen sensors - Exhaust gas recirculation solenoid valve, Exhaust gas recirculation throttle solenoid valve -
Turbo pressure regulation solenoid valve.
PRACTICAL INFORMATION
150

15-07-2002
PRACTICAL INFORMATION
148
Fuse no. Rating Functions
7 10 A Switches, rear lighter illumination, front courtesy light, rear courtesy light, rear lighter, number plate lighting, headlamp height adjustment.
8 10 A Diagnostic connector, headlamp height adjustment control unit, HF locking receiver,
passenger compartment air temperature sensor, HF tyre under-inflation receiver.
9 20 A Headlamp wash.
10 20 A Glove box lighting, front lighter, front and rear courtesy light, electrochrome interior mirror,electric exterior mirrors.
11 5 A Control unit for automatic lighting of headlamps, air bags control unit, safety relay for automatic lighting of headlamps.
12 30 A Rear window switches on driver's pad, rear windows.
13 30 A Windscreen wiper.
14 15 A Not used.
15 15 A Driver's door pad, passenger's door pad.
16 15 A Rear lighter.
17 5 A Heated exterior mirrors.
18 15 A Rear left brake light, additional brake light.
19 10 A Parking assistance control unit, navigation control unit.
20 15 A Alarm siren, monochrome screen or colour screen control unit, HF receiver, audio system /telephone, monochrome or colour navigation control unit, diesel additive control unit.
21 15 A Dignostic connector, caravan socket, trailer sidelights relay.
22 15 A Diesel additive control unit, driver's seat memory control unit, driver's door pad, passenger's door pad.
23 30 A Driver's window, passenger's window, sunroof safety auto-reverse, passenger window swit-ch on driver's door pad andpassenger's door pad.
24 10 A Rear fog lamp.
25 40 A PARC shunt.
26 40 A Heated rear screen, radio aerial amplifier.
