3YOUR AT A GLANCE
1-Lights and direction indica- tors stalk.
2- Steering wheel adjustment.
3- Driver's front air bag.
- Horn.
4- Instrument dials.
5- Windscreen wash/wipestalk.
- Trip computer stalk.
6- Audio remote control stalk.
7- Hazard warning lightsswitch.
8- Central adjustableheating/ventilation vents andair flow regulation.
9- Sunshine / brightness
sensor.
10 - Windscreen demisting vents.
11 - Passenger air bag.
12 - Glove compartment.
13 - Side adjustableheating/ventilation vents andair flow regulation. 14 -
Door window demisting vent.
15 - Passenger airbag disarming switch.
16 - Front seats heating switch.
17 - Rear ashtray.
- Rear lighter.
- Rear seats heating switch.
18 - Rear footwell heating vent.
19 - Two-position armrest withcompartments.
20 - Handbrake.
21 - Electronically controlledsuspension switch.
- Doors and boot lockingswitch.
- Sunroof switch.
- Rear blind switch.
22 - Front ashtray.
- Front lighter.
23 - Gear lever.
24 - RM2 audio system or RT2audio/telephone system with
PEUGEOT call button. 25 -
Heating/ventilation controls.
26 - Multi-function display.
27 - Steering lock and ignition.
28 - Fuse box.
29 - Speakers location.
30 - Electric mirror controls.
- Window controls.
- Rear window locking control.
31 - Headlamp height adjust- ment.
32 - ESP disarming switch.
33 - Alarm button.
34 - Cruise control.
35 - Memory buttons for:
- Front seat settings
- Electric mirror settings
15-07-2002

15-07-2002
YOUR AT A GLANCE6
STEERING WHEEL
STALKS LIGHTS
Front and rear lights (ring A)
Lights off. Side lights.
Dipped / main beam headlamps. Front and rear fog lamps(ring B)
Front fog lamps. Neutral position of the ring. Rear fog lamps.
Parking lights
To switch on the parking lights on
the traffic side, with the engine
off, place the direction indicator
lights stalk on the traffic side.
Automatic switching on of lights
This occurs if the light is poor, as well as in cases of continuous operation of the windscreen wipers, and stops as soon as the light has becomebright enough or the windscreen wipers have stopped.  To activate or disarm the function, place the key in the accessories position (1st notch), place the lights stalk in position 0and press the
end of the stalk for more than two seconds.
Do not cover the sunshine / brightness sensor located in the centre of the fascia. It helps to regulate the air condi-tioning, the automatic switching on of the lights and theautomatic adjustment of the instrument panel bright-ness. Windsreen wipers 3
Rapid wipe
2 Normal wipe
1 Automatic wipe
0 Off
Automatic wipe In position 1, the wipers operate
automatically and adjust their speed to the intensity of the rain-fall. When the ignition has been switched off for more than oneminute with the control in awipe position, it is necessaryto reactivate this function.
To do this, move the control to any position, then return to therequired position.
109111

YOUR AT A GLANCE9
REAR PARKING
ASSISTANCE
This system, installed in the rear
bumper, detects any obstacle (per-son, vehicle, tree, gate, kerb...)located behind the vehicle.
To activate With the engine running, the sys- tem is activated as soon asreverse gear is engaged; a bleepsounds to inform you that it isactive. The proximity information is given by an audible signal, con-sisting of bleeps which becomemore and more rapid as the vehi-cle approaches the obstacle. When the distance between the rear of the vehicle and the obsta-cle is less than approximatelytwenty-five centimetres, the signal becomes con-tinuous.  The system ceas- es to be activewhen you changeto neutral. TYRE UNDER-INFLATION DETECTION Sensors check the tyre pressure during driving, and trigger a warn-ing if there is a malfunction (speedgreater than 15 mph (25 km/h).
Tyre under-inflation
When this warning light comes on, accompaniedby a bleep and the mes-sage 'Tyre(s) pressure
low', have the tyre pressure
checked as soon as possible. Puncture
Display of this warning light, accompanied by anaudible signal and themessage 'Punctured
tyre(s) detected', is fol-
lowed by illumination of the
STOP warning light.
Stop immediately, avoiding allabrupt manoeuvres with thesteering wheel and the brakes. Change the damaged (punctured or very under-inflated) wheel andhave the tyre pressure checkedas soon as possible. Note: if the damaged wheel is
stored temporarily in the boot, it will again send this message as areminder of the necessity of hav-
ing it repaired. This will prevent asimilar warning being displayed. Sensor(s) not detected
Display of this warninglight, accompanied by anaudible signal and themessage 'X tyre pres-
sure sensor(s) missing', indi-
cates that one or more wheelsare not being detected.
Contact a PEUGEOT dealer to replace the faulty sensor(s).
Warning: this message is dis-
played when one of the wheels is at a distance from the vehicle(being repaired) or when a wheelwithout a sensor is fitted (winterfitting). This system does not eliminate the need to check the tyre
pressure regularly.
129140
15-07-2002

15-07-2002
No. Symbol Function1 Air conditioning
on/off.
2 Front visibility
programme.
3 Air intake
control.
4 Rear screen
demisting.
5 Switching
off.
6Passenger setting
7 Passenger comfort
programme.
8 Passenger air distribution
setting.
9 Air flow
adjustment.
10 Driver air distribution
setting.
11 Driver comfort
programme.
12 Driver setting.
12YOUR AT A GLANCE

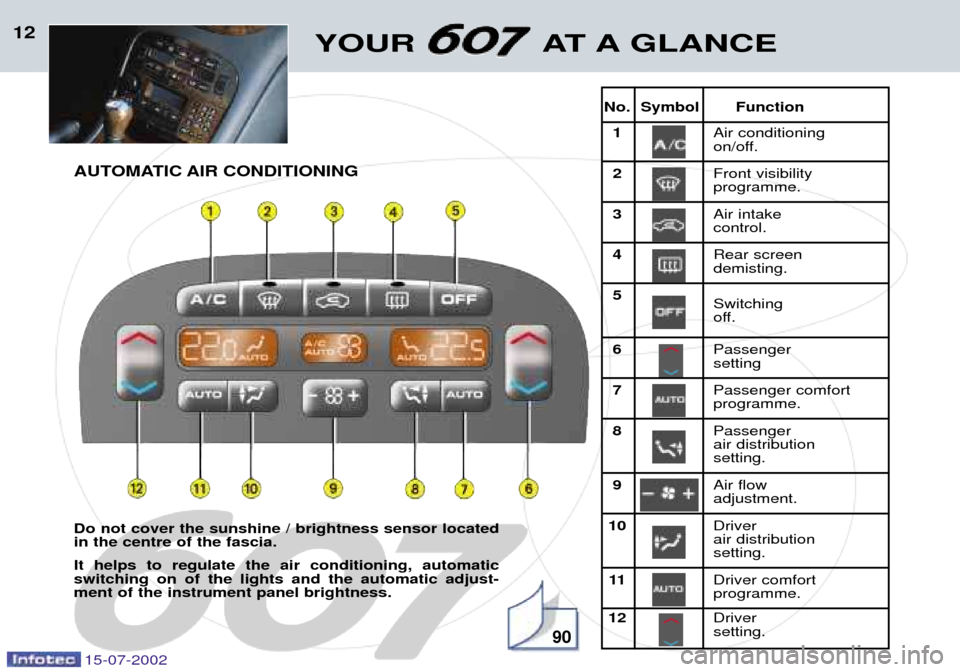

AUTOMATIC AIR CONDITIONING Do not cover the sunshine / brightness sensor located in the centre of the fascia. It helps to regulate the air conditioning, automatic switching on of the lights and the automatic adjust-ment of the instrument panel brightness.
90

15-07-2002
MAINTENANCE OF PARTS SUBJECT TO WEAR AND A CHECK OF CONSUMABLES
Certain essential components on your vehicle are subject to checks at specific frequencies. ¥ The brake fluid is to be replaced at a maximum of every 36,000/40,000 miles
(60 000km) or every two years.
¥ The pollen filter must be checked at each serviceby a PEUGEOT dealer
(services and intermediate visits) or more often, depending on the environ-
ment (dust, pollution, etc.).
¥ For HDI turbo diesel engines with particulate emission filter , maintenance
of the filterand topping up of the additive reservoirmust be carried out
every 48,000 miles (80 000 km) by a PEUGEOT dealer.
¥ Replacement of the timing belt: contact a PEUGEOT dealer.
¥ Air bags and pretensioning parts on seat belts must be checked every
10 years by a PEUGEOT dealer.
¥ Tyre pressure sensors are to be replaced every 10 years.
¥ The check on tyre inflation presure must be carried out cold at least once a
month .
PEUGEOT SERVICING 21
Zero re-set
Your PEUGEOT dealer carries out this operation after each service.
However, if you carry out the service yourself, the re-set procedure is asfollows:  Switch off the ignition,

Press and hold the trip recorder re-set button,
 Switch on the ignition.
The display begins a countdown. When the display shows 0, release the button; the service symbol disap-pears. Important: after this operation, if you
wish to disconnect the battery, lock the vehicle and wait for at least fiveminutes, otherwise the zero re-setwill not be registered.

15-07-2002
INSTRUMENTS AND CONTROLS
36
Anti-lock braking system (ABS) warning light This is linked to the warning light on the instrument panel .
Display of this warning light is accompanied by an audible signal and the message 'ABS faulty' on the multi-func-
tion display.
If the warning light remains on, or comes on at over 8 mph (12 km/h), this indicates a malfunction of the ABS.
However, the vehicle retains conventional servo-assisted braking.
Contact a PEUGEOT dealer.
Automatic headlamp adjustment warning light Display of this warning light is accompanied by an audible signal and the message 'Automatic adjustment of
headlamps faulty' on the multi-function display.
It comes on if there is a malfunction of the system.
Contact a PEUGEOT dealer. Automatic gearbox fault warning light Display of this warning light is accompanied by an audible signal and the message 'Automatic gearbox faulty'on
the multi-function display. It comes on if there is an abnormality in the automatic gearbox.
The gearbox will continue to operate in downgrade mode (locked in 3rd gear).
Contact a PEUGEOT dealer. Tyre under-inflation detector battery flat / remote control battery flat / impact sensor fault / wheel(s) miss- ing warning light Display of this warning light is accompanied by an audible signal and a message on the multi-function display show- ing the cause of the warning:
Ð 'Tyre pressure sensor battery charge low',
Ð 'Remote control battery charge low',
Ð 'Impact sensor faulty',
Ð 'X tyre pressure sensor(s) missing'.
Contact a PEUGEOT dealer.

15-07-2002
1 - Driver's sideadjustment
2 - Passenger's side adjustment
The required value is displayed (from 15 to
30: comfort value = 22).
 Press the corresponding top andbottom arrows to adjust.
YOUR 607 IN DETAIL
90

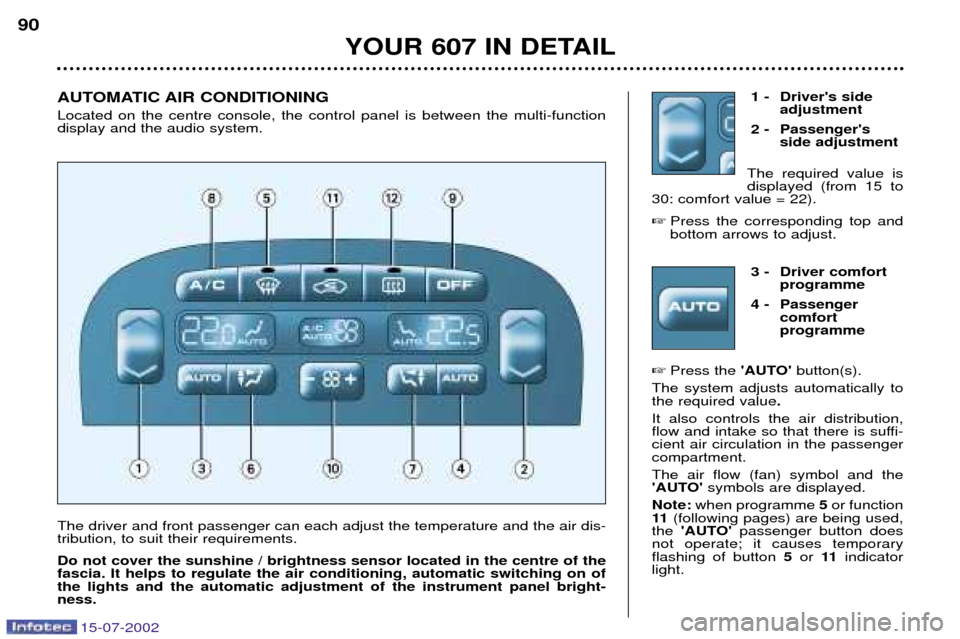

AUTOMATIC AIR CONDITIONING Located on the centre console, the control panel is between the multi-function display and the audio system. The driver and front passenger can each adjust the temperature and the air dis- tribution, to suit their requirements. Do not cover the sunshine / brightness sensor located in the centre of the fascia. It helps to regulate the air conditioning, automatic switching on ofthe lights and the automatic adjustment of the instrument panel bright-ness. 3 - Driver comfort
programme
4 - Passenger comfort programme
 Press the 'AUTO'button(s).
The system adjusts automatically tothe required value .
It also controls the air distribution,
flow and intake so that there is suffi-cient air circulation in the passengercompartment. The air flow (fan) symbol and the
'AUTO' symbols are displayed.
Note: when programme 5or function
11 (following pages) are being used,
the 'AUTO' passenger button does
not operate; it causes temporaryflashing of button 5or 11 indicator
light.

15-07-2002
YOUR 607 IN DETAIL105
THE ALARM This provides two types of protec- tion, exterior and interior:
Ð exterior protection: when this is
set, the alarm sounds if a door, the boot or the bonnet is opened.
Ð interior protection: when this is set, the alarm sounds if the sensorsdetect a variation in the air move-ment inside the vehicle (breakingof a window or a movement insidethe vehicle).
Setting the alarm  Switch off the ignition and get outof the vehicle.
 Set the alarm within five minutesof getting out of the vehicle, bylocking or deadlocking using theremote control (button Bindicator
light flashes once per second). Note:
if you wish to lock your vehicle
without setting the alarm, use thedoor lock. When the alarm is triggered, the siren sounds and the direction indi-cators flash for thirty seconds. It then stops, but the alarm remains set.
Warning: if the alarm has been trig-
gered ten times in succession, on the eleventh time it becomes inac-tive. Note: if button B flashes rapidly, the
alarm has been triggered while you were away from your vehicle. Automatic activation The alarm is activated automatically two minutes after the door or bootwere last closed. In order to avoid accidental triggering of the alarm when a door or the bootis opened, it is essential to press theremote control opening button first. Disarming Unlock the vehicle with the remote control key (button Bindicator light
goes out). Note: if the alarm has been triggered
while you were away from your car, the rapid flashing of the indicatorlight will stop when you switch on theignition. To set the alarm with exteriorprotection only If, while you are away from the vehi- cle, you wish to leave a window par-tially open or a pet inside the vehicle,you should choose exterior protec-
tion only.
 Switch off the ignition

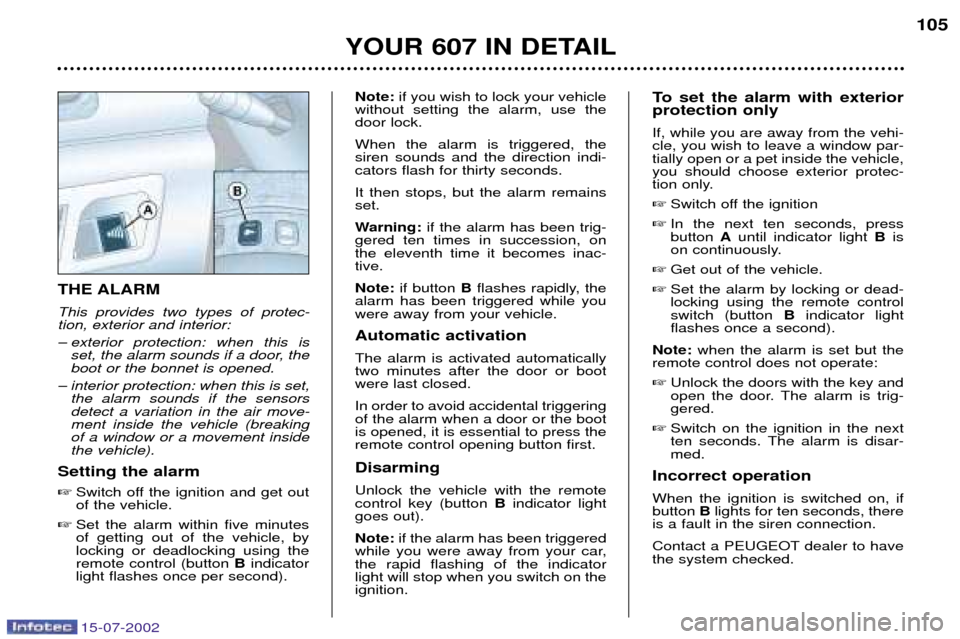

 In the next ten seconds, pressbutton Auntil indicator light B is
on continuously.
 Get out of the vehicle.
 Set the alarm by locking or dead-locking using the remote controlswitch (button Bindicator light
flashes once a second).
Note: when the alarm is set but the
remote control does not operate:
 Unlock the doors with the key and
open the door. The alarm is trig-gered.
 Switch on the ignition in the next
ten seconds. The alarm is disar-med.
Incorrect operation When the ignition is switched on, if button Blights for ten seconds, there
is a fault in the siren connection.
Contact a PEUGEOT dealer to have the system checked.

15-07-2002
Automatic switching on of the lights Side lights and dipped beam head- lamps switch on automatically if the
light is poor, or during continuousoperation of the windscreen wipers.
They switch off as soon as the lightbecomes bright enough or the wind-screen wipers stop. Note :in foggy weather, the bright-
ness sensor can detect sufficient
light. As a consequence, the lights
will not come on automatically. This function is active when the vehi-
cle is supplied to the customer.
To switch the function on or off:
 Place the key in the accessories position (1st notch),
 Change the stalk position to 0,
 Press the end of the stalk for morethan two seconds.
Note : after the ignition is switched
off and depending on the brightness,the lights remain on for approximate-ly thirty seconds or until the vehicle islocked. Do not cover the sunshine /brightness sensor located in thecentre of the fascia. It helps toregulate the air conditioning,automatic switching on of thelights and the automatic adjust-ment of the instrument panelbrightnes.
YOUR 607 IN DETAIL
110
Operating check ActivationWhen this function is acti- vated, the indicator lightcomes on, accompanied byan audible signal.
The light also comes on as soon asthe driver changes the stalk positionto 0.
Neutralisation When neutralising the func-tion, the indicator lightcomes on, accompanied byan audible signal.
The indicator light also comes on assoon as the driver uses the manuallighting controls. If the sunshine / brightness sen-
sor does not function correctly,the system activates the function(the lights come on) and the dippedbeam headlamps indicator light onthe instrument panel flashes.
Contact a PEUGEOT dealer to have the system checked.

15-07-2002
Do not cover the rain sensor located on thewindscreen behind the
interior mirror. When using an automatic
car wash, switch off the ignition or check that the wiper stalk is not inthe automatic position.
In winter, it is advisable to wait until the windscreen is completelyfree of ice before operating theautomatic wipe
YOUR 607 IN DETAIL 111
WINDSCREEN
WIPER STALK
Windscreen wipers 3
Fast wipe
2 Normal wipe
1 Automatic wipe
0 Off
When the ignition has been switched off for more than aminute with the control in a wipeposition (1, 2 or 3), it is necesaryto reactivate this function. To d o
this, move the stalk to any position,then move it back to the requiredposition. Maintenance position This position enables the wiper blades to be removed.
In the minute following switching off of the ignition, any action on the stalkpositions the wipers in the centre ofthe windscreen so that they may becleaned or replaced.
To park the wipers after this has been done, switch on the ignitionand operate the stalk.
Windscreen and headlamp wash Pull the windscreen wiper stalk towards you. The windscreen wash then the wind- screen wipers operate for a fixed
period. The windscreen wash andheadlamp wash operate simultane-ously for a few seconds,
only if the
dipped beam or main beam head-lamps are on.
Screenwash/headlamp wash low
When the minimum level of the reservoir is reached, thiswarning light comes on,accompanied by an audiblesignal and the message
'Screenwash low' on the multi-func-
tion display. Next time you stop, fill the screen-
wash / headlamp wash reservoir.
If the reservoir is empty, the warning light comes on when the ignition isswitched on, or every time the stalkis operated, until the reservoir isfilled.
