3YOUR AT A GLANCE
1-Lights and direction indica- tors stalk.
2- Steering wheel adjustment.
3- Driver's front air bag.
- Horn.
4- Instrument dials.
5- Windscreen wash/wipestalk.
- Trip computer stalk.
6- Audio remote control stalk.
7- Hazard warning lightsswitch.
8- Central adjustableheating/ventilation vents andair flow regulation.
9- Sunshine / brightness
sensor.
10 - Windscreen demisting vents.
11 - Passenger air bag.
12 - Glove compartment.
13 - Side adjustableheating/ventilation vents andair flow regulation. 14 -
Door window demisting vent.
15 - Passenger airbag disarming switch.
16 - Front seats heating switch.
17 - Rear ashtray.
- Rear lighter.
- Rear seats heating switch.
18 - Rear footwell heating vent.
19 - Two-position armrest withcompartments.
20 - Handbrake.
21 - Electronically controlledsuspension switch.
- Doors and boot lockingswitch.
- Sunroof switch.
- Rear blind switch.
22 - Front ashtray.
- Front lighter.
23 - Gear lever.
24 - RM2 audio system or RT2audio/telephone system with
PEUGEOT call button. 25 -
Heating/ventilation controls.
26 - Multi-function display.
27 - Steering lock and ignition.
28 - Fuse box.
29 - Speakers location.
30 - Electric mirror controls.
- Window controls.
- Rear window locking control.
31 - Headlamp height adjust- ment.
32 - ESP disarming switch.
33 - Alarm button.
34 - Cruise control.
35 - Memory buttons for:
- Front seat settings
- Electric mirror settings
15-07-2002

YOUR AT A GLANCE5

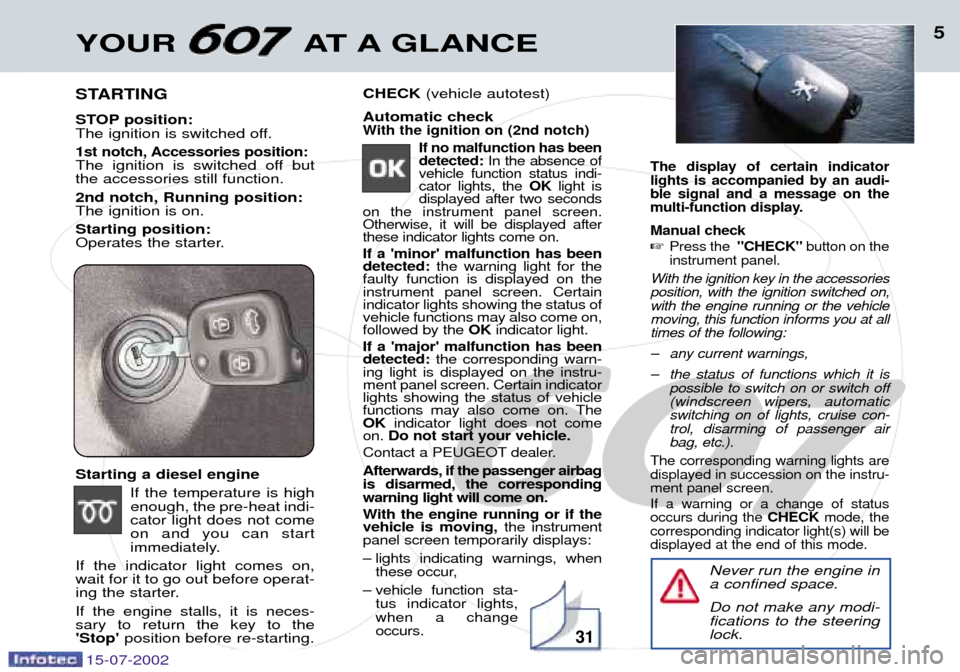

STARTING
STOP position:
The ignition is switched off.
1st notch, Accessories position:The ignition is switched off butthe accessories still function. 2nd notch, Running position: The ignition is on. Starting position:
Operates the starter. Starting a diesel engine If the temperature is highenough, the pre-heat indi- cator light does not comeon and you can start
immediately.
If the indicator light comes on,wait for it to go out before operat-
ing the starter. If the engine stalls, it is neces- sary to return the key to the'Stop' position before re-starting. CHECK
(vehicle autotest)
Automatic check
With the ignition on (2nd notch)
If no malfunction has been detected: In the absence of
vehicle function status indi-cator lights, the OK light is
displayed after two seconds
on the instrument panel screen.Otherwise, it will be displayed afterthese indicator lights come on.
If a 'minor' malfunction has beendetected: the warning light for the
faulty function is displayed on theinstrument panel screen. Certainindicator lights showing the status ofvehicle functions may also come on,followed by the OKindicator light.
If a 'major' malfunction has beendetected: the corresponding warn-
ing light is displayed on the instru-ment panel screen. Certain indicatorlights showing the status of vehicle
functions may also come on. TheOK indicator light does not come
on. Do not start your vehicle.
Contact a PEUGEOT dealer. Afterwards, if the passenger airbag is disarmed, the correspondingwarning light will come on.
With the engine running or if the vehicle is moving, the instrument
panel screen temporarily displays:
Ð lights indicating warnings, when
these occur,
Ð vehicle function sta- tus indicator lights, when a changeoccurs.
The display of certain indicatorlights is accompanied by an audi-ble signal and a message on the
multi-function display. Manual check  Press the "CHECK" button on the
instrument panel.
With the ignition key in the accessories position, with the ignition switched on,with the engine running or the vehiclemoving, this function informs you at alltimes of the following:
Ð any current warnings,
Ð the status of functions which it is possible to switch on or switch off (windscreen wipers, automaticswitching on of lights, cruise con-trol, disarming of passenger airbag, etc.).
The corresponding warning lights aredisplayed in succession on the instru-ment panel screen. If a warning or a change of status occurs during the CHECKmode, the
corresponding indicator light(s) will bedisplayed at the end of this mode.
31
Never run the engine in a confined space.
Do not make any modi-fications to the steeringlock.
15-07-2002

15-07-2002
14

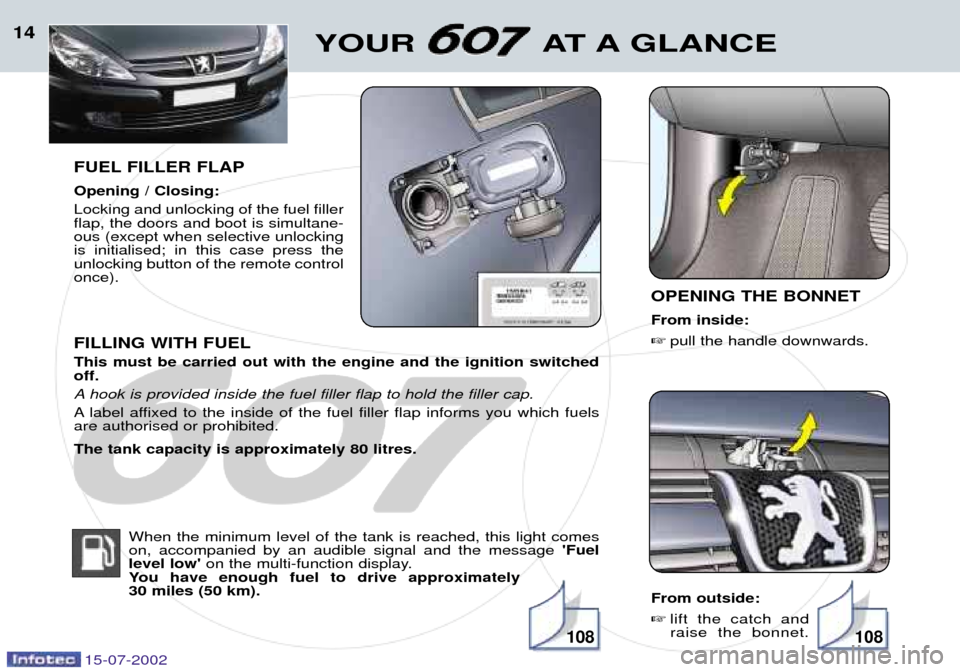

FUEL FILLER FLAP Opening / Closing: Locking and unlocking of the fuel filler flap, the doors and boot is simultane-ous (except when selective unlockingis initialised; in this case press theunlocking button of the remote controlonce). FILLING WITH FUEL This must be carried out with the engine and the ignition switched off.

A hook is provided inside the fuel filler flap to hold the filler cap.
A label affixed to the inside of the fuel filler flap informs you which fuels are authorised or prohibited. The tank capacity is approximately 80 litres.When the minimum level of the tank is reached, this light comes on, accompanied by an audible signal and the message 'Fuel
level low' on the multi-function display.
You have enough fuel to drive approximately30 miles (50 km).
OPENING THE BONNET From inside:
 pull the handle downwards.
From outside:  lift the catch and raise the bonnet.
YOUR AT A GLANCE
108108

YOUR AT A GLANCE9
REAR PARKING
ASSISTANCE
This system, installed in the rear
bumper, detects any obstacle (per-son, vehicle, tree, gate, kerb...)located behind the vehicle.
To activate With the engine running, the sys- tem is activated as soon asreverse gear is engaged; a bleepsounds to inform you that it isactive. The proximity information is given by an audible signal, con-sisting of bleeps which becomemore and more rapid as the vehi-cle approaches the obstacle. When the distance between the rear of the vehicle and the obsta-cle is less than approximatelytwenty-five centimetres, the signal becomes con-tinuous.  The system ceas- es to be activewhen you changeto neutral. TYRE UNDER-INFLATION DETECTION Sensors check the tyre pressure during driving, and trigger a warn-ing if there is a malfunction (speedgreater than 15 mph (25 km/h).
Tyre under-inflation
When this warning light comes on, accompaniedby a bleep and the mes-sage 'Tyre(s) pressure
low', have the tyre pressure
checked as soon as possible. Puncture
Display of this warning light, accompanied by anaudible signal and themessage 'Punctured
tyre(s) detected', is fol-
lowed by illumination of the
STOP warning light.
Stop immediately, avoiding allabrupt manoeuvres with thesteering wheel and the brakes. Change the damaged (punctured or very under-inflated) wheel andhave the tyre pressure checkedas soon as possible. Note: if the damaged wheel is
stored temporarily in the boot, it will again send this message as areminder of the necessity of hav-
ing it repaired. This will prevent asimilar warning being displayed. Sensor(s) not detected
Display of this warninglight, accompanied by anaudible signal and themessage 'X tyre pres-
sure sensor(s) missing', indi-
cates that one or more wheelsare not being detected.
Contact a PEUGEOT dealer to replace the faulty sensor(s).
Warning: this message is dis-
played when one of the wheels is at a distance from the vehicle(being repaired) or when a wheelwithout a sensor is fitted (winterfitting). This system does not eliminate the need to check the tyre
pressure regularly.
129140
15-07-2002

15-07-2002
PEUGEOT SERVICING
20
A few seconds after the ignition is switched on, the total distancerecorder resumes normal operationand the display shows the total andtrip distances. The distance remaining before the next service is less than 1,000 km.
A few seconds after the ignition is switched on, the distance recorderresumes normal operation and the
spanner remains lit. This indicatesthat a service should be carried out
shortly.SERVICE INDICATOR Located on the instrument panel with the total distance recorder (total andtrip distances), this programmesdrain/refill intervals depending on theuse of the vehicle. Operation
A few moments after the ignition has been switched on, the spanner sym-bolising services lights up; the dis-play for the total distance recordertells you (in round figures) the dis-tance remaining before your nextservice. Example:
4,800 km remain before
the next service is due. When the ignition is switched on and for a fewseconds, the display shows: The service is overdue. Each time the ignition is switched on and for a few seconds, the symboland the excess distance flash. Note:
with the engine running the
symbol flashes until the service has been carried out

15-07-2002
MAINTENANCE OF PARTS SUBJECT TO WEAR AND A CHECK OF CONSUMABLES
Certain essential components on your vehicle are subject to checks at specific frequencies. ¥ The brake fluid is to be replaced at a maximum of every 36,000/40,000 miles
(60 000km) or every two years.
¥ The pollen filter must be checked at each serviceby a PEUGEOT dealer
(services and intermediate visits) or more often, depending on the environ-
ment (dust, pollution, etc.).
¥ For HDI turbo diesel engines with particulate emission filter , maintenance
of the filterand topping up of the additive reservoirmust be carried out
every 48,000 miles (80 000 km) by a PEUGEOT dealer.
¥ Replacement of the timing belt: contact a PEUGEOT dealer.
¥ Air bags and pretensioning parts on seat belts must be checked every
10 years by a PEUGEOT dealer.
¥ Tyre pressure sensors are to be replaced every 10 years.
¥ The check on tyre inflation presure must be carried out cold at least once a
month .
PEUGEOT SERVICING 21
Zero re-set
Your PEUGEOT dealer carries out this operation after each service.
However, if you carry out the service yourself, the re-set procedure is asfollows:  Switch off the ignition,

Press and hold the trip recorder re-set button,
 Switch on the ignition.
The display begins a countdown. When the display shows 0, release the button; the service symbol disap-pears. Important: after this operation, if you
wish to disconnect the battery, lock the vehicle and wait for at least fiveminutes, otherwise the zero re-setwill not be registered.

15-07-2002
INSTRUMENTS AND CONTROLS
30
INDICATOR LIGHTS
With the key in the accessories position (1st notch): the battery charge warning light illuminates on the instrument panel disp lay.
With the ignition on (2nd notch): the following three warning lights illuminate on the sides of the instrument panel:
Brake fluid level and brake force distribution fault warning light. This light should go out after 3 seconds.If the warning light remains on, or if it comes on when the engine is running and the vehicle is moving, it indicates an excessive drop in the brake fluid level or a malfunction of the brake force distribution.
Stop immediately. Contact a PEUGEOT dealer.
Anti-lock braking system (ABS) warning lightThis should go out after 3 seconds.
If the warning light remains on or comes on above 8 mph (12 km/h), this indicates a malfunction of the ABS.
However, the vehicle retains conventional servo-assisted braking.
Contact a PEUGEOT dealer. Engine diagnostics warning light This should go out 3 seconds after the engine starts.
If it flashes with the engine running, this indicates a malfunction in the injection or the ignition system. There is a risk of damage to the catalytic converter (petrol engine only).
If it is on continuously, this indicates a fault in the emission control system.
Contact a PEUGEOT dealer as soon as possible.
At the same time, on the instrument panel display: If no malfunction has been detected: the OK light comes on after two seconds (following a black screen), in the
absence of indicator lights showing the status of vehicle functions. If these indicator lights are present, the OKbut-
ton will come on after these. You may start your vehicle.
If a 'minor' malfunction has been detected: the warning light for the faulty function comes on. Certain indicator
lights showing the status of vehicle functions may also come on, followed by the OKindicator light. You can start
your vehicle; however, contact a PEUGEOT dealer as soon as possible.
If a 'major' malfunction has been detected: the corresponding warning light comes on. Certain indicator lights showing
the status of vehicle functions may also come on. The OKindicator light does not come on. Do not start your vehicle.
Contact a PEUGEOT dealer. Afterwards, if the passenger air bag is disarmed, the corresponding indicator light will come on.

15-07-2002
INSTRUMENTS AND CONTROLS31
Coolant temperature warning light This symbol is accompanied by an audible signal and the message 'Engine temperature too high' on the multi-function display.
It is linked to the STOPwarning light. Stop immediately.
Warning: wait for the engine to cool.
If necessary, top up the level.
With the engine running and the vehicle moving The instrument panel display temporarily shows:
Ð lights indicating warnings, when these occur,Ð vehicle function status indicator lights, when a change occurs.Certain warning lights may be accompanied by an audible signal and a
message on the multi-function display. List of warning symbols MANUAL CHECK (vehicle autotest)
 Press the "CHECK"button on
the instrument panel.
With the ignition key in the acces-sories position, with the ignitionswitched on, with the engine runningor when the vehicle is moving, thisfunction informs you at all times ofthe following: Ð any current warnings,
Ð the status of functions which it is possible to switch on or off (wind- screen wipers, automatic switch-ing on of lights, cruise control, dis-arming of passenger air bag, etc.).
The corresponding warning lightsare displayed in succession on theinstrument panel screen. If a warning or a change of status occurs during the CHECKmode, the
corresponding indicator lights will bedisplayed at the end of this mode.
CHECK mode entry indi-cator light (vehicleautotest) This comes on when you press the 'CHECK' button.
CHECK mode exit indica-tor light (vehicle autotest) This comes on at the end of the CHECK mode.
Engine oil pressure warning light This symbol is accompanied by an audible signal and the message 'Insufficient engine oil pressure' or 'Engine oil pressure too low' on
the multi-function display.
It is linked to the STOPwarning light.
Stop immediately if this comes on when the engine is running.
If there is a lack of oil in the lubrication circuit, top up the level.
Contact a PEUGEOT dealer as soon as possible.
Puncture warning light This symbol comes on accompanied by an audible signal and the mes- sage 'Punctured tyre(s) detected' on the multi-function display.
It is linked to the STOPwarning light. Stop immediately.
Change the damaged wheel.
Have it repaired by a PEUGEOT dealer.

15-07-2002
INSTRUMENTS AND CONTROLS
32
STOP warning light This comes on after the engine oil pressure, coolant temperature orpuncture warning lights, to which it is linked.
Stop immediately. Contact a PEUGEOT dealer.
Brake fluid level and brake force distribution fault warning light This is linked to the light on the instrument panel.Display of this warning light accompaned by an audible signal and the message 'Brake fluid low'indicates an
excessive drop in the brake fluid level.
Display of this warning light, accompanied by an audible signal and the message 'Braking system faulty' on the multi-func-
tion display indicates a malfunction of the brake force distribution system.Stop immediately in both cases. Contact a PEUGEOT dealer.
Dynamic stability control (ESP/ASR) warning light Display of this warning light, accompanied by an audible signal and the message 'ESP/ASR system faulty'on the
multi-function display indicates a system malfunction.
Contact a PEUGEOT dealer.
Handbrake warning light Display of this warning light, accompanied by an audible signal (vehicle moving) and the message 'Handbrake on'
on the multi-function display, indicates that the handbrake is applied or has not been released correctly. Battery charge warning light This comes on each time the ignition key is in the accessories position (1st notch).Display of this warning light when the engine is running is accompanied by an audible signal and the message 'Bat-
tery charge fault' on the multi-function display.
This can indicate:Ð faulty operation of the charging circuit,
Ð loose battery or starter terminals,Ð a cut or slack alternator belt,Ð an alternator fault.
Contact a PEUGEOT dealer.

15-07-2002
INSTRUMENTS AND CONTROLS33
Tyre under-inflation warning light Display of this warning light is acompanied by an audible signal and the message 'Tyre(s) pressure low'on the
multi-function display.Have the tyre pressure checked as soon as possible.
Low coolant level warning light Display of this warning light is accompanied by an audible signal and the message 'Cooling circuit level low'on
the multi-function display .
Stop immediately.
Warning: wait for the engine to cool before topping up.
The cooling system is pressurised.In the event of breakdown and to prevent the risk of scalding, unscrew the cap by two turns to allow the pressure to drop. When the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
Seat belt not fastened warning light Display of this warning light is accompanied by an audible signal and the message 'Seat belt not fastened' on the
multi-function display.With the engine running, the warning light comes on when the driver's seat belt is unfastened. Electronic immobiliser warning light Display of this warning light is accompanied by an audible signal and the message 'Electronic theft protection
faulty' on the multi-function display.
It indicates a malfunction of the electronic immobiliser system.
Contact a PEUGEOT dealer.
