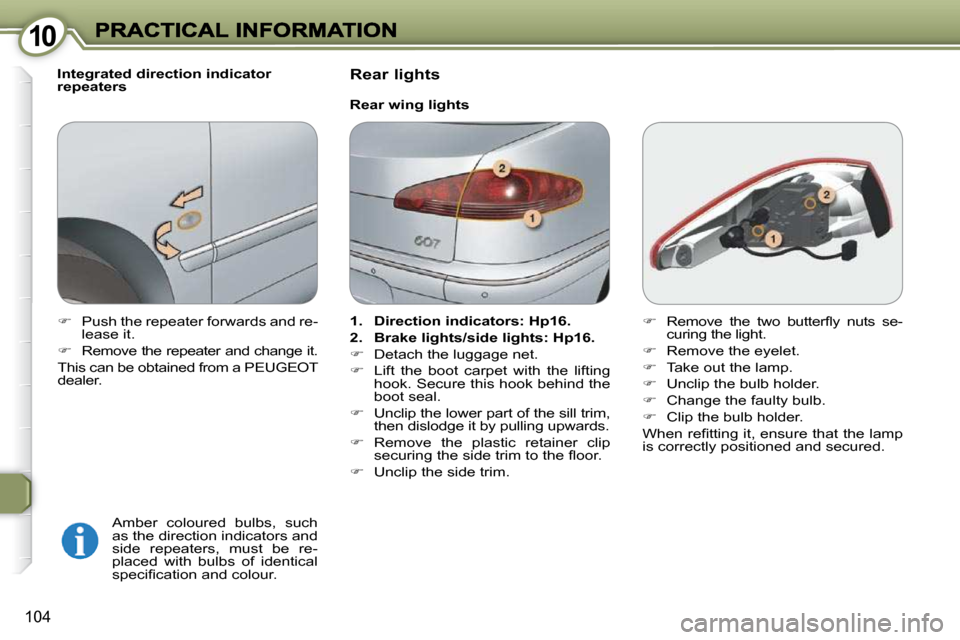

Integrated direction indicator
repeaters Amber coloured bulbs, such
as the direction indicators and
side repeaters, must be re-
placed with bulbs of identical
s p e c i fi c a t i o n a n d c o l o u r . Rear lights
R e m o v e t h e t w o b u t t e r fl y n u t s s e -
curing the light.
Remove the eyelet.
Take out the lamp.
Unclip the bulb holder.
Change the faulty bulb.
Clip the bulb holder.
W h e n r e fi t t i n g i t , e n s u r e t h a t t h e l a m p
is correctly positioned and secured.
1. D i r e c t i o n i n d i c a t o r s : H p 1 6 .
2. Brake lights/side lights: Hp16.
Detach the luggage net.
Lift the boot carpet with the lifting
hook. Secure this hook behind the
boot seal.
Unclip the lower part of the sill trim,
then dislodge it by pulling upwards.
Remove the plastic retainer clip
s e c u r i n g t h e s i d e t r i m t o t h e fl o o r .
Unclip the side trim.
Push the repeater forwards and re-
lease it.
Remove the repeater and change it.
This can be obtained from a PEUGEOT
dealer. Rear wing lights
Page 122 of 182
1010
105

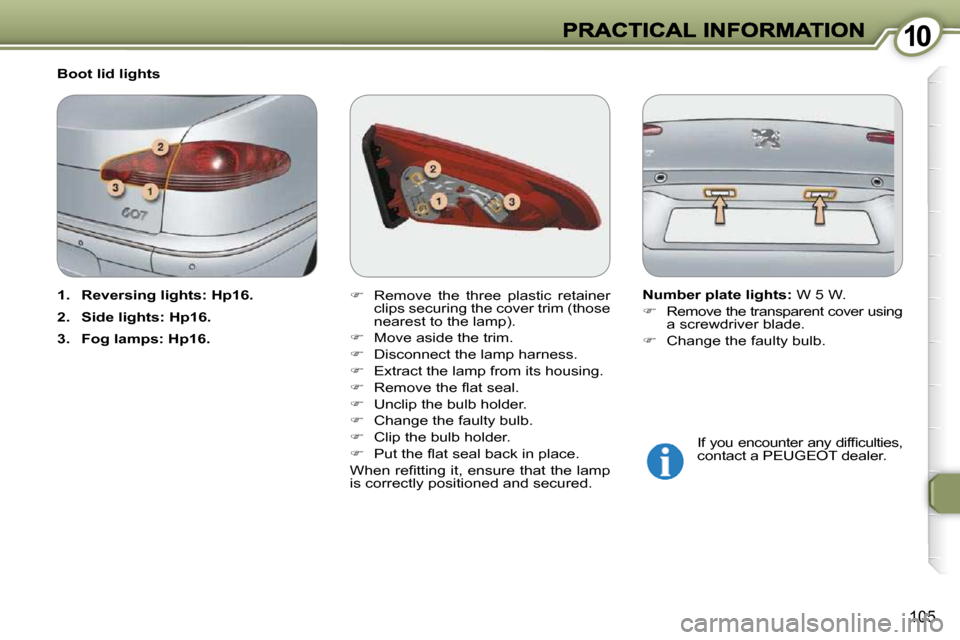

Remove the three plastic retainer
clips securing the cover trim (those
nearest to the lamp).
Move aside the trim.
Disconnect the lamp harness.
Extract the lamp from its housing.
R e m o v e t h e fl a t s e a l .
Unclip the bulb holder.
Change the faulty bulb.
Clip the bulb holder.
P u t t h e fl a t s e a l b a c k i n p l a c e .
W h e n r e fi t t i n g i t , e n s u r e t h a t t h e l a m p
is correctly positioned and secured.
N u m b e r p l a t e l i g h t s : W 5 W.
Remove the transparent cover using
a screwdriver blade.
Change the faulty bulb.
Boot lid lights
1. Reversing lights: Hp16.
2. S i d e l i g h t s : H p 1 6 .
3. Fog lamps: Hp16.
I f y o u e n c o u n t e r a n y d i f fi c u l t i e s ,
contact a PEUGEOT dealer.
Page 123 of 182
1010
106

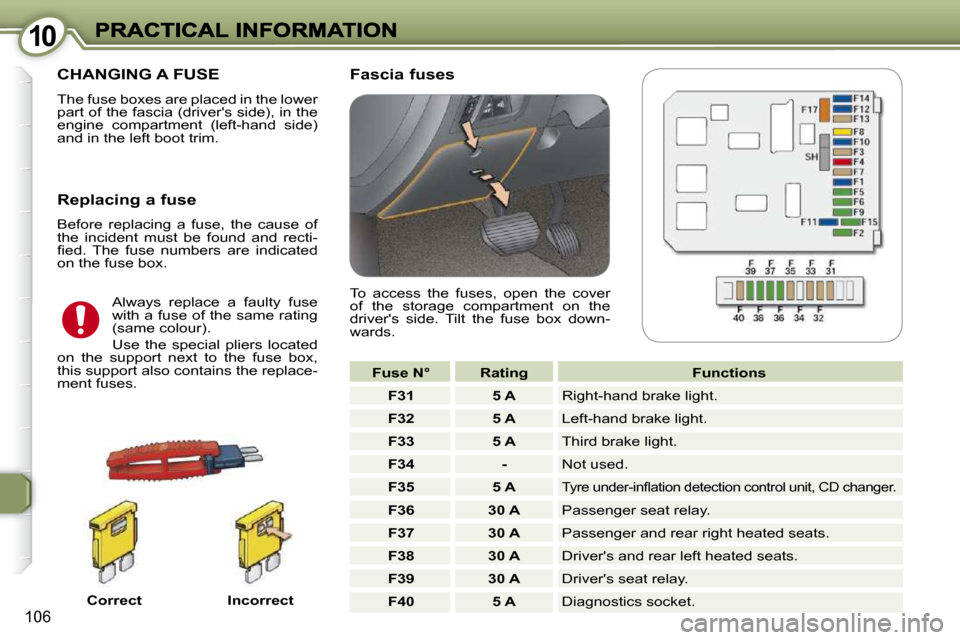

C H A N G I N G A F U S E
The fuse boxes are placed in the lower
part of the fascia (driver's side), in the
engine compartment (left-hand side)
and in the left boot trim.
R e p l a c i n g a f u s e
Before replacing a fuse, the cause of
the incident must be found and recti-
fi e d . T h e f u s e n u m b e r s a r e i n d i c a t e d
on the fuse box.
Correct Incorrect
F u s e N ° Rating F u n c t i o n s
F31 5 A Right-hand brake light.
F32 5 A Left-hand brake light.
F33 5 A Third brake light.
F34 - Not used.
F35 5 A
T y r e u n d e r - i n fl a t i o n d e t e c t i o n c o n t r o l u n i t , C D c h a n g e r .
F36 30 A Passenger seat relay.
F37 30 A Passenger and rear right heated seats.
F38 30 A Driver's and rear left heated seats.
F39 30 A Driver's seat relay.
F40 5 A Diagnostics socket.
Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Use the special pliers located
on the support next to the fuse box,
this support also contains the replace-
ment fuses.
F a s c i a f u s e s
To access the fuses, open the cover
of the storage compartment on the
driver's side. Tilt the fuse box down-
wards.
Page 124 of 182
1010
106
C H A N G I N G A F U S E
The fuse boxes are placed in the lower
part of the fascia (driver's side), in the
engine compartment (left-hand side)
and in the left boot trim.
R e p l a c i n g a f u s e
Before replacing a fuse, the cause of
the incident must be found and recti-
fi e d . T h e f u s e n u m b e r s a r e i n d i c a t e d
on the fuse box.
Correct Incorrect
F u s e N ° Rating F u n c t i o n s
F31 5 A Right-hand brake light.
F32 5 A Left-hand brake light.
F33 5 A Third brake light.
F34 - Not used.
F35 5 A
T y r e u n d e r - i n fl a t i o n d e t e c t i o n c o n t r o l u n i t , C D c h a n g e r .
F36 30 A Passenger seat relay.
F37 30 A Passenger and rear right heated seats.
F38 30 A Driver's and rear left heated seats.
F39 30 A Driver's seat relay.
F40 5 A Diagnostics socket.
Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Use the special pliers located
on the support next to the fuse box,
this support also contains the replace-
ment fuses.
F a s c i a f u s e s
To access the fuses, open the cover
of the storage compartment on the
driver's side. Tilt the fuse box down-
wards.
Page 125 of 182
1010
107

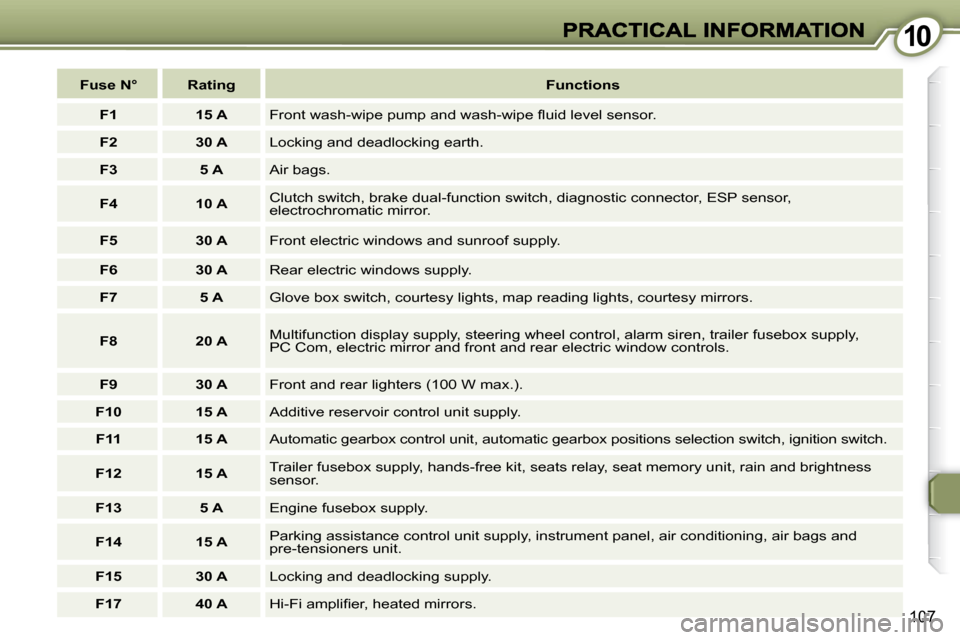

F u s e N ° Rating
F u n c t i o n s
F1 15 A F r o n t w a s h - w i p e p u m p a n d w a s h - w i p e fl u i d l e v e l s e n s o r .
F2 30 A Locking and deadlocking earth.
F3 5 A Air bags.
F4 10 A Clutch switch, brake dual-function switch, diagnostic connector
, ESP sensor,
electrochromatic mirror.
F5 30 A Front electric windows and sunroof supply.
F6 30 A Rear electric windows supply.
F7 5 A Glove box switch, courtesy lights, map reading lights, courtesy mirrors.
F8 20 A Multifunction display supply, steering wheel control, alarm si
ren, trailer fusebox supply,
PC Com, electric mirror and front and rear electric window controls.
F9 30 A Front and rear lighters (100 W max.).
F10 15 A Additive reservoir control unit supply.
F11 15 A Automatic gearbox control unit, automatic gearbo x positions selection switch, ignition switch.
F12 15 A Trailer fusebox supply, hands-free kit, seats relay, seat memory un
it, rain and brightness
sensor.
F13 5 A Engine fusebox supply.
F14 15 A Parking assistance control unit supply, instrument panel, air co
nditioning, air bags and
pre-tensioners unit.
F15 30 A Locking and deadlocking supply.
F17 40 A H i - F i a m p l i fi e r , h e a t e d m i r r o r s .
Page 126 of 182
1010
108
E n g i n e c o m p a r t m e n t f u s e s
F u s e N ° Rating
F u n c t i o n s
F1 20 A Engine management control unit.
F2 15 A Horn.
F3 10 A Rear electric blind.
F4 20 A Headlamp wash.
F5 15 A Fuel pump (except 2 litre HDI 16V), diesel heater (2 litre HD
I 16V), turbocharger and diesel
pre-heat unit (2.7 litre HDI 24V).
F6 10 A Power steering, suspension control unit, automatic gearbox, aut
omatic headlamp
adjustment unit.
F7 10 A ESP control unit.
F8 25 A Starter coil.
F9 10 A Coolant level sensor, passenger compartment heating (HDI), S TOP switch.
F10 30 A Engine management actuators (injectors, ignition coil, solen oid valves, oxygen sensors).
To access the fuses located in the en-
gine compartment, remove the cover
and unclip the fuse box lid.
W h e n y o u h a v e fi n i s h e d , c l o s e t h e l i d
carefully to guarantee the sealing of
t h e f u s e b o x a n d r e fi t t h e c o v e r .
Page 127 of 182
1010
109
The electrical system of your vehicle is designed to operate with standard or optional equipment.
Before installing other electrical equipment or accessories on yo ur vehicle, contact a PEUGEOT dealer.

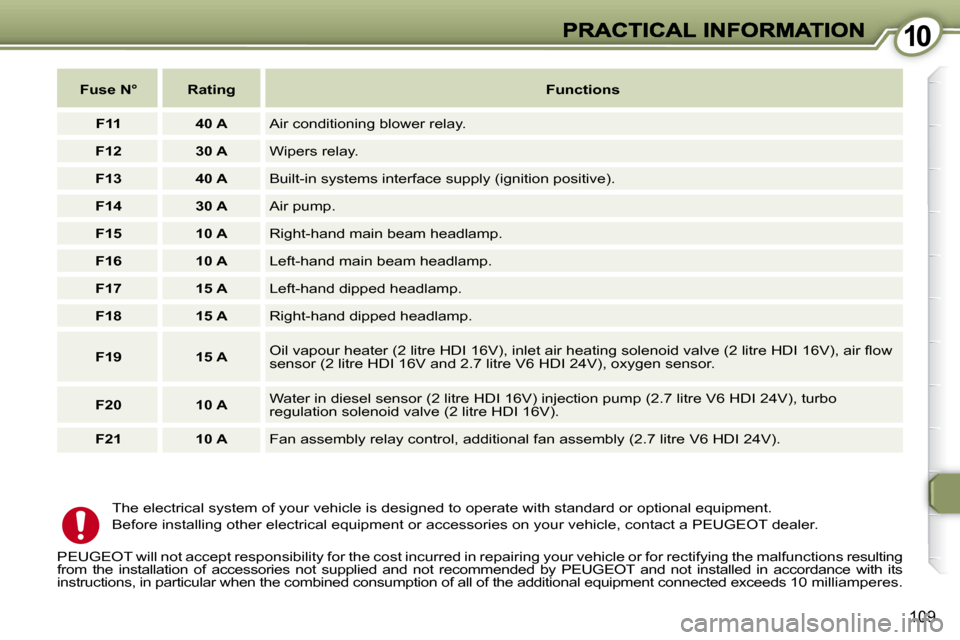

F u s e N ° Rating
F u n c t i o n s
F11 40 A Air conditioning blower relay.
F12 30 A Wipers relay.
F13 40 A Built-in systems interface supply (ignition positive).
F14 30 A Air pump.
F15 10 A Right-hand main beam headlamp.
F16 10 A Left-hand main beam headlamp.
F17 15 A Left-hand dipped headlamp.
F18 15 A Right-hand dipped headlamp.
F19 15 A O i l v a p o u r h e a t e r ( 2 l i t r e H D I 1 6 V ) , i n l e t a i r h e a t i n g s o l e
n o i d v a l v e ( 2 l i t r e H D I 1 6 V ) , a i r fl o w
sensor (2 litre HDI 16V and 2.7 litre V6 HDI 24V), oxygen sensor .
F20 10 A Water in diesel sensor (2 litre HDI 16V) injection pump (2.7 l
itre V6 HDI 24V), turbo
regulation solenoid valve (2 litre HDI 16V).
F21 10 A Fan assembly relay control, additional fan assembly (2.7 litre V6 HDI 24V).
PEUGEOT will not accept responsibility for the cost incurred in re pairing your vehicle or for rectifying the malfunctions resulting
from the installation of accessories not supplied a nd not recommended by PEUGEOT and not installed in accordance with its
instructions, in particular when the combined consu mption of all of the additional equipment connected exceeds 10 milliamperes.
Page 128 of 182
1010
110

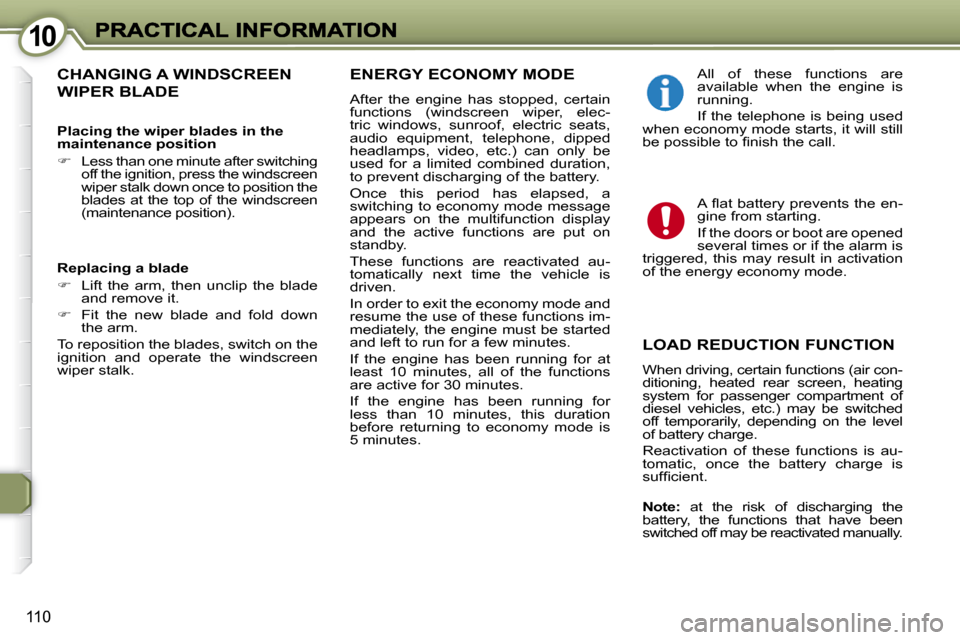

C H A N G I N G A W I N D S C R E E N
W I P E R B L A D E
Placing the wiper blades in the
maintenance position
Less than one minute after switching
off the ignition, press the windscreen
wiper stalk down once to position the
blades at the top of the windscreen
(maintenance position).
E N E R G Y E C O N O M Y M O D E
After the engine has stopped, certain
functions (windscreen wiper, elec-
tric windows, sunroof, electric seats,
audio equipment, telephone, dipped
headlamps, video, etc.) can only be
used for a limited combined duration,
to prevent discharging of the battery.
Once this period has elapsed, a
switching to economy mode message
appears on the multifunction display
and the active functions are put on
standby.
These functions are reactivated au-
tomatically next time the vehicle is
driven.
In order to exit the economy mode and
resume the use of these functions im-
mediately, the engine must be started
and left to run for a few minutes.
If the engine has been running for at
least 10 minutes, all of the functions
are active for 30 minutes.
If the engine has been running for
less than 10 minutes, this duration
before returning to economy mode is
5 minutes. All of these functions are
available when the engine is
running.
If the telephone is being used
when economy mode starts, it will still
b e p o s s i b l e t o fi n i s h t h e c a l l .
L O A D R E D U C T I O N F U N C T I O N
When driving, certain functions (air con-
ditioning, heated rear screen, heating
system for passenger compartment of
diesel vehicles, etc.) may be switched
off temporarily, depending on the level
of battery charge.
Reactivation of these functions is au-
tomatic, once the battery charge is
s u f fi c i e n t .
Note: at the risk of discharging the
battery, the functions that have been
switched off may be reactivated manually.
Replacing a blade
Lift the arm, then unclip the blade
and remove it.
Fit the new blade and fold down
the arm.
To reposition the blades, switch on the
ignition and operate the windscreen
wiper stalk. A fl a t b a t t e r y p r e v e n t s t h e e n -
gine from starting.
If the doors or boot are opened
several times or if the alarm is
triggered, this may result in activation
of the energy economy mode.
Page 129 of 182
1010
111
BATTERY
The battery is located behind the left
boot trim.

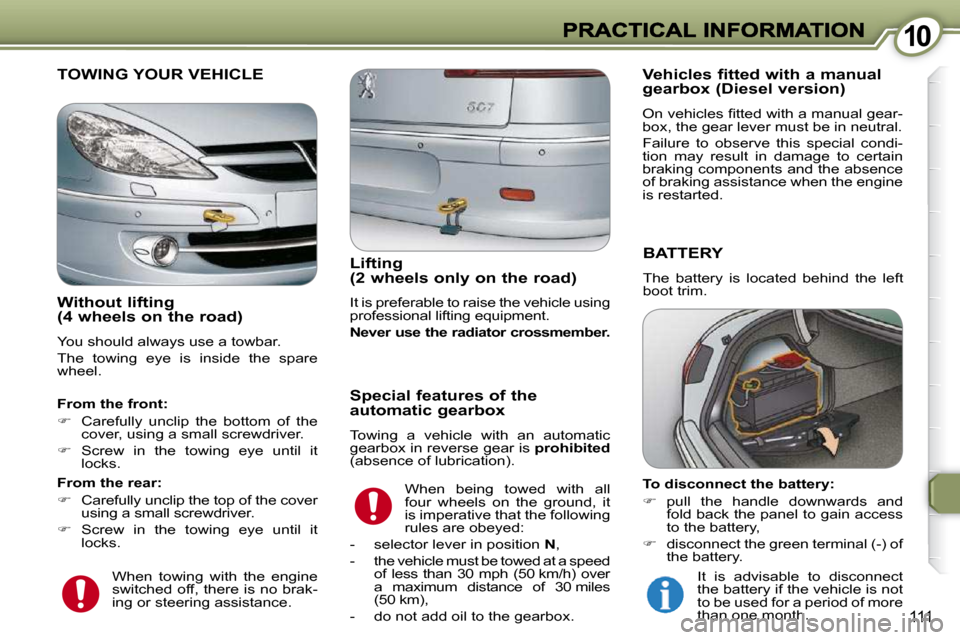

TOWING YOUR VEHICLE
Lifting (2 wheels only on the road)
It is preferable to raise the vehicle using
professional lifting equipment.
N e v e r u s e t h e r a d i a t o r c r o s s m e m b e r .
When towing with the engine
switched off, there is no brak-
ing or steering assistance.
S p e c i a l f e a t u r e s o f t h e a u t o m a t i c g e a r b o x
Towing a vehicle with an automatic
gearbox in reverse gear is prohibited
(absence of lubrication).
W i t h o u t l i f t i n g (4 wheels on the road)
You should always use a towbar.
The towing eye is inside the spare
wheel.
When being towed with all
four wheels on the ground, it
is imperative that the following
rules are obeyed:
- selector lever in position N ,
- the vehicle must be towed at a speed of less than 30 mph (50 km/h) over
a maximum distance of 30 miles
(50 km),
- do not add oil to the gearbox.
From the front:
Carefully unclip the bottom of the
cover, using a small screwdriver.
Screw in the towing eye until it
locks.
From the rear:
Carefully unclip the top of the cover
using a small screwdriver.
Screw in the towing eye until it
locks. To disconnect the battery:
pull the handle downwards and
fold back the panel to gain access
to the battery,
disconnect the green terminal (-) of
the battery.
It is advisable to disconnect
the battery if the vehicle is not
to be used for a period of more
than one month.
V e h i c l e s f i t t e d w i t h a m a n u a l g e a r b o x ( D i e s e l v e r s i o n )
O n v e h i c l e s fi t t e d w i t h a m a n u a l g e a r -
box, the gear lever must be in neutral.
Failure to observe this special condi-
tion may result in damage to certain
braking components and the absence
of braking assistance when the engine
is restarted.
Page 130 of 182
1010
111
BATTERY
The battery is located behind the left
boot trim.
TOWING YOUR VEHICLE
Lifting (2 wheels only on the road)
It is preferable to raise the vehicle using
professional lifting equipment.
N e v e r u s e t h e r a d i a t o r c r o s s m e m b e r .
When towing with the engine
switched off, there is no brak-
ing or steering assistance.
S p e c i a l f e a t u r e s o f t h e a u t o m a t i c g e a r b o x
Towing a vehicle with an automatic
gearbox in reverse gear is prohibited
(absence of lubrication).
W i t h o u t l i f t i n g (4 wheels on the road)
You should always use a towbar.
The towing eye is inside the spare
wheel.
When being towed with all
four wheels on the ground, it
is imperative that the following
rules are obeyed:
- selector lever in position N ,
- the vehicle must be towed at a speed of less than 30 mph (50 km/h) over
a maximum distance of 30 miles
(50 km),
- do not add oil to the gearbox.
From the front:
Carefully unclip the bottom of the
cover, using a small screwdriver.
Screw in the towing eye until it
locks.
From the rear:
Carefully unclip the top of the cover
using a small screwdriver.
Screw in the towing eye until it
locks. To disconnect the battery:
pull the handle downwards and
fold back the panel to gain access
to the battery,
disconnect the green terminal (-) of
the battery.
It is advisable to disconnect
the battery if the vehicle is not
to be used for a period of more
than one month.
V e h i c l e s f i t t e d w i t h a m a n u a l g e a r b o x ( D i e s e l v e r s i o n )
O n v e h i c l e s fi t t e d w i t h a m a n u a l g e a r -
box, the gear lever must be in neutral.
Failure to observe this special condi-
tion may result in damage to certain
braking components and the absence
of braking assistance when the engine
is restarted.
