To start the vehicle from another
b a t t e r y , u s e t h e f r o n t a d d i t i o n a l
terminal:
open the bonnet,
remove the left side cover,
use the two additional (+) and (-)
terminals located under the bonnet
and only these,
open the red cover of the (+) terminal,
connect the red cable between the
(+) terminal and the (+) terminal of
the slave battery,
connect the green or black cable
between the (-) terminal and the
negative (-) terminal of the slave
battery,
start the engine and let it run,
wait for the engine to return to idle
then disconnect the cables,
close the red cover of the (+) terminal,
r e fi t t h e l e f t s i d e c o v e r ,
close the bonnet. Never disconnect a terminal
when the engine is running.
Close the windows and sun-
roof fully before disconnecting
the battery.
It is imperative that cables of profession-
al quality and suitable cross-section are
used; for further information, contact a
PEUGEOT dealer. Batteries contain harmful
substances such as sulphu-
ric acid and lead. They must
be disposed of in accordance
with regulations and must not, in any
circumstances, be discarded with
household waste.
Take used batteries to an approved
collection point.
To charge the battery:
open the bonnet,
remove the left side cover,
use the two additional (+) and (-) ter-
minals located under the bonnet,
open the red cover of the (+) terminal,
follow the instructions for use pro-
vided by the manufacturer of the
charger,
close the red cover of the (+) terminal,
r e fi t t h e l e f t s i d e c o v e r ,
close the bonnet.
Do not start the vehicle while the charger
is connected. After every re-connection of
the battery, switch on the ig-
nition and wait for 1 minute
before starting, to allow the
electronic systems to be initial-
i s e d . H o w e v e r , i f s l i g h t d i f fi c u l t i e s a r e
experienced after this, please contact
a PEUGEOT dealer. If electrical work is
carried out, disconnect the battery.
When charging or replacement of the
battery is necessary, do not close the
boot as, since it is only opened elec-
trically, it would then be necessary to
use the emergency control (see cor-
responding section).
D o n o t c o n n e c t a s l a v e b a t t e r y t o t h e
( + ) a n d ( - ) t e r m i n a l s l o c a t e d u n d e r
the bonnet if there is no battery in
t h e b o o t ( r i s k o f s h o r t c i r c u i t ) .
Page 132 of 182
1010
113
TOWING A TRAILER,
CARAVAN, BOAT, ETC...
We recommend the use of original
PEUGEOT towbars and their harnesses
which have been tested and approved
from the design stage of your vehicle and
t h a t y o u e n t r u s t t h e fi t t i n g o f t h e t o w b a r t o
a PEUGEOT dealer.
I f t h e t o w b a r i s n o t fi t t e d b y a P E U G E O T
d e a l e r , i t i s i m p e r a t i v e t h a t i t i s fi t t e d u s -
ing the electrical pre-equipment installed
at the rear of the vehicle, in accordance
with the manufacturer's instructions.
Note: in certain cases of par-
ticularly arduous use (towing
the maximum load in high
temperatures on a steep
slope), the engine automatically lim-
its its power and selects the appropri-
ate automatic gearbox gear in manual
mode. In this case, cutting off the air
conditioning allows the engine power
to be recovered, and therefore the
towing capacity to be increased. A u t o m a t i c a d j u s t m e n t
To avoid causing a nuisance to other
road users, this system automatical-
ly corrects the height of the beam of
xenon bulbs in relation to the vehicle
load after approximately 2 minutes.
The driver is then assured of having
optimum lighting.
D r i v i n g a d v i c e
D i s t r i b u t i o n o f l o a d s : distribute the
load in the trailer so that the heavi-
est loads are as close as possible to
the axle and the nose weight is close
to the maximum authorised without,
however, exceeding it.
Lighting
Tyres: check the tyre pressures of the
towing vehicle (label on the central
door pillar on the driver's side) and of
the trailer towed, observing the recom-
mended pressure.
If the coolant temperature
warning light comes on, stop
the vehicle and switch off the
engine as soon as possible.
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h a n
HDI engine, it is advisable, following
intensive use (towing on a motorway,
prolonged driving, ...), to leave the en-
gine running at idle for approximately
20 seconds before switching off the
ignition. This limits any increase in the
temperature of the engine after it has
been switched off.
In all cases, pay attention to the coolant
temperature.
Brakes: towing increases the braking
distance. Drive at a moderate speed,
change down early and brake gradually.
S i d e w i n d : sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed.
Cooling: towing a trailer on a slope in-
creases the coolant temperature.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
Page 133 of 182
1010
114
A C C E S S O R I E S F O R Y O U R 6 0 7
A wide range of accessories recom-
mended by PEUGEOT and original
parts are offered by the network.
T h e y a l l b e n e fi t f r o m P E U G E O T ' s
recommendation.
These accessories and parts, having
been tested and approved for reliabil-
ity and safety, are all adapted to your
PEUGEOT vehicle.
The product range offered by PEUGEOT
Accessories is structured around 5 catego-
ries: PROTECTION - TOURING - IN-CAR
TECHNOLOGY - STYLING - UNIVERSAL.
T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t or accessories which are not
recommended by PEUGEOT
may result in a failure of your
vehicle's electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g . Y o u
are advised to contact a representa-
tive of the Marque to be shown the
range of recommended equipment
and accessories.
"Protection":
parking assistance, anti-theft
alarm, stolen vehicles recov-
ery system * , engraved win-
d o w s , l o c k i n g w h e e l n u t s , fi r s t
aid kit, warning triangle, high
visibility safety jacket, snow
chains. " T o u r i n g " :
covers compatible with air
bag components, mats, boot
tray, luggage retaining net,
sill protectors.
For leisure pursuits: roof
bars, transportation accessories (bi-
cycle carrier, ski carrier), roof box,
child seats and booster cushions, rear
screen blind, audio/telephone console,
cool box.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
"In-Car Technology":
hands-free kits, satellite navi-
gation systems, CD changer,
DVD player, video screen.
You are advised to contact
a PEUGEOT dealer before
installing accessory radiocommunica-
tion transmitters with external aerial
on your vehicle.
Your PEUGEOT dealer will inform you
of the characteristics (frequency band,
maximum output power, aerial posi-
t i o n , s p e c i fi c i n s t a l l a t i o n c o n d i t i o n s ) o f
t h e t r a n s m i t t e r s w h i c h c a n b e fi t t e d ,
in accordance with the Motor Vehicle
Electromagnetic Compatibility Direc-
tive (2004/104/EC). " S t y l i n g " :
alloy wheels, wheel trims,
spoiler, leather gear lever
knob, styling strips, door spoil-
ers, sport exhaust.
"Universal":
w i n d s c r e e n w a s h fl u i d , i n t e r i -
or and exterior cleaning and
maintenance products.
Depending on the country in
which the vehicle is sold, it is
compulsory to have a safety
jacket, warning triangle and
spare bulbs available in the
vehicle.
W h e e l s w h i c h a r e fi t t e d w i t h
2 3 5 / 4 5 R 1 8 t y r e s c a n n o t b e fi t t e d
w i t h s n o w c h a i n s . F o r f u r t h e r i n f o r -
mation, contact a
PEUGEOT dealer. Note
To prevent the mat from becoming
caught under the pedals:
- ensure that the mat is positioned
and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
* According to country.
Page 134 of 182
11
115

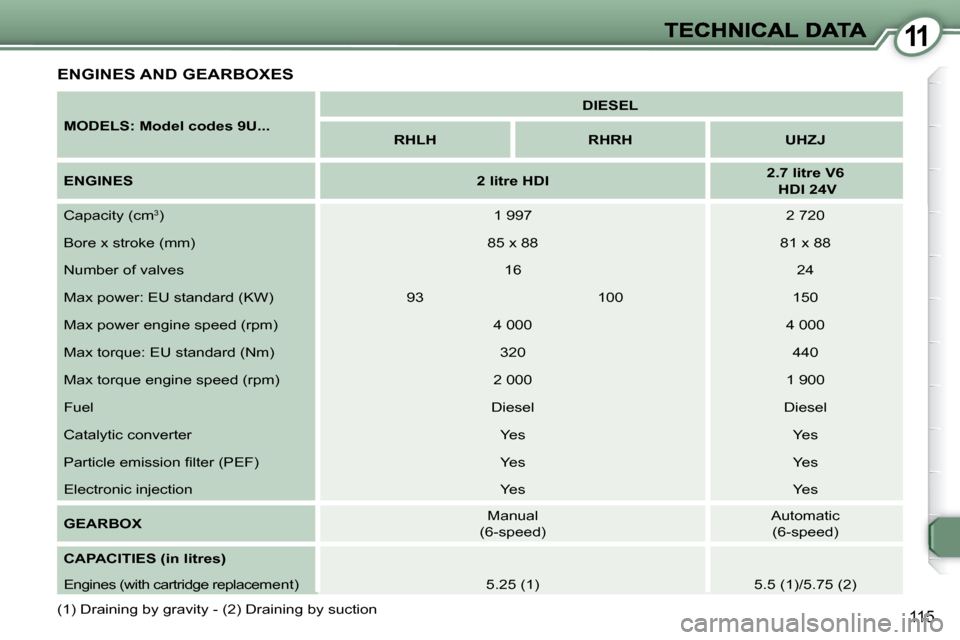

MODELS: Model codes 9U...
DIESEL
RHLH RHRH UHZJ
ENGINES
2 litre HDI
2.7 litre V6
HDI 24V
Capacity (cm 3
) 1 997 2 720
Bore x stroke (mm) 85 x 88 81 x 88
Number of valves 16 24
Max power: EU standard (KW) 93 100 150
Max power engine speed (rpm) 4 000 4 000
Max torque: EU standard (Nm) 320 440
Max torque engine speed (rpm) 2 000 1 900
Fuel Diesel Diesel
Catalytic converter Yes Yes
P a r t i c l e e m i s s i o n fi l t e r ( P E F ) Yes Yes
Electronic injection Yes Yes
GEARBOX Manual
(6-speed) Automatic
(6-speed)
CAPACITIES (in litres)
Engines (with cartridge replacement) 5.25 (1) 5.5 (1)/5.75 (2)
ENGINES AND GEARBOXES
(1) Draining by gravity - (2) Draining by suction
Page 135 of 182
11
116

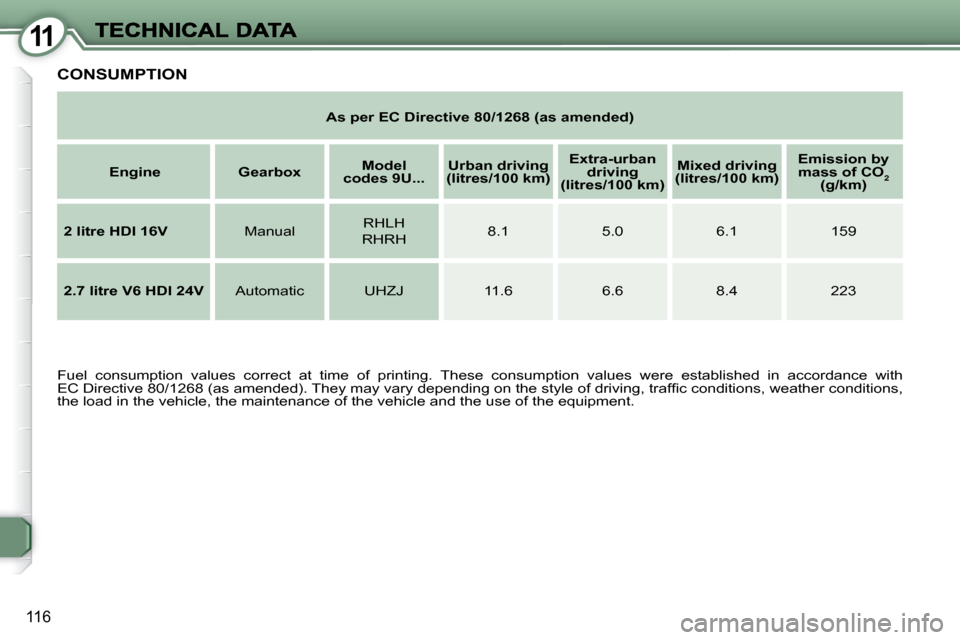

CONSUMPTION
As per EC Directive 80/1268 (as amended)
Engine Gearbox
Model
codes 9U...
Urban
driving
(litres/100 km)
Extra-urban
driving
(litres/100 km)
Mixed
driving
(litres/100 km)
Emission by
mass of CO 2
(g/km)
2 litre HDI 16V Manual RHLH
RHRH 8.1 5.0 6.1 159
2.7 litre V6 HDI 24V Automatic UHZJ 11.6 6.6 8.4 223
Fuel consumption values correct at time of printing. These consu mption values were established in accordance with
E C D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) . T h e y m a y v a r y d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s ,
the load in the vehicle, the maintenance of the vehicle a nd the use of the equipment.
Page 136 of 182
11
117
WEIGHTS AND TOWING LOADS (IN KG)
Engines
DIESEL
2 litre
HDI 16V
2.7 litre V6
HDI 24V
Gearboxes
Manual Automatic
Model codes: 9U... RHLH RHRH UHZJ
Page 137 of 182
11

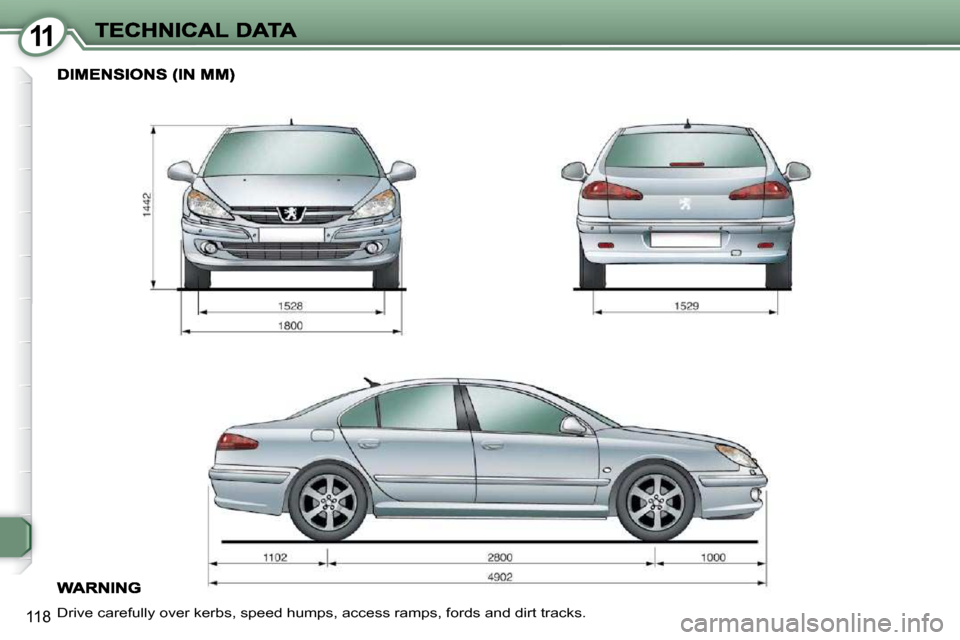

118 Drive carefully over kerbs, speed humps, access ramps, fords and dirt tracks.
Page 138 of 182
11
119

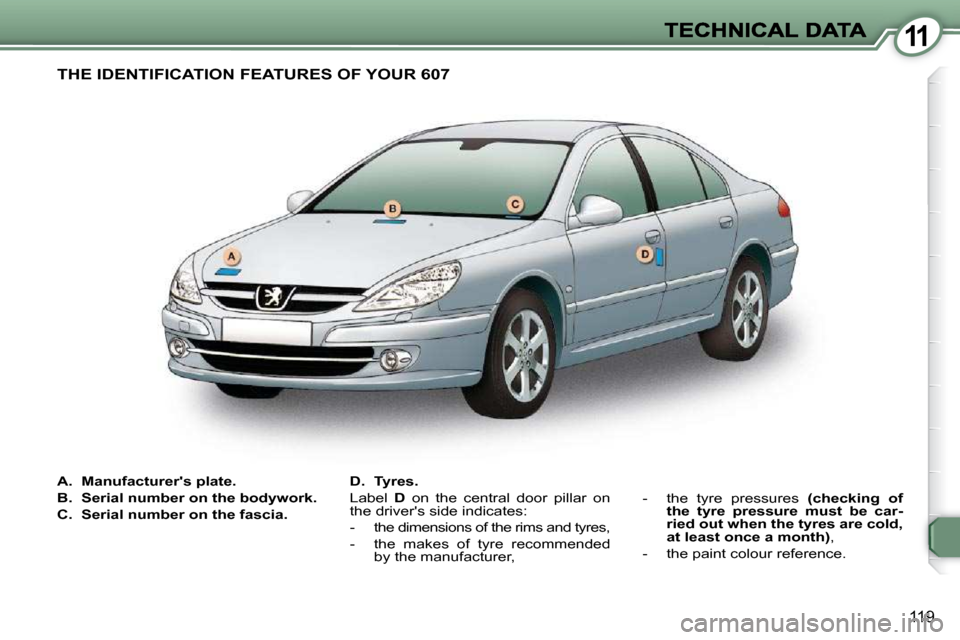

A. Manufacturer's plate.
B. Serial number on the bodywork.
C. Serial number on the fascia.
D. Tyres.
Label D on the central door pillar on
the driver's side indicates:
- the dimensions of the rims and tyres,
- the makes of tyre recommended by the manufacturer, - the tyre pressures
(checking of
the tyre pressure must be car-
ried out when the tyres are cold,
at least once a month) ,
- the paint colour reference.
THE IDENTIFICATION FEATURES OF YOUR 607
Page 139 of 182
121

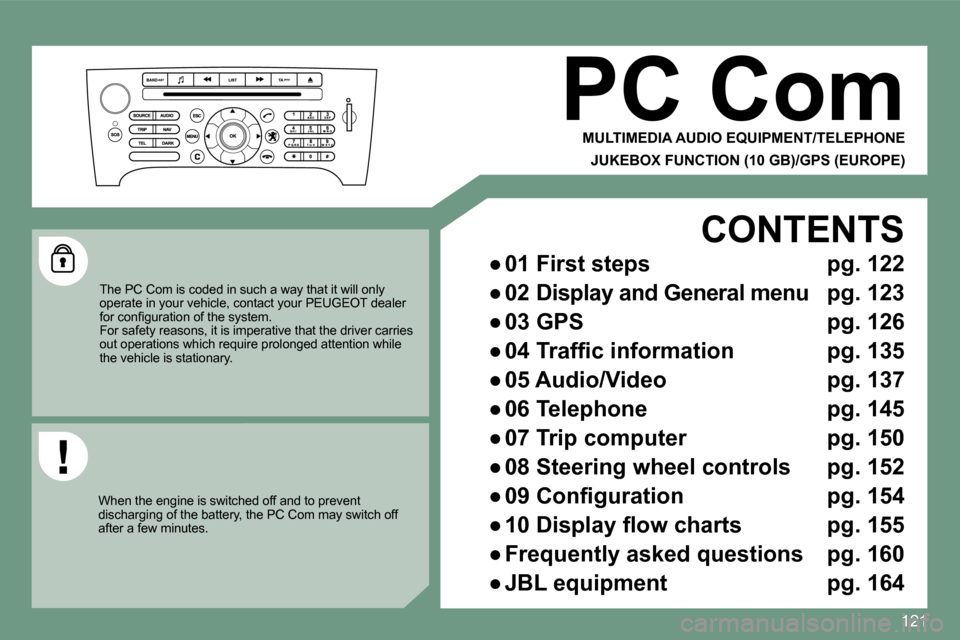

PC Com
MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE
JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)
The PC Com is coded in such a way that it will only operate in your vehicle, contact your PEUGEOT deale r f o r c o n fi g u r a t i o n o f t h e s y s t e m . For safety reasons, it is imperative that the driver carries o u t o p e r a t i o n s w h i c h r e q u i r e p r o l o n g e d a t t e n t i o n w h i l e t h e v e h i c l e i s s t a t i o n a r y .
W h e n t h e e n g i n e i s s w i t c h e d o f f a n d t o p r e v e n t d i s c h a r g i n g o f t h e b a t t e r y , t h e P C C o m m a y s w i t c h o f f a f t e r a f e w m i n u t e s .
CONTENTS
Page 140 of 182
122
11
8 8
3 3 2 2
1 2 1 2
6 6 4 4 5 5 7 7
9 9
1010 1 5 1 5
1 4 1 4
1 6 1 6 1 3 1 3
2 0 2 0 1 9 1 9 1 7 1 71111
1 8 1 8
01

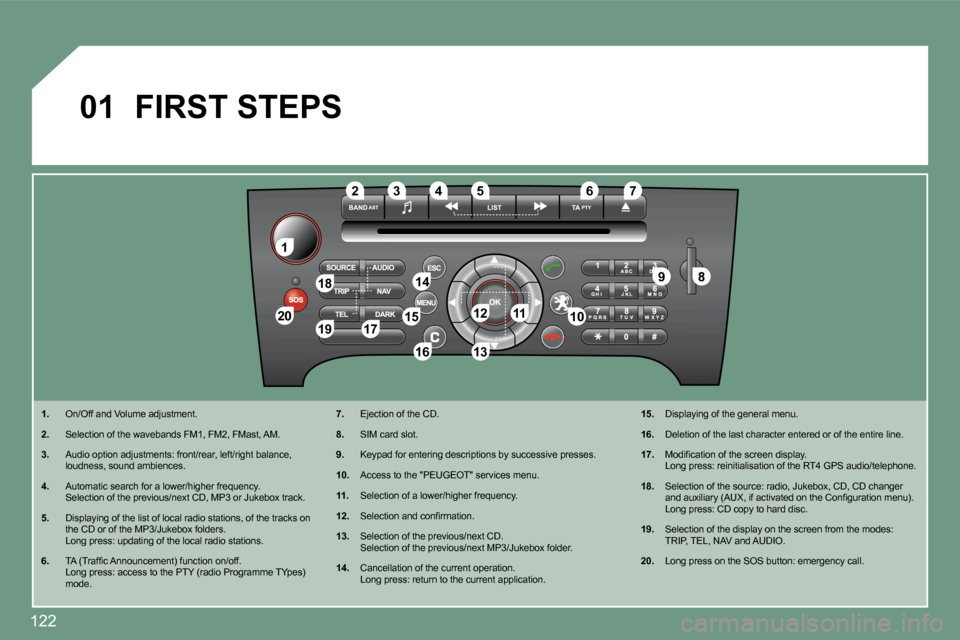

1 . O n / O f f a n d V o l u m e a d j u s t m e n t .
2 . S e l e c t i o n o f t h e w a v e b a n d s F M 1 , F M 2 , F M a s t , A M .
3 . A u d i o o p t i o n a d j u s t m e n t s : f r o n t / r e a r , l e f t / r i g h t b a l a n c e , l o u d n e s s , s o u n d a m b i e n c e s .
4 . A u t o m a t i c s e a r c h f o r a l o w e r / h i g h e r f r e q u e n c y . S e l e c t i o n o f t h e p r e v i o u s / n e x t C D , M P 3 o r J u k e b o x t r a c k .
5 . D i s p l a y i n g o f t h e l i s t o f l o c a l r a d i o s t a t i o n s , o f t h e t r a c k s o n t h e C D o r o f t h e M P 3 / J u k e b o x f o l d e r s . L o n g p r e s s : u p d a t i n g o f t h e l o c a l r a d i o s t a t i o n s .
6 . T A ( T r a f fi c A n n o u n c e m e n t ) f u n c t i o n o n / o f f . L o n g p r e s s : a c c e s s t o t h e P T Y ( r a d i o P r o g r a m m e T Y p e s ) m o d e .
7 . E j e c t i o n o f t h e C D .
8 . S I M c a r d s l o t .
9 . K e y p a d f o r e n t e r i n g d e s c r i p t i o n s b y s u c c e s s i v e p r e s s e s .
1 0 . A c c e s s t o t h e " P E U G E O T " s e r v i c e s m e n u .
1 1 . S e l e c t i o n o f a l o w e r / h i g h e r f r e q u e n c y .
1 2 . S e l e c t i o n a n d c o n fi r m a t i o n .
1 3 . S e l e c t i o n o f t h e p r e v i o u s / n e x t C D . S e l e c t i o n o f t h e p r e v i o u s / n e x t M P 3 / J u k e b o x f o l d e r .
1 4 . C a n c e l l a t i o n o f t h e c u r r e n t o p e r a t i o n . L o n g p r e s s : r e t u r n t o t h e c u r r e n t a p p l i c a t i o n .
1 5 . D i s p l a y i n g o f t h e g e n e r a l m e n u .
1 6 . D e l e t i o n o f t h e l a s t c h a r a c t e r e n t e r e d o r o f t h e e n t i r e l i n e .
1 7 . M o d i fi c a t i o n o f t h e s c r e e n d i s p l a y . L o n g p r e s s : r e i n i t i a l i s a t i o n o f t h e R T 4 G P S a u d i o / t e l e p h o n e .
1 8 . S e l e c t i o n o f t h e s o u r c e : r a d i o , J u k e b o x , C D , C D c h a n g e r a n d a u x i l i a r y ( A U X , i f a c t i v a t e d o n t h e C o n fi g u r a t i o n m e n u ) . L o n g p r e s s : C D c o p y t o h a r d d i s c .
1 9 . S e l e c t i o n o f t h e d i s p l a y o n t h e s c r e e n f r o m t h e m o d e s : T R I P , T E L , N A V a n d A U D I O .
2 0 . L o n g p r e s s o n t h e S O S b u t t o n : e m e r g e n c y c a l l .
FIRST STEPS
