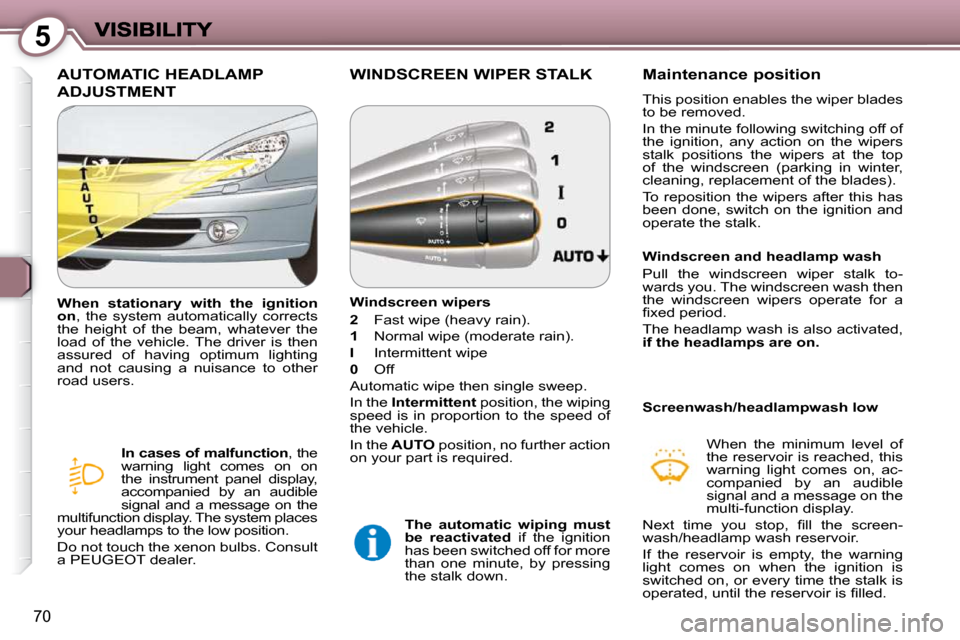

Page 81 of 182
5
70
AUTOMATIC HEADLAMP
ADJUSTMENT
In cases of malfunction , the
warning light comes on on
the instrument panel display,
accompanied by an audible
signal and a message on the
multifunction display. The system places
your headlamps to the low position.
Do not touch the xenon bulbs. Consult
a PEUGEOT dealer.
When stationary with the ignition
on , the system automatically corrects
the height of the beam, whatever the
load of the vehicle. The driver is then
assured of having optimum lighting
and not causing a nuisance to other
road users.
WINDSCREEN WIPER STALK
Windscreen wipers
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
I Intermittent wipe
0 Off
Automatic wipe then single sweep.
In the Intermittent position, the wiping
speed is in proportion to the speed of
the vehicle.
In the AUTO position, no further action
on your part is required.
The automatic wiping must
be reactivated if the ignition
has been switched off for more
than one minute, by pressing
the stalk down .
Maintenance position
This position enables the wiper blades
to be removed.
In the minute following switching off of
the ignition, any action on the wipers
stalk positions the wipers at the top
of the windscreen (parking in winter,
cleaning, replacement of the blades).
To reposition the wipers after this has
been done, switch on the ignition and
operate the stalk.
Windscreen and headlamp wash
Pull the windscreen wiper stalk to-
wards you. The windscreen wash then
the windscreen wipers operate for a
fi x e d p e r i o d .
The headlamp wash is also activated,
if the headlamps are on.
Screenwash/headlampwash low When the minimum level of
the reservoir is reached, this
warning light comes on, ac-
companied by an audible
signal and a message on the
multi-function display.
N e x t t i m e y o u s t o p , fi l l t h e s c r e e n -
wash/headlamp wash reservoir.
If the reservoir is empty, the warning
light comes on when the ignition is
switched on, or every time the stalk is
o p e r a t e d , u n t i l t h e r e s e r v o i r i s fi l l e d .

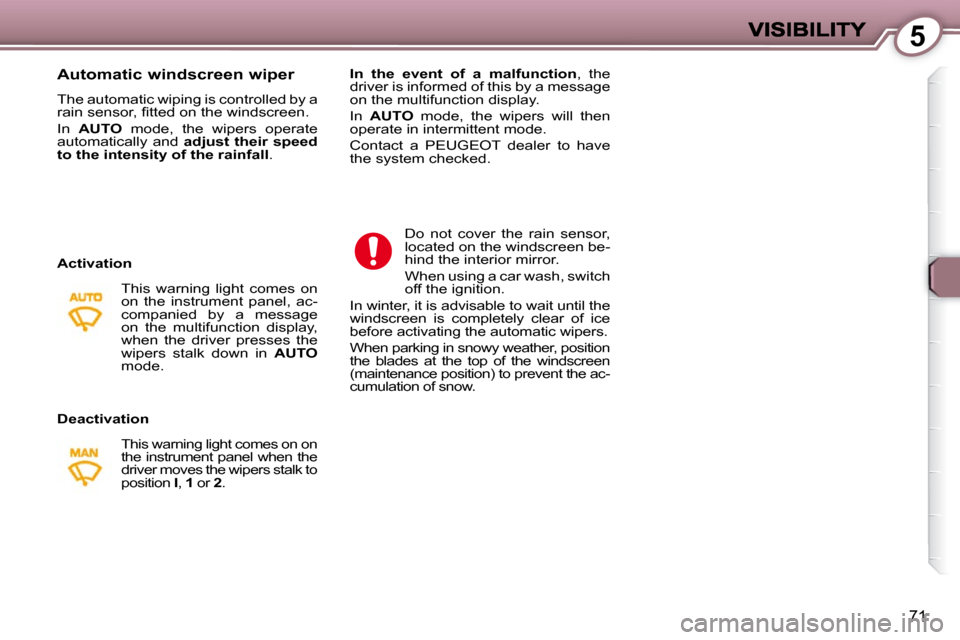

Page 82 of 182
5
71
Automatic windscreen wiper
The automatic wiping is controlled by a
r a i n s e n s o r , fi t t e d o n t h e w i n d s c r e e n .
In AUTO mode, the wipers operate
automatically and adjust their speed
to the intensity of the rainfall .
Activation
Deactivation This warning light comes on
on the instrument panel, ac-
companied by a message
on the multifunction display,
when the driver presses the
wipers stalk down in
AUTO
mode.
This warning light comes on on
the instrument panel when the
driver moves the wipers stalk to
position I , 1 or 2 .
In the event of a malfunction , the
driver is informed of this by a message
on the multifunction display.
In AUTO mode, the wipers will then
operate in intermittent mode.
Contact a PEUGEOT dealer to have
the system checked.
Do not cover the rain sensor,
located on the windscreen be-
hind the interior mirror.
When using a car wash, switch
off the ignition.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic wipers.
When parking in snowy weather, position
the blades at the top of the windscreen
(maintenance position) to prevent the ac-
cumulation of snow.
Page 83 of 182
5
71
Automatic windscreen wiper
The automatic wiping is controlled by a
r a i n s e n s o r , fi t t e d o n t h e w i n d s c r e e n .
In AUTO mode, the wipers operate
automatically and adjust their speed
to the intensity of the rainfall .
Activation
Deactivation This warning light comes on
on the instrument panel, ac-
companied by a message
on the multifunction display,
when the driver presses the
wipers stalk down in
AUTO
mode.
This warning light comes on on
the instrument panel when the
driver moves the wipers stalk to
position I , 1 or 2 .
In the event of a malfunction , the
driver is informed of this by a message
on the multifunction display.
In AUTO mode, the wipers will then
operate in intermittent mode.
Contact a PEUGEOT dealer to have
the system checked.
Do not cover the rain sensor,
located on the windscreen be-
hind the interior mirror.
When using a car wash, switch
off the ignition.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic wipers.
When parking in snowy weather, position
the blades at the top of the windscreen
(maintenance position) to prevent the ac-
cumulation of snow.

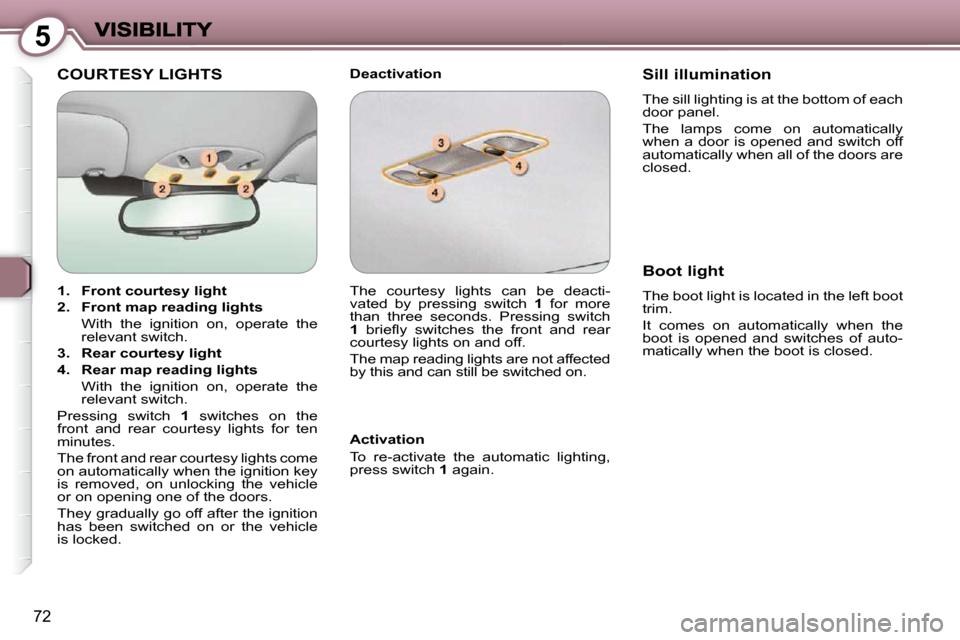

Page 84 of 182
5
72
COURTESY LIGHTS Deactivation
Activation
To re-activate the automatic lighting,
press switch 1 again. Sill illumination
The sill lighting is at the bottom of each
door panel.
The lamps come on automatically
when a door is opened and switch off
automatically when all of the doors are
closed.
Boot light
The boot light is located in the left boot
trim.
It comes on automatically when the
boot is opened and switches of auto-
matically when the boot is closed.
1. Front courtesy light
2. Front map reading lights
With the ignition on, operate the relevant switch.
3. Rear courtesy light
4. Rear map reading lights
With the ignition on, operate the relevant switch.
Pressing switch 1 switches on the
front and rear courtesy lights for ten
minutes.
The front and rear courtesy lights come
on automatically when the ignition key
is removed, on unlocking the vehicle
or on opening one of the doors.
They gradually go off after the ignition
has been switched on or the vehicle
is locked. The courtesy lights can be deacti-
vated by pressing switch
1 for more
than three seconds. Pressing switch
1 b r i e fl y s w i t c h e s t h e f r o n t a n d r e a r
courtesy lights on and off.
The map reading lights are not affected
by this and can still be switched on .

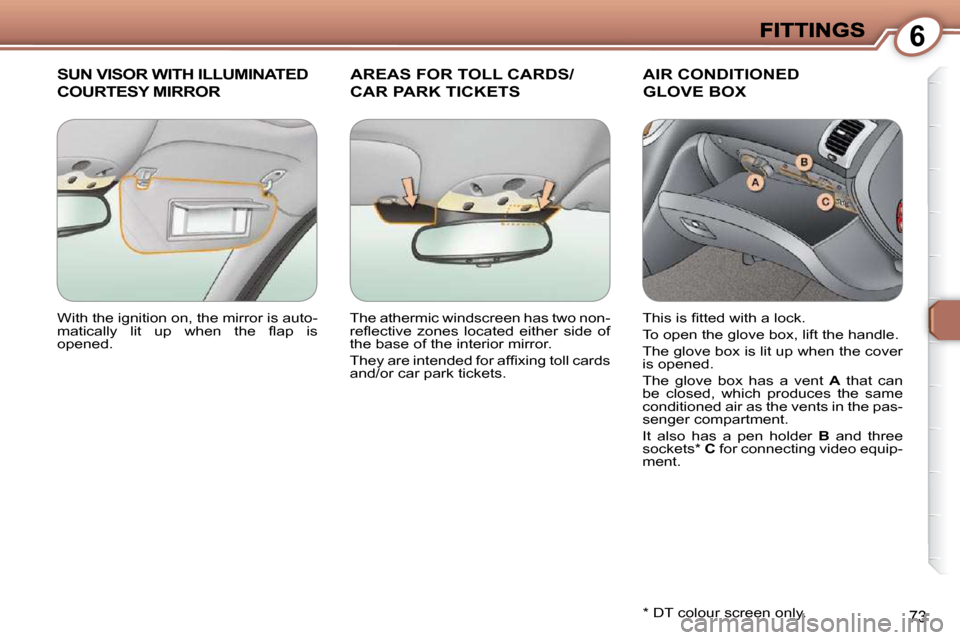

Page 85 of 182
6
73
SUN VISOR WITH ILLUMINATED
COURTESY MIRROR
AREAS FOR TOLL CARDS/
CAR PARK TICKETS
AIR CONDITIONED
GLOVE BOX
* DT colour screen only.
With the ignition on, the mirror is auto-
m a t i c a l l y l i t u p w h e n t h e fl a p i s
opened.
The athermic windscreen has two non-
r e fl e c t i v e z o n e s l o c a t e d e i t h e r s i d e o f
t h e b a s e o f t h e i n t e r i o r m i r r o r .
T h e y a r e i n t e n d e d f o r a f fi x i n g t o l l c a r d s
and/or car park tickets. T h i s i s fi t t e d w i t h a l o c k .
T o o p e n t h e g l o v e b o x , l i f t t h e h a n d l e .
T h e g l o v e b o x i s l i t u p w h e n t h e c o v e r
is opened.
T h e g l o v e b o x h a s a v e n t
A that can
be closed, which produces the same
c o n d i t i o n e d a i r a s t h e v e n t s i n t h e p a s -
senger compartment.
It also has a pen holder B and three
sockets * C f o r c o n n e c t i n g v i d e o e q u i p -
ment.

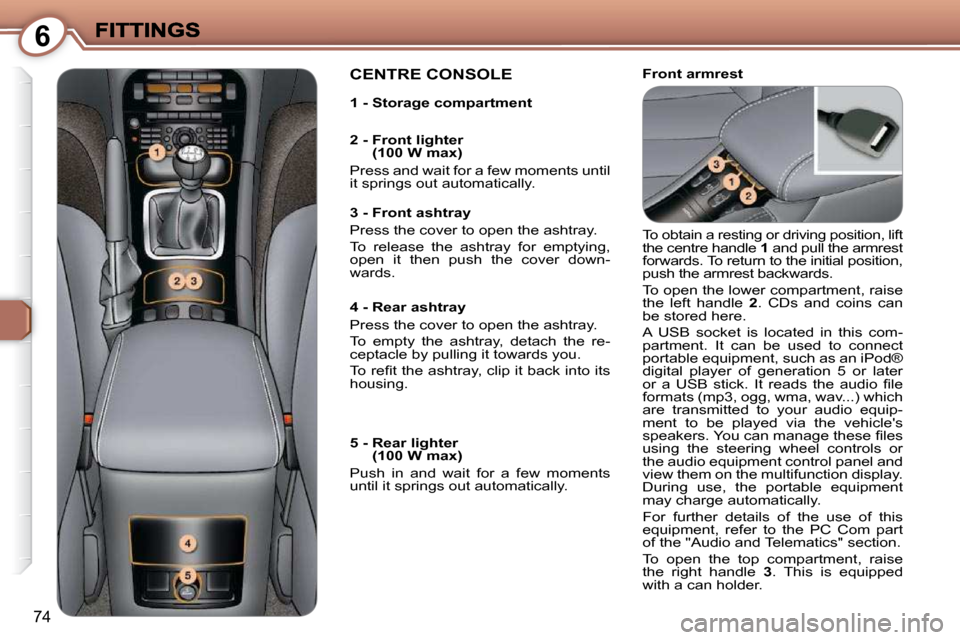

Page 86 of 182
6
74
Front armrest CENTRE CONSOLE
T o o b t a i n a r e s t i n g o r d r i v i n g p o s i t i o n , l i f t
the centre handle 1 and pull the armrest
f o r w a r d s . T o r e t u r n t o t h e i n i t i a l p o s i t i o n ,
push the armrest backwards.
To open the lower compartment, raise
t h e l e f t h a n d l e 2 . CDs and coins can
be stored here.
A USB socket is located in this com-
partment. It can be used to connect
p o r t a b l e e q u i p m e n t , s u c h a s a n i P o d ®
d i g i t a l p l a y e r o f g e n e r a t i o n 5 o r l a t e r
o r a U S B s t i c k . I t r e a d s t h e a u d i o fi l e
f o r m a t s ( m p 3 , o g g , w m a , w a v . . . ) w h i c h
a r e t r a n s m i t t e d t o y o u r a u d i o e q u i p -
m e n t t o b e p l a y e d v i a t h e v e h i c l e ' s
s p e a k e r s . Y o u c a n m a n a g e t h e s e fi l e s
using the steering wheel controls or
t h e a u d i o e q u i p m e n t c o n t r o l p a n e l a n d
v i e w t h e m o n t h e m u l t i f u n c t i o n d i s p l a y .
D u r i n g u s e , t h e p o r t a b l e e q u i p m e n t
may charge automatically.
F o r f u r t h e r d e t a i l s o f t h e u s e o f t h i s
e q u i p m e n t , r e f e r t o t h e P C C o m p a r t
o f t h e " A u d i o a n d T e l e m a t i c s " s e c t i o n .
To open the top compartment, raise
the right handle 3 . T h i s i s e q u i p p e d
with a can holder.
1 - Storage compartment
2 - Front lighter
(100 W max)
P r e s s a n d w a i t f o r a f e w m o m e n t s u n t i l
it springs out automatically.
3 - Front ashtray
P r e s s t h e c o v e r t o o p e n t h e a s h t r a y .
T o r e l e a s e t h e a s h t r a y f o r e m p t y i n g ,
o p e n i t t h e n p u s h t h e c o v e r d o w n -
wards.
4 - Rear ashtray
P r e s s t h e c o v e r t o o p e n t h e a s h t r a y .
To empty the ashtray, detach the re-
ceptacle by pulling it towards you.
T o r e fi t t h e a s h t r a y , c l i p i t b a c k i n t o i t s
housing.
5 - Rear lighter (100 W max)
P u s h i n a n d w a i t f o r a f e w m o m e n t s
until it springs out automatically.

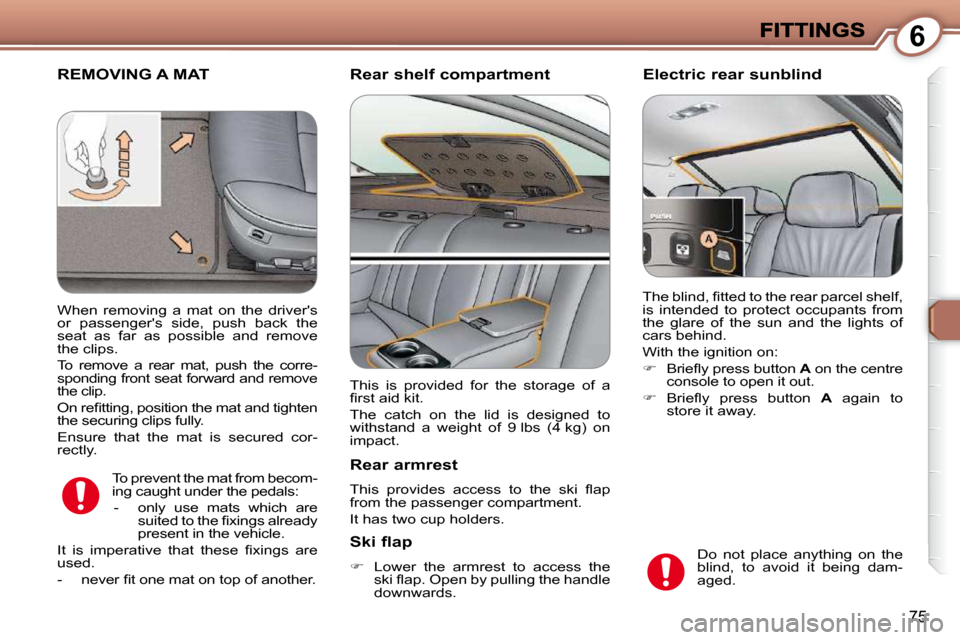

Page 87 of 182
6
7 5
REMOVING A MAT Rear shelf compartment
Rear armrest
T h i s p r o v i d e s a c c e s s t o t h e s k i fl a p
f r o m t h e p a s s e n g e r c o m p a r t m e n t .
It has two cup holders.
Ski flap
Lower the armrest to access the
s k i fl a p . O p e n b y p u l l i n g t h e h a n d l e
downwards.
Electric rear sunblind
T o p r e v e n t t h e m a t f r o m b e c o m -
ing caught under the pedals:
- only use mats which are s u i t e d t o t h e fi x i n g s a l r e a d y
p r e s e n t i n t h e v e h i c l e .
I t i s i m p e r a t i v e t h a t t h e s e fi x i n g s a r e
used.
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r . Do not place anything on the
b l i n d , t o a v o i d i t b e i n g d a m -
aged.
W h e n r e m o v i n g a m a t o n t h e d r i v e r ' s
o r p a s s e n g e r ' s s i d e , p u s h b a c k t h e
s e a t a s f a r a s p o s s i b l e a n d r e m o v e
the clips.
T o r e m o v e a r e a r m a t , p u s h t h e c o r r e -
s p o n d i n g f r o n t s e a t f o r w a r d a n d r e m o v e
the clip.
O n r e fi t t i n g , p o s i t i o n t h e m a t a n d t i g h t e n
t h e s e c u r i n g c l i p s f u l l y .
Ensure that the mat is secured cor-
rectly.
T h i s i s p r o v i d e d f o r t h e s t o r a g e o f a
fi r s t a i d k i t .
The catch on the lid is designed to
w i t h s t a n d a w e i g h t o f 9 l b s ( 4 k g ) o n
impact. T h e b l i n d , fi t t e d t o t h e r e a r p a r c e l s h e l f ,
i s i n t e n d e d t o p r o t e c t o c c u p a n t s f r o m
t h e g l a r e o f t h e s u n a n d t h e l i g h t s o f
cars behind.
With the ignition on:
B r i e fl y p r e s s b u t t o n A on the centre
console to open it out.
B r i e fl y p r e s s b u t t o n A again to
store it away.

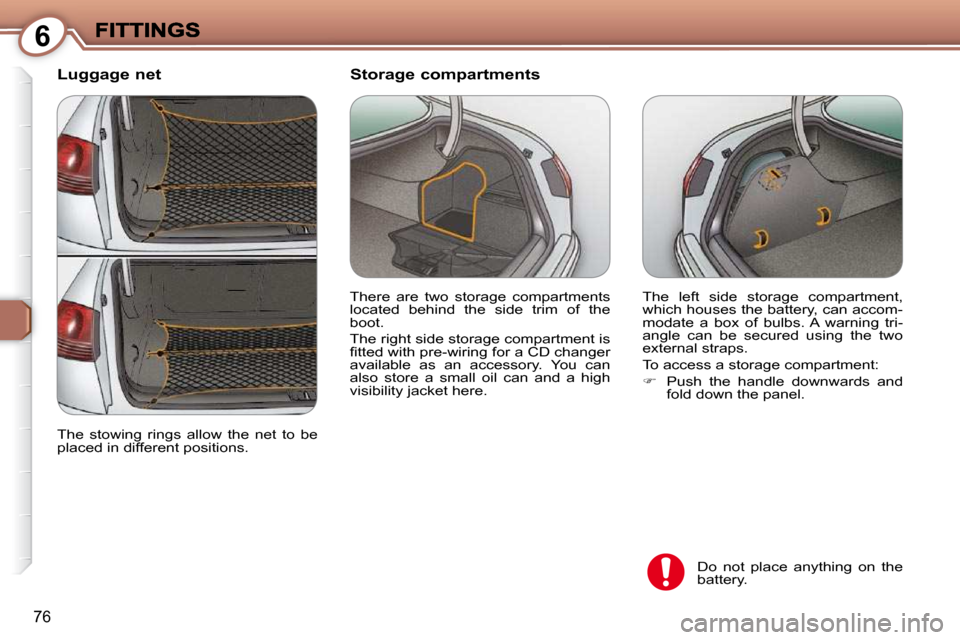

Page 88 of 182
6
76
Luggage net
T h e l e f t s i d e s t o r a g e c o m p a r t m e n t ,
which houses the battery, can accom-
m o d a t e a b o x o f b u l b s . A w a r n i n g t r i -
angle can be secured using the two
e x t e r n a l s t r a p s .
To access a storage compartment:
P u s h t h e h a n d l e d o w n w a r d s a n d
f o l d d o w n t h e p a n e l .
Storage compartments
Do not place anything on the
battery.
The stowing rings allow the net to be
p l a c e d i n d i f f e r e n t p o s i t i o n s . There are two storage compartments
l o c a t e d b e h i n d t h e s i d e t r i m o f t h e
boot.
The right side storage compartment is
fi t t e d w i t h p r e - w i r i n g f o r a C D c h a n g e r
a v a i l a b l e a s a n a c c e s s o r y . Y o u c a n
also store a small oil can and a high
v i s i b i l i t y j a c k e t h e r e .
Page 89 of 182

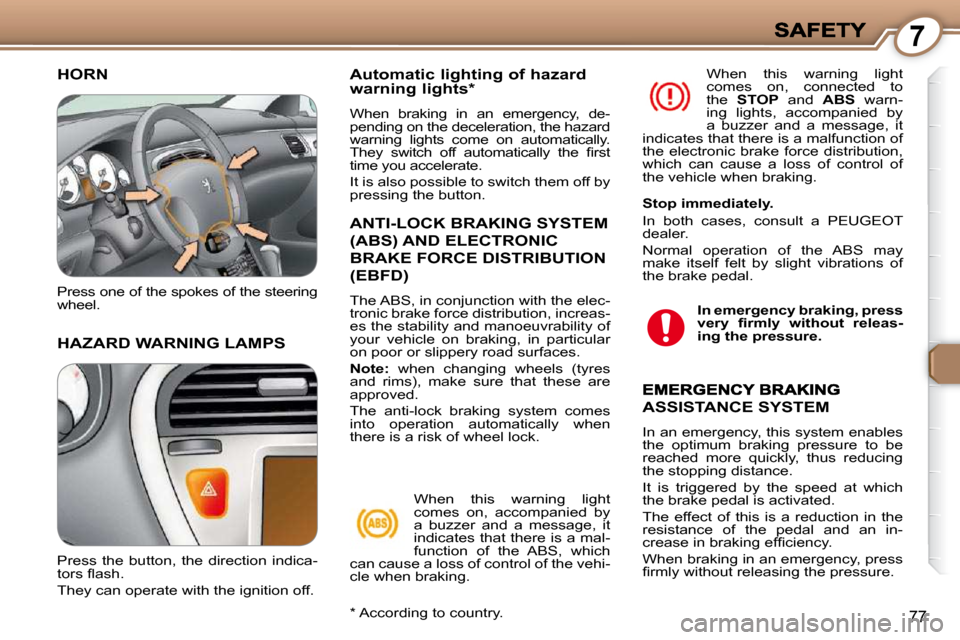

7
77
HORN
HAZARD WARNING LAMPS
Automatic lighting of hazard warning lights *
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lights come on automatically.
T h e y s w i t c h o f f a u t o m a t i c a l l y t h e fi r s t
time you accelerate.
It is also possible to switch them off by
pressing the button.
* According to country.
Press one of the spokes of the steering
wheel.
Press the button, the direction indica-
t o r s fl a s h .
They can operate with the ignition off.
ANTI-LOCK BRAKING SYSTEM
(ABS) AND ELECTRONIC
BRAKE FORCE DISTRIBUTION
(EBFD)
The ABS, in conjunction with the elec-
tronic brake force distribution, increas-
es the stability and manoeuvrability of
your vehicle on braking, in particular
on poor or slippery road surfaces.
Note: when changing wheels (tyres
and rims), make sure that these are
approved.
The anti-lock braking system comes
into operation automatically when
there is a risk of wheel lock.
When this warning light
comes on, accompanied by
a buzzer and a message, it
indicates that there is a mal-
function of the ABS, which
can cause a loss of control of the vehi-
cle when braking. When this warning light
comes on, connected to
the
STOP and ABS warn-
ing lights, accompanied by
a buzzer and a message, it
indicates that there is a malfunction of
the electronic brake force distribution,
which can cause a loss of control of
the vehicle when braking.
Stop immediately.
In both cases, consult a PEUGEOT
dealer.
Normal operation of the ABS may
make itself felt by slight vibrations of
the brake pedal.
ASSISTANCE SYSTEM
In an emergency, this system enables
the optimum braking pressure to be
reached more quickly, thus reducing
the stopping distance.
It is triggered by the speed at which
the brake pedal is activated.
The effect of this is a reduction in the
resistance of the pedal and an in-
c r e a s e i n b r a k i n g e f fi c i e n c y .
When braking in an emergency, press
fi r m l y w i t h o u t r e l e a s i n g t h e p r e s s u r e .
In emergency braking, press
v e r y fi r m l y w i t h o u t r e l e a s -
ing the pressure.
Page 90 of 182

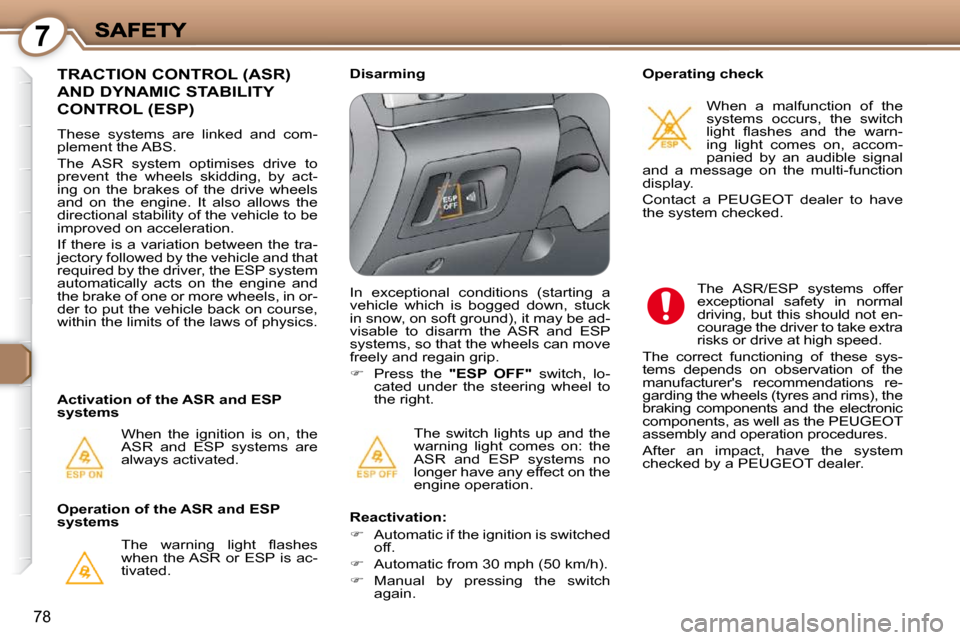

7
78
The switch lights up and the
warning light comes on: the
ASR and ESP systems no
longer have any effect on the
engine operation.
TRACTION CONTROL (ASR)
AND DYNAMIC STABILITY
CONTROL (ESP)
These systems are linked and com-
plement the ABS.
The ASR system optimises drive to
prevent the wheels skidding, by act-
ing on the brakes of the drive wheels
and on the engine. It also allows the
directional stability of the vehicle to be
improved on acceleration.
If there is a variation between the tra-
jectory followed by the vehicle and that
required by the driver, the ESP system
automatically acts on the engine and
the brake of one or more wheels, in or-
der to put the vehicle back on course,
within the limits of the laws of physics.
Operation of the ASR and ESP
systems T h e w a r n i n g l i g h t fl a s h e s
when the ASR or ESP is ac-
tivated. Disarming
Reactivation:
Automatic if the ignition is switched
off.
Automatic from 30 mph (50 km/h).
Manual by pressing the switch
again. When a malfunction of the
systems occurs, the switch
l i g h t fl a s h e s a n d t h e w a r n -
ing light comes on, accom-
panied by an audible signal
and a message on the multi-function
display.
Contact a PEUGEOT dealer to have
the system checked.
The ASR/ESP systems offer
exceptional safety in normal
driving, but this should not en-
courage the driver to take extra
risks or drive at high speed.
The correct functioning of these sys-
tems depends on observation of the
manufacturer's recommendations re-
garding the wheels (tyres and rims), the
braking components and the electronic
components, as well as the PEUGEOT
assembly and operation procedures.
After an impact, have the system
checked by a PEUGEOT dealer.
When the ignition is on, the
ASR and ESP systems are
always activated. Operating check
Activation of the ASR and ESP
systems In exceptional conditions (starting a
vehicle which is bogged down, stuck
in snow, on soft ground), it may be ad-
visable to disarm the ASR and ESP
systems, so that the wheels can move
freely and regain grip.
Press the "ESP OFF" switch, lo-
cated under the steering wheel to
the right.
