PEUGEOT 807 2002.5 Owners Manual

YOUR 807 IN DETAIL
100
SEAT BELTS
2
nd
row front and rear side seat
belts
The 2 nd
row front and rear side seats
are fitted with pre–tensioners and
force limiters.
To adjust the height :
 To lower the attachment point,
squeeze control 1and slide it
downwards.
 To raise the attachment point,
slide control 1upwards.
To lock  Pull the strap, then insert the
buckle into the stalk. Pretensioning and
forcelimiting seat belts
Safety in the event of a frontal impact
has been improved by the introduc
tion of pretensioning and forcelimit
ing seat belts. Depending on the
seriousness of the impact, the
pretensioning system instantly tight
ens the seat belts firmly against the
body of the occupant.
The pretensioning seat belts are
armed when the ignition is on.
The forcelimiting device reduces the
pressure of the seat belt against the
occupant's body in the event of an
accident.
3
rd
row rear side seat belts
The 3 rd
row rear side seats are fitted
with two seat belts which are both
threepoint inertia reel belts with
force limiter.
To install the seat belt, move the
spring hook from position Bto posi
tion Athen insert the buckle into the
stalk.
2 nd
and 3 rd
row rear centre
seat belts
The 2 nd
row rear centre seat and the
rear bench seat centre seat have an
integrated threepoint inertia reel
seat belt.
18-11-2002

YOUR 807 IN DETAIL101
To be effective, a seat belt
must be tightened as
close to the body as pos
sible.
If the seats are fitted with arm
rests, the lap section of the seat
belt must always pass under the
armrest.
Sitting with your back to the road
while the vehicle is moving is pro
hibited.
Depending on the nature and the
seriousness of the impact, the pre
tensioners may be triggered
before and independently of the air
bags.
In all cases, the air bag warning
light comes on.
Following a collision, have the
system checked by a PEUGEOT
dealer.
The system has been designed to
be fully operational for ten years.
For greater safety, have it checked
by a PEUGEOT dealer after this
period.
POSSIBLE SEAT CONFIGURATIONS
Examples of various arrangements combining pleasure an d practicality:
5 seats
6 seats "Pullman"
18-11-2002

YOUR 807 IN DETAIL101
To be effective, a seat belt
must be tightened as
close to the body as pos
sible.
If the seats are fitted with arm
rests, the lap section of the seat
belt must always pass under the
armrest.
Sitting with your back to the road
while the vehicle is moving is pro
hibited.
Depending on the nature and the
seriousness of the impact, the pre
tensioners may be triggered
before and independently of the air
bags.
In all cases, the air bag warning
light comes on.
Following a collision, have the
system checked by a PEUGEOT
dealer.
The system has been designed to
be fully operational for ten years.
For greater safety, have it checked
by a PEUGEOT dealer after this
period.
POSSIBLE SEAT CONFIGURATIONS
Examples of various arrangements combining pleasure an d practicality:
5 seats
6 seats "Pullman"
18-11-2002

Note: the centre seat may be installed in the centre position of the 2nd row and in the left side position of the third row.
7
seats with access to 3 rd
row
8 seats with bench seat 5 seats with picnic position
"Cargo" configuration
YOUR 807 IN DETAIL
102
The various operations modifying the existing configuration must
be carried out with the engine switched off
(see section on ''Seats'').It is prohibited to be in a rearward s facing position when the vehicle is being driven.
18-11-2002

THE KEYS
The keys allow you to switch on the
ignition and to independently operate
the locks on the driver's door and
passenger door, the fuel filler cap,
the glove box, the passenger air bag
disarming switch and the child safety
lock.
Central locking
From the driver's door or passenger
door, the keys allow you to lock,
deadlock or unlock the doors and
tailgate, as well as fold back the
exterior mirrors.
If one of the doors or the tailgate is
open, the central locking does not
work.
The remote control performs the
same functions at a distance.
YOUR 807 IN DETAIL103
The remote control
Version with single locking
Press button
Ato lock the vehicle.
This is confirmed by fixed lighting of
the direction indicators for approxi
mately two seconds. Vehicles fitted with deadlocking
Warning:
deadlocking renders the
internal and external door locking
controls inoperative.
Never leave anyone inside the vehi
cle when the vehicle is deadlocked.
Pressing buttonAdeadlocks the
vehicle. This is confirmed by fixed
lighting of the direction indicators for
approximately two seconds.
A second press on button Awithin
five seconds of deadlocking changes
this to single locking. This is con
firmed by fixed lighting of the direc
tion indicators for two seconds.
Note: the driver operates the dead
locking from inside the vehicle. On
starting the vehicle deadlocking
changes to single locking.
Note: presing button A, in addition to
locking or deadlocking, permits auto
matic closing of the windows and the
sunroof. However, the sunroof stops
in a partially open posiition. Unlocking
/Ventilation
Press button B to unlock the vehicle.
This is confirmed by rapid flashing of
the direction indicators.
A second press on button Awithin
five seconds of deadlocking opens
the windows.
Note : if the vehicle is locked and
unlocking is activated inadvertently,
unless the doors are opened within
30 seconds, the vehicle will lock
automatically.
Opening/Closing the electric
sliding side doors
A long press on button Copens or
closes the rear right door.
A long press on button Dopens or
closes the rear left door.
Note : this press unlocks the vehicle
before opening the corresponding
door.
Folding/opening out the key
To tuck away the key blade, press
button E, then fold it down into the
remote control module.
To open out the key, press button E.
18-11-2002

Changing the battery
of the remote control
The information "battery flat" is given
by an audible signal accompanied by
the message "Remote control bat
tery low" on the multi–function dis
play.
To replace the battery, unclip the
casing using a coin at the ring
(CR1620/3 volt battery).
If the remote control does not work
after the battery has been changed,
re programme the remote control.
Programming the remote
control
 Switch off the ignition.
 Switch the ignition on again.
 Press button Aimmediately.
 Switch off the ignition and remove
the remote control key from the
ignition lock. The remote control is
now working again. CONFIDENTIAL CARD
The confidential card contains the
identification code necessary for any
work carried out by a PEUGEOT
dealer on the system. This code is
hidden by a film, which should be
removed only if necessary.
Keep your card in a safe place,
never inside the vehicle.
Key in ignition
The message
"Key in ignition" on
the multi–function display, accompa
nied by a buzzer on opening the
driver's door, indicates that the key
has been left in the ignition.
YOUR 807 IN DETAIL
104
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control system
a few moments after the ignition has
been switched off and therefore
prevents starting of the vehicle by
anyone who does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
is recognised and starting is possi
ble.
If the system does not function
correctly,
the message "Antitheft
device fault" appears on the
multi–function display, accompanied
by an audible signal.
WARNING : your vehicle is no
longer protected.
Contact a PEUGEOT dealer as soon
as possible.
Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park :
 press button A. The courtesy
lights come on and the direction
indicators flash for a few seconds.
18-11-2002

YOUR 807 IN DETAIL105

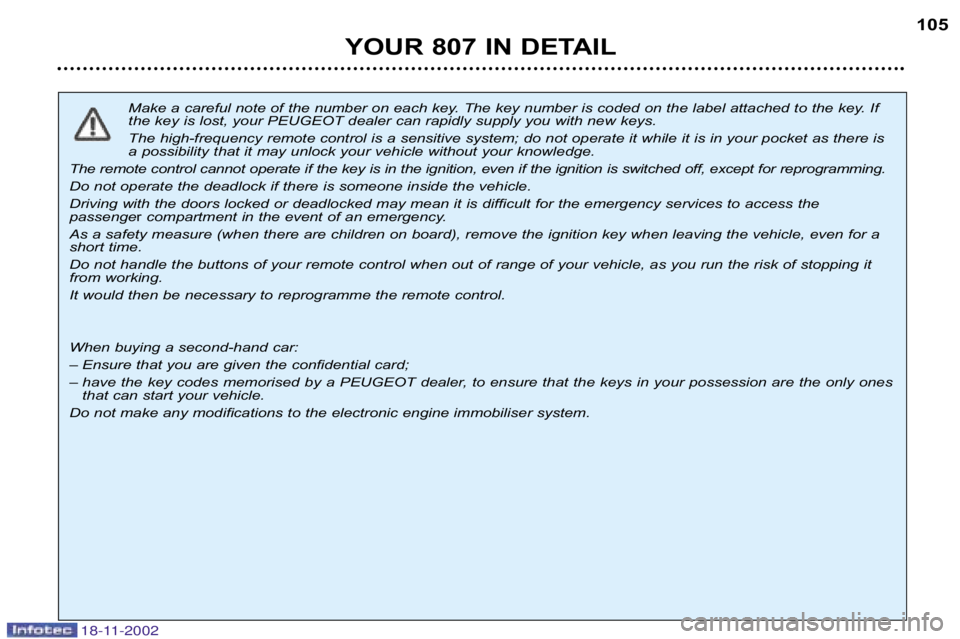

Make a careful note of the number on each key. The key number i s coded on the label attached to the key. If
the key is lost, your PEUGEOT dealer can rapidly supply you with ne w keys.
The highfrequency remote control is a sensitive system; do not ope rate it while it is in your pocket as there is
a possibility that it may unlock your vehicle without your knowle dge.
The remote control cannot operate if the key is in the ignit ion, even if the ignition is switched off, except for reprogramming.
Do not operate the deadlock if there is someone inside the vehicle.
Driving with the doors locked or deadlocked may mean it is diffi cult for the emergency services to access the
passenge rcompartment in the event of an emergency.
As a safety measure (when there are children on board), remove the i gnition key when leaving the vehicle, even for a
short time.
Do not handle the buttons of your remote control when out of range of your vehicle, as you run the risk of stopping it
from working.
It would then be necessary to reprogramme the remote control.
When buying a secondhand car:
– Ensure that you are given the confidential card;
– have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones
that can start your vehicle.
Do not make any modifications to the electronic engine immobil iser system.
18-11-2002

Changing the battery
of the remote control
The information "battery flat" is given
by an audible signal accompanied by
the message "Remote control bat
tery low" on the multi–function dis
play.
To replace the battery, unclip the
casing using a coin at the ring
(CR1620/3 volt battery).
If the remote control does not work
after the battery has been changed,
re programme the remote control.
Programming the remote
control
 Switch off the ignition.
 Switch the ignition on again.
 Press button Aimmediately.
 Switch off the ignition and remove
the remote control key from the
ignition lock. The remote control is
now working again. CONFIDENTIAL CARD
The confidential card contains the
identification code necessary for any
work carried out by a PEUGEOT
dealer on the system. This code is
hidden by a film, which should be
removed only if necessary.
Keep your card in a safe place,
never inside the vehicle.
Key in ignition
The message
"Key in ignition" on
the multi–function display, accompa
nied by a buzzer on opening the
driver's door, indicates that the key
has been left in the ignition.
YOUR 807 IN DETAIL
104
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control system
a few moments after the ignition has
been switched off and therefore
prevents starting of the vehicle by
anyone who does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
is recognised and starting is possi
ble.
If the system does not function
correctly,
the message "Antitheft
device fault" appears on the
multi–function display, accompanied
by an audible signal.
WARNING : your vehicle is no
longer protected.
Contact a PEUGEOT dealer as soon
as possible.
Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park :
 press button A. The courtesy
lights come on and the direction
indicators flash for a few seconds.
18-11-2002

YOUR 807 IN DETAIL105
Make a careful note of the number on each key. The key number i s coded on the label attached to the key. If
the key is lost, your PEUGEOT dealer can rapidly supply you with ne w keys.
The highfrequency remote control is a sensitive system; do not ope rate it while it is in your pocket as there is
a possibility that it may unlock your vehicle without your knowle dge.
The remote control cannot operate if the key is in the ignit ion, even if the ignition is switched off, except for reprogramming.
Do not operate the deadlock if there is someone inside the vehicle.
Driving with the doors locked or deadlocked may mean it is diffi cult for the emergency services to access the
passenge rcompartment in the event of an emergency.
As a safety measure (when there are children on board), remove the i gnition key when leaving the vehicle, even for a
short time.
Do not handle the buttons of your remote control when out of range of your vehicle, as you run the risk of stopping it
from working.
It would then be necessary to reprogramme the remote control.
When buying a secondhand car:
– Ensure that you are given the confidential card;
– have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones
that can start your vehicle.
Do not make any modifications to the electronic engine immobil iser system.
18-11-2002

THE ALARM
This provides two types of protection:
– exterior protection: it sounds if adoor, the tailgate, the bonnet or a
sunroof is opened.
– interior protection: it sounds if the volume inside the passenger com
partment changes (breaking of a
window or a movement inside the
vehicle).
Setting the alarm  Switch off the ignition and get out
of the vehicle.
 Set the alarm within five minutes
of getting out of the vehicle, by
locking or deadlocking using the
remote control (the red indicator
light, located in the centre of the
fascia and visible from the out
side, flashes once per second). Note:
if you wish to lock your vehicle
without setting the alarm, use the
door lock.
When the alarm is triggered, the
siren sounds and the direction indi
cator lights flash for thirty seconds.
After triggering, the alarm remains
set.
Warning: if the alarm has been trig
gered ten times in succession, on
the eleventh time it becomes inac
tive.
Note: if the red warning light, located
in the centre of the fascia, flashes
rapidly, the alarm has been triggered
while you were away from your vehi
cle. To stop it flashing, insert the
remote control key and switch on the
ignition.
Disarming
Unlock the vehicle with the remote
control key (the red indicator light,
located in the centre of the fascia,
goes out).
To set the alarm with exterior
protection only
If, while you are away from the vehi
cle, you wish to leave a window
partially open or a pet inside the
vehicle, you should choose exterior
protection only.
 Close the sunroofs,
Switch off the ignition,
 In the next ten seconds, press
button A, located on the lefthand
side of the fascia, until the red
indicator light is on continuously,
 Get out of the vehicle,
 Within the next five minutes, set
the alarm by locking or deadlock
ing using the remote control (the
red indicator light, located in the
centre of the fascia, flashes once
a second).
Note: when the alarm is set but the
remote control does not operate:
 Unlock the doors with the key and
open the door. The alarm is
triggered.
 Switch on the ignition in the next
ten seconds. The alarm is dis
armed.
Incorrect operation
When the ignition is switched on, if
the red indicator light, located in the
centre of the fascia, comes on for ten
seconds, there is a fault in the siren
connection.
Contact a PEUGEOT dealer to have
the system checked.
Do not make any modifi
cations to the alarm sys
tem as this could cause
faults.
YOUR 807 IN DETAIL
106
18-11-2002
