138

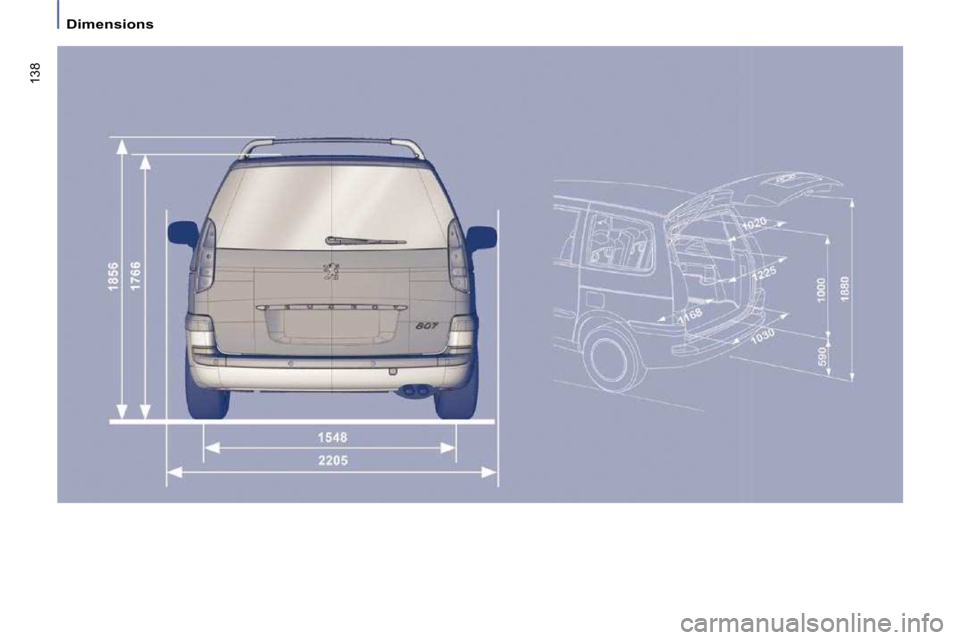

Dimensions
Page 142 of 237
9.2
PEUGEOT ASSISTANCE
CUSTOMER CALL
* These services and options are subject to conditions and availability.
CONSULTING THE SERVICES EMERGENCY CALL
Press this button to gain access to the PEUGEOT services * .
Select "Customer call" to request any information about the PEUGEOT marque.
Select "PEUGEOT Assistance" to make a breakdown assistance call.
In an emergency, press the SOS button until a CONFIRMATION/CANCELLATION screen is displayed. A call is made * directly to PEUGEOT Emergency which receives locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries where the call centre is not operational, the call is directed to the national emergency services (112).
* This service is subject to conditions and availability. Consult a PEUGEOT dealer.
If necessary, the internal telephone is activated automautomatically to make an emergency call.
In order for an emergency call to be made, a vali d SIM c SIM card must be inserted.

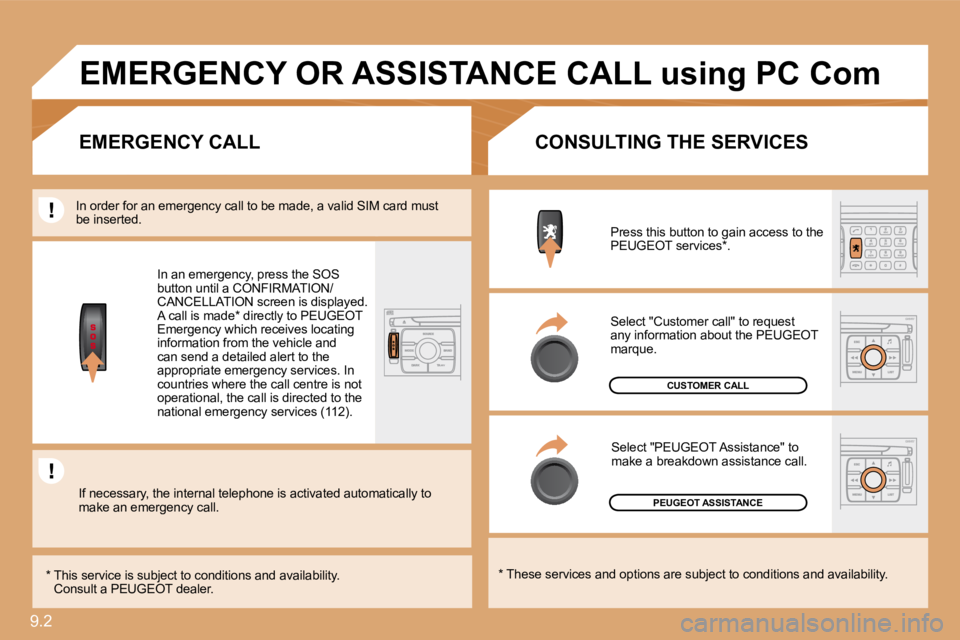

EMERGENCY OR ASSISTANCE CALL using PC Com
Page 143 of 237
9.33
PC Com
MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE
JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)
The PC Com is coded in such a way that it will only operate in your vehicle. If it is to be installed in another v e h i c l e , c o n t a c t a P E U G E O T d e a l e r f o r c o n fi g u r a t i o n o f the system.
For safety reasons, it is imperative that the driver carries out operations which require prolonged attention wh ile the vehicle is stationary. When the engine is switched off and to prevent discharging of the battery, the PC Com may switch o ff after a few minutes.

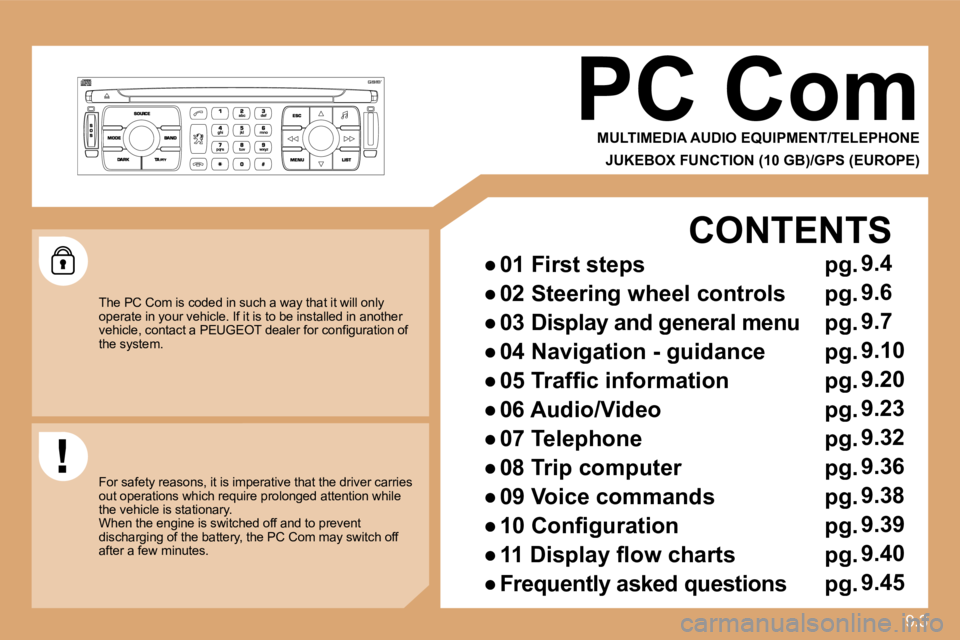

CONTENTS
Page 144 of 237
9.4
2
8
1 6
1 8 1 7 711 1 4 3
5 9 4
1 5 1 2
1 3
61
10
01

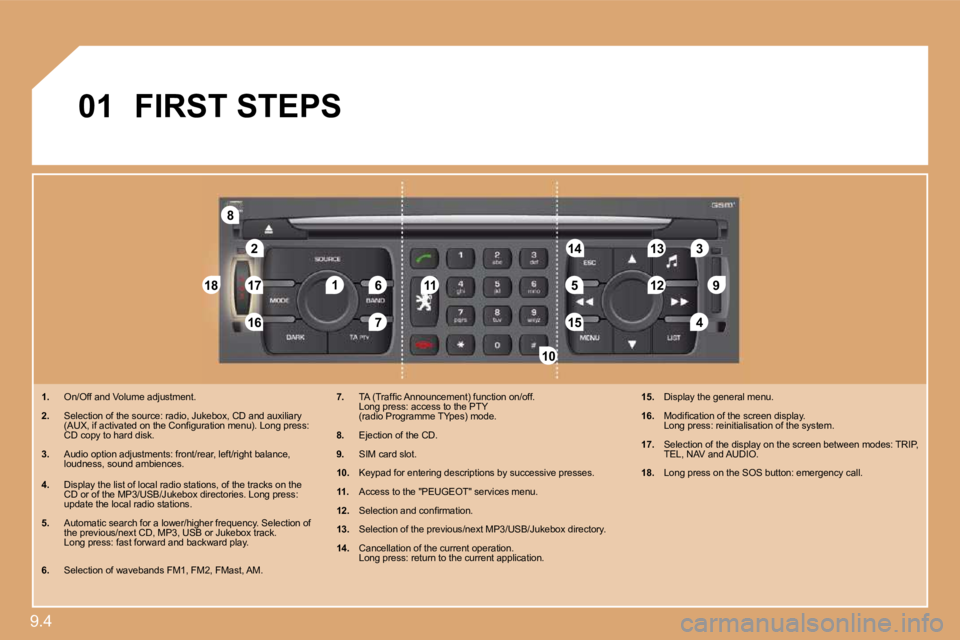

FIRST STEPS
1 . On/Off and Volume adjustment.
2 . Selection of the source: radio, Jukebox, CD and a
uxiliary ( A U X , i f a c t i v a t e d o n t h e C o n fi g u r a t i o n m e n u ) . L o n g p r e s s : CD copy to hard disk.
3 . Audio option adjustments: front/rear, left/right balance, loudness, sound ambiences.
4 . Display the list of local radio stations, of the tracks on the CD or of the MP3/USB/Jukebox directories. Long pres s: update the local radio stations.
5 . Automatic search for a lower/higher frequency. Selection of the previous/next CD, MP3, USB or Jukebox track. Long press: fast forward and backward play.
6 . Selection of wavebands FM1, FM2, FMast, AM.
7 . T A ( T r a f fi c A n n o u n c e m e n t ) f u n c t i o n o n / o f f . Long press: access to the PTY (radio Programme TYpes) mode.
8 . Ejection of the CD.
9 . SIM card slot.
1 0 . Keypad for entering descriptions by successive presses.
1 1 . Access to the "PEUGEOT" services menu.
1 2 . S e l e c t i o n a n d c o n fi r m a t i o n .
1 3 . Selection of the previous/next MP3/USB/Jukebox di rectory.
1 4 . Cancellation of the current operation. Long press: return to the current application.
1 5 . Display the general menu.
1 6 . M o d i fi c a t i o n o f t h e s c r e e n d i s p l a y . Long press: reinitialisation of the system.
1 7 . Selection of the display on the screen between modes: TRIP, TEL, NAV and AUDIO.
1 8 . Long press on the SOS button: emergency call.
Page 145 of 237
9.5
01 FIRST STEPS

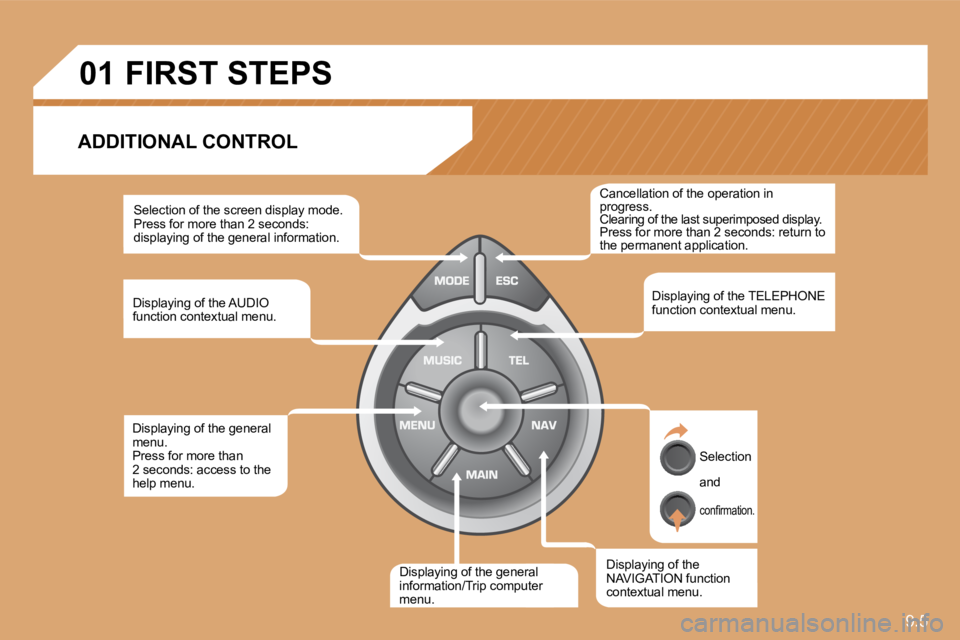

ADDITIONAL CONTROL
Selection of the screen display mode. Press for more than 2 seconds: displaying of the general information.
Displaying of the AUDIO function contextual menu.
Displaying of the general menu. Press for more than 2 seconds: access to the help menu.
Displaying of the general ying oying oinformation/Trip computer ation/Tmenu.
Displaying of the NAVIGATION function contextual menu.
Displaying of the TELEPHONE function contextual menu.
Cancellation of the operation in progress. Clearing of the last superimposed display. Press for more than 2 seconds: return to the permanent application.
Selection
and
c o n fi r m a t i o n .
Page 146 of 237
9.6

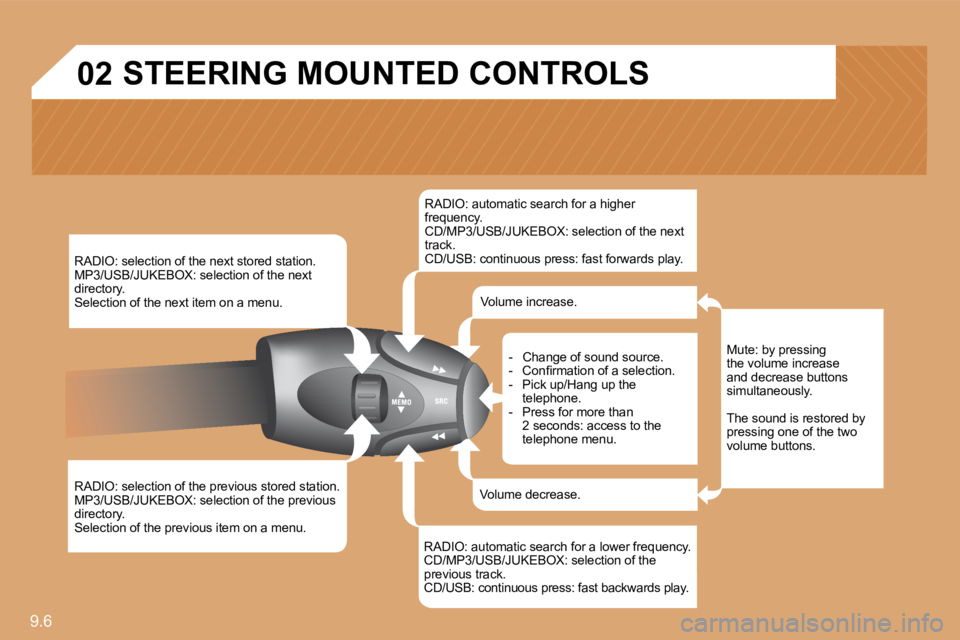

0 2 STEERING MOUNTED CONTROLS
RADIO: selection of the next stored station. MP3/USB/JUKEBOX: selection of the next directory. Selection of the next item on a menu.
RADIO: selection of the previous stored station. MP3/USB/JUKEBOX: selection of the previous directory. Selection of the previous item on a menu.
RADIO: automatic search for a higher frequency. CD/MP3/USB/JUKEBOX: selection of the next track. CD/USB: continuous press: fast forwards play.
RADIO: automatic search for a lower frequency. CD/MP3/USB/JUKEBOX: selection of the previous track. CD/USB: continuous press: fast backwards play.
- Change of sound source. - C o n fi r m a t i o n o f a s e l e c t i o n . - Pick up/Hang up the telephone. - Press for more than 2 seconds: access to the telephone menu.
Volume increase.
Volume decrease.
Mute: by pressing the volume increase and decrease buttons simultaneously.
The sound is restored by pressing one of the two volume buttons.
Page 147 of 237
9.7
0 3
°
> COLOUR SCREEN

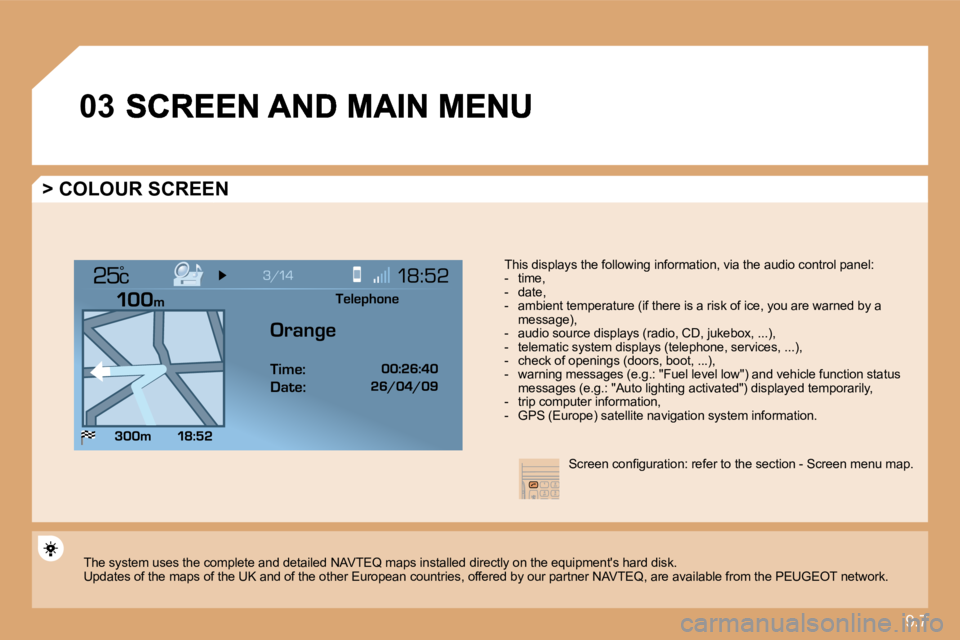

This displays the following information, via the audio control panel: - time, - date, - ambient temperature (if there is a risk of ice, you are warned by a message), - audio source displays (radio, CD, jukebox, ... ), - telematic system displays (telephone, services , ...), - check of openings (doors, boot, ...), - warning messages (e.g.: "Fuel level low") and vehicle function status messages (e.g.: "Auto lighting activated") displaye d temporarily, - trip computer information, - GPS (Europe) satellite navigation system information.
The system uses the complete and detailed NAVTEQ m aps installed directly on the equipment's hard disk. Updates of the maps of the UK and of the other Euro pean countries, offered by our partner NAVTEQ, are available from the PEUGEOT network.
S c r e e n c o n fi g u r a t i o n : r e f e r t o t h e s e c t i o n - S c r e e n m e n u m a p .
Telephone
Orange Time:
Date:
Page 148 of 237
9.8

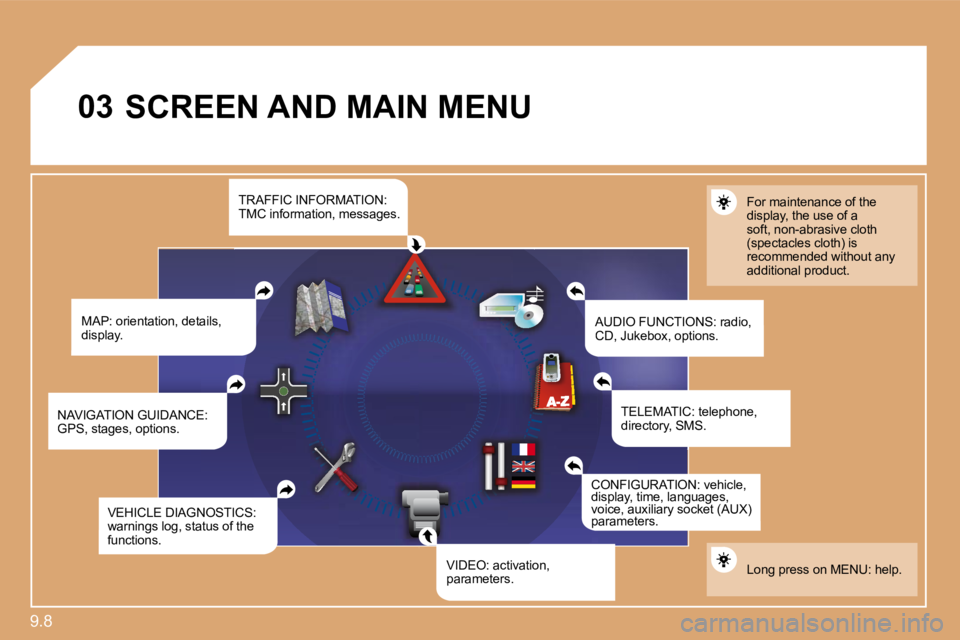

0 3 SCREEN AND MAIN MENU
MAP: orientation, details, display. AUDIO FUNCTIONS: radio, CD, Jukebox, options.
For maintenance of the display, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended without any additional product.
TELEMATIC: telephone, directory, SMS.
CONFIGURATION: vehicle, display, time, languages, voice, auxiliary socket (AUX) display, time, languages, ages,
parameters.
VIDEO: activation, parameters.
VEHICLE DIAGNOSTICS: warnings log, status of the functions.
NAVIGATION GUIDANCE: GPS, stages, options.
TRAFFIC INFORMATION: TMC information, messages.
Long press on MENU: help.
Page 149 of 237
9.9
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

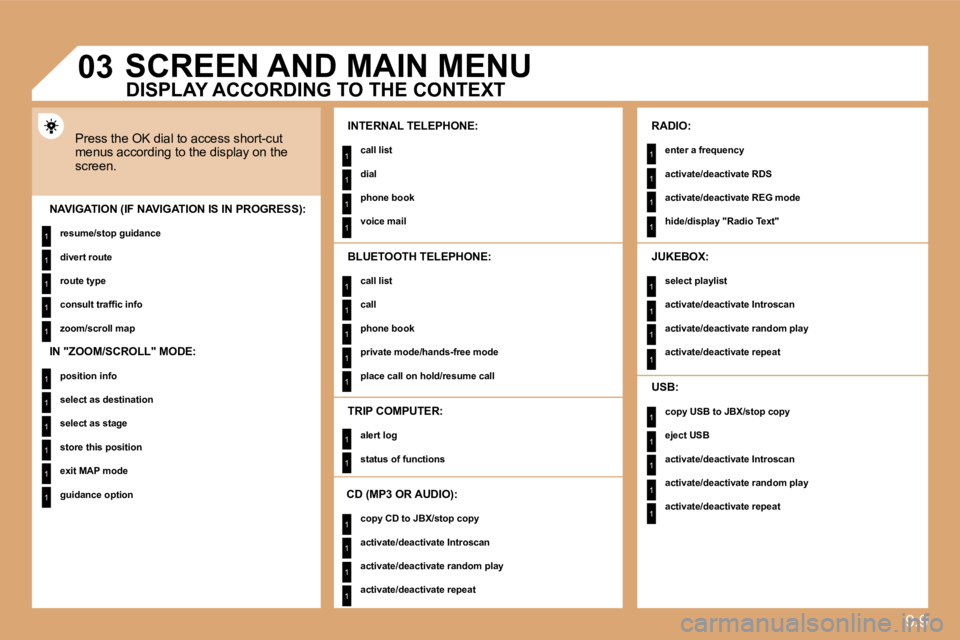

0 3 SCREEN AND MAIN MENU
Press the OK dial to access short-cut menus according to the display on the screen.
INTERNAL TELEPHONE:
c a l l l i s t
d i a l
p h o n e b o o k
v o i c e m a i l NAVIGATION (IF NAVIGATION IS IN PROGRESS):
r e s u m e / s t o p g u i d a n c e
d i v e r t r o u t e
r o u t e t y p e
c o n s u l t t r a f fi c i n f o
z o o m / s c r o l l m a p
TRIP COMPUTER:
a l e r t l o g
s t a t u s o f f u n c t i o n s
BLUETOOTH TELEPHONE:
c a l l l i s t
c a l l
p h o n e b o o k
p r i v a t e m o d e / h a n d s - f r e e m o d e
p l a c e c a l l o n h o l d / r e s u m e c a l l
C D ( M P 3 O R A U D I O ) :
c o p y C D t o J B X / s t o p c o p y
a c t i v a t e / d e a c t i v a t e I n t r o s c a n
a c t i v a t e / d e a c t i v a t e r a n d o m p l a y
a c t i v a t e / d e a c t i v a t e r e p e a t
RADIO:
e n t e r a f r e q u e n c y
a c t i v a t e / d e a c t i v a t e R D S
a c t i v a t e / d e a c t i v a t e R E G m o d e
h i d e / d i s p l a y " R a d i o T e x t "
JUKEBOX:
s e l e c t p l a y l i s t
a c t i v a t e / d e a c t i v a t e I n t r o s c a n
a c t i v a t e / d e a c t i v a t e r a n d o m p l a y
a c t i v a t e / d e a c t i v a t e r e p e a t
USB:
c o p y U S B t o J B X / s t o p c o p y
e j e c t U S B
a c t i v a t e / d e a c t i v a t e I n t r o s c a n
a c t i v a t e / d e a c t i v a t e r a n d o m p l a y
a c t i v a t e / d e a c t i v a t e r e p e a t
DISPLAY ACCORDING TO THE CONTEXT
I N " Z O O M / S C R O L L " M O D E :
p o s i t i o n i n f o
s e l e c t a s d e s t i n a t i o n
s e l e c t a s s t a g e
s t o r e t h i s p o s i t i o n
e x i t M A P m o d e
g u i d a n c e o p t i o n
Page 150 of 237
9.10
11
2 2
3 3
5 5
7 7
4 4
6 6
8 8
0 4

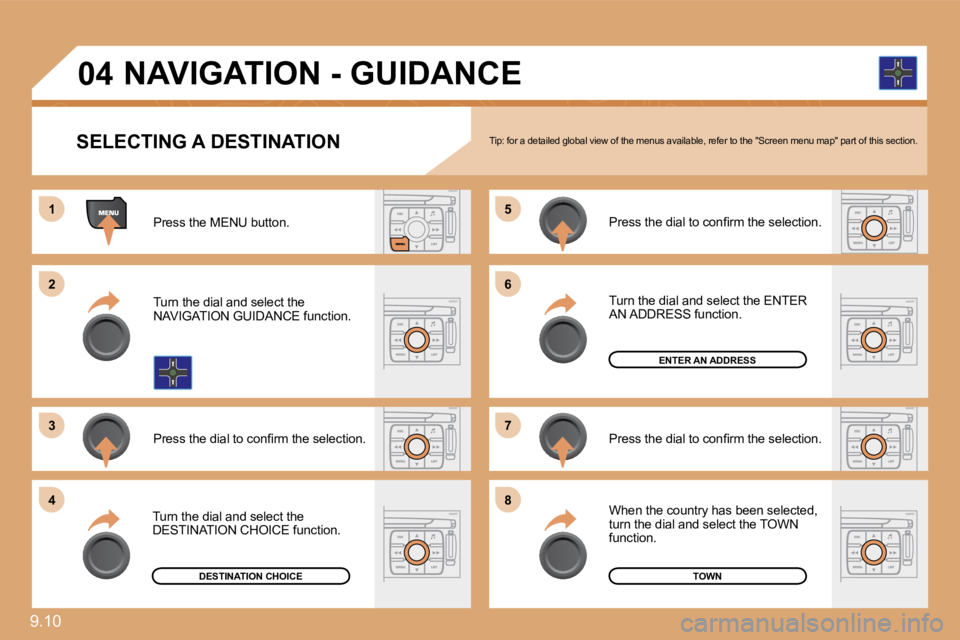

SELECTING A DESTINATION Tip: for a detailed global view of the menus available, refer to the "Screen menu map" part of this s ection.
Press the MENU button.
Turn the dial and select the NAVIGATION GUIDANCE function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the DESTINATION CHOICE function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the ENTER AN ADDRESS function.
When the country has been selected, turn the dial and select the TOWN function.
TOWN
ENTER AN ADDRESS
DESTINATION CHOICE
N A V I G A T I O N - G U I D A N C E
