PEUGEOT 807 2010 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2010, Model line: 807, Model: PEUGEOT 807 2010Pages: 237, PDF Size: 11.66 MB
Page 171 of 237
9.31
11
2 2
3 3
4 4
5 5
6 6
7 7
0 6
ACTIVATE VIDEO MODE
VIDEO PARAMETERS
You can connect video equipment (camcorder, digital camera, DVD player...) to the three audio/video sockets, located in the glove box.
Turn the dial and select the VIDEO function.
After connecting the video equipment, press the MENU button.
Turn the dial and select the ACTIVATE VIDEO MODE function to activate/deactivate the video.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Pressing the "SOURCE" button several times in suc cession permits the selection of an audio source other than that of the video.
Pressing the "DARK" button disconnects display of the video.
Turn the dial and select the VIDEO PARAMETERS function to set the display format, the brightness, the contrast and the colours.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
VIDEO MENU
Videos can only be displayed when stationary.
AUDIO/VIDEO
Page 172 of 237
9.32
11
2 2
3 3
11
2 2

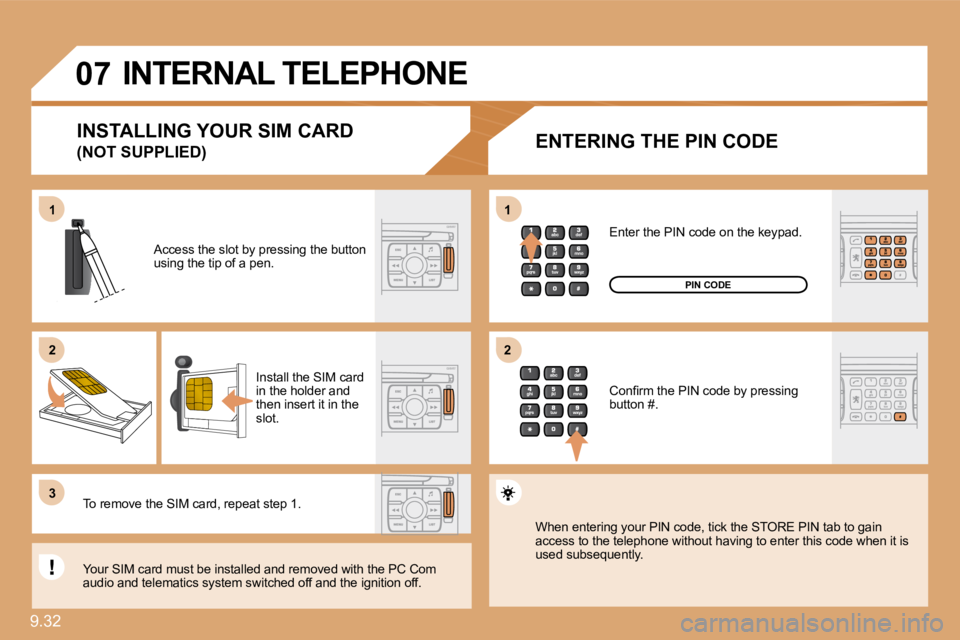

0 7 INTERNAL TELEPHONE
ENTERING THE PIN CODE
Access the slot by pressing the button using the tip of a pen.
Install the SIM card in the holder and then insert it in the slot.
To remove the SIM card, repeat step 1.
Your SIM card must be installed and removed with the PC Com audio and telematics system switched off and the ig nition off.
Enter the PIN code on the keypad.
C o n fi r m t h e P I N c o d e b y p r e s s i n g button #.
PIN CODE
When entering your PIN code, tick the STORE PIN t ab to gain access to the telephone without having to enter this code when it is used subsequently.
INSTALLING YOUR SIM CARD
(NOT SUPPLIED)
Page 173 of 237
9.33
3 3
2 2
11
4 4
0 7

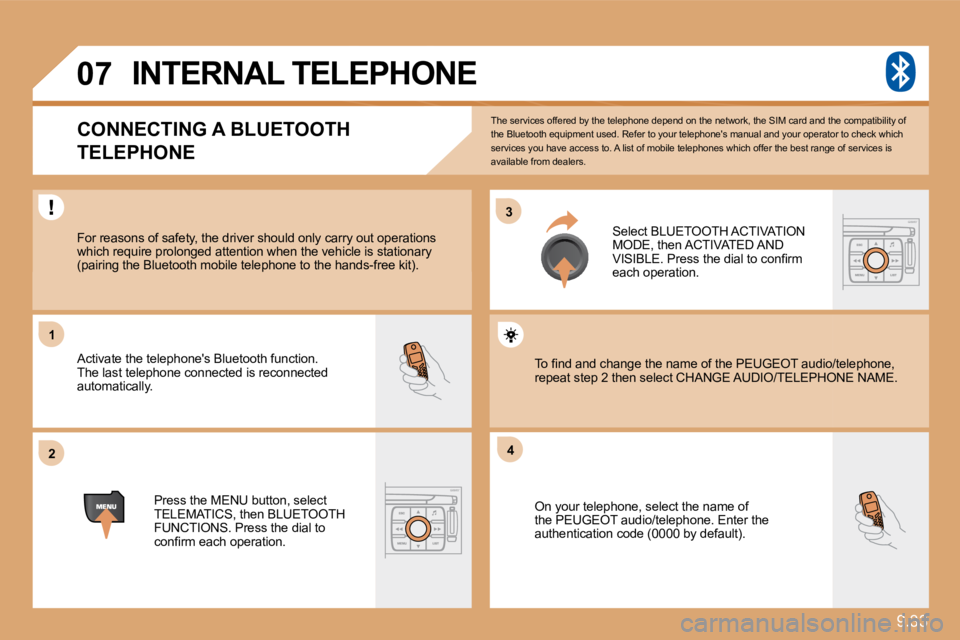

The services offered by the telephone depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Refer to your telepho ne's manual and your operator to check which services you have access to. A list of mobile telephones which offer the best range of services is available from dealers.
INTERNAL TELEPHONE
CONNECTING A BLUETOOTH
TELEPHONE
For reasons of safety, the driver should only car ry out operations which require prolonged attention when the vehicle is stationary (pairing the Bluetooth mobile telephone to the hands-free kit).
Activate the telephone's Bluetooth function. The last telephone connected is reconnected automatically.
Select BLUETOOTH ACTIVATION MODE, then ACTIVATED AND V I S I B L E . P r e s s t h e d i a l t o c o n fi r m each operation.
Press the MENU button, select TELEMATICS, then BLUETOOTH FUNCTIONS. Press the dial to c o n fi r m e a c h o p e r a t i o n .
On your telephone, select the name of the PEUGEOT audio/telephone. Enter the authentication code (0000 by default).
T o fi n d a n d c h a n g e t h e n a m e o f t h e P E U G E O T a u d i o / t e l e p h o n e , T o fi n d a n d c h a n g e t h e n a m e o f t h e P E U G E O T a u d i o / t e l e p h o n e , repeat step 2 then select CHANGE AUDIO/TELEPHONPHONE NAME.
Page 174 of 237
9.34
0 7
audiotelephone only.

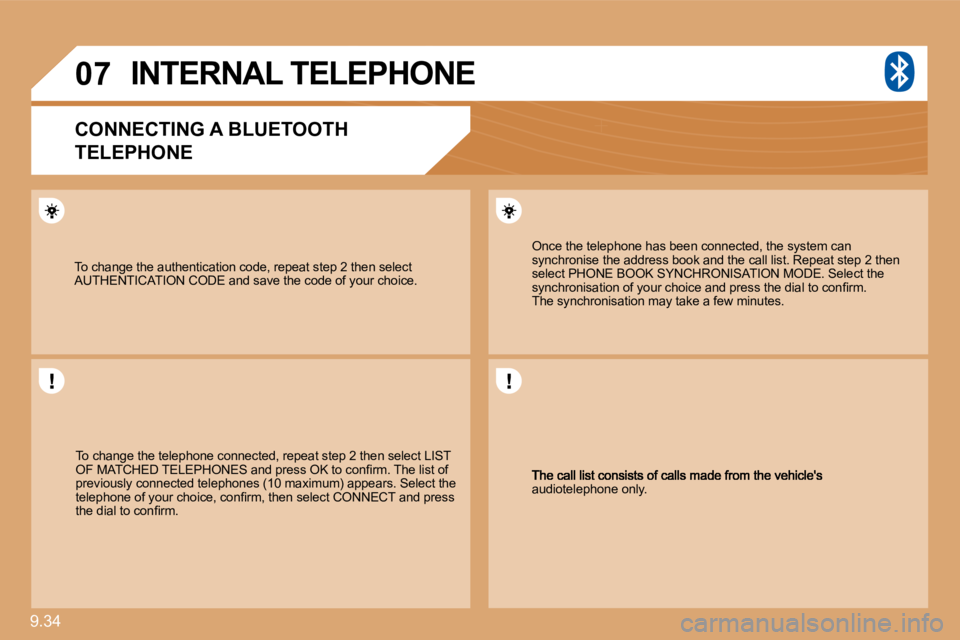

Once the telephone has been connected, the system can synchronise the address book and the call list. Repeat step 2 then select PHONE BOOK SYNCHRONISATION MODE. Select the s y n c h r o n i s a t i o n o f y o u r c h o i c e a n d p r e s s t h e d i a l t o c o n fi r m . The synchronisation may take a few minutes.
To change the telephone connected, repeat step 2 then select LIST O F M A T C H E D T E L E P H O N E S a n d p r e s s O K t o c o n fi r m . T h e l i s t o f previously connected telephones (10 maximum) appears. Select the t e l e p h o n e o f y o u r c h o i c e , c o n fi r m , t h e n s e l e c t C O N N E C T a n d p r e s s t h e d i a l t o c o n fi r m .
To change the authentication code, repeat step 2 then select AUTHENTICATION CODE and save the code of your choic e.
INTERNAL TELEPHONE
CONNECTING A BLUETOOTH
TELEPHONE
Page 175 of 237
9.35
1
2 2
3 3
5 5
6 6
4 4

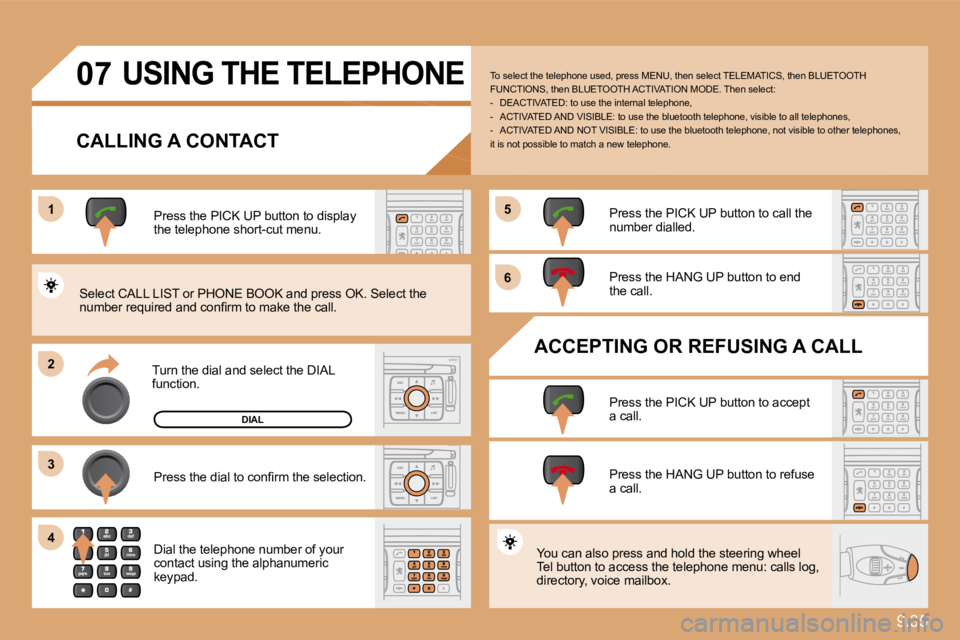

0 7 USING THE TELEPHONE
CALLING A CONTACT
Turn the dial and select the DIAL function.
Press the PICK UP button to display the telephone short-cut menu.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Dial the telephone number of your contact using the alphanumeric keypad.
Press the PICK UP button to call the number dialled.
Press the HANG UP button to end the call.
ACCEPTING OR REFUSING A CALL
Press the PICK UP button to accept a call.
Press the HANG UP button to refuse a call.
You can also press and hold the steering wheel Tel button to access the telephone menu: calls log, directory, voice mailbox.
To select the telephone used, press MENU, then select TELEMATICS, then BLUETOOTH FUNCTIONS, then BLUETOOTH ACTIVATION MODE. Then sel ect: - DEACTIVATED: to use the internal telephone, - ACTIVATED AND VISIBLE: to use the bluetooth telephone, visible to all telephones, - ACTIVATED AND NOT VISIBLE: to use the bluetoot h telephone, not visible to other telephones, it is not possible to match a new telephone.
Select CALL LIST or PHONE BOOK and press OK. Sele ct the n u m b e r r e q u i r e d a n d c o n fi r m t o m a k e t h e c a l l .
DIAL
Page 176 of 237
9.36

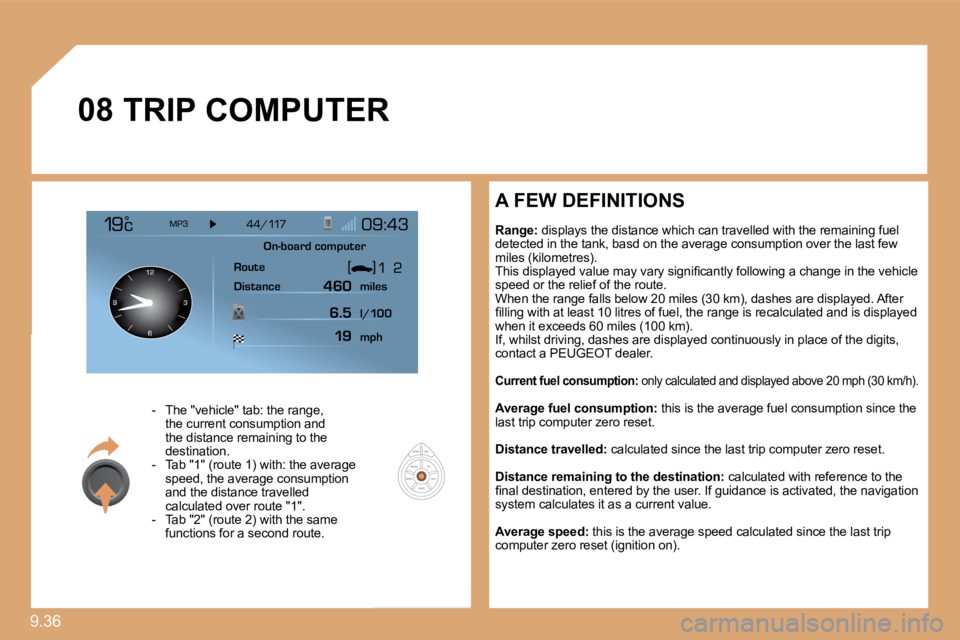

0 8 TRIP COMPUTER
- The "vehicle" tab: the range, the current consumption and the distance remaining to the destination. - Tab "1" (route 1) with: the average speed, the average consumption and the distance travelled calculated over route "1". - Tab "2" (route 2) with the same functions for a second route.
A FEW DEFINITIONS
R a n g e : displays the distance which can travelled with the remaining fuel detected in the tank, basd on the average consumpti on over the last few miles (kilometres). T h i s d i s p l a y e d v a l u e m a y v a r y s i g n i fi c a n t l y f o l l o w i n g a c h a n g e i n t h e v e h i c l e speed or the relief of the route. When the range falls below 20 miles (30 km), dashe s are displayed. After fi l l i n g w i t h a t l e a s t 1 0 l i t r e s o f f u e l , t h e r a n g e i s r e c a l c u l a t e d a n d i s d i s p l a y e d when it exceeds 60 miles (100 km). If, whilst driving, dashes are displayed continuou sly in place of the digits, contact a PEUGEOT dealer.
C u r r e n t f u e l c o n s u m p t i o n : only calculated and displayed above 20 mph (30 km /h).
A v e r a g e f u e l c o n s u m p t i o n : this is the average fuel consumption since the last trip computer zero reset.
D i s t a n c e t r a v e l l e d : calculated since the last trip computer zero reset.
D i s t a n c e r e m a i n i n g t o t h e d e s t i n a t i o n : calculated with reference to the fi n a l d e s t i n a t i o n , e n t e r e d b y t h e u s e r . I f g u i d a n c e i s a c t i v a t e d , t h e n a v i g a t i o n system calculates it as a current value.
A v e r a g e s p e e d : this is the average speed calculated since the last trip computer zero reset (ignition on).
On-board computer
Route
Distance miles
mph
l/100
460
6.519
Page 177 of 237
9.37
1
2
2
2
0 8

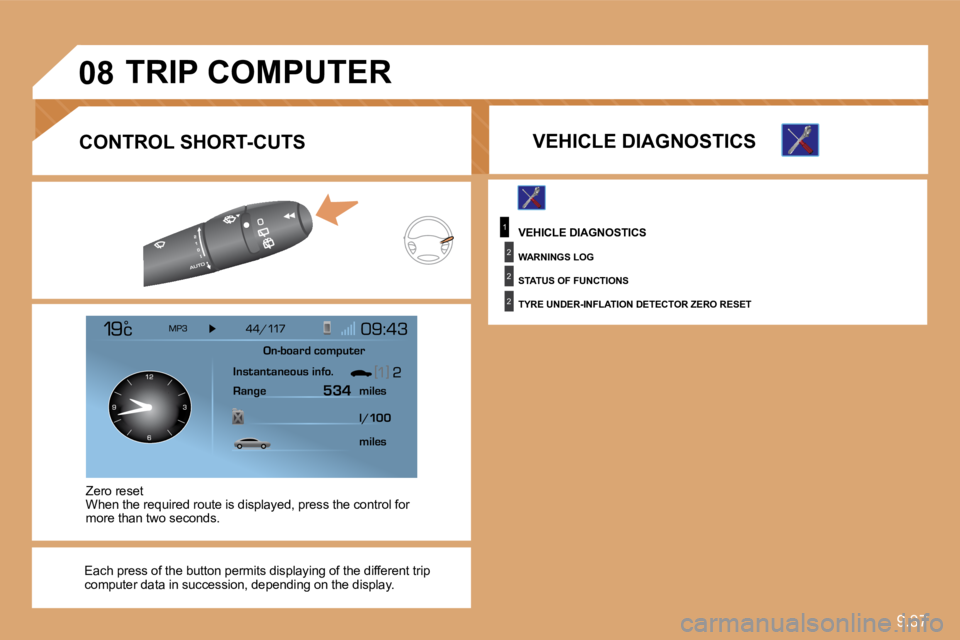

VEHICLE DIAGNOSTICS
WARNINGS LOG
STATUS OF FUNCTIONS
T Y R E U N D E R - I N F L A T I O N D E T E C T O R Z E R O R E S E T
TRIP COMPUTER
VEHICLE DIAGNOSTICS
Each press of the button permits displaying of the different trip computer data in succession, depending on the displ ay.
Zero reset When the required route is displayed, press the control for more than two seconds.
C O N T R O L S H O R T - C U T S
On-board computer
Instantaneous info.
Range miles 534
miles
l/100
Page 178 of 237
9.38
2 2
11
0 9
Press the end of the lights stalk to start the voice recognition. Say the words one by one and wait for the audible c o n fi r m a t i o n s i g n a l b e t w e e n e a c h w o r d . The list which follows is exhaustive.
To display the list of available voice commands, p ress the end of the lights stalk to start the voice recognition, then say HELP or WHAT CAN I SAY.
For the same operation, press and hold the MENU button and select the function VOICE COMMANDS LIST.
VOICE COMMANDS LIST
VOICE COMMANDS
DISPLAYING THE LIST AND USING THEM
LEVEL 1 L E V E L 2 L E V E L 3
radio memory autostore previous/next list
1 to 6/*
cd player Jukebox (if activated) USB
previous/next track track number/track scan random play
directory (CD-MP3 inserted) list
1 to 250/* previous/next repeat help/what can I say/cancel
call/guide to "Pre-recorded description"
telephone last number voice box voice mail directory
"Pre-recorded description"
message display read directory
"Pre-recorded description"
navigation stop/resume zoom in/out view
* destination vehicle
t r a f fi c i n f o display read
display audio telephone trip computer Navigation air conditioning
previous/next stop delete yes/no
for all level 1 and 2
* help/what can I say/cancel for all level 1, 2 or *
VOICE COMMANDS
Page 179 of 237
9.39
11
3 3
4 4
5 5
6 6
7 7
8 8
10
2 2

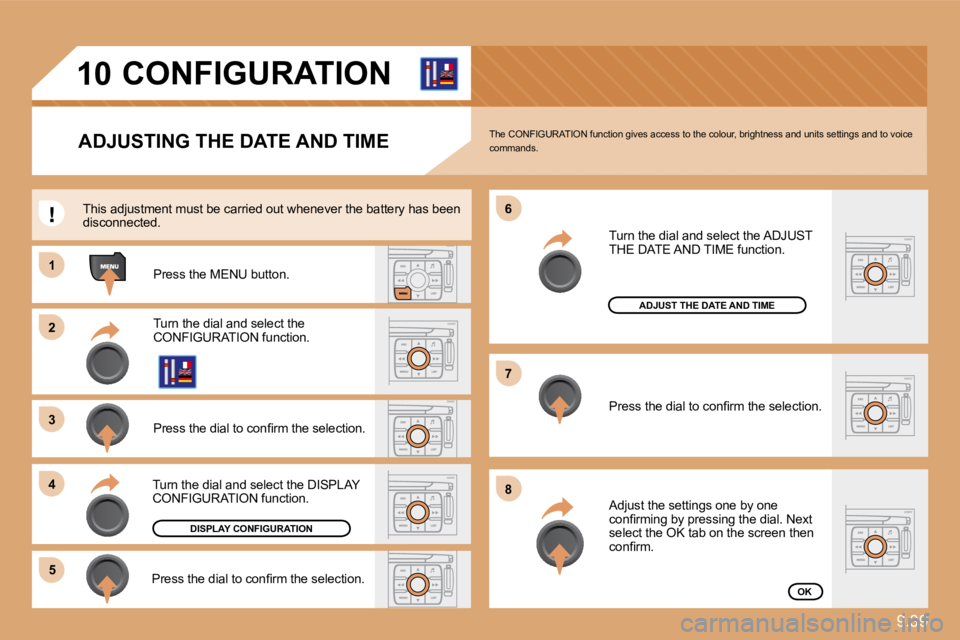

CONFIGURATION
ADJUSTING THE DATE AND TIME
Press the MENU button.
Turn the dial and select the CONFIGURATION function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the DISPLAY CONFIGURATION function. Adjust the settings one by one c o n fi r m i n g b y p r e s s i n g t h e d i a l . N e x t select the OK tab on the screen then c o n fi r m .
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
DISPLAY CONFIGURATION
ADJUST THE DATE AND TIME
OK P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the ADJUST THE DATE AND TIME function.
The CONFIGURATION function gives access to the colour, brightness and units settings and to voice commands.
This adjustment must be carried out whenever the battery has been disconnected.
Page 180 of 237
9.40
12332
1
4
4
2
3
4
3
1
2
3
3
3
4
4
4
4
4
4
4
5
5
5
5
3
4
4
4
3
3
3
2
3
4
4
4
4
4
4
2
2
3
3
3
3
2
3
3
3
4
4
4
4
11
MAIN FUNCTION
N A V I G A T I O N - G U I D A N C E
p r e v i o u s d e s t i n a t i o n s

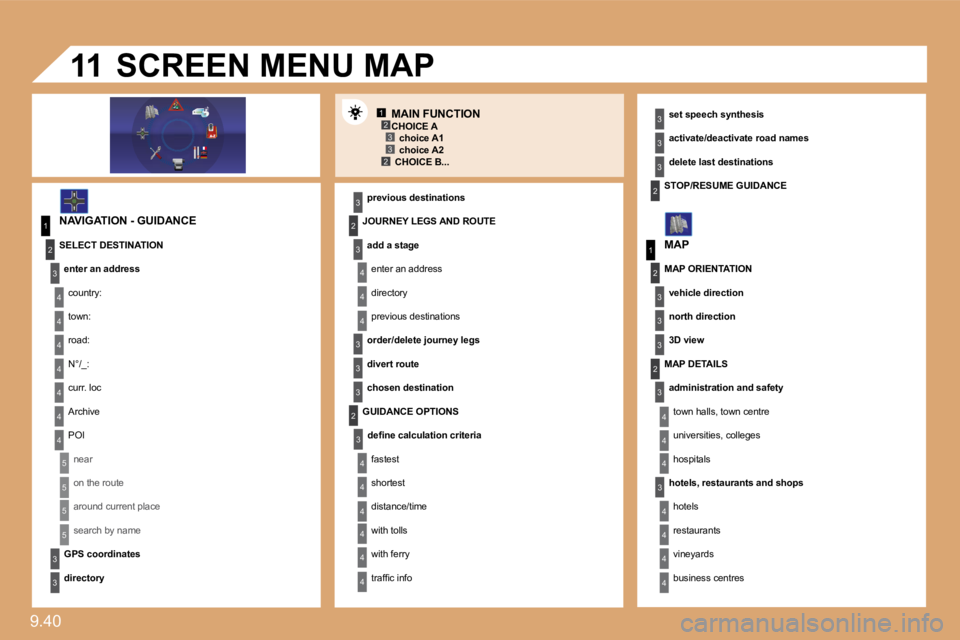

SCREEN MENU MAP
s e t s p e e c h s y n t h e s i s
a c t i v a t e / d e a c t i v a t e r o a d n a m e s
d e l e t e l a s t d e s t i n a t i o n s
MAP
CHOICE A c h o i c e A 1 c h o i c e A 2 C H O I C E B . . .
SELECT DESTINATION
e n t e r a n a d d r e s s
country:
town:
road:
N°/_:
curr. loc
Archive
POI
near
on the route
around current place
search by name
G P S c o o r d i n a t e s
d i r e c t o r y
JOURNEY LEGS AND ROUTE
a d d a s t a g e
enter an address
directory
previous destinations
o r d e r / d e l e t e j o u r n e y l e g s
d i v e r t r o u t e
c h o s e n d e s t i n a t i o n
GUIDANCE OPTIONS
d e fi n e c a l c u l a t i o n c r i t e r i a
fastest
shortest
distance/time
with tolls
with ferry
t r a f fi c i n f o
STOP/RESUME GUIDANCE
MAP ORIENTATION
v e h i c l e d i r e c t i o n
n o r t h d i r e c t i o n
3 D v i e w
MAP DETAILS
a d m i n i s t r a t i o n a n d s a f e t y
town halls, town centre
universities, colleges
hospitals
h o t e l s , r e s t a u r a n t s a n d s h o p s
hotels
restaurants
vineyards
business centres
