Changing a fuse
Fuse box
To access the fuses located in the
engine compartment (to the left of the
coolant reservoir):
- unclip the cover.
ENGINE COMPARTMENT
FUSES
The designations communicated
only relate to the fuses which can
be changed by the user using
the pliers and spare fuses, located in
the glove box behind the instrument
panel fuse box, on the right-hand side.
For any other work, visit a PEUGEOT
dealer.

Carefully close the cover when you
have fi nished.
The electrical system of your vehicle is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, consult a PEUGEOT dealer.
PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from the
installation of accessories not supplied
and not recommended by PEUGEOT
and not installed in accordance with
its instructions, in particular where the
equipment in question consumes more
than 10 milliamperes. Intended for professionals: for full
fuse and relay information, consult the
"Methods" diagram via the PEUGEOT
network.

129
TROUBLESHOOTING
7

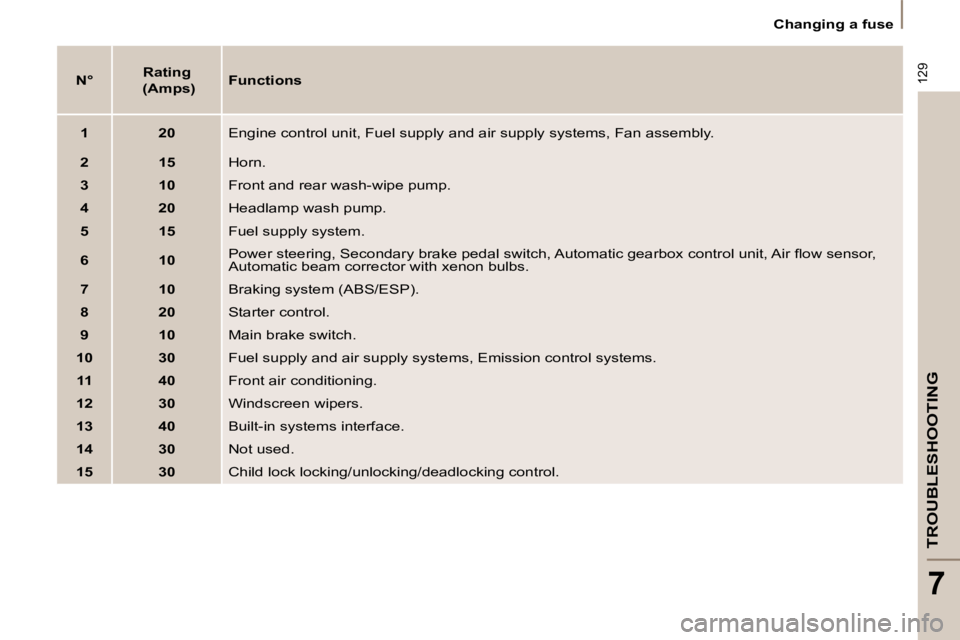

Changing a fuse

N°
Rating
(Amps)
Functions

1 20 Engine control unit, Fuel supply and air supply systems, Fan assembly.

2 15 Horn.

3 10 Front and rear wash-wipe pump.

4 20 Headlamp wash pump.

5 15 Fuel supply system.

6 10 Power steering, Secondary brake pedal switch, Automatic gearbox cont
rol unit, Air fl ow sensor,
Automatic beam corrector with xenon bulbs.

7 10 Braking system (ABS/ESP).

8 20 Starter control.

9 10 Main brake switch.

10 30 Fuel supply and air supply systems, Emission control systems.

11 40 Front air conditioning.

12 30 Windscreen wipers.

13 40 Built-in systems interface.

14 30 Not used.

15 30 Child lock locking/unlocking/deadlocking control.

130
Changing a wiper blade
CHANGING A WINDSCREEN
WIPER BLADE
- Reconnect the windscreen-wash pipe and push back the wiper arm.

To return the windscreen wipers to
their normal position, switch on the
ignition and operate the wipers stalk.
Placing the wiper blades in the
special position
- Less than a minute after switching
off the ignition, operate the wipers
stalk to position the wiper blades
along the windscreen uprights
(special position).
Changing a windscreen wiper blade
- Lift the wiper arm, then disconnect the windscreen-wash pipe.
- Unclip the blade and remove it.
- Fit the new blade. Changing the rear wiper blade
- Lift the wiper arm, then unclip the
blade and remove it.
- Fit the new blade and push back the wiper arm.

131
TROUBLESHOOTING
7
Having your vehicle towed
From the rear
- unclip the top of the cover using a coin,
- screw in the removable towing eye until it locks.
TOWING YOUR VEHICLE
Special features of the
automatic gearbox
When being towed with four wheels on
the road, it is essential to observe the
following rules:
- selector lever in position N ,
- tow the vehicle at a speed below 30 mph (50 km/h) over a distance
limited to 30 miles (50 km)
maximum,
- do not add oil to the gearbox.
When towing with the engine switched
off, there is no braking or steering
assistance.
Without lifting
(4 wheels on the road)
You should always use a towbar.
The removable towing eye is inside the
engine compartment.
From the front
- unclip the cover by pressing the
bottom part,
- screw in the removable towing eye until it locks. Lifting (2 wheels on the road only)
It is preferable to raise the vehicle
using professional lifting equipment.
VEHICLES FITTED WITH
A MANUAL GEARBOX
(diesel version)
In the case of vehicles fi tted with a
manual gearbox, the gear lever must
be in the neutral position. Failure to
observe this special condition may
result in damage to certain braking
components and the absence of
braking assistance the next time the
engine is started.
Put the gear lever in neutral.
Failure to observe this rule may
result in damage to certain
components.

Diesel technical data
132
This table presents the Model Codes

Engine, __xxx__ Diesel 2.0 HDi PEF __RHR__

Number of seats, xx_____
7 seats maximum EA_____
Base model: 5 individual seats
8 seats maximum EB_____

Type of gearbox , _____xx
Manual

(6-speed) _____H
Automatic

(6-speed) _____J
Category and type of towing device A 50 X

Part number, instructions concerning
fi tting R 06-0049

133
Diesel technical data
TECHNICAL DATA
8
DIESEL ENGINE

Model codes
E_RHRH E____H E____J

Engine
2.0 HDi PEF 2.0 HDi PEF
Manual Manual Automatic
(6-speed) (6-speed) (6-speed)
Power (bhp) 140 163
Max. power: EU standard (KW) 100 120
Capacity (cm 3
) 1 997 1 997
Bore x stroke (mm) 85 x 88 85 x 88
Number of valves 16 16
Max. power engine speed (rpm) 4 000 4 000
Max. torque: EU standard (Nm) 320 320
Max. torque engine speed (rpm) 2 000 2 000
Fuel Diesel Diesel
Catalytic converter Yes Yes
Particle emission fi lter (PEF) Yes Yes
Electronic injection Yes Yes

Oil capacities (in litres)
Engines (with fi lter replacement) 5 5

Diesel technical data
134 DIESEL DIMENSIONS, WEIGHTS AND TOWING LOADS
(in mm - in kg)

Model codes EARHRH EBRHRH
EA___H

EA___J
EB___H

EB___J
7 seats 8 seats 7 seats 8 seats

Engine
2.0 HDi PEF 2.0 HDi PEF
Wheelbase(s) (at full load) 2 823 - - on Axle 1 1 570 - -
on Axle 2 1 548 - -
Length 4 727
Width 1 850
Height at kerb weight without roof bars 1 745 to 1 759
with fi xed roof bars 1 854 to 1 863
Kerb weight 1 854 to 1 957 1 818 to 1 983 - -
on Axle 1 1 121 to 1 157 1 117 to 1 161 - -
on Axle 2 733 to 800 701 to 822 - -

135
Diesel technical data
TECHNICAL DATA
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load ment ioned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is above 45 °C, restrict the towed wei ght.

Model codes EARHRH EBRHRH
EA___H

EA___J
EB___H

EB___J
7 seats 8 seats 7 seats 8 seats

Engine
2.0 HDi PEF 2.0 HDi PEF
Gross train weight (GTW) 3 945 - -
Gross vehicle weight (GVW) 2 530 - - on Axle 1 1 256 1 263 - -
on Axle 2 1 274 1 267 - -
Gross weight
on Axle 1 1 270 - -
on Axle 2 1 300 - -
Gross towed weight 1 850 - -
Gross weight of unbraked trailer 750 - -
Gross weight on towing attachment 76 - -

136

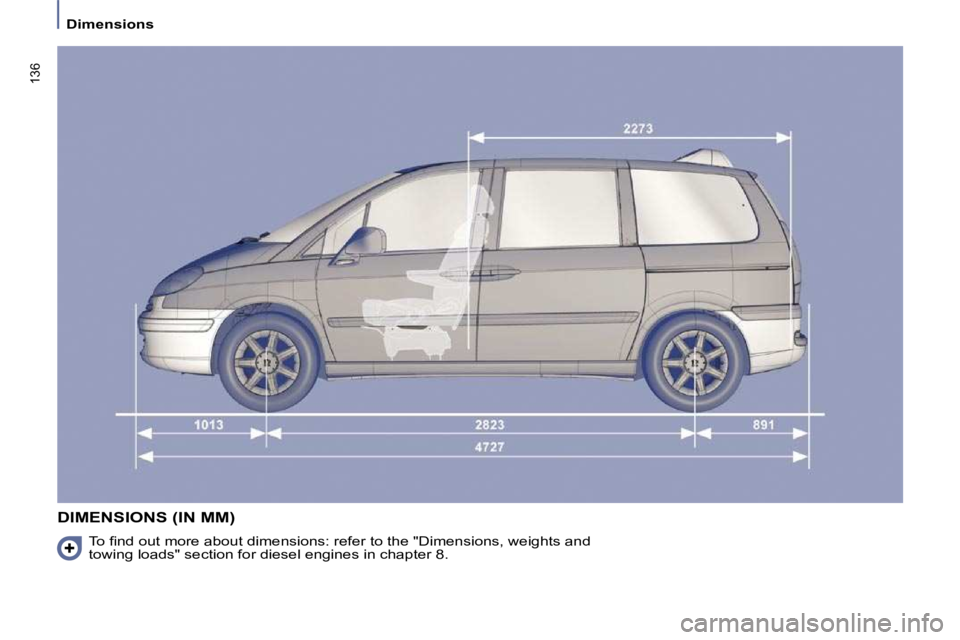

Dimensions
DIMENSIONS (IN MM)
To fi nd out more about dimensions: refer to the "Dimensions, weights and
towing loads" section for diesel engines in chapter 8.

137
8
Dimensions
TECHNICAL DATA
