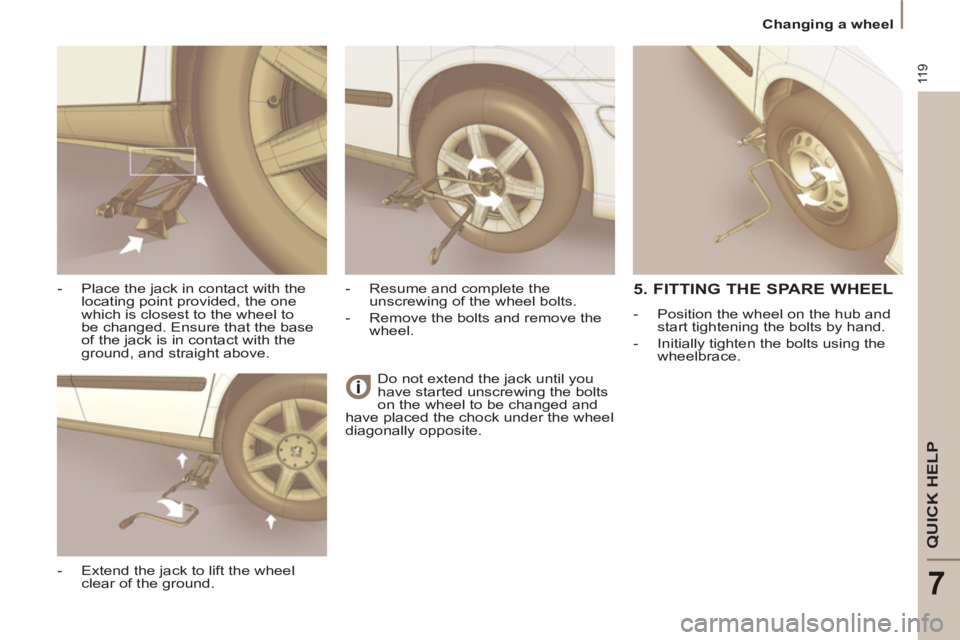

Changing a wheel
Do not extend the jack until you
have started unscrewing the bolts
on the wheel to be changed and
have placed the chock under the wheel
diagonally opposite.
- Place the jack in contact with the
locating point provided, the one
which is closest to the wheel to
be changed. Ensure that the base
of the jack is in contact with the
ground, and straight above.
- Extend the jack to lift the wheel
clear of the ground.
- Resume and complete the
unscrewing of the wheel bolts.
- Remove the bolts and remove the
wheel.
5. FITTING THE SPARE WHEEL
- Position the wheel on the hub and
start tightening the bolts by hand.
- Initially tighten the bolts using the
wheelbrace.
Page 122 of 234
120
Changing a wheel

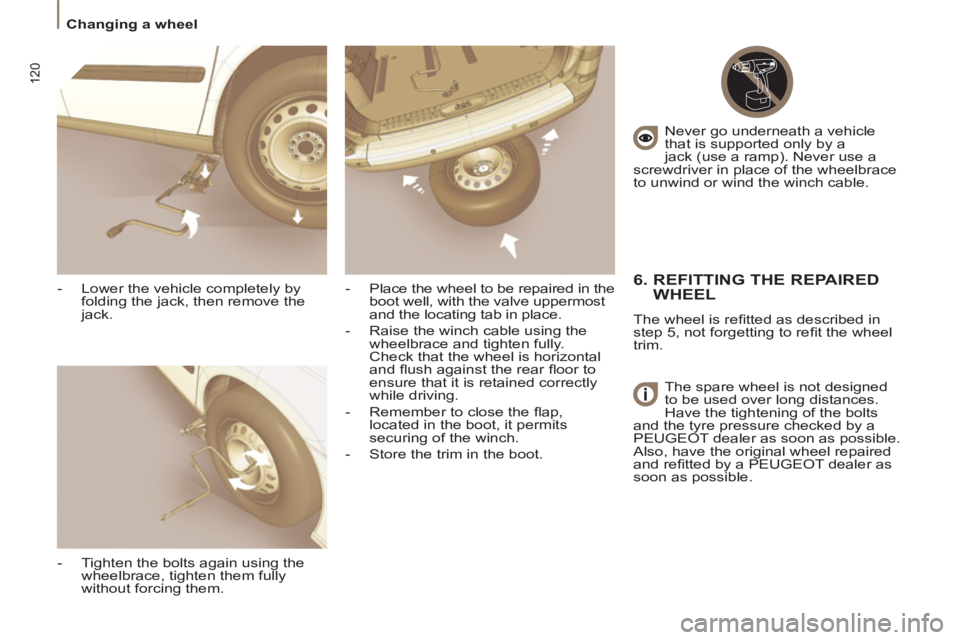

- Lower the vehicle completely by
folding the jack, then remove the
jack.
- Tighten the bolts again using the
wheelbrace, tighten them fully
without forcing them.
- Place the wheel to be repaired in the
boot well, with the valve uppermost
and the locating tab in place.
- Raise the winch cable using the
wheelbrace and tighten fully.
Check that the wheel is horizontal
and fl ush against the rear fl oor to
ensure that it is retained correctly
while driving.
- Remember to close the fl ap,
located in the boot, it permits
securing of the winch.
- Store the trim in the boot. Never go underneath a vehicle
that is supported only by a
jack (use a ramp). Never use a
screwdriver in place of the wheelbrace
to unwind or wind the winch cable.
6. REFITTING THE REPAIRED
WHEEL
The wheel is refi tted as described in
step 5, not forgetting to refi t the wheel
trim.
The spare wheel is not designed
to be used over long distances.
Have the tightening of the bolts
and the tyre pressure checked by a
PEUGEOT dealer as soon as possible.
Also, have the original wheel repaired
and refi tted by a PEUGEOT dealer as
soon as possible.
Page 123 of 234
121
QUICK HELP
7
Changing a bulb

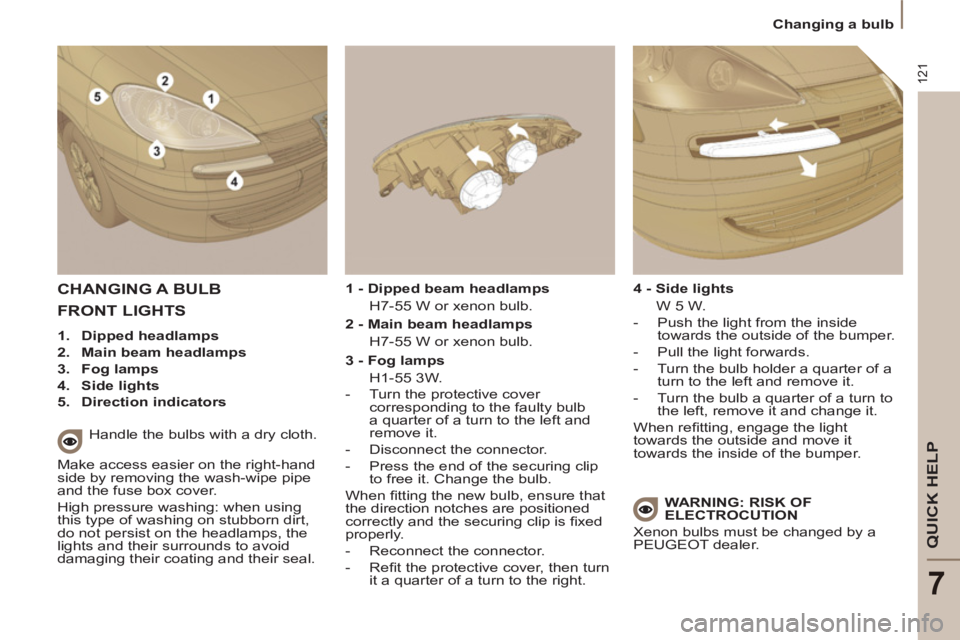

CHANGING A BULB
Handle the bulbs with a dry cloth.
Make access easier on the right-hand
side by removing the wash-wipe pipe
and the fuse box cover.
High pressure washing: when using
this type of washing on stubborn dirt,
do not persist on the headlamps, the
lights and their surrounds to avoid
damaging their coating and their seal.
2 - Main beam headlamps
H7-55 W or xenon bulb.
- Turn the protective cover
corresponding to the faulty bulb
a quarter of a turn to the left and
remove it.
- Disconnect the connector.
- Press the end of the securing clip
to free it. Change the bulb.
When fi tting the new bulb, ensure that
the direction notches are positioned
correctly and the securing clip is fi xed
properly.
- Reconnect the connector.
- Refi t the protective cover, then turn
it a quarter of a turn to the right.
3 - Fog lamps
H1-55 3W.
FRONT LIGHTS
1.
Dipped headlamps
2.
Main beam headlamps
3.
Fog lamps
4.
Side lights
5.
Direction indicators
1 - Dipped beam headlamps
H7-55 W or xenon bulb.
4 - Side lights
W 5 W.
- Push the light from the inside
towards the outside of the bumper.
- Pull the light forwards.
- Turn the bulb holder a quarter of a
turn to the left and remove it.
- Turn the bulb a quarter of a turn to
the left, remove it and change it.
When refi tting, engage the light
towards the outside and move it
towards the inside of the bumper.
WARNING: RISK OF
ELECTROCUTION
Xenon bulbs must be changed by a
PEUGEOT dealer.
Page 124 of 234
122
Changing a bulb
Rear lights
1.
Direction indicators
PY 21 W (amber).
2.
Brake/side lights
P 21 W/5 W.
3.
Reversing lights
P 21 W.
4.
Fog lamps
P 21 W.

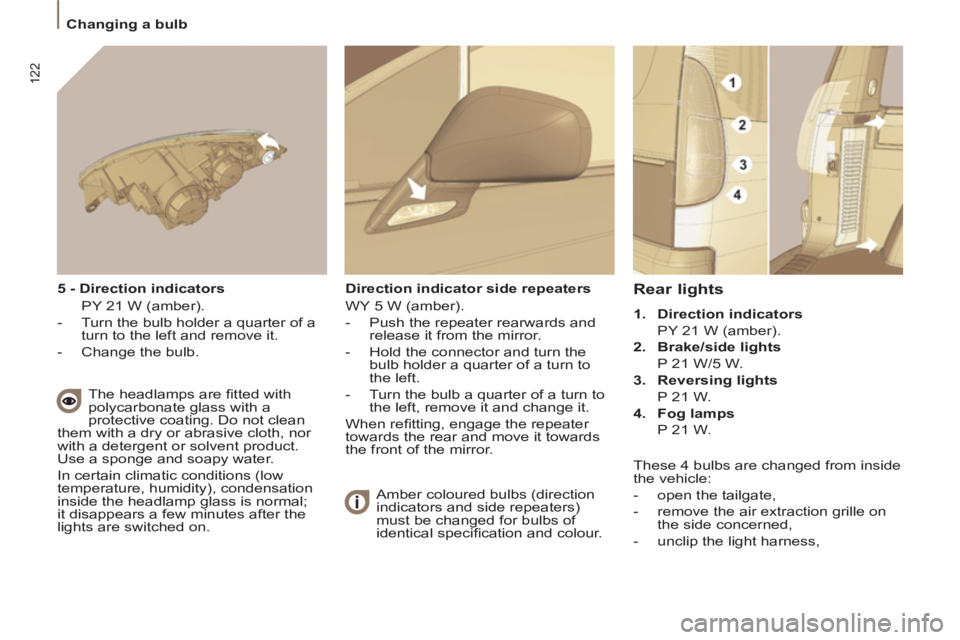

5 - Direction indicators
PY 21 W (amber).
- Turn the bulb holder a quarter of a
turn to the left and remove it.
- Change the bulb.
The headlamps are fi tted with
polycarbonate glass with a
protective coating. Do not clean
them with a dry or abrasive cloth, nor
with a detergent or solvent product.
Use a sponge and soapy water.
In certain climatic conditions (low
temperature, humidity), condensation
inside the headlamp glass is normal;
it disappears a few minutes after the
lights are switched on.
Direction indicator side repeaters
WY 5 W (amber).
- Push the repeater rearwards and
release it from the mirror.
- Hold the connector and turn the
bulb holder a quarter of a turn to
the left.
- Turn the bulb a quarter of a turn to
the left, remove it and change it.
When refi tting, engage the repeater
towards the rear and move it towards
the front of the mirror.
Amber coloured bulbs (direction
indicators and side repeaters)
must be changed for bulbs of
identical specifi cation and colour.
These 4 bulbs are changed from inside
the vehicle:
- open the tailgate,
- remove the air extraction grille on
the side concerned,
- unclip the light harness,
Page 125 of 234
123
QUICK HELP
7
Changing a bulb
THIRD BRAKE LIGHT
5 W 5 W bulbs.
)
Remove the tailgate upper trim by
unclipping it on each side.
)
Squeeze the two tabs 1
to release
the bulb holder.
)
Change the faulty bulb.
)
When refi tting, ensure that the
tailgate upper trim has been put
back in place correctly.

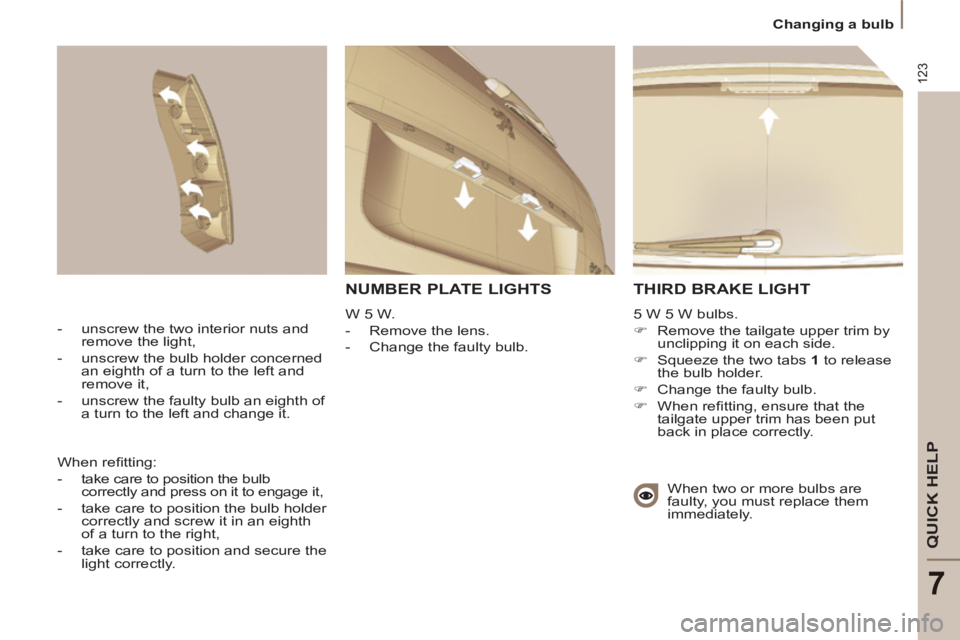

- unscrew the two interior nuts and
remove the light,
- unscrew the bulb holder concerned
an eighth of a turn to the left and
remove it,
- unscrew the faulty bulb an eighth of
a turn to the left and change it.
When two or more bulbs are
faulty, you must replace them
immediately. When refi tting:
- take care to position the bulb
correctly and press on it to engage it,
- take care to position the bulb holder
correctly and screw it in an eighth
of a turn to the right,
- take care to position and secure the
light correctly.
NUMBER PLATE LIGHTS
W 5 W.
- Remove the lens.
- Change the faulty bulb.
Page 126 of 234
124
Changing a fuse
CHANGING A FUSE
The fuse boxes are located in:
- the instrument panel lower glove
box (right-hand side),
- the battery compartment (right-
hand side fl oor),
- the engine compartment.
The spare fuses and special pliers A
are fi xed to the inside of the lid of the
instrument panel fuse box. Before changing a fuse you must
establish the cause of the fault and
have it corrected. The fuse numbers
are indicated on the fuse box.
- Use the special pliers A
.
Always change a faulty fuse for one
of the same rating.
Removing and changing a fuse
PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from the
installation of accessories not supplied
and not recommended by PEUGEOT
and not installed in accordance with
its instructions, in particular when
the combined consumption of all of
the additional equipment connected
exceeds 10 milliamperes.
Page 127 of 234
125
QUICK HELP
7
Changing a fuse
INSTRUMENT PANEL FUSES
- Open the lower glove box on the right-hand side.
- Pull the handle to open the cover and access the fuses.
N°
Rating
(Amps)
Functions
1
15
Rear wiper.
2
- Not used.
3
5
Airbag control unit.
4
10
Steering wheel angle sensor, Diagnostic socket, ESP sensor, Manual air conditioning, Clutch
switch, Headlamp beam height, Particle emission fi lter pump, Electrochromatic interior mirror.
5
30
Electric mirrors, Passenger's electric window motor, Sunroof row 1.
6
30
Front electric windows supply.
7
5
Courtesy lights, Glove box light, Courtesy mirror lights, Entertainment screen lights row 2.
8
20
Multifunction display, Anti-theft alarm siren, Audio equipment, Compact disc changer, Audio/
telephone, Diesel additive control unit, Tyre under-infl ation detection control unit, Sliding doors
module control unit.
9
30
Lighter.
10
15
Steering wheel switching, Trailer fuse box.
11
15
Diagnostic socket, Ignition switch, Automatic gearbox (4-speed).
12
15
Driver's seat memory unit, Passenger's electric seat, Airbag control unit, Parking assistance
control unit, Sliding side door buttons, Hands-free kit, Automatic gearbox (6-speed).
13
5
Engine fuse box, Trailer fuse box.
14
15
Rain sensor, Automatic air conditioning, Instrument panel, Sunroofs, Odometer warning lights
unit, Audio-telematics control.
15
30
Passenger's lock locking.
16
30
Locking/unlocking of the accesses.
17
40
Heated rear screen.
Page 128 of 234
126
Changing a fuse
TERY COMPARTMENT
BATT
USESFUS
Fuse box
The fuses are located in the battery
compartment, housed underneath the
fl oor in front of the seat on the right-
hand side:
- unclip the cover.
Carefully close the cover when you
have fi nished.
Page 129 of 234
127
QUICK HELP
Changing a fuse
N°
Rating
(Amps)
Functions
1
*
40
Electric sliding side door.
2
*
40
Electric sliding side door.
3
*
- Not used.
4
*
40
Trailer fuse box.
31
5
Main brake switch.
32
25
Driver's seat memorisation.
33
25
Passenger's seat memorisation.
34
20
Sunroof row 3.
35
20
Sunroof row 2.
36
10
Passenger's heated seat.
37
10
Driver's heated seat.
38
15
Not used.
39
20
12 V accessories socket row 3.
40
20
12 V accessories socket row 2.
*
The maxi-fuses provide additional protection for the electrical systems. All work must be carried out by a PEUGEOT dealer.
Page 130 of 234
128
Changing a fuse
Fuse box
To access the fuses located in the
engine compartment (to the left of the
coolant reservoir):
- unclip the cover.
GINE COMPARTMENT
ENGIN
USES FUS
The designations communicated
only relate to the fuses which can
be changed by the user using
the pliers and spare fuses, located in
the glove box behind the instrument
panel fuse box, on the right-hand side.
For any other work, visit a PEUGEOT
dealer.
Carefully close the cover when you
have fi nished.
The electrical system of your vehicle is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, consult a PEUGEOT dealer.
PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from the
installation of accessories not supplied
and not recommended by PEUGEOT
and not installed in accordance with
its instructions, in particular where the
equipment in question consumes more
than 10 milliamperes. Intended for professionals: for full
fuse and relay information, consult the
"Methods" diagram via the PEUGEOT
network.
