Peugeot 807 2013 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2013, Model line: 807, Model: Peugeot 807 2013Pages: 234, PDF Size: 9.8 MB
Page 1 of 234
Page 2 of 234
Page 3 of 234

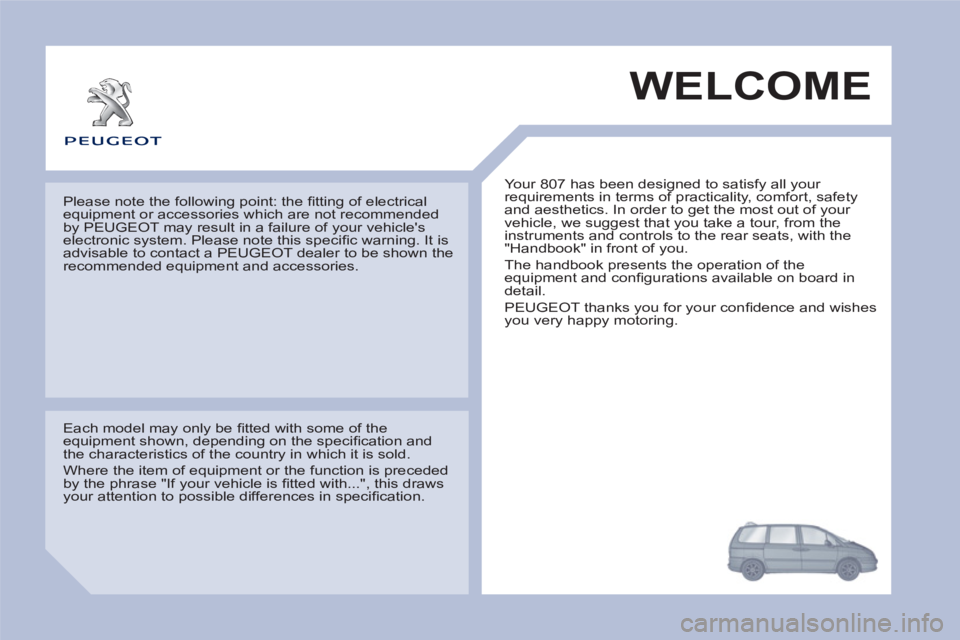

WELCOME
Your 807 has been designed to satisfy all your
requirements in terms of practicality, comfort, safety
and aesthetics. In order to get the most out of your
vehicle, we suggest that you take a tour, from the
instruments and controls to the rear seats, with the
"Handbook" in front of you.
The handbook presents the operation of the
equipment and confi gurations available on board in
detail.
PEUGEOT thanks you for your confi dence and wishes
you very happy motoring.
Each model may only be fi tted with some of the
equipment shown, depending on the specifi cation and
the characteristics of the country in which it is sold.
Where the item of equipment or the function is preceded
by the phrase "If your vehicle is fi tted with...", this draws
your attention to possible differences in specifi cation. Please note the following point: the fi tting of electrical
equipment or accessories which are not recommended
by PEUGEOT may result in a failure of your vehicle's
electronic system. Please note this specifi c warning. It is
advisable to contact a PEUGEOT dealer to be shown the
recommended equipment and accessories.
Page 4 of 234

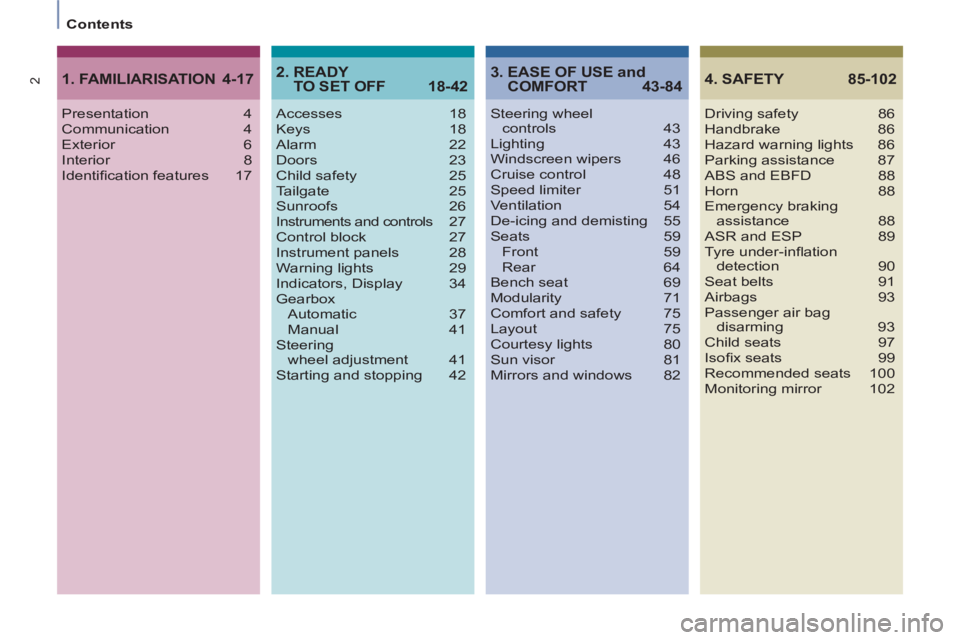

2
Contents
4. SAFETY 85-102
Driving safety 86
Handbrake 86
Hazard warning lights 86
Parking assistance 87
ABS and EBFD 88
Horn 88
Emergency braking
assistance 88
ASR and ESP 89
Tyre under-infl ation
detection 90
Seat belts 91
Airbags 93
Passenger air bag
disarming 93
Child seats 97
Isofi x seats 99
Recommended seats 100
Monitoring mirror 102 Steering wheel
controls 43
Lighting 43
Windscreen wipers 46
Cruise control 48
Speed limiter 51
Ventilation 54
De-icing and demisting 55
Seats 59
Front 59
Rear 64
Bench seat 69
Modularity 71
Comfort and safety 75
Layout 75
Courtesy lights 80
Sun visor 81
Mirrors and windows 82
3. EASE OF USE and
COMFORT 43-84
Presentation 4
Communication 4
Exterior 6
Interior 8
Identifi cation features 17
1. FAMILIARISATION 4-17
Accesses 18
Keys 18
Alarm 22
Doors 23
Child safety 25
Tailgate 25
Sunroofs 26
Instruments and controls 27
Control block 27
Instrument panels 28
Warning lights 29
Indicators, Display 34
Gearbox
Automatic 37
Manual 41
Steering
wheel adjustment 41
Starting and stopping 42
2. READY
TO SET OFF 18-42
Page 5 of 234
CONTENT
S
3

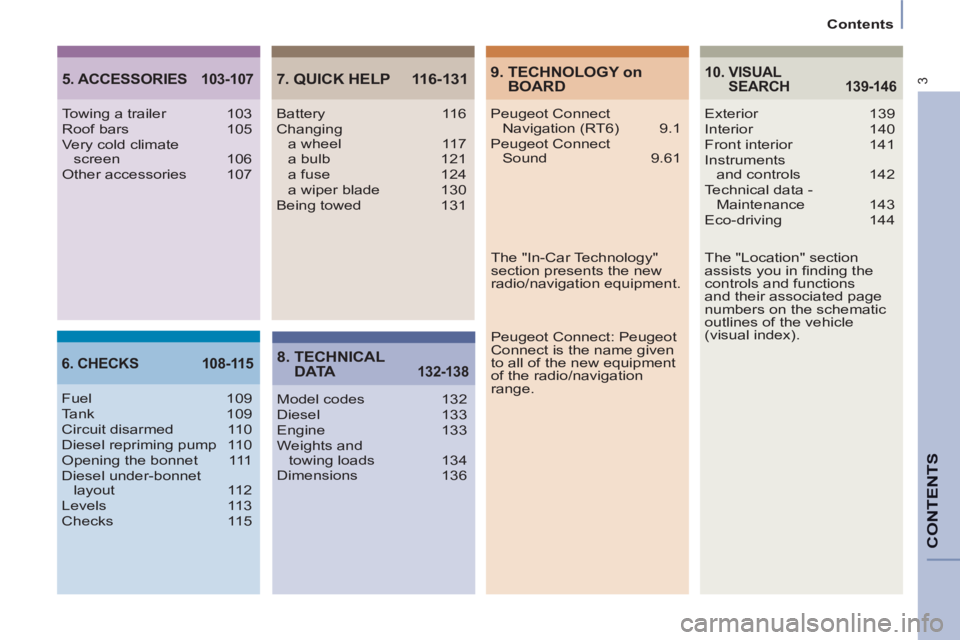

Contents
5. ACCESSORIES 103-1077. QUICK HELP 116-131
8. TECHNICAL
D ATA
132-1386. CHECKS 108-11510. VISUAL
SEARCH
139-146
Towing a trailer 103
Roof bars 105
Very cold climate
screen 106
Other accessories 107
Fuel 109
Tank 109
Circuit disarmed 110
Diesel repriming pump 110
Opening the bonnet 111
Diesel under-bonnet
layout 112
Levels 113
Checks 115Battery 116
Changing
a wheel 117
a bulb 121
a fuse 124
a wiper blade 130
Being towed 131
Model codes 132
Diesel 133
Engine 133
Weights and
towing loads 134
Dimensions 136Exterior 139
Interior 140
Front interior 141
Instruments
and controls 142
Technical data -
Maintenance 143
Eco-driving 144
9. TECHNOLOGY on
BOARD
Peugeot Connect
Navigation (RT6) 9.1
Peugeot Connect
Sound 9.61
Peugeot Connect: Peugeot
Connect is the name given
to all of the new equipment
of the radio/navigation
range.
The "Location" section
assists you in fi nding the
controls and functions
and their associated page
numbers on the schematic
outlines of the vehicle
(visual index). The "In-Car Technology"
section presents the new
radio/navigation equipment.
Page 6 of 234

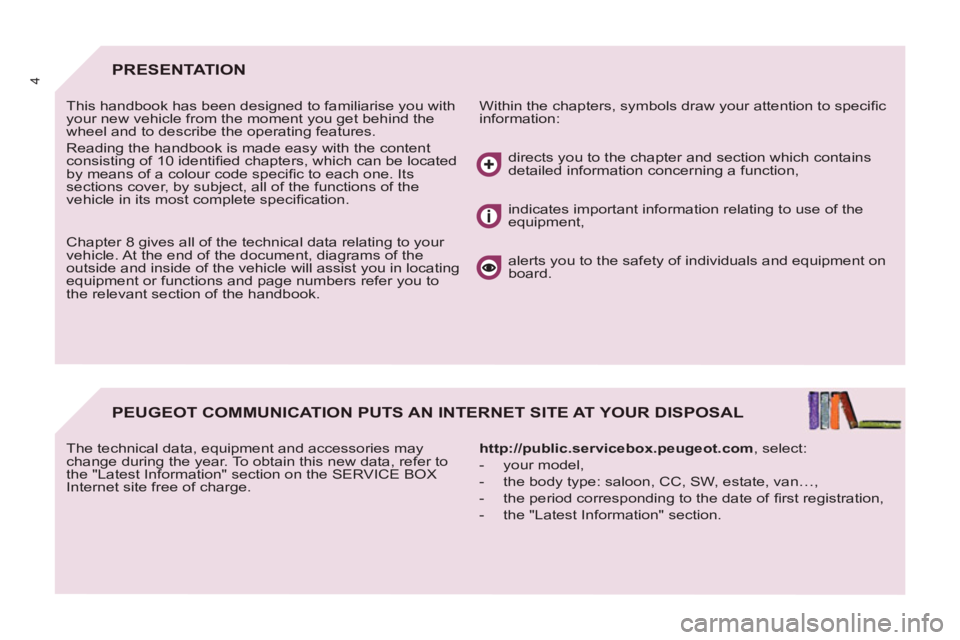

4PRESENTATION
Within the chapters, symbols draw your attention to specifi c
information: This handbook has been designed to familiarise you with
your new vehicle from the moment you get behind the
wheel and to describe the operating features.
Reading the handbook is made easy with the content
consisting of 10 identifi ed chapters, which can be located
by means of a colour code specifi c to each one. Its
sections cover, by subject, all of the functions of the
vehicle in its most complete specifi cation.
PEUGEOT COMMUNICATION PUTS AN INTERNET SITE AT YOUR DISPOSAL
http://public.servicebox.peugeot.com, select:
- your model,
- the body type: saloon, CC, SW, estate, van…,
- the period corresponding to the date of fi rst registration,
- the "Latest Information" section. The technical data, equipment and accessories may
change during the year. To obtain this new data, refer to
the "Latest Information" section on the SERVICE BOX
Internet site free of charge. Chapter 8 gives all of the technical data relating to your
vehicle. At the end of the document, diagrams of the
outside and inside of the vehicle will assist you in locating
equipment or functions and page numbers refer you to
the relevant section of the handbook. directs you to the chapter and section which contains
detailed information concerning a function,
indicates important information relating to use of the
equipment,
alerts you to the safety of individuals and equipment on
board.
Page 7 of 234
http://public.servicebox.peugeot.com
Page 8 of 234
2
6
6
4
2

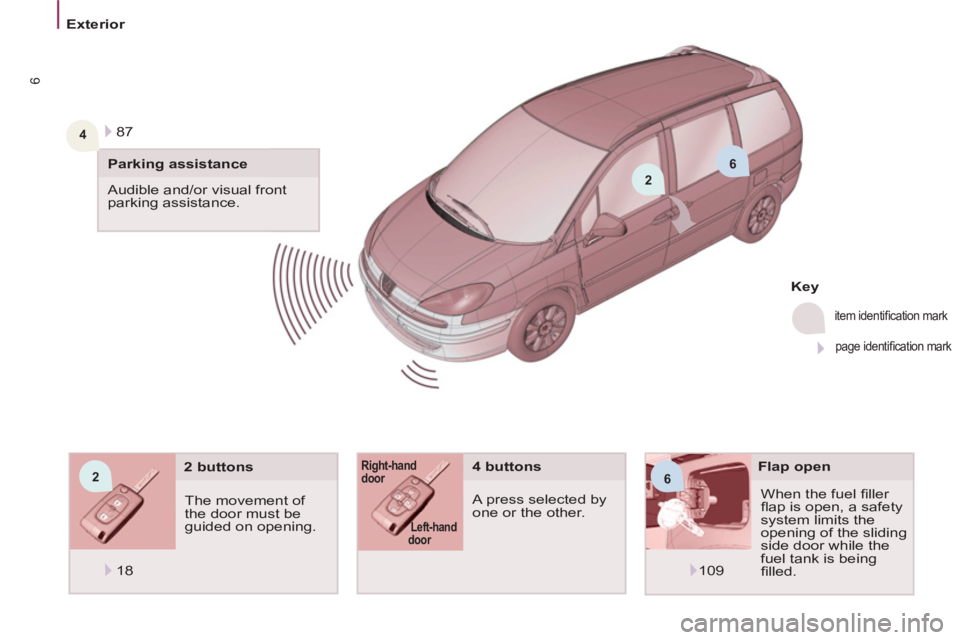

Exterior
6
When the fuel fi ller
fl ap is open, a safety
system limits the
opening of the sliding
side door while the
fuel tank is being
fi lled.
Flap open
4 buttons
A press selected by
one or the other. The movement of
the door must be
guided on opening.
2 buttons
Left-hand
door
Right-hand
door
Key
Parking assistance
Audible and/or visual front
parking assistance. 87
item identifi cation mark
page identifi cation mark
18
109
Page 9 of 234
4
7a
7b7b 2
4
7a5
5
2
7
1
FAMILIARISATIO
N

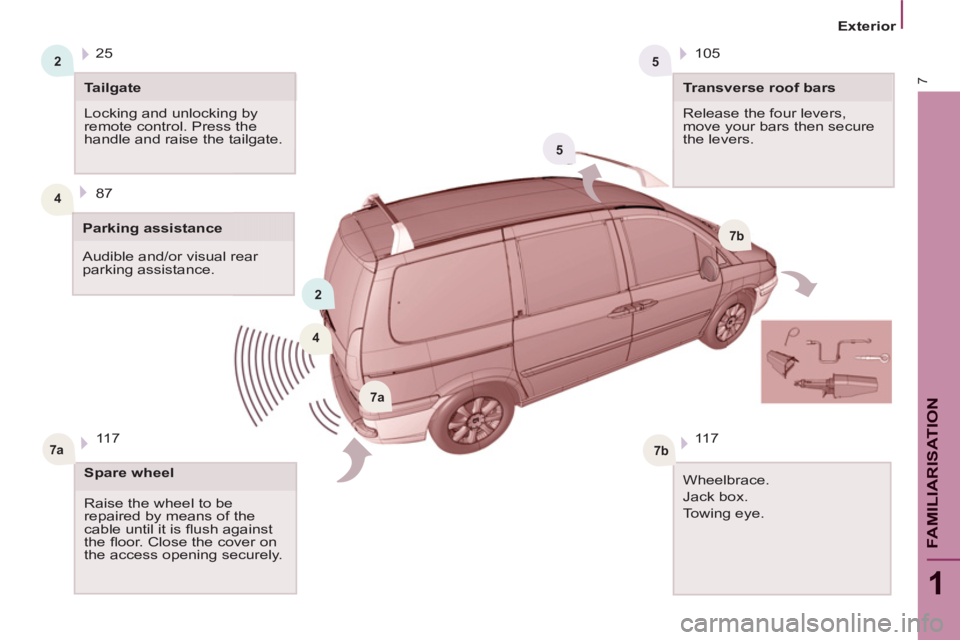

Exterior
Audible and/or visual rear
parking assistance. 87
Tailgate
Locking and unlocking by
remote control. Press the
handle and raise the tailgate.
Parking assistance 25
Transverse roof bars
Release the four levers,
move your bars then secure
the levers. 105
Spare wheel
Raise the wheel to be
repaired by means of the
cable until it is fl ush against
the fl oor. Close the cover on
the access opening securely. 117
Wheelbrace.
Jack box.
Towing eye.
11 7
Page 10 of 234
8

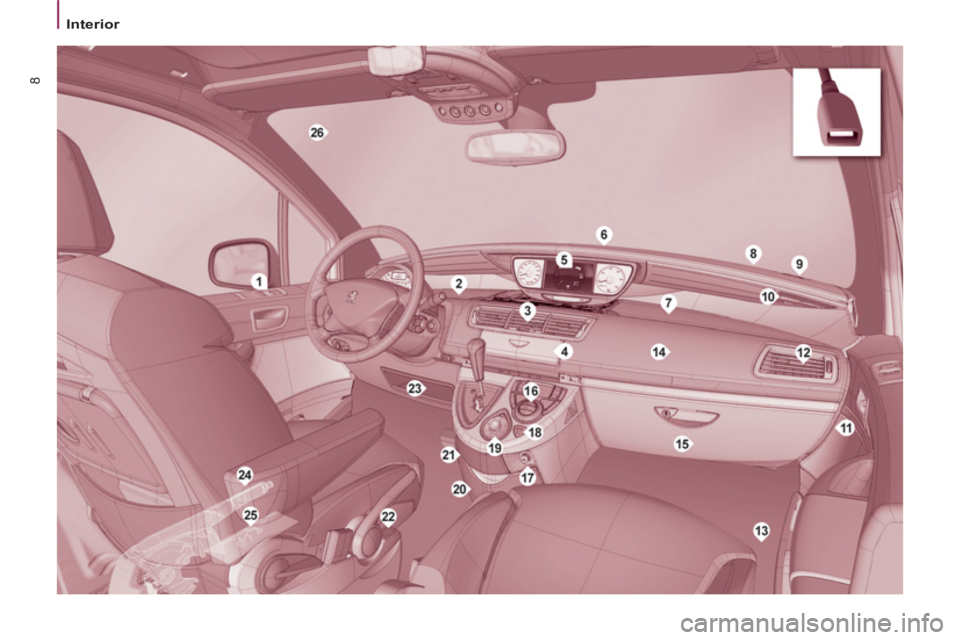

Interior
