Peugeot 807 2013 Owner's Manual

9.21

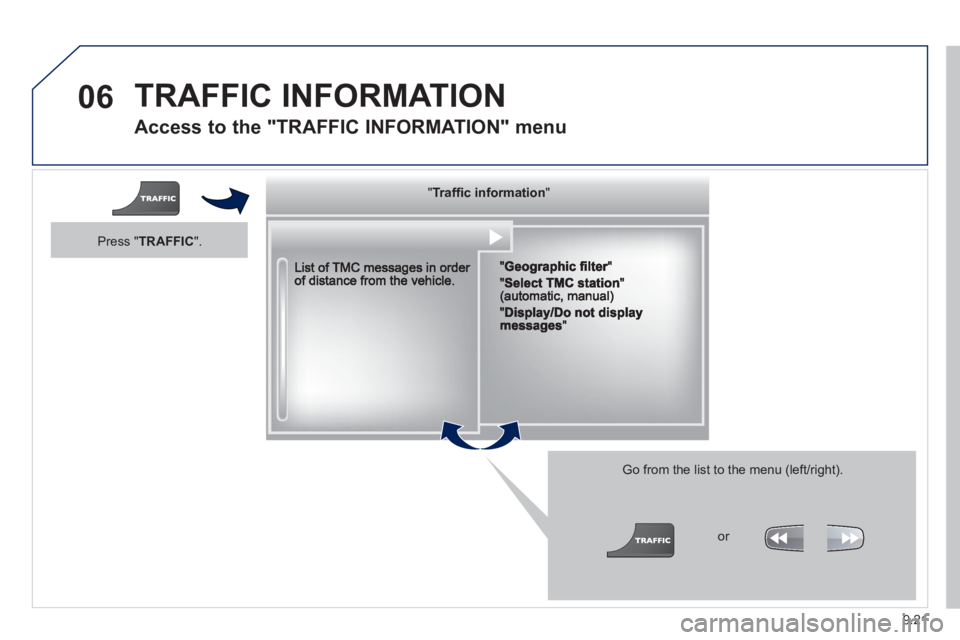

06 TRAFFIC INFORMATION


Access to the "TRAFFIC INFORMATION" menu

Go from the list to the menu (left/right).

"""""""ac o at oTraffi c informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTffiif tiTffiif tiTffiif tiTffiif ti"""""""
or

Press "TRAFFIC".

9.22
06TRAFFIC INFORMATION

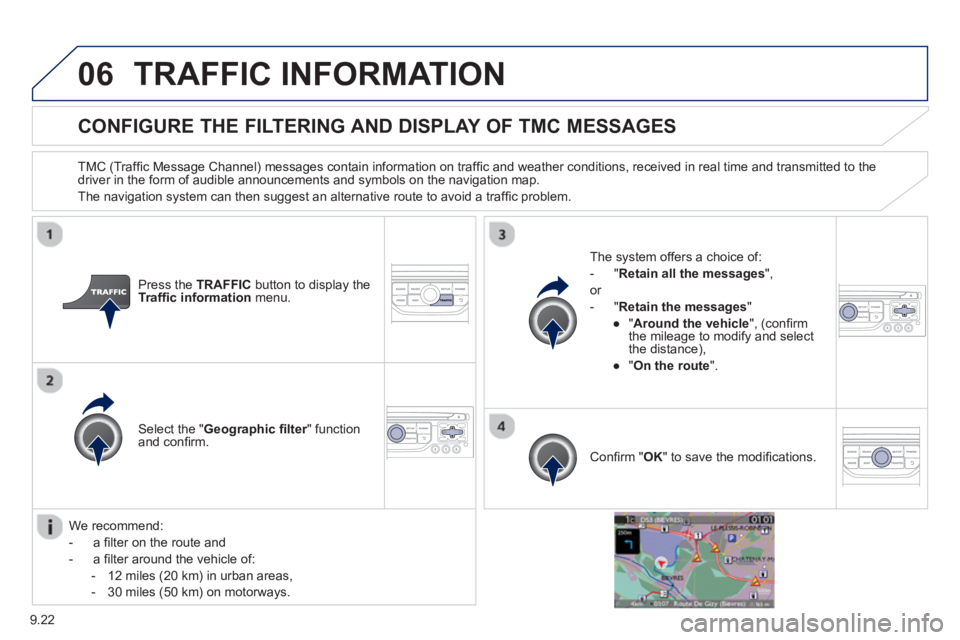

CONFIGURE THE FILTERING AND DISPLAY OF TMC MESSAGES


TMC (Traffi c Message Channel) messages contain information on traffi c and weather conditions, received in real time and transmitted to the
driver in the form of audible announcements and symbols on the navigation map.
The navi
gation system can then suggest an alternative route to avoid a traffi c problem.
Pr
ess the TRAFFICbutton to display the Traffi c informationmenu.
Select the "Geographic fi lter" function rand confi rm. The s
ystem offers a choice of:
- " Retain all the messa
ges",
or
-"Retain the messa
ges"
●
"Around the vehicle ", (confi rm
the mileage to modify and select
the distance),

●
" On the rout
e".
Confi rm " OK
" to save the modifi cations.


We recommend:


-
a fi lter on the route and

-
a fi lter around the vehicle of:
- 12 miles
(20 km) in urban areas,
- 30 miles
(50 km) on motorways.

9.23
06TRAFFIC INFORMATION

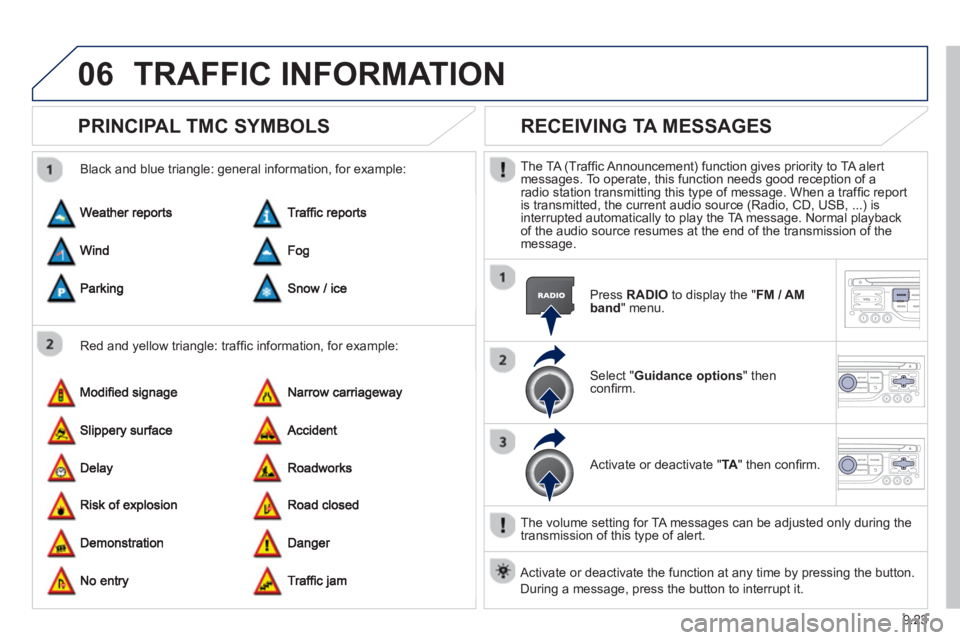

PRINCIPAL TMC SYMBOLS


Red and yellow triangle: traffi c information, for example:
Black and blue trian
gle: general information, for example:






RECEIVING TA MESSAGES


The TA (Traffi c Announcement) function gives priority to TA alert messages. To operate, this function needs good reception of a radio station transmitting this type of message. When a traffi c report
is transmitted, the current audio source (Radio, CD, USB, ...) isinterrupted automatically to play the TA message. Normal playbackof the audio source resumes at the end of the transmission of themessage.
Pr
ess RADIO
to display the "FM / AMband " menu.
Select " Guidance options
" then confi rm.

A
ctivate or deactivate " TA
" then confi rm.

The volume settin
g for TA messages can be adjusted only during the
transmission of this type of alert.

Activate or deactivate the function at any time by pressing the button.
Durin
g a message, press the button to interrupt it.

9.24

9.25

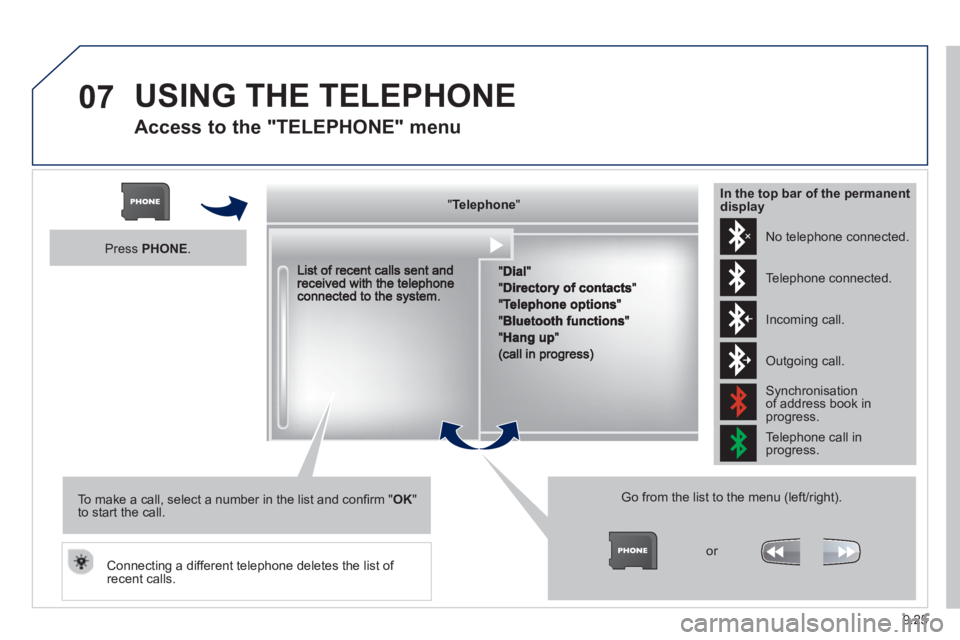

07 USING THE TELEPHONE


Access to the "TELEPHONE" menu
"""""""ppppeepoeTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTl hTl hTl hTl h"""""""
Go from the list to the menu (left/right).
or



Press PHONE .


To make a call, select a number in the list and confi rm "OK"to start the call.

Connecting a different telephone deletes the list of recent calls.
No telephone connected.
Telephone connected.
Incoming call.
Outgoing call.
Synchronisation of address book in progress.
Telephone call in progress.


In the top bar of the permanentdisplay

9.26
07

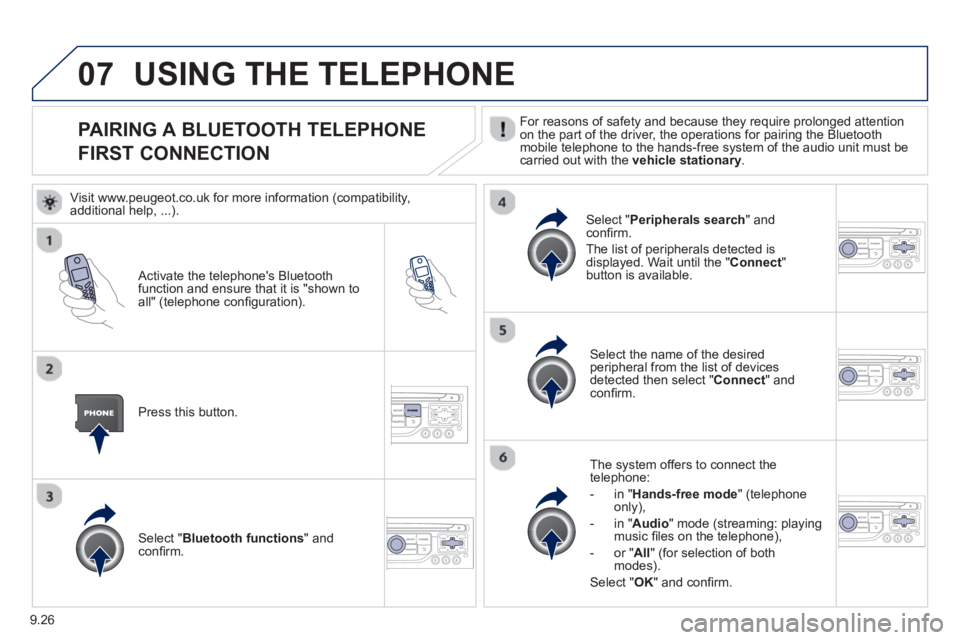

PAIRING A BLUETOOTH TELEPHONE
FIRST CONNECTION For reasons of safety and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetoothmobile telephone to the hands-free system of the audio unit must be carried out with the vehicle stationary.
Activate the telephone's Bluetoothfunction and ensure that it is "shown to all" (telephone confi guration).
Pr
ess this button.
Select the name of the desired
peripheral from the list of devices detected then select "Connect
" and confi rm.
The s
ystem offers to connect the
telephone:
-
in"Hands-free mode" (telephoneonly),
-
in "Audio" mode (streaming: playingmusic fi les on the telephone),
-
or "All
" (for selection of both
modes).
Select " OK
" and confi rm.
Select " Bluetooth functions " and confi rm.
Select "Peripherals search" andconfi rm.
The list of peripherals detected is
displayed. Wait until the " Connect"button is available.
USING THE TELEPHONE

Visit www.peugeot.co.uk for more information (compatibility,
additional help, ...).

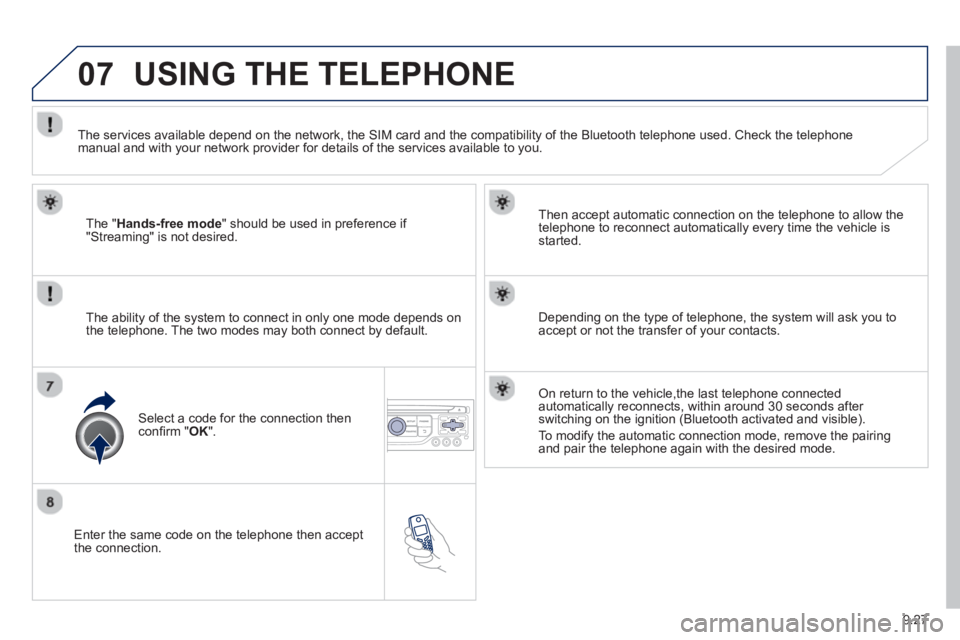

9.27
07
Enter the same code on the telephone then accept
the connection.
Then accept automatic connection on the telephone to allow the
te
lephone to reconnect automatically every time the vehicle is started.

The abilit
y of the system to connect in only one mode depends on
the telephone. The two modes may both connect by default.
USING THE TELEPHONE

The "Hands-free mode
" should be used in preference if "Streaming" is not desired.
The services available depend on the network, the
SIM card and the compatibility of the Bluetooth telephone used. Check the telephone manual and with your network provider for details of the services available to you.
Select a code for the connection thenconfi rm "OK".


Depending on the type of telephone, the system will ask you to
accept or not the transfer of your contacts.

On return to the vehicle,the last telephone connected
automatically reconnects, within around 30 seconds after switching on the ignition (Bluetooth activated and visible).
To modif
y the automatic connection mode, remove the pairingand pair the telephone again with the desired mode.

9.28
07USING THE TELEPHONE

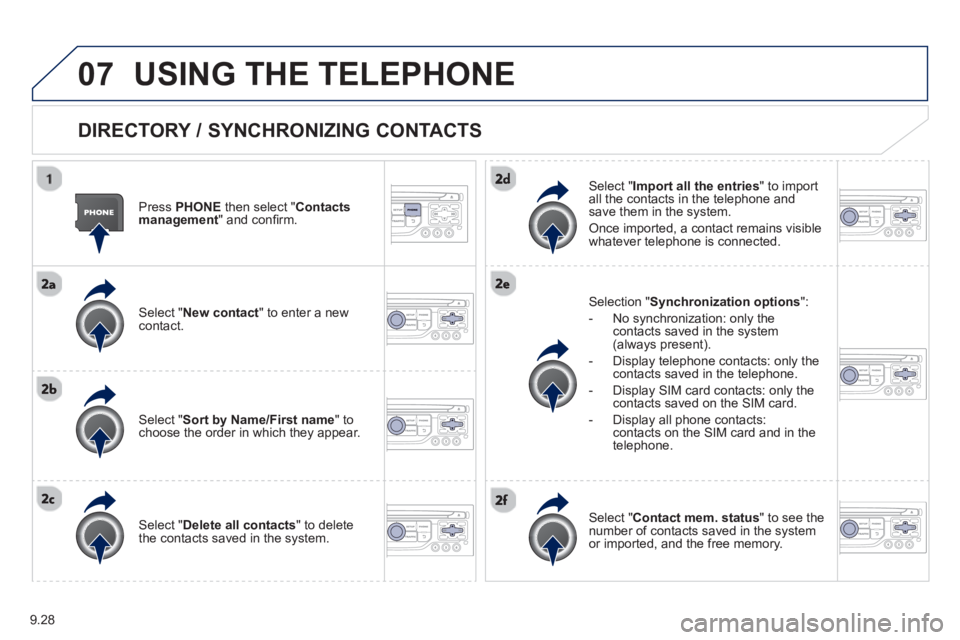

DIRECTORY / SYNCHRONIZING CONTACTS

Press PHONE
then select "
Contacts
management " and confi rm.

Select "New contact
" to enter a new contact.

Select "Sort by Name/First name" tochoose the order in which they appear.

Select "Delete all contacts" to delete
the contacts saved in the system.
Selection "Synchronization options":



- No synchronization: only the contacts saved in the system (always present).

- Display telephone contacts: only the
contacts saved in the telephone.

- Displa
y SIM card contacts: only thecontacts saved on the SIM card.

- Displa
y all phone contacts: contacts on the SIM card and in the
telephone.

Select "Import all the entries" to import
all the contacts in the telephone and
save them in the system.

Once imported, a contact remains visible
whatever telephone is connected.

Select "Contact mem. status" to see thenumber of contacts saved in the systemor imported, and the free memory.

9.29
07

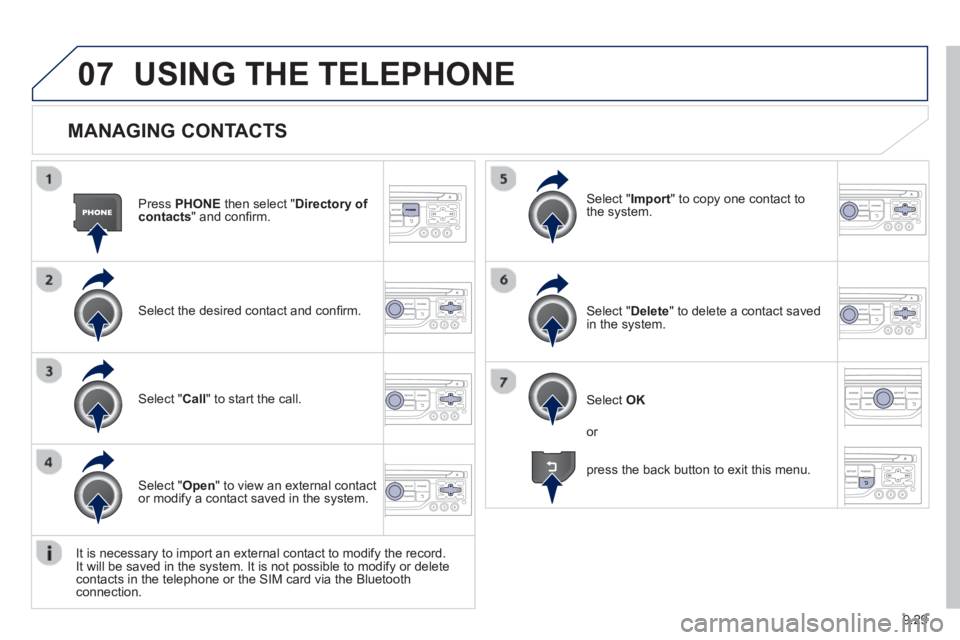

MANAGING CONTACTS
Press PHONEthen select "Directory of contacts" and confi rm.
Select the desired contact and confi rm.
Select " Import" to copy one contact to
the system.
Select " Call" to start the call.
Select " Open
" to view an external contact
or modify a contact saved in the system.
Select OK
Select " Delete" to delete a contact savedin the system.
It is necessar
y to import an external contact to modify the record.
It will be saved in the system. It is not possible to modify or delete contacts in the telephone or the SIM card via the Bluetoothconnection.
USING THE TELEPHONE
or
press the back button to exit this menu.

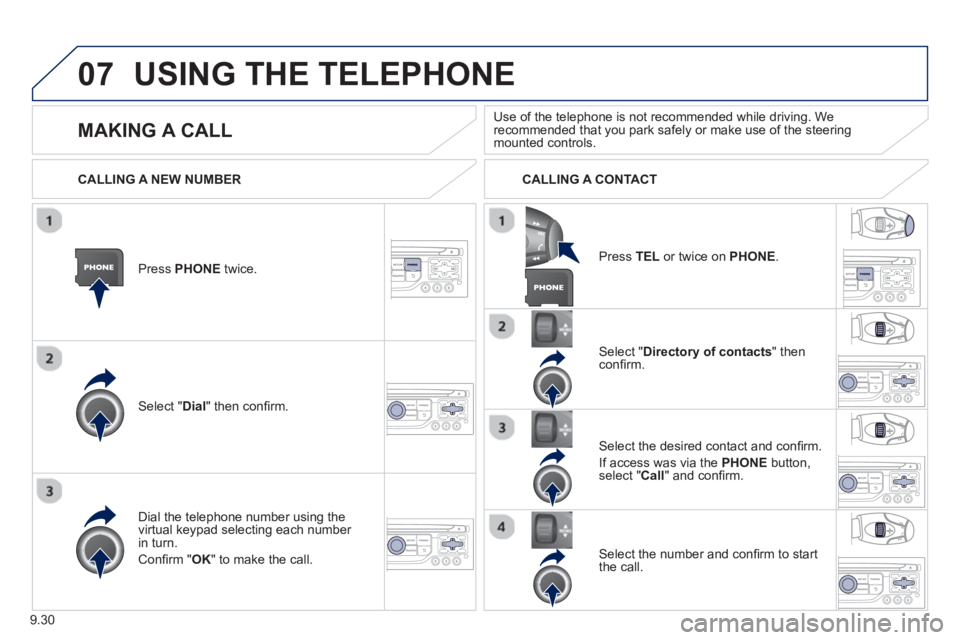

9.30
07USING THE TELEPHONE
Press PHONEtwice.
Select " Dial" then confi rm.
Select " Directory of contacts" thenconfi rm.
Dial the telephone number usin
g the
virtual keypad selecting each number in turn.
Confi rm " OK " to make the call.
Pr
ess TELor twice on PHONE.

CALLING A NEW NUMBER CALLING A CONTACT
Select the desired contact and confi rm.
I
f access was via the PHONEbutton,select "Call" and confi rm.
Select the number and confi rm to start
the call.





MAKING A CALL
Use of the telephone is not recommended while driving. Werecommended that you park safely or make use of the steering mounted controls.
