remote start Peugeot 807 2013 Owner's Manual

Access

18

REMOTE CONTROL

Deadlocking
KEY
S


Deadlocking renders the internal
and external door locking
controls inoperative. Never leave
anyone inside the vehicle when it is
deadlocked.
If the deadlocking is operated from
inside the vehicle, it will change to
normal locking when the vehicle is
started.

ACCESS

Press the closed padlock to
lock the vehicle.

This is confi rmed by fi xed
lighting of the direction
indicators for approximately
two seconds.


Central locking

From the driver’s door or passenger
door, the keys allow you to lock,
deadlock or unlock the doors and
tailgate, as well as fold back the
exterior mirrors.
If one of the doors or the tailgate is open,
the central locking does not work.

The remote control performs the
same functions at a distance.
The key allows you to switch on the
ignition and to mechanically operate
the lock on the fuel fi ller cap, the glove
box, the passenger airbag disarming
switch and the mechanical child lock.


Normal locking

If your vehicle is fi tted with
deadlocking, a second press

on the closed padlock within
fi ve seconds of locking
changes this to deadlocking.
This is confi rmed by fi xed lighting
of the direction indicators for
approximately two seconds.

Access

READY TO SET OFF
2
21

ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control system as
soon as the ignition has been switched
off and therefore prevents starting of
the vehicle by anyone who does not
have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
must be recognised for starting to be
possible.
If the system does not function
correctly, the central locking button
indicator light, situated on the courtesy
light console, fl ashes rapidly when the
ignition is switched on (2nd notch).
In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon
as possible.

Good practice

If the keys are lost
A PEUGEOT dealer will be able
to retrieve the key code and the
transponder code to order a replacement
key if you show him your V5 registration
certifi cate and personal identifi cation.
Key, remote control
Take care not to allow the key to come
into contact with grease, dust, rain or a
damp environment.
A heavy object attached to the key
(key ring, …) weighing on the shaft
of the key in the switch may cause a
malfunction.
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is
a possibility that it may unlock your
vehicle, without you being aware of it.


Do not repeatedly press the buttons of
your remote control out of range and
out of sight of your vehicle. You run
the risk of stopping it from working and
the remote control would have to be
reprogrammed.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off,
except for reprogramming.
Do not make any modifi cations to the
electronic engine immobiliser system.
Safety
In the event of a serious impact the
doors are unlocked automatically
to permit access by the emergency
services.
Remove the ignition key when you
leave the vehicle, even for a short time,
if there are children on board.

Purchasing a second-hand vehicle
Ensure that you are given the anti-theft
socket for alloy wheels (remember to
note the code engraved on the head of
the socket).
Have the key codes memorised by
a PEUGEOT dealer, to ensure that
the keys in your possession are the
only ones which can start the vehicle.

Access

24


Opening/Closing using
the remote control
Press one of the buttons to
open or close the corresponding
rear door (right or left).

Opening/Closing from
the front
Press the corresponding
control.
An audible signal accompanies the
opening and closing of the door.

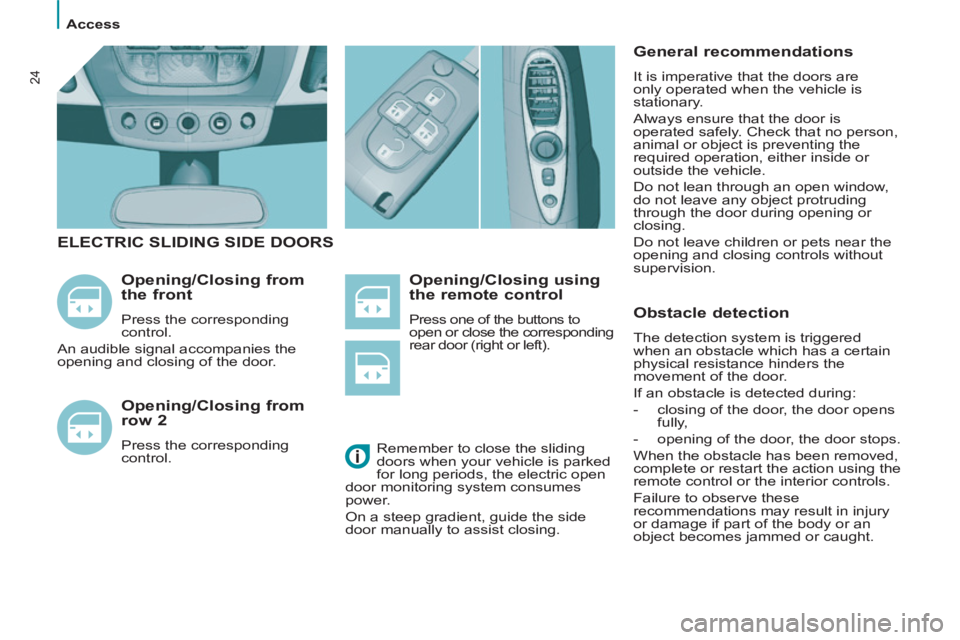

ELECTRIC SLIDING SIDE DOORS


Remember to close the sliding
doors when your vehicle is parked
for long periods, the electric open
door monitoring system consumes
power.
On a steep gradient, guide the side
door manually to assist closing.



Opening/Closing from
row 2
Press the corresponding
control.


General recommendations

It is imperative that the doors are
only operated when the vehicle is
stationary.
Always ensure that the door is
operated safely. Check that no person,
animal or object is preventing the
required operation, either inside or
outside the vehicle.
Do not lean through an open window,
do not leave any object protruding
through the door during opening or
closing.
Do not leave children or pets near the
opening and closing controls without
supervision.


Obstacle detection

The detection system is triggered
when an obstacle which has a certain
physical resistance hinders the
movement of the door.
If an obstacle is detected during:


- closing of the door, the door opens
fully,

- opening of the door, the door stops.
When the obstacle has been removed,
complete or restart the action using the
remote control or the interior controls.
Failure to observe these
recommendations may result in injury
or damage if part of the body or an
object becomes jammed or caught.
