Peugeot Bipper 2011 User Guide

9
FAMILIARISATIO
N
Familiarisation

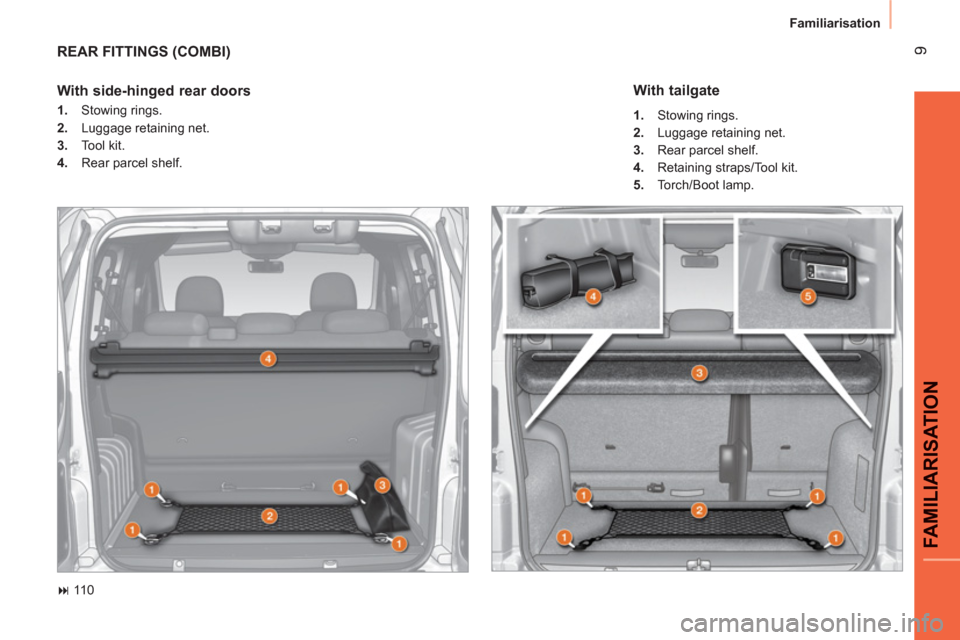

REAR FITTINGS (COMBI)




110


With side-hinged rear doors



1.
Stowing rings.

2.
Luggage retaining net.

3.
Tool kit.

4.
Rear parcel shelf.


With tailgate



1.
Stowing rings.

2.
Luggage retaining net.

3.
Rear parcel shelf.

4.
Retaining straps/Tool kit.

5.
Torch/Boot lamp.

10
Familiarisation

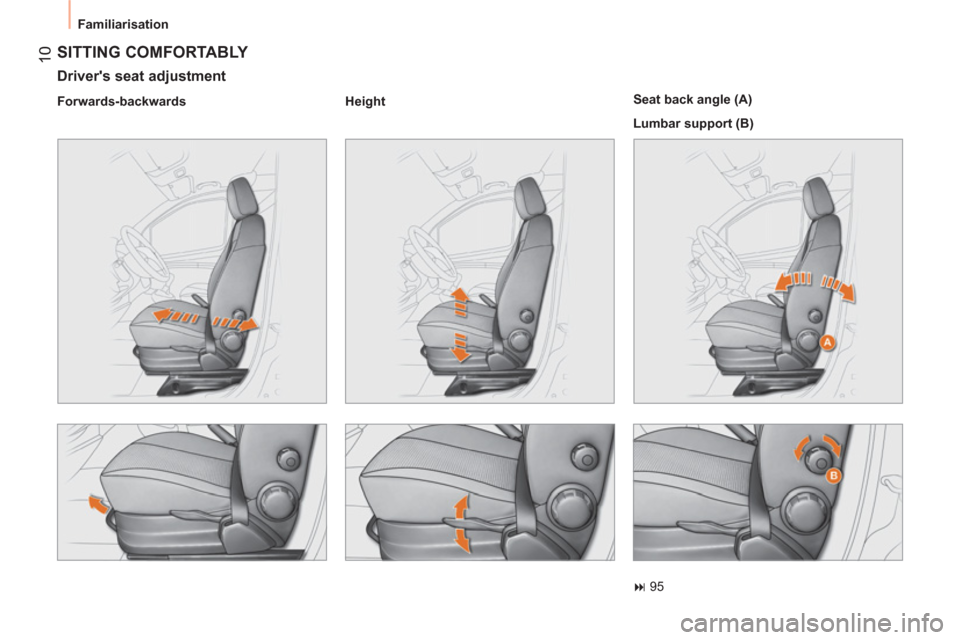

SITTING COMFORTABLY


Driver's seat adjustment


Forwards-backwards
Height


Seat back angle (A)
Lumbar support (B)



95

11
FAMILIARISATIO
N
Familiarisation

Front seat belts



A.
Fastening.



118

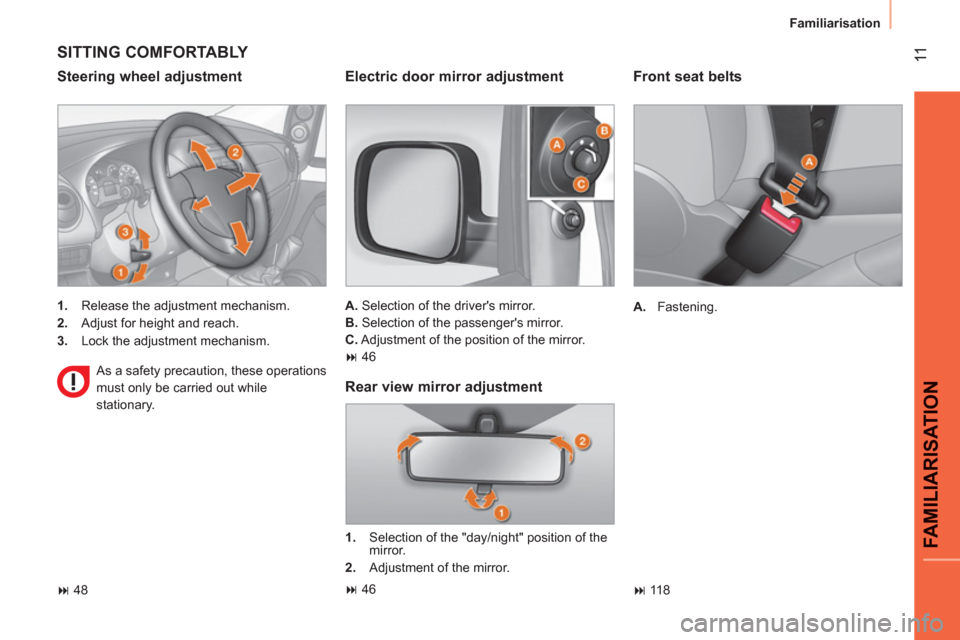

SITTING COMFORTABLY


Steering wheel adjustment



1.
Release the adjustment mechanism.

2.
Adjust for height and reach.

3.
Lock the adjustment mechanism.
As a safety precaution, these operations
must only be carried out while
stationary.



48



Electric door mirror adjustment


A.
Selection of the driver's mirror.

B.
Selection of the passenger's mirror.

C.
Adjustment of the position of the mirror.



46



Rear view mirror adjustment



1.
Selection of the "day/night" position of the
mirror.

2.
Adjustment of the mirror.



46

12
Familiarisation

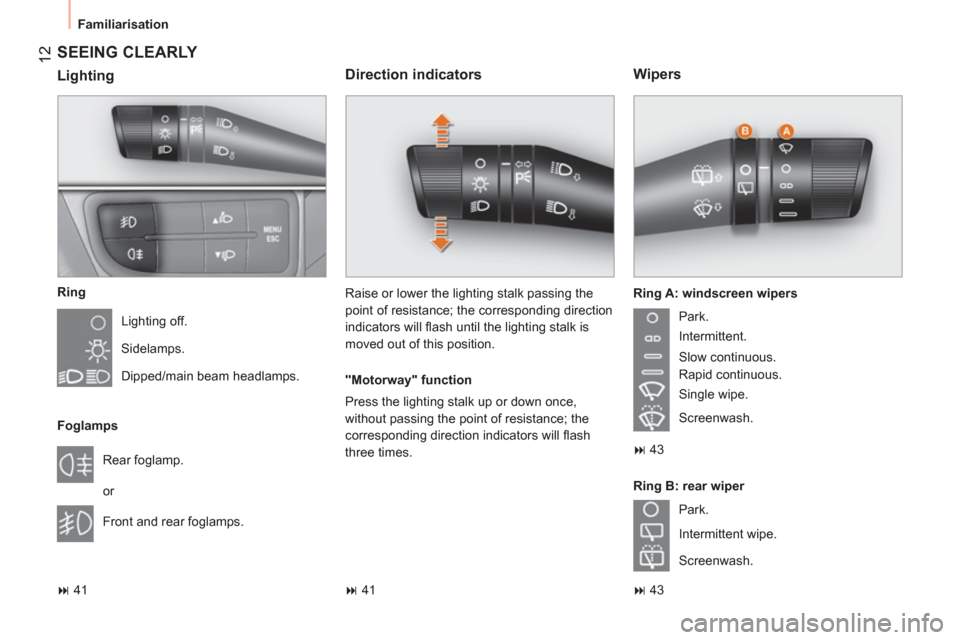

SEEING CLEARLY


Ring
Lighting off.
Sidelamps.
Dipped/main beam headlamps.

Foglamps
Rear foglamp.
or
Front and rear foglamps.



41




Direction indicators


"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance; the
corresponding direction indicators will fl ash
three times.



41




Wipers


Ring A: windscreen wipers



43


Ring B: rear wiper



43

Single wipe.
Intermittent wipe.
Screenwash. Screenwash.
Park.


Lighting

Park.
Intermittent.
Slow continuous.
Rapid continuous. Raise or lower the lighting stalk passing the
point of resistance; the corresponding direction
indicators will fl ash until the lighting stalk is
moved out of this position.

13
FAMILIARISATIO
N
Familiarisation



103

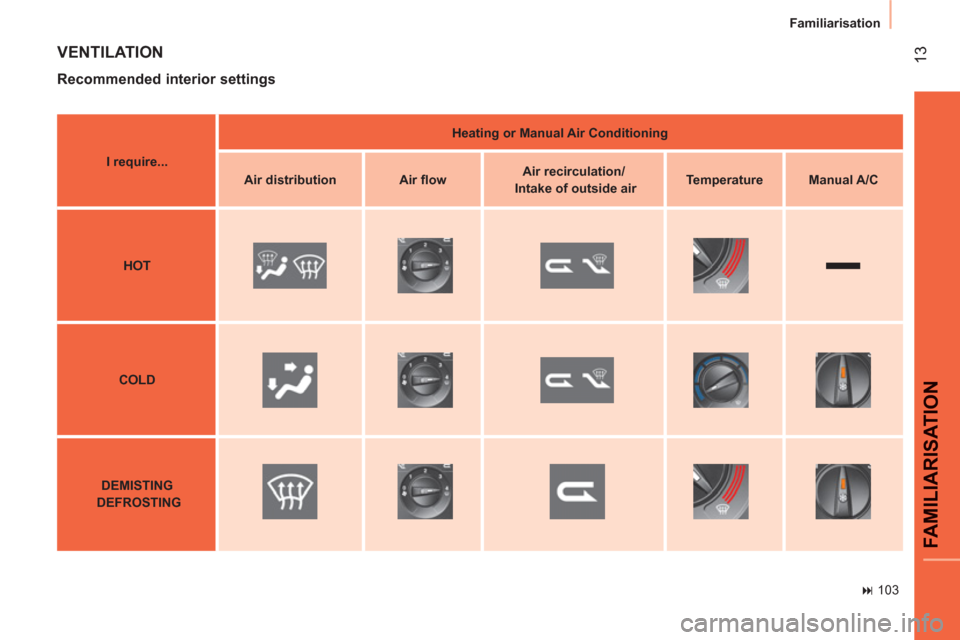

VENTILATION


Recommended interior settings



I require...



Heating or Manual Air Conditioning




Air distribution



Air fl ow



Air recirculation/


Intake of outside air



Temperature



Manual A/C




HOT





COLD





DEMISTING

DEFROSTING

14
Familiarisation

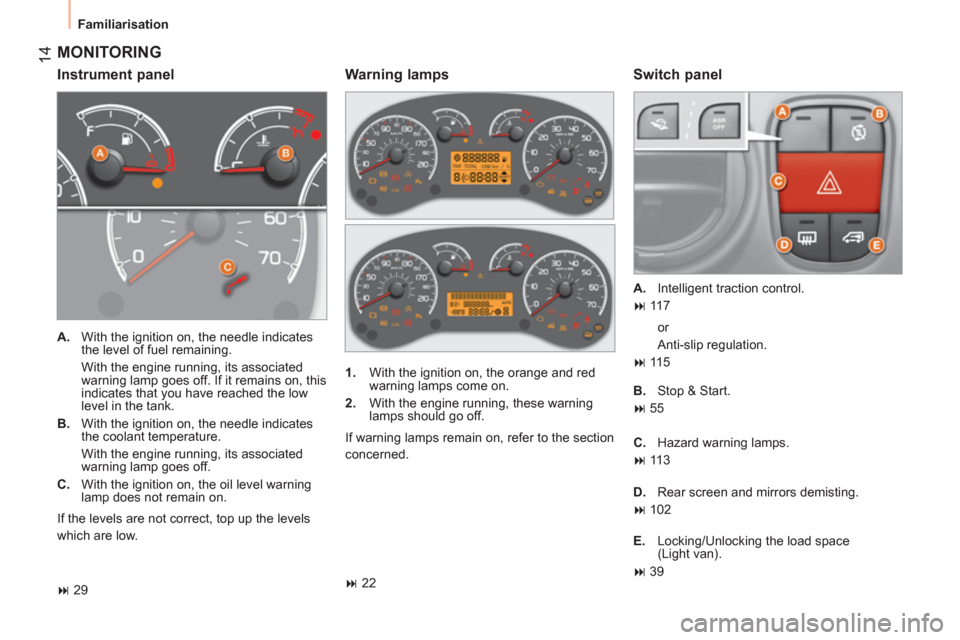

MONITORING


Instrument panel
Switch panel



A.
With the ignition on, the needle indicates
the level of fuel remaining.
With the engine running, its associated
warning lamp goes off. If it remains on, this
indicates that you have reached the low
level in the tank.

B.
With the ignition on, the needle indicates
the coolant temperature.
With the engine running, its associated
warning lamp goes off.

C.
With the ignition on, the oil level warning
lamp does not remain on.
If the levels are not correct, top up the levels
which are low.

A.
Intelligent traction control.


117


1.
With the ignition on, the orange and red
warning lamps come on.

2.
With the engine running, these warning
lamps should go off.
If warning lamps remain on, refer to the section
concerned.

Warning lamps




29
or
Anti-slip regulation.


115

B.
Stop & Start.

55

C.
Hazard warning lamps.


113

D.
Rear screen and mirrors demisting.


102

E.
Locking/Unlocking the load space
(Light van).


39





22

FAMILIARISATIO
N
Familiarisation
PASSENGER SAFETY


Passenger's front airbag

The passenger's front air bag is deactivated by
means of the MENU button, located to the left
of the steering wheel.

Seat belt not fastened



A.
Driver's seat belt not fastened warning
lamp.



118



122



Ladder type vertical partition
(Light van)
A ladder type vertical partition protects the
driver against the risk of load movement.



108


1.
Press the MENU button.

2.
Select "Bag" and confi rm by pressing the
MENU button.

3.
Select "OFF" and confi rm by pressing the
MENU button.

4.
Select "YES" and confi rm by pressing the
MENU button.

16
Familiarisation

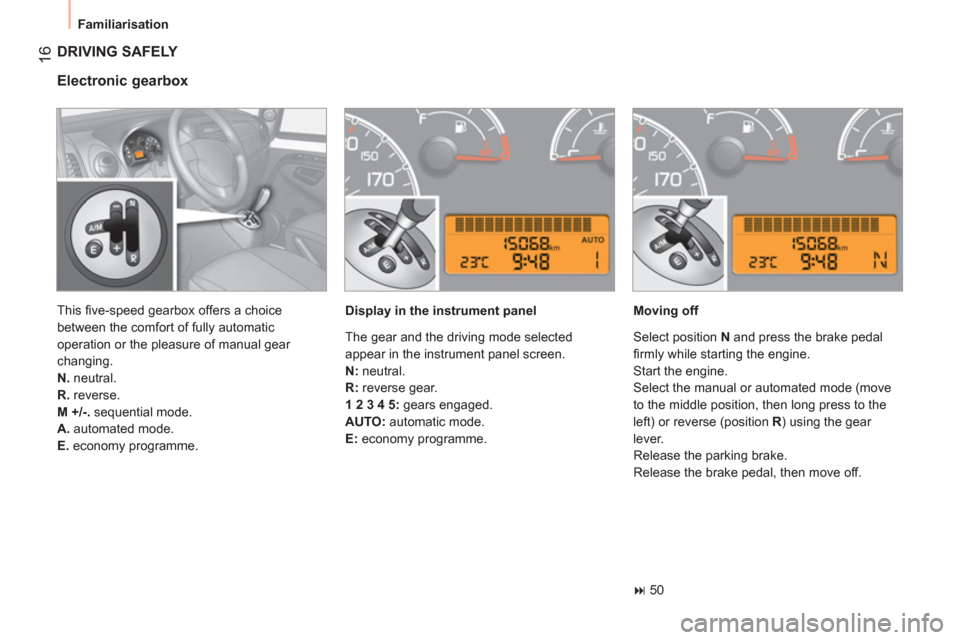

DRIVING SAFELY

Electronic gearbox


Display in the instrument panel
Moving off



50
This fi ve-speed gearbox offers a choice
between the comfort of fully automatic
operation or the pleasure of manual gear
changing.

N.
neutral.

R.
reverse.

M +/-.
sequential mode.

A.
automated mode.

E.
economy programme. The gear and the driving mode selected
appear in the instrument panel screen.

N:
neutral.

R:
reverse gear.

1 2 3 4 5:
gears engaged.

AUTO:
automatic mode.

E:
economy programme. Select position N
and press the brake pedal
fi rmly while starting the engine.
Start the engine.
Select the manual or automated mode (move
to the middle position, then long press to the
left) or reverse (position R
) using the gear
lever.
Release the parking brake.
Release the brake pedal, then move off.

17
FAMILIARISATIO
N
Familiarisation

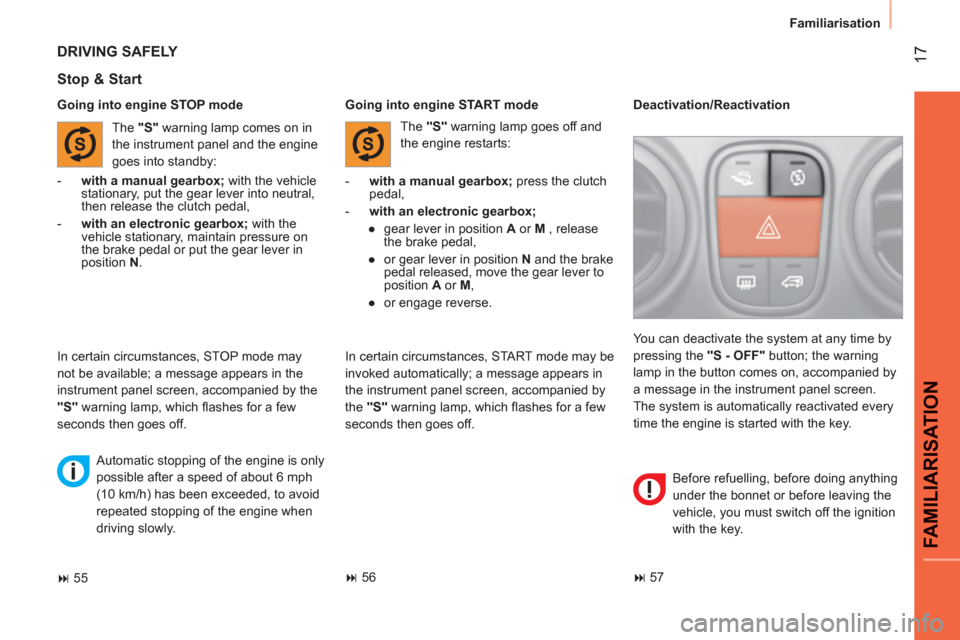

Going into engine STOP mode


Stop & Start



- with a manual gearbox;
press the clutch
pedal,

- with an electronic gearbox;



●
gear lever in position A
or M
, release
the brake pedal,

●
or gear lever in position N
and the brake
pedal released, move the gear lever to
position A
or M
,

●
or engage reverse.

Going into engine START mode

DRIVING SAFELY


Deactivation/Reactivation


- with a manual gearbox;
with the vehicle
stationary, put the gear lever into neutral,
then release the clutch pedal,

- with an electronic gearbox;
with the
vehicle stationary, maintain pressure on
the brake pedal or put the gear lever in
position N
.
You can deactivate the system at any time by
pressing the "S - OFF"
button; the warning
lamp in the button comes on, accompanied by
a message in the instrument panel screen.
The system is automatically reactivated every
time the engine is started with the key. In certain circumstances, START mode may be
invoked automatically; a message appears in
the instrument panel screen, accompanied by
the "S"
warning lamp, which fl ashes for a few
seconds then goes off.
Before refuelling, before doing anything
under the bonnet or before leaving the
vehicle, you must switch off the ignition
with the key. In certain circumstances, STOP mode may
not be available; a message appears in the
instrument panel screen, accompanied by the
"S"
warning lamp, which fl ashes for a few
seconds then goes off.



55



56




57

The "S"
warning lamp comes on in
the instrument panel and the engine
goes into standby: The "S"
warning lamp goes off and
the engine restarts:
Automatic stopping of the engine is only
possible after a speed of about 6 mph
(10 km/h) has been exceeded, to avoid
repeated stopping of the engine when
driving slowly.

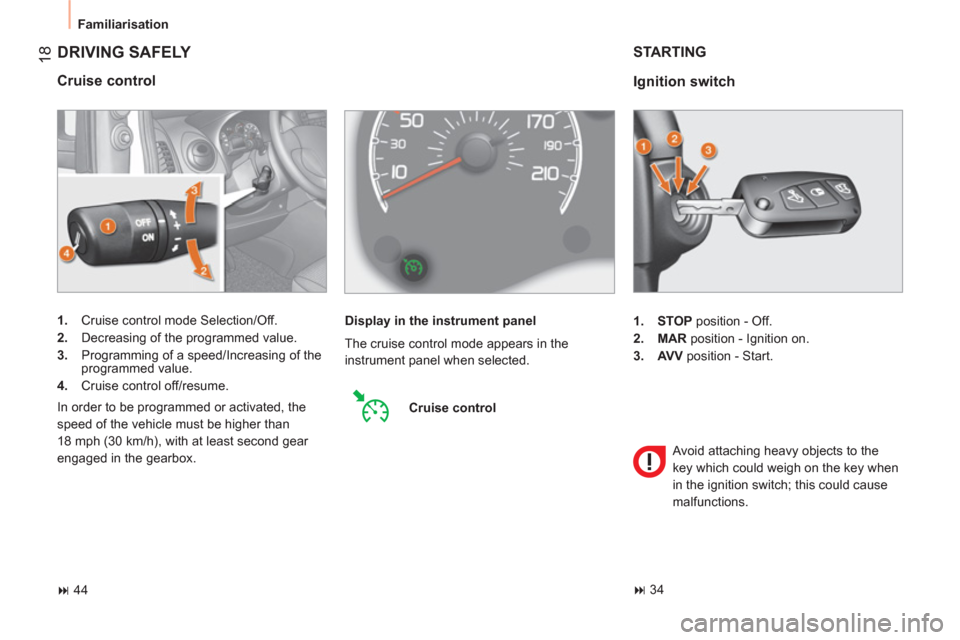

18
Familiarisation

DRIVING SAFELY


Cruise control



1.
Cruise control mode Selection/Off.

2.
Decreasing of the programmed value.

3.
Programming of a speed/Increasing of the
programmed value.

4.
Cruise control off/resume.
In order to be programmed or activated, the
speed of the vehicle must be higher than
18 mph (30 km/h), with at least second gear
engaged in the gearbox.



44


1.
STOP
position - Off.

2.
MAR
position - Ignition on.

3.
AV V
position - Start.


Ignition switch

The cruise control mode appears in the
instrument panel when selected.
Display in the instrument panel

Cruise control



STARTING

Avoid attaching heavy objects to the
key which could weigh on the key when
in the ignition switch; this could cause
malfunctions.



34
