Peugeot Bipper 2011 Service Manual

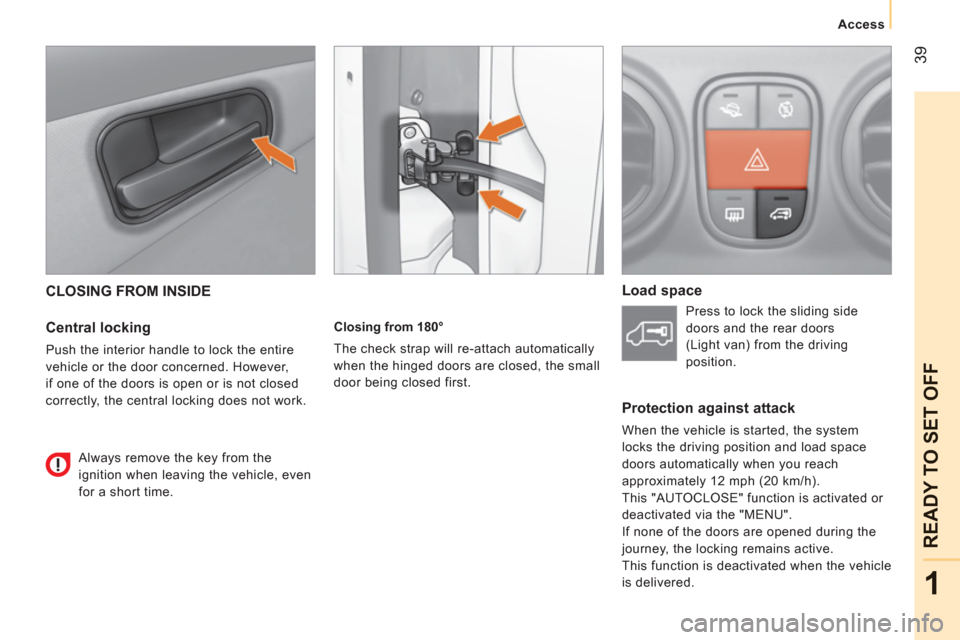

39
1
READY TO SET OFF
Access
CLOSING FROM INSIDE

Central locking

Push the interior handle to lock the entire
vehicle or the door concerned. However,
if one of the doors is open or is not closed
correctly, the central locking does not work.

Always remove the key from the
ignition when leaving the vehicle, even
for a short time.
Closing from 180°
The check strap will re-attach automatically
when the hinged doors are closed, the small
door being closed first.



Load space

Press to lock the sliding side
doors and the rear doors
(Light van) from the driving
position.


Protection against attack

When the vehicle is started, the system
locks the driving position and load space
doors automatically when you reach
approximately 12 mph (20 km/h).
This "AUTOCLOSE" function is activated or
deactivated via the "MENU".
If none of the doors are opened during the
journey, the locking remains active.
This function is deactivated when the vehicle
is delivered.

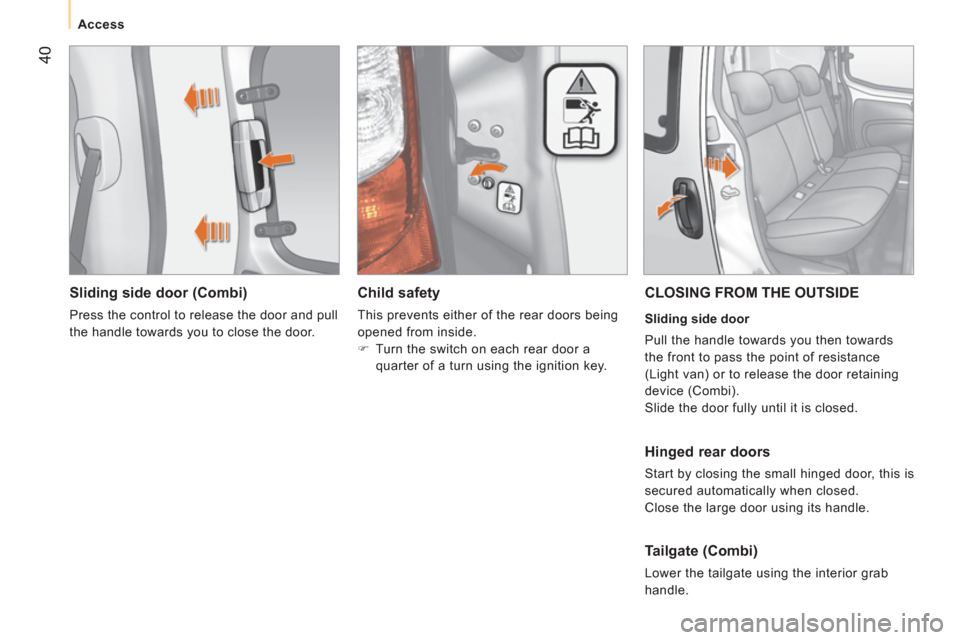

40


Access



Sliding side door (Combi)

Press the control to release the door and pull
the handle towards you to close the door.



Child safety

This prevents either of the rear doors being
opened from inside.


) Turn the switch on each rear door a
quarter of a turn using the ignition key.



CLOSING FROM THE OUTSIDE


Sliding side door
Pull the handle towards you then towards
the front to pass the point of resistance
(Light van) or to release the door retaining
device (Combi).
Slide the door fully until it is closed.


Hinged rear doors

Start by closing the small hinged door, this is
secured automatically when closed.
Close the large door using its handle.


Tailgate (Combi)

Lower the tailgate using the interior grab
handle.

41
1
READY TO SET OFF

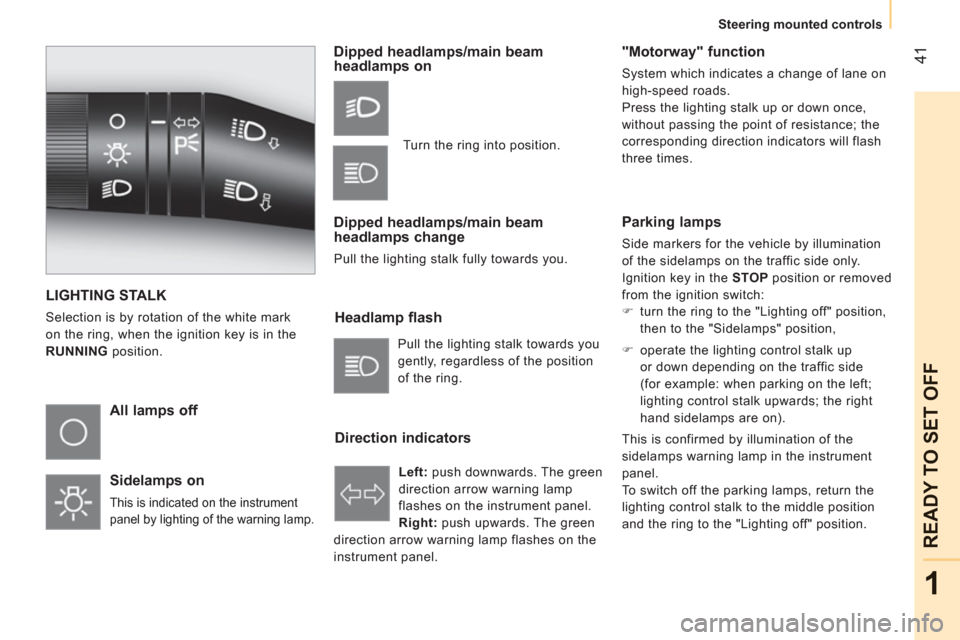

Steering mounted controls
LIGHTING STALK
Selection is by rotation of the white mark
on the ring, when the ignition key is in the
RUNNING position.


All lamps off

Sidelamps on

This is indicated on the instrument
panel by lighting of the warning lamp.


Dipped headlamps/main beam
headlamps on

Dipped headlamps/main beam
headlamps change
Pull the lighting stalk fully towards you.


Headlamp flash

Direction indicators
"Motorway" function

System which indicates a change of lane on
high-speed roads.
Press the lighting stalk up or down once,
without passing the point of resistance; the
corresponding direction indicators will flash
three times.
Pull the lighting stalk towards you
gently, regardless of the position
of the ring.
Left:
push downwards. The green
direction arrow warning lamp
flashes on the instrument panel.

Right: push upwards. The green
direction arrow warning lamp flashes on the
instrument panel. Turn the ring into position.



















Parking lamps

Side markers for the vehicle by illumination
of the sidelamps on the traffic side only.
Ignition key in the STOP
position or removed
from the ignition switch:


)
turn the ring to the "Lighting off" position,
then to the "Sidelamps" position,

)
operate the lighting control stalk up
or down depending on the traffic side
(for example: when parking on the left;
lighting control stalk upwards; the right
hand sidelamps are on).
This is confirmed by illumination of the
sidelamps warning lamp in the instrument
panel.
To switch off the parking lamps, return the
lighting control stalk to the middle position
and the ring to the "Lighting off" position.

42

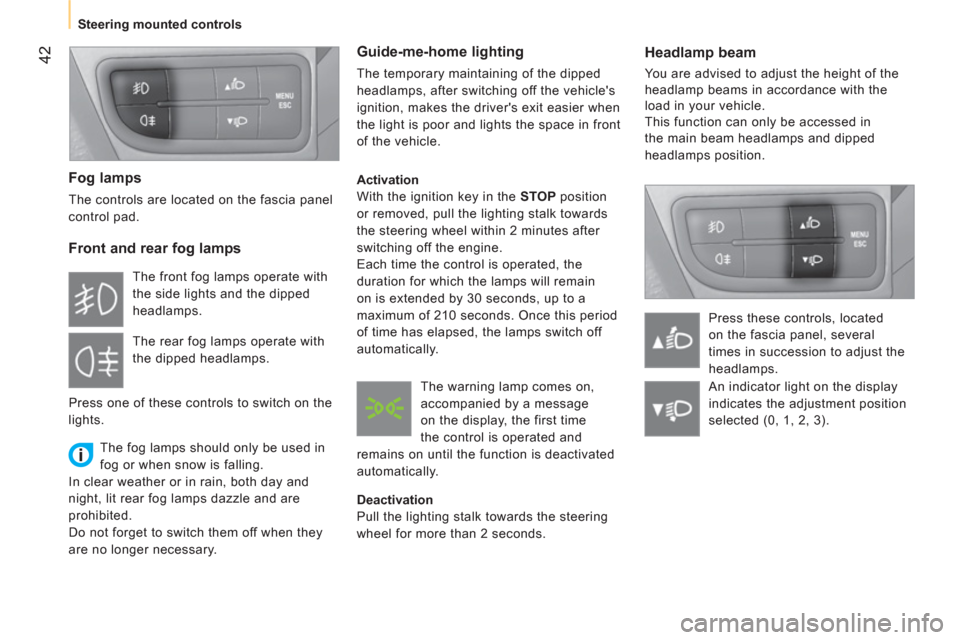

Steering mounted controls



Headlamp beam

You are advised to adjust the height of the
headlamp beams in accordance with the
load in your vehicle.
This function can only be accessed in
the main beam headlamps and dipped
headlamps position.
Press these controls, located
on the fascia panel, several
times in succession to adjust the
headlamps.

Fog lamps

The controls are located on the fascia panel
control pad.


Front and rear fog lamps

The fog lamps should only be used in
fog or when snow is falling.
In clear weather or in rain, both day and
night, lit rear fog lamps dazzle and are
prohibited.
Do not forget to switch them off when they
are no longer necessary.


Guide-me-home lighting

The temporary maintaining of the dipped
headlamps, after switching off the vehicle's
ignition, makes the driver's exit easier when
the light is poor and lights the space in front
of the vehicle.

Activation
With the ignition key in the STOP position
or removed, pull the lighting stalk towards
the steering wheel within 2 minutes after
switching off the engine.
Each time the control is operated, the
duration for which the lamps will remain
on is extended by 30 seconds, up to a
maximum of 210 seconds. Once this period
of time has elapsed, the lamps switch off
automatically.

Deactivation
Pull the lighting stalk towards the steering
wheel for more than 2 seconds. The front fog lamps operate with
the side lights and the dipped
headlamps.
The rear fog lamps operate with
the dipped headlamps.
Press one of these controls to switch on the
lights. The warning lamp comes on,
accompanied by a message
on the display, the first time
the control is operated and
remains on until the function is deactivated
automatically.
An indicator light on the display
indicates the adjustment position
selected (0, 1, 2, 3).

43
1
READY TO SET OFF

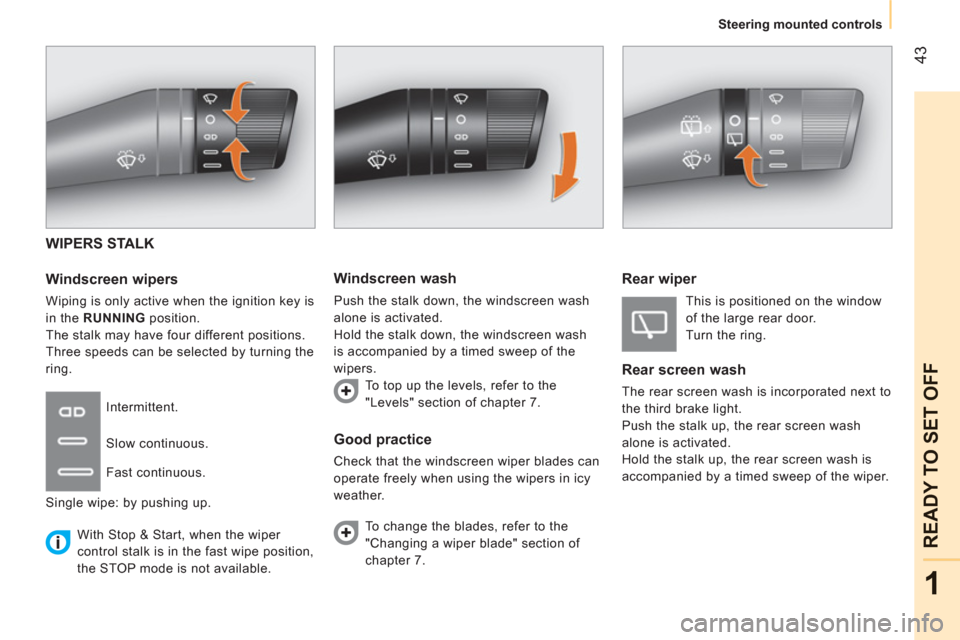

Steering mounted controls
WIPERS STALK

Windscreen wipers

Wiping is only active when the ignition key is
in the RUNNING position.
The stalk may have four different positions.
Three speeds can be selected by turning the
ring.

To change the blades, refer to the
"Changing a wiper blade" section of
chapter 7.


Good practice

Check that the windscreen wiper blades can
operate freely when using the wipers in icy
weather. Intermittent.
Slow continuous.
Fast continuous.
Single wipe: by pushing up.


Windscreen wash

Push the stalk down, the windscreen wash
alone is activated.
Hold the stalk down, the windscreen wash
is accompanied by a timed sweep of the
wipers.
To top up the levels, refer to the
"Levels" section of chapter 7.


Rear wiper

This is positioned on the window
of the large rear door.
Turn the ring.


Rear screen wash

The rear screen wash is incorporated next to
the third brake light.
Push the stalk up, the rear screen wash
alone is activated.
Hold the stalk up, the rear screen wash is
accompanied by a timed sweep of the wiper.







With Stop & Start, when the wiper
control stalk is in the fast wipe position,
the STOP mode is not available.

44

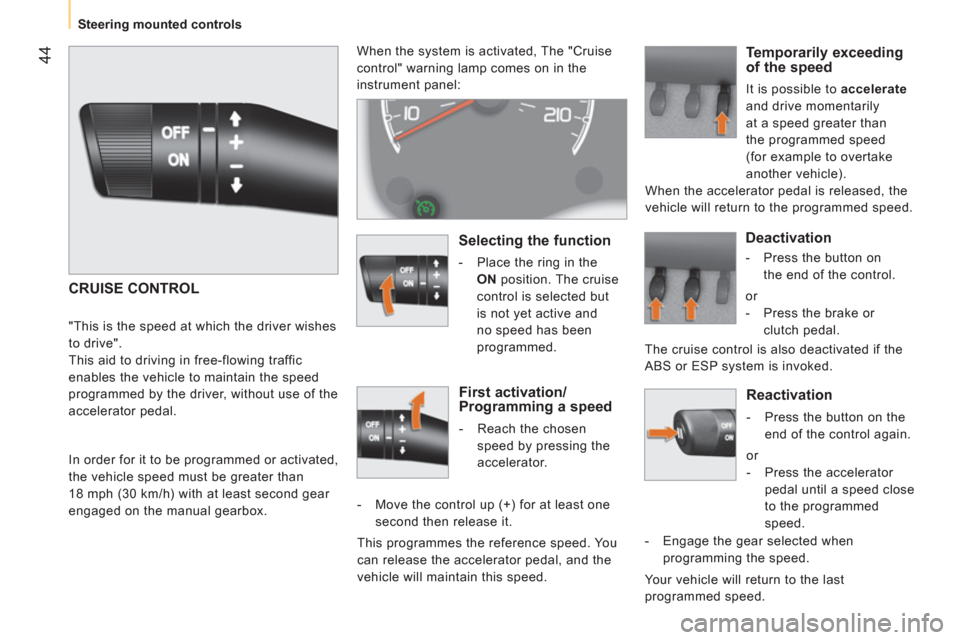

Steering mounted controls



Reactivation



- Press the button on the
end of the control again.
or


- Press the accelerator
pedal until a speed close
to the programmed
speed.

- Engage the gear selected when
programming the speed.
Your vehicle will return to the last
programmed speed. When the system is activated, The "Cruise
control" warning lamp comes on in the
instrument panel:
CRUISE CONTROL

"This is the speed at which the driver wishes
to drive".
This aid to driving in free-flowing traffic
enables the vehicle to maintain the speed
programmed by the driver, without use of the
accelerator pedal.
In order for it to be programmed or activated,
the vehicle speed must be greater than
18 mph (30 km/h) with at least second gear
engaged on the manual gearbox.

Selecting the function



- Place the ring in the
ON
position. The cruise
control is selected but
is not yet active and
no speed has been
programmed.



First activation/
Programming a speed


- Reach the chosen
speed by pressing the
accelerator.

- Move the control up (+) for at least one
second then release it.
This programmes the reference speed. You
can release the accelerator pedal, and the
vehicle will maintain this speed.


Temporarily exceeding
of the speed

It is possible to accelerate
and drive momentarily
at a speed greater than
the programmed speed
(for example to overtake
another vehicle).
When the accelerator pedal is released, the
vehicle will return to the programmed speed.


Deactivation



- Press the button on
the end of the control.
or


- Press the brake or
clutch pedal.
The cruise control is also deactivated if the
ABS or ESP system is invoked.

45
1
READY TO SET OFF

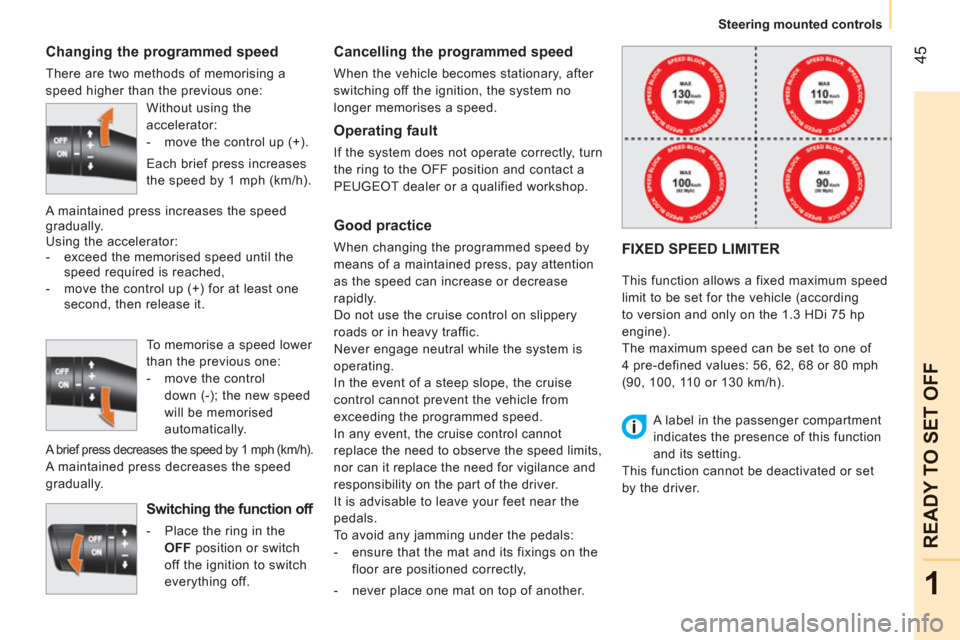

Steering mounted controls

Changing the programmed speed

There are two methods of memorising a
speed higher than the previous one:

Switching the function off



- Place the ring in the
OFF
position or switch
off the ignition to switch
everything off.



Cancelling the programmed speed

When the vehicle becomes stationary, after
switching off the ignition, the system no
longer memorises a speed.


Operating fault

If the system does not operate correctly, turn
the ring to the OFF position and contact a
PEUGEOT dealer or a qualified workshop.


Good practice

When changing the programmed speed by
means of a maintained press, pay attention
as the speed can increase or decrease
rapidly.
Do not use the cruise control on slippery
roads or in heavy traffic.
Never engage neutral while the system is
operating.
In the event of a steep slope, the cruise
control cannot prevent the vehicle from
exceeding the programmed speed.
In any event, the cruise control cannot
replace the need to observe the speed limits,
nor can it replace the need for vigilance and
responsibility on the part of the driver.
It is advisable to leave your feet near the
pedals.
To avoid any jamming under the pedals:


- ensure that the mat and its fixings on the
floor are positioned correctly,

- never place one mat on top of another.
Without using the
accelerator:


- move the control up (+).
Each brief press increases
the speed by 1 mph (km/h).

- move the control up (+) for at least one
second, then release it.
To memorise a speed lower
than the previous one:


- move the control
down (-); the new speed
will be memorised
automatically.

A brief press decreases the speed by 1 mph (km/h).

A maintained press decreases the speed
gradually. A maintained press increases the speed
gradually.
Using the accelerator:


- exceed the memorised speed until the
speed required is reached,
FIXED SPEED LIMITER
This function allows a fixed maximum speed
limit to be set for the vehicle (according
to version and only on the 1.3 HDi 75 hp
engine).
The maximum speed can be set to one of
4 pre-defined values: 56, 62, 68 or 80 mph
(90, 100, 110 or 130 km/h).

A label in the passenger compartment
indicates the presence of this function
and its setting.
This function cannot be deactivated or set
by the driver.

46

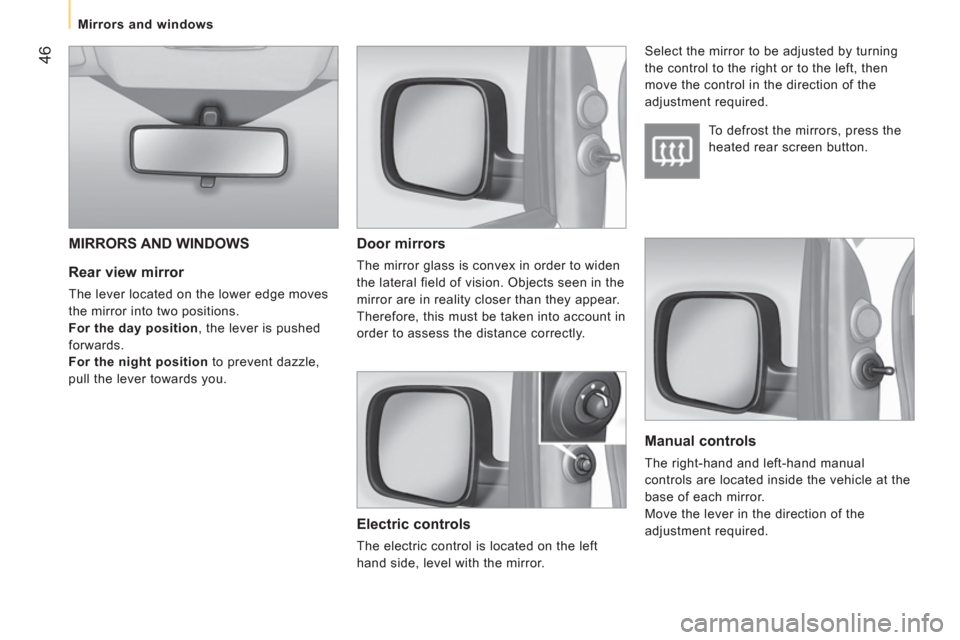

Mirrors and windows



Rear view mirror

The lever located on the lower edge moves
the mirror into two positions.

For the day position
, the lever is pushed
forwards.

For the night position
to prevent dazzle,
pull the lever towards you.


Door mirrors

The mirror glass is convex in order to widen
the lateral field of vision. Objects seen in the
mirror are in reality closer than they appear.
Therefore, this must be taken into account in
order to assess the distance correctly.


Electric controls

The electric control is located on the left
hand side, level with the mirror.
MIRRORS AND WINDOWS

To defrost the mirrors, press the
heated rear screen button. Select the mirror to be adjusted by turning
the control to the right or to the left, then
move the control in the direction of the
adjustment required.

Manual controls

The right-hand and left-hand manual
controls are located inside the vehicle at the
base of each mirror.
Move the lever in the direction of the
adjustment required.

47
1
READY TO SET OFF


Mirrors and windows

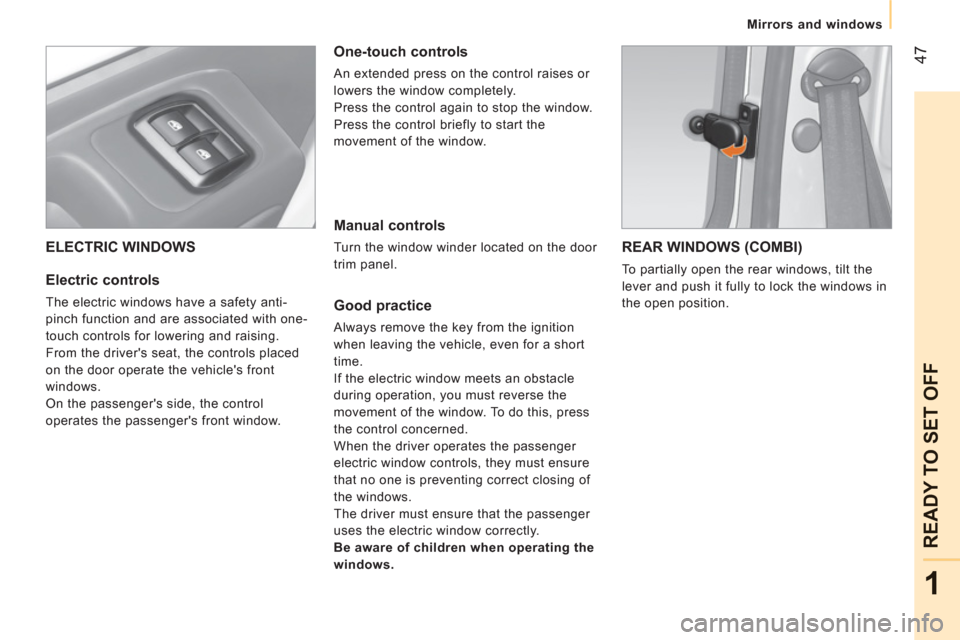

ELECTRIC WINDOWS

Electric controls

The electric windows have a safety anti-
pinch function and are associated with one-
touch controls for lowering and raising.
From the driver's seat, the controls placed
on the door operate the vehicle's front
windows.
On the passenger's side, the control
operates the passenger's front window.


One-touch controls

An extended press on the control raises or
lowers the window completely.
Press the control again to stop the window.
Press the control briefly to start the
movement of the window.


Manual controls

Turn the window winder located on the door
trim panel.


Good practice

Always remove the key from the ignition
when leaving the vehicle, even for a short
time.
If the electric window meets an obstacle
during operation, you must reverse the
movement of the window. To do this, press
the control concerned.
When the driver operates the passenger
electric window controls, they must ensure
that no one is preventing correct closing of
the windows.
The driver must ensure that the passenger
uses the electric window correctly.

Be aware of children when operating the
windows.

REAR WINDOWS (COMBI)

To partially open the rear windows, tilt the
lever and push it fully to lock the windows in
the open position.

48

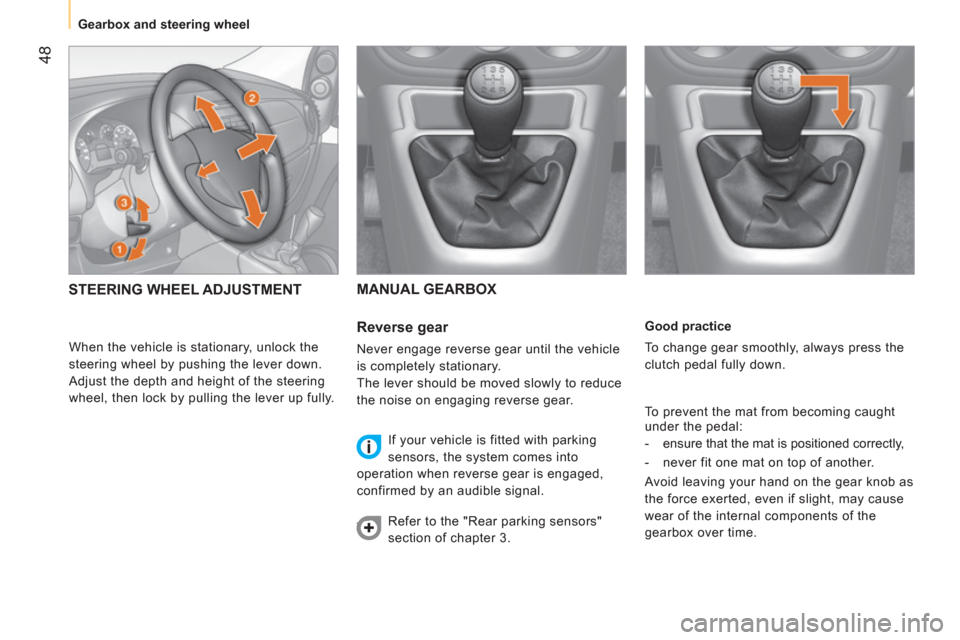

Gearbox and steering wheel


Good practice
To change gear smoothly, always press the
clutch pedal fully down.
To prevent the mat from becoming caught
under the pedal:


- ensure that the mat is positioned correctly,

- never fit one mat on top of another.

Avoid leaving your hand on the gear knob as
the force exerted, even if slight, may cause
wear of the internal components of the
gearbox over time.

MANUAL GEARBOX

Reverse gear

Never engage reverse gear until the vehicle
is completely stationary.
The lever should be moved slowly to reduce
the noise on engaging reverse gear.
If your vehicle is fitted with parking
sensors, the system comes into
operation when reverse gear is engaged,
confirmed by an audible signal.
Refer to the "Rear parking sensors"
section of chapter 3.
STEERING WHEEL ADJUSTMENT


When the vehicle is stationary, unlock the
steering wheel by pushing the lever down.
Adjust the depth and height of the steering
wheel, then lock by pulling the lever up fully.
