Peugeot Bipper 2011 Owner's Manual - RHD (UK, Australia)

This new vehicle has been designed to satisfy
all your requirements in terms of practicality,
comfort, safety and aesthetics. In order to get
the most out of your vehicle, we suggest that
you take a tour with the "Handbook" in front of
you. The handbook presents the operation of
the equipment available on board in detail.

PEUGEOT thanks you for your confidence and
wishes you very happy motoring.
Your vehicle is fitted with only some of the
equipment described in this document,
depending on its trim level, version and the
specification for the country in which it was
sold.

Key

directs you to additional information.
indicates important information relating to the use of a system.
alerts you to the safety of individuals and the use of vehicle systems.

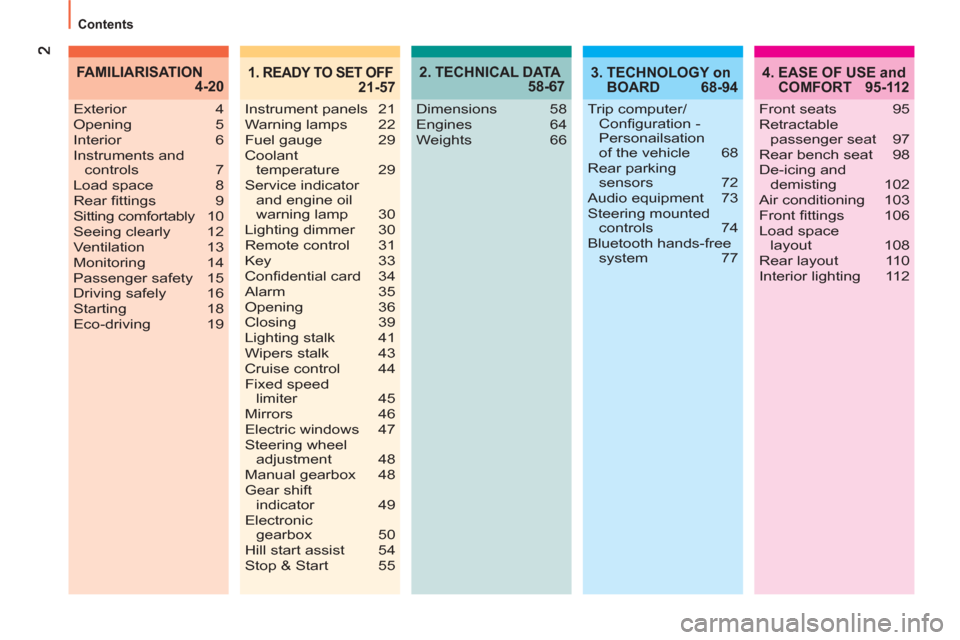

Contents
2. TECHNICAL DATA
58-674. EASE OF USE and
COMFORT 95-112
Dimensions 58
Engines 64
Weights 66 Exterior 4
Opening 5
Interior 6
Instruments and
controls 7
Load space 8
Rear fi ttings 9
Sitting comfortably 10
Seeing clearly 12
Ventilation 13
Monitoring 14
Passenger safety 15
Driving safely 16
Starting 18
Eco-driving 19
FAMILIARISATION
4-20
Front seats 95
Retractable
passenger seat 97
Rear bench seat 98
De-icing and
demisting 102
Air conditioning 103
Front fi ttings 106
Load space
layout 108
Rear layout 110
Interior lighting 112
3. TECHNOLOGY on
BOARD 68-94
Trip computer/
Confi guration -
Personailsation
of the vehicle 68
Rear parking
sensors 72
Audio equipment 73
Steering mounted
controls 74
Bluetooth hands-free
system 77
1. READY TO SET OFF 21-57
Instrument panels 21
Warning lamps 22
Fuel gauge 29
Coolant
temperature 29
Service indicator
and engine oil
warning lamp 30
Lighting dimmer 30
Remote control 31
Key 33
Confi dential card 34
Alarm 35
Opening 36
Closing 39
Lighting stalk 41
Wipers stalk 43
Cruise control 44
Fixed speed
limiter 45
Mirrors 46
Electric windows 47
Steering wheel
adjustment 48
Manual gearbox 48
Gear shift
indicator 49
Electronic
gearbox 50
Hill start assist 54
Stop & Start 55

CONTENT
S

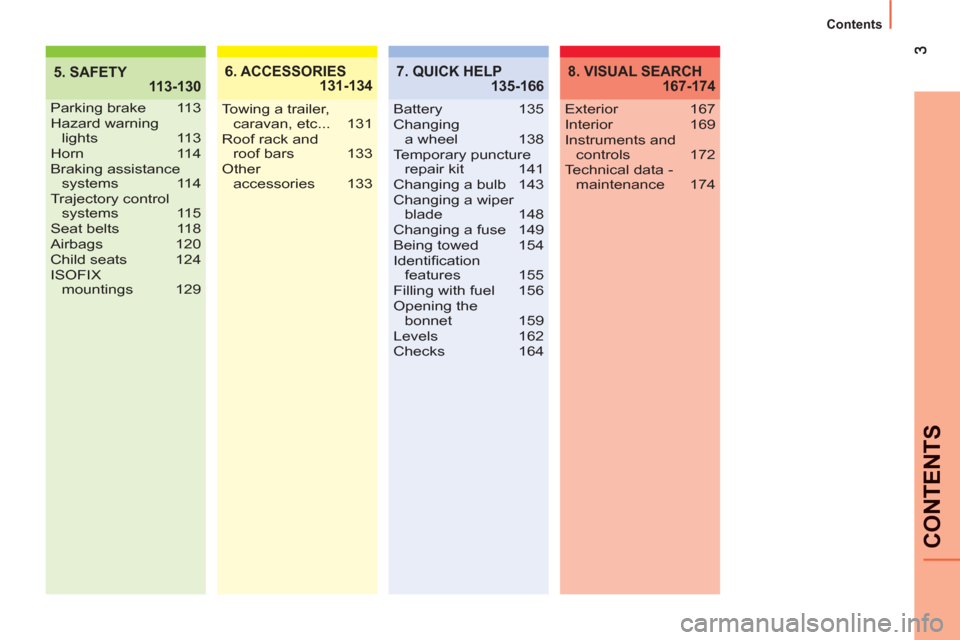

Contents
5. SAFETY
113-1306. ACCESSORIES
131-134
Parking brake 113
Hazard warning
lights 113
Horn 114
Braking assistance
systems 114
Trajectory control
systems 115
Seat belts 118
Airbags 120
Child seats 124
ISOFIX
mountings 129Towing a trailer,
caravan, etc... 131
Roof rack and
roof bars 133
Other
accessories 133
7. QUICK HELP
135-166
Battery 135
Changing
a wheel 138
Temporary puncture
repair kit 141
Changing a bulb 143
Changing a wiper
blade 148
Changing a fuse 149
Being towed 154
Identifi cation
features 155
Filling with fuel 156
Opening the
bonnet 159
Levels 162
Checks 164
8. VISUAL SEARCH
167-174
Exterior 167
Interior 169
Instruments and
controls 172
Technical data -
maintenance 174

4
Familiarisation

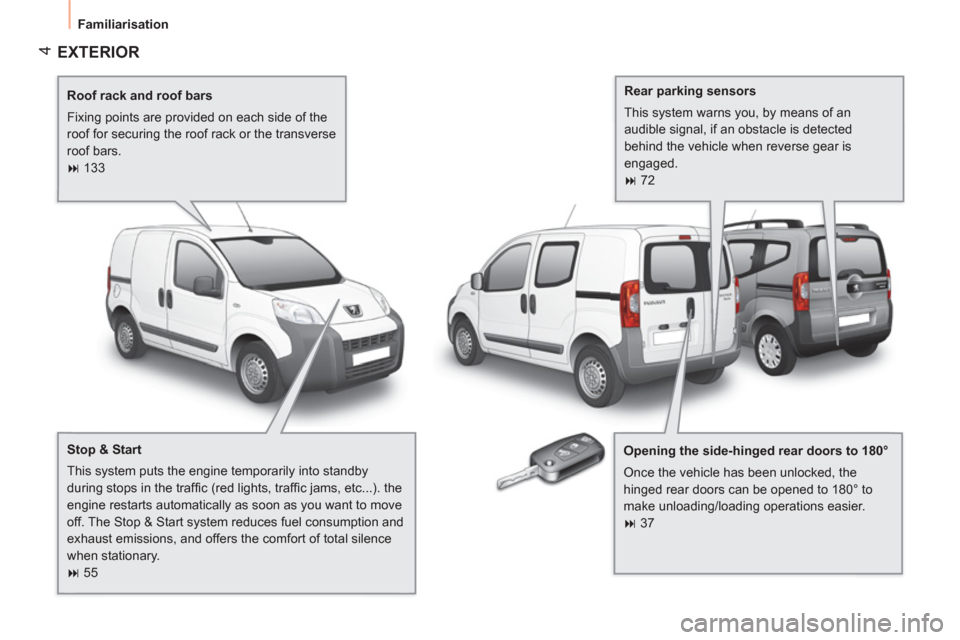

EXTERIOR


Roof rack and roof bars
Fixing points are provided on each side of the
roof for securing the roof rack or the transverse
roof bars.



133


Opening the side-hinged rear doors to 180°
Once the vehicle has been unlocked, the
hinged rear doors can be opened to 180° to
make unloading/loading operations easier.



37

Rear parking sensors
This system warns you, by means of an
audible signal, if an obstacle is detected
behind the vehicle when reverse gear is
engaged.



72



Stop & Start
This system puts the engine temporarily into standby
during stops in the traffi c (red lights, traffi c jams, etc...). the
engine restarts automatically as soon as you want to move
off. The Stop & Start system reduces fuel consumption and
exhaust emissions, and offers the comfort of total silence
when stationary.



55

5
FAMILIARISATIO
N
Familiarisation

OPENING


Remote control key



A.
Unfolding/Folding the key.

B.
Unlocking the front doors only (Light van)
or all of the doors (Combi)
(two fl ashes of the direction indicators).

C.
Central locking the vehicle
(one press; one fl ash of the direction
indicators).
or
Deadlocking the vehicle
(two consecutive presses; one fl ash of the
direction indicators).

D.
Unlocking of the load space (Light van) or
of the hinged rear doors or tailgate only
(Combi).
If a door is open or has not been closed
properly, the failed locking is indicated by three
fl ashes of the direction indicators.



31



Fuel tank



1.
Opening the fuel fi ller fl ap.

2.
Opening and hooking the fuel fi ller cap.
Capacity of the tank: approximately 45 litres.



156



Opening the rear doors to 180°

Press the catch while opening the side-hinged
door.



37



Opening/Closing the windows with the
remote control
Press button B for more than 3 seconds to
start opening the windows. Hold the button
down until the desired position is reached, then
release the button, the windows stop.
Press button C for more than 3 seconds to
start closing the windows. Hold the button
down until the desired position is reached, then
release the button, the windows stop.
These operations can also be carried out by
inserting and turning the key in the front door
lock barrel.



32

6
Familiarisation

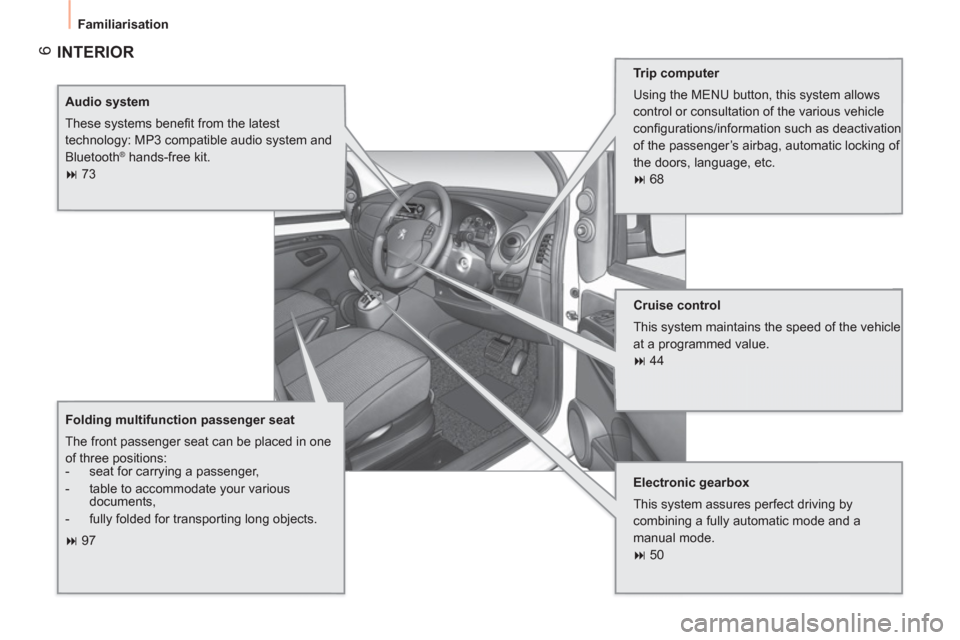

INTERIOR


Trip computer
Using the MENU button, this system allows
control or consultation of the various vehicle
confi gurations/information such as deactivation
of the passenger’s airbag, automatic locking of
the doors, language, etc.



68


Folding multifunction passenger seat
The front passenger seat can be placed in one
of three positions:


- seat for carrying a passenger,

- table to accommodate your various
documents,

- fully folded for transporting long objects.



97

Audio system
These systems benefi t from the latest
technology: MP3 compatible audio system and
Bluetooth
® hands-free kit.



73



Cruise control
This system maintains the speed of the vehicle
at a programmed value.



44


Electronic gearbox
This system assures perfect driving by
combining a fully automatic mode and a
manual mode.



50

7
FAMILIARISATIO
N
Familiarisation

INSTRUMENTS AND CONTROLS



1.
Steering wheel adjustment control.

2.
Lighting and direction indicator control
stalk.

3.
Instrument panel.

4.
Steering mounted audio controls.
Bluetooth hands-free system.

5.
Driver’s airbag.
Horn.

6.
Cruise control switches.

7.
Gear lever.

8.
Parking brake.

9.
Bonnet release.

10.
Door mirror controls.

11 .
Fusebox.

12.
Manual headlamp height adjustment.

13.
Side adjustable air vent.

14.
Front side window demisting vent.

15.
Electric window controls.

16.
Windscreen demisting vent.

17.
Wiper/screenwash/trip computer control
stalk.

18.
Steering lock and ignition.

19.
Central adjustable air vents.

20.
Passenger’s airbag.

21.
MENU button.

22.
Glove box.

23.
12 V accessory socket.

24.
Cigarette lighter.

25.
Ashtray.

26.
Heating/air conditioning controls.

27.
Audio system.

8
Familiarisation

LOAD SPACE (LIGHT VAN)



1.
Stowing rings.

2.
Storage tray.

3.
Torch.

4.
Partition.

5.
Spare wheel.



108 It is advisable to immobilise the load by
fi xing it securely using the stowing rings 1
on the fl oor.
