headlamp Peugeot Bipper 2014 User Guide

151
7
QUICK HELP

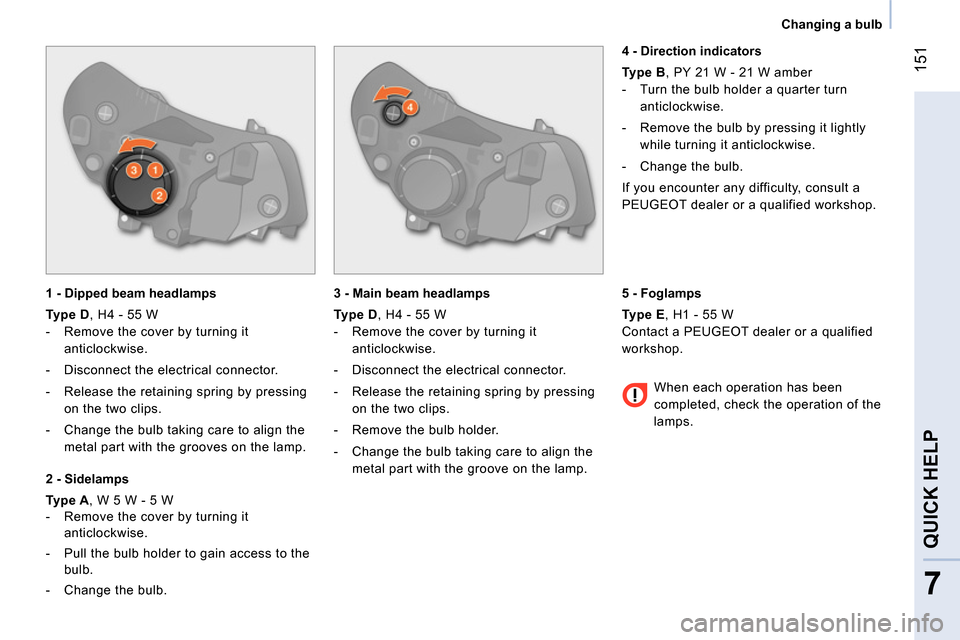

Changing a bulb


1 - Dipped beam headlamps

Type D
, H4 - 55 W


- Remove the cover by turning it
anticlockwise.

- Disconnect the electrical connector.

- Release the retaining spring by pressing
on the two clips.

- Change the bulb taking care to align the
metal part with the grooves on the lamp.


2 - Sidelamps

Type A
, W 5 W - 5 W


- Remove the cover by turning it
anticlockwise.

- Pull the bulb holder to gain access to the
bulb.

- Change the bulb.

3 - Main beam headlamps

Type D
, H4 - 55 W


- Remove the cover by turning it
anticlockwise.

- Disconnect the electrical connector.

- Release the retaining spring by pressing
on the two clips.

- Remove the bulb holder.

- Change the bulb taking care to align the
metal part with the groove on the lamp.

4 - Direction indicators

Type B
, PY 21 W - 21 W amber


- Turn the bulb holder a quarter turn
anticlockwise.

- Remove the bulb by pressing it lightly
while turning it anticlockwise.

- Change the bulb.
If you encounter any difficulty, consult a
PEUGEOT dealer or a qualified workshop.

When each operation has been
completed, check the operation of the
lamps.

5 - Foglamps

Type E
, H1 - 55 W
Contact a PEUGEOT dealer or a qualified
workshop.

156



Changing a fuse


CHANGING A FUSE

The two fuseboxes are placed on the
dashboard on the driver’s side and under
the bonnet.

Removing and fitting a fuse

Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fusebox.
Always use the special tweezer to extract
the fuse from its housing and check the
condition of its filament.

Always replace a faulty fuse with a fuse
of the same rating.
If a fuse fails again soon after replacement,
have the electrical system of your vehicle
checked by a PEUGEOT dealer or a
qualified workshop.
Access to fuses in the dashboard


- To gain access to the dashboard fuses,
remove the 2 screws using the ignition
key and tilt the housing.
PEUGEOT will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
PEUGEOT dealers and not installed in
accordance with its instructions, in particular
when the combined consumption of all of
the additional equipment connected exceeds
10 milliamperes.

A.
Good.

B.
Failed.

C.
Tweezer.


Access to fuses in the engine
compartment


- For access to the fuses in the engine
compartment, remove the left hand front
headlamp connector, then unclip the
fusebox cover.

157
7
QUICK HELP



Changing a fuse

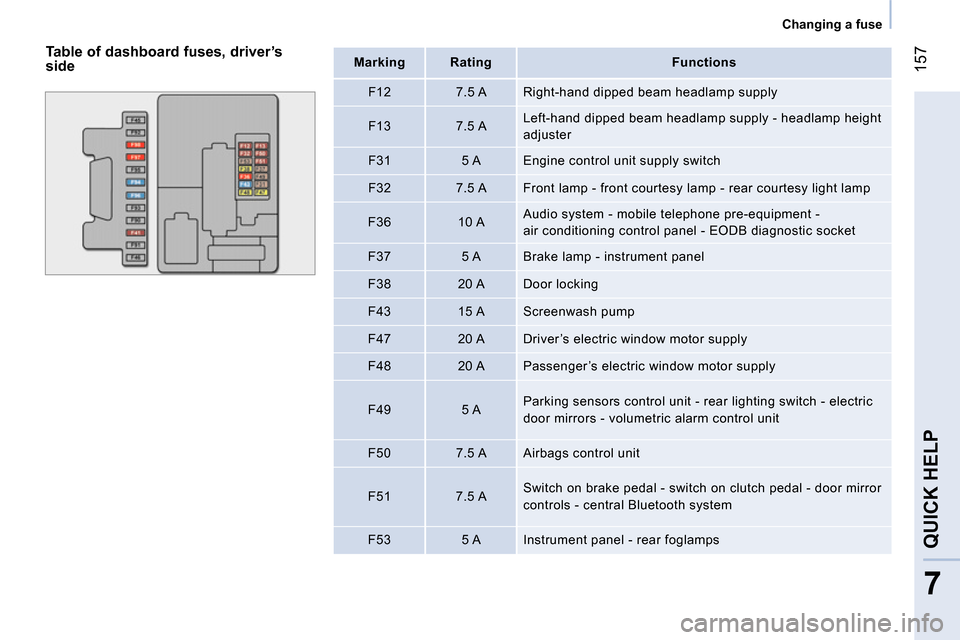

Table of dashboard fuses, driver’s
side

Mark
ing


Rating


Functions


F12
7.5 A Right-hand dipped beam headlamp supply

F13
7.5 A Left-hand dipped beam headlamp supply - headlamp height
adjuster

F31
5 A Engine control unit supply switch

F32
7.5 A Front lamp - front courtesy lamp - rear courtesy light lamp

F36
10 A Audio system - mobile telephone pre-equipment -
air conditioning control panel - EODB diagnostic socket

F37
5 A Brake lamp - instrument panel

F38
20 A Door locking

F43
15 A Screenwash pump

F47
20 A Driver’s electric window motor supply

F48
20 A Passenger’s electric window motor supply

F49
5 A Parking sensors control unit - rear lighting switch - electric
door mirrors - volumetric alarm control unit

F50
7.5 A Airbags control unit

F51
7.5 A Switch on brake pedal - switch on clutch pedal - door mirror
controls - central Bluetooth system

F53
5 A Instrument panel - rear foglamps

159
7
QUICK HELP



Changing a fuse



Mark
ing


Rating


Functions


F01
60 A Control unit

F02
40 A Passenger compartment fan.

F03
20 A Starter motor supply

F04
40 A ABS hydraulic block pump supply

F06
30 A Single speed cooling fan control

F07
40 A High speed cooling fan control

F08
30 A Air conditioning compressor

F09
15 A Towbar harness.

F10
10 A Horn

F11
10 A Engine management secondary load supply

F14
15 A Main beam headlamps

F15
15 A 12 V accessory socket.

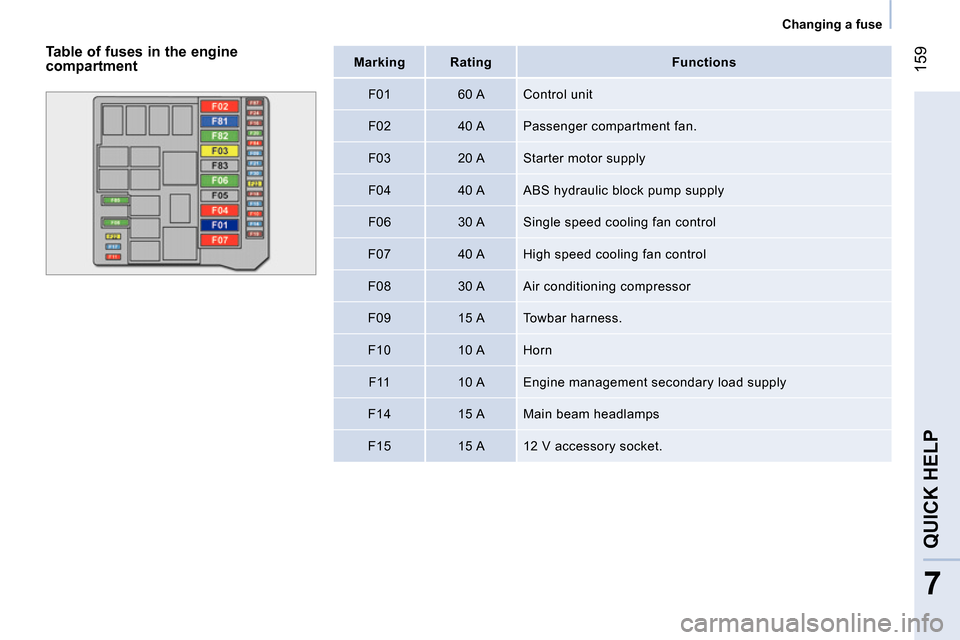

Table of fuses in the engine
compartment

174



Exterior

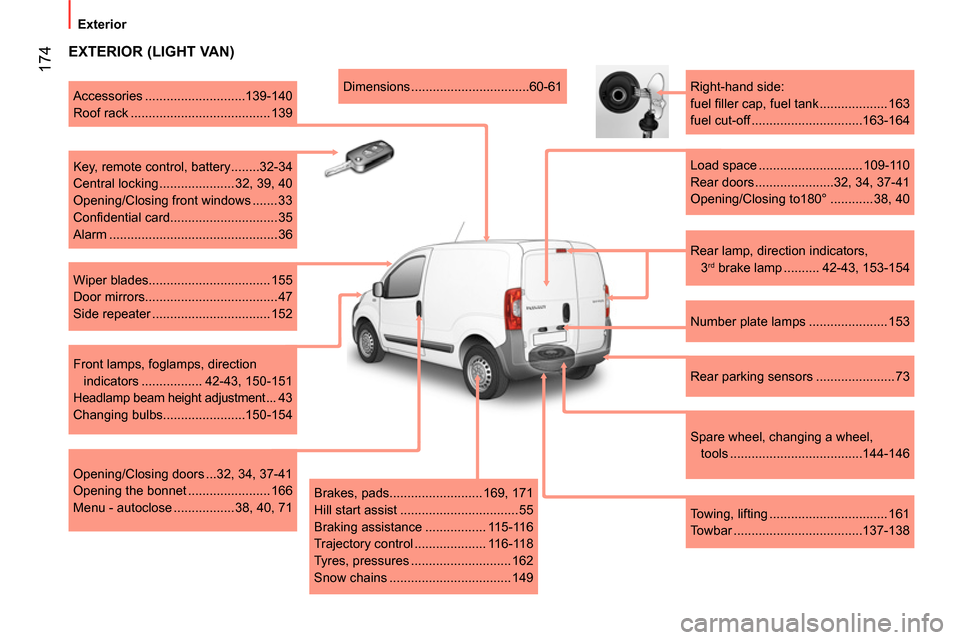

EXTERIOR (LIGHT VAN)


Rear lamp, direction indicators,
3 rd brake lamp .......... 42-43, 153-154
Right-hand side:
fuel fi ller cap, fuel tank ................... 163
fuel cut-off ...............................163-164

Load space ............................. 109-110
Rear doors ......................32, 34, 37-41
Opening/Closing to180° ............ 38, 40

Number plate lamps ...................... 153

Rear parking sensors ...................... 73

Spare wheel, changing a wheel,
tools .....................................144-146

Towing, lifting ................................. 161
Towbar ....................................137-138
Dimensions .................................60-61

Accessories ............................139-140
Roof rack ....................................... 139

Key, remote control, battery ........32-34
Central locking ..................... 32, 39, 40
Opening/Closing front windows ....... 33
Confi dential card.............................. 35
Alarm ............................................... 36

Wiper blades.................................. 155
Door mirrors ..................................... 47
Side repeater ................................. 152

Front lamps, foglamps, direction
indicators ................. 42-43, 150-151
Headlamp beam height adjustment ... 43
Changing bulbs.......................150-154

Opening/Closing doors ...32, 34, 37-41
Opening the bonnet ....................... 166
Menu - autoclose ................. 38, 40, 71

Brakes, pads.......................... 169, 171
Hill start assist ................................. 55
Braking assistance ................. 115-116
Trajectory control .................... 116-118
Tyres, pressures ............................ 162
Snow chains .................................. 149

175
8
VISUAL SEARCH



Exterior

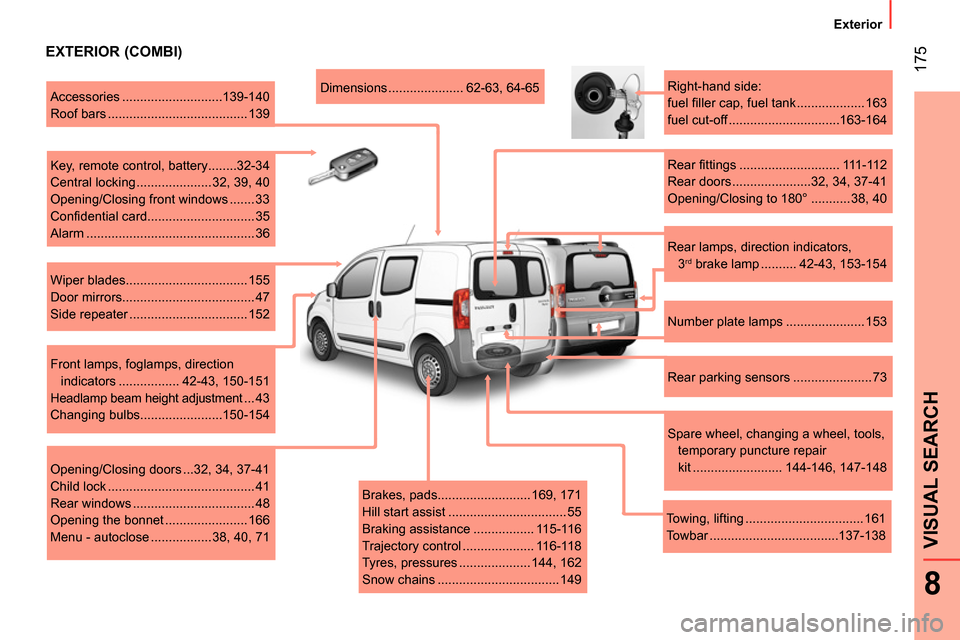

EXTERIOR (COMBI)


Brakes, pads.......................... 169, 171
Hill start assist ................................. 55
Braking assistance ................. 115-116
Trajectory control .................... 116-118
Tyres, pressures .................... 144, 162
Snow chains .................................. 149
Dimensions ..................... 62-63, 64-65

Accessories ............................139-140
Roof bars ....................................... 139

Key, remote control, battery ........32-34
Central locking ..................... 32, 39, 40
Opening/Closing front windows ....... 33
Confi dential card.............................. 35
Alarm ............................................... 36

Wiper blades.................................. 155
Door mirrors ..................................... 47
Side repeater ................................. 152

Front lamps, foglamps, direction
indicators ................. 42-43, 150-151
Headlamp beam height adjustment ... 43
Changing bulbs.......................150-154

Opening/Closing doors ...32, 34, 37-41
Child lock ......................................... 41
Rear windows .................................. 48
Opening the bonnet ....................... 166
Menu - autoclose ................. 38, 40, 71
Right-hand side:
fuel fi ller cap, fuel tank ................... 163
fuel cut-off ...............................163-164

Rear fi ttings ............................ 111-112
Rear doors ......................32, 34, 37-41
Opening/Closing to 180° ........... 38, 40

Number plate lamps ...................... 153

Rear parking sensors ...................... 73

Spare wheel, changing a wheel, tools,
temporary puncture repair
kit ......................... 144-146, 147-148

Towing, lifting ................................. 161
Towbar ....................................137-138


Rear lamps, direction indicators,
3
rd brake lamp .......... 42-43, 153-154

182



Instruments and controls

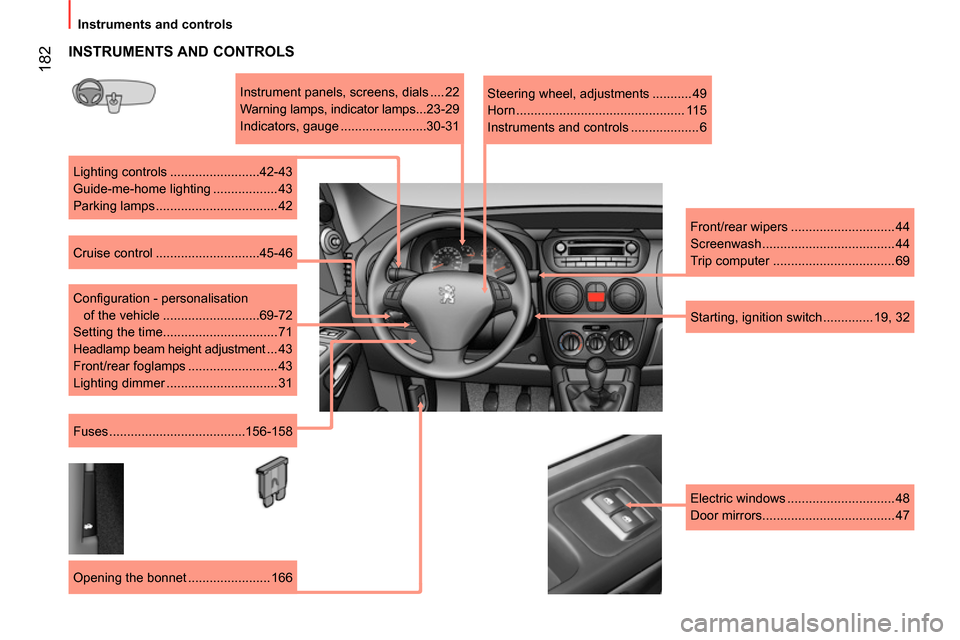

INSTRUMENTS AND CONTROLS


Instrument panels, screens, dials .... 22
Warning lamps, indicator lamps ...23-29
Indicators, gauge ........................30-31
Steering wheel, adjustments ........... 49
Horn ............................................... 115
Instruments and controls ................... 6

Lighting controls .........................42-43
Guide-me-home lighting .................. 43
Parking lamps .................................. 42

Cruise control .............................45-46

Confi guration - personalisation
of the vehicle ...........................69-72
Setting the time................................ 71
Headlamp beam height adjustment ... 43
Front/rear foglamps ......................... 43
Lighting dimmer ............................... 31

Fuses ......................................156-158

Opening the bonnet ....................... 166
Starting, ignition switch .............. 19, 32
Front/rear wipers ............................. 44
Screenwash ..................................... 44
Trip computer .................................. 69

Electric windows .............................. 48
Door mirrors ..................................... 47

184



Instruments and controls

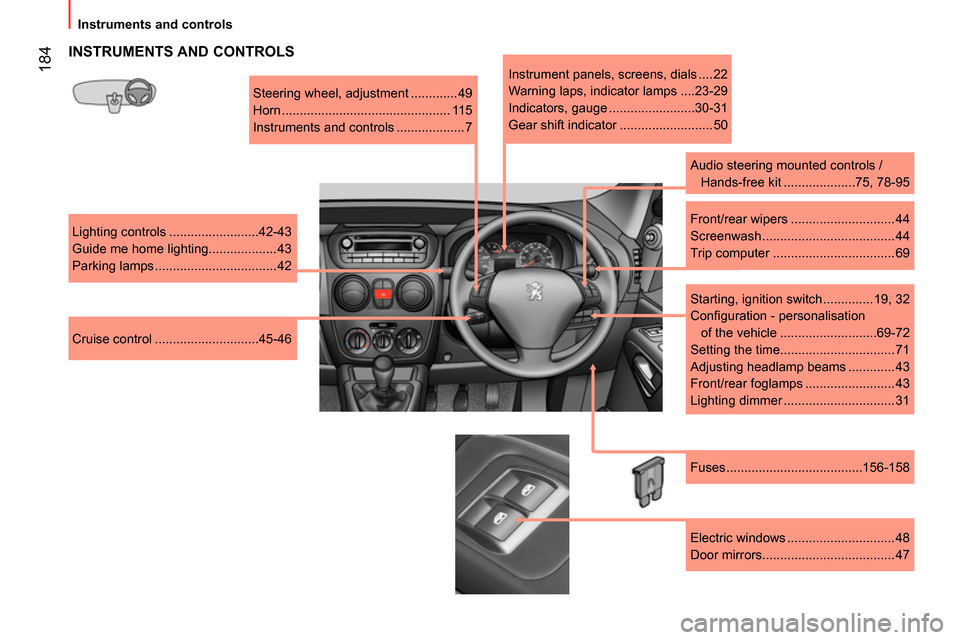

INSTRUMENTS AND CONTROLS

Steering wheel, adjustment ............. 49
Horn ............................................... 115
Instruments and controls ................... 7
Lighting controls .........................42-43
Guide me home lighting................... 43
Parking lamps .................................. 42
Cruise control .............................45-46 Instrument panels, screens, dials .... 22
Warning laps, indicator lamps ....23-29
Indicators, gauge ........................30-31
Gear shift indicator .......................... 50
Audio steering mounted controls /
Hands-free kit ....................75, 78-95
Front/rear wipers ............................. 44
Screenwash ..................................... 44
Trip computer .................................. 69
Starting, ignition switch .............. 19, 32
Confi guration - personalisation
of the vehicle ...........................69-72
Setting the time................................ 71
Adjusting headlamp beams ............. 43
Front/rear foglamps ......................... 43
Lighting dimmer ............................... 31
Fuses ......................................156-158
Electric windows .............................. 48
Door mirrors ..................................... 47
