CD player Peugeot Boxer 2003 Owner's Manual

05-05-2003
YOUR BOXER IN DETAIL45

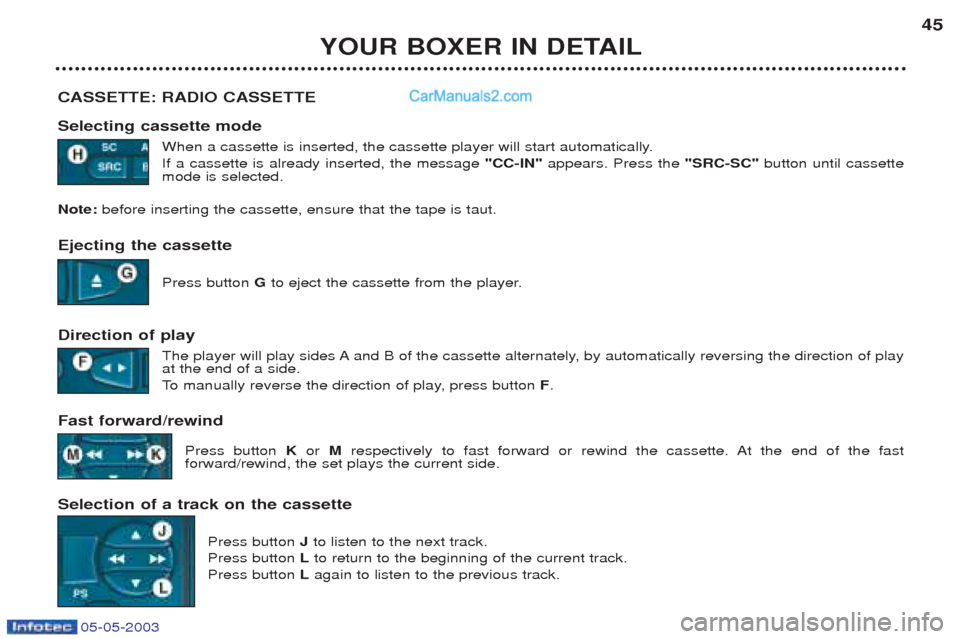

CASSETTE: RADIO CASSETTE Selecting cassette mode When a cassette is inserted, the cassette player will start automatically. If a cassette is already inserted, the message "CC-IN"appears. Press the "SRC-SC"button until cassette
mode is selected.
Note: before inserting the cassette, ensure that the tape is taut.
Ejecting the cassette
Press button Gto eject the cassette from the player.
Direction of play The player will play sides A and B of the cassette alternately, by automatically reversing the direction of play at the end of a side.
To manually reverse the direction of play, press button F.
Fast forward/rewind Press button Kor Mrespectively to fast forward or rewind the cassette. At the end of the fast
forward/rewind, the set plays the current side.
Selection of a track on the cassette Press button Jto listen to the next track.
Press button Lto return to the beginning of the current track.
Press button Lagain to listen to the previous track.

05-05-2003
YOUR BOXER IN DETAIL
46

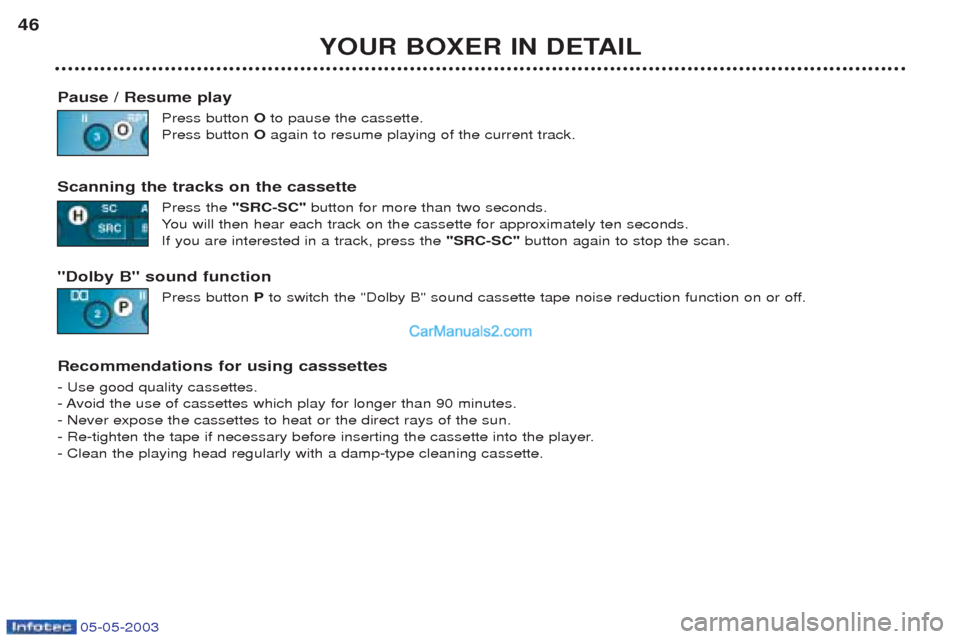

Pause / Resume play Press button Oto pause the cassette.
Press button Oagain to resume playing of the current track.
Scanning the tracks on the cassette Press the "SRC-SC" button for more than two seconds.
Y ou will then hear each track on the cassette for approximately ten seconds.
If you are interested in a track, press the "SRC-SC" button again to stop the scan.
"Dolby B" sound function Press button Pto switch the "Dolby B" sound cassette tape noise reduction function on or off.
Recommendations for using casssettes - Use good quality cassettes.
- Avoid the use of cassettes which play for longer than 90 minutes.- Never expose the cassettes to heat or the direct rays of the sun.
- Re-tighten the tape if necessary before inserting the cassette into the player.- Clean the playing head regularly with a damp-type cleaning cassette.

05-05-2003
YOUR BOXER IN DETAIL47

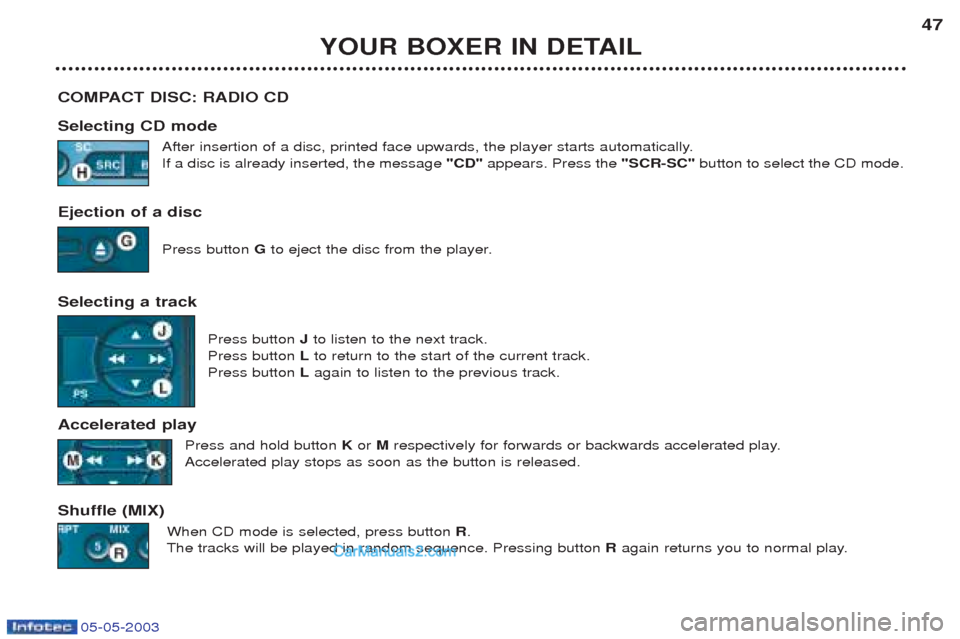

COMPACT DISC: RADIO CD Selecting CD mode After insertion of a disc, printed face upwards, the player starts automatically. If a disc is already inserted, the message "CD" appears. Press the "SCR-SC" button to select the CD mode.
Ejection of a disc Press button Gto eject the disc from the player.
Selecting a track Press button Jto listen to the next track.
Press button Lto return to the start of the current track.
Press button Lagain to listen to the previous track.
Accelerated play Press and hold button K or Mrespectively for forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released.
Shuffle (MIX) When CD mode is selected, press button R.
The tracks will be played in random sequence. Pressing button Ragain returns you to normal play.

05-05-2003
YOUR BOXER IN DETAIL57

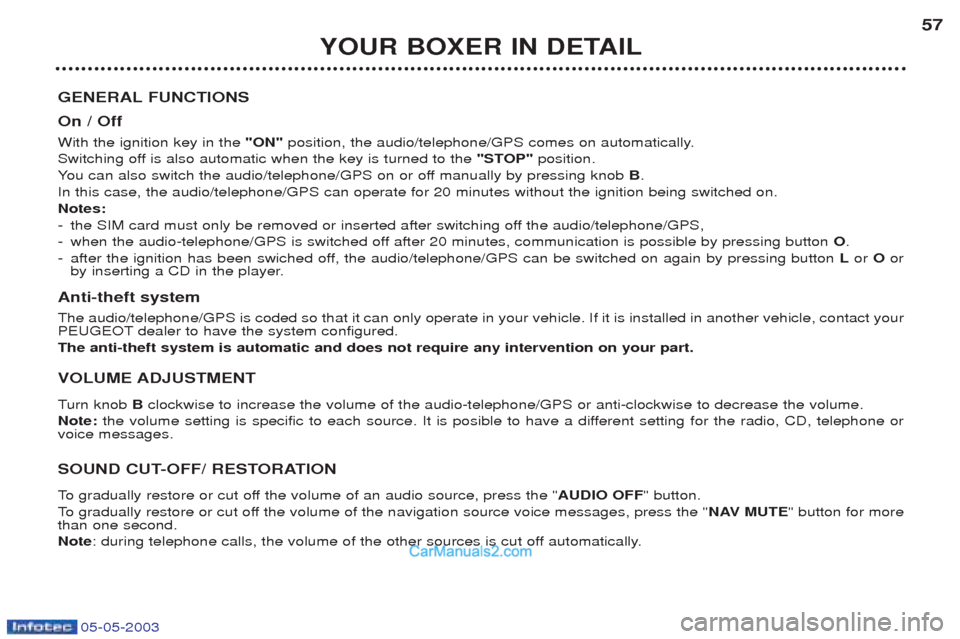

GENERAL FUNCTIONS On / Off With the ignition key in the "ON"position, the audio/telephone/GPS comes on automatically.
Switching off is also automatic when the key is turned to the "STOP"position.
Y ou can also switch the audio/telephone/GPS on or off manually by pressing knob B.
In this case, the audio/telephone/GPS can operate for 20 minutes without the ignition being switched on. Notes:- the SIM card must only be removed or inserted after switching off the audio/telephone/GPS,
- when the audio-telephone/GPS is switched off after 20 minutes, communication is possible by pressing button O.
- after the ignition has been swiched off, the audio/telephone/GPS can be switched on again by pressing button Lor Oor
by inserting a CD in the player.
Anti-theft system The audio/telephone/GPS is coded so that it can only operate in your vehicle. If it is installed in another vehicle, contact yo ur
PEUGEOT dealer to have the system configured. The anti-theft system is automatic and does not require any intervention on your part. VOLUME ADJUSTMENT T urn knob Bclockwise to increase the volume of the audio-telephone/GPS or anti-clockwise to decrease the volume.
Note: the volume setting is specific to each source. It is posible to have a different setting for the radio, CD, telephone or
voice messages.
SOUND CUT-OFF/ RESTORATION
To gradually restore or cut off the volume of an audio source, press the " AUDIO OFF" button.
To gradually restore or cut off the volume of the navigation source voice messages, press the " NAV MUTE" button for more
than one second. Note : during telephone calls, the volume of the other sources is cut off automatically.

05-05-2003
YOUR BOXER IN DETAIL
64

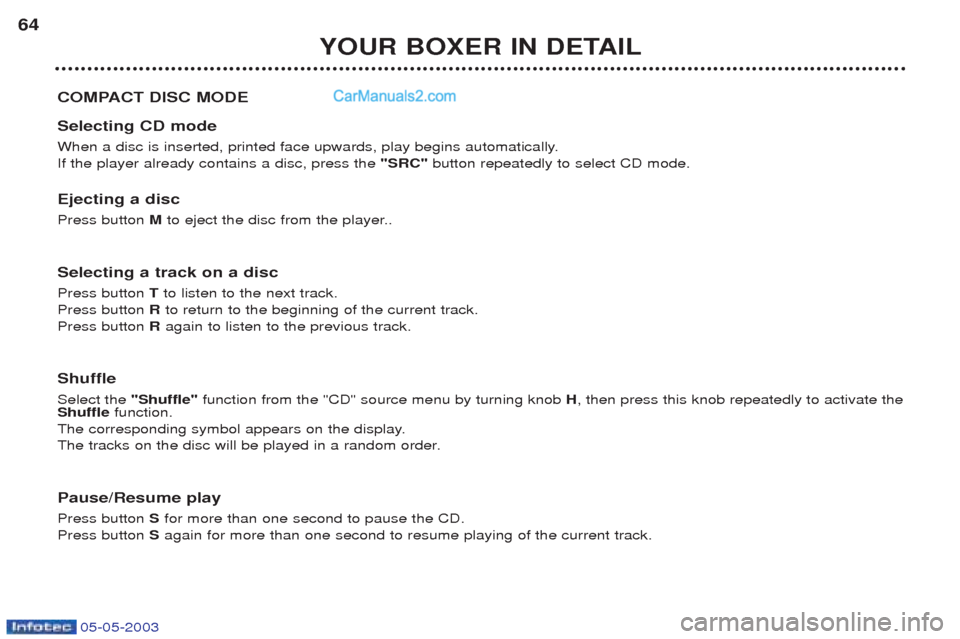

COMPACT DISC MODE Selecting CD mode
When a disc is inserted, printed face upwards, play begins automatically. If the player already contains a disc, press the "SRC" button repeatedly to select CD mode.
Ejecting a disc Press button Mto eject the disc from the player..
Selecting a track on a discPress button Tto listen to the next track.
Press button Rto return to the beginning of the current track.
Press button Ragain to listen to the previous track.
ShuffleSelect the "Shuffle" function from the "CD" source menu by turning knob H, then press this knob repeatedly to activate the
Shuffle function.
The corresponding symbol appears on the display.
The tracks on the disc will be played in a random order.
Pause/Resume play Press button Sfor more than one second to pause the CD.
Press button Sagain for more than one second to resume playing of the current track.

05-05-2003
YOUR BOXER IN DETAIL75

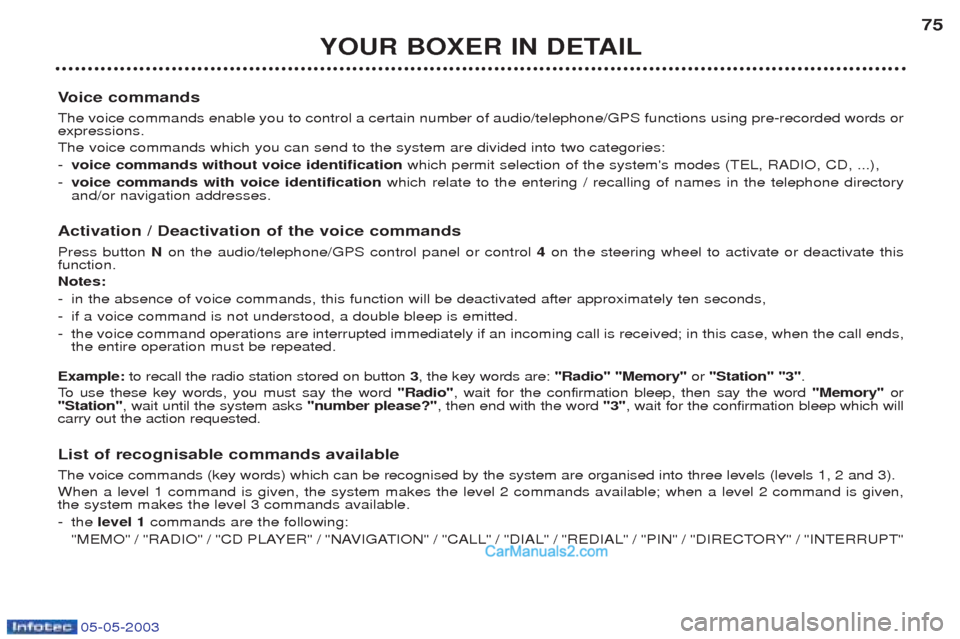

V oice commands
The voice commands enable you to control a certain number of audio/telephone/GPS functions using pre-recorded words or expressions. The voice commands which you can send to the system are divided into two categories: - voice commands without voice identification which permit selection of the system's modes (TEL, RADIO, CD, ...),
- voice commands with voice identification which relate to the entering / recalling of names in the telephone directory
and/or navigation addresses.
Activation / Deactivation of the voice commands Press button Non the audio/telephone/GPS control panel or control 4on the steering wheel to activate or deactivate this
function. Notes: - in the absence of voice commands, this function will be deactivated after approximately ten seconds,
- if a voice command is not understood, a double bleep is emitted.
- the voice command operations are interrupted immediately if an incoming call is received; in this case, when the call ends, the entire operation must be repeated.
Example: to recall the radio station stored on button 3, the key words are: "Radio" "Memory" or"Station" "3" .
To use these key words, you must say the word "Radio", wait for the confirmation bleep, then say the word "Memory"or
"Station" , wait until the system asks "number please?", then end with the word "3", wait for the confirmation bleep which will
carry out the action requested.
List of recognisable commands available The voice commands (key words) which can be recognised by the system are organised into three levels (levels 1, 2 and 3). When a level 1 command is given, the system makes the level 2 commands available; when a level 2 command is given, the system makes the level 3 commands available. - the level 1 commands are the following:
"MEMO" / "RADIO" / "CD PLAYER" / "NAVIGATION" / "CALL" / "DIAL" / "REDIAL" / "PIN" / "DIRECTORY" / "INTERRUPT"

05-05-2003
YOUR BOXER IN DETAIL
76

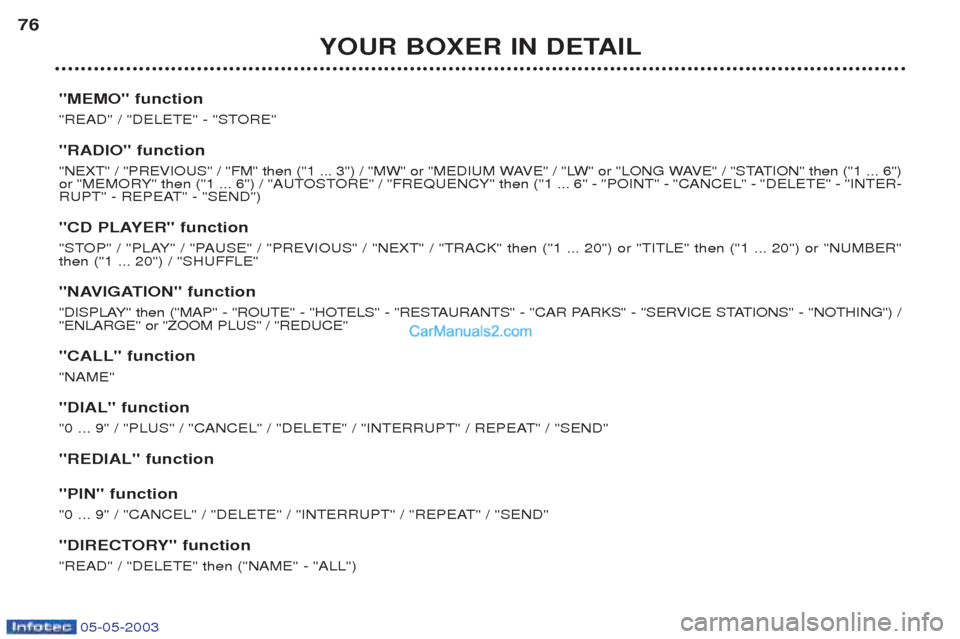

"MEMO" function
"READ" / "DELETE" - "STORE" "RADIO" function
"NEXT" / "PREVIOUS" / "FM" then ("1 ... 3") / "MW" or "MEDIUM WAVE" / "LW" or "LONG WAVE" / "STATION" then ("1 ... 6")
or "MEMORY" then ("1 ... 6") / "AUTOSTORE" / "FREQUENCY" then ("1 ... 6" - "POINT" - "CANCEL" - "DELETE" - "INTER-
RUPT" - REPEAT" - "SEND")
"CD PLAYER" function
"STOP" / "PLAY" / "PAUSE" / "PREVIOUS" / "NEXT" / "TRACK" then ("1 ... 20") or "TITLE" then ("1 ... 20") or "NUMBER" then ("1 ... 20") / "SHUFFLE"
"NAVIGATION" function
"DISPLAY" then ("MAP" - "ROUTE" - "HOTELS" - "RESTAURANTS" - "CAR PARKS" - "SERVICE STATIONS" - "NOTHING") / "ENLARGE" or "ZOOM PLUS" / "REDUCE" "CALL" function "NAME" "DIAL" function
"0 ... 9" / "PLUS" / "CANCEL" / "DELETE" / "INTERRUPT" / REPEAT" / "SEND" "REDIAL" function "PIN" function
"0 ... 9" / "CANCEL" / "DELETE" / "INTERRUPT" / "REPEAT" / "SEND"
"DIRECTORY" function "READ" / "DELETE" then ("NAME" - "ALL")
