4YOUR BOXER AT A GLANCE
05-05-2003
THE KEYS The keys allow you to switch on the ignition and operate thepassenger air bag disarmingswitch as well as to independentlyoperate the locks on the frontdoors, the fuel filler cap and theglove box. Central locking
From the driver's door, the keys allow you to lock and unlock thefront, passenger and rear doors. If one of the doors is open, it is impossible to operate the centrallocking. The remote control performs the same functions at a distance.The remote control key Locking Press button
Ato lock the
vehicle. This is confirmed by fixed lighting of the direction indicators forapproximately two seconds. Unlocking Press button Bto unlock the
vehicle. STARTING
STOP position:
The ignition is off. 1st notch, MAR (Accessories) position:
The ignition is off but the acces- sories can be used. A
VV (Starting) position:
Operates the starter.P ARK position:
Position enabling you to leave the side lights on when parked,
with the ignition off and the keyremoved.
106

Operating checkWith the ignition switched on (2nd notch), illumina-tion of this warning lightindicates that the
passenger air bag is disarmed(slot in the "OFF"position).
The warning light remains onthroughout the disarming process. Side air bags* Side air bags are incorporated into the front seat back frame, on thedoor side. They are deployed independently
of each other, on whichever sidethe collision occurs. * According to destination.
7YOUR BOXER AT A GLANCE
AIR BAGS The air bag system has been designed to maximise the safetyof the occupants in the event ofserious collisions. It works inconjunction with the seat belts. Front air bags These are folded in the centre of the steering wheel for the driverand in the fascia for the front
passenger. They are deployed
simultaneously, except in caseswhere the passenger air bag isdisarmed. Precautions regarding the passenger air bag ☞ disarm the air bag if you ins- tall a rear-facing child seat,
☞ activate the air bag for an
adult passenger. Disarming the passenger air bag* ☞
With the ignition off, insert the
ignition key into the passen- ger air bag slot 1and turn it to
the "OFF" position.
As soon as you remove the childseat, turn the air bag switch to the"ON" position, to activate the air
bag again.
128129
05-05-2003

OPENING THE BONNET Inside the vehicle:Push the
control on the right-hand side, under the instrument panel. Outside the vehicle: Lift
the control, raise the bonnet and secure thestrut to keep the bonnetopen.
FILLING WITH FUEL This operation must be carried out with
the engine switched off.
☞ Open the fuel filler flap by pressing the front of it.
☞ Insert the key then turn it to the left.
☞ Remove the cap and hook it onto the hook on the inside of the flap.
An indication on the cap shows which type of fuel to use.
When you fill your tank, do not continue after the third cut-off of the pump. This could cause a malfunction. The capacity of the tank is approximately 70 litres.☞ After filling the tank, lock the cap and close the flap.
Low fuel level warning light From the time this light comes on, you have approxima-
tely 8 litres of fuel left.
YOUR BOXER AT A GLANCE14
11 211 2
05-05-2003

05-05-2003
MILES (KM) 20 000 (30 000) 40 000 (60 000) 60 000 (90 000)

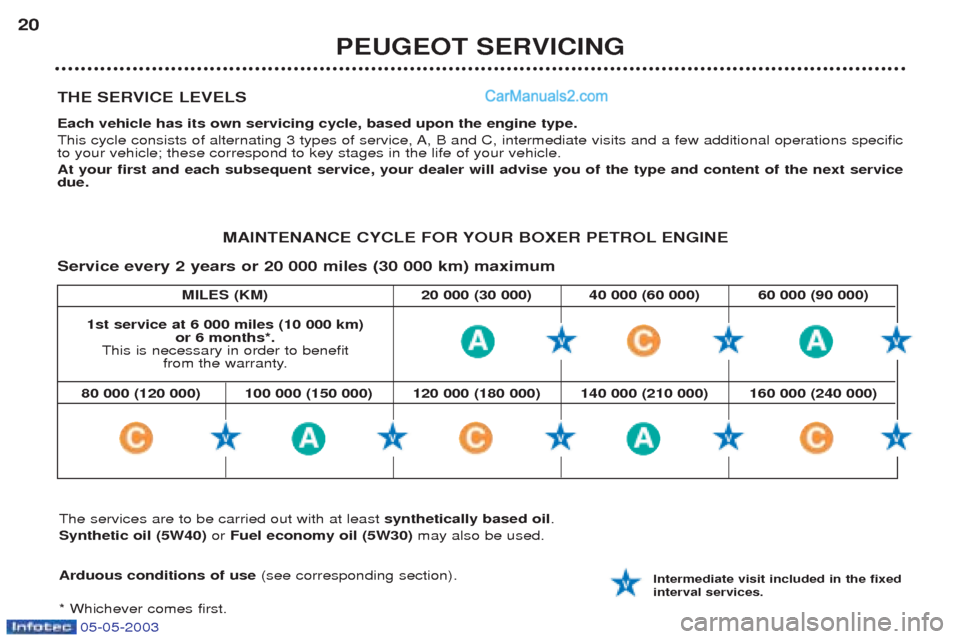

THE SERVICE LEVELS Each vehicle has its own servicing cycle, based upon the engine type.
This cycle consists of alternating 3 types of service, A, B and C, intermediate visits and a few additional operations specific to your vehicle; these correspond to key stages in the life of your vehicle. At your first and each subsequent service, your dealer will advise you of the type and content of the next service due.
PEUGEOT SERVICING
20
MAINTENANCE CYCLE FOR YOUR BOXER PETROL ENGINE
Service every 2 years or 20 000 miles (30 000 km) maximum
1st service at 6 000 miles (10 000 km) or 6 months*.
This is necessary in order to benefit from the warranty.
The services are to be carried out with at least synthetically based oil.
Synthetic oil (5W40) orFuel economy oil (5W30) may also be used.
Arduous conditions of use (see corresponding section).
* Whichever comes first.
Intermediate visit included in the fixed interval services.
80 000 (120 000) 100 000 (150 000) 120 000 (180 000) 140 000 (210 000) 160 000 (240 000)

05-05-2003
1 -Coolant temperature gauge.
2 - Coolant temperature warning light.
3 - Door open warning light.
4 - Speedometer.
5 - Left-hand direction indicator.
6 - Side lights and dipped beamheadlamps indicator light.
7 - Main beam headlamps indicatorlight.
8 - Right-hand direction indicator. 9 -
Rev counter.
10 - Low fuel level warning light.
11 - Fuel gauge.
12 - Brake fluid level warning light.
13 - Traction control (ASR) warning
light.
14 - Passenger air bag disarmed warning light.
15 - Trip distance recorder display
control and zero reset button. 16 -
Front air bags warning light.
17 - Anti-lock braking system (ABS) warning light.
18 - Automatic gearbox temperatureor fault warning light.
19 - Low coolant level warning light.
20 - Service indicator, oil levelgauge, automatic gearbox
display, clock and total distance
recorder.
21 - Diesel engine pre-heatingwarning light.
22 - Engine oil pressure warninglight.
23 - Battery charge warning light.
24 - Clock setting button.
25 - Engine diagnostics warninglight.
26 - Front brake pad wear warninglight.
27 - Handbrake warning light.
28 - Water in diesel filter warning
light.
29 - Electronic immobiliser keywarning light.
INSTRUMENTS AND CONTROLS
28
PETROL-DIESEL MANUAL AND AUTOMATIC GEARBOX
INSTRUMENT PANELS

05-05-2003

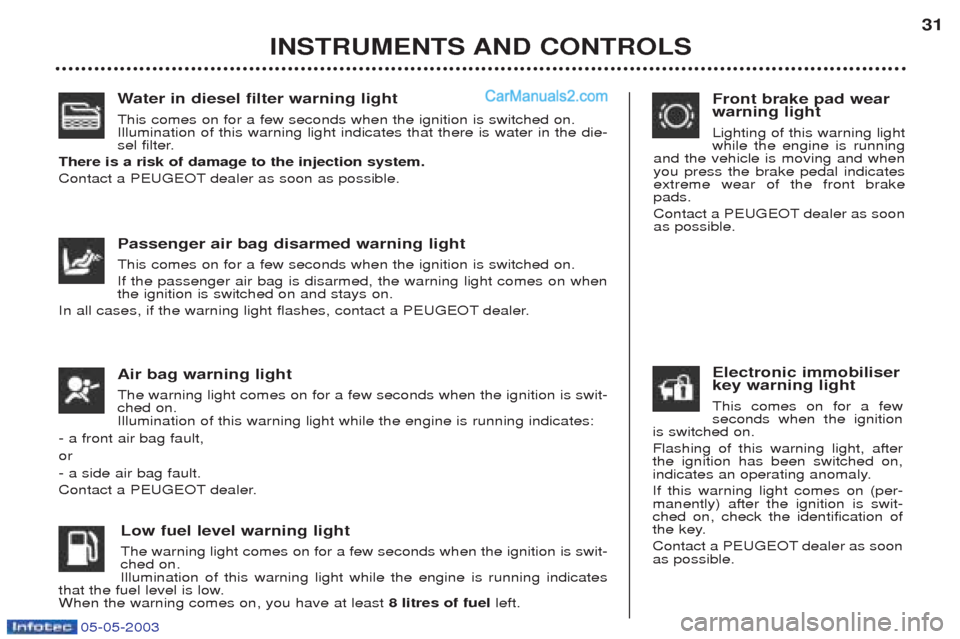

Water in diesel filter warning light
This comes on for a few seconds when the ignition is switched on. Illumination of this warning light indicates that there is water in the die-
sel filter.
There is a risk of damage to the injection system.
Contact a PEUGEOT dealer as soon as possible.
INSTRUMENTS AND CONTROLS 31
Passenger air bag disarmed warning light This comes on for a few seconds when the ignition is switched on. If the passenger air bag is disarmed, the warning light comes on when the ignition is switched on and stays on.
In all cases, if the warning light flashes, contact a PEUGEOT dealer.
Low fuel level warning light The warning light comes on for a few seconds when the ignition is swit- ched on.Illumination of this warning light while the engine is running indicates
that the fuel level is low.When the warning comes on, you have at least 8 litres of fuelleft.
Air bag warning light The warning light comes on for a few seconds when the ignition is swit- ched on.Illumination of this warning light while the engine is running indicates:
- a front air bag fault, or- a side air bag fault.
Contact a PEUGEOT dealer.
Front brake pad wear warning light Lighting of this warning light while the engine is running
and the vehicle is moving and whenyou press the brake pedal indicatesextreme wear of the front brakepads.
Contact a PEUGEOT dealer as soon as possible.
Electronic immobiliser key warning light This comes on for a few seconds when the ignition
is switched on. Flashing of this warning light, after the ignition has been switched on,
indicates an operating anomaly. If this warning light comes on (per- manently) after the ignition is swit-ched on, check the identification of
the key.
Contact a PEUGEOT dealer as soon as possible.

05-05-2003

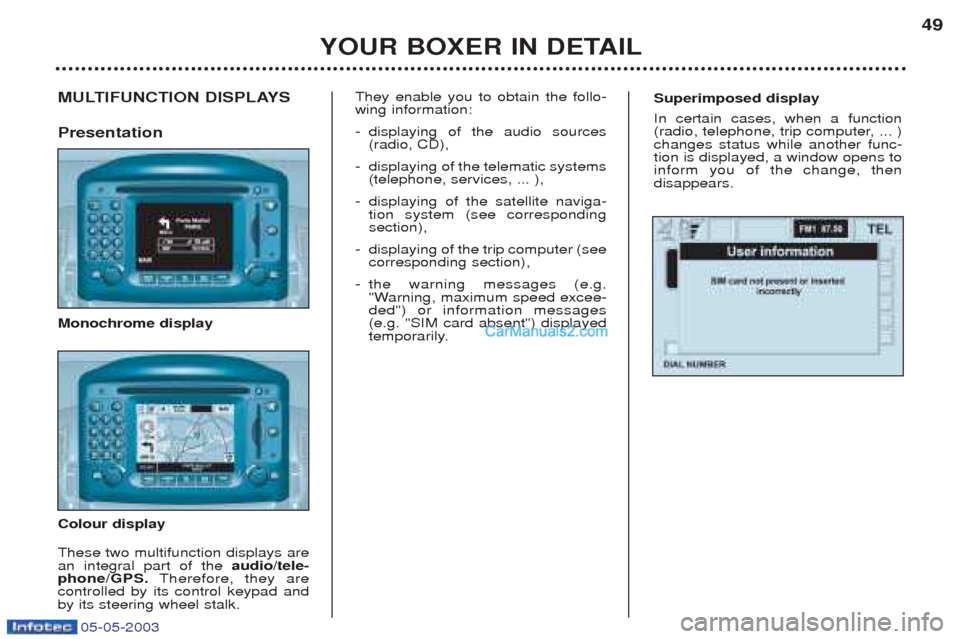

YOUR BOXER IN DETAIL
38

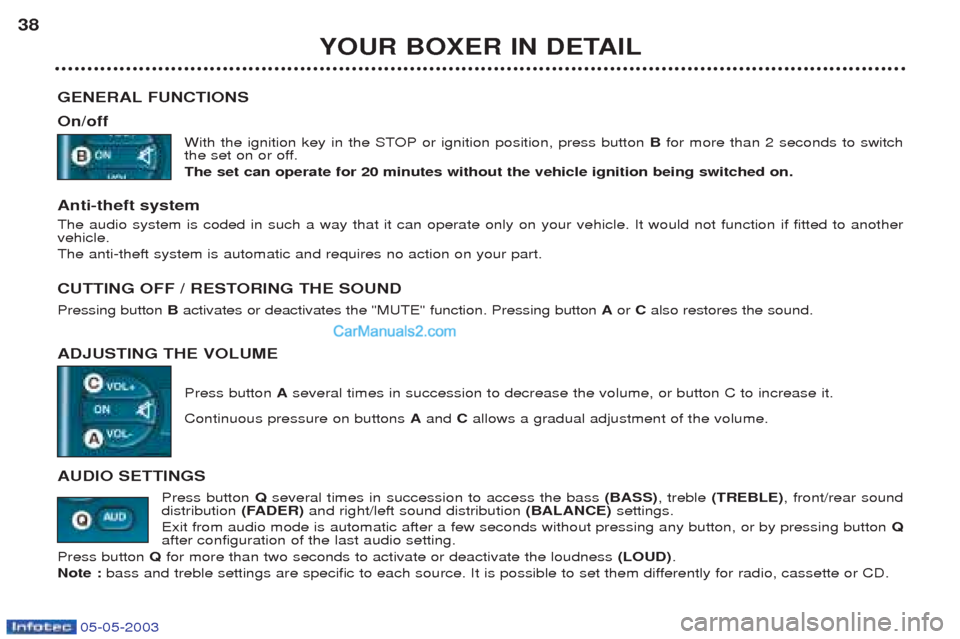

GENERAL FUNCTIONS On/off With the ignition key in the STOP or ignition position, press button Bfor more than 2 seconds to switch
the set on or off. The set can operate for 20 minutes without the vehicle ignition being switched on.
Anti-theft system The audio system is coded in such a way that it can operate only on your vehicle. It would not function if fitted to another vehicle. The anti-theft system is automatic and requires no action on your part.
CUTTING OFF / RESTORING THE SOUND Pressing button Bactivates or deactivates the "MUTE" function. Pressing button Aor Calso restores the sound.
ADJUSTING THE VOLUME Press button Aseveral times in succession to decrease the volume, or button C to increase it.
Continuous pressure on buttons Aand Callows a gradual adjustment of the volume.
AUDIO SETTINGS Press button Qseveral times in succession to access the bass (BASS), treble (TREBLE) , front/rear sound
distribution (FADER)and right/left sound distribution (BALANCE)settings.
Exit from audio mode is automatic after a few seconds without pressing any button, or by pressing button Q
after configuration of the last audio setting.
Press button Q for more than two seconds to activate or deactivate the loudness (LOUD).
Note : bass and treble settings are specific to each source. It is possible to set them differently for radio, cassette or CD.

05-05-2003
Superimposed display In certain cases, when a function
(radio, telephone, trip computer, ... )changes status while another func-tion is displayed, a window opens toinform you of the change, thendisappears.MULTIFUNCTION DISPLAYS Presentation Monochrome display Colour display These two multifunction displays are an integral part of theaudio/tele-
phone/GPS. Therefore, they are
controlled by its control keypad andby its steering wheel stalk. They enable you to obtain the follo-wing information: -
displaying of the audio sources (radio, CD),
- displaying of the telematic systems(telephone, services, ... ),
- displaying of the satellite naviga-tion system (see correspondingsection),
- displaying of the trip computer (seecorresponding section),
- the warning messages (e.g.
"Warning, maximum speed excee-ded") or information messages(e.g. "SIM card absent") displayed
temporarily.
YOUR BOXER IN DETAIL 49

05-05-2003

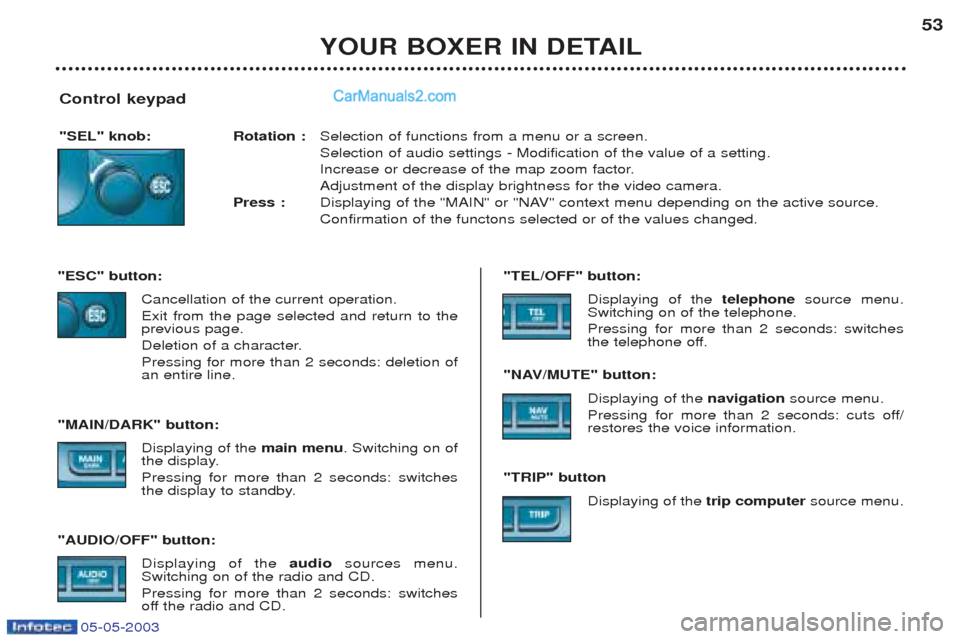

Control keypad
"SEL" knob: Rotation :Selection of functions from a menu or a screen. Selection of audio settings - Modification of the value of a setting.
Increase or decrease of the map zoom factor.Adjustment of the display brightness for the video camera.
Press : Displaying of the "MAIN" or "NAV" context menu depending on the active source.Confirmation of the functons selected or of the values changed.
"ESC" button: Cancellation of the current operation.Exit from the page selected and return to the previous page.
Deletion of a character.Pressing for more than 2 seconds: deletion of an entire line.
"MAIN/DARK" button: Displaying of the main menu. Switching on of
the display. Pressing for more than 2 seconds: switches
the display to standby.
"AUDIO/OFF" button: Displaying of the audiosources menu.
Switching on of the radio and CD. Pressing for more than 2 seconds: switches
off the radio and CD. "TEL/OFF" button:
Displaying of the telephonesource menu.
Switching on of the telephone. Pressing for more than 2 seconds: switches
the telephone off.
"NAV/MUTE" button: Displaying of the navigationsource menu.
Pressing for more than 2 seconds: cuts off/restores the voice information.
"TRIP" button Displaying of the trip computersource menu.
YOUR BOXER IN DETAIL 53

05-05-2003
YOUR BOXER IN DETAIL

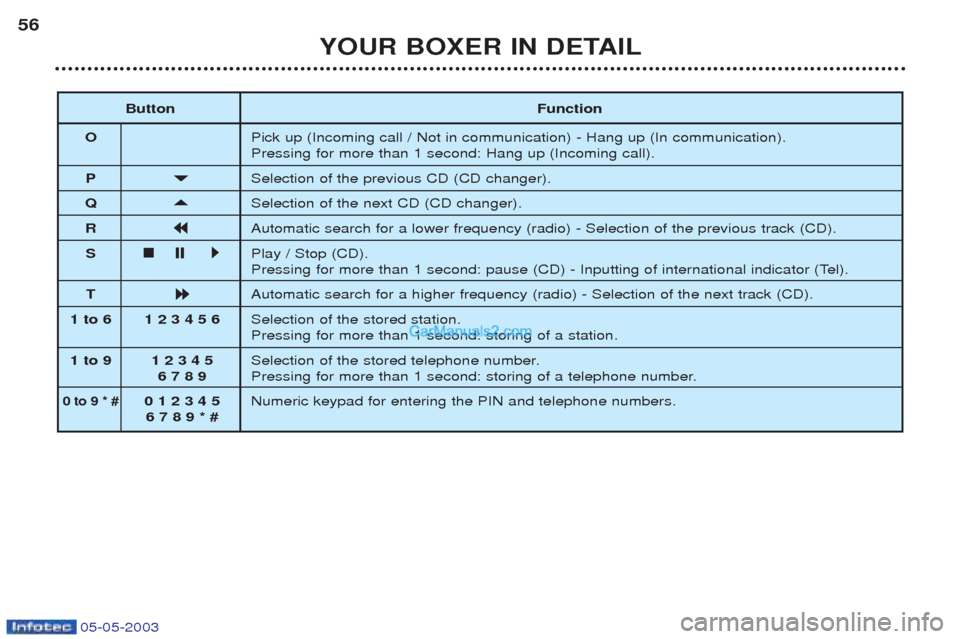

56
Button Function
O Pick up (Incoming call / Not in communication) - Hang up (In communication). Pressing for more than 1 second: Hang up (Incoming call).
P

Selection of the previous CD (CD changer).
Q



Selection of the next CD (CD changer).
R

Automatic search for a lower frequency (radio) - Selection of the previous track (CD).
S





Play / Stop (CD).
Pressing for more than 1 second: pause (CD) - Inputting of international indicator (Tel).
T

Automatic search for a higher frequency (radio) - Selection of the next track (CD).
1 to 6 1 2 3 4 5 6 Selection of the stored station.Pressing for more than 1 second: storing of a station.
1 to 9 1 2 3 4 5 Selection of the stored telephone number.
6 7 8 9 Pressing for more than 1 second: storing of a telephone number.
0 to 9 * #0 1 2 3 4 5 Numeric keypad for entering the PIN and telephone numbers.
6 7 8 9 * #
