4YOUR BOXER AT A GLANCE
05-05-2003
THE KEYS The keys allow you to switch on the ignition and operate thepassenger air bag disarmingswitch as well as to independentlyoperate the locks on the frontdoors, the fuel filler cap and theglove box. Central locking
From the driver's door, the keys allow you to lock and unlock thefront, passenger and rear doors. If one of the doors is open, it is impossible to operate the centrallocking. The remote control performs the same functions at a distance.The remote control key Locking Press button
Ato lock the
vehicle. This is confirmed by fixed lighting of the direction indicators forapproximately two seconds. Unlocking Press button Bto unlock the
vehicle. STARTING
STOP position:
The ignition is off. 1st notch, MAR (Accessories) position:
The ignition is off but the acces- sories can be used. A
VV (Starting) position:
Operates the starter.P ARK position:
Position enabling you to leave the side lights on when parked,
with the ignition off and the keyremoved.
106
Page 7 of 180
Operating checkWith the ignition switched on (2nd notch), illumina-tion of this warning lightindicates that the
passenger air bag is disarmed(slot in the "OFF"position).
The warning light remains onthroughout the disarming process. Side air bags* Side air bags are incorporated into the front seat back frame, on thedoor side. They are deployed independently
of each other, on whichever sidethe collision occurs. * According to destination.
7YOUR BOXER AT A GLANCE
AIR BAGS The air bag system has been designed to maximise the safetyof the occupants in the event ofserious collisions. It works inconjunction with the seat belts. Front air bags These are folded in the centre of the steering wheel for the driverand in the fascia for the front
passenger. They are deployed
simultaneously, except in caseswhere the passenger air bag isdisarmed. Precautions regarding the passenger air bag ☞ disarm the air bag if you ins- tall a rear-facing child seat,
☞ activate the air bag for an
adult passenger. Disarming the passenger air bag* ☞
With the ignition off, insert the
ignition key into the passen- ger air bag slot 1and turn it to
the "OFF" position.
As soon as you remove the childseat, turn the air bag switch to the"ON" position, to activate the air
bag again.
128129
05-05-2003
Page 9 of 180
05-05-2003
REAR PARKING
ASSISTANCE This system, installed in the rear
bumper, detects any obstacle
(person, vehicle, tree, barrier,kerb etc) behind the vehicle. Activation With the engine running, the system is activated when reversegear is engaged; a bleep indi-cates that it is active. The proximity information is given by an audible signal, consisting ofbleeps which become faster as the vehicle approaches theobstacle. When the distance between the rear of vehicle and the obstacle isless than approximately twenty-five centimetres, theaudible signal becomescontinuous. When you switch to neutral, the systembecomes inactive again.
Activation ☞
Press control A(ON position).
A speed can now be memorised.
☞ Press control D(in the OFF
position) to deactivate the system.
Memorising a speed When you reach the required speed, press control Bor C. The
speed is memorised and will be
maintained automatically. Deactivating the memorised speed If you wish to deactivate the memorised speed: ☞ press button Dor the brake
or clutch pedal.
Recalling the memorised speed After deactivation, press button E.
Y our vehicle reverts to the last
memorised speed. Cancelling the stored speed ☞ Press control D(OFF posi-
tion) or switch off the ignition.
9YOUR BOXER AT A GLANCE
CRUISE CONTROL The cruise control makes it pos- sible to maintain a constantvehicle speed, programmed by
the driver, irrespective of the pro-file of the road and without anyaction on the accelerator or thebrake pedals. In order for the vehicle speed to be memorised, it must be greaterthan approximately 25 mph (40 km/h).
127126
Page 15 of 180
05-05-2003
PEUGEOT SERVICING Your vehicle benefits from extended service intervals.
¥ For petrol engines: every 20,000 miles (30,000 km) or every two years.
¥ For dual-fuel Petrol or LPG*/UNG** engines: every 20,000 miles (30,000 km) or every two years. W arning, LPG/UNG checks every 10,000 miles (15,000 km) or every year.
¥ For direct injection diesel engines: every 12,000 miles (20,000 km) or every two years.
The extension of the service intervals means that the engine oil level must bechecked regularly: topping up of the oil between oil changes is normal. This is why the PEUGEOT network is offering you an intermediate service between regular services.
The date of this visit is not shown by the service indicator. It is to be carriedout at least every 10,000 miles (15,000 km) for petrol engines and dual-fuelpetrol or LPG/UNG engines; every 6,000 miles (10,000 km) for direct injectiondiesel engines. A Peugeot dealer will carry out a quick check and top up the levels if
necessary (oil, coolant, windscreen wash up to 2 litres).If the oil level is too low there is a risk of serious damage to the engine : check the engine oil level at least every 2,000 to 3,000 miles (3 000 to 5 000 km),depending on the conditions of use. This extended servicing has been made possible by modifications to our vehicles and to the lubricants:
THUS IT IS ESSENTIAL TO ONLY USE ENGINE LUBRICANTS THAT ARE
SUITABLE AND RECOMMENDED BY THE MANUFACTURER. * Liquid Petroleum Gas. ** Urban Natural Gas.
PEUGEOT SERVICING
18
SERVICE INDICATOR This informs you of the distance remaining to the service in conformi-ty with the manufacturer's servicingschedule. Operation For a few seconds after the ignition has been switched on, the spannersymbolising a service lights up; thedisplay for the total distance recordertells you the distance remaining befo-re your next service.The values displayed by the serviceindicator before the next service arethe following: 20 000 km, 2 000 km,200 km, 100 km and 50 km. Example:2 000 km remain before
the next service is due. When the ignition is switched on and for a fewseconds, the display shows:
Page 16 of 180
05-05-2003

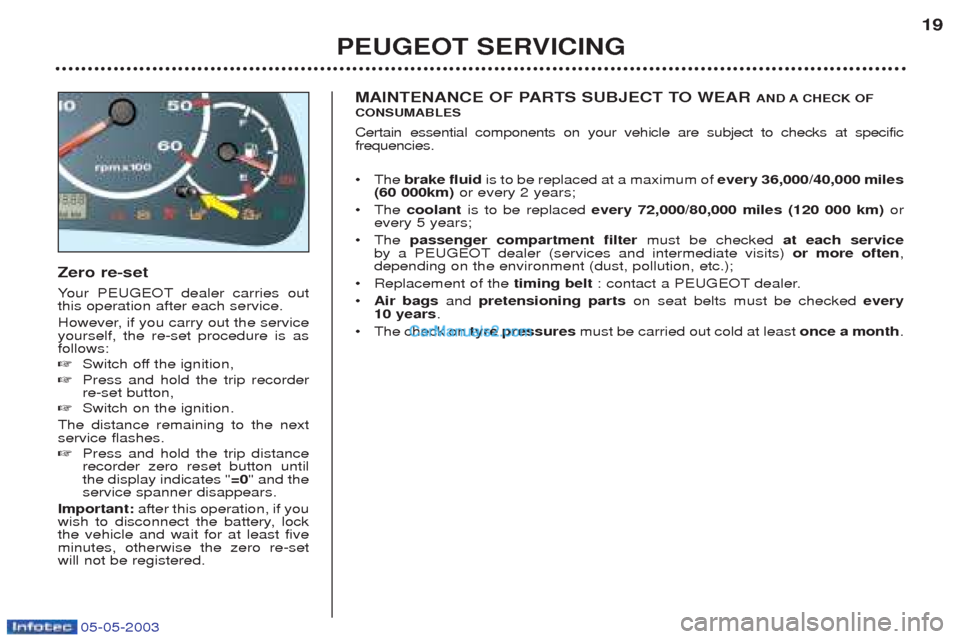

Zero re-set Your PEUGEOT dealer carries out
this operation after each service.
However, if you carry out the service yourself, the re-set procedure is asfollows: ☞ Switch off the ignition,
☞ Press and hold the trip recorder re-set button,
☞ Switch on the ignition.
The distance remaining to the nextservice flashes. ☞ Press and hold the trip distance recorder zero reset button untilthe display indicates " =0" and the
service spanner disappears.
Important: after this operation, if you
wish to disconnect the battery, lockthe vehicle and wait for at least fiveminutes, otherwise the zero re-setwill not be registered. MAINTENANCE OF PARTS SUBJECT TO WEAR
AND A CHECK OF
CONSUMABLES Certain essential components on your vehicle are subject to checks at specific frequencies. ¥ The brake fluid is to be replaced at a maximum of every 36,000/40,000 miles
(60 000km) or every 2 years;
¥ The coolant is to be replaced every 72,000/80,000 miles (120 000 km) or
every 5 years;
¥ The passenger compartment filter must be checked at each service
by a PEUGEOT dealer (services and intermediate visits) or more often,
depending on the environment (dust, pollution, etc.);
¥ Replacement of the timing belt: contact a PEUGEOT dealer.
¥ Air bags and pretensioning parts on seat belts must be checked every
10 years .
¥ The check on tyre pressuresmust be carried out cold at least once a month.
PEUGEOT SERVICING 19
Page 26 of 180
05-05-2003

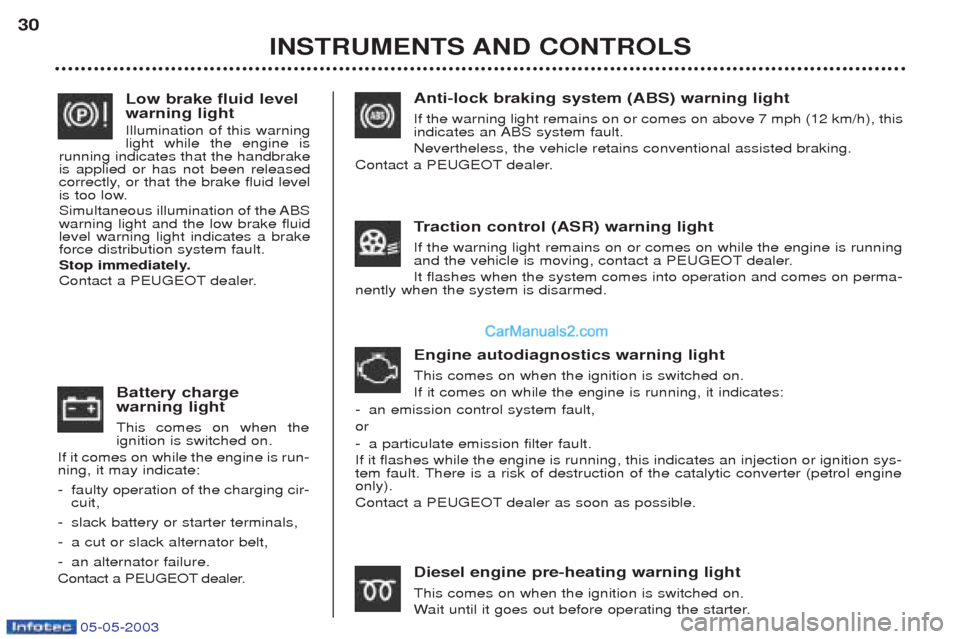

Low coolant level warning light Illumination of this warning light indicates that the coolant level is too
low.
Stop immediately.
W arning: allow the engine to cool before topping up.
The cooling circuit is pressurised.
To avoid any risk of scalding, unscrew the cap by two turns to allow the pressu-
re to drop.When the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
INSTRUMENTS AND CONTROLS 29

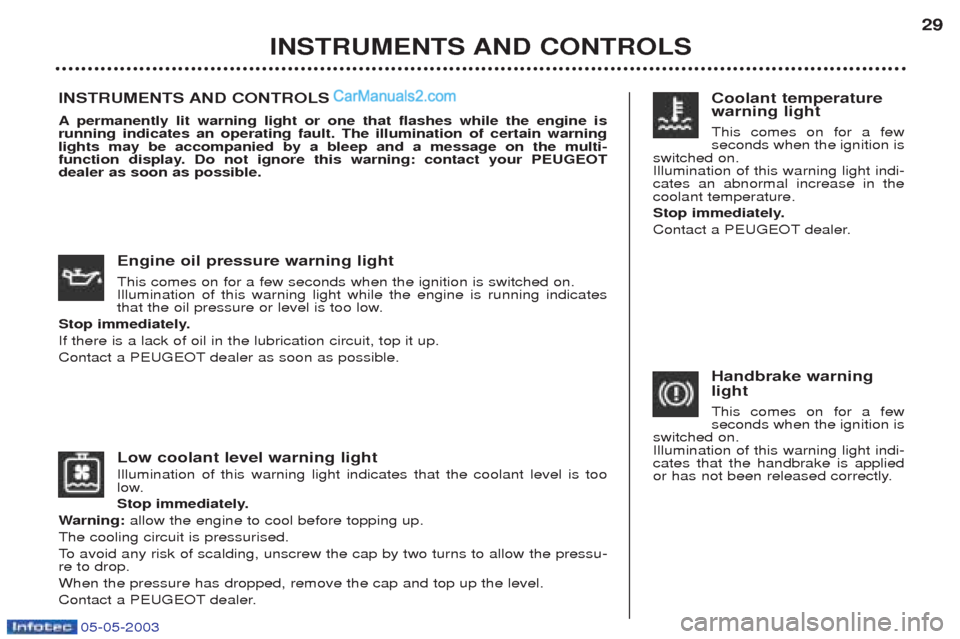

Engine oil pressure warning light This comes on for a few seconds when the ignition is switched on. Illumination of this warning light while the engine is running indicates
that the oil pressure or level is too low.
Stop immediately. If there is a lack of oil in the lubrication circuit, top it up.
Contact a PEUGEOT dealer as soon as possible.
INSTRUMENTS AND CONTROLS A permanently lit warning light or one that flashes while the engine is
running indicates an operating fault. The illumination of certain warning lights may be accompanied by a bleep and a message on the multi-
function display. Do not ignore this warning: contact your PEUGEOT dealer as soon as possible.
Handbrake warning light This comes on for a few seconds when the ignition is
switched on.Illumination of this warning light indi-cates that the handbrake is applied
or has not been released correctly.Coolant temperature warning light This comes on for a few seconds when the ignition is
switched on.Illumination of this warning light indi-cates an abnormal increase in thecoolant temperature.
Stop immediately.
Contact a PEUGEOT dealer.
Page 27 of 180
05-05-2003
Anti-lock braking system (ABS) warning light If the warning light remains on or comes on above 7 mph (12 km/h), this
indicates an ABS system fault. Nevertheless, the vehicle retains conventional assisted braking.
Contact a PEUGEOT dealer.
Traction control (ASR) warning light
If the warning light remains on or comes on while the engine is running
and the vehicle is moving, contact a PEUGEOT dealer. It flashes when the system comes into operation and comes on perma-
nently when the system is disarmed.
Diesel engine pre-heating warning light This comes on when the ignition is switched on. Wait until it goes out before operating the starter.
Engine autodiagnostics warning light This comes on when the ignition is switched on. If it comes on while the engine is running, it indicates:
- an emission control system fault,
or
-a particulate emission filter fault.
If it flashes while the engine is running, this indicates an injection or ignition sys-
tem fault. There is a risk of destruction of the catalytic converter (petrol engineonly).
Contact a PEUGEOT dealer as soon as possible.
INSTRUMENTS AND CONTROLS
30
Battery charge warning light This comes on when the ignition is switched on.
If it comes on while the engine is run-ning, it may indicate: - faulty operation of the charging cir- cuit,
- slack battery or starter terminals,
-a cut or slack alternator belt,
- an alternator failure.
Contact a PEUGEOT dealer.
Low brake fluid level warning light Illumination of this warning light while the engine is
running indicates that the handbrakeis applied or has not been released
correctly, or that the brake fluid level
is too low.
Simultaneous illumination of the ABS warning light and the low brake fluidlevel warning light indicates a brakeforce distribution system fault.
Stop immediately.
Contact a PEUGEOT dealer.
Page 28 of 180
05-05-2003
Water in diesel filter warning light
This comes on for a few seconds when the ignition is switched on. Illumination of this warning light indicates that there is water in the die-
sel filter.
There is a risk of damage to the injection system.
Contact a PEUGEOT dealer as soon as possible.
INSTRUMENTS AND CONTROLS 31
Passenger air bag disarmed warning light This comes on for a few seconds when the ignition is switched on. If the passenger air bag is disarmed, the warning light comes on when the ignition is switched on and stays on.
In all cases, if the warning light flashes, contact a PEUGEOT dealer.
Low fuel level warning light The warning light comes on for a few seconds when the ignition is swit- ched on.Illumination of this warning light while the engine is running indicates
that the fuel level is low.When the warning comes on, you have at least 8 litres of fuelleft.
Air bag warning light The warning light comes on for a few seconds when the ignition is swit- ched on.Illumination of this warning light while the engine is running indicates:
- a front air bag fault, or- a side air bag fault.
Contact a PEUGEOT dealer.
Front brake pad wear warning light Lighting of this warning light while the engine is running
and the vehicle is moving and whenyou press the brake pedal indicatesextreme wear of the front brakepads.
Contact a PEUGEOT dealer as soon as possible.
Electronic immobiliser key warning light This comes on for a few seconds when the ignition
is switched on. Flashing of this warning light, after the ignition has been switched on,
indicates an operating anomaly. If this warning light comes on (per- manently) after the ignition is swit-ched on, check the identification of
the key.
Contact a PEUGEOT dealer as soon as possible.
Page 29 of 180
05-05-2003
INSTRUMENTS AND CONTROLS
32

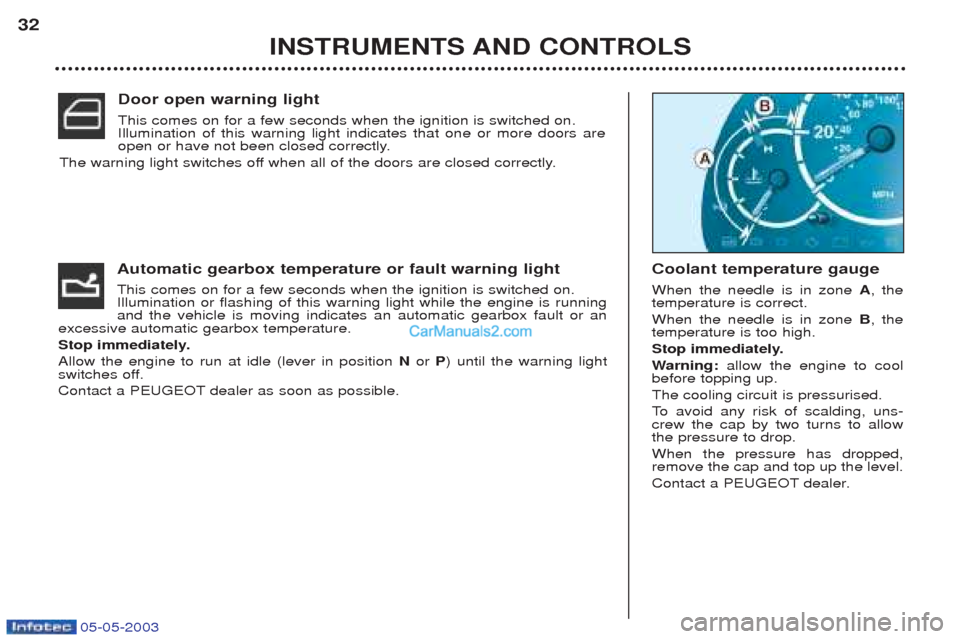

Automatic gearbox temperature or fault warning light This comes on for a few seconds when the ignition is switched on. Illumination or flashing of this warning light while the engine is runningand the vehicle is moving indicates an automatic gearbox fault or an
